SSH (Secure Shell) is a protocol used to securely connect to a remote server/system over a network. It operates on port 22 and provides encrypted communication, unlike Telnet which operates on port 23 and is not secure. TLS is used for securing HTTP connections (HTTPS) and operates on ports like 443, while RDP (Remote Desktop Protocol) is used for remote desktop connections and operates on port 3389.

For a web server that requires all connections to be encrypted, port 80 (HTTP) should be disabled. Port 80 is used for unencrypted web traffic, whereas port 443 is used for HTTPS, which provides encrypted communication.

Port 80 (HTTP): This port is used for unsecured web traffic. Disabling this port ensures that all web traffic must use HTTPS, which encrypts the data in transit.

Port 443 (HTTPS): This port is used for secure web traffic via SSL/TLS encryption. Keeping this port open ensures that secure connections can be made to the web server.

Other Ports:

Port 22: Used for SSH, providing secure remote access and file transfers.

Port 587: Used for secure email submission (SMTP) with encryption.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses the roles and security implications of various ports and protocols.

Cisco Networking Academy: Provides training on secure web server configuration and port management.

Network+ Certification All-in-One Exam Guide: Covers port security and best practices for securing web servers.

Understanding Subnetting:

The subnet mask 255.255.255.240 (or /28) indicates that each subnet has 16 IP addresses (14 usable addresses, 1 network address, and 1 broadcast address).

Calculating the Subnet Range:

Subnet Calculation: For the IP address 10.0.0.95 with a /28 subnet mask:

Network address: 10.0.0.80

Usable IP range: 10.0.0.81 to 10.0.0.94

Broadcast address: 10.0.0.95

Router Interface Configuration:

Broadcast Address Issue: The IP address 10.0.0.95 is the broadcast address for the subnet 10.0.0.80/28. Configuring a router interface with the broadcast address will cause routing issues as it is not a valid host address.

Comparison with Other Options:

The web server is in a different subnet: The web server (10.0.0.81) is within the same subnet range (10.0.0.80/28).

The IP address space is a class A network: While 10.0.0.0 is a Class A network, this does not explain the routing issue caused by the broadcast address.

The subnet is in a private address space: The private address space designation (RFC 1918) does not impact the routing issue related to the broadcast address configuration.

Resolution:

Reconfigure the router interface with a valid host IP address within the usable range, such as 10.0.0.94.

References:

CompTIA Network+ study materials on subnetting and IP address configuration.

In a data center that uses hot aisle/cold aisle ventilation, equipment is typically installed so that cool air enters from the cold aisle (front) and hot air is exhausted to the hot aisle (rear). This configuration maximizes cooling efficiency.

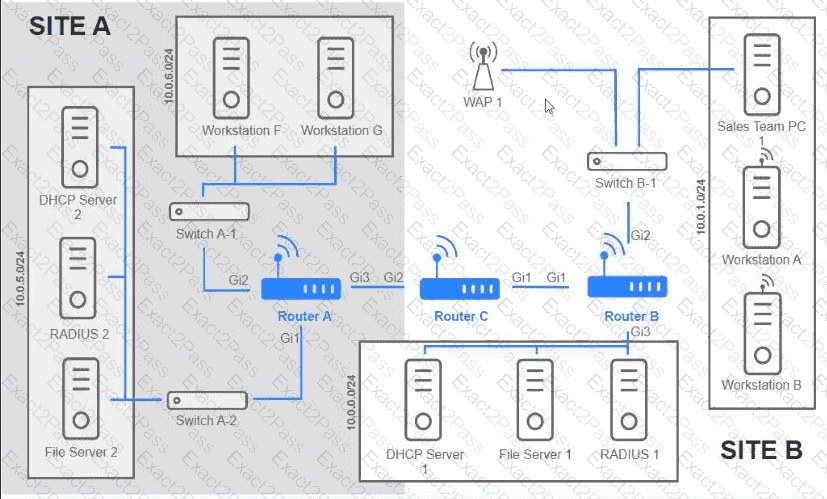

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

Routing Table:

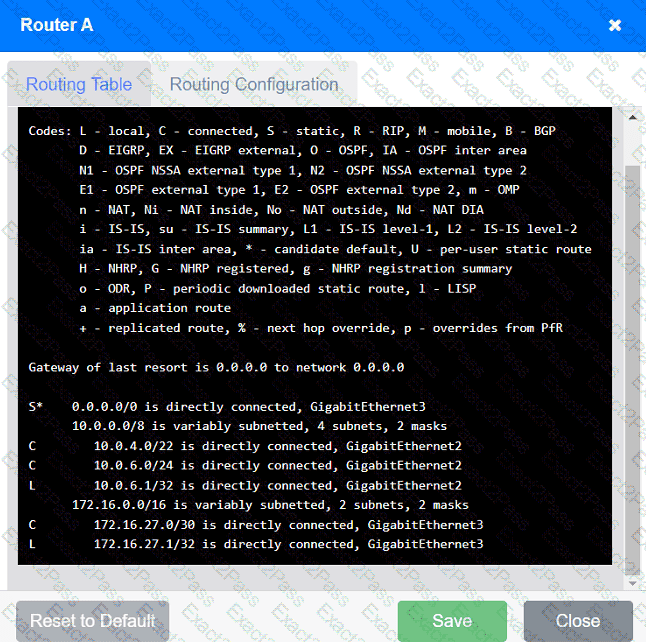

Step-by-Step SolutionDetailed Analysis and ConfigurationRouter A:Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

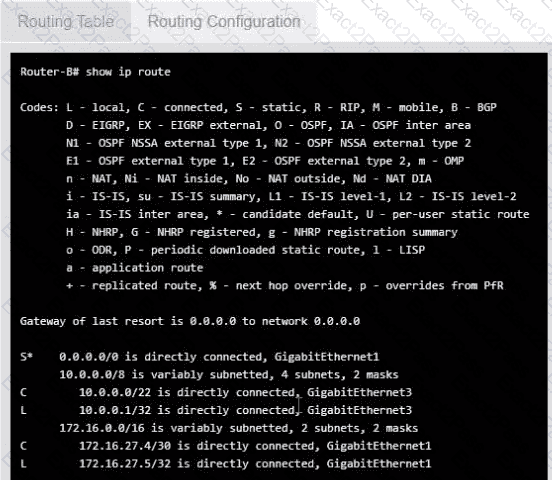

Routing Table:

Router B:Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

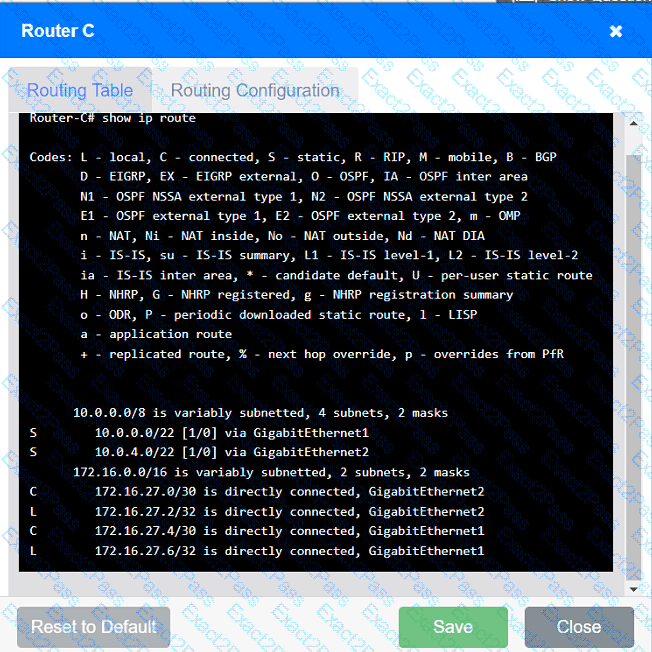

Routing Table:

Router C:10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

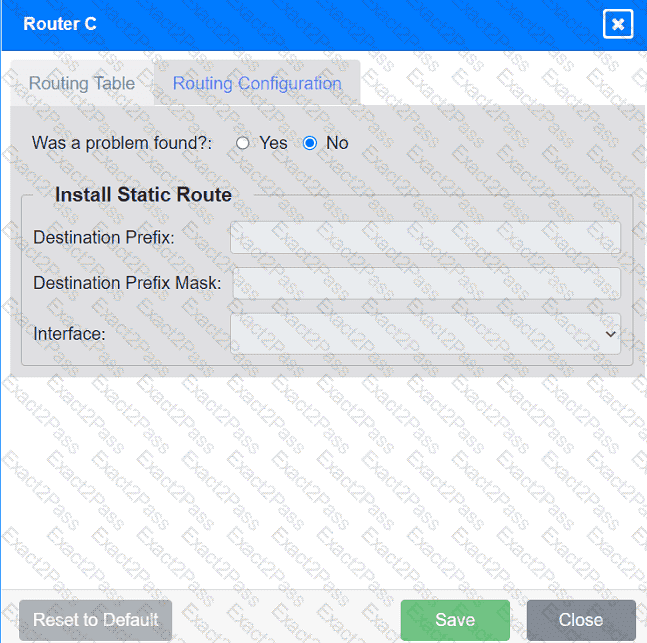

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):

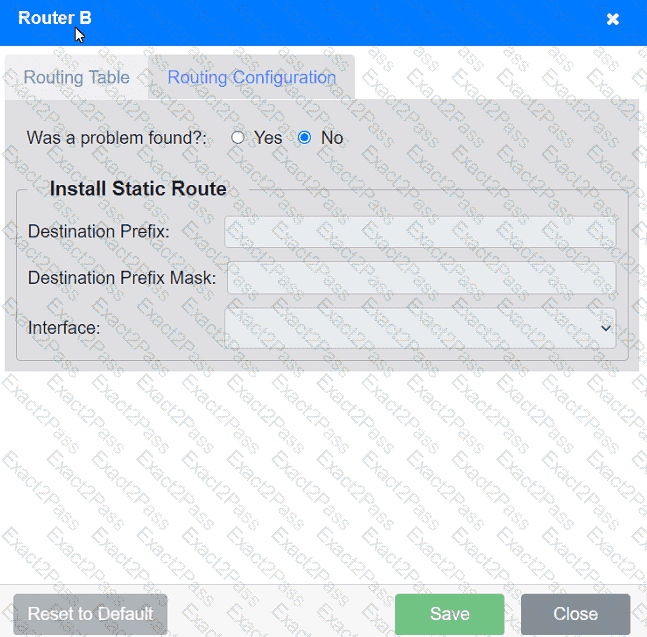

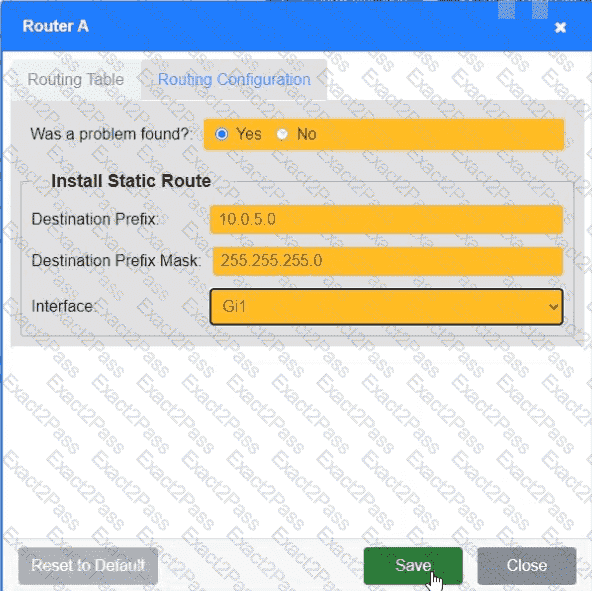

Configuration Steps:Router A:

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):

Router B:

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):

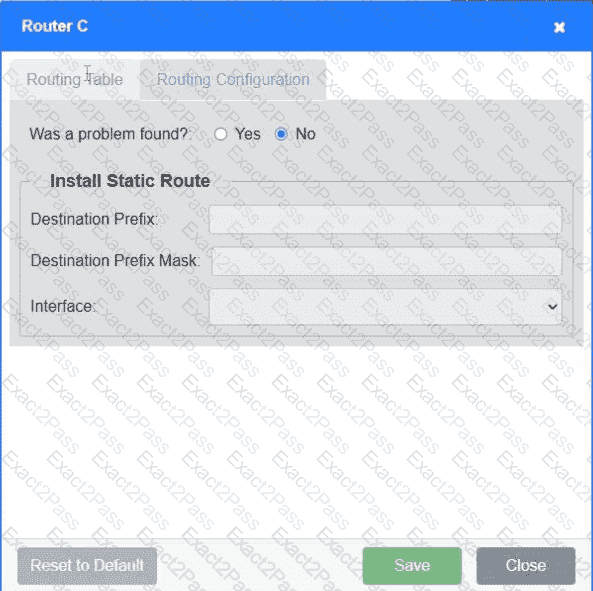

Router C:Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

Definition of MAC Flooding:

MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.

Impact of MAC Flooding:

CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and potential data interception.

Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.

Comparison with Other Attacks:

ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker's MAC address with the IP address of another device.

Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.

DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.

Preventive Measures:

Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.

Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.

References:

CompTIA Network+ study materials on network security threats and mitigation techniques.

Understanding Subnetting:

Original Network: 192.168.1.0/24 has a subnet mask of 255.255.255.0, which allows for 256 IP addresses (including network and broadcast addresses).

Objective: Divide this network into two equal subnets.

Calculating Subnet Mask:

New Subnet Mask: To divide 192.168.1.0/24 into two equal halves, we need to borrow one bit from the host portion of the address, changing the subnet mask to 255.255.255.128 (/25).

Subnet Breakdown:

First Subnet: 192.168.1.0/25 (192.168.1.0 - 192.168.1.127)

Second Subnet: 192.168.1.128/25 (192.168.1.128 - 192.168.1.255)

Verification:

Each subnet now has 128 IP addresses (126 usable IP addresses, excluding the network and broadcast addresses).

Comparison with Other Options:

255.255.0.0 (/16): Provides a much larger network, not dividing the original /24 network.

255.255.254.0 (/23): Also creates a larger subnet, encompassing more than the original /24 network.

255.255.255.0 (/24): Maintains the original subnet size, not dividing it.

References:

CompTIA Network+ study materials on subnetting and IP addressing.

Definition of ESP (Encapsulating Security Payload):

ESP is a part of the IPsec protocol suite used to provide confidentiality, integrity, and authenticity of data. ESP encrypts the payload and optional ESP trailer, providing data confidentiality.

ESP Functionality:

ESP can encrypt the entire IP packet, ensuring that the data within the packet is secure from interception or eavesdropping. It also provides options for data integrity and authentication.

ESP operates in two modes: transport mode (encrypts only the payload of the IP packet) and tunnel mode (encrypts the entire IP packet).

Comparison with Other Protocols:

AH (Authentication Header): Provides data integrity and authentication but does not encrypt the payload.

GRE (Generic Routing Encapsulation): A tunneling protocol that does not provide encryption.

UDP (User Datagram Protocol) and TCP (Transmission Control Protocol): These are transport layer protocols that do not inherently provide encryption. Encryption must be provided by additional protocols like TLS/SSL.

Use Cases:

ESP is widely used in VPNs (Virtual Private Networks) to ensure secure communication over untrusted networks like the internet.

References:

CompTIA Network+ study materials on IPsec and encryption.

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.

PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.

Digital Certificates: They are used to establish secure communications over networks, such as SSL/TLS for websites and secure email communication.

Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.

Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.

Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.

A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.

Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.

Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.

Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.

Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.

Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.

By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

Jumbo frames are Ethernet frames with a payload greater than the standard maximum transmission unit (MTU) of 1500 bytes. Configuring jumbo frames can reduce overhead and increase efficiency in storage networks by allowing more data to be sent in each frame, thus reducing the number of frames needed to transmit the same amount of data.

Reduced Overhead: By sending larger frames, the relative overhead for headers and acknowledgments is reduced.

Increased Efficiency: Larger frames mean fewer packets to process, leading to better utilization of network bandwidth and improved performance in high-throughput environments like storage networks.

Configuration: Requires support from all devices in the network path, including switches and network interface cards (NICs).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains jumbo frames and their benefits in reducing network overhead.

Cisco Networking Academy: Provides training on network optimization techniques, including the use of jumbo frames.

Network+ Certification All-in-One Exam Guide: Covers advanced Ethernet features, including jumbo frames and their configuration for improved network performance.

Broadcast traffic is sent to all nodes on the network. In a broadcast, a single packet is transmitted to all devices in the network segment. This is commonly used for tasks like ARP (Address Resolution Protocol) requests.

Broadcast Domain: All devices within the same broadcast domain will receive broadcast traffic.

Network Types: Ethernet networks commonly use broadcast traffic for certain functions, including network discovery and addressing.

IPv4 Broadcast: An IPv4 broadcast address (e.g., 255.255.255.255) ensures the packet is sent to all devices on the network.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains network traffic types, including broadcast, unicast, and multicast.

Cisco Networking Academy: Provides training on network communication methods and traffic types.

Network+ Certification All-in-One Exam Guide: Discusses different types of network traffic and their uses in various network scenarios.

Broadcast traffic is essential for network operations that require communication with all nodes, such as ARP requests or DHCP discovery messages.

Understanding Spanning Tree Protocol (STP):

STP is used to prevent network loops in Ethernet networks by creating a spanning tree that selectively blocks some redundant paths.

Default Priority Value:

Bridge Priority: STP uses bridge priority to determine which switch becomes the root bridge. The default bridge priority value for most switches is 32768.

Priority Range: The bridge priority can be set in increments of 4096, ranging from 0 to 61440.

Configuration and Verification:

When deploying a new switch, the network administrator can verify the bridge priority using commands such as show spanning-tree to ensure it is set to the default value of 32768.

Comparison with Other Values:

4096 and 8192: Lower than the default priority, indicating these would be manually configured for higher preference.

36684: A non-standard value, likely a result of specific configuration changes.

References:

CompTIA Network+ study materials on Spanning Tree Protocol and network configuration.

802.11ax, also known as Wi-Fi 6, is designed for high-density environments and improves device saturation and coverage compared to previous standards.

802.11ac: While it offers high throughput, it is not optimized for high-density environments as effectively as 802.11ax.

802.11ax (Wi-Fi 6): Introduces features like OFDMA, MU-MIMO, and BSS Coloring, which enhance performance in crowded environments, reduce latency, and increase the number of devices that can be connected simultaneously.

802.11g and 802.11n: Older standards that do not offer the same level of efficiency or support for high device density as 802.11ax.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers the 802.11 standards and their capabilities.

Cisco Networking Academy: Provides training on Wi-Fi technologies and best practices for high-density deployments.

Network+ Certification All-in-One Exam Guide: Discusses the various 802.11 standards and their applications in different environments.

In a data center that practices hot aisle/cold aisle ventilation, equipment should be installed so that the exhaust faces the rear of the rack. This setup ensures that hot air is expelled into the hot aisle, maintaining proper airflow and cooling efficiency.

Hot Aisle/Cold Aisle Configuration: Equipment intake should face the cold aisle where cool air is supplied, and exhaust should face the hot aisle where hot air is expelled.

Cooling Efficiency: Proper orientation of equipment helps maintain an efficient cooling environment by segregating hot and cold air, preventing overheating and improving energy efficiency.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses data center design principles, including hot aisle/cold aisle configurations.

Cisco Data Center Design Guide: Provides best practices for data center layout and equipment installation.

Network+ Certification All-in-One Exam Guide: Covers data center environmental controls and ventilation strategies.

Introduction to OSI Model:

The OSI model is a conceptual framework used to understand network interactions in seven layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

Application Layer:

The application layer (Layer 7) is the topmost layer in the OSI model. It provides network services directly to end-user applications. This layer facilitates communication between software applications and lower layers of the network protocol stack.

Reliance on Other Layers:

The application layer relies on the transport layer (Layer 4) for data transfer across the network. The transport layer ensures reliable data delivery through protocols like TCP and UDP.

The network layer (Layer 3) is responsible for routing packets to their destination.

The data link layer (Layer 2) handles node-to-node data transfer and error detection.

The physical layer (Layer 1) deals with the physical connection between devices.

Explanation of the Options:

A. It relies upon other layers for packet delivery: This is correct. The application layer depends on the lower layers (transport, network, data link, and physical) for the actual delivery of data packets.

B. It checks independently for packet loss: This is incorrect. Packet loss detection is typically handled by the transport layer (e.g., TCP).

C. It encrypts data in transit: This is incorrect. Encryption is typically handled by the presentation layer or at the transport layer (e.g., TLS/SSL).

D. It performs address translation: This is incorrect. Address translation is performed by the network layer (e.g., NAT).

Conclusion:

The application layer’s primary role is to interface with the end-user applications and ensure that data is correctly presented to the user. It relies on the underlying layers to manage the actual data transport and delivery processes.

References:

CompTIA Network+ guide covering the OSI model and the specific roles and functions of each layer (see page Ref 10†How to Use Cisco Packet Tracer).

Introduction to Security Zones:

Security zones are logical segments within a network designed to enforce security policies and control access. They help in segregating and securing different parts of the network.

Types of Security Zones:

Trusted Zone: This is the most secure zone, typically used for internal corporate networks where only trusted users have access.

Extranet: This zone allows controlled access to external partners, vendors, or customers.

VPN (Virtual Private Network): While VPNs are used to create secure connections over the internet, they are not a security zone themselves.

Public Zone: This zone is the least secure and is typically used for public-facing services accessible by anyone.

Trusted Zone Implementation:

The trusted zone is configured to include internal corporate users and resources. Access controls, firewalls, and other security measures ensure that only authorized personnel can access this zone.

Internal network segments, such as the finance department, HR, and other critical functions, are usually placed in the trusted zone.

Example Configuration:

Firewall Rules: Set up rules to allow traffic only from internal IP addresses.

Access Control Lists (ACLs): Implement ACLs on routers and switches to restrict access based on IP addresses and other criteria.

Segmentation: Use VLANs and subnetting to segment and isolate the trusted zone from other zones.

Explanation of the Options:

A. Extranet: Suitable for external partners, not for internal-only access.

B. Trusted: The correct answer, as it provides controlled access to internal corporate users.

C. VPN: A method for secure remote access, not a security zone itself.

D. Public: Suitable for public access, not for internal corporate users.

Conclusion:

Implementing a trusted zone is the best solution for controlling access within a corporate network. It ensures that only trusted internal users can access sensitive resources, enhancing network security.

References:

CompTIA Network+ guide detailing security zones and their implementation in a corporate network (see page Ref 9†Basic Configuration Commands).

Understanding Tracert:

tracert (Traceroute in Windows) is a command-line tool used to trace the path that packets take from the source to the destination. It records the route (the specific gateways at each hop) and measures transit delays of packets across an IP network.

Output Analysis:

The output shows a series of IP addresses with corresponding round-trip times (RTTs) in milliseconds.

The asterisks (*) indicate that no response was received from those hops, which is typical for routers or firewalls that block ICMP packets used by tracert.

Comparison with Other Tools:

netstat: Displays network connections, routing tables, interface statistics, and more, but does not trace packet routes.

tcpdump: Captures network packets for analysis, used for detailed network traffic inspection.

nmap: A network scanning tool used to discover hosts and services on a network, not for tracing packet routes.

Usage:

tracert helps identify the path to a destination and locate points of failure or congestion in the network.

References:

CompTIA Network+ study materials on network troubleshooting and diagnostic tools.

Definition of SD-WAN:

Software-Defined Wide Area Network (SD-WAN) is a technology that simplifies the management and operation of a WAN by decoupling the networking hardware from its control mechanism. It allows for centralized management and enhanced security.

Benefits of SD-WAN:

Reduced Provisioning Time: SD-WAN enables quick and easy deployment of new sites with centralized control and automation.

Security: Incorporates advanced security features such as encryption, secure tunneling, and integrated firewalls.

Scalability: Easily scales to accommodate additional sites and bandwidth requirements.

Comparison with Other Technologies:

VXLAN (Virtual Extensible LAN): Primarily used for network virtualization within data centers.

VPN (Virtual Private Network): Provides secure connections but does not offer the centralized management and provisioning efficiency of SD-WAN.

NFV (Network Functions Virtualization): Virtualizes network services but does not specifically address WAN management and provisioning.

Implementation:

SD-WAN solutions are implemented by deploying edge devices at each site and connecting them to a central controller. This allows for dynamic routing, traffic management, and security policy enforcement.

References:

CompTIA Network+ course materials and networking solution guides.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

The 802.11n standard supports MIMO (Multiple Input Multiple Output), which allows multiple antennas to increase data throughput and improve reliability. Additionally, it uses non-overlapping channels in the 5 GHz band (and optionally the 2.4 GHz band), making it a good choice for high-speed, interference-resistant wireless connections. (Reference: CompTIA Network+ Study Guide, Chapter on Wireless Technologies)

When working with fiber optic cables, one common issue is that the transmit (TX) and receive (RX) fibers might be reversed. The first step in troubleshooting should be to reverse the fibers at one end to ensure they are correctly aligned (TX to RX and RX to TX). This is a simple and quick step to rule out a common issue before moving on to more complex troubleshooting.References: CompTIA Network+ study materials.

Understanding 2.4GHz Interference:

The 2.4GHz frequency range is commonly used by many devices, including Wi-Fi, Bluetooth, and various industrial equipment. This can lead to interference and degraded performance.

Mitigation Strategies:

5GHz Frequency:

The 5GHz frequency band offers more channels and less interference compared to the 2.4GHz band. Devices operating on 5GHz are less likely to encounter interference from other devices, including industrial equipment.

Non-overlapping Channels:

In the 2.4GHz band, using non-overlapping channels (such as channels 1, 6, and 11) can help reduce interference. Non-overlapping channels do not interfere with each other, providing clearer communication paths for Wi-Fi signals.

Why Other Options are Less Effective:

Mesh Network: While useful for extending network coverage, a mesh network does not inherently address interference issues.

Omnidirectional Antenna: This type of antenna broadcasts signals in all directions but does not mitigate interference.

Captive Portal: A web page that users must view and interact with before accessing a network, unrelated to frequency interference.

Ad Hoc Network: A decentralized wireless network that does not address interference issues directly.

Implementation:

Switch Wi-Fi devices to the 5GHz band if supported by the network infrastructure and client devices.

Configure Wi-Fi access points to use non-overlapping channels within the 2.4GHz band to minimize interference.

References:

CompTIA Network+ study materials on wireless networking and interference mitigation.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

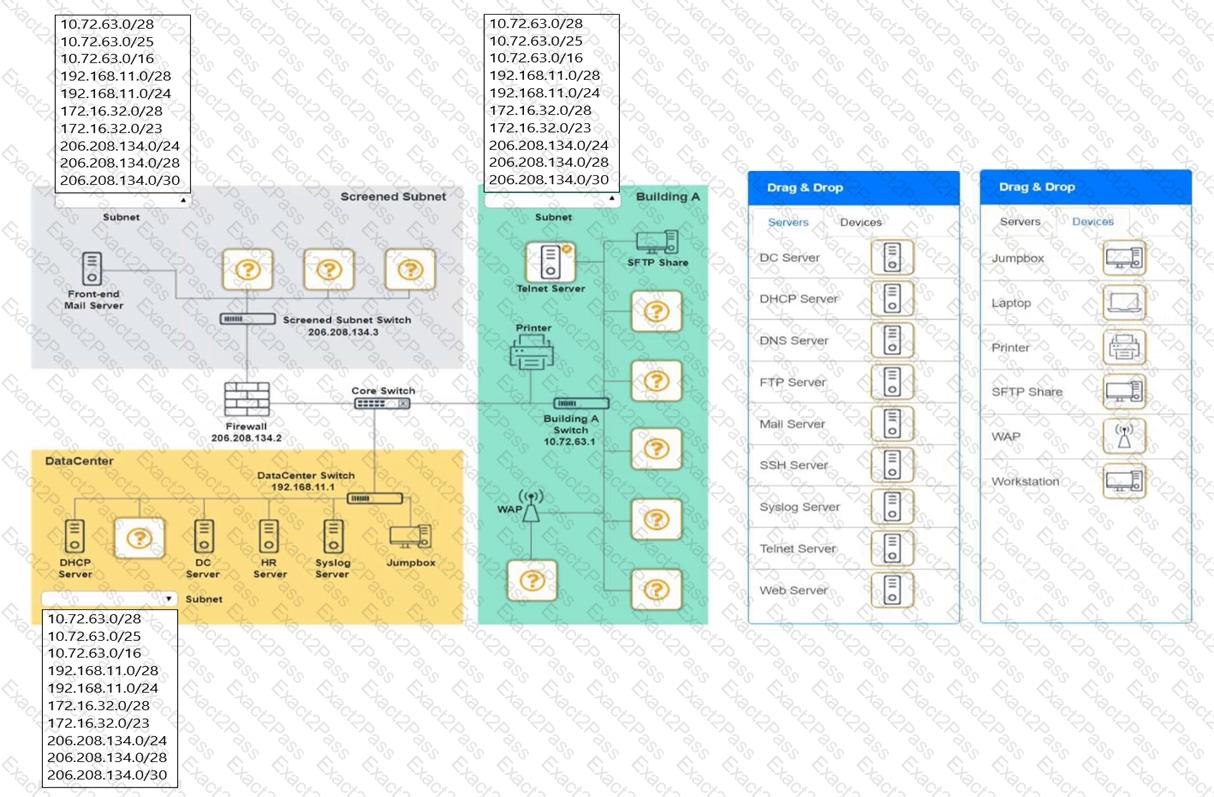

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

Introduction to Subinterfaces:

Subinterfaces are logical interfaces created on a single physical interface. They are used to enable a router to support multiple networks on a single physical interface.

Use Case for Subinterfaces:

Subinterfaces are commonly used in scenarios where VLANs are implemented. A router with a single physical LAN port can be configured with multiple subinterfaces, each associated with a different VLAN.

This setup allows the router to route traffic between different VLANs.

Example Configuration:

Consider a router with a single physical interface GigabitEthernet0/0 and two VLANs, 10 and 20.

interface GigabitEthernet0/0.10

encapsulation dot1Q 10

ip address 192.168.10.1 255.255.255.0

!

interface GigabitEthernet0/0.20

encapsulation dot1Q 20

ip address 192.168.20.1 255.255.255.0

The encapsulation dot1Q command specifies the VLAN ID.

Explanation of the Options:

A. A router with only one available LAN port: This is correct. Subinterfaces allow a single physical interface to manage multiple networks, making it essential for routers with limited physical interfaces.

B. A firewall performing deep packet inspection: Firewalls can use subinterfaces, but it is not a requirement for deep packet inspection.

C. A hub utilizing jumbo frames: Hubs do not use subinterfaces as they operate at Layer 1 and do not manage IP addressing.

D. A switch using Spanning Tree Protocol: STP is a protocol for preventing loops in a network and does not require subinterfaces.

Conclusion:

Subinterfaces provide a practical solution for routing between multiple VLANs on a router with limited physical interfaces. They allow network administrators to optimize the use of available hardware resources efficiently.

References:

CompTIA Network+ guide detailing VLAN configurations and the use of subinterfaces (see page Ref 9†Basic Configuration Commands).

DHCP snooping is a security feature on network switches that helps to prevent unauthorized (rogue) DHCP servers from assigning IP addresses to clients. By implementing DHCP snooping, the network administrator can restrict DHCP responses to authorized servers only, preventing unauthorized DHCP configurations, such as incorrect DNS IPs, from being assigned to clients. This helps prevent man-in-the-middle attacks where malicious actors misconfigure DNS to redirect users to fraudulent sites. (Reference: CompTIA Network+ Study Guide, Chapter on Network Security)

Understanding End-of-Support:

End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.

Risks of Keeping an End-of-Support Device:

Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.

Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.

Best Next Step - Replacement:

Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.

Planning and Execution: Plan for the replacement by evaluating the network's needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.

Comparison with Other Options:

Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.

Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.

Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.

References:

CompTIA Network+ study materials on network maintenance and security best practices.

Console Access:

Purpose: Console access to a switch allows administrators to configure and manage the device directly. This is typically done using a terminal emulator program on a computer.

RJ45 Connector:

Common Use: The RJ45 connector is widely used for Ethernet cables and also for console connections to network devices like switches and routers.

Console Cables: Console cables often have an RJ45 connector on one end (for the switch) and a DB9 serial connector on the other end (for the computer).

Comparison with Other Connectors:

ST (Straight Tip): A fiber optic connector used for networking, not for console access.

BNC (Bayonet Neill-Concelman): A connector used for coaxial cable, typically in older network setups and not for console access.

SFP (Small Form-factor Pluggable): A modular transceiver used for network interfaces, not for console access.

Practical Application:

Connection Process: Connect the RJ45 end of the console cable to the console port of the switch. Connect the DB9 end (or USB via adapter) to the computer. Use a terminal emulator (e.g., PuTTY, Tera Term) to access the switch’s command-line interface (CLI).

References:

CompTIA Network+ study materials on network devices and connectors.

EIGRP (Enhanced Interior Gateway Routing Protocol) has a default administrative distance (AD) value of 90 for internal routes. The administrative distance is used to rate the trustworthiness of routing information received from different routing protocols. EIGRP, developed by Cisco, has an AD of 90, which is lower than that of RIP (120) and OSPF (110), making it more preferred if multiple protocols provide a route to the same destination.References: CompTIA Network+ study materials.

SNMPv3 (Simple Network Management Protocol version 3) provides device monitoring with authentication and encryption. This enhances network visibility and security by ensuring that monitoring data is securely transmitted and access to network devices is authenticated.

Authentication: SNMPv3 includes robust mechanisms for authenticating users accessing network devices.

Encryption: It provides encryption to protect the integrity and confidentiality of the data being transmitted.

Network Management: SNMPv3 allows for detailed monitoring and management of network devices, ensuring better control and security.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers SNMP versions, their features, and security enhancements in SNMPv3.

Cisco Networking Academy: Provides training on implementing and securing SNMP for network management.

Network+ Certification All-in-One Exam Guide: Explains the benefits and security features of SNMPv3 for network monitoring.

Multitenancy is a cloud computing architecture where a single instance of software serves multiple customers or tenants. Each tenant's data is isolated and remains invisible to other tenants. Hosting a company application in the cloud to be available for both internal and third-party users fits this concept, as it allows shared resources and infrastructure while maintaining data separation and security. References: CompTIA Network+ Exam Objectives and official study guides.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core's cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.

Here are some detailed points about multimode fiber cables:

Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.

Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate. These modes travel at different angles, leading to reflections off the core-cladding boundary.

Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at different times, multimode fibers are suited for shorter distance applications compared to single-mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.

Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.

Network References:

CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.

Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.

Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.

Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

Definition of Jumbo Frames:

Jumbo frames are Ethernet frames with more than 1500 bytes of payload, typically up to 9000 bytes. They are used to improve network performance by reducing the overhead caused by smaller frames.

Why Switches Support Jumbo Frames:

Switches are network devices designed to manage data packets and can be configured to support jumbo frames. This capability enhances throughput and efficiency, particularly in high-performance networks and data centers.

Incompatibility of Other Devices:

Access Point: Primarily handles wireless communications and does not typically support jumbo frames.

Bridge: Connects different network segments but usually operates at standard Ethernet frame sizes.

Hub: A simple network device that transmits packets to all ports without distinguishing between devices, incapable of handling jumbo frames.

Practical Application:

Enabling jumbo frames on switches helps in environments where large data transfers are common, such as in storage area networks (SANs) or large-scale virtualized environments.

References:

CompTIA Network+ course materials and networking hardware documentation.

Explanation: MTTR (Mean Time to Repair) is the average time it takes to repair a system or service after a failure. It helps in measuring the downtime and planning recovery processes.

=================

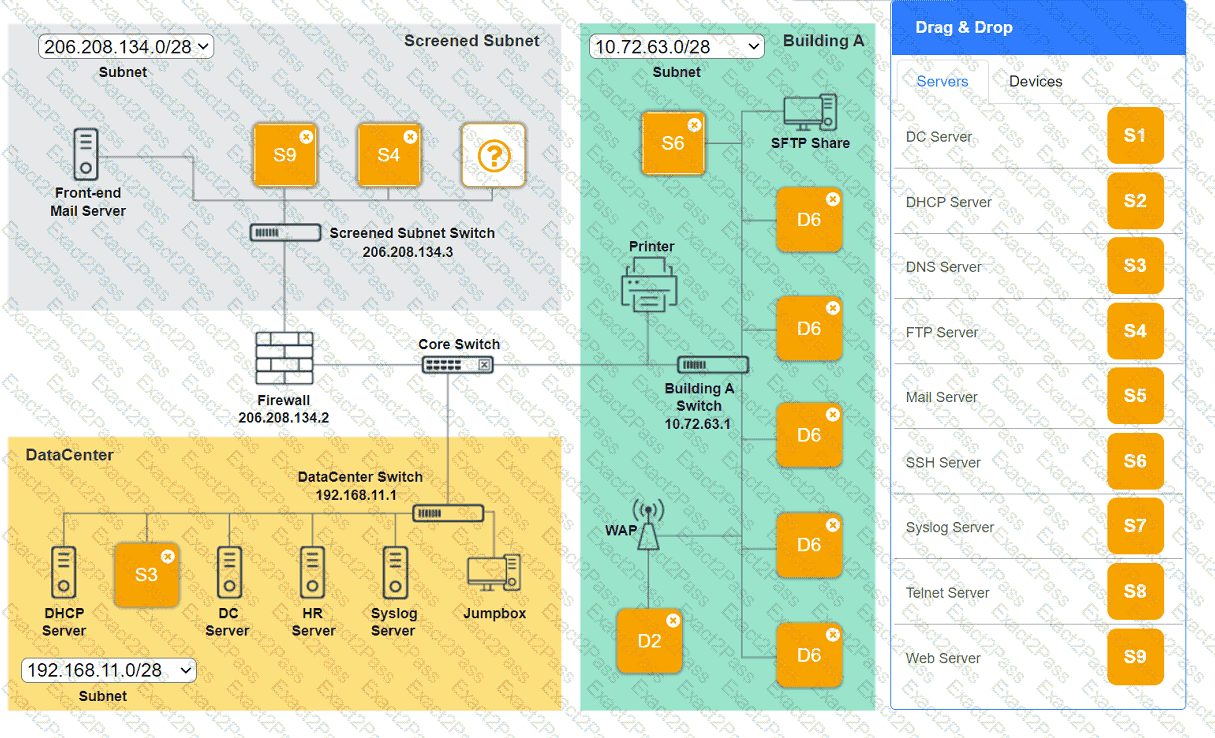

On the first exhibit, the layout should be as follows

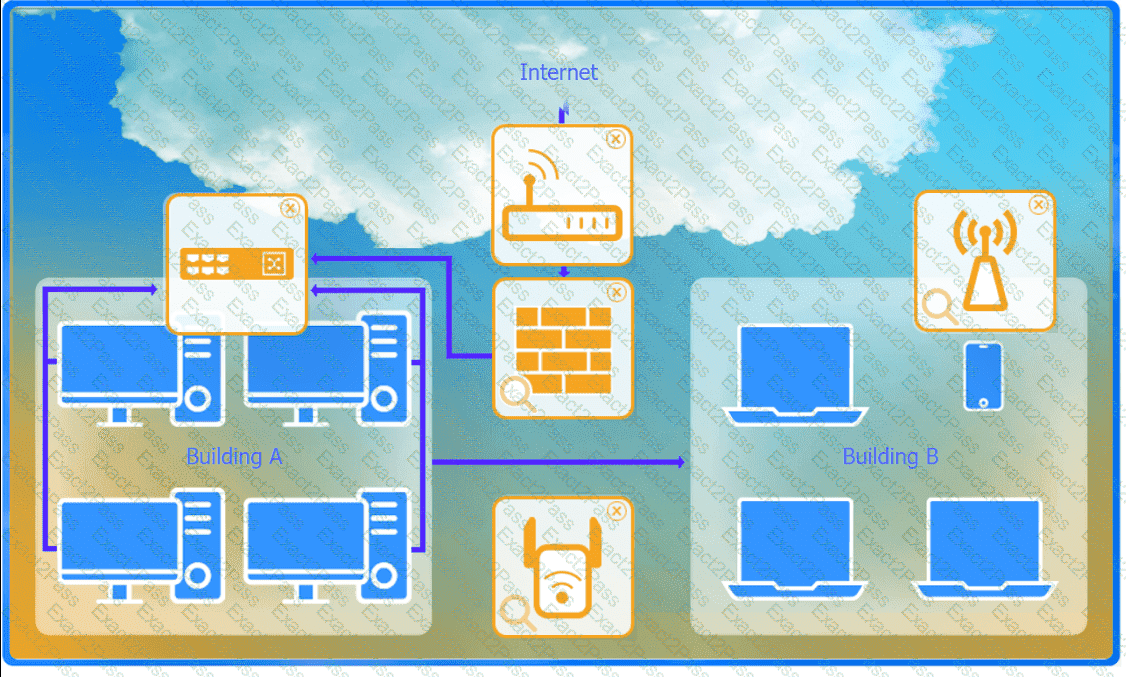

Exhibit 2 as follows

Access Point Name AP2

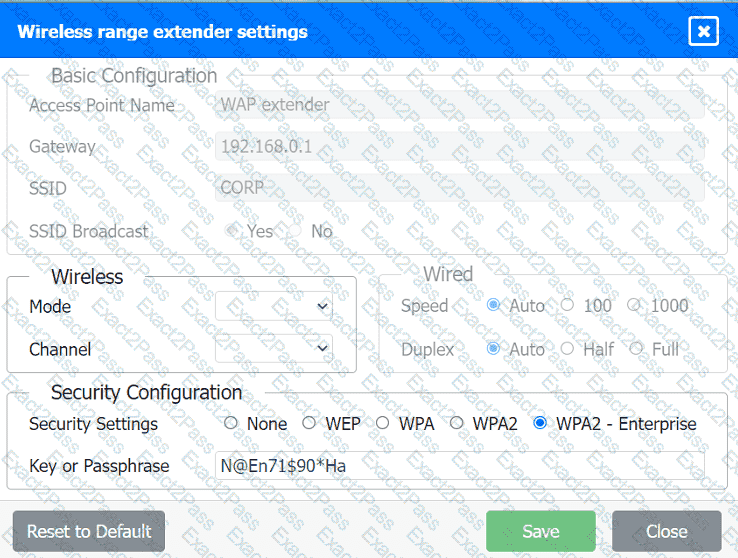

Exhibit 3 as follows

Access Point Name AP3

Explanation: After implementing a solution and putting preventive measures in place, the next step is to verify that the system is functioning correctly. This ensures that the issue has been fully resolved.

=================
