If the root volume runs out of space, it can cause operational issues and require recovery.

The root volume must always have sufficient space for system logs, configuration files, and core dumps.

1. Root Volume Ran Out of Space:

When a mainboard is replaced, the system configuration stored in the root volume may need to be restored or recovered.

2. Mainboard Was Replaced Following an NMI Panic:

C. Root volume migrate was performed:

Root volume migration is a normal operation and does not typically cause the need for root volume recovery.

D. The cluster configuration is out of sync on the volume:

While this can cause configuration issues, it does not directly lead to root volume recovery.

Why Other Options Are Incorrect:

"ONTAP Root Volume Management Guide" explains scenarios leading to root volume issues and recovery procedures.

References:

When a WAFL inconsistency is detected, the first step is to stabilize the system before attempting any repairs or recovery.

Stabilize the System:

Ensure that the system is not experiencing ongoing hardware or software issues.

Avoid making changes to the affected aggregate or volume until the system is stable.

Assess the Impact:

Determine which aggregates or volumes are affected and the severity of the inconsistency.

Steps to Handle WAFL Inconsistency:

A. Run wafliron:

Running wafliron should only be done after stabilizing the system and under guidance from NetApp Support.

C. Force offline the affected aggregate:

Forcing an aggregate offline without proper assessment can lead to data loss.

D. Run a dump to null:

Dumping data is not relevant for resolving a WAFL inconsistency.

Why Other Options Are Incorrect:

"NetApp WAFL Troubleshooting Guide" specifies that stabilization is the first step after detecting inconsistencies.

NetApp Support documentation provides guidelines for handling WAFL inconsistencies safely.

References:

 Overview of IOM 12 Module:

The IOM 12 module is used in NetApp storage shelves for SAS connectivity.

 Key Features of IOM 12:

SAS Ports: The IOM 12 module has four SAS ports (two IN and two OUT) to support daisy-chaining of shelves and provide redundancy.

ACP (Alternate Control Path): The IOM 12 includes an Ethernet port for ACP, which is used for out-of-band management and monitoring of the storage shelves.

 Elimination of Other Options:

Option A is incorrect because the module has four SAS ports, not two.

Option C is incorrect because the module does include an Ethernet port for ACP.

 NetApp Reference Documentation:

"NetApp Hardware Universe" lists the specifications of the IOM 12 module, including its SAS and ACP capabilities.

The "ONTAP Shelf Installation Guide" discusses ACP and its role in shelf management.

 Purpose of the diskcopy Command:

The diskcopy command is used in the ONTAP nodeshell environment to perform a low-level sector-by-sector copy of data from one disk to another. This is typically used during data recovery or diagnostics.

 How It Works:

The command copies all sectors from the source disk to the destination disk without any regard for file system or metadata structures.

It is commonly used when replicating the exact state of a failing disk to a spare for further analysis or recovery.

 Key Notes:

The destination disk must be of the same or larger capacity than the source disk.

The operation is typically disruptive and not suitable for production use.

 NetApp Reference Documentation:

Found in the "ONTAP Command Line Manual" for nodeshell utilities. The diskcopy process is highlighted as a low-level disk cloning operation.

To ensure that POST (Power-On Self-Test) runs on boot, the setenv POST=true command is used at the LOADER prompt. This command enables the system to perform POST diagnostics before proceeding with the boot process.

POST Purpose: POST checks system hardware components (such as memory, disk, and controllers) for faults before loading the ONTAP kernel.

How to Use:

At the LOADER prompt, type:

Key Details:arduino

Copy code

setenv POST=true

Save the configuration and reboot the system.

B. bye:

This command restarts the system but does not ensure that POST runs on boot.

C. boot_diag:

This command boots the system into diagnostic mode but is not directly related to enabling POST on boot.

D. boot_ontap:

This command boots ONTAP but skips POST if it is not explicitly enabled.

Why Other Options Are Incorrect:

NetApp "ONTAP System Boot and Recovery Guide" describes setenv POST=true for enabling POST diagnostics.

References:

 Steps to Unfail a Disk in Maintenance Mode:

When a disk is marked as "failed," it is added to the Failed Disk Registry and marked as unusable by the system. Unfailing a disk involves removing it from this registry and resetting its state.

 Step 1: Remove the Disk from the Failed Disk Registry

Use the command: registry remove to delete the disk from the Failed Disk Registry. This clears its "failed" status.

 Step 2: Use the Disk Unfail Command

Execute the disk unfail command to reset the disk status and make it available for use.

 Key Notes:

After unfailing, the disk will be treated as a spare and must be reassigned or re-added to an aggregate.

If the disk remains failed after these steps, physical hardware issues may need to be addressed.

 NetApp Reference Documentation:

The "ONTAP Maintenance Mode Guide" and "Disk Management Guide" provide detailed instructions for handling failed disks and using the disk unfail command.

If the ENVIRONMENT section of the latest MANAGEMENT LOG AutoSupport message is empty, the reason can typically be found in the AUTOSUPPORT-BUDGET.XML file. This file contains information about AutoSupport resource allocation, including what sections were processed and any limits that were hit.

AUTOSUPPORT-BUDGET.XML:

This file provides a summary of the resources (budget) allocated for different AutoSupport sections.

If the ENVIRONMENT section is missing or empty, the AUTOSUPPORT-BUDGET.XML file will indicate whether it was skipped due to resource constraints or configuration limits.

Why Other Sections Do Not Apply:

B. HEADERS: This section only contains metadata about the AutoSupport message, such as timestamps and node details. It does not explain missing sections.

C. AUTOSUPPORT-HISTORY.XML: This file tracks the history of AutoSupport messages but does not provide information about missing sections.

D. MANIFEST.XML: This file lists the contents of the AutoSupport bundle but does not provide details on why a specific section is empty.

Key Details:

"ONTAP AutoSupport Troubleshooting Guide" explains the role of the AUTOSUPPORT-BUDGET.XML file in diagnosing missing or incomplete AutoSupport sections.

References:

In maintenance mode, the command disk show –v provides detailed information about disk ownership. This includes the current owner, previous owner, and disk health status.

Enter maintenance mode, and run:

How to Use:disk show –v

The output will display ownership information for each disk, including its RAID group and current assignment.

A. sysconfig –v:

This command provides system configuration details but does not show disk ownership.

C. aggr status:

This command shows the status of aggregates, not individual disks or their ownership.

D. storage show disk –p:

This command is not valid in maintenance mode.

Why Other Options Are Incorrect:

NetApp "Maintenance Mode Commands Guide" highlights disk show –v as the command to check disk ownership.

References:

 Purpose of the -cfo-only true Option:

This option is used during the giveback process in a NetApp cluster to control which aggregates are returned to the original node.

By specifying -cfo-only true, only the data aggregates are given back to the original node, while the root aggregate remains with the takeover node.

 Use Case:

This command is helpful when you want to test the aggregate giveback functionality or if the root aggregate requires further investigation or maintenance before returning it to the original node.

 NetApp Reference Documentation:

The "ONTAP High-Availability Configuration Guide" and "Cluster Failover Management Guide" detail the behavior of the -cfo-only option during giveback scenarios.

To recover an inconsistent aggregate, the following tools can be used:

What it does:This tool is used to perform a consistency check on WAFL metadata. It identifies and attempts to fix WAFL inconsistencies in aggregates.

When to use:Run wafl_check after identifying WAFL inconsistencies to repair minor metadata issues.

1. wafl_check

What it does:This tool repairs WAFL inconsistencies by reconstructing metadata. It is more powerful than wafl_check and should only be run under NetApp Support guidance, as improper use can result in data loss.

When to use:Use wafliron for severe WAFL inconsistencies that cannot be resolved by wafl_check.

2. wafliron

A. file check:

This is not a valid NetApp tool.

C. wafl snapiron:

While similar in name, snapiron is used for snapshot recovery, not aggregate recovery.

Why Other Options Are Incorrect:

"ONTAP Aggregate Troubleshooting Guide" details the usage of wafl_check and wafliron.

NetApp Support documentation provides guidelines for recovering inconsistent aggregates.

References:

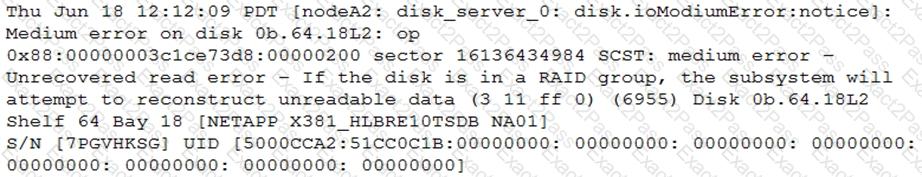

 Analyzing the Error in the Event Log:

The log entry indicates a medium error on a disk, suggesting an unrecoverable read issue.

While the RAID subsystem attempts to reconstruct unreadable data, this error might indicate a firmware issue or a compatibility problem with the disk.

 Why Reviewing Firmware and Known Issues Is Important:

Medium errors can sometimes result from outdated or incompatible firmware.

By reviewing firmware release notes and known issues for the disk model (NETAPP X381_HLBRE10TSDB in this case), you can identify if this is a known issue and resolve it by updating the firmware.

 Other Options:

Sanitize the disk (Option A): Not relevant here, as sanitization is used for secure data erasure.

Reseat the disk (Option B): Useful for addressing hardware seating issues, but not the first step here.

Diskcopy to a spare (Option D): This is a last-resort recovery step and not the primary action.

 NetApp Reference Documentation:

"ONTAP Disk Management Guide" and "Disk Firmware Release Notes" detail how to handle medium errors and update firmware.

When a volume is deleted in a NetApp ONTAP system, it is placed in the Volume Recovery Queue. By default, the volume remains in this recovery queue for 12 hours before being permanently deleted. This allows administrators to recover mistakenly deleted volumes within the set retention period.

Explanation of Default Behavior:

Volume Recovery Queue:

This is a feature in NetApp ONTAP that acts as a safety mechanism, providing a grace period for recovering deleted volumes.

The default retention period for volumes in the recovery queue is 12 hours, as confirmed by the NetApp KB: "How to use the Volume Recovery Queue."

How to Recover a Deleted Volume:

Administrators can recover a deleted volume as long as it remains in the recovery queue and the retention period has not expired.

Use the ONTAP CLI command:

arduino

Copy code

cluster::> volume recovery-queue recover -vserver -volume

This command restores the volume back to its original state.

How to Check the Volume Recovery Queue:

To view volumes in the recovery queue and their expiration times, use:

arduino

Copy code

cluster::> volume recovery-queue show

Changing the Default Retention Period:

While the default period is 12 hours, it can be adjusted by administrators to fit specific organizational requirements. This is done via system settings or policies.

Why the Other Options Are Incorrect:

B. 48 hours: Incorrect. The default retention period is not 48 hours; it is 12 hours by default.

C. 72 hours: Incorrect. While a custom configuration could allow this, it is not the default.

D. 24 hours: Incorrect. Although this was previously thought to be the default, NetApp documentation explicitly states it is 12 hours.

References:

NetApp Knowledge Base Article: "How to use the Volume Recovery Queue".

NetApp ONTAP Documentation: Volume Recovery and Data Management Procedures.

A. Ignoring NetApp Active IQ health risks

Explanation:NetApp Active IQ provides proactive monitoring and alerts for system health risks, including risks related to WAFL inconsistencies. Ignoring these alerts can lead to unresolved issues such as metadata corruption, hardware failures, or system misconfigurations, increasing the chances of WAFL inconsistencies.

Examples of Active IQ Risks:

Disk health warnings.

High write latency or metadata bottlenecks.

Aggregates running out of space.

C. Using outdated disk firmware

Explanation:Outdated disk firmware can cause performance issues, drive failures, or incorrect handling of I/O operations, potentially leading to WAFL inconsistencies. Disk firmware updates often include fixes for critical issues that improve reliability and prevent data corruption.

Importance:Keeping firmware updated ensures compatibility with ONTAP and minimizes risks of disk-level errors that can propagate to WAFL.

Why the Other Options Are Incorrect:

B. Constantly running at high load:

Running at high load can impact performance but does not directly cause WAFL inconsistencies. WAFL is designed to handle high I/O loads efficiently.

D. Upgrading frequently:

Frequent upgrades, when performed correctly, do not increase the chances of WAFL inconsistencies. However, improperly executed upgrades or skipping recommended steps might introduce risks.

References:

NetApp Knowledge Base: Articles on Active IQ health checks and disk firmware management.

ONTAP System Administration Guide: Recommendations for preventing WAFL inconsistencies.

To analyze the provided panic error, the two sections of AutoSupport that are essential for investigation are:

What it is:HA-RASTRACE.TGZ contains HA (High Availability) system trace logs. It records hardware diagnostics, error traces, and the HA system's response to hardware events. These logs are critical when analyzing hardware-related panics, including those caused by PCI errors.

Why it's relevant to the panic:In the given panic message, the NMI (Non-Maskable Interrupt) error originates from a Qlogic FC 16G adapter. HA-RASTRACE.TGZ will provide detailed diagnostics, including the error reporting from the HA interconnect and other hardware diagnostics. Specifically, it may include information about how the system detected the PCI fault and any actions taken to protect the system state.

How to analyze:

Extract the HA-RASTRACE.TGZ file from the AutoSupport bundle.

Review hardware-related trace messages for entries associated with the PCI bus or the Qlogic FC adapter.

Look for specific error codes or keywords like PCI Error, NMI, or Qlogic.

References:

NetApp’s "AutoSupport Logs and Diagnostics Guide" highlights HA-RASTRACE.TGZ as a primary resource for debugging hardware faults.

The "Panic Troubleshooting Guide" for ONTAP systems specifies HA-RASTRACE as a key source for identifying NMI-related errors.

1. HA-RASTRACE.TGZ

What it is:SSRAM-LOG records low-level hardware error details, including PCI device register states and uncorrectable memory errors. It is particularly useful for analyzing errors originating in peripheral hardware like network or storage adapters connected via PCI.

Why it's relevant to the panic:The panic message explicitly references a PCI Error NMI caused by a Qlogic FC adapter. SSRAM-LOG captures detailed state information for PCI devices, which can help identify whether the fault originated in the adapter hardware, the PCI bus, or another related component.

How to analyze:

Extract the SSRAM-LOG from the AutoSupport bundle.

Search for PCI-related errors, including the specific error source IDs (e.g., ErrSrcID(CorrSrc(0xf00),UCorrSrc(0x18))).

Review the log entries to confirm the root cause of the NMI.

References:

The "Hardware Diagnostics and Troubleshooting Guide for ONTAP" lists SSRAM-LOG as a key file for debugging PCI errors.

NetApp’s documentation on PCI diagnostics emphasizes the use of SSRAM-LOG for validating hardware-level faults.

2. SSRAM-LOG
