Explanation

Correct Answer: 4.0.0

*****************************************

As per semver.org semantic versioning specification:

Given a version number MAJOR.MINOR.PATCH, increment the:

- MAJOR version when you make incompatible API changes.

- MINOR version when you add functionality in a backwards compatible manner.

- PATCH version when you make backwards compatible bug fixes.

As per the scenario given in the question, the API implementation is completely changing its behavior. Although the format of the time is still being maintained as hh:mm:ss and there is no change in schema w.r.t format, the API will start functioning different after this change as the times are going to come completely different.

Example: Before the change, say, time is going as 09:00:00 representing the PST. Now on, after the change, the same time will go as 18:00:00 as Central European Summer Time is 9 hours ahead of Pacific Time.

>> This may lead to some uncertain behavior on API clients depending on how they are handling the times in the API response. All the API clients need to be informed that the API functionality is going to change and will return in CEST format. So, this considered as a MAJOR change and the version of API for this new change would be 4.0.0

Explanation

Correct Answer: Invoke the system API deployed to the primary environment; add timeout and retry logic to the process API to avoid intermittent failures; if it still fails, invoke the system API deployed to the DR environment

*****************************************

There is one important consideration to be noted in the question which is - System API in DR environment provides only 20% of the rate limiting offered by the primary environment. So, comparitively, very less calls will be allowed into the DR environment API opposed to its primary environment. With this in mind, lets analyse what is the right and best fault-tolerant invocation strategy.

1. Invoking both the system APIs in parallel is definitely NOT a feasible approach because of the 20% limitation we have on DR environment. Calling in parallel every time would easily and quickly exhaust the rate limits on DR environment and may not give chance to genuine intermittent error scenarios to let in during the time of need.

2. Another option given is suggesting to add timeout and retry logic to process API while invoking primary environment's system API. This is good so far. However, when all retries failed, the option is suggesting to invoke the copy of process API on DR environment which is not right or recommended. Only system API is the one to be considered for fallback and not the whole process API. Process APIs usually have lot of heavy orchestration calling many other APIs which we do not want to repeat again by calling DR's process API. So this option is NOT right.

3. One more option given is suggesting to add the retry (no timeout) logic to process API to directly retry on DR environment's system API instead of retrying the primary environment system API first. This is not at all a proper fallback. A proper fallback should occur only after all retries are performed and exhausted on Primary environment first. But here, the option is suggesting to directly retry fallback API on first failure itself without trying main API. So, this option is NOT right too.

This leaves us one option which is right and best fit.

- Invoke the system API deployed to the primary environment

- Add Timeout and Retry logic on it in process API

- If it fails even after all retries, then invoke the system API deployed to the DR environment.

Explanation

Correct Answer: At the API proxy

*****************************************

>> API Policies can be enforced at two places in Mule platform.

>> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the API Proxy.

Understanding JSON Threat Protection Policies:

JSON Threat Protection policies are used to protect APIs from attacks that exploit JSON payloads, such as oversized payloads, deeply nested objects, and excessive array elements. This helps prevent Denial of Service (DoS) attacks and other malicious payload-related threats.

These policies are typically applied to safeguard APIs that are directly exposed to external clients, where the risk of receiving malicious payloads is highest.

API-led Connectivity Layers:

Experience Layer: This layer is designed to expose APIs to end-users or external API clients, often acting as the interface that interacts with users or applications.

Process Layer: This layer is used for orchestration and aggregation of data from various System APIs, typically operating within a trusted environment and not directly exposed to external clients.

System Layer: This layer provides access to backend systems and databases, often within the organization’s secure environment and not directly accessible to external clients.

Evaluating the Options:

Option A (All layers): While JSON Threat Protection can technically be applied to all layers, it is most commonly applied at the Experience layer, where APIs are exposed to external traffic and are more vulnerable to attacks.

Option B (System layer): The System layer is generally not exposed to external clients directly, so JSON Threat Protection is less critical here.

Option C (Process layer): Similar to the System layer, the Process layer is typically internal and not exposed directly to external clients, so JSON Threat Protection is less commonly applied.

Option D (Correct Answer): The Experience layer is the correct answer because it is the layer that directly interacts with external clients, making it the primary target for malicious payloads. Applying JSON Threat Protection here effectively protects the application network from external threats.

Conclusion:

Option D is the correct answer, as the Experience layer is the most common layer for applying JSON Threat Protection policies to protect against external attacks.

For further reference, consult MuleSoft's documentation on API security policies and best practices for securing APIs at the Experience layer.

Understanding Nonfunctional Requirements (NFRs):

The NFRs in this context are related to security measures implemented for the Web API, such as rate limiting, LDAP-based authentication, JSON threat protection, and IP allowlist policies.

Evaluating the Options:

Option A (Correct Answer): The IP allowlist policy restricts access to known subnets, ensuring that API invocations come from a defined range of IPs.

Option B (Correct Answer): Basic Authentication with LDAP enforces a username/password validation, satisfying an NFR for identity verification.

Option C: Masking sensitive data is not part of the listed NFRs, as none of the mentioned policies address data masking.

Option D: XML threat protection is not mentioned, so this option is incorrect.

Option E: While rate-limiting implies performance control, it does not directly enforce a specific performance expectation.

Conclusion:

Options A and B are correct as they directly address the implemented security measures related to IP range restrictions and username/password authentication.

Refer to MuleSoft's documentation on API security policies for details on LDAP, rate limiting, and allowlist policies.

Explanation

Correct Answer: Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.

*****************************************

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

When a Basic Authentication policy is applied to an API on CloudHub but clients can still access the API without authentication, the likely cause is a missing Autodiscovery element. Here’s how this affects API security:

Autodiscovery in MuleSoft:

The Autodiscovery element is essential for linking an API implementation deployed in CloudHub with its API instance defined in API Manager. This connection allows the policies applied in API Manager, such as Basic Authentication, to be enforced on the deployed API.

Why Option B is Correct:

Without Autodiscovery, the deployed application does not "know" about the policies configured in API Manager, resulting in unrestricted access. Adding Autodiscovery enables the API to enforce the policies correctly.

Explanation of Incorrect Options:

Option A (incorrect Exchange version) would not cause bypassing of security policies.

Option C (missing client applications) does not impact authentication policy enforcement.

Option D (worker restart) is irrelevant to policy enforcement.

ReferencesRefer to MuleSoft documentation on Autodiscovery configuration and linking API Manager policies for additional information on setting up secure API policies​.

Anypoint Platform allows organizations to integrate one external identity provider (IdP) for identity and access management (IAM), supporting SSO and centralized user authentication.

Identity Provider Limit:

Anypoint Platform supports configuring a single IdP for the organization, which can be used to authenticate all users across business groups and environments within that Anypoint organization.

Explanation of Correct Answer (C):

Configuring one IdP ensures centralized and secure identity management, aligned with MuleSoft’s architecture.

Explanation of Incorrect Options:

Option A is incorrect because SAML 2.0 bearer tokens from external IdPs can indeed be used for invoking Anypoint Platform APIs.

Option B is incorrect as client providers can be assigned to specific business groups and environments.

Option D is incorrect since only identity management strictly requires an IdP; client management does not.

ReferencesFor further details on identity management options, consult MuleSoft documentation on Anypoint Platform’s IAM capabilities​.

Explanation

Correct Answer: A CloudHub worker fails with an out-of-memory exception.

*****************************************

>> An AWS Region itself going down will definitely result in an outage as it does not matter how many workers are assigned to the Mule App as all of those in that region will go down. This is a complete downtime and outage.

>> Extended outage of API manager during initial deployment of API implementation will of course cause issues in proper application startup itself as the API Autodiscovery might fail or API policy templates and polices may not be downloaded to embed at the time of applicaiton startup etc... there are many reasons that could cause issues.

>> A network outage onpremises would of course cause the Order Management System not accessible and it does not matter how many workers are assigned to the app they all will fail and cause outage for sure.

The only option that does NOT result in a service outage is if a cloudhub worker fails with an out-of-memory exception. Even if a worker fails and goes down, there are still other workers to handle the requests and keep the API UP and Running. So, this is the right answer.

Explanation

Correct Answer: Approve the client application request for the chosen SLA tier

*****************************************

>> Only approving the client application request for the chosen SLA tier can be automated

>> Rest of the provided options are not valid

Explanation

Correct Answer: System Layer

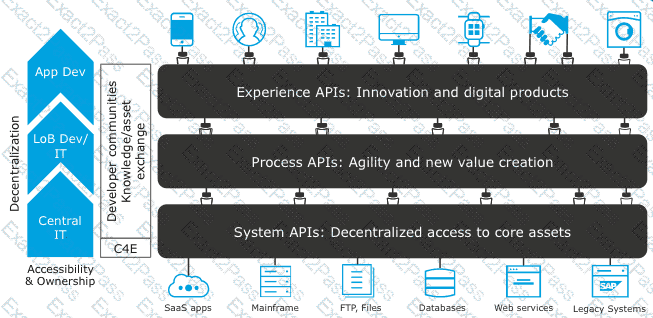

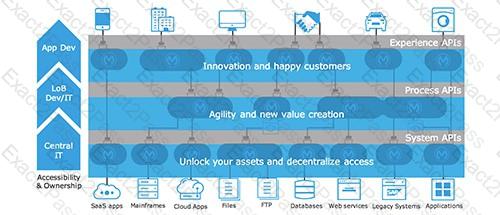

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Explanation

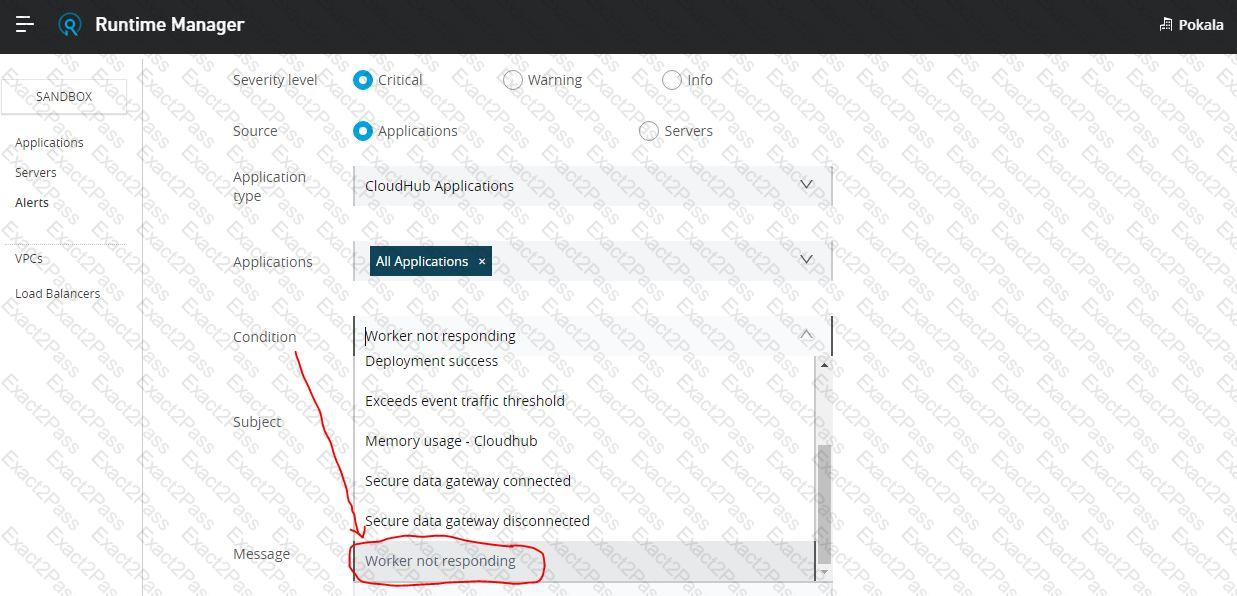

Correct Answer: Configure a “Worker not responding” alert in Anypoint Runtime Manager.

*****************************************

>> All the options eventually helps to generate the alert required when the application stops responding.

>> However, handling exceptions within calling API and then raising alert from API client is inappropriate and silly. There could be many API clients invoking the API implementation and it is not ideal to have this setup consistently in all of them. Not a realistic way to do.

>> Implementing a health check/ heartbeat with in the API and calling from outside to detmine the health sounds OK but needs extra setup for it and same time there are very good chances of generating false alarms when there are any intermittent network issues between external tool calling the health check API on API implementation. The API implementation itself may not have any issues but due to some other factors some false alarms may go out.

>> Creating an alert in API Manager when the API receives no requests within a specified time period would actually generate realistic alerts but even here some false alarms may go out when there are genuinely no requests from API clients.

The best and right way to achieve this requirement is to setup an alert on Runtime Manager with a condition "Worker not responding". This would generate an alert AS SOON AS the workers become unresponsive.

Bottom of Form

Top of Form

MuleSoft offers various tools to automate the deployment of Mule applications, which can streamline deployment and management processes. Here’s how each tool supports automated deployment:

Runtime Manager:

Anypoint Runtime Manager is MuleSoft’s web-based interface that allows users to deploy, manage, and monitor applications directly. It provides deployment automation through its user-friendly interface.

Anypoint Platform CLI:

The Anypoint CLI enables scripting of deployment and management tasks, making it possible to automate deployments via command-line scripts. This tool is ideal for CI/CD pipelines as it integrates with automated processes.

Platform APIs:

MuleSoft’s Platform APIs allow programmatic access to deployment functions, enabling integration with external automation tools and CI/CD systems. These APIs facilitate deployment through RESTful calls, which can be automated for continuous delivery.

Explanation of Incorrect Options:

Option D (Anypoint Studio) is primarily for development and does not support deployment automation.

Option E (Maven Plugin) can be used for building and deploying Mule applications but isn’t classified as a platform tool for deployment.

Option F (API Community Manager) is unrelated to deployment and instead focuses on managing API communities.

ReferencesFor detailed steps on automating deployments with these tools, refer to MuleSoft documentation on Runtime Manager, CLI, and Platform APIs​.

Default Alert Capabilities in Anypoint Platform:

Anypoint Platform provides out-of-the-box alerting capabilities for monitoring API invocation conditions, including setting thresholds for the number of invocations.

Alerts can be configured for conditions such as high or low traffic (invocations exceeding or falling below a defined threshold).

Evaluating the Options:

Option A: Anypoint Platform does not provide direct alerting based on DNS records.

Option B: Anypoint Platform does not provide default alerts based on whether invocations use TLS/SSL; this would require custom configuration.

Option C: Geolocation-based alerting is not natively supported in Anypoint Platform.

Option D (Correct Answer): Alerts based on API invocation thresholds (e.g., invocations falling below a set threshold) are supported and can be configured as part of the default Anypoint alerting functionality.

Conclusion:

Option D is correct, as Anypoint Platform allows configuring alerts based on the number of API invocations falling below or exceeding a threshold.

Refer to MuleSoft's documentation on Anypoint Monitoring and alert configurations for more details.

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

Explanation

Correct Answer: Increase the size of the CloudHub worker(s)

*****************************************

The key details that we can take out from the given scenario are:

>> API implementation uses a database bulk insert command to submit all the purchase data to a database

>> JDBC driver processes the data into a set of several temporary disk files on the CloudHub worker

>> Sometimes a request fails and the logs show a message indicating an out-of-file-space message

Based on above details:

>> Both auto-scaling options does NOT help because we cannot set auto-scaling rules based on error messages. Auto-scaling rules are kicked-off based on CPU/Memory usages and not due to some given error or disk space issues.

>> Increasing the number of CloudHub workers also does NOT help here because the reason for the failure is not due to performance aspects w.r.t CPU or Memory. It is due to disk-space.

>> Moreover, the API is doing bulk insert to submit the received batch data. Which means, all data is handled by ONE worker only at a time. So, the disk space issue should be tackled on "per worker" basis. Having multiple workers does not help as the batch may still fail on any worker when disk is out of space on that particular worker.

Therefore, the right way to deal this issue and resolve this is to increase the vCore size of the worker so that a new worker with more disk space will be provisioned.

Explanation

Correct Answer: When a pragmatic approach with only limited isolation from the backend system is deemed appropriate.

*****************************************

General guidance w.r.t choosing Data Models:

>> If an Enterprise Data Model is in use then the API data model of System APIs should make use of data types from that Enterprise Data Model and the corresponding API implementation should translate between these data types from the Enterprise Data Model and the native data model of the backend system.

>> If no Enterprise Data Model is in use then each System API should be assigned to a Bounded Context, the API data model of System APIs should make use of data types from the corresponding Bounded Context Data Model and the corresponding API implementation should translate between these data types from the Bounded Context Data Model and the native data model of the backend system. In this scenario, the data types in the Bounded Context Data Model are defined purely in terms of their business characteristics and are typically not related to the native data model of the backend system. In other words, the translation effort may be significant.

>> If no Enterprise Data Model is in use, and the definition of a clean Bounded Context Data Model is considered too much effort, then the API data model of System APIs should make use of data types that approximately mirror those from the backend system, same semantics and naming as backend system, lightly sanitized, expose all fields needed for the given System API’s functionality, but not significantly more and making good use of REST conventions.

The latter approach, i.e., exposing in System APIs an API data model that basically mirrors that of the backend system, does not provide satisfactory isolation from backend systems through the System API tier on its own. In particular, it will typically not be possible to "swap out" a backend system without significantly changing all System APIs in front of that backend system and therefore the API implementations of all Process APIs that depend on those System APIs! This is so because it is not desirable to prolong the life of a previous backend system’s data model in the form of the API data model of System APIs that now front a new backend system. The API data models of System APIs following this approach must therefore change when the backend system is replaced.

On the other hand:

>> It is a very pragmatic approach that adds comparatively little overhead over accessing the backend system directly

>> Isolates API clients from intricacies of the backend system outside the data model (protocol, authentication, connection pooling, network address, …)

>> Allows the usual API policies to be applied to System APIs

>> Makes the API data model for interacting with the backend system explicit and visible, by exposing it in the RAML definitions of the System APIs

>> Further isolation from the backend system data model does occur in the API implementations of the Process API tier

Explanation

Correct Answer: Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API

*****************************************

>> It is not ideal and good approach, until unless there is a pre-approved agreement with the API clients that they will receive a HTTP 3xx temporary redirect status code and they have to implement fallback logic their side to call another API.

>> Creating separate entry of same Order API in API manager would just create an another instance of it on top of same API implementation. So, it does NO GOOD by using clone od same API as a fallback API. Fallback API should be ideally a different API implementation that is not same as primary one.

>> There is NO option currently provided by Anypoint HTTP Connector that allows us to invoke a fallback API when we receive certain HTTP status codes in response.

The only statement TRUE in the given options is to Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API.

Understanding Anypoint Monitoring and Its Capabilities:

Anypoint Monitoring provides comprehensive visibility into Mule applications, offering metrics and analytics such as request counts, response times, CPU utilization, memory usage, and other key performance indicators (KPIs). This tool is designed to help teams monitor API usage, troubleshoot issues, and optimize application performance.

Evaluating the Options:

Option A (Correct Answer): Anypoint Monitoring is the ideal tool for this requirement. It provides real-time insights into metrics such as the number of requests, response times, CPU utilization, and active API usage.

Option B (API Manager): API Manager focuses on API lifecycle management, including applying policies, managing contracts, and setting access controls. It does not provide performance monitoring or KPI tracking.

Option C (Runtime Alerts): Runtime Alerts can notify users of specific conditions, like high CPU usage, but they do not provide a full suite of metrics or insights over a given time period.

Option D (Functional Monitoring): Functional Monitoring focuses on functional testing of APIs rather than performance and usage metrics. It does not provide continuous KPI tracking.

Conclusion:

Option A is the correct answer. Anypoint Monitoring is the most suitable tool to track the specified metrics, providing detailed insights into API requests, response times, CPU usage, and active API counts.

For further details, refer to MuleSoft’s Anypoint Monitoring documentation on configuring dashboards and tracking performance metrics.

To monitor an application network and predict issues without custom scripts, policy violation metrics are critical. They provide insights into potential problems by tracking instances where API usage does not conform to defined policies. Here’s why this approach is suitable:

Predictive Monitoring:

Tracking API policy violations (such as rate limits or spike controls being hit) can indicate surges in traffic or misuse, which may lead to throttling or service degradation if not addressed.

By monitoring these violations, teams can proactively adjust limits or optimize API handling to prevent actual failures.

No Custom Scripting Needed:

Policy violation metrics are available within MuleSoft’s Anypoint Monitoring, meaning there’s no need to implement custom solutions or external tools to gather and interpret this data.

Explanation of Incorrect Options:

Option B (effectiveness based on reuse) does not directly predict failures.

Option C (past invocation counts) offers historical usage data but does not inherently identify issues.

Option D (ROI from API invocation) is a business metric and does not provide technical insights for failure prediction.

ReferencesFor more details on leveraging policy violation metrics for proactive monitoring, refer to MuleSoft documentation on Anypoint Monitoring​​.

Explanation

Correct Answer: From the Mule runtime irrespective of the deployment model

*****************************************

>> Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.

>> It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).

>> Similarly all API Implementations also run on Mule Runtimes.

So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

Explanation

Correct Answer: Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%

*****************************************

The scenario in the question is very clearly stating that the usual traffic in the year is pretty well handled by the existing worker configuration with CPU running well below 70%. The problem occurs only "sometimes" occasionally when there is spike in the number of orders coming in.

So, based on above, We neither need to permanently increase the size of each worker nor need to permanently increase the number of workers. This is unnecessary as other than those "occasional" times the resources are idle and wasted.

We have two options left now. Either to use horizontal Cloudhub autoscaling policy to automatically increase the number of workers or to use vertical Cloudhub autoscaling policy to automatically increase the vCore size of each worker.

Here, we need to take two things into consideration:

1. CPU

2. Order Submission Rate to JMS Queue

>> From CPU perspective, both the options (horizontal and vertical scaling) solves the issue. Both helps to bring down the usage below 90%.

>> However, If we go with Vertical Scaling, then from Order Submission Rate perspective, as the application is still being load balanced with two workers only, there may not be much improvement in the incoming request processing rate and order submission rate to JMS queue. The throughput would be same as before. Only CPU utilization comes down.

>> But, if we go with Horizontal Scaling, it will spawn new workers and adds extra hand to increase the throughput as more workers are being load balanced now. This way we can address both CPU and Order Submission rate.

Hence, Horizontal CloudHub Autoscaling policy is the right and best answer.

Explanation

Correct Answer: 8082

*****************************************

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

References:

https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide

https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application

https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090

Explanation

Correct Answer: Guarding against Denial of Service attacks

*****************************************

>> Backend system overloading can be handled by enforcing "Spike Control Policy"

>> Logging HTTP requests and responses can be done by enforcing "Message Logging Policy"

>> Credentials can be tamper-proofed using "Security" and "Compliance" Policies

However, unfortunately, there is no proper way currently on Anypoint Platform to guard against DOS attacks.

Role of Process API in API-led Connectivity:

In MuleSoft’s API-led connectivity approach, a Process API is used to coordinate, aggregate, and orchestrate data from various System APIs. It is primarily responsible for implementing business logic that spans multiple backend systems or entities, transforming and combining data as needed to support business processes.

Process APIs are not directly exposed to end-user clients; rather, they work between System APIs and Experience APIs, providing business logic and orchestration capabilities.

Evaluating the Options:

Option A: Process APIs are not typically responsible for large data dumps or data synchronization. That function would be handled by a System API or a specialized batch process.

Option B: Managing direct, secure communication between back-end systems and end-user clients is typically the role of Experience APIs rather than Process APIs.

Option C (Correct Answer): Process APIs are designed to coordinate and orchestrate calls to multiple other APIs in the network, which supports the automation of business processes.

Option D: Securing and managing communication with end-user clients is typically the role of Experience APIs, not Process APIs.

Conclusion:

Option C is the correct answer, as the main role of a Process API is to coordinate and orchestrate interactions between other APIs, enabling business processes to function seamlessly across multiple systems.

Refer to MuleSoft's API-led connectivity documentation for further explanation of the roles and responsibilities of Process APIs in an application network.

Explanation

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

https://blogs.mulesoft.com/biz/api/experience-api-ownership/

https://blogs.mulesoft.com/biz/api/process-api-ownership/

https://blogs.mulesoft.com/biz/api/system-api-ownership/

Explanation

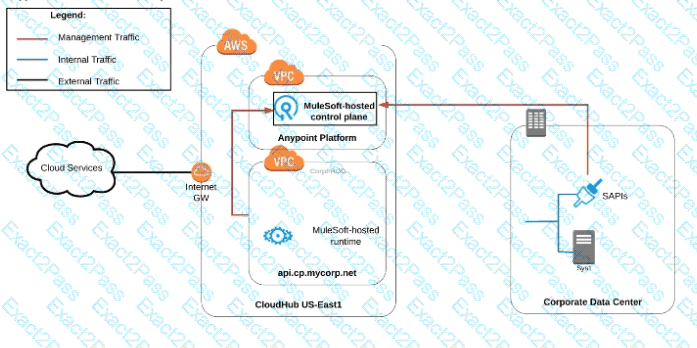

Correct Answer: Manually provisioned customer-hosted runtime plane and customer-hosted control plane

*****************************************

There are two key factors that are to be taken into consideration from the scenario given in the question.

>> Company requires both data and metadata to be resided within the corporate firewall

>> Company would like to go with customer-hosted infrastructure.

Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer's own cloud like Azure, AWS) will have to share atleast the metadata.

Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.

As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

Explanation

Correct Answer: Data on past API invocations to help identify anomalies and usage patterns across various APIs

*****************************************

API Invocation metrics provided by Anypoint Platform:

>> Does NOT provide any Return Of Investment (ROI) related information. So the option suggesting it is OUT.

>> Does NOT provide any information w.r.t how APIs are reused, whether there is effective usage of APIs or not etc...

>> Does NOT prodive any prediction information as such to help us proactively identify any future policy violations.

So, the kind of data/information we can get from such metrics is on past API invocations to help identify anomalies and usage patterns across various APIs.

In a CloudHub deployment with a single worker/replica located in a specific Availability Zone (AZ), if an AZ experiences an outage, here’s what happens:

Worker Availability: Since the application is deployed in a single AZ, CloudHub does not automatically redeploy the application in a different zone or region during an outage. Thus, if the current AZ is unavailable, the application will be offline.

Auto-Restart upon AZ Recovery: Once the affected AZ is back online, CloudHub will auto-restart the worker in the same AZ without manual intervention. This ensures that as soon as the AZ is functional, the application resumes automatically.

Explanation of Correct Answer (B):

Option B accurately describes the situation, as the API will remain unavailable until the original AZ is restored.

CloudHub does not currently support automatic failover across regions or other availability zones within the same region for single-worker deployments on the shared cloud.

Explanation of Incorrect Options:

Option A (auto-redeployment in the U.S. East region) is incorrect, as CloudHub does not migrate across regions automatically.

Option C (redeployment in another AZ within the U.S. West) is not a feature for single-worker deployments.

Option D (manual redeployment triggered by an admin) is unnecessary as CloudHub handles restarts automatically when the AZ is back online.

ReferencesRefer to MuleSoft CloudHub’s availability and disaster recovery documentation for more information on how CloudHub manages availability in shared environments​.

Understanding the Need for Cross-API Monitoring:

The Center for Enablement (C4E) needs to investigate potential technical issues across multiple APIs in the application network that may be causing customers to abandon their carts.

This requires a solution that allows viewing metrics across several APIs in real-time to identify any performance issues or bottlenecks.

Evaluating Anypoint Platform Features:

Built-in Dashboards: Anypoint Platform provides built-in dashboards in Anypoint Monitoring, allowing teams to view metrics from multiple APIs in a single interface. This feature is designed to monitor API performance, latency, errors, and throughput, and is ideal for tracking performance across all layers of the application network.

Custom Dashboards: While custom dashboards allow for more tailored views, the built-in dashboards already aggregate metrics for multiple APIs, making it unnecessary to build a custom solution for this scenario.

Functional Monitoring: This feature is used to set up tests to monitor specific API functionality and uptime but is not suited for tracking metrics across multiple APIs in real-time.

API Manager: API Manager primarily focuses on managing API policies, contracts, and access control rather than providing detailed, real-time metrics across the entire application network.

Conclusion:

Option B (Built-in dashboards) is the best choice because it provides a comprehensive view of metrics from all APIs involved, enabling the C4E team to quickly identify any issues that may be contributing to abandoned shopping carts.

Refer to MuleSoft’s documentation on Anypoint Monitoring and built-in dashboards for more details on configuring and using these dashboards effectively.

Explanation

Correct Answer: Set a timeout of 100ms; that leaves 400ms for other two downstream APIs to complete

*****************************************

Key details to take from the given scenario:

>> Upstream API's designed SLA is 500ms (median). Lets ignore maximum SLA response times.

>> This API calls 3 downstream APIs sequentially and all these are of similar complexity.

>> The first downstream API is offering median SLA of 100ms, 80th percentile: 500ms; 95th percentile: 1000ms.

Based on the above details:

>> We can rule out the option which is suggesting to set 50ms timeout. Because, if the median SLA itself being offered is 100ms then most of the calls are going to timeout and time gets wasted in retried them and eventually gets exhausted with all retries. Even if some retries gets successful, the remaining time wont leave enough room for 2nd and 3rd downstream APIs to respond within time.

>> The option suggesting to NOT set a timeout as the invocation of this API is mandatory and so we must wait until it responds is silly. As not setting time out would go against the good implementation pattern and moreover if the first API is not responding within its offered median SLA 100ms then most probably it would either respond in 500ms (80th percentile) or 1000ms (95th percentile). In BOTH cases, getting a successful response from 1st downstream API does NO GOOD because already by this time the Upstream API SLA of 500 ms is breached. There is no time left to call 2nd and 3rd downstream APIs.

>> It is NOT true that no timeout is possible to meet the upstream APIs desired SLA.

As 1st downstream API is offering its median SLA of 100ms, it means MOST of the time we would get the responses within that time. So, setting a timeout of 100ms would be ideal for MOST calls as it leaves enough room of 400ms for remaining 2 downstream API calls.

In the API-led connectivity approach, APIs are categorized into Experience, Process, and System layers:

Enterprise Data Model Scope:

The Enterprise Data Model (EDM) generally supports System APIs and some Process APIs by defining standard data structures used across the organization. Experience APIs, however, are tailored to specific applications or interfaces and are less likely to be served directly by the EDM, as they may require customized data representations to meet the unique needs of each user interface.

Why Option C is Correct:

The Mobile Account Management EAPI serves mobile-specific needs and often requires data formatted differently from the standardized data models. Thus, it would be outside the direct scope of the EDM and might employ custom mappings to fit mobile application requirements.

Explanation of Incorrect Options:

Option A (Customer SAPI), Option B (Customer Lookup PAPI), and Option D (Service SAPI) would typically align with the EDM as they are closer to the core data and services the EDM supports.

ReferencesFor additional guidance, review MuleSoft's best practices on API-led connectivity and data modeling​.

Processing Requirements and Storage Mechanism:

The Reservation Mule application will be deployed to multiple CloudHub workers/replicas, meaning that each worker must share state information to handle records exactly once. This requires a shared storage mechanism where state can be stored and accessed by multiple instances to avoid duplicate processing of the same records.

A Persistent Object Store in Anypoint Platform can be used to store records in a way that is accessible across multiple workers, providing a reliable mechanism for "exactly once" processing.

Evaluating the Options:

Option A (Correct Answer): A Persistent Object Store is designed to retain data across different application instances and can be shared by all workers on CloudHub. It helps achieve idempotency by ensuring that a record is processed exactly once.

Option B: Runtime Fabric Object Store is used for applications deployed in Anypoint Runtime Fabric, not CloudHub. This option would not be compatible with the CloudHub deployment.

Option C: A Non-persistent Object Store does not retain data across application restarts or different instances, making it unsuitable for the requirement of synchronized storage for exactly-once processing.

Option D: An In-memory Mule Object Store is local to each worker and is not shared across instances, so it does not meet the requirement for a shared storage mechanism accessible to all CloudHub workers.

Conclusion:

Option A is the correct answer, as a Persistent Object Store allows data sharing across multiple CloudHub workers, enabling them to synchronize and achieve "exactly once" processing of passenger records with minimal development effort.

Refer to MuleSoft’s documentation on Object Store configurations and usage for best practices on handling state across distributed instances.

Explanation

Correct Answer: Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model

*****************************************

Key details to note from the given scenario:

>> Power relationship between Order API and Product API is customer/supplier

So, as per below rules of "Power Relationships", the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Explanation

Correct Answer: The SSL certificates used by the API implementation to expose HTTPS endpoints

*****************************************

>> The assignment of each HTTP request to a particular CloudHub worker is taken care by Anypoint Platform itself. We need not manage it explicitly in the API implementation and in fact we CANNOT manage it in the API implementation.

>> The logging configuration that enables log entries to be visible in Runtime Manager is ALWAYS managed in the API implementation and NOT just for SLB. So this is not something we do EXCLUSIVELY when using SLB.

>> We DO NOT manage the number of DNS entries allocated to the API implementation inside the code. Anypoint Platform takes care of this.

It is the SSL certificates used by the API implementation to expose HTTPS endpoints that is to be managed EXCLUSIVELY by the API implementation. Anypoint Platform does NOT do this when using SLBs.

Explanation

Correct Answer: TRUE

*****************************************

>> As per MuleSoft proposed IT Operating Model, designing APIs and making sure that they are discoverable and self-servable is VERY VERY IMPORTANT and decides the success of an API and its application network.

Explanation

Correct Answer: JSON threat protection

*****************************************

Fact: Technically, there are no restrictions on what policy can be applied in what layer. Any policy can be applied on any layer API. However, context should also be considered properly before blindly applying the policies on APIs.

That is why, this question asked for a policy that would LEAST likely be applied to a Process API.

From the given options:

>> All policies except "JSON threat protection" can be applied without hesitation to the APIs in Process tier.

>> JSON threat protection policy ideally fits for experience APIs to prevent suspicious JSON payload coming from external API clients. This covers more of a security aspect by trying to avoid possibly malicious and harmful JSON payloads from external clients calling experience APIs.

As external API clients are NEVER allowed to call Process APIs directly and also these kind of malicious and harmful JSON payloads are always stopped at experience API layer only using this policy, it is LEAST LIKELY that this same policy is again applied on Process Layer API.

Understanding Spike Control and Rate Limiting Policies:

Spike Control Policy: Limits the number of requests processed by the API in a short time to handle sudden bursts of traffic. It does not queue requests but rejects any request that exceeds the allowed burst rate.

Rate Limiting Policy: Sets a limit on the number of requests that an API can handle within a given timeframe. Once the limit is reached, additional requests are rejected.

Evaluating the Options:

Option A: Incorrect. In both Spike Control and Rate Limiting policies, requests are rejected once the limit is reached. Spike Control does not queue requests; it only controls the burst rate by rejecting excessive requests.

Option B (Correct Answer): In a clustered environment, each node independently enforces the Rate Limiting and Spike Control policies, meaning that the limits apply to each node separately. This ensures that each node can control its own resource usage independently within the cluster.

Option C: This is partially correct, as Rate Limiting is often used to protect Experience APIs, but Spike Control could also be useful in limiting resource consumption under high burst conditions.

Option D: Incorrect. Although a contract is required to enforce client-specific policies, Rate Limiting and Spike Control do not require a contract to function for general traffic control.

Conclusion:

Option B is the correct answer because, in a clustered environment, Rate Limiting and Spike Control policies apply separately to each node, helping each instance to manage its own load.

For more information, refer to MuleSoft’s documentation on applying Rate Limiting and Spike Control policies in a clustered environment.

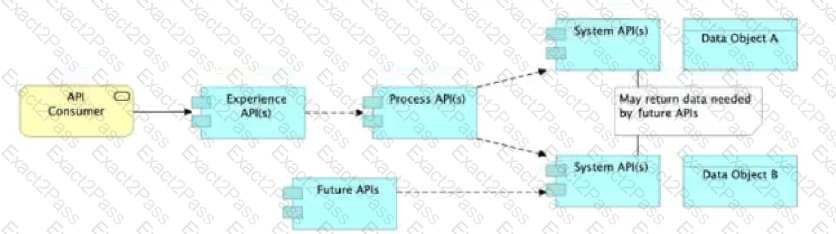

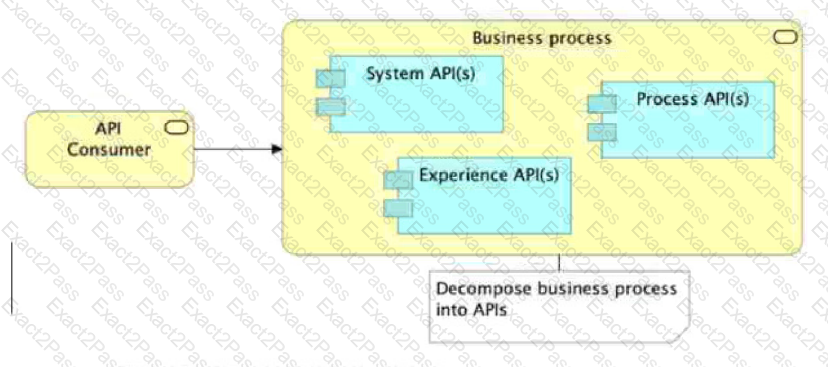

Understanding API-led Connectivity Layers:

In MuleSoft’s API-led connectivity approach, APIs are categorized into three layers:

Experience Layer: This layer is responsible for providing data to the end-user applications and is often customized to meet the needs of different user interfaces.

Process Layer: This layer is used to orchestrate and combine data from multiple System APIs. It acts as a mediator and business logic layer without directly interacting with the backend systems.

System Layer: This layer provides direct access to the backend systems (e.g., databases, ERPs) and is usually focused on exposing atomic data operations.

Evaluating the Architectural Constraints:

Option A: Always using a strict tiered approach by creating exactly one API per layer is not necessarily an architectural constraint of API-led connectivity. While a layered approach is recommended, it is common to have multiple APIs in each layer as needed for different functionalities.

Option B (Correct Answer): In API-led connectivity, Process APIs are generally responsible for orchestrating calls to System APIs and should not call other Process APIs. This maintains a clear separation of concerns, ensuring that Process APIs aggregate data from System APIs only and provide it to Experience APIs.

Option C: System APIs are generally designed to provide only the necessary data to meet current business requirements. Allowing them to return extra data that is not needed by Process or Experience APIs is not a best practice, as it can lead to inefficiencies.

Option D: Customizations specific to end-user applications are typically handled at the Experience Layer rather than the Process Layer, as the Experience Layer is intended to tailor the data to fit the needs of each specific client or front-end application.

Conclusion:

Option B is the correct answer as it aligns with the API-led connectivity principles. In this architectural style, Process APIs should orchestrate System APIs but should avoid interacting with other Process APIs to keep a clear separation of responsibilities across the layers.

For additional details, refer to MuleSoft documentation on API-led connectivity best practices, particularly around the roles of each layer in API orchestration and data handling.

For a European company with requirements such as zero-downtime redeployment, deployment to multiple runtime versions, secure and fast performance, and the use of Anypoint MQ without additional network configuration, CloudHub is the best choice for the following reasons:

Zero-Downtime Redeployment: CloudHub supports zero-downtime deployment, which allows seamless redeployment of applications without impacting availability.

Support for Multiple Runtime Versions: CloudHub allows deploying applications across different Mule runtime versions, giving flexibility to test and migrate applications as needed.

Integrated Anypoint MQ: Anypoint MQ, which is fully integrated with CloudHub, provides reliable messaging across applications. Choosing CloudHub removes the need for additional network configurations, as Anypoint MQ can be directly accessed in this hosted environment.

Security and Performance: CloudHub offers secure networking, automatic scaling, and optimized performance without requiring a complex setup. This is managed by MuleSoft’s infrastructure, meeting the speed and security requirements with minimal overhead.

Explanation of Incorrect Options:

Option A and D (Runtime Fabric on VMs or Self-Managed Kubernetes): While Runtime Fabric offers flexibility, it requires more complex network and infrastructure configurations, which is not ideal if the company seeks simplicity.

Option B (Customer-hosted): This would require additional network and security configuration, which does not align with the requirement of minimizing setup complexity.

ReferencesFor more information on CloudHub’s capabilities regarding zero-downtime deployments and integration with Anypoint MQ, refer to MuleSoft documentation on CloudHub​​.
