Clos IP Fabric Design:

A Clos fabric is a network topology designed for scalable, high-performance data centers. It is typically arranged in multiple stages, providing redundancy, high bandwidth, and low latency.

Three-Stage Clos Fabric:

Option B:A three-stage Clos fabric, consisting of leaf, spine, and super spine layers, is widely used in data centers. This design scales well and allows for easy expansion by adding more leaf and spine devices as needed.

Super Spines for Scalability:

Option D:Using high-capacity devices like the QFX5700 Series as super spines can handle the increased traffic demands in large data centers and support future growth. These devices provide the necessary bandwidth and scalability for large-scale deployments.

Conclusion:

Option B:Correct—A three-stage Clos fabric is a proven design that addresses growth and scalability concerns in large data centers.

Option D:Correct—QFX5700 Series devices are suitable for use as super spines in large-scale environments due to their high performance.

Understanding Lossless Ethernet and Congestion Management:

Lossless Ethernet is crucial for AI and ML workloads, where packet loss can significantly degrade performance. To implement lossless Ethernet, congestion management protocols like ECN (Explicit Congestion Notification) are used.

Role of ECN in Congestion Management:

Option A:In an IP fabric that supports lossless Ethernet, when a switch experiences congestion, it can mark packets using ECN. This marking notifies the source device of the congestion, allowing the source to reduce its transmission rate, thereby preventing packet loss.

Conclusion:

Option A:Correct—The switch experiencing congestion notifies the source device via ECN marking.

Zero-Touch Provisioning (ZTP):

ZTP is a feature that allows for the automatic provisioning of devices with minimal manual intervention. It is widely used in large-scale deployments to quickly bring new devices online.

Key Requirements for ZTP:

A. DHCP Server:A DHCP server is crucial for ZTP as it provides the necessary information to new devices, such as the IP address, the location of the software image, and configuration files.

D. File Server:The file server is where the software image and configuration files are stored. The device downloads these files during the provisioning process.

Incorrect Options:

B. Syslog Server:While a syslog server is important for logging and monitoring, it is not a requirement for the initial provisioning process.

C. NTP Server:An NTP server is used for time synchronization, which is essential for accurate logging and operation but not specifically required for ZTP.

Data Center References:

ZTP simplifies the deployment process by automating the initial configuration steps, relying heavily on DHCP for communication and a file server for delivering the necessary configuration and software.

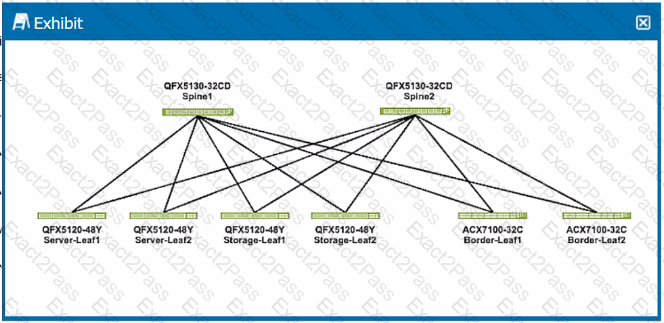

Understanding Oversubscription in a Clos Fabric:

The oversubscription ratio in a Clos IP fabric measures the ratio of the amount of edge (leaf) bandwidth to the core (spine) bandwidth. An oversubscription ratio of 3:1 means that there is three times more edge bandwidth compared to core bandwidth.

Impact of Adding/Removing Spine Devices:

Option C:If youremove spine devices, the total available core bandwidth decreases, while the edge bandwidth remains the same. This results in anincrease in the oversubscription ratiobecause there is now less core bandwidth to handle the same amount of edge traffic.

Option B:Conversely, if youadd spine devices, the total core bandwidth increases. This decreases the oversubscription ratio because more core bandwidth is available to handle the edge traffic.

Conclusion:

Option C:Correct—Removing spine devices increases the oversubscription ratio.

Option B:Correct—Adding spine devices decreases the oversubscription ratio.

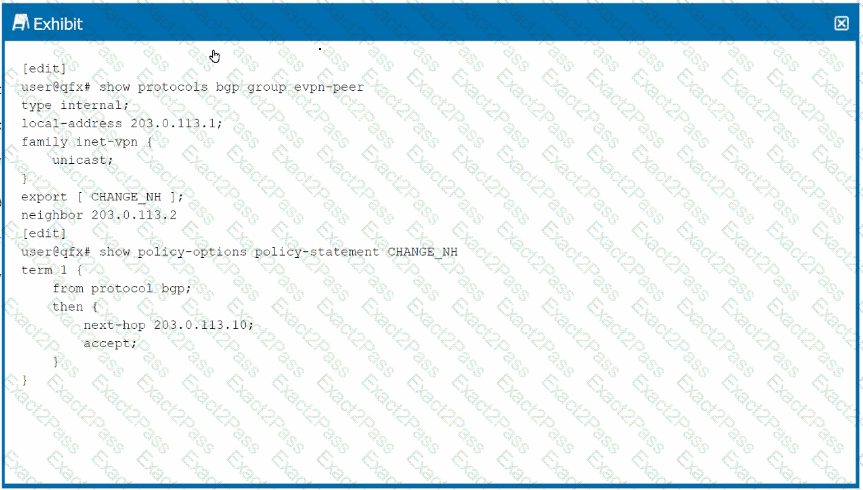

Type 2 EVPN Routes:

Type 2 routesadvertise MAC addresses within an EVPN instance and are used primarily for Layer 2 bridging. These routes do not require a VXLAN tunnel to the protocol next hop because they operate within the same Layer 2 domain.

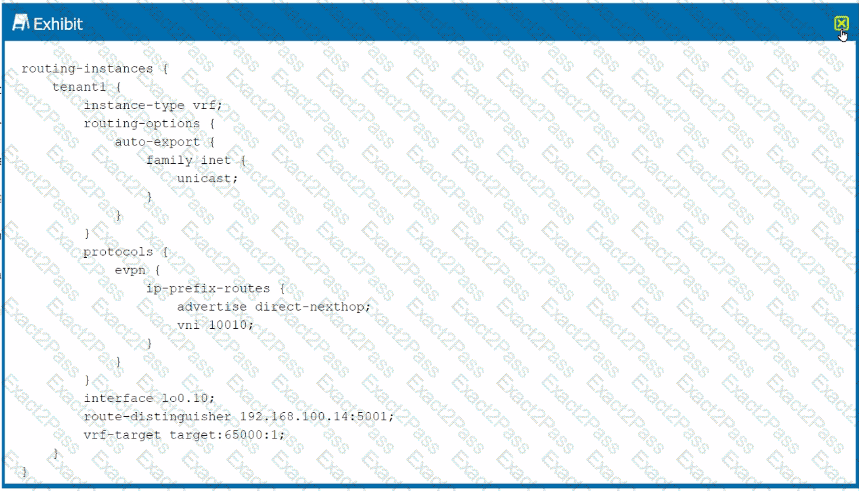

Type 5 EVPN Routes:

Type 5 routesare used to advertise IP prefixes (Layer 3 routes) within EVPN. Similar to Type 2 routes, they do not require a VXLAN tunnel to the protocol next hop because they represent L3 routes, which are managed at the routing layer without the need for VXLAN encapsulation.

Conclusion:

Option B:Correct—Type 2 routes do not need a VXLAN tunnel to the next hop, as they are used for Layer 2.

Option D:Correct—Type 5 routes also do not need a VXLAN tunnel because they operate at Layer 3, handling IP prefixes.

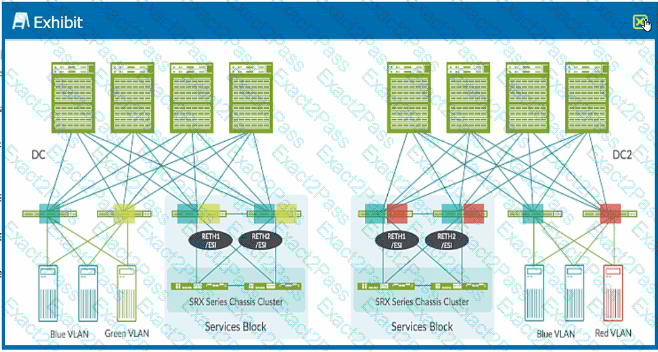

Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant’s network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwardedto a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B:Correct—Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

VXLAN Group-Based Policies (GBP):

VXLAN Group-Based Policies are used to apply security policies consistently across the network. These policies are often tied to user or device identities rather than static IP addresses, which allows for more dynamic and scalable security management.

Scalable Group Tags via RADIUS and 802.1X:

Option B:VXLAN GBP can use scalable group tags configured on a RADIUS server, which are then pushed to network devices through 802.1X. This allows for centralized and automated policy application based on user or device identity.

Consistent Security Policy Application:

Option C:GBP ensures that security policies are consistently applied across the network, regardless of where a user or device connects. This consistency is crucial in environments where security policies must follow the user or device.

Conclusion:

Option B:Correct—Group tags can be configured on a RADIUS server and pushed via 802.1X, enabling centralized policy management.

Option C:Correct—GBP ensures consistent application of security policies, which is essential for maintaining security across a dynamic network environment.

Junos Telemetry Interface (JTI):

The Junos Telemetry Interface is a framework that allows network operators to collect real-time telemetry data from Juniper devices. This data can be used for monitoring, analytics, and network automation.

Data Export Methods:

Option B:UDP (User Datagram Protocol)is a lightweight, connectionless protocol used for exporting telemetry data quickly with minimal overhead. While it doesn't guarantee delivery, it is suitable for high-speed data transfer where occasional packet loss is acceptable.

Option D:gRPC (gRPC Remote Procedure Call)is a modern, high-performance method for data export that supports streaming and remote procedure calls, making it ideal for more complex telemetry data use cases.

Conclusion:

Option B:Correct—UDP is supported for exporting telemetry data.

Option D:Correct—gRPC is also supported, offering advanced streaming capabilities

Understanding Oversubscription Ratio in IP Fabrics:

The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.

Impact of Adding or Removing Leaf Devices:

Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.

Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.

Conclusion:

Option C:Correct—Removing leaf devices increases the oversubscription ratio.

Option D:Correct—Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.

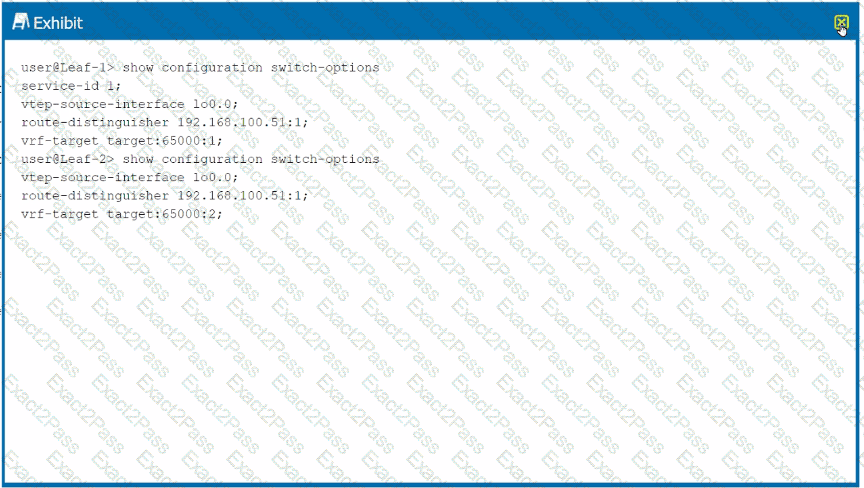

VXLAN Traffic Verification:

To ensure VXLAN traffic from the xe-0/0/12 interface is correctly encapsulated by the logical vtep.32770 and sent to a remote leaf device, it is essential to monitor the relevant interface statistics.

The command show interfaces terse vtep.32770 statistics provides a concise overview of the traffic statistics for the specific VTEP interface, which can help verify whether traffic is being correctly encapsulated and transmitted.

Explanation:

This command is particularly useful for quickly checking the traffic counters and identifying any potential issues with VXLAN encapsulation or transmission.

It allows you to confirm that traffic is flowing as expected, by checking the transmitted and received packet counters.

Data Center References:

Monitoring interface statistics is a crucial step in troubleshooting and validating network traffic, particularly in complex overlay environments like EVPN-VXLAN.

Requirement Analysis:

The scenario requires a solution to interconnect two data centers that supports EVPN Type 2 connectivity. The solution must be highly scalable and must minimize the number of VXLAN tunnels between border leaf devices.

Understanding Type 2 Seamless Stitching:

Option D:Type 2 seamless stitchingis a method used in EVPN to provide Layer 2 connectivity (such as MAC address mobility) across different VXLAN segments. It is scalable because it allows only necessary tunnels to be established between border leaf devices, reducing the overhead of maintaining a full mesh of VXLAN tunnels.

Conclusion:

Option D:Correct—Type 2 seamless stitching satisfies the requirement by enabling scalable, efficient interconnection of two data centers with minimal VXLAN tunnels.

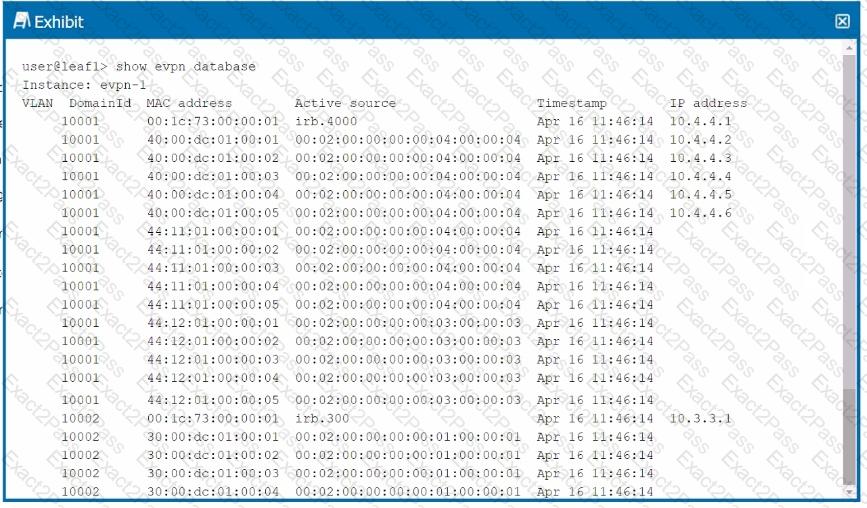

Understanding the Scenario:

In an EVPN-VXLAN environment, when using multi-homing in active/active scenarios, there's a risk that a multihomed server might receive duplicate copies of Broadcast, Unknown unicast, and Multicast (BUM) traffic. This is because multiple VTEPs might forward the same BUM traffic to the server.

EVPN Route Types:

Type 4 Route (Ethernet Segment Route):This route type is used to advertise the Ethernet Segment (ES) to which the device is connected. It is specifically used in multi-homing scenarios to signal the ES and its associated Ethernet Tag to all the remote VTEPs. The Type 4 route includes information that helps prevent BUM traffic duplication in active/active multi-homing by using a split-horizon mechanism, which ensures that traffic sent to a multihomed device does not get looped back.

Explanation:

The Type 4 route is crucial for ensuring that in a multi-homed setup, particularly in an active/active configuration, BUM traffic does not result in duplication at the server. The route helps coordinate which VTEP is responsible for forwarding the BUM traffic to the server, thereby preventing duplicate traffic.

Data Center References:

Type 4 routes are essential for managing multi-homing in EVPN to avoid the issues of BUM traffic duplication, which could otherwise lead to inefficiencies and potential network issues.

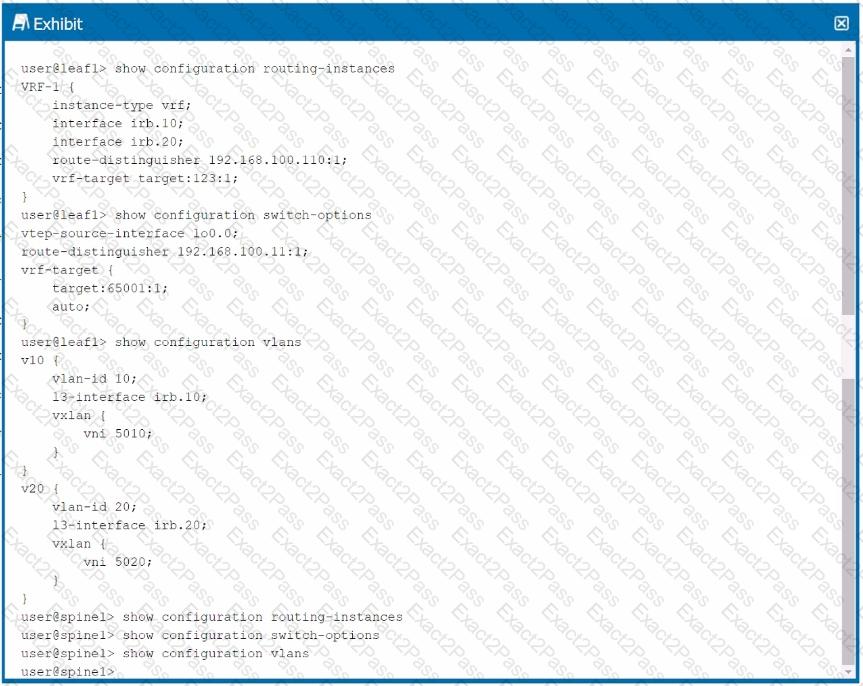

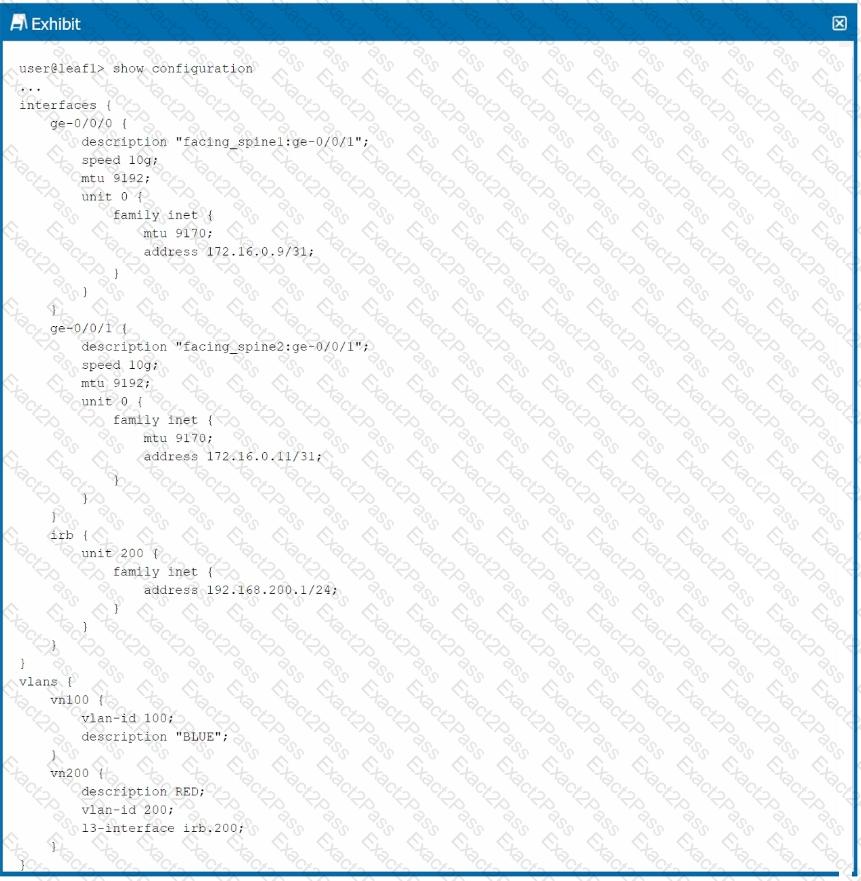

Understanding ERB Architecture:

ERB (Edge Routed Bridging) architecture is a network design where the routing occurs at the edge (leaf devices) rather than in the spine devices. In a VXLAN overlay network with EVPN as the control plane, leaf devices typically act as both Layer 2 (L2) and Layer 3 (L3) VXLAN gateways.

Placement of VXLAN Gateways:

Option B:All leaf devices will have L2 VXLAN gateways to handle the bridging of VLAN traffic into VXLAN tunnels.

Option C:All leaf devices will also have L3 VXLAN gateways to route traffic between different VXLAN segments (VNIs) and external networks.

Option E:Spine devices in an ERB architecture generally do not function as VXLAN gateways. They primarily focus on forwarding traffic between leaf nodes and do not handle VXLAN encapsulation/decapsulation.

Conclusion:

Option B:Correct—All leaf devices will have L2 VXLAN gateways.

Option C:Correct—All leaf devices will have L3 VXLAN gateways.

Option E:Correct—Spine devices will not act as VXLAN gateways

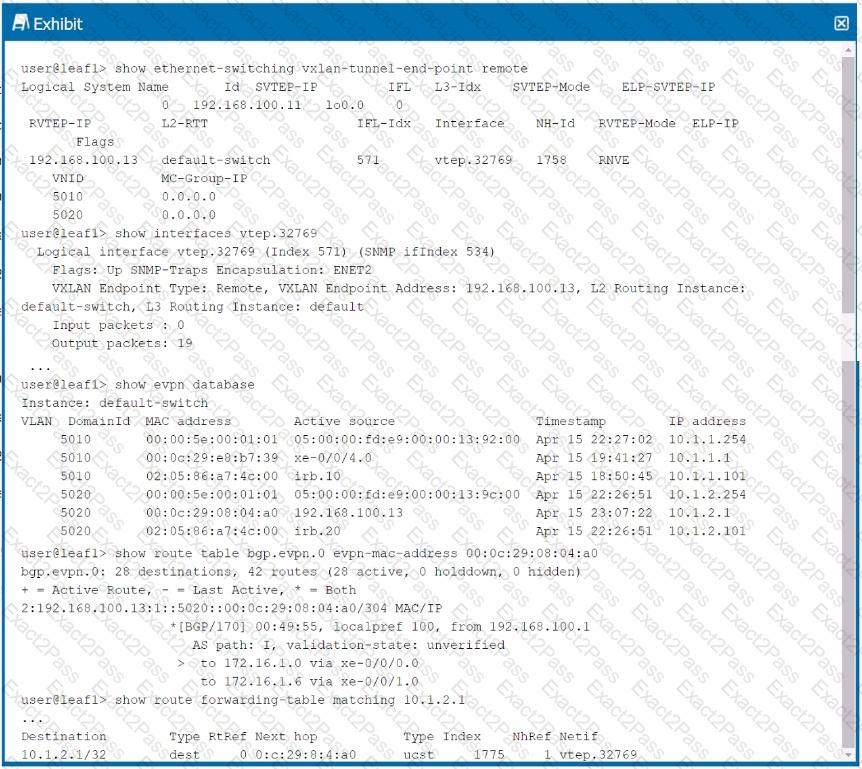

 Understanding the Problem:

Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.

 Analysis of the Exhibit:

The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).

 Conclusion:

Option B:Correct—The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.

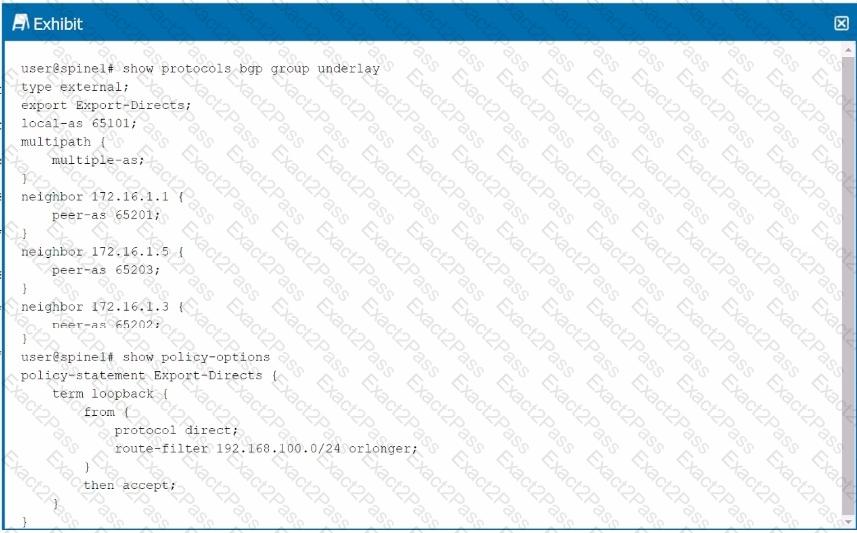

IP Fabric Load Balancing:

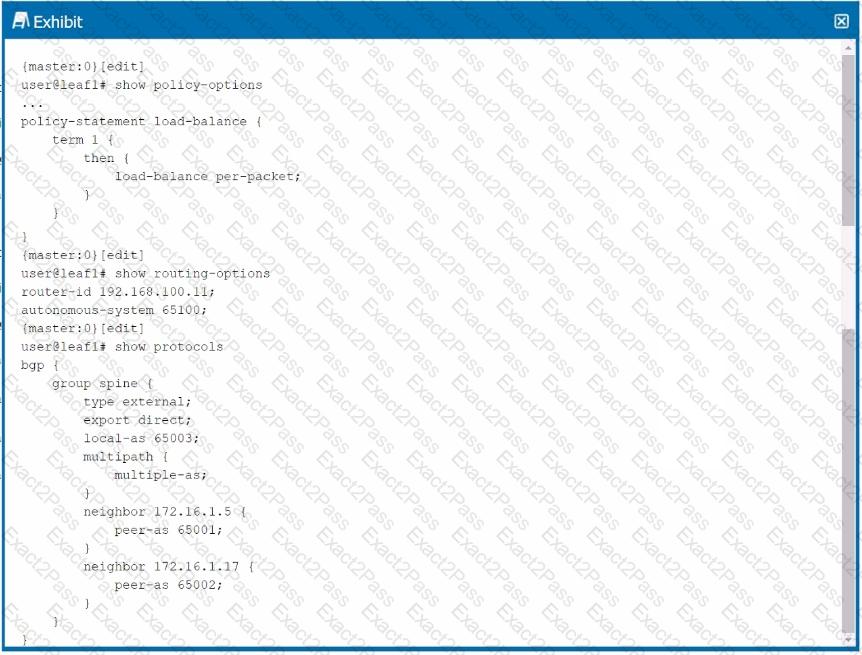

In the provided configuration, traffic is not being load-balanced to the spine devices. The issue likely relates to how BGP routes are being selected and whether Equal-Cost Multi-Path (ECMP) is functioning correctly.

Multipath Multiple-AS:

Option B:The multipath multiple-as configuration is essential when using BGP in an IP fabric where devices belong to different Autonomous Systems (AS). This setting allows BGP to consider multiple paths (even across different AS numbers) as equal cost, enabling ECMP and proper load balancing across spine devices.

Conclusion:

Option B:Correct—The multipath multiple-as configuration is necessary for achieving ECMP and effective load balancing in a multi-AS BGP environment.

Zero Touch Provisioning (ZTP):

ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.g., FTP, HTTP).

DHCP Server Configuration:

Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.

Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.

Conclusion:

Option B:Correct—MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.

Option D:Correct—Management IP addresses are essential for network communication during ZTP.
