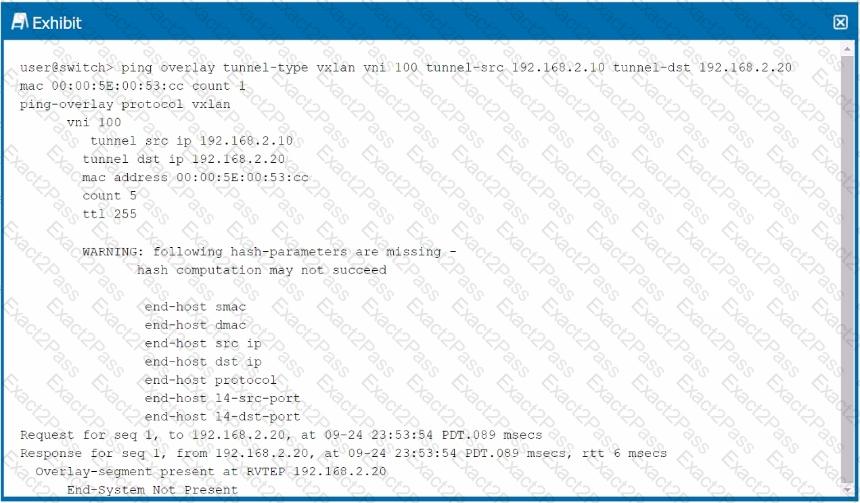

Symmetric IRB Routing with EVPN Type 2 Routes:

Symmetric Routing: In symmetric IRB (Integrated Routing and Bridging), routing occurs in both directions at the ingress and egress leaf nodes using the same routing logic. This is contrasted with asymmetric routing, where different routing logic is used depending on the direction of the traffic.

Required Components:

Option A:An L3 IRB interface is necessary for each VLAN that participates in routing, as it handles the Layer 3 processing for the VLAN.

Option B:MAC-VRF is required for symmetric routing to maintain a mapping of MAC addresses to the appropriate VRF, ensuring correct forwarding within the EVPN.

Option D:A transit VNI (Virtual Network Identifier) is required for each VRF to encapsulate the Layer 3 traffic as it traverses the network, allowing the IP traffic to be appropriately forwarded.

Conclusion:

Option A:Correct—Each local VLAN needs an IRB interface for L3 processing.

Option B:Correct—MAC-VRF is necessary for handling MAC address resolution in symmetric routing.

Option D:Correct—Transit VNIs are required for routing VRF-specific traffic across the network.

OptionsCandEare incorrect because:

C:Symmetric routing can work with various VLAN models, including single or multiple VLANs within an EVPN instance.

E:Symmetric routing is generally more efficient than asymmetric routing as it uses consistent routing logic in both directions.

Understanding VRF and Routing Instances:

In an EVPN-VXLAN overlay network, multiple tenants are separated using unique VRF (Virtual Routing and Forwarding) instances. Each VRF instance maintains its own routing table, allowing for isolated routing domains within the same network infrastructure.

Role of Route Distinguisher:

Route Distinguisher (RD):The RD is a unique identifier used in MPLS and EVPN environments to distinguish routes belonging to different VRFs. The RD is prepended to the IP address in the route advertisement, ensuring that routes from different tenants remain unique even if they use the same IP address range.

Correct Property:

D. the route distinguisher value:This is the correct answer because the RD is crucial in determining which routing information belongs to which VRF instance. It ensures that each VRF’s routing table only contains relevant routes, maintaining isolation between tenants.

Data Center References:

The RD is a key element in MPLS and EVPN-based multi-tenant environments, ensuring proper routing segregation and isolation for different VRFs within the data center fabric.

Redundant Gateways in EVPN-VXLAN:

In an EVPN-VXLAN environment, providing redundant gateway functionality typically involves the use of Anycast Gateway. This allows multiple PEs (Provider Edge devices) to use the same IP address and MAC address for the gateway, enabling seamless failover and redundancy without IP conflicts.

Conserving Address Space:

Using the same IP address across multiple PEs conserves address space because only one IP address is needed for the gateway function, regardless of the number of PEs. The shared MAC address ensures that ARP resolution and forwarding behavior are consistent across all the PEs.

Conclusion:

Option C:Correct—Using IRB interfaces with the same IP and MAC address across all PEs satisfies the need for redundancy while conserving address space.

OptionsA, B,andDintroduce unnecessary complexity or do not fully utilize the efficient Anycast Gateway approach, which is best practice for conserving IP space and providing redundancy.
