The Rack Management Controller (RMC) is a critical component for configuring nPartitions (nPars) in HPE Superdome systems. The RMC provides the necessary control and management interfaces to define and manage nPars, ensuring proper allocation of resources and isolation of workloads.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

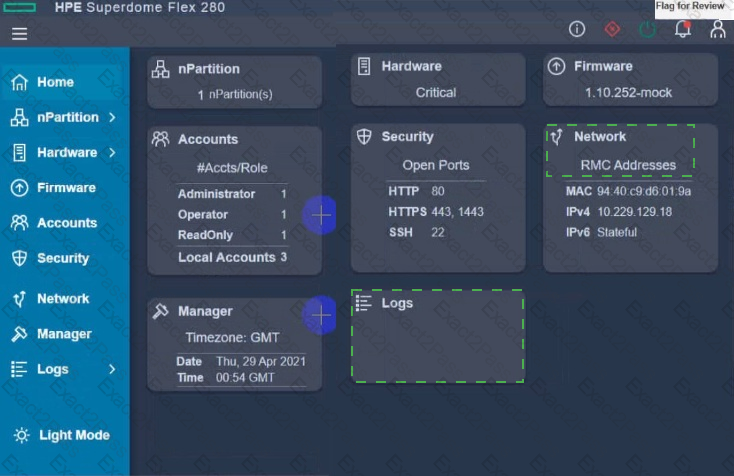

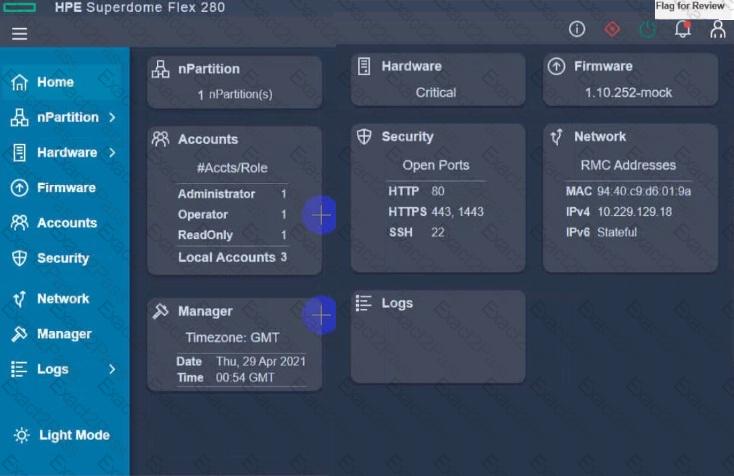

To check the Core Analysis Engine (CAE) Log on the HPE Superdome Flex 280, navigate to theLogssection in the management interface. This section provides access to various logs, including system, security, and diagnostic logs, which encompass the CAE logs necessary for detailed analysis and troubleshooting.

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

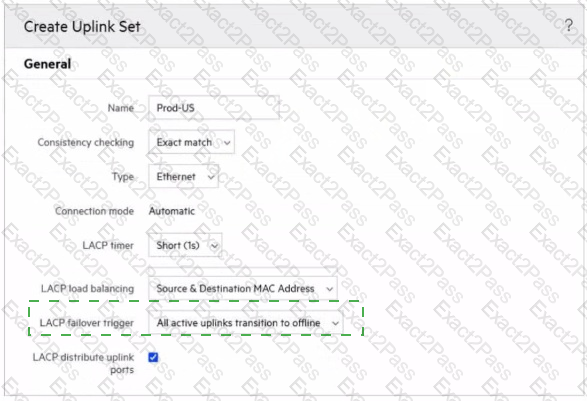

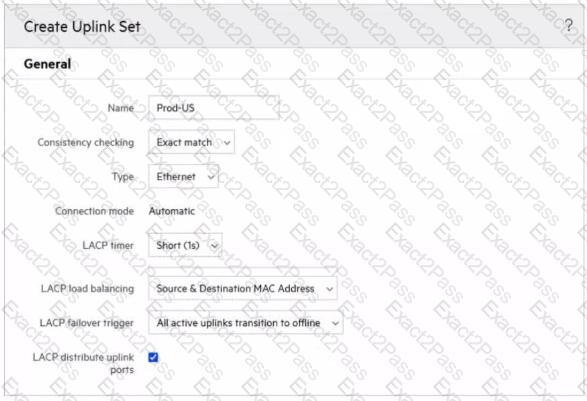

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure theLACP failover triggerwithin the uplink set. By setting the LACP failover trigger to "All active uplinks transition to offline," the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.

To configure a Link Aggregation Group (LAG) for two connections within a server profile for a compute node running an ESXi system, a Virtual Distributed Switch (VDS) is required from the VMware side. VDS allows for the configuration of LAGs and provides advanced network features such as centralized management and monitoring, which are essential for setting up and managing LAGs.

To enable dedicated Fibre Channel (FC) connectivity in an HPE Synergy frame, if using Brocade switches, it is necessary to create a logical interconnect group in HPE OneView. This group defines the configuration and management of FC connectivity for the compute modules. Properly configuring and managing this logical interconnect group ensures that the compute modules can establish dedicated FC connections.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

Here are the correct matches for each HPE OneView network type with their respective definitions:

Internal networkDefinition:A network that does not utilize any uplink ports and is used for communication between servers in the same frame.

Tagged networkDefinition:A network in which any tagged packets are dropped and forwarding is done by a MAC address.

Tunnel networkDefinition:A network with a dedicated set of uplink ports used to pass a group of VLANs without changing the VLAN tags.

Untagged networkDefinition:A network that contains multiple networks on a single uplink set that allows your customer to share uplinks with those networks.

Internal network:This network type facilitates communication between servers within the same frame without utilizing uplink ports, providing internal data exchange.

Tagged network:This network type drops any packets that are tagged and forwards packets based on their MAC address, ensuring only untagged traffic is processed.

Tunnel network:This type of network uses a specific set of uplink ports to pass VLAN groups while preserving the VLAN tags, useful for maintaining VLAN configurations across different network segments.

Untagged network:This network type enables the sharing of uplinks among multiple networks by placing them on a single uplink set, useful for optimizing network resource usage.

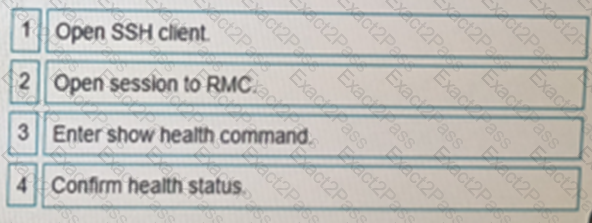

Open SSH client:Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC:Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command:Once connected to the RMC, enter theshow healthcommand. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status:Review the output of theshow healthcommand to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

A milestone release in HPE OneView refers to a version that includes significant architectural enhancements and updates. It serves as a prerequisite for subsequent updates, ensuring that the system is prepared for the next set of features and improvements. This type of release is essential for maintaining compatibility and stability as new hardware components and features are introduced.

When the iLO interface prompts for a login instead of automatically logging in via HPE OneView, a common issue is that the Single Sign-On (SSO) certificate might have been removed or is not properly configured on the iLO. Verifying the presence and validity of the SSO certificate on the iLO interface is a critical step in troubleshooting this issue.

The server hardware type in HPE OneView captures parameters such as the mezzanine card configuration. This information is crucial for defining the connectivity and expansion capabilities of the compute node, ensuring that the appropriate resources are available for specific workloads.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added:To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required:The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

A restriction of using a RoCE (RDMA over Converged Ethernet) network is that it does not support smart link and private network features. These features are essential for certain network configurations and use cases, but they are not available in RoCE networks, which are designed for high-performance, low-latency communication.

When adding a new HPE Synergy frame to an existing logical enclosure, it is essential to stack the HPE Synergy Virtual Connect SE 32Gb FC Modules from both frames. Stacking these modules ensures consistent management and redundancy across the logical enclosure, providing seamless integration and optimal performance.

When you configure a vVol datastore using the HPE Storage Integration Pack for VMware vCenter, the storage object to check in SSMC (HPE StoreServ Management Console) is the Storage Container. The Storage Container is a logical storage entity that houses virtual volumes (vVols) and represents the vVol datastore in the storage system. Verifying the Storage Container ensures that the vVol datastore is properly configured and managed.
