The SimpliVity 380 is the recommended solution for a customer who has acquired another company with an outdated and costly infrastructure. This hyper-converged infrastructure solution minimizes the footprint in the data center by combining compute, storage, and networking into a single, integrated system. SimpliVity 380 offers quick deployment, simplified management, and reduced operational costs, making it ideal for modernizing IT environments rapidly and efficiently.

HPE Storage References:

HPE SimpliVity 380 Overview

HPE Converged and Hyper-Converged Solutions

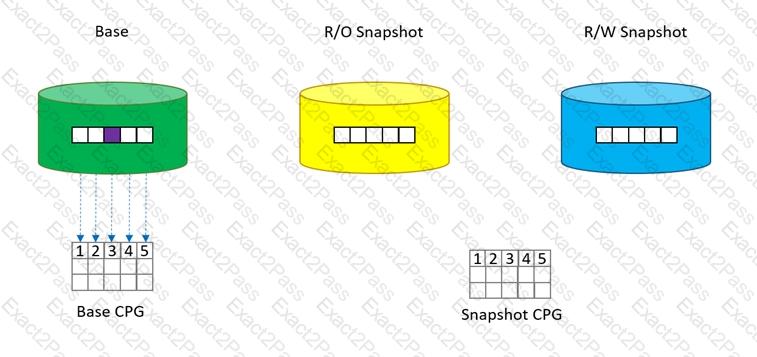

To calculate the required capacity for snapshots after one week for an HPE Alletra 9000 with the given customer requirements:

Base volume size: 200TB

Snapshots frequency: Every hour (24 snapshots per day, 168 per week)

Daily change rate: 10%

The snapshot capacity can be calculated by considering the daily change rate and the number of snapshots over a week.

Daily change: 10% of 200TB = 20TBTotal change over a week: 20TB * 7 days = 140TB

Since there are 168 snapshots (24 per day for 7 days), the total required capacity is 140TB (for the changes) plus the base volume size of 200TB, totaling 480TB.

References:

HPE Alletra 9000

HPE Snapshot Management

RMC (Recovery Manager Central) Express Protect is the most suitable HPE storage solution for addressing the customer's concerns about backup windows, recovery time objectives (RTOs), and data corruption risks in their primary storage environment. RMC Express Protect integrates with HPE 3PAR StoreServ and HPE StoreOnce systems, allowing direct backup of Oracle databases from primary storage to the StoreOnce appliance. This reduces backup windows and ensures fast, efficient, and reliable recovery, mitigating the risks associated with data growth and corruption.

HPE Storage References:

HPE RMC Express Protect Overview

HPE 3PAR and StoreOnce Integration

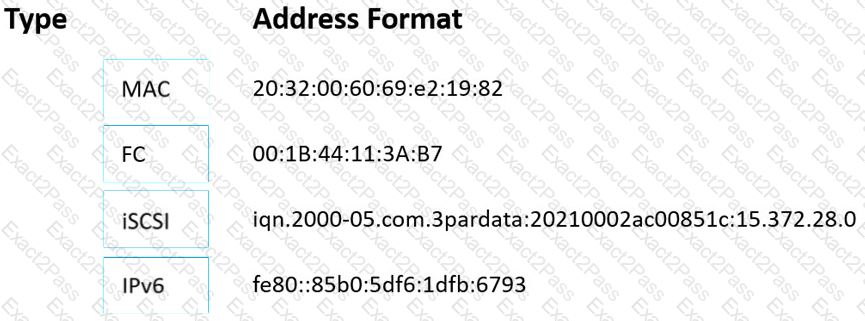

In an iSCSI-based SAN, the IQN (iSCSI Qualified Name) is used for host identification. IQNs uniquely identify iSCSI initiators and targets within a network, enabling proper connection and communication in an iSCSI storage environment. This identification is crucial for establishing and managing iSCSI sessions between hosts and storage arrays.

For more information, refer to:

HPE Storage Networking Solutions

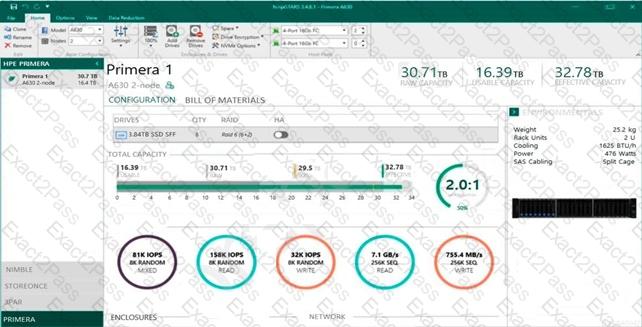

To create a configuration including the sizing and performance values for a customer solution for Alletra MP, the recommended HPE tool is Ninja STARS. This tool is specifically designed for storage sizing and configuration, providing detailed insights into the performance requirements and helping to tailor the solution to meet the specific needs of the customer. Ninja STARS helps in accurately sizing the storage solution to ensure it meets both current and future demands.

For further details, refer to:

HPE Ninja STARS Tool

The Core-Edge SAN topology offers the highest centralized data access performance. In this topology, the core switch provides centralized connectivity, and the edge switches connect to the hosts and storage devices. This architecture is highly scalable and supports high-performance data access while maintaining low latency. It is ideal for large SAN environments where centralized data management and high throughput are crucial.

References:

HPE SAN Solutions

SAN Topology Guide

NinjaCrawler is a storage sizing tool specifically designed for the HPE 3PAR StoreServ environment. It analyzes the customer's current data and provides insights into the expected deduplication ratio based on actual data patterns. This tool is crucial for accurately sizing storage solutions and optimizing capacity planning in environments that utilize deduplication features.

References:

HPE Storage Sizing Tools

NinjaCrawler for HPE 3PAR

For a large organization experiencing exponential data growth in object storage, particularly at a petabyte scale, a software-defined solution is recommended. The components to consider are:

HPE Apollo 4510 Server: The Apollo 4510 is designed for massive storage capacities, making it ideal for handling large-scale data storage needs in an efficient manner.

HPE Complete – Scalability RING: The Scalability RING is a software-defined storage solution that provides scalable object storage capabilities. It is well-suited for environments that require on-premise solutions to optimize costs at petabyte scales.

These components provide the necessary infrastructure to manage large volumes of object storage efficiently and cost-effectively.

References:

HPE Apollo 4000 Systems

HPE Complete – Scalability RING

For a customer seeking a centralized file-sharing solution that also provides print services and 15TB of storage, the ideal recommendation is NAS (Network Attached Storage).

NAS systems are specifically designed for file sharing and often come with integrated print server capabilities. They provide centralized storage that can be accessed by multiple clients over a network, making them suitable for environments requiring both file sharing and print services. NAS devices are scalable, making it easy to add additional storage capacity as needed, and they support a variety of file-sharing protocols, ensuring compatibility with different client operating systems.

References:

HPE NAS Solutions

HPE Storage Overview

The HPE Alletra 9000 NVMe-oF 100 GbE 2-port host bus adapter (HBA) is a versatile component that can be used for multiple purposes. While it is primarily designed for high-speed host connectivity, it can also be used for connecting extra drive enclosures to the HPE Alletra 9000 storage array. This flexibility allows it to serve dual roles depending on the specific requirements of the deployment, either expanding storage capacity by connecting additional enclosures or providing high-speed connectivity to hosts.

References:

HPE Alletra 9000 Overview

HPE NVMe-oF Solutions

The HPE Nimble CS1000 system is a suitable solution for remote offices that require All-Flash storage with simplified management. Nimble Storage offers predictive analytics with HPE InfoSight, providing ease of management and performance optimization. Additionally, the system supports application-aware replication, which is critical for disaster recovery scenarios by replicating data to a central site, ensuring data integrity and availability.

This solution addresses the need for All-Flash performance, ease of management, and robust replication features in remote office environments.

For more information, refer to:

HPE Nimble Storage

NinjaProtected+ is a storage assessment tool from HPE that provides data protection analysis. It helps customers understand their data protection landscape, assess backup and recovery needs, and optimize data protection strategies. This tool is particularly useful for ensuring that the data is adequately protected across different storage environments.

References:

HPE Ninja Tools Overview

NinjaProtected+ Tool

One of the distinguishing values that HPE Nimble Storage solutions provide, compared to other HPE storage solutions, is flat support pricing for all hardware components. This pricing model ensures that customers face predictable and consistent support costs over time, without unexpected increases as the hardware ages. This is particularly advantageous for organizations with tight budgets or those seeking long-term cost stability.

HPE Nimble Storage also offers advanced features such as predictive analytics and all-inclusive software licensing, making it a comprehensive and cost-effective storage solution.

For more information, see:

HPE Nimble Storage

The HPE 3PAR StoreServ Persistent Port feature ensures transparent and uninterrupted failover during specific events such as firmware upgrades and node maintenance or failure. During a firmware upgrade, the persistent port feature allows data paths to automatically fail over to an alternate path, maintaining uninterrupted host connectivity. Similarly, in the event of node maintenance or failure, the persistent port feature seamlessly redirects I/O to another available node without disrupting the service, ensuring high availability and reliability.

References:

HPE 3PAR StoreServ All-Flash Arrays

HPE Storage Solutions

Comprehensive Detailed Explanation with All HPE Storage ReferencesWhen adding a new host to an HPE 3PAR StoreServ system for a proof-of-concept, in addition to the host name, the minimum required information is the Host WWN (World Wide Name). The WWN is a unique identifier used in storage networks to address the host within the SAN. It is critical for ensuring the correct host is recognized by the storage system and is necessary for establishing the connection between the host and the storage volumes.

HPE Storage References:

HPE 3PAR StoreServ Host Configuration

HPE 3PAR StoreServ SAN Connectivity

When recommending the HPE SAN Network Advisor for managing and monitoring an HPE B-series SAN switch environment, the amount of used fabrics is a crucial factor in determining the appropriate edition. The HPE SAN Network Advisor comes in different editions, with each edition supporting a different number of fabrics. By assessing the number of fabrics in the customer's environment, you can choose the edition that best fits their needs, ensuring effective management and monitoring capabilities.

For more details, refer to:

HPE SAN Network Advisor

B. >99.9999% availability: HPE Nimble Storage AF (All-Flash) and HF (Hybrid Flash) series both offer a guaranteed uptime of greater than 99.9999%. This high availability is achieved through advanced architecture, data protection features, and proactive support mechanisms, making both series reliable choices for enterprises that require near-continuous access to data.

C. HF series has a dedicated read cache: The HF series in the Nimble portfolio includes a dedicated read cache, which is designed to accelerate read operations by caching frequently accessed data. The AF series, being an all-flash array, inherently delivers high-speed read operations due to its flash architecture and does not require a separate read cache.

These features highlight the robustness and high performance of both the AF and HF series, with the HF series being optimized for environments that benefit from a hybrid approach.

For more details, please refer to:

HPE Nimble Storage Overview

HPE 3PAR Persistent Ports is a feature that enables a non-disruptive environment by allowing host-based multi-pathing software to remain unaffected during events such as firmware upgrades. With Persistent Ports, the active I/O paths are automatically moved to alternate ports if the primary ports are undergoing maintenance or upgrades, ensuring continuous data access and eliminating disruptions.

References:

HPE 3PAR Persistent Ports

HPE 3PAR StoreServ Features

The Catalyst Store backup repository is designed to provide strong protection against ransomware attacks by reducing the opportunity for backups to become encrypted by malicious software. HPE StoreOnce Catalyst provides secure, deduplicated, and encrypted storage for backups, which can be further protected by air-gapping techniques and other security measures to prevent ransomware from accessing and encrypting the backup data.

For more information, refer to:

HPE StoreOnce and Catalyst Overview

NinjaCrawler is the storage sizing tool designed for HPE 3PAR StoreServ that can be used to determine whether customers qualify for the Get Thin Guarantee Program. This tool analyzes the customer's existing storage environment, including data usage patterns and deduplication opportunities, to provide insights into potential savings and help qualify for the Get Thin Guarantee.

References:

HPE Get Thin Guarantee

NinjaCrawler for Storage Sizing

When integrating a new storage array into an existing SAN infrastructure with HPE C-Class blade enclosures and a mix of ProLiant G7, Gen8, and Gen9 servers, it is essential to ensure firmware compatibility across all components. The best approach is to document all relevant details about the existing servers and SAN environment, including firmware versions, hardware configurations, and any specific SAN components. Then, consult the HPE SPOCK (Single Point of Connectivity Knowledge) database, which is the authoritative source for compatibility and support information regarding firmware, drivers, and hardware in HPE environments. This ensures that the new storage array will be fully compatible with the existing infrastructure, preventing potential issues related to firmware mismatches.

References:

HPE SPOCK

HPE SAN Compatibility

One of the key value propositions of the HPE Nimble storage solution, in addition to its technical capabilities, is the flat support pricing model for all hardware components. This means that customers can expect consistent and predictable support costs over the lifespan of the storage system, which is particularly beneficial for budgeting and financial planning. This flat pricing model contrasts with other storage solutions where support costs can vary significantly as the system ages.

Nimble's support model, combined with its predictive analytics and all-inclusive software, ensures that customers have a comprehensive and cost-effective storage solution.

For more insights, refer to:

HPE Nimble Storage

HPE Storage Solutions

The NAND memory controller is the component responsible for wear leveling in SSDs. Wear leveling is a process used to extend the lifespan of NAND flash memory by ensuring that write and erase cycles are distributed evenly across the memory cells. This prevents any single cell from being overused, which could lead to premature failure. The NAND memory controller plays a crucial role in managing this process, ensuring the reliability and longevity of the SSD.

For more details, refer to:

HPE Storage Solutions

HPE StoreOnce VSA (Virtual Storage Appliance) can be deployed on various cloud platforms, with Amazon AWS being one of the supported cloud/object-storage providers. AWS offers a robust and scalable infrastructure that integrates well with HPE StoreOnce VSA, enabling users to efficiently manage their backup and data protection needs in the cloud. The combination of HPE StoreOnce VSA and Amazon AWS provides flexibility in deployment and helps organizations leverage the cloud for their backup and recovery operations.

References:

HPE StoreOnce VSA Overview

Amazon AWS Integration with HPE StoreOnce

HPE offers several storage solutions that provide optimized backup and recovery solutions for hybrid cloud environments:

HPE StoreOnce with Catalyst: This solution provides an efficient, two-tier backup architecture that integrates with cloud storage, offering deduplication and data movement capabilities. It ensures fast recovery times and supports hybrid cloud environments, where backups can be seamlessly moved to the cloud for DR protection and retrieved quickly when needed.

HPE 3PAR 8000 Series: The HPE 3PAR StoreServ 8000 series includes robust data protection features, such as snapshot and replication capabilities, which can be integrated with cloud services through solutions like CloudBank. This integration allows for efficient, cloud-enabled data protection, optimizing recovery time and offering flexibility in a hybrid cloud environment.

These solutions provide a comprehensive approach to data protection, ensuring fast recovery times while leveraging the cloud for long-term storage and disaster recovery.

References:

HPE StoreOnce Solutions

HPE 3PAR StoreServ 8000

During the initial setup of an HPE Alletra 6000 system, the most user-friendly and accessible interface for defining initiators is the Web-based Alletra UI. This web interface provides a comprehensive and intuitive platform for configuring, managing, and monitoring the storage system. It allows administrators to define initiators, set up volumes, and manage other critical storage functions through an easy-to-use graphical interface, which simplifies the overall setup process.

References:

HPE Alletra 6000 Setup Guide

HPE Storage Management Tools

During the initial setup of an HPE Alletra 6000 system, the most user-friendly and accessible interface for defining initiators is the Web-based Alletra UI. This web interface provides a comprehensive and intuitive platform for configuring, managing, and monitoring the storage system. It allows administrators to define initiators, set up volumes, and manage other critical storage functions through an easy-to-use graphical interface, which simplifies the overall setup process.

References:

HPE Alletra 6000 Setup Guide

HPE Storage Management Tools

HPE GreenLake for Block Storage performs write operations caching by caching the data on DFC-hosted SSDs. The Data Fabric Controller (DFC) manages the SSDs and is responsible for optimizing the performance of the storage system by caching write operations. This approach ensures that write-intensive workloads are handled efficiently, providing lower latency and higher throughput for applications that demand fast storage performance.

For further details, refer to:

HPE GreenLake for Block Storage Overview

Persistent Checksum is a feature in HPE 3PAR StoreServ that helps detect and correct media and transmission errors that may occur anywhere in the I/O stack, from the server's Host Bus Adapter (HBA) to the HPE 3PAR StoreServ ports. This feature ensures data integrity by verifying that data read from or written to the storage array matches the original data, providing an extra layer of protection against data corruption caused by hardware issues or transmission errors.

References:

HPE 3PAR StoreServ Data Integrity

HPE Persistent Checksum Overview

Synchronous replication is the data protection technology that offers the lowest possible Recovery Point Objective (RPO) and can protect against an entire array failure. Synchronous replication ensures that data is simultaneously written to both the primary and secondary storage sites, providing real-time data protection. This approach minimizes data loss in the event of a disaster, as both sites contain identical data, making it the best choice for environments where data integrity and minimal RPO are critical.

References:

HPE Synchronous Replication Solutions

HPE Data Protection Overview

In a multi-switch fabric where it is necessary to manually map out preferred paths based on application priority and topology, while still allowing failover to non-preferred paths if needed, Traffic Isolation Zones (TIZs) are the recommended functionality. TIZs provide a mechanism to segregate and control traffic within a Fibre Channel (FC) fabric, ensuring that specific application traffic follows the preferred paths while providing the necessary failover capabilities. This enhances the performance and reliability of critical applications by keeping their traffic on dedicated paths, reducing the risk of congestion and ensuring that failover paths are used only when necessary.

For more details, refer to the following HPE Storage references:

HPE B-series FC Switches

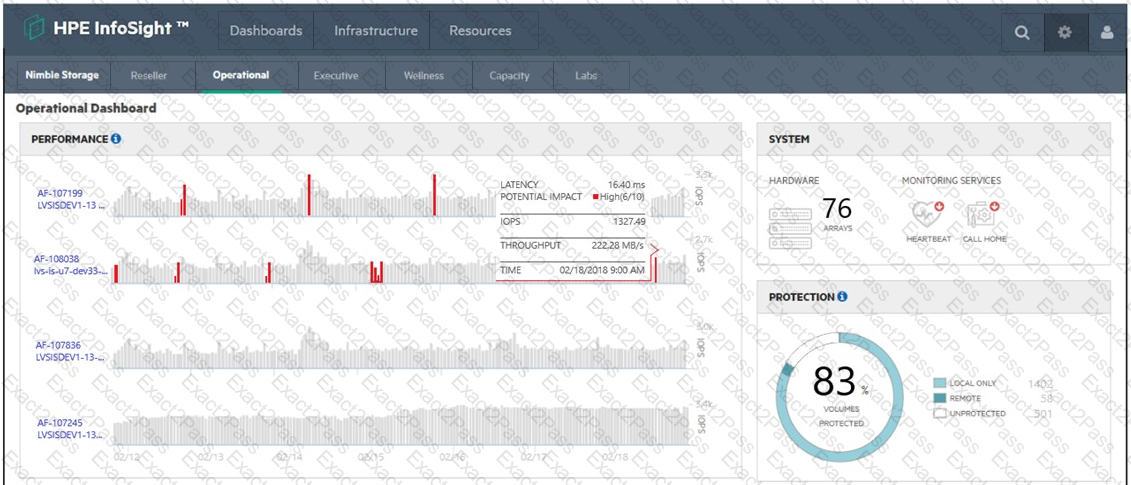

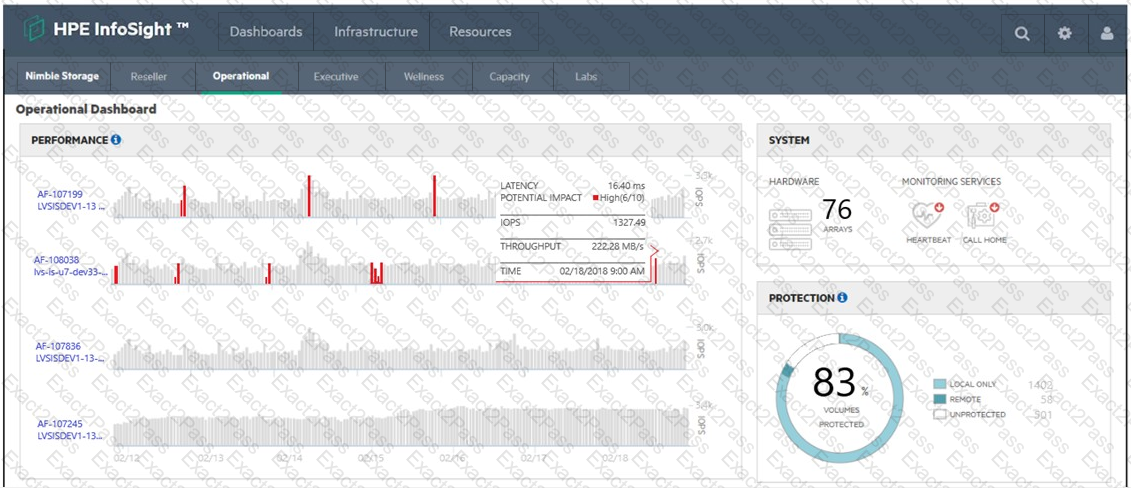

HPE InfoSight Cross-Stack Analytics for VMware and Hyper-V provides a comprehensive view of the virtual environment, allowing users to monitor and analyze various aspects of their infrastructure. Two key actions that can be performed within this tool are finding noisy neighbors (Option B) and locating inactive VMs (Option C).

Find noisy neighbors: This feature helps identify virtual machines (VMs) that are consuming excessive resources and negatively impacting the performance of other VMs within the environment. By identifying these "noisy neighbors," administrators can take corrective action to optimize resource allocation and improve overall system performance.

Locate inactive VMs: This functionality allows administrators to detect VMs that are consuming resources but are not actively in use. Identifying and addressing these inactive VMs can help free up resources and improve the efficiency of the virtual environment.

These capabilities make InfoSight Cross-Stack Analytics a powerful tool for maintaining optimal performance in VMware and Hyper-V environments.

References:

HPE InfoSight for Servers

HPE Cross-Stack Analytics Overview

When setting up a new HPE StoreOnce appliance for a customer who is using NetBackup and requires the highest performance setup, the best backup target type to recommend is VTL (Virtual Tape Library). VTLs are optimized for high-performance environments, particularly when connected via Fibre Channel (FC), which the customer has in their local setup. VTLs provide the speed and reliability of disk-based storage while emulating the tape systems that many backup solutions, like NetBackup, are designed to work with. This setup will ensure the highest throughput and performance for backup operations over FC.

References:

HPE StoreOnce Overview

HPE VTL Solutions

For identifying the latest firmware and compatibility information, especially in a VMware environment with HPE hardware, the SPOCK (Single Point of Connectivity Knowledge) tool (Option B) is the recommended resource. SPOCK provides detailed compatibility matrices, firmware recommendations, and interoperability guidelines, ensuring that all components in the storage and server environment are compatible and supported by HPE.

Using SPOCK ensures that the customer’s upgrade process is smooth and that all hardware and software components are correctly aligned.

References:

HPE SPOCK Compatibility Tool

HPE Firmware and Compatibility Resources

When replacing an existing LTO-6 tape library with a new HPE StoreEver MSL2024 tape library, and the customer wants to reuse their LTO-6 tape cartridges, LTO7 (Option D) is the latest tape drive technology that provides backward compatibility with LTO-6 tapes.

LTO7 drives can read and write to LTO-6 cartridges, making them the optimal choice for ensuring the customer's existing media can be utilized effectively while also providing the benefits of newer tape technology, such as higher capacity and faster data transfer rates.

References:

HPE StoreEver Tape Solutions

HPE LTO Tape Technology

Graphical user interface, text, application Description automatically generated

Given the customer's requirements for a storage solution in a VMware environment, with 20 TB of standard business data, 400 TB of video archive files, and a concern for cost, HPE MSA is the most cost-effective solution that meets these needs. HPE MSA offers affordable storage with enterprise features such as snapshots and replication. It supports iSCSI connectivity, which aligns with the customer’s 10 GB iSCSI requirements. Additionally, MSA provides a balance of performance and capacity, making it a suitable choice for environments where budget is a primary concern.

The most likely reason the 10GBase-T adapter installed in the StoreOnce 3620 is not configurable is that the customer failed to install a License to Use (LTU) for it (Option C). HPE StoreOnce systems require an LTU for certain hardware components and features. Without the appropriate license, the system will not recognize or allow configuration of the newly installed hardware.

Ensuring that the LTU is correctly installed would likely resolve the issue and allow the adapter to be fully operational.

References:

HPE StoreOnce Overview

HPE Licensing and Support

Graphical user interface, application Description automatically generated

In StoreOnce Gen4 systems, certain features are included with the system software without requiring additional licenses:

Catalyst: HPE StoreOnce Catalyst is included and provides advanced data reduction and deduplication capabilities, as well as integration with backup software.

VTL/NAS replication: This feature allows replication of Virtual Tape Libraries (VTL) and NAS shares between StoreOnce systems, ensuring data protection and disaster recovery, and it comes standard with the system software.

These features enhance the StoreOnce system's functionality, providing value without additional costs.

References:

HPE StoreOnce Features

StoreOnce Gen4 Technical Specifications

When deploying a new StoreOnce VSA (Virtual Storage Appliance), expanding storage capacity can be done by the following methods:

Verify sufficient capacity LTUs are available: License to Use (LTU) is required to allocate more storage to the VSA. Ensuring that there are sufficient LTUs available is essential before increasing capacity.

Add a new virtual hard disk to the virtual machine: This is the process of physically increasing the storage allocated to the VSA. By adding a new virtual hard disk to the virtual machine, you expand the storage capacity that the VSA can utilize.

These steps are critical for correctly scaling the storage capacity of a StoreOnce VSA solution.

References:

HPE StoreOnce VSA Deployment

HPE StoreOnce Capacity Licensing

Graphical user interface, text, application Description automatically generated

When addressing a customer's concerns about data loss, the features of the HPE Nimble array that should be emphasized are the quick RAID rebuild (Option A) and triple parity (Option E).

Quick RAID Rebuild: This feature is crucial in reducing downtime and data loss risk after a disk failure. Nimble's RAID technology ensures that if a drive fails, the rebuild process is swift, minimizing the exposure time during which data is vulnerable.

Triple Parity: This feature provides an additional layer of protection against multiple simultaneous drive failures. Triple parity RAID allows the array to withstand up to three drive failures without data loss, which significantly enhances the reliability and durability of the storage system.

These features work together to provide a robust, resilient storage solution that mitigates the risk of data loss and ensures high availability, making them particularly important for customers who have experienced data loss in the past.

References:

HPE Nimble Storage Data Protection

HPE Storage Reliability and Resilience

When reviewing an installation plan for a new Primera storage array in an existing environment, the best resource to find appropriate installation and planning guides is SPOCK (Option D). SPOCK (Single Point of Connectivity Knowledge) provides detailed interoperability and configuration guides, ensuring that all components in the existing infrastructure (such as C7000s, Brocade switches, and 3PAR 7400) are compatible with the new Primera array.

SPOCK is an essential tool for ensuring that the installation process is seamless and that the environment will support the new storage solution without any compatibility issues.

References:

HPE SPOCK Compatibility Tool

HPE Installation and Planning Guides

When designing an HPE MSA iSCSI storage solution, two critical components that are typically part of the solution are Drives (Option A) and SFPs (Small Form-factor Pluggables) (Option B).

Drives: These are the storage devices (e.g., SSDs or HDDs) that provide the necessary capacity and performance for the MSA array. The choice of drives can be tailored based on the performance and capacity needs of the customer.

SFPs: These are essential for establishing iSCSI or Fibre Channel connectivity between the storage array and the network switches. They play a crucial role in ensuring that the storage solution can be integrated into the customer's existing network infrastructure.

The inclusion of these components ensures that the HPE MSA solution is fully functional and can meet the performance and connectivity requirements of the customer's environment.

References:

HPE MSA Storage Overview

HPE Storage Components

The HPE MSA 2050 comes with a base set of features, including the ability to create up to 64 snapshots. However, for customers who require more extensive snapshot capabilities as their data services grow, the Advanced Data Services Suite license is the appropriate solution. This license extends the functionality of the MSA, including an increase in the number of snapshots that can be created and managed, thus addressing the customer's concerns about future growth.

References:

HPE MSA 2050 Storage

HPE MSA Advanced Data Services

A picture containing diagram Description automatically generated

The HPE SimpliVity Data Virtualization Platform is designed with a modular architecture that includes several key layers. Among these, the Presentation Layer and the Data Management Layer are fundamental components (Options A and D).

The Presentation Layer is responsible for the user interface and the interaction between the user and the system. It provides the tools necessary for administrators to manage and monitor the storage environment efficiently.

The Data Management Layer handles the core functions of the SimpliVity platform, including data deduplication, compression, and optimization. This layer ensures that data is stored and managed efficiently, reducing storage costs and improving performance.

These layers work together to deliver the full capabilities of the SimpliVity platform, enabling simplified management and robust data services in a hyper-converged infrastructure environment.

References:

HPE SimpliVity Overview

HPE SimpliVity Data Virtualization

The typical protocol used to access data from object storage is HTTP (Option C). Object storage systems, such as those used in cloud environments, typically expose their data through RESTful APIs over HTTP. This allows for easy access and manipulation of data objects over the web. Unlike traditional block or file storage, object storage is designed for scalability and is commonly used for storing large amounts of unstructured data, such as media files, backups, and archives.

HTTP is the standard protocol for web communications, making it the ideal choice for accessing data in object storage environments, which are often cloud-based or designed for remote access.

References:

HPE Object Storage Overview

HPE Cloud and Object Storage Solutions

When proposing a SimpliVity solution for a customer who has fully virtualized their datacenter with VMware, it is essential to highlight the features that will offer the most value in a virtualized environment.

Native Hypervisor Management Tools: SimpliVity integrates seamlessly with existing hypervisor management tools, such as VMware vCenter, allowing customers to manage their virtualized infrastructure using familiar interfaces. This integration simplifies operations and reduces the learning curve for IT staff.

Deduplication and Backup Capabilities: SimpliVity's built-in data efficiency features, including inline deduplication, compression, and optimization, significantly reduce the amount of data stored and transferred. This results in cost savings and improved backup performance, which are critical in a virtualized environment where storage efficiency is paramount.

These features directly address the needs of a virtualized datacenter, providing enhanced data protection, simplified management, and improved performance.

References:

HPE SimpliVity Overview

HPE SimpliVity for Virtualized Environments

The issue of seeing multiple volumes after creating just a single volume on the MSA is likely due to a lack of zoning on the Fibre Channel switches. Zoning is a method used in Fibre Channel networks to segment a fabric into smaller, manageable zones, which helps in controlling access between devices. By enabling zoning on the SN3000B switches, the customer can isolate the connections and ensure that only the desired host can see specific volumes. This prevents the scenario where multiple volumes are visible to a host that should only have access to one.

References:

HPE MSA Storage Overview

HPE B-series SN3000B Switches

The exhibit refers to a configuration scenario where properties of a volume set, specifically VMwareDatastores-GF, are being verified. The question focuses on identifying the RAID level used on this volume.

RAID 5 is a common configuration in many storage arrays because it provides a balance of performance, capacity, and data protection. In RAID 5, data is striped across multiple disks with parity information distributed among the disks. This parity allows for the recovery of data in the event of a single disk failure, making it a preferred choice for environments that require efficient storage utilization with a degree of fault tolerance.

HPE storage solutions, such as HPE Nimble Storage and HPE 3PAR, often employ RAID 5 for use cases involving virtualized environments like VMware datastores. These solutions are optimized for high performance and data protection, ensuring that even with a single drive failure, the data remains accessible and the system can continue to operate without significant performance degradation.

References:

HPE Storage Products

HPE Flash and Hybrid Storage

HPE Nimble Storage

These resources provide comprehensive information on HPE's RAID configurations, data protection mechanisms, and how they integrate with enterprise storage environments.

When managing HPE Primera arrays, it's important to assess the current compaction ratios to understand how effectively data is being stored.

NinjaStars is an HPE tool specifically designed to analyze and report on data reduction technologies, including deduplication and compression, on HPE storage arrays like Primera. It helps in determining the compaction ratios, providing insights into how efficiently the storage capacity is being utilized.

References:

HPE Primera Storage

HPE NinjaTools Suite

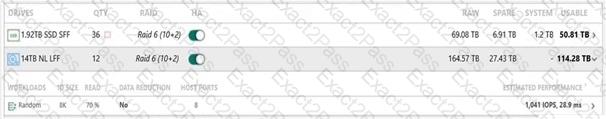

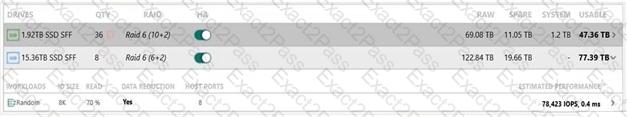

In the scenario presented, the customer requests an increase in Random Write IOPS for their HPE Primera solution. To achieve this, adding more disks of smaller capacity is the most effective approach (Option A). By increasing the number of disks, the storage system can distribute the write operations across more disks, thereby reducing the write latency and improving the overall Random Write IOPS performance. Smaller capacity disks typically allow for better IOPS performance per GB due to their higher spindle speed and lower data density, which reduces seek times.

This strategy also aligns with best practices in storage design, where increasing the number of spindles (disks) generally enhances the performance of random workloads, particularly in write-intensive environments.

References:

HPE Primera Overview

HPE Storage Products Overview

HPE Flash and Hybrid Storage Solutions

When a customer needs to create a full copy replica of a database for performance testing, the best technology to use is a clone. A clone creates an exact, independent copy of a volume, which can be used separately from the original. This is particularly useful for scenarios such as testing, development, or backup, where an exact copy of the data is required without affecting the production environment.

References:

HPE 3PAR and Primera Clone Technology

HPE Data Protection and Replication

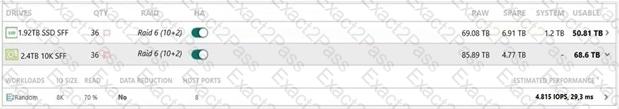

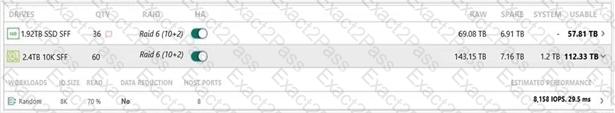

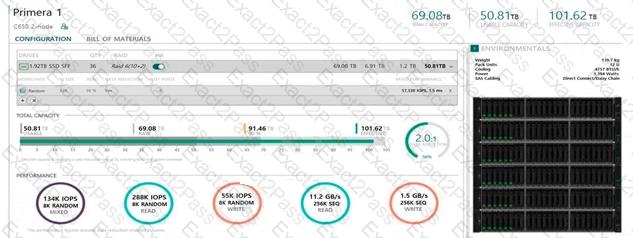

The exhibit shows various configurations for expanding an HPE Primera C6S0 array. The customer is planning to upgrade the system as older 3PAR arrays come off lease. Since the next 3PAR system to be replaced holds 100TB of VDI boot images for thousands of users, the recommended addition to the Primera array should focus on providing the necessary performance and capacity for VDI workloads.

Option A in the exhibit appears to include a configuration that balances SSD storage with high performance, making it suitable for VDI environments. This option would allow the customer to maintain a high level of performance while migrating and consolidating their VDI workloads onto the new Primera system.

References:

HPE Primera Storage Overview

HPE Storage for VDI

Graphical user interface, website, timeline Description automatically generated

For monitoring the health and utilization of the HPE StoreEver MSL6480 Tape Library, StoreServ TapeAssure Advanced is the recommended software. TapeAssure Advanced provides detailed insights into the operational status of tape libraries, including health checks, utilization metrics, and predictive analytics. This tool is essential for ensuring the reliability and efficiency of tape storage environments.

References:

HPE StoreEver Tape Libraries

HPE TapeAssure Advanced

When proposing a Primera array and ensuring high availability with an existing HPE 3PAR array, there are specific RMC (Recovery Manager Central) Peer Copy prerequisites that need to be addressed:

Check that the 3PAR OS version is supported (Option D): It is crucial to verify that the HPE 3PAR OS version is compatible with the RMC version being used. Incompatibility between the OS versions can lead to failures in replication or other high availability features.

RMC 6.2 (Option F): RMC 6.2 is the required version for ensuring compatibility with the features necessary for Peer Copy between Primera and 3PAR arrays. Ensuring that this version is installed and correctly configured is essential for successful implementation.

These prerequisites help ensure that the high availability setup between the Primera and 3PAR arrays functions correctly and that the data protection mechanisms are reliable.

References:

HPE RMC Overview

HPE 3PAR and Primera Compatibility

To integrate an HPE 3PAR StoreServ array with a third-party monitoring application, SNMPv3 (Simple Network Management Protocol version 3) can be configured. SNMPv3 is a protocol that supports the forwarding of events from the array to external monitoring tools. It is a secure and standardized method for managing and monitoring network devices, including storage arrays like HPE 3PAR StoreServ.

References:

HPE 3PAR StoreServ Management

HPE 3PAR SNMP Configuration

The REST API (Option A) is a critical feature that allows HPE Primera, HPE Nimble, and HPE XP arrays to work with third-party management tools. REST APIs provide a standardized interface for programmatically accessing and controlling the storage arrays. This enables integration with various management platforms, automation scripts, and orchestration tools, allowing for greater flexibility and streamlined management in diverse IT environments.

By using REST API, organizations can integrate their HPE storage systems with existing management frameworks, ensuring a cohesive and efficient infrastructure management approach.

References:

HPE REST API for Storage

HPE Storage Management

The StoreServ Management Console (SSMC) (Option D) is the tool used for centralized management of both HPE 3PAR and Primera arrays. SSMC provides a unified interface for managing storage arrays, enabling administrators to monitor, configure, and maintain their storage infrastructure from a single console. It offers advanced features for performance tuning, capacity planning, and data protection, making it an essential tool for organizations using these storage systems.

SSMC simplifies the management process and enhances the efficiency of storage operations, which is particularly beneficial in environments with complex storage requirements.

References:

HPE StoreServ Management Console

HPE SSMC Overview

For accessing StoreOnce VTL (Virtual Tape Library) targets from Veeam, the recommended protocol is FC (Fibre Channel). FC provides the high throughput and low latency necessary for backup operations, making it ideal for environments where speed and reliability are critical. StoreOnce VTL supports FC as a primary protocol for integrating with backup applications like Veeam.

References:

HPE StoreOnce VTL

Veeam and HPE StoreOnce Integration

For a customer needing a centralized storage solution accessible by Windows-based laptops and other personal devices, file-oriented storage accessed over SMB (Option D) is the most appropriate recommendation. SMB (Server Message Block) is a network file sharing protocol that allows files to be shared among devices running on a Windows network.

File-oriented storage solutions, like HPE's StoreEasy or Nimble with file services, are designed to serve files over the network using SMB, providing easy and secure access to departmental data.

References:

HPE File Storage Solutions

HPE SMB File Sharing

In a Fibre Channel (FC) SAN, the World Wide Name (WWN) serves as a unique identifier for devices within the network. The WWN is used in several critical functions:

Identification of zone members (Option A): WWNs are used to define and manage zones within a SAN. Zoning is a method of grouping devices, such as servers and storage arrays, to control access and ensure data security. By identifying zone members via their WWNs, administrators can control which devices can communicate within the SAN.

Identification of entities via Storage Name Server (SNS) (Option C): The WWN is registered with the Storage Name Server (SNS) in the SAN fabric. The SNS maintains a database of all devices within the SAN and their associated WWNs, enabling efficient routing of data frames to the correct destination.

These features make the WWN a fundamental element in the operation and management of a Fibre Channel SAN.

References:

HPE SAN and Zoning Overview

HPE Fibre Channel Networking Solutions

Graphical user interface, text Description automatically generated

The HPE MSA 2052 storage array is typically configured using the Storage Management Utility (SMU) (Option B). SMU is a web-based interface that allows administrators to manage and configure their MSA storage arrays. It provides an intuitive platform for setting up volumes, managing RAID levels, and configuring network settings.

This tool is essential for efficiently managing the storage environment and ensuring that the system is optimized for the specific needs of the customer.

References:

HPE MSA 2052 Configuration

HPE Storage Management Tools

Recovery Manager Central (RMC) is a powerful tool that integrates with HPE storage solutions to provide efficient and effective data protection. When deploying RMC in a customer environment, there are multiple options available depending on the infrastructure:

Installing RMC on RHEL Systems: RMC can be installed on top of a virtual or physical Red Hat Enterprise Linux (RHEL) system using the GUI wizard. This method is user-friendly and offers flexibility in deployment across different types of RHEL environments.

Deploying RMC on VMware ESXi: Another common deployment method is to deploy the RMC as a virtual appliance on a VMware ESXi hypervisor. This allows for seamless integration with virtualized environments, providing comprehensive data protection capabilities.

These deployment options provide flexibility for various customer environments, ensuring that RMC can be effectively integrated into their existing infrastructure.

References:

HPE Recovery Manager Central (RMC)

HPE RMC Deployment Guide

Veeam's integration with HPE storage solutions, particularly in backup and recovery scenarios, includes features that allow granular recovery of data, such as individual emails.

Explorer for Storage Snapshots is a feature within Veeam that enables customers to perform granular recovery from storage snapshots, including individual items such as emails from an Exchange server. This feature is crucial for minimizing downtime and ensuring quick recovery of specific data without the need to restore entire databases or systems.

This capability provides an efficient and user-friendly way to handle data recovery tasks, which is particularly valuable in environments where data availability and quick recovery are critical.

References:

Veeam and HPE Integration

Veeam Explorer for Storage Snapshots
