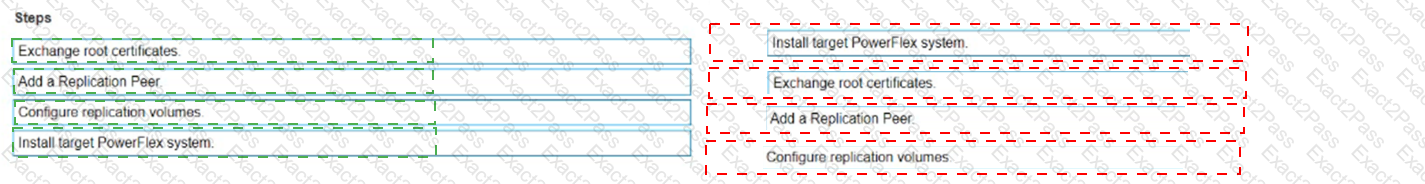

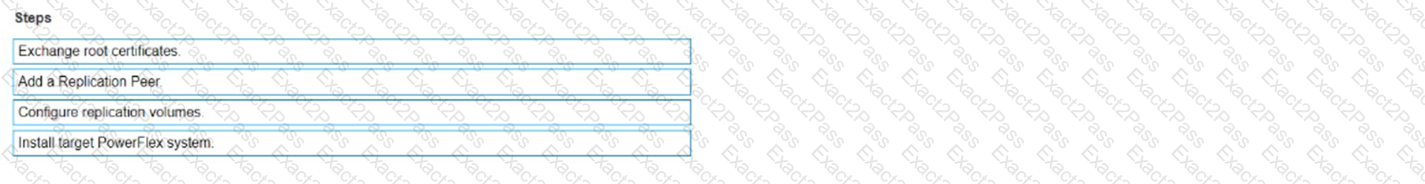

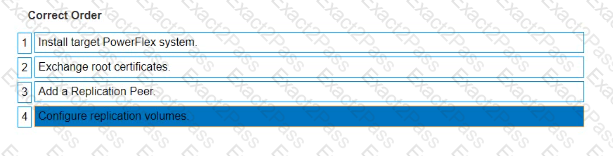

The policy that determines the priority of reconstructing data after a failure in a PowerFlex system is the Rebuild throttling policy. This policy is designed to manage the speed and resources allocated to the rebuild process, which is critical for restoring data redundancy and integrity after a failure occurs1.

The rebuild process in PowerFlex is a high-priority operation that ensures data is reconstructed across the remaining nodes and drives in the storage pool to maintain the desired levels of protection. The Rebuild throttling policy allows administrators to configure the impact of rebuild operations on the overall performance of the system, ensuring that while data reconstruction is prioritized, it does not significantly degrade the performance of production workloads1.

Rebalance throttling (Option A) is related to the process of redistributing data across the storage pool to maintain balance but is not directly concerned with the immediate reconstruction of data after a failure. Checksum Implementation (Option C) and Checksum Protection (Option D) are related to data integrity verification methods but do not determine the priority of data reconstruction.

Therefore, the correct answer is B. Rebuild throttling, as it is the policy that specifically governs the prioritization and management of data reconstruction activities following a failure in the PowerFlex system.

In a PowerFlex appliance environment, Fault Sets are used to group Storage Data Servers (SDSs) that are managed together as a single fault unit. When Fault Sets are employed, the distributed mesh-mirror copies of data are never placed within the same fault set1. This means that each Fault Set must have enough SDSs to ensure that data can be mirrored across different Fault Sets for redundancy.

Given that there are only five Storage Only nodes available in the described environment, and considering that each node runs an SDS, it may not be possible to create Fault Sets using all available servers if the number of Fault Sets or the distribution of SDSs across those Fault Sets does not allow for proper mirroring of data. The architecture requires a certain number of SDSs to be available to form a Fault Set that can be used for data mirroring and redundancy1.

The other options, such as requiring more than one Management node (Option A) or not having enough Compute Only nodes (Option C), are not directly related to the creation of Fault Sets. The Management node’s primary role is to manage the cluster, not to participate in Fault Sets, and Compute Only nodes do not contribute storage resources to Fault Sets.

Therefore, the correct answer is B. There are not enough Storage Only nodes, as this would prevent the architect from creating Fault Sets that meet the redundancy requirements of the PowerFlex appliance environment.

Volume migration in PowerFlex allows for the movement of volumes between storage pools, which can be necessary for various operational reasons such as performance tuning, capacity expansion, or infrastructure upgrades. The possible migrations are:

• Option B: Migrating from an MG (Medium Granularity) storage pool volume that is zero padded and thick provisioned to an FG (Fine Granularity) storage pool volume that is also zero padded and thin provisioned. This migration is possible and allows for a change in the provisioning and granularity of the volume, which can be beneficial for optimizing storage efficiency and performance1.
• Option D: Migrating from an MG storage pool volume that is non-zero padded and thin provisioned to another MG storage pool volume that is zero padded and thin provisioned. This migration is within the same granularity type (MG) and involves changing the padding of the volume. It is a viable option when adjusting the volume configuration for specific storage optimization needs1.

These migrations are supported by PowerFlex’s flexible architecture, which allows for non-disruptive volume movements between storage pools. The process involves using PowerFlex’s management tools to initiate and monitor the migration, ensuring data integrity and system stability throughout the operation1.

The references for these migrations come from PowerFlex documentation and best practices, which detail the procedures and capabilities of the system regarding volume management and migration1. It isimportant to follow the recommended guidelines to ensure successful migrations that align with the system’s design and operational principles.

Tree quotas in PowerFlex are used to limit the maximum size of a directory on the file system. They are a way to manage and control the amount of disk space that can be used by a specific directory and its subdirectories. By setting tree quotas, administrators can ensure that no single directory consumes more space than intended, which helps in maintaining a balanced utilization of storage resources across the file system.

Here’s how tree quotas function:

• Setting Quotas: Administrators define tree quotas by specifying a maximum size limit for a directory.
• Enforcement: Once set, the system enforces these limits, ensuring that the total size of the directory does not exceed the specified quota.
• Monitoring: Tree quotas also allow for monitoring of storage usage, providing insights into how storage is being consumed by different directories.

The purpose of tree quotas is not to limit the overall I/O or the total storage capacity of the file system but to provide a mechanism for controlling and monitoring the storage usage at the directory level within the file system1.

This explanation aligns with the information provided in the Dell PowerFlex documentation, which details the configuration and management of storage resources, including the implementation and purpose of tree quotas1

The default value of paths per volume when adding an NVMe host to a PowerFlex system is 8. This setting is relevant for the configuration of multipathing, which is a method used to provide redundancy and increase availability for storage environments. When you add an NVMe host, the system allows up to 8 paths per volume to be configured by default. This is particularly important in VMware ESXi environments, where multipathing can be configured to handle failover and load balancing of storage traffic.

The reference for this information is found in the Dell PowerFlex specification sheet, which outlines the maximum paths in the multipathing driver per volume as 8 for ESXi 7.0u31. This document provides detailed specifications and configurations for the PowerFlex system, ensuring that the information is aligned with Dell’s official documentation and design guidelines for PowerFlex systems.

When expanding a PowerFlex rack solution, optimizing the redundancy of the MDM roles is crucial to maintain system resilience and availability. The best practice in such a scenario is to distribute the MDM roles across the available cabinets to prevent a single point of failure. This can be achieved by adding Standby MDMs to the newly added cabinets1.

Here’s a step-by-step explanation:

• Assess the current MDM configuration: Understand the current setup of MDMs and Tie-breakers in the existing cabinets.
• Plan for distribution: Decide on how to distribute the MDM roles across the expanded infrastructure to enhance redundancy.
• Add Standby MDMs: Introduce Standby MDMs in the new cabinets (Cabinet 3, Cabinet 4, and Cabinet 5) to ensure that each cabinet has an MDM role, enhancing the fault tolerance of the system.
• Configure Standby MDMs: Properly configure the Standby MDMs to take over in case the Primary or Secondary MDMs fail.
• Test the configuration: After adding the Standby MDMs, test the system to ensure that the MDM roles can failover smoothly without impacting the system’s performance or availability.

By adding Standby MDMs to the new cabinets, you ensure that the MDM roles are not concentrated in a single cabinet, which could lead to a higher risk of system downtime if that particular cabinet encounters issues. This approach aligns with the best practices for designing resilient and high-availability systems1.

The other options do not provide the same level of redundancy optimization. For instance, moving MDM 3, Tie-breaker 1, and Tie-breaker 2 to separate cabinets (Option A) does not address the need for additional Standby MDMs in the new cabinets. Changing the MDM Cluster Mode from three-node to five-node (Option C) is not necessary for redundancy and may introduce unnecessary complexity. Consolidating MDM 2 and Tie-breaker 1 into Cabinet 1 (Option D) would reduce redundancy rather than optimize it.

Therefore, the correct answer is B. Add Standby MDMs to Cabinet 3, Cabinet 4, and Cabinet 5, as it provides a distributed and resilient MDM configuration suitable for an expanded PowerFlex rack solution.

The PowerFlex rack is the offering that is a fully engineered system, which includes licensing and a unified management platform. The PowerFlex rack is designed to provide a comprehensive solution that combines compute and high-performance software-defined storage resources in a managed, unified fabric for both block and file1. It is an ideal choice for businesses looking for a complete, out-of-the-box solution that simplifies deployment and management of their IT infrastructure.

The PowerFlex appliance (Option B) and PowerFlex custom node (Option A) are also part of the PowerFlex family, but they offer different levels of integration and flexibility. The PowerFlex software-only option (Option D) provides the software components without the fully engineered system and unified management platform that come with the PowerFlex rack1.

Therefore, the correct answer is C. PowerFlex rack, as it is the offering that includes a fully engineered system with licensing and a unified management platform, providing a comprehensive and integrated solution for modern IT environments.

When adding an NVMe device to an existing storage pool in PowerFlex, the details provided in the “Add Storage Device to SDS” dialog box must be accurate and follow the correct syntax. In the scenario provided, the device path contains an invalid character (an apostrophe) and an incorrect format, which would cause the device addition to fail.

Here’s a breakdown of the process and where the error occurs:

• Device Path: The device path should be a valid Linux device path, typically starting with /dev/disk/by-id/. The path provided contains an apostrophe (') which is not a valid character in Linux file paths and would result in an error1.
• Device Name: The device name should be a simple identifier without spaces or special characters. The name provided, “NVMe A. 1.6 TB”, contains spaces and periods, which are not typical for device names and could potentially lead to issues, although the primary cause of failure is the invalid device path1.
• Storage Pool: The storage pool name “SP-1” is a valid identifier, but it is contingent on the correct device path and name for the device to be added successfully.

The result of the action, given the invalid device path, would be that the device addition fails. It is crucial to ensure that all details entered in the dialog box adhere to the expected formats and do not contain invalid characters to avoid such failures.

This explanation is based on the standard practices for device path naming conventions in Linux systems and the configuration guidelines for PowerFlex systems as described in Dell’s official documentation1. Correcting the device path by removing the invalid character and ensuring the proper format would resolve the issue and allow the device to be added to the storage pool successfully.

To generate a software troubleshooting bundle for PowerFlex, a customer must navigate to the PowerFlex Manager Serviceability. The steps to generate the bundle are as follows1:

• Log in to PowerFlex Manager.
• Choose ‘Settings’ from the menu.
• Within the Settings menu, select ‘Virtual Appliance Management’.
• Choose ‘Generate Troubleshooting Bundle’.
• In the popup window, the customer has the option to either send the bundle to Configured Secure Remote Services (Secure Remote Services) or download it locally. If downloading locally, select the path for the downloads and enter the appropriate login information, then click ‘Generate’.

This process is part of the serviceability features of PowerFlex Manager, which provides tools for system maintenance and troubleshooting. It is important to follow these steps carefully to ensure that the troubleshooting bundle is generated correctly and contains all the necessary information for diagnosing issues within the PowerFlex system.
