UCS is a command that sets a new user coordinate system (UCS) by specifying points or by selecting an object. You can use the Object option to align the UCS with a selected object such as a line.

Based on 3 and 4, UCSBASE is a system variable that sets the name of the current UCS base. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices. LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-E658D5E7-EE5C-4A06-BF34-F71CDB363A71-htm.html

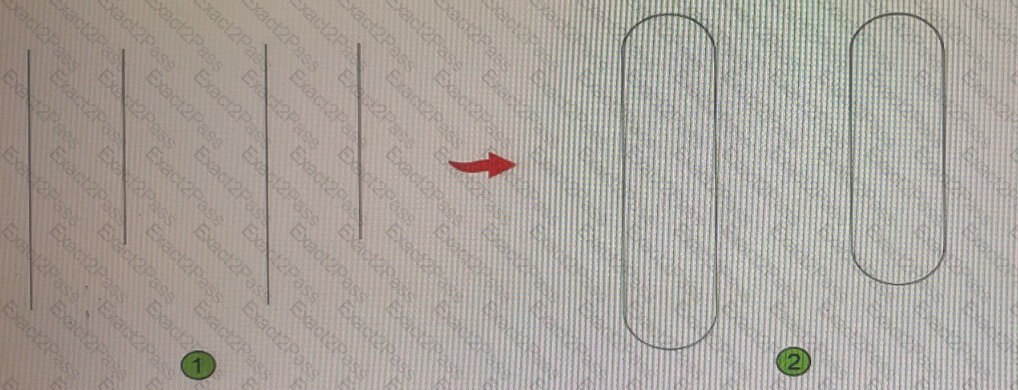

To join multiple polylines into a single polyline, use the PEDIT command with the Multiple and Join options.

Initiate the PEDIT command:

Type PEDIT in the command line and press Enter.

Select Multiple option:

When prompted to select a polyline, type M for Multiple and press Enter.

Select all polylines:

Select all the polylines that need to be joined.

Use the Join option:

After selecting the polylines, type J for Join and press Enter.

AutoCAD will prompt for the fuzz distance. Press Enter to accept the default, which will join the polylines if their endpoints are within a small distance of each other.

Convert if necessary:

If the selected objects include lines or arcs that are not polylines, AutoCAD will ask if you want to convert them to polylines. Select Yes to convert and join them.

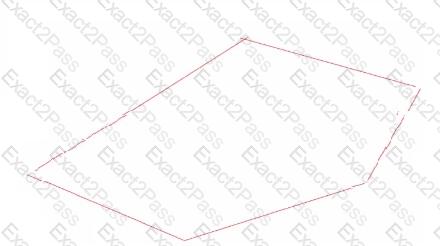

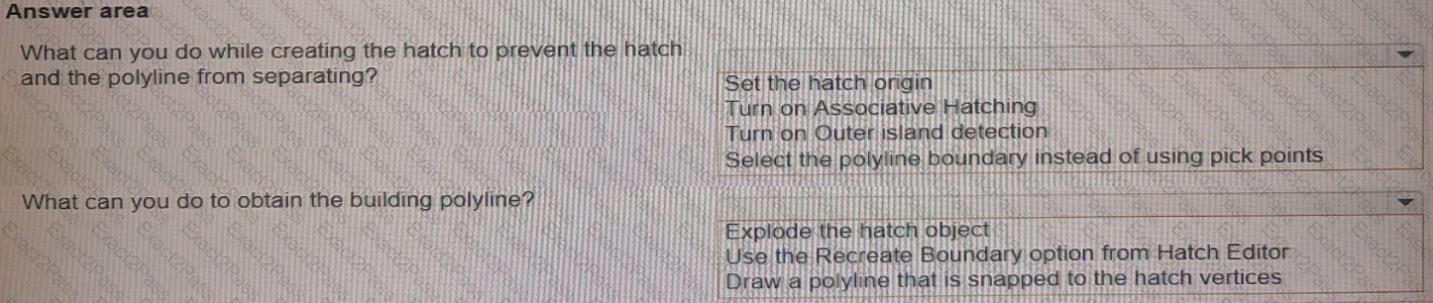

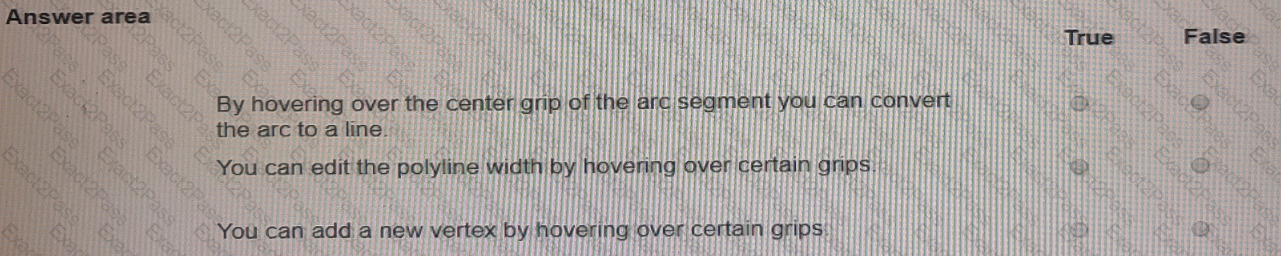

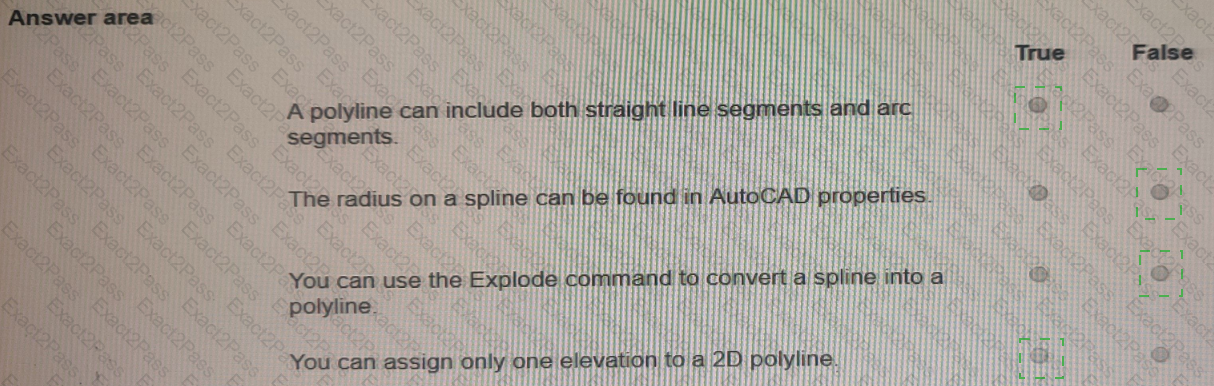

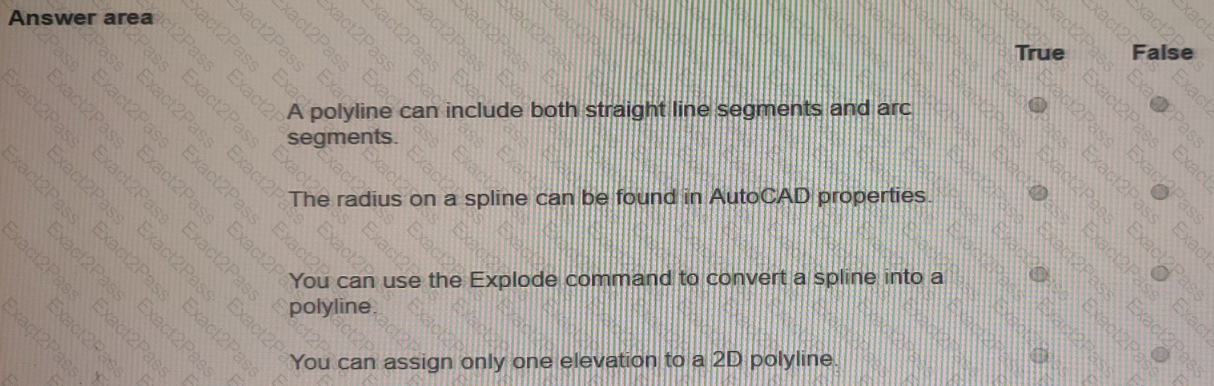

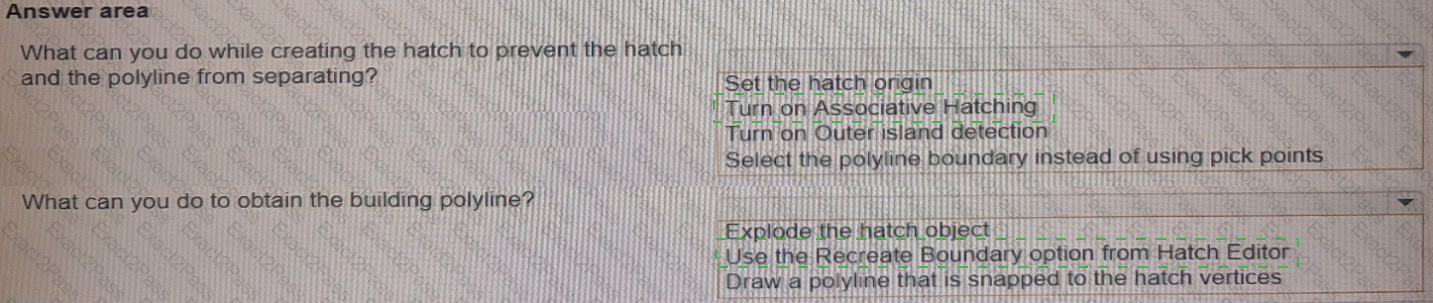

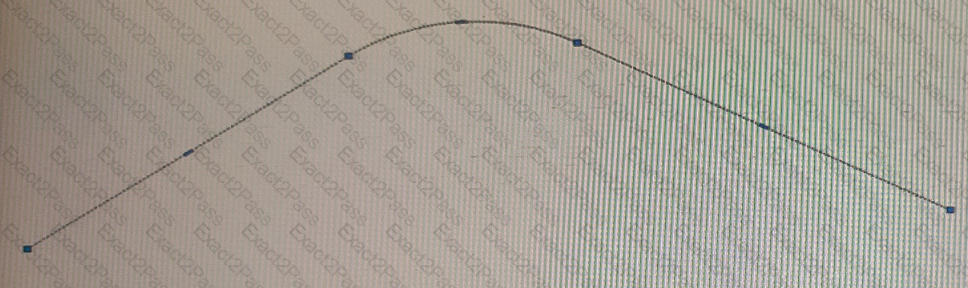

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

Access the Add Scale Dialog:

Open the 'Edit Drawing Scales' dialog by clicking on the scale list in the status bar or through the SCALELISTEDIT command.

Add a New Scale:

Click on the Add button to open the 'Add Scale' dialog.

In the 'Add Scale' dialog, you will need to specify the drawing units and paper units for the new scale.

Enter the Required Scale Values:

For a scale of 1" = 120', set the Drawing Units to 1 and the Paper Units to 120.

This configuration means that 1 unit in the drawing will represent 120 units on paper, matching the desired scale.

Save the New Scale:

Click OK to save the new scale to the scale list.

The new scale of 1" = 120' will now be available for use in the drawing.

References:

AutoCAD Documentation on adding scales: Adding Scales

According to the AutoCAD for Design and Drafting documents, the CHAMFER command creates a beveled corner between two lines, while the FILLET command creates a rounded corner between two lines. Both commands can be used with the Polyline option to apply chamfers or fillets to all corners of a 2D polyline1. However, in this case, the lines are not polylines but separate line segments. Therefore, using the Polyline option will not work. Instead, you can use the Multiple option to chamfer or fillet multiple sets of lines without restarting the command2.

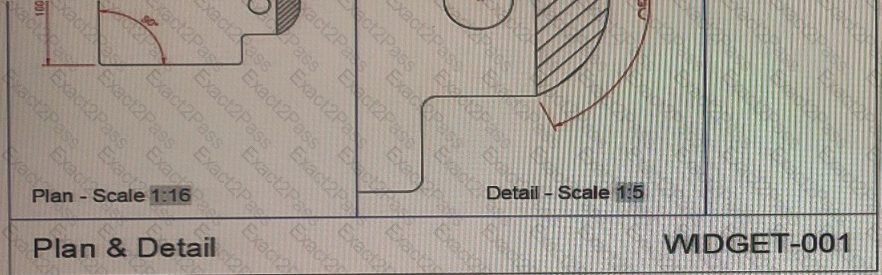

The object property that you should use when using the Insert Field command to generate the viewport scale, if the default scale list is being used, is the "Standard scale".

The "Standard scale" property is used to specify the standard scale factor for the viewports. It represents a value in the format of 1:n, where n is the scale factor. For example, if you set the standard scale to 1:50, the viewport will display objects at a scale of 50 units per drawing unit.

To use this property in the Insert Field command, you can select "Object" in the "Field category" dropdown and "Standard scale" from the "Field names" dropdown. This will insert a field code that will automatically update the viewport scale based on the properties of the viewport.

associative dimensions adjust to changes in the geometric objects they measure. Dimension associativity defines the relationship between geometric objects and the dimensions that give their distance and angles.

Based on 2 and 3, dimensions in a layout may be associated to objects in model space when the DIMASSOC system variable is set to 2.

Check the Active Space:

The Annotation Scale tool is only visible when the user is in model space.

Ensure that you are currently working in model space by checking the status bar or the workspace tab.

Switch to Model Space:

If you are in paper space (layout view), switch to model space by double-clicking inside a viewport or selecting the 'Model' tab at the bottom of the drawing area.

Verify the Annotation Scale Tool:

The Annotation Scale tool should now be visible in the status bar.

If it is still not visible, right-click on the status bar, go to 'Customization,' and ensure 'Annotation Scale' is checked.

References:

AutoCAD Documentation on Annotation Scale: Annotation Scale

Thank you for your engagement! Join our VIP AI Discord community at SmartPrompt for AI news and custom prompts for passive income opportunities with business automation.

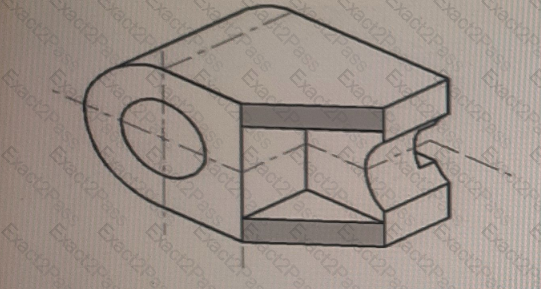

The UCS is a moveable Cartesian coordinate system that establishes the XY work plane, horizontal and vertical directions, axes of rotation, and other useful geometric references1. You can change the UCS origin and orientation for convenience as you specify points, enter coordinates, and work with drawing aids1.

The face option sets a new UCS based on a selected face of a 3D solid object2. This option will align the XY plane of the UCS with the selected face and show its correct size and shape2.

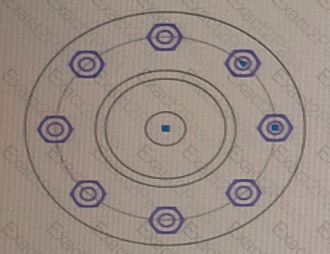

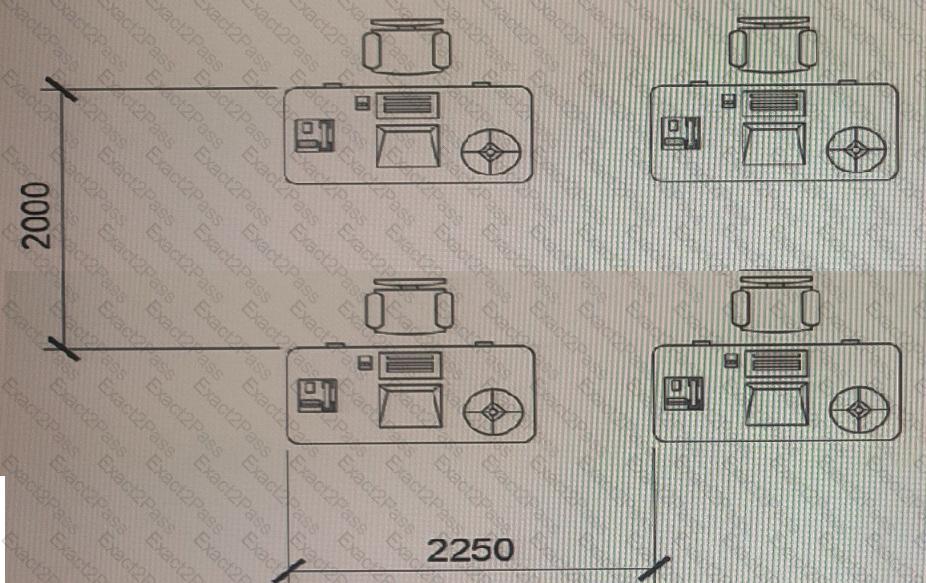

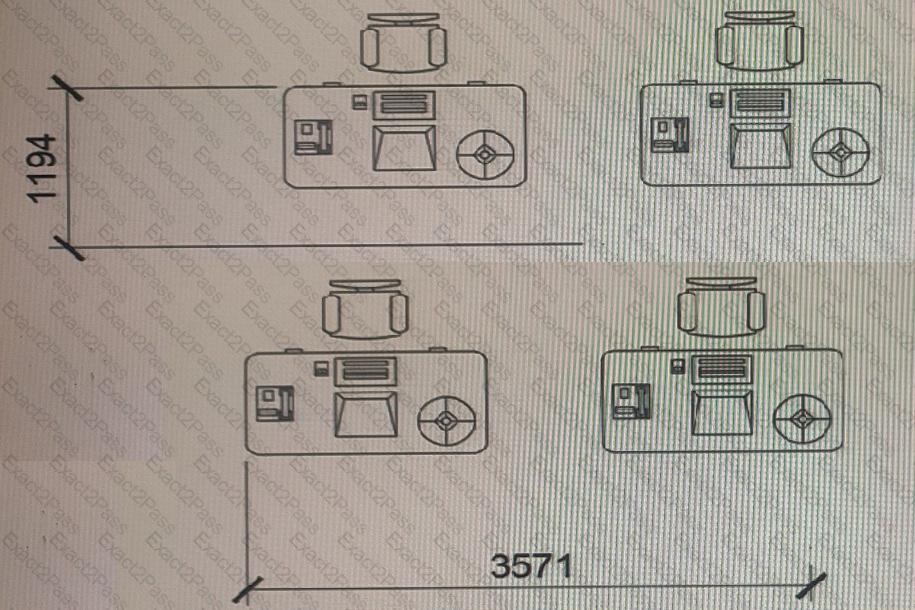

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.

https://autocadprojects.com/trim-and-extend-command/

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

To ensure that all drawing information is visible when plotting from an ISO A3 layout to an ISO A4 sheet size, the correct plot settings need to be applied.

Open the Plot Dialog:

Type PLOT in the command line and press Enter.

Set Plot Area:

In the Plot dialog, set the "Plot Area" to Extents. This ensures that everything within the drawing extents will be included in the plot.

Adjust Plot Scale:

Set the "Plot Scale" to Fit to paper. This option will automatically scale the drawing to fit within the ISO A4 sheet size (297 mm x 210 mm).

Other Settings:

Ensure that the correct printer/plotter and paper size (ISO A4) are selected.

Optionally, check the "Center the plot" option to ensure the drawing is centered on the sheet.

Save Changes:

Click on the "Preview" button to check the output. If everything looks correct, click "OK" to plot the drawing.

Set DVIEW Twist Angle:

Type DVIEW in the command line and press Enter.

Select the object (or type TW for Twist).

Enter 37 for the twist angle.

Set SNAPANG Value:

Type SNAPANG in the command line and press Enter.

Enter 37 for the snap angle.

Verify UCS Alignment:

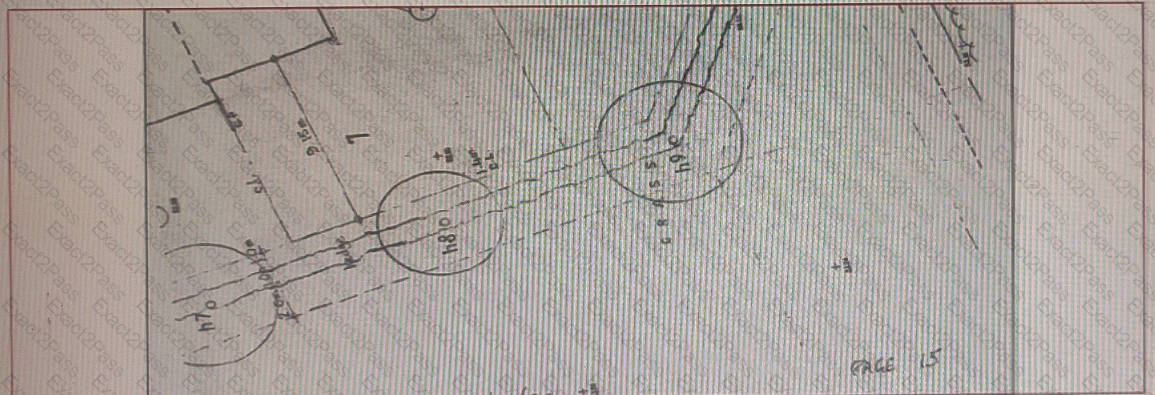

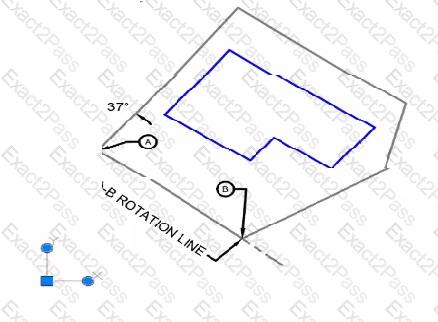

Ensure the UCS icon is aligned parallel to the A-B rotation line.

Draw the building relative to the aligned UCS.

References:

AutoCAD Documentation on DVIEW and SNAPANG

Autodesk Knowledge Network: Setting Up the UCS in AutoCAD

https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2022/ENU/Revit-DocumentPresent/files/GUID-EA2B51E1-C28A-4410-AF01-836377581968-htm.html#:~:text=DWG%20(drawing)%20format%20is%20supported,DXF%20files%20are%20generally%20large .

Understanding Online Collaboration:

AutoCAD offers several tools for online collaboration, allowing users to share drawings with others who may not have AutoCAD.

SHARE Command:

The SHARE command in AutoCAD generates a link to the drawing file that can be shared via email or other means.

Recipients can view the drawing in a web browser, and those with permissions can edit and save a copy.

Steps to Share Drawing:

Save the drawing.

Use the SHARE command.

Configure sharing settings, including permissions for viewing or editing.

Generate and share the link with recipients.

Conclusion:

For online collaboration, use the SHARE command to generate a shareable link for viewing and editing the drawing file.

References:

AutoCAD User Guide on Sharing Drawings Online.

AutoCAD Help Documentation on SHARE Command.

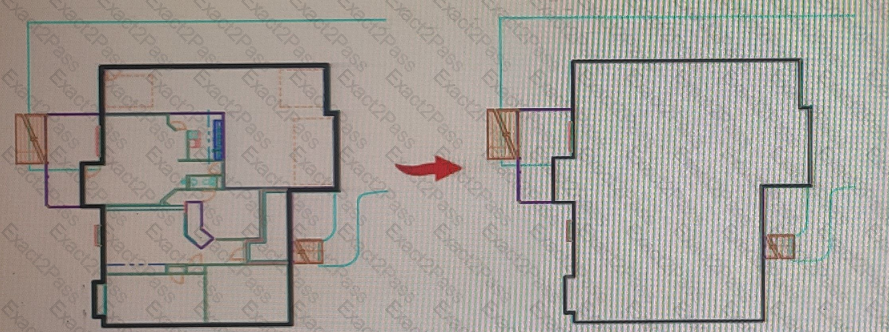

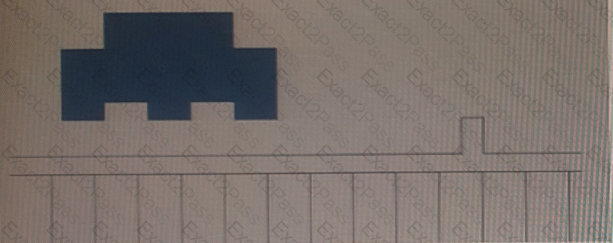

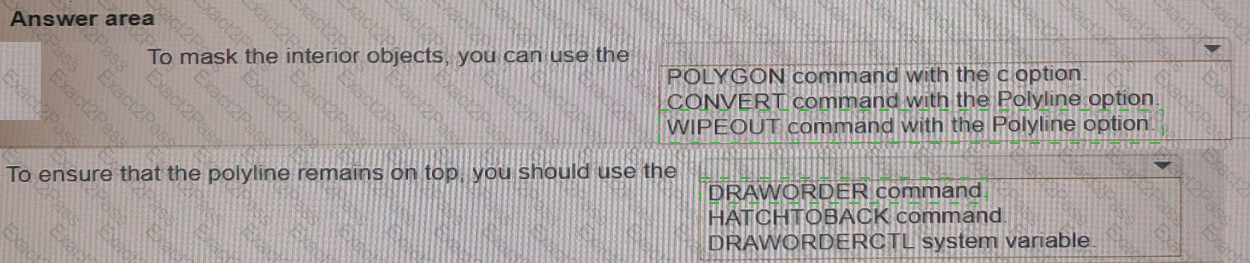

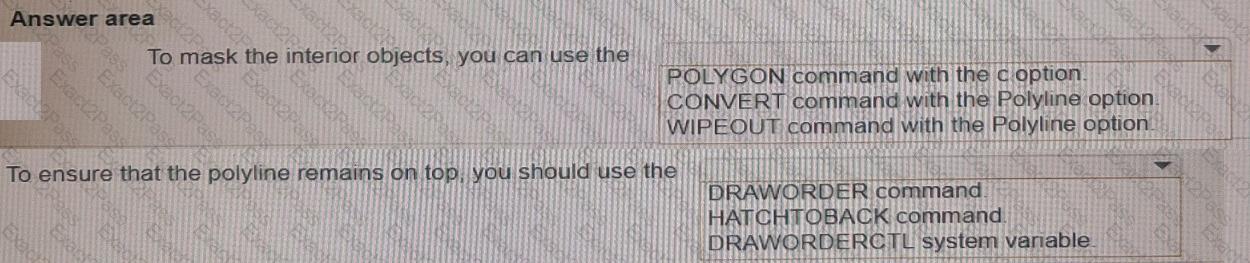

BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23
