UiPath Orchestrator provides proactive monitoring and alerting features. These are designed to identify and notify about potential issues before they escalate into critical problems, enabling timely intervention and resolution.

In a UiPath State Machine workflow, the Transitions section of the State activity is used to specify conditional/triggers logic and multiple outgoing transitions in a state machine. Transitions are expanded when you double-click them, just like the State activity. They contain three sections: Trigger, Condition and Action, that enable you to add a trigger for the next state, or add a condition under which an activity or sequence is to be executed. Transitions are represented by arrows or branches between states. They define the flow of the state machine and the rules for moving from one state to another. You can add multiple transitions from a state, but only one transition can be taken at a time, based on the trigger or condition that is met first

The Alerts panel in UiPath is a feature designed to notify users about different types of alerts or events that occur within the UiPath ecosystem, especially within the Orchestrator. These can range from job failures, trigger notifications, to queue item alerts.

The best description of the Alerts panel, considering typical functionality within such systems, would be:

B. A panel that displays summaries of the alerts you subscribed to, received as error reports every ten minutes, or as daily reports.

This option suggests that the Alerts panel provides a curated view of alerts based on subscriptions, which can be configured for error reports at specified intervals or for aggregate daily reports, making it a more proactive and user-specific feature.

The other options either describe a panel with too broad a scope (A), suggest real-time alerting without the context of user subscriptions (C), or limit the display to only the most severe alerts without mention of subscription or reporting features (D).

LINQ (Language-Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, XML, etc. LINQ can be used in UiPath Studio to perform complex data operations on variables of different types, such as DataTable, List, Array, etc. LINQ has two syntax forms: query syntax and method syntax. Both forms can achieve the same results, but they have different styles and preferences.

Option B is the correct answer because it demonstrates using LINQ method syntax to filter DataTable rows based on a specific condition. The expression dataTable.AsEnumerable().Where(Function(row) row(“ColumnName”).ToString.Contains(“Value”)).CopyToDataTable() does the following:

It converts the DataTable variable dataTable to an IEnumerable(Of DataRow) object using the AsEnumerable extension method1. This allows the use of LINQ methods on the DataTable.

It filters the rows of the DataTable based on a lambda expression using the Where extension method2. The lambda expression Function(row) row(“ColumnName”).ToString.Contains(“Value”) returns true for the rows that have the value “Value” in the column named “ColumnName”.

It converts the filtered IEnumerable(Of DataRow) object back to a DataTable using the CopyToDataTable extension method3. This returns a new DataTable that contains only the rows that match the condition.

The other options are incorrect because:

Option A is incorrect because it uses an invalid LINQ method Concatenate. The correct method to concatenate two strings in a list is Concat4, which takes two IEnumerable(Of T) objects as arguments and returns a new IEnumerable(Of T) that contains the elements from both sources. For example, listOfStrings.Concat(new List(Of String) {“String_1”, “String_2”}).ToList().

Option C is incorrect because it uses an invalid LINQ method ToJSON. There is no such method in the LINQ library that can convert a list of integers to a JSON format. To achieve this, you need to use a JSON serializer, such as Newtonsoft.Json5, which provides methods to convert .NET objects to JSON and vice versa. For example, JsonConvert.SerializeObject(listOfIntegers).

Option D is incorrect because it uses an invalid LINQ method Split. There is no such method in the LINQ library that can split a DataTable into multiple smaller DataTables based on a specific condition. To achieve this, you need to use a group by clause in LINQ query syntax or a GroupBy extension method in LINQ method syntax6, which groups the rows of a DataTable by a key value and returns an IEnumerable(Of IGrouping(Of TKey, TElement)) object. Then, you can use a Select extension method to project each group into a new DataTable using the CopyToDataTable extension method. For example, dataTable.AsEnumerable().GroupBy(Function(row) row(“ColumnName”)).Select(Function(group) group.CopyToDataTable()).ToList().

References:

DataTableExtensions.AsEnumerable Method (System.Data) | Microsoft Docs

Enumerable.Where(Of TSource) Method (System.Linq) | Microsoft Docs

DataTableExtensions.CopyToDataTable(Of T) Method (System.Data) | Microsoft Docs

Enumerable.Concat(Of TSource) Method (System.Linq) | Microsoft Docs

Json.NET - Newtonsoft

Grouping Data - C# | Microsoft Docs

UiPath Integration Service is the component of the UiPath Platform that makes the automation of third-party applications much easier by standardizing authorization and authentication, helping you manage API connections and also allowing faster integration into SaaS platforms1. By using pre-built connectors, the development of automation projects in UiPath Studio is more simple and more consistent, regardless of the third-party applications you are automating1. Some of the advantages of pre-built connectors are:

They enable automation with an out-of-the-box library of connectors for popular applications such as Salesforce, Slack, Microsoft Office 365, SAP, ServiceNow, and Google G Suite23.

They help setting up and managing connections easily with standardized authentication methods such as OAuth 2.0, Basic, API Key, and Custom1.

They enable kicking off automations with server-side triggers or events, such as receiving an email, creating a record, or updating a field1.

They provide curated activities and events (with additional data filters) for ease of use in UiPath Studio1.

They simplify automation design by providing a uniform experience across all Studio designers1.

They integrate across all UiPath Platform product solutions, such as UiPath Orchestrator, UiPath Assistant, UiPath Action Center, and UiPath Apps3.

References:

Introducing UiPath Integration Service | UiPath

Integration Service - Introduction - UiPath Documentation Portal

Integration Service - Connectors - UiPath Documentation Portal

New UiPath Integration Service | UiPath

Server-side event triggers in UiPath Integration Service are used to automatically start UiPath processes in response to certain events, like data updates, insertions, or deletions in other systems. This allows for a high level of automation integration.

When the data is not accessible, the created table displays only the header row, and processing for that client must be halted, a BusinessRuleException occurs. A BusinessRuleException is a type of exception that indicates a business logic error or a validation error that cannot be resolved by retrying the transaction. For example, if the input data is incorrect, incomplete, or outdated, a BusinessRuleException should be thrown. A BusinessRuleException can be thrown by using the Throw activity with the following expression:

VB New BusinessRuleException(“Message”) where Message is a string that describes the error. A BusinessRuleException can be caught by using the Catch activity with the following expression:

VB ex As BusinessRuleException where ex is a variable that stores the exception object. A BusinessRuleException can be handled differently from other types of exceptions, such as SystemException or ApplicationException, depending on the logic of the automation. For example, in the REFramework, a BusinessRuleException sets the status of the transaction item to Failed and does not retry the transaction, whereas a SystemException sets the status of the transaction item to Retry and retries the transaction up to a specified number of times. References: [BusinessRuleException], [Throw], [Catch], [REFramework]

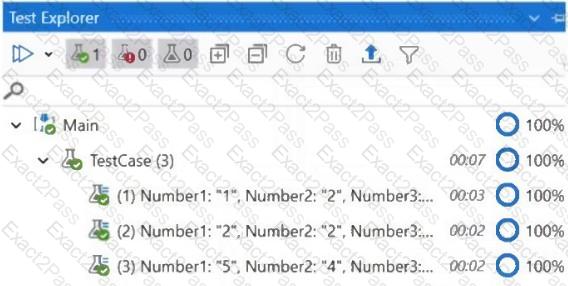

Test Explorer is a panel that shows information relevant to test automation in UiPath Studio. You can use Test Explorer and its sub-panels to perform various actions, such as1:

Export test results: You can export the test results shown in the Test Results panel to a JSON or HTML file, which can be used for further analysis or reporting.

Group tests together: You can group tests together based on different criteria, such as test type, test status, test suite, etc. This helps you organize and filter the tests in the Test Explorer panel.

Analyze activity coverage: You can analyze the activity coverage of your test cases by using the Activity Coverage panel, which shows the percentage of activities that have been executed during the test run. You can also filter the activities by covered or uncovered in the Designer panel.

The other options are not actions that can be done in Test Explorer, because they either involve features that are not part of Test Explorer, or they are not related to test automation. For example:

Option A is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

Option B is incorrect, because Test Explorer does not have a feature to perform debugging, but only to run or retry tests. Debugging can be done by using the Debug tab in Studio, which allows you to set breakpoints, inspect variables, and step through the workflow.

Option D is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

References:

1: Studio - Test Explorer - UiPath Documentation Portal

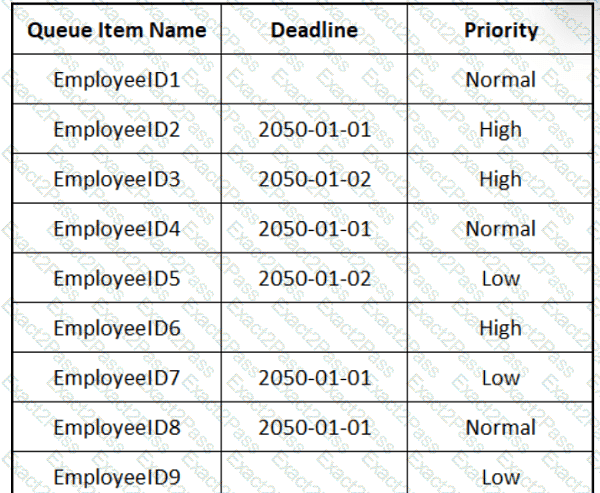

In UiPath Orchestrator, the Job Priority Levels feature allows operators to assign priority to jobs in a queue, thereby dictating their execution sequence based on their importance.

"Process A":

The process is scheduled to run at 2:00 PM, but due to busy robots, it starts at 2:05 PM.

The Schedule ending of Job execution feature is configured to stop the job after 20 minutes.

Therefore, "Process A" will be stopped 20 minutes after it started, which is at 2:25 PM.

UiPath Integration Service is a component of the UiPath Platform that allows users to automate third-party applications using both UI and API integration. It has the following primary functions1:

Enables automation with a library of connectors: Connectors are pre-built API integrations that provide a consistent developer experience and simplify the integration process. Users can browse and import connectors from the Connector Catalog or the UiPath Marketplace, or create their own connectors using the Connector Builder (Preview).

Manages connections easily with standardized authentication: Users can create and manage secure connections to various applications using standardized authentication methods, such as OAuth 2.0, Basic, API Key, etc. Users can also share connections with other users, groups, or automations within the UiPath Platform.

Kicks off automations with server-side triggers or events: Users can trigger automations based on events from external applications, such as webhooks, email, or schedules. Users can also configure parameters and filters for the events to customize the automation logic.

Provides curated activities and events: Users can access a set of curated activities and events that are specific to each connector and application. These activities and events can be used in UiPath Studio or UiPath StudioX to design and execute automations.

Simplifies automation design: Users can leverage the UiPath Integration Service Designer to create and test integrations in a graphical interface. Users can also import common API formats, such as Swagger, YAML, or Postman collections, to generate connectors automatically.

References:

1: Integration Service - Introduction - UiPath Documentation Portal

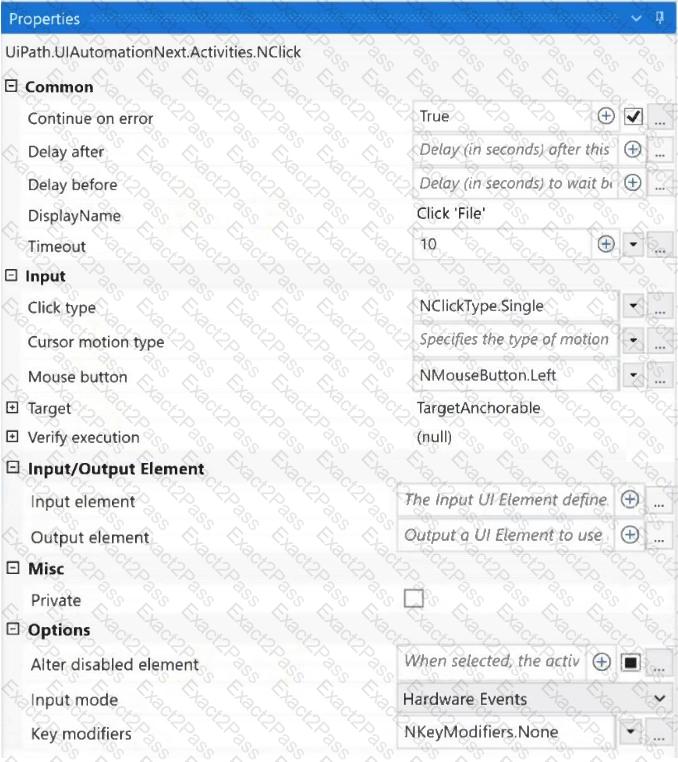

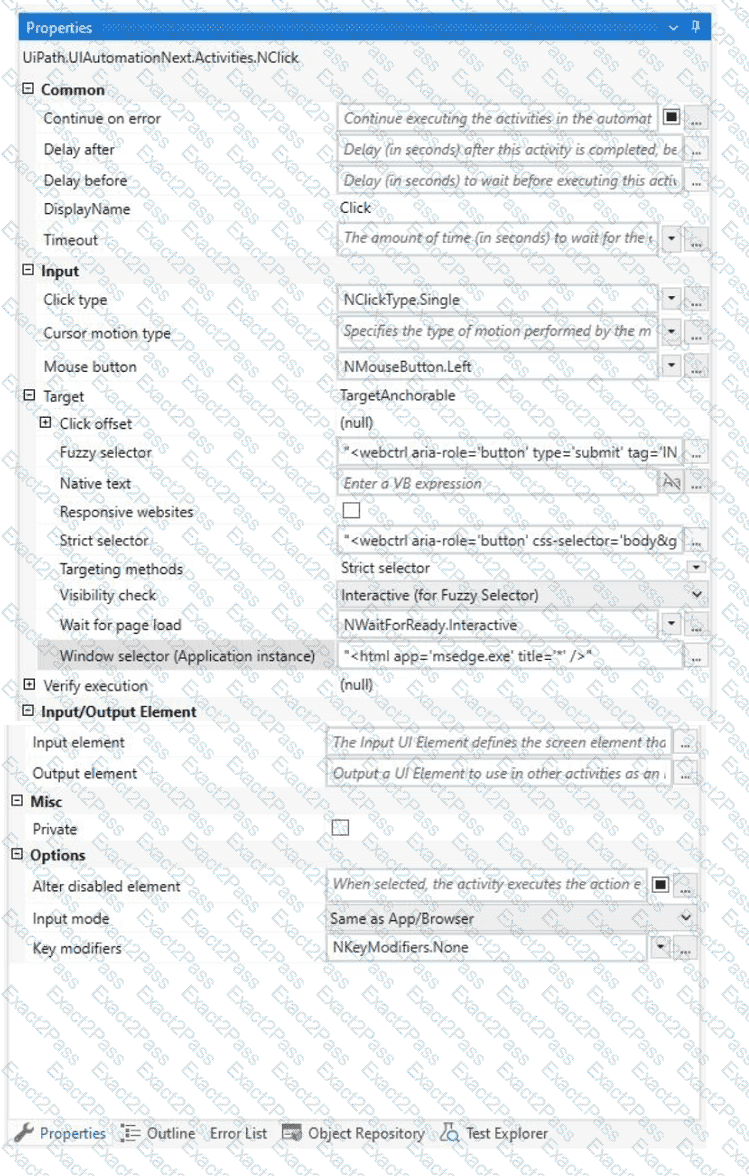

Click activity has the following properties:

•ClickType: Single

•MouseButton: Left

•Target.Timeout: 30000 ms (30 seconds)

•Target.WaitForReady: Interactive

The Target.Timeout property specifies the amount of time (in milliseconds) to wait for the activity to run before the SelectorNotFoundException error is thrown1. The default value is 30000 milliseconds (30 seconds)2.

The Target.WaitForReady property determines how long the activity should wait for the target UI element to be ready before performing the action1. The following options are available:

•None: Does not wait for anything except the target UI element to exist before executing the action1.

•Interactive: Waits until only a part of the app is loaded1.

•Complete: Waits for the entire app to be loaded1.

The default value is Interactive2, which means that the activity will wait until the UI element is visible and can be interacted with3.

Therefore, based on these properties, the Click activity will wait for the element indicated by the selector to be loaded and clickable within 30 seconds. If the element is loaded before the timeout, the activity will click it and continue to the next activity. If the element is not loaded within the timeout, the activity will throw an error and stop the execution. The animation on the web page does not affect the Click activity, as long as the target element is loaded and visible. Hence, the correct answer is A. Element is clicked once the element is fully loaded.

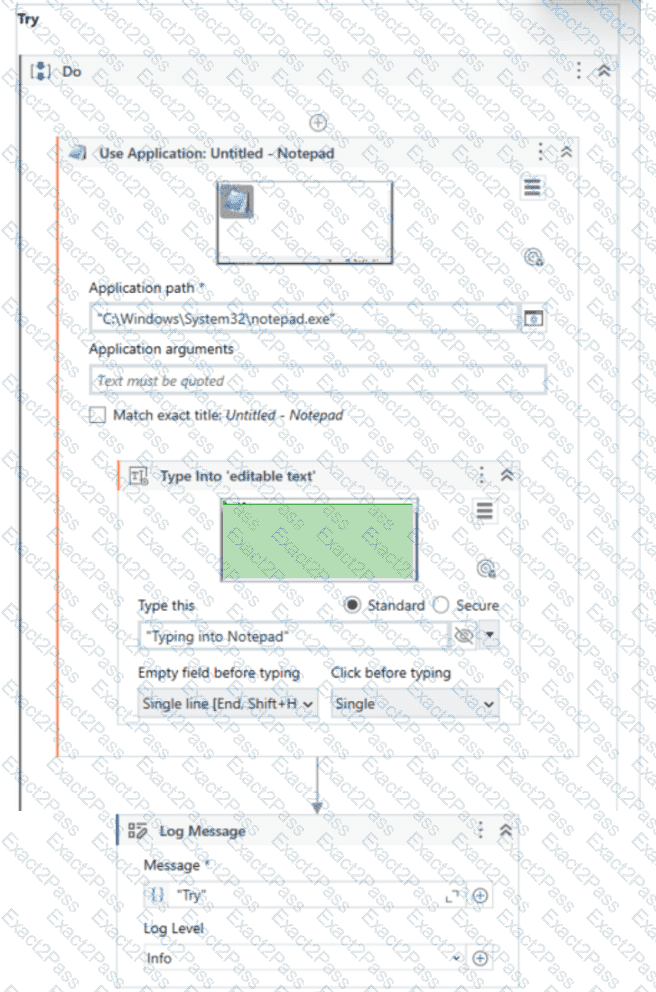

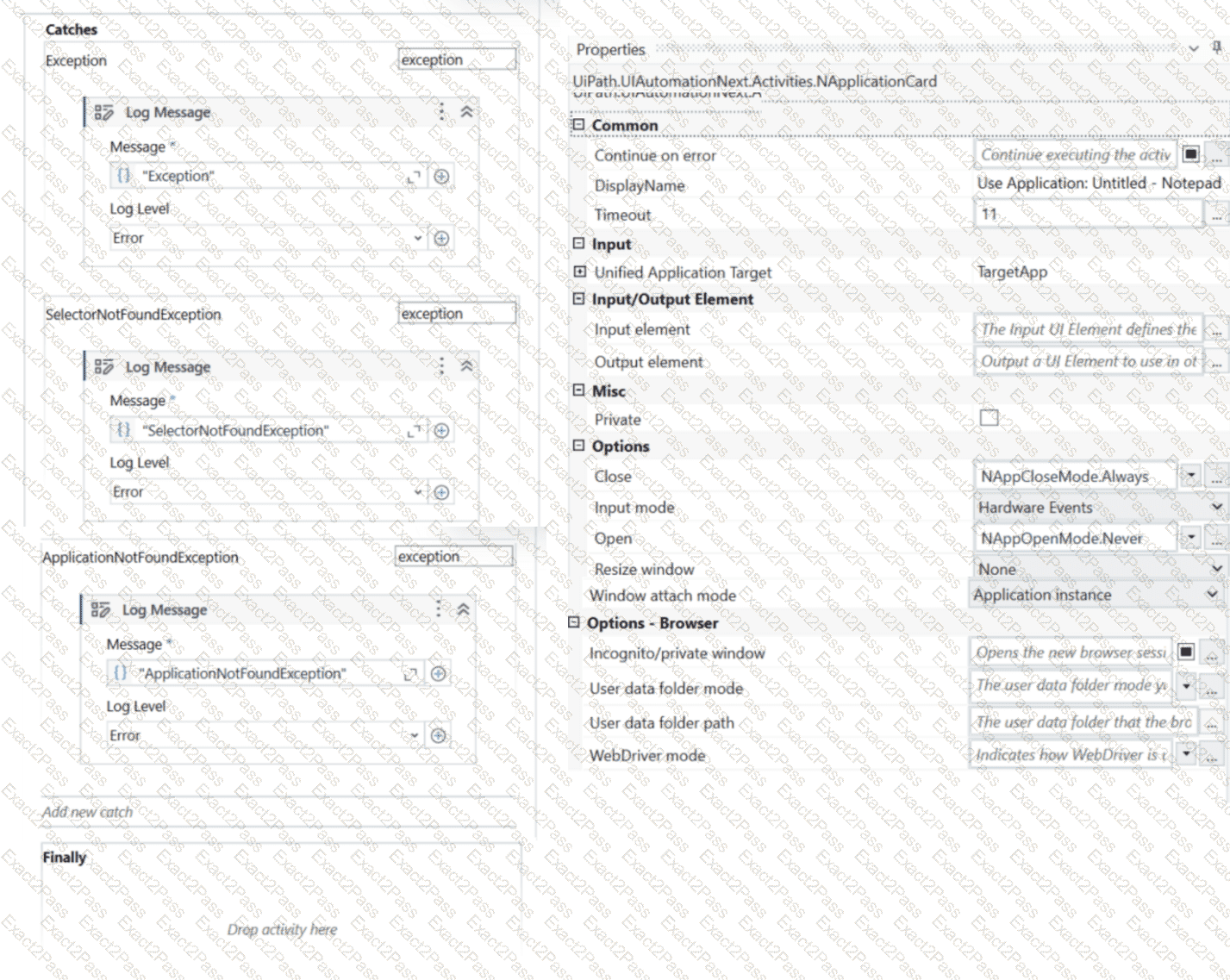

In a Try Catch activity within UiPath, when an exception is thrown that does not match any of the exception types specified in the Catches section, the exception is unhandled by the Catches section. If the thrown exception is an ApplicationException and the Catches section is only configured to handle an InvalidOperationException, then the ApplicationException is not caught because it is a different type of exception.

However, regardless of whether the exception is caught, the Finally block always executes. The Finally block is designed to run after the Try block and after any Catch blocks are checked for matches (regardless of whether a match is found or not).

Therefore, the correct answer is:

A. The Finally block is executed and the Catches section catches the exception.

In this context, "the Catches section catches the exception" means that the Catches section is evaluated for a match. Since ApplicationException is not handled by the InvalidOperationException catch block, the exception is not actually caught, but the Finally block will still execute.

The UiPath Remote Runtime component is a component that facilitates the communication between a remote application or desktop, such as Citrix Virtual Apps, and the dedicated UiPath extension – the UiPath Extension for Citrix, the UiPath Extension for Windows Remote Desktop and Apps, or the UiPath Extension for VMware Horizon1. It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension, so that selectors are natively generated in UiExplorer1. The UiPath Remote Runtime component is required to establish the connection between an application or desktop server and a corresponding UiPath extension installed on a client machine, where Studio is installed1. This way, selectors are natively generated on the client machine, without having to rely on OCR and image recognition activities1. .

The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The activity has the following properties:

•Common

oDisplayName: The display name of the activity1.

•File

oFileName: The path of the PDF file you want to extract a range of pages from. This field supports only strings and String variables1.

oOutputFileName: The name you want to use for the file that is generated from the extracted range of pages. This field supports only strings and String variables1.

oPassword: The password of the PDF file, if necessary. This field supports only strings and String variables1.

•Input

oRange: The range of pages that you want to retrieve. You can specify a single page (e.g. “7”), a range of pages (e.g. “7-12”), or a complex range, (e.g. “2-5, 7, 15-End” or “All”). Only string variables and strings are supported. By default, this field is cleared1.

•Misc

oPrivate: If selected, the values of variables and arguments are no longer logged at Verbose level1.

The statement that correctly describes this activity is B. Range argument accepts complex range values or “All”. This statement is true because the Range property allows you to specify the pages that you want to extract from the PDF file using different formats, such as single pages, ranges, or complex ranges1. You can also use the keyword “All” to extract all the pages from the PDF file1.

The other statements are incorrect because:

•A. Password-protected PDF files cannot be processed with this activity. This statement is false because the activity has a Password property that allows you to enter the password of the PDF file, if necessary1. This enables the activity to process password-protected PDF files1.

•C. OutputFileName argument is optional. This statement is false because the OutputFileName property is required for the activity to work1. This property specifies the name of the file that is generated from the extracted range of pages1. If this property is not provided, the activity will throw an exception1.

•D. PageCount argument outputs the number of extracted pages. This statement is false because the activity does not have a PageCount argument1. The activity does not output the number of extracted pages, but only the new PDF file that contains the extracted pages1.

The GetTransactionData step should be mocked from the end-to-end test case in order to retrieve test data. Mocking is a technique of substituting a part of the system with a fake counterpart, usually for testing purposes1. The GetTransactionData step is responsible for fetching the next transaction item from the queue and assigning it to the TransactionItem argument2. By mocking this step, the developer can avoid interacting with the actual queue and provide a predefined transaction item for testing. This can make the test more predictable, focused, and isolated from external dependencies.

Option A is incorrect, because the SetTransactionStatus step should not be mocked, as it is used to update the status of the current transaction item in the queue, which is an important part of the end-to-end test case2. Option C is incorrect, because the Process step should not be mocked, as it contains the core business logic of the automation, such as navigating to the Reservations section, adding the reservation data, and closing the current reservation2. Option D is incorrect, because the InitAllApplications step should not be mocked, as it is used to log in to the company’s desktop application, which is a necessary precondition for the end-to-end test case2.

References: 1: When should I (not) use mocks in testing? 2: The UiPath ReFramework

The Verbose logging level includes the following information by default:

Execution Started log entry - generated every time a process is started.

Execution Ended log entry - generated every time a process is finalized.

Transaction Started log entry - generated every time a transaction item is obtained by the robot from Orchestrator.

Transaction Ended log entry - generated every time the robot sets the transaction status to either Success or Failed.

Activity Information log entry - generated every time an activity is started, faulted or finished inside a workflow.

Arguments and Variables Information log entry - show values of the variables and arguments that are used.

The Verbose logging level is the most detailed one and it is useful for debugging purposes, as it provides a lot of information about the execution flow and the data used by the robot. However, it also generates a lot of log entries, which can affect the performance and the storage space of the robot and Orchestrator. References: [Logging Levels]

A tag in a selector is a node that represents a UI element or a container of UI elements. A tag has the following format: . A tag can have one or more attributes that help identify the UI element uniquely and reliably1. For example, the tag  represents the HTML document of a web page opened in Microsoft Edge browser, with the title “Find Unicorn Name”. The attributes app-msedge.exe and title-Find Unicorn Name help distinguish this tag from other HTML documents.

The other options are not tags, but attributes. An attribute is a property of a UI element that has a name and a value. For example, id='selMonth' is an attribute that indicates the ID of a UI element is “selMonth”. Attributes are used inside tags to specify the UI element or container1.

References:

1: Studio - About Selectors - UiPath Documentation Portal

The Exit action in a state is an activity or a sequence of activities that are executed when the state is exited, before the transition to the next state occurs1. The purpose of the Exit action is to perform any final actions of the current state, such as closing applications, releasing resources, logging information, etc. The Exit action is executed even if the state transitions back to the same state2.

Option A is incorrect, because the Exit action does not stop the state machine’s execution, but rather prepares the state for the next transition. Option C is incorrect, because the Exit action does not revoke any entry actions, but rather complements them with any necessary exit actions. Option D is incorrect, because the Exit action does not define the conditions for the state transition, but rather executes after the conditions are evaluated.

References: 1: State 2: State Machines - Exit workflow and Trigger

The out_TransactionItem argument is an output argument of the GetTransactionData workflow, which is used to store the data of the current transaction item1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework is designed for transactional processes, which are processes that handle multiple items of data in a loop3. However, it can also be adapted for linear processes, which are processes that execute a sequence of actions only once.

To use the REFramework for a linear process, the out_TransactionItem argument should be set to Nothing the first time when it enters the Get Transaction Data state. This will ensure that the process will not enter the Get Transaction Data state again, as the condition for the transition from the Get Transaction Data state to the Process Transaction state is out_TransactionItem isNot Nothing1. Setting the out_TransactionItem argument to Nothing will also trigger the End Process state, which will perform the final actions and close the application1.

Option A is incorrect, because the process will enter the Get Transaction Data state even if it is a linear process, as it is the first state in the REFramework. Option B is incorrect, because there is no queue item in a linear process, as there is only one item of data to be processed. Option D is incorrect, because setting the out_TransactionItem argument to a static value will cause the process to enter the Get Transaction Data state repeatedly, as the condition for the transition will always be true.

References: 1: The UiPath ReFramework 2: State Machine 3: Transactional Business Process : [Linear Business Process]

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject”" like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’" will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

The Today property of the DateTime structure returns the current date with the time component set to zero1. The Subtract method of the DateTime structure returns a new DateTime object that is the result of subtracting a specified time interval from this instance2. The TimeSpan structure represents a time interval that can be expressed in days, hours, minutes, seconds, and milliseconds3.

Option D is the correct way to subtract a specific TimeSpan from Today in VB.NET. For example, the following code snippet subtracts one day and two hours from the current date and displays the result:

Dim ts As New TimeSpan (1, 2, 0, 0) ' One day and two hours

Dim result As DateTime = Today.Subtract (ts) ' Subtract from Today

Console.WriteLine (result.ToString ("d")) ' Display the result

Option A is not valid, because there is no SubtractSpanFrom method in the DateTime structure. Option B is not correct, because it subtracts the TimeSpan from the current date and time, not just the date. Option C is not valid, because there is no SubtractUsingDate method in the DateTime structure.

References: 1: DateTime.Today Property (System) 2: DateTime.Subtract Method (System) 3: TimeSpan Structure (System)

The State activity is a container for using State Machine specific activities. It can be added or modified in the State Machine activity, which is a type of automation that uses a finite number of states in its execution1. The State activity contains three major sections: Entry, Exit, and Transition(s)2.

The Entry section enables the user to add entry actions for the selected state, which are executed when the state is entered.

The Exit section enables the user to add exit actions for the selected state, which are executed when the state is exited.

The Transition(s) section displays all the transitions linked to the selected state, which are represented by arrows or branches between states. Each transition can be expanded to view or edit its three subsections: Trigger, Condition, and Action2.

The Trigger subsection enables the user to add a trigger for the next state, which is an activity that initiates the transition.

The Condition subsection enables the user to add a guard condition for the transition, which is a Boolean expression that must be true for the transition to occur.

The Action subsection enables the user to add an action for the transition, which is an activity or sequence that is executed before the transition occurs.

Option D is the correct answer, as it lists the major sections that can be added or modified in the State activity of a UiPath project that uses State Machines. Option A is incorrect, as there is no Conditional expressions section in the State activity. Option B is incorrect, as there are no Guard and Trigger attributes sections in the State activity, but rather subsections in the Transition(s) section. Option C is incorrect, as there is no Trigger conditions section in the State activity, but rather a subsection in the Transition(s) section.

References: 1: State Machine 2: State

The use of job priorities in unattended automations within UiPath Orchestrator is to determine which processes should be executed first when dealing with multiple jobs. Job priorities are values that can be assigned to jobs or triggers when they are created or edited. The possible values are High, Normal, and Low. Job priorities affect the order in which the jobs are executed by the robots, with higher priority jobs being executed before lower priority jobs. Job priorities can help you to optimize the execution of your unattended automations, especially when you have limited resources or time-sensitive processes. You can also use job priorities to create job dependencies that must be completed before new job execution, by using the Start Job activity with the Wait for completion option and setting the priority of the child job to High. References: [Job Priority], [Start Job]

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for building automation projects using UiPath Studio1. It uses the State Machine workflow type to handle different scenarios and exceptions in a robust and scalable way2. One of the states in the REFramework is the Get Transaction Data state, which is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to a variable3. The Orchestrator queue is a data structure that stores multiple items that need to be processed by the robots4. The queue can be organized into folders, which are logical containers that help group and manage the queues and other Orchestrator entities5.

If a developer implemented a process using the REFramework and an Orchestrator queue, they need to specify the name of the queue and the folder where it is located in the Config.xlsx file, which is an Excel workbook that stores the configuration settings and constants for the project6. The name of the queue should be entered in the Settings sheet, under the OrchestratorQueueName key, and the name of the folder should be entered in the Constants sheet, under the OrchestratorQueueFolder key6. These values are then read by the InitAllSettings workflow, which is invoked in the Init state of the REFramework, and assigned to the in_Config argument, which is a dictionary that holds all the configuration data7.

At runtime, the Get Transaction Data state invokes the GetTransactionData workflow, which takes the in_Config argument as an input and uses it to get the queue item from the Orchestrator queue8. The workflow uses the Get Queue Items activity, which requires the QueueName and FolderPath properties to be specified9. The QueueName property is set to in_Config(“OrchestratorQueueName”).ToString, and the FolderPath property is set to in_Config(“OrchestratorQueueFolder”).ToString8. If the folder specified in the Config.xlsx file does not exist in Orchestrator, the Get Queue Items activity will throw an exception with the message “Folder does not exist” and the process will be stopped10. Therefore, the correct answer is B. The process throws an exception in the “Get Transaction Data” state because the queue folder is not found, and then the process is stopped.

The other options are incorrect because:

Option A is incorrect because the process will not continue if the queue folder is missing. The Get Queue Items activity will fail and the exception will be caught by the Try Catch block in the GetTransactionData workflow, which will set the out_TransactionItem argument to Nothing and the out_TransactionID argument to "No more data"8. This will cause the transition condition from the Get Transaction Data state to the Process Transaction state to evaluate to False, and the transition condition from the Get Transaction Data state to the End Process state to evaluate to True3. The End Process state will invoke the SetTransactionStatus workflow, which will log the exception message and the process will be stopped11.

Option C is incorrect because an exception will be thrown and a message will be logged if the queue folder is missing. The exception will be thrown by the Get Queue Items activity, as explained above, and the message will be logged by the SetTransactionStatus workflow, which uses the Log Message activity to write the exception message to the Output panel and the Orchestrator logs11.

Option D is incorrect because the process will not reach the Process Transaction state if the queue folder is missing. The Process Transaction state is responsible for executing the business logic for each transaction item and invoking the SetTransactionStatus workflow to update the status of the item in the Orchestrator queue12. However, if the queue folder is missing, the Get Queue Items activity will throw an exception and the out_TransactionItem argument will be set to Nothing, which will prevent the transition from the Get Transaction Data state to the Process Transaction state83.

References:

Studio - Robotic Enterprise Framework Template - UiPath Documentation Portal

Studio - State Machines - UiPath Documentation Portal

Studio - REFramework - UiPath Documentation Portal

Orchestrator - Queues - UiPath Documentation Portal

Orchestrator - Folders - UiPath Documentation Portal

Studio - Config File - UiPath Documentation Portal

Studio - InitAllSettings - UiPath Documentation Portal

Studio - GetTransactionData - UiPath Documentation Portal

Activities - Get Queue Items - UiPath Documentation Portal

Orchestrator - Troubleshooting - UiPath Documentation Portal

Studio - SetTransactionStatus - UiPath Documentation Portal

Studio - Process Transaction - UiPath Documentation Portal

A pre-requisite for running functional test cases in REFramework is to invoke the InitAIISettings XAML file. This file is responsible for initializing the AI Fabric settings and connecting to the Orchestrator. It also checks if the AI Fabric environment is ready and if the ML skills are deployed and available. Without invoking this file, the functional test cases that use AI Fabric features will not work properly. References: [REFramework for AI Fabric]

The type of error that should be thrown according to best practices for queue items that contain partial numbers is Business Exception. A Business Exception is an exception that occurs due to an incorrect or incomplete input data or an expected business rule violation. A Business Exception indicates that the transaction item cannot be processed successfully and should be marked as failed in the queue. A Business Exception can be thrown by using the Throw activity in UiPath Studio, with the exception type set to UiPath.Core.BusinessRuleException. Alternatively, a Business Exception can be thrown by using the Set Transaction Status activity in the REFramework, with the status set to Failed and the exception type set to Business Exception. References: [Business Exception vs Application Exception], [Throw], [Set Transaction Status]

A linear process in UiPath is a type of process that is executed only once and does not involve any looping or branching logic. It is suitable for simple scenarios where the input data is fixed and the output is predictable. A linear process can be designed using a Sequence or a Flowchart diagram, but it does not use any Flow Decision, Switch, While, Do While, or For Each activity. If the process needs to process additional data, then the automation must be executed again with the new data as input. References: Framework for linear process or single transaction, How to modify ReFramework to Linear Process, Workflow Design, Difference between Linear process and Transactional process

In the BDD (Behavioral-Driven Development) template structure, the "Setup" part of a test case supports the Surround with mock feature. This section is used to set up the testing environment, including mock configurations.

The screenshot shows an "Invoke Code" activity in UiPath with the following VB.NET code:

Users_List.Add("User1")

Users_List.Add("User2")

According to the given information, the "Users_List" variable is a List of Strings that has been initialized with an empty list before the Invoke Code activity is run. The code within the Invoke Code activity is adding two strings: "User1" and "User2" to the "Users_List".

The Log Message activity following the Invoke Code is attempting to log the count of items in "Users_List", which would be the number of elements contained in the list at that time.

Given the steps that have been described, after the Invoke Code activity has run, the "Users_List" will contain two elements ("User1" and "User2"). Therefore, the log message will print the count of items in the list, which is:

B. 2

So the correct answer is B, as the "Users_List" will have two elements and Users_List.Count will return the number 2.

The Invoke Code activity is used to execute VB.NET or C# code within a UiPath workflow1. The activity has the following properties:

Code: The code that is to be executed. This field supports only strings and String variables1.

Language: The language that the code is written in. The available options are VBNet and CSharp1.

Arguments: The parameters that can be passed to and from the code1.

In this question, the developer has created a variable of type List of Strings named “Users_List”, and initialized it with an empty list: “Users_List = new List(Of String)”. Then, the developer has used the Invoke Code activity to execute the following code:

Users_List.Add(“User1”) Users_List.Add(“User2”)

This code adds two items (“User1” and “User2”) to the “Users_List” variable. After the Invoke Code activity, the developer has used the Log Message activity to print the count of items in the “Users_List” variable, using the expression “Users_List.Count.ToString”. This expression returns the number of items in the list as a string2. Therefore, the log message will print “2”, as there are two items in the list

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

References:

1: Studio - Workflow Design - UiPath Documentation Portal 2: Studio - Sequence - UiPath Activities 3: Studio - Transactional Business Process - UiPath Documentation Portal 4: Studio - Transactional Process - UiPath Activities 5: Studio - Control Flow - UiPath Documentation Portal 6: Studio - Loops - UiPath Activities 7: What is a Linear Process? - Definition from Techopedia

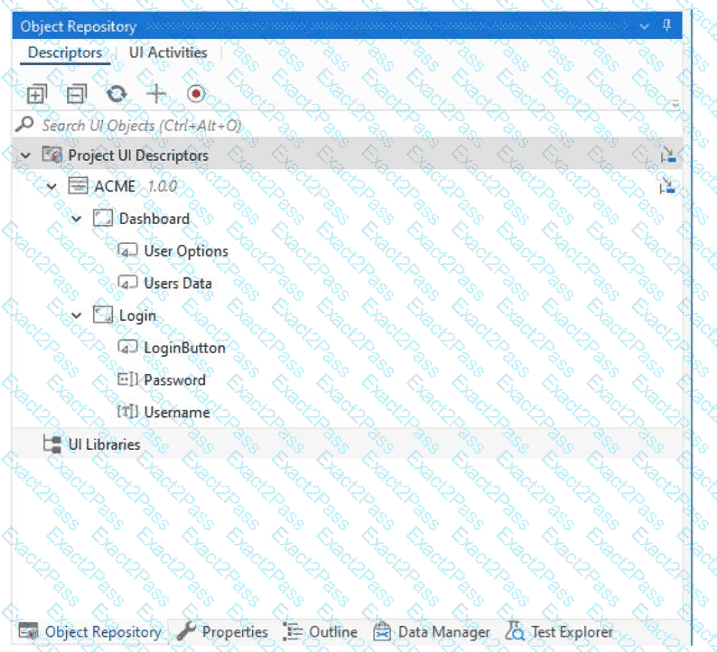

In the Object Repository in UiPath, there are two types of elements: Local elements and library elements. Local elements are specific to a project, while library elements can be reused across multiple projects.

A mock file is a copy of a workflow file that is used for testing purposes, where some activities are replaced by mock activities that simulate the expected behavior1. A mock file can be created by selecting Mock workflow under test in the Create Test Case window2. The mock file is stored in the Project > Mocks folder, and it has the same name as the original workflow file, with the suffix “_mock” added2. For example, if the original workflow file is named “MySequence.xaml”, the mock file will be named “MySequence_mock.xaml”.

When a mock file is created, the changes made in the original workflow file are automatically applied to the mock file when the project is saved2. This means that any new activities or modifications in the original workflow file are reflected in the mock file, except for the activities that are surrounded by mock activities2. The mock activities are not affected by the changes in the original workflow file, and they can only be edited within the mock file2.

Therefore, if you update “MySequence” and add a Log Message activity and a Verify Expression activity, and then save the project, the changes will be applied to the mock file, assuming that the file is closed. This means that the mock file will also have the Log Message activity and the Verify Expression activity added, unless they are inside a mock activity

The Strict Selector is a targeting method that uses the selector information of a UI element to identify it on the screen. It is one of the four targeting methods available in UiPath Studio, along with Fuzzy Selector, Image, and Computer Vision1. The Strict Selector is considered to be the most reliable and stable targeting method, as it uses the attributes and properties of the UI element that are unlikely to change2.

At indication time, the Strict Selector has the following functionalities available:

Open in UiExplorer: This option opens the UiPath Explorer window, where you can inspect and edit the selector information of the indicated UI element, as well as use advanced features such as anchors, wildcards, variables, and regex3.

Copy to clipboard: This option copies the selector information of the indicated UI element to the clipboard, so you can paste it elsewhere, such as in a text editor or another activity.

Show all matches: This option highlights all the UI elements on the screen that match the selector information of the indicated UI element. This helps you to check if there are any duplicates that might cause the automation to fail at runtime. You can also use the Ignore text option to exclude the text attribute from the selector information, which might reduce the number of matches4.

The other options are incorrect because:

Option A is incorrect because it does not include the Show all matches option, which is available for the Strict Selector.

Option B is incorrect because it does not include the Open in UiExplorer option, which is available for the Strict Selector.

Option D is incorrect because it includes the Accuracy option, which is not available for the Strict Selector. The Accuracy option is only available for the Image targeting method, which allows you to adjust the similarity threshold between the indicated image and the target image5.

References:

Studio - Targeting Methods - UiPath Documentation Portal

Studio - Strict Selector - UiPath Documentation Portal

Studio - UiPath Explorer - UiPath Documentation Portal

Activities - Advanced descriptor configuration - UiPath Documentation Portal

Studio - Image - UiPath Documentation Portal

LINQ (Language Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, or XML files. LINQ provides a set of methods that can be used to perform different operations on the data, such as filtering, sorting, grouping, aggregating, or transforming.

The LINQ method that is used to filter data in a List or DataTable based on a condition is Where. The Where method returns a new collection that contains only the elements that satisfy the specified condition. The condition is usually a lambda expression or a delegate that takes an element as a parameter and returns a Boolean value. For example, if you have a List of integers called numbers, you can write:

var evenNumbers = numbers.Where (x => x % 2 == 0);

This expression returns a new List that contains only the even numbers from the original List. Similarly, if you have a DataTable called employees, you can write:

var highSalary = employees.AsEnumerable ().Where (row => row.Field (\"Salary\") > 100000);

This expression returns a new DataTable that contains only the rows where the Salary column is greater than 100000. The AsEnumerable () method is used to convert the DataTable into an IEnumerable, which is required for using LINQ methods.

The other options are not LINQ methods that are used to filter data in a List or DataTable based on a condition. Option A, Select, is a LINQ method that is used to project or transform data from one form to another. It returns a new collection that contains the result of applying a function to each element of the source collection. Option B, GroupBy, is a LINQ method that is used to group data by a common key or attribute. It returns a new collection that contains groups of elements that share the same key value. Option C, OrderBy, is a LINQ method that is used to sort data in ascending order by a specified criterion. It returns a new collection that contains the elements of the source collection in sorted order.

References: LINQ - Introduction - Microsoft Docs, Enumerable.Where Method (System.Linq) - Microsoft Docs, LINQ query to filter datatable - Studio - UiPath Community Forum, LINQ Tutorial - Learn - UiPath Community Forum

For a workflow that requires covering all possible cases and transitions, especially those not easily captured by loops and If statements, a State Machine layout is most suitable. It offers a flexible structure for complex workflows with numerous states.

Custom log fields are additional fields that can be added to the Robot Execution Logs using the Add Log Fields activity1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework leverages the custom log fields feature to include more information about each transaction in the log messages, such as the transaction number, the transaction item, the business process name, etc. This helps to improve the reporting and troubleshooting capabilities of the automation project, as the custom log fields can be easily viewed and filtered in the Output panel, the Orchestrator Logs page, or any external logging tool3.

Option A is incorrect, because custom log fields are not used to automatically retry failed transactions, but rather to provide more details about them. The REFramework uses the Retry Scope activity and the Set Transaction Status activity to handle the retry mechanism for failed transactions4. Option B is incorrect, because custom log fields are not used to store sensitive information, but rather to enhance the log messages. Storing sensitive information like credentials and personal data of users in the log fields is not recommended, as it may pose a security risk. Option C is incorrect, because custom log fields are not used to define the variable types for transactions, but rather to add more data about them. The REFramework uses the TransactionItem argument to store the transaction data, which can be of any type, such as QueueItem, DataRow, String, etc.

References: 1: Add Log Fields 2: The UiPath ReFramework 3: Add Log Field Advantages 4: Retry Scope : [Logging and Log Levels] : [TransactionItem Argument]

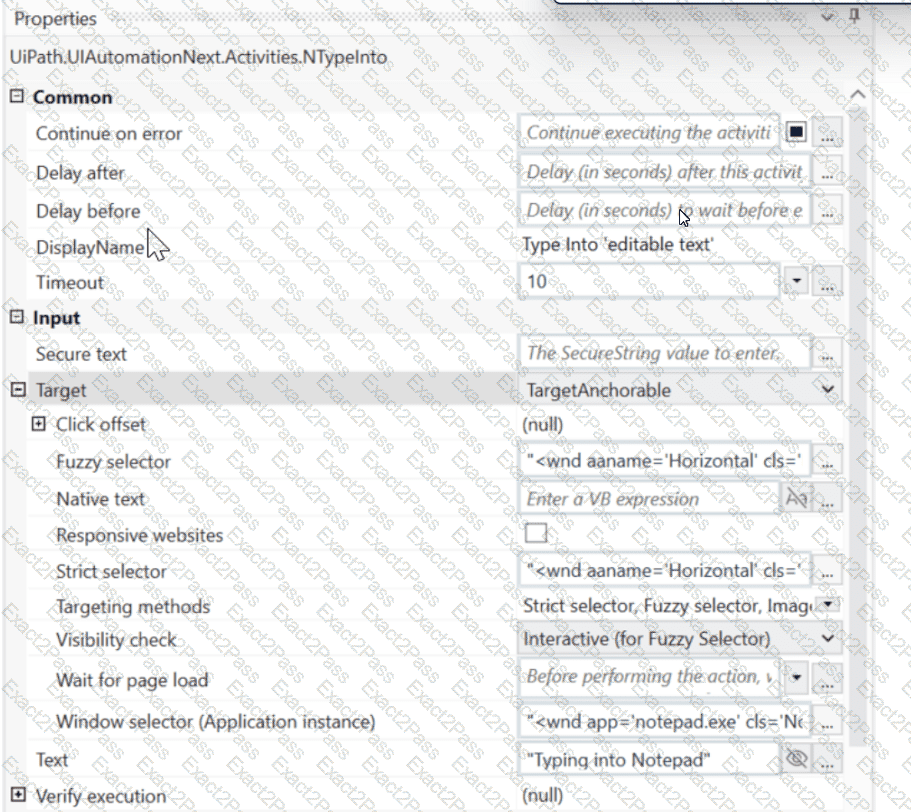

In UiPath, the Type Into activity's Input Mode property determines how text is typed into a target UI element. The "Simulate" input mode types text using the technology of the target application, allowing it to run in the background without needing the target UI element to be in focus. It also automatically clears the field before typing, unless otherwise specified. On the other hand, the "Window Messages" input mode sends a series of Windows messages to the target application, simulating keyboard strokes. This mode supports the use of hotkeys and special key combinations, making it suitable for applications that require specific keyboard inputs to trigger actions.References:

UiPath Activities Guide - Type Into

The command in the UiPath installation folder that configures the UIPath.RemoteDebugging.Agent utility on a Windows robot to accept remote debugging requests from Studio is UiPath-RemoteDebugging.Agent.exe enable -port -password -verbose. This command enables the remote debugging agent on the robot machine and sets the port number and the password that are required for the connection. The verbose option enables the logging of the agent activity to the console. The remote debugging agent is a utility that allows you to debug workflows on a remote robot from Studio, by using the Remote Debugging feature. This feature enables you to connect to a remote robot, run the workflow, and inspect the variables and arguments in real time. To use this feature, you need to install the remote debugging agent on the robot machine and configure it with the same port number and password that you use in Studio. References: [Remote Debugging], [Remote Debugging Agent]

A test case is a set of steps and expected results that verify a certain functionality or behavior of an automation. A test case can be created in UiPath Studio or UiPath Test Manager, and it can contain both manual and automated steps. A test case can be executed manually or automatically, depending on the type of steps it contains.

A test case follows the Given-When-Then structure, which is a common format for writing test scenarios. The Given section describes the preconditions or initial state of the system before the test is executed. The When section describes the actions or events that trigger the test. The Then section describes the expected outcomes or postconditions of the test.

The InitAllApplications TestCase is a test case that verifies the initialization of all the applications that are used in the automation project. It is usually created in UiPath Studio, using the Test Cases feature. The InitAllApplications TestCase can be linked to the InitAllApplications.xaml workflow, which is a component of the REFramework template that opens and logs in to all the applications that are required for the automation.

The pre-requisite for running the InitAllApplications TestCase is to invoke the InitAllSettings.xaml file in the Given section of the test case. The InitAllSettings.xaml workflow is another component of the REFramework template that reads the configuration data from the Config.xlsx file and initializes the settings and assets for the automation project. By invoking the InitAllSettings.xaml file in the Given section, the test case ensures that the settings and assets are available and ready before opening and logging in to the applications.

The other options are not pre-requisites for running the InitAllApplications TestCase. Option B is incorrect, because the SetTransactionStatus.xaml file is not related to the initialization of applications, but to the setting of the status of a queue item after processing it. Option C is incorrect, because the CloseAllApplications.xaml file is not related to the initialization of applications, but to the closing of all the applications that were opened by the automation. Option D is incorrect, because the KillAllProcesses.xaml file is not related to the initialization of applications, but to the killing of all the processes that are associated with the automation.

References: Studio - Test Cases - UiPath Documentation Portal, REFramework documentation - UiPath Documentation Portal, How to use test cases in the REFramework? - Test Suite - UiPath Community Forum, Linking Test Cases in Studio to Test Manager - UiPath Documentation Portal

In UiPath, the four job types according to the place of execution and robot impersonation are Foreground unattended, Background unattended, Attended, and Development. These job types differentiate the automation tasks based on whether they require user interaction (Attended), can run in the background without user intervention (Background unattended), are designed for development and testing purposes (Development), or are unattended tasks that require a virtual environment (Foreground unattended).References:

UiPath Orchestrator Guide: Job Types

The date is in the format "d MMM yyyy" (e.g., "3 Mar 2023").

The correct expression is: (DateTime.Now - DateTime.ParseExact(DateString, "d MMM yyyy", CultureInfo.InvariantCulture)).Days < 7.

This expression calculates the difference in days between the current date (DateTime.Now) and the parsed date (DateTime.ParseExact(DateString, "d MMM yyyy", CultureInfo.InvariantCulture)).

It then checks if this difference is less than 7 days, which means the date is within the last 7 days.

Comprehensive and Detailed Explanation: Remote Debugging is a feature of UiPath Studio that allows developers to run and debug automation projects on robots deployed to remote machines, including on Linux robots that can run cross-platform projects1. It enables developers to connect to the remote robot using either a remote machine connection or an unattended robot connection, and then use the Studio debugging tools to inspect the execution and troubleshoot any issues1. Remote Debugging uses a web-based interface that shows the UI elements and the data of the remote machine, as well as the breakpoints, variables, and output of the project2.

The other options are incorrect because:

Option A is incorrect because Remote Debugging is not limited by the involvement of Orchestrator queues and assets in the automation project. Remote Debugging can work with any project that can be executed by a robot on a remote machine, regardless of the Orchestrator entities used1.

Option B is incorrect because Remote Debugging does not enable developers to design new UI elements for the automation project. Remote Debugging is only used for testing and debugging existing projects, not for creating or modifying them1.

Option C is incorrect because Remote Debugging does not refer to the process of testing and debugging an automation project on the same machine where UiPath Studio is installed. That process is called Local Debugging, which is the default debugging mode in Studio3.

References:

Studio - Remote Debugging - UiPath Documentation Portal

Remote Debugging in UiPath Studio - Video Tutorials - UiPath Community Forum

Studio - Debugging Actions - UiPath Documentation Portal

To utilize the default REFramework without relying on Orchestrator queues, the essential prerequisite is to exclude the Get Transaction Item activity from the project, eliminate the three SetTransactionStatus activities from the SetTransactionStatus workflow, and change the variable type of the TransactionItem and TransactionData variables. The Get Transaction Item activity is used to retrieve a transaction item from the Orchestrator queue, which is not needed if the queue is not used. The SetTransactionStatus activities are used to update the status of the transaction item in the Orchestrator queue, which is also not needed if the queue is not used. The variable type of the TransactionItem and TransactionData variables should be changed to match the type of data that is used as input for the process, such as DataRow, String, or Object. These changes will ensure that the project does not interact with Orchestrator and can use other sources of data for the transactions. References: [The UiPath REFrameWork], [Get Transaction Item], [Set Transaction Status]

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the 'Version', which could refer to the specific version of the application you are automating. Under each version, there could be multiple 'Applications' that you have elements for. Within each application, you might have captured various 'Screens' or dialogs, and within each screen, there are individual 'UI Elements' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it's important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the 'Application', then under it, you have different 'Screens' of the application, and under each screen, you have the 'UI Elements'. The 'Version' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The 'Version' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the 'Application' or 'UI Element'.

In UiPath, the Flow Switch activity is commonly used within flowcharts. Its default TypeArgument property is set to Int32, which means it is primarily used to handle integer-based decision branching.

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for developing UiPath automation projects. It uses the concept of transactions to process items from a data source, such as an Excel table, a queue, or a database. A transaction is a single unit of work that can be executed by the robot. The REFramework has a variable called TransactionItem, which stores the current transaction to be processed.

The variable type of TransactionItem depends on the type of data source that is used for the transactions. If the data source is an Orchestrator queue, then the TransactionItem should be of type UiPath.Core.QueueItem, which represents an item from the queue. If the data source is an Excel table, then the TransactionItem should be of type System.Data.DataRow, which represents a row from the table. A DataRow object contains the values of a single row in a DataTable object, which represents the entire table.

In this scenario, the developer needs to use the REFramework to automate a business process that involves processing transactions within an Excel table. Each transaction in the table should follow the same steps for processing and queues cannot be used as there is no Orchestrator in the environment. Therefore, the best variable type for TransactionItem in this scenario is System.Data.DataRow, as it can store a single row from the Excel table as a transaction.

The other options are not suitable variable types for TransactionItem in this scenario. Option A is incorrect, because UiPath.Core.QueueItem is used for queue items, not Excel rows. Option B is incorrect, because System.Data.DataRow[] is an array of DataRow objects, not a single DataRow object. Option C is incorrect, because System.Data.DataTable is a table of DataRow objects, not a single DataRow object.

References: REFramework documentation - UiPath Documentation Portal, Transaction Item variable type - Studio - UiPath Community Forum, ReFramework - TransactionItem type - Help - UiPath Community Forum, ReFramework for Tabular Data - RPA Component - UiPath Marketplace
