The correct answer is E. 5. Based on the image you provided, the diagram depicts the following sequence of steps involved in creating an order:

• Create Order: This signifies the initiation of the order process.
• Fill Order Request: This step likely involves gathering information or processing details about the order.
• Create Invoice: An invoice is typically generated after an order is finalized.
• Notify Customer: The customer is informed about the order, possibly confirmation or receipt.

The key here is that the process starts with creating the order (step 1) and ends with notifying the customer (step 4). Steps 2 and 3 (filling the order request and creating an invoice) can happen concurrently and don't necessarily follow a specific order in relation to each other.

Therefore, following the logic of the sequence, there are five steps (0-based indexing), making E. 5 the most suitable answer.

In UML, inherited properties are those attributes that are defined in a superclass and inherited by a subclass. According to UML notation, when a subclass inherits from a superclass, it inherits all the attributes and operations of the superclass unless they are redefined.

Let's examine each option:

A. In Option A, the Customer class shows the attributes name and address repeated from the Person class. This is not necessary in UML to show inheritance and could imply these are different attributes that happen to have the same name.

B. In Option B, the attributes of the Person class are not shown in the Customer class. This is correct as UML assumes that all attributes and operations are inherited by the subclass, and there is no need to repeat them unless they are overridden or extended. In this case, the diagram shows inheritance correctly without redundant representation of inherited properties.

C. In Option C, the inherited properties name and address are explicitly marked as inherited. While it's possible to show inherited properties in this way for clarity, it's not necessary and is less common in standard UML class diagrams.

D. Statement D is incorrect because inherited properties can be shown in a specialized class, although it is not a requirement to do so for the properties to be inherited.

Based on the UML 2 Foundation specification, the correct way to depict inheritance without redundantly listing inherited attributes is shown inOption B.

In UML, Comments are annotations that can be attached to most elements within UML diagrams. Their primary function is not to affect the semantics of the model directly but to provide useful information to anyone reading the model. Comments can help explain or clarify design decisions, make notes about specific parts of the model, or provide any other context necessary for understanding the model better.

The role of Comments in UML is not to enable automatic generation of code comments or to add constraints or semantics to model elements, although they can be associated with model elements to highlight or explain specific attributes or relationships.

References:

• UML 2.x Superstructure Specification: This document describes Comments as a way to provide human-readable descriptions and notes that do not impact the execution or structure of the model but are crucial for documentation and understanding.
• UML 2.x Infrastructure Specification: Further delineates the role of comments in providing clarifications and additional information useful for model interpretation.

The dashed arrow with an open arrowhead in the UML diagram represents a dependency relationship. In UML, a dependency is a relationship that signifies that one element, or set of elements, requires another element (or set of elements) for its specification or implementation. This means that changes to the target element(s) (the element(s) that the arrow points to) may cause changes to the source element(s).

The statement "One or more of the elements in Package G depends on one or more of the elements in Package F" correctly describes the nature of a dependency relationship in UML. It indicates that there is at least one element in Package G that requires some element(s) from Package F. This does not necessarily imply that all elements from Package G depend on all elements from Package F.

Therefore, the correct answer is:

C. One or more of the elements in Package G depends on one or more of the elements in Package F.

A domain model's defining characteristic is that it captures the main domain concepts and their relationships. This model focuses on representing the key elements within the problem domain, outlining how these elements interact with each other without detailing the specific implementations. The domain model is an essential tool in software development for understanding and communicating the fundamental structure of the system from a problem domain perspective, helping teams to design solutions that are well-aligned with actual domain needs. UML is often used to represent domain models due to its capability to visually and clearly model complex relationships and structures.

In UML, a behavioral feature is a feature of a classifier that specifies an aspect of the behavior of its instances. A behavioral feature is implemented (realized) by a method. Operations are a kind of behavioral feature; they are the specifications of transformations or queries that can be requested from an object of the classifier.

Here's why the other options are not correct:

A) "Method" is not a behavioral feature; it is a realization of one. B) "Function" is more of a programming concept than a UML term and would likely be modeled as an operation if it's part of a classifier. D) "Constraint" is not a behavioral feature but a restriction on some aspect of a classifier or a stereotype. E) "Method Invocation" is not a feature; it's an action that invokes a method. F) "Classifier behavior" is a broader concept that defines the behavior characteristic of classifiers as a whole, not a behavioral feature in itself.

Therefore, the correct answer is:

C. Operation

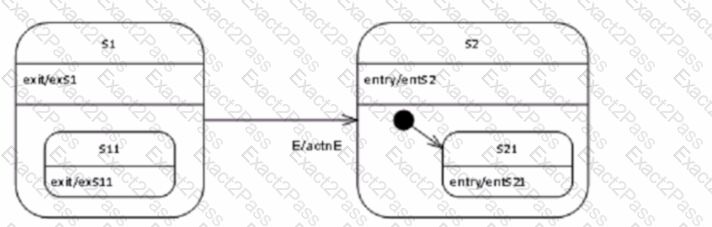

The image depicts a state machine with the following states:

• S1
• S2

The state machine transitions are labeled as follows:

• gxSH - This triggers the transition from the initial state to S1.
• E - This event triggers the transition from S11 to S21.
• exS1 - This signifies exiting state S1.
• exS11 - This signifies exiting state S11.
• entS2 - This signifies entering state S2.
• entS21 - This signifies entering state S21.
• actnE - This indicates an action associated with the E event.

Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

• actnE: The action associated with event E is executed.
• exS11: The state machine exits state S11.
• exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.
• entS2: The state machine enters state S2.
• entS21: The state machine enters the nested state S21.

Justification for excluding other options:

• Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.
• Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.
• Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).
• Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

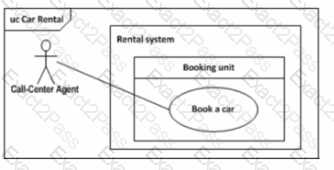

In the context of UML Use Case diagrams, the "owner" of a use case is the system or unit that provides the services of the use case. The use case "Book a car" is contained within the "Rental system" boundary, which is represented as a rectangle in the diagram. This indicates that "Book a car" is a function or service provided by the "Rental system."

The "Call-Center Agent" is an actor that interacts with the use case, but it does not own it. The "Car Rental" seems to be a higher-level packaging element (like a system name), but it is not the immediate container of the use case. The "Booking unit" is a part of the "Rental system" that is specifically responsible for the "Book a car" functionality, but in terms of UML semantics, the use case is owned by the system that contains it, which in this case is the "Rental system."

Therefore, the correct answer is:

C. Rental system

Activity precondition and postcondition constraints are essential for specifying conditions that apply to an activity. Let’s break down the concepts:

• Precondition:
• Postcondition:
• Application Scope:
• Constraining Actions vs. Flow of Objects:

In summary, preconditions and postconditions are essential for ensuring the correctness and validity of an activity, but they are context-specific and apply to specific invocations12.

References:

• Sparx Systems. “Use Case Diagram - UML 2 Tutorial.” 2
• Stack Overflow. “What is the difference between precondition, postcondition, and invariant constraints?” 1
• Stack Overflow. “UML Use-case diagram postcondition implementation (with diagram).” 3

In UML, visibility of an attribute is determined by the scope of the classifier it belongs to and its visibility markers. The attribute 'v' is marked with a '-' sign, indicating it is private. Being private, it would normally be visible only within the class it is defined in, which is 'S' in this case. However, since 'T' is a subclass of 'S' (as indicated by the generalization relationship, a line with a closed, unfilled arrowhead), it inherits the attribute 'v'. Therefore, 'v' is visible in both 'S' and 'T'.

Option A is incorrect because it does not consider inheritance. Option B is incorrect for the same reason. Option D is incorrect because a private attribute in a class is not visible to the entire package, only to the class itself and its subclasses.

The UML 2.5 specification states that a private member is only accessible within the namespace it is defined (section 7.5.3). Since 'T' is within the namespace of 'S' due to inheritance, 'v' is visible in both.

• The diagram displays an activity labeled "Account Authentication".
• There are two main paths branching from the start of the activity:
• Both paths converge into a decision diamond labeled "Authentication Successful?".
• Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

• Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF

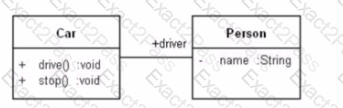

In UML, the features of a class are the combined set of attributes (properties) and operations (methods) that are defined for that class. A feature is a characteristic that classifiers (like classes) can possess. In the context of UML, operations are considered behavioral features, while attributes are considered structural features.

Let's analyze the given options in the context of the Car class:

A. "drive()" is an operation (method) of the Car class, but "Car" itself is the name of the class, not a feature.

B. "stop()" is an operation of the Car class, but "driver" is a role name for an association, not a feature of the Car class.

C. "name" is an attribute of the Person class, not the Car class. "stop()" is indeed an operation of the Car class.

D. "drive()" and "stop()" are operations of the Car class. "Person" is not a feature of the Car class, but no attributes of the Car class are shown in the diagram, and since features include both operations and attributes, the correct answer from the available options isD. It is understood that operations of a class are features, so the answer includes both operations of the Car class: "drive()" and "stop()".

According to the UML 2 Foundation specification, both structural features (attributes) and behavioral features (operations) are considered features of a class, so the correct answer would be the operations "drive()" and "stop()" since those are the only features explicitly represented in the Car class in the diagram.

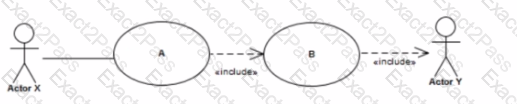

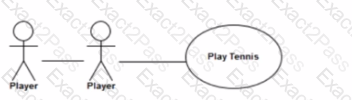

In UML Use Case diagrams, there are specific relationships that are valid between actors and use cases, as well as between the use cases themselves:

• Associationsbetween actors and use cases indicate that an actor participates in the use case. It is depicted as a solid line.
• Includesare dependencies that specify that one use case (the base) includes the behavior of another use case (the included). It is depicted with a dashed arrow with the stereotype «include».
• Extendsare dependencies where one use case (the extension) conditionally adds to the behavior of another use case (the base). It is depicted with a dashed arrow with the stereotype «extend».

Let's analyze the provided options:

A) This diagram shows simple associations between actors and use cases, which is a valid relationship in UML use case diagrams.

B) This diagram attempts to use include relationships directly between actors and use cases, which is not correct. The «include» relationship is used between use cases, not between an actor and a use case.

C) This diagram shows a solid line arrow from one use case to another, which is not a recognized relationship in UML use case diagrams.

D) This diagram attempts to use extend relationships directly between actors and use cases, which is not correct. The «extend» relationship is used between use cases, not between an actor and a use case.

Therefore, the only diagram that contains only valid relationships according to UML standards is Option A.

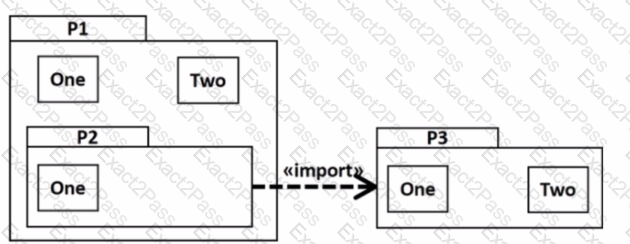

In UML, the<<import>>relationship indicates that the namespace of the target element (in this case,P3) is added to the namespace of the source (in this case,P2). However, it's important to distinguish between different types of imports. There are two types of import relationships:

• Public Import: IfP2were to importP3publicly (using<>), then all public members ofP3would become accessible toP2as if they were part ofP2.
• Private Import: IfP2were to importP3privately (using<>), then the public members ofP3are only accessible withinP2and not to elements that useP2.

Given the diagram, it seems thatP2is importingP3(the nature of the import, public or private, is not explicitly mentioned). Assuming it is a public import and considering thatP2itself is withinP1, which is the higher-level package, thenP1has visibility over its own contents as well as any elements imported intoP2.

ElementOneinP3has the same name asOneinP1, and typically in UML, when an element is imported into a namespace where an element with the same name exists, the imported element is not accessible without a qualified name to avoid ambiguity. However, sinceP2is withinP1, it could be argued thatOneinP3, when imported, would effectively "merge" withOneinP1, thereby makingOnevisible insideP2without a qualified name due to its presence in the higher-level packageP1.

Therefore, the correct answer is:

B. One

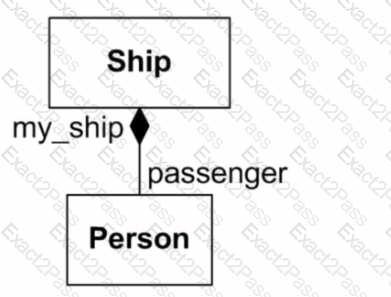

In UML, a filled diamond represents a composite aggregation, also known as a composition. It indicates a whole-part relationship with strong ownership and coincident lifetime of the parts with the whole. Here's what it means in relation to the options provided:

A. This is partially correct. A filled diamond indeed indicates that the Ship instance is responsible for the existence of the associated Person instances, but it is not complete as it does not explicitly state that the Person instances will be deleted when the Ship instance is deleted.

B. This option is the most accurate. A filled diamond represents a composite aggregation, which means that the existence of the Person instances (parts) isdependent on the Ship instance (whole). When the Ship instance is deleted, so are the Person instances it contains.

C. The filled diamond is not a placebo; it has a well-defined meaning in UML, indicating strong ownership and lifecycle dependency between the whole and the part.

D. While the filled diamond does indicate ownership, it specifies more than just an attribute relationship; it indicates that the Ship class has a composition relationship with the Person class. This means that the Ship object contains Person objects as parts of itself, not just as an attribute reference.

E. The filled diamond is connected to the Ship class, not the Person class, so this statement is incorrect. The composition relationship is from Ship to Person, not the other way around.

Based on the UML specification for composite aggregation, the most accurate statement isB: Class Person's existence depends on the ship. It will get deleted when the ship gets deleted. This aligns with the definition of composite aggregation, where the part's lifecycle is dependent on the whole's lifecycle.

Pseudostates in UML state machines serve a different purpose than regular states. They are used as markers or waypoints to facilitate complex state transitions. Key distinctions include:

• Transient Nature: Pseudostates do not represent persistent states of an object. They are not associated with entry/exit actions or internal activities like regular states. The state machine immediately transitions through a pseudostate.
• Run-to-Completion Restrictions: A run-to-completion step (the sequence of states and transitions activated by a single event) cannot end in a pseudostate.

Let's analyze why the other options are incorrect:

• Option A (A pseudostate must have an outgoing transition):While most pseudostates have outgoing transitions to guide the flow of the state machine, this is not a strict requirement. For example, the 'terminate' pseudostate signifies the end of a statemachine and thus has no outgoing transitions.
• Option B (An outgoing transition from a pseudostate must always terminate on a regular state):While true in many cases, outgoing transitions can also target other pseudostates for more intricate state machine designs.
• Option D (The outgoing transitions of a pseudostate must have triggers that consist exclusively of guard conditions):Pseudostate transitions can have a mix of triggers, including events, timeouts, and guard conditions.

References:

• UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering statemachines (Chapter 14), pseudostates (Section 14.2.3.8), and run-to-completion steps (Section 14.2.3.13). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1

In UML 2, the dashed arrow with an open arrowhead represents a dependency relationship. In the context of class diagrams, a dependency relationship indicates that changes to one class (the independent class) may cause changes in the other class (the dependent class). The direction of the arrow specifies which class is dependent on which. In the given diagram, the arrow points from class A to class B, which means that class A is dependent on class B. This could manifest as class A using some services or functions of class B, for example.

References:

• UML 2.5 Specification Document: The official document by the Object Management Group (OMG), which defines the syntax and semantics of UML.
• UML Distilled: A Brief Guide to the Standard Object Modeling Language, Third Edition by Martin Fowler: This book provides a clear guide to UML and includes examples of dependency relationships.

An OpaqueExpression in UML 2 is used to specify behavior in a textual form when it is not necessary to specify which language is used, or when it is not possible to use graphical notation. According to the UML 2 specification, an OpaqueExpression is not limited to any particular language; it can represent expressions written in any language.

The key characteristics of an OpaqueExpression are as follows:

• The 'body' of an OpaqueExpression is a sequence of strings, where each string could be written in a different language. This means it has the capacity to include multiple languages simultaneously.
• The 'language' attribute is optional and is used to indicate the languages of the respective 'body' parts.

The allowance for any language is clearly stated in the UML 2 Infrastructure Specification. OpaqueExpression is designed to be a flexible way to capture expressions that are not readily expressible in UML or when using a language outside the scope of UML (e.g., mathematical expressions, programming languages, or other domain-specific languages).

State machines are ideal for modeling systems or objects that exhibit distinct states and transitions between them based on events or conditions. Let's analyze why option D is the best fit and why others are less suitable:

• D - Transitions in a Physical System:The transitions between different states of matter (ice, water, steam) are governed by well-defined conditions (changes in temperature and pressure). State machines can effectively represent these states and the rules governing the changes between them.
• Other Options:

References:

• UML Specification (Superstructure) Version 2.5.1: The section on state machines is a primary reference for their capabilities (https://www.omg.org/spec/UML/2.5.1).
• Modeling Guides: Various resources on UML modeling techniques often provide insights into when different diagram types are most appropriate.

In UML, when specifying the value of an attribute in an instance specification (which is what each of these boxes represents), the notation used is generally:

attributeName: Type = Value

Looking at each option provided, we see that they are different representations of numerical values for an attribute namedsalaryof typeReal. Here's how to interpret each representation:

A)-salary: Real = “$10,000.00”- This uses a string representation of the number, which is generally not how numerical values are assigned in UML, especially with the explicit typeReal.

B)-salary: Real = $20,000.00- This is more typical for showing a real number in UML, though the dollar sign is not part of the actual numerical value and should not be included.

C)-salary: Real = 30000.00- This is a correct numeric representation of a real number without unnecessary symbols.

D)-salary: Real = 40,000.00- This is also a correct representation and indeed has the highest numeric value among the options provided.

E)-salary: Real = 500 E 02- This is scientific notation, which is also a valid representation of real numbers in UML. The value represented here is 500 * 10^2, which equals 50,000.00.

After examining each option, the correct answer is D. Option D, because the instancefour:Employeehas the highest value properly assigned to asalaryslot according to the standard UML notation. However, there's a point to be clarified: while UML does not specify formatting of numbers with commas for thousands or currency symbols, it does accept scientific notation. So, if we were strictly interpreting the values as real numbers, Option E would represent the highest numerical value. But considering proper UML formatting and assuming the intent is to use standard decimal notation without currency symbols or commas, Option D is the best answer.

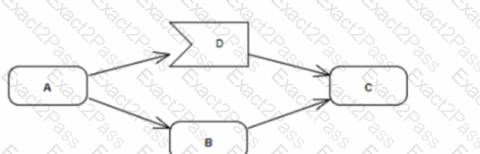

UML 2 Foundation concepts for activity diagrams, there are three valid action notations shown. Here's a breakdown of the elements and why answer D is the most accurate:

• The diagram displays an activity diagram with a main flow and a fork followed by a join.
• Main Flow: This starts with an action labeled "Fill Order".
• Fork: The path splits into two branches after "Fill Order".
• Branch 1: This branch leads to an action labeled "Print Paycheck".
• Branch 2: This branch leads to an action labeled "Send Invoice".
• Join: The two branches converge into a join element.
• Following the Join: An action labeled "End" is present after the join.

Explanation for Valid Actions:

• Fill Order: This clearly represents an action within the activity diagram.
• Print Paycheck: This is another valid action on a separate branch.
• Send Invoice: Similarly, this is an action on the other branch.

Explanation for Why Other Options are Incorrect:

• A. 0: There are clearly multiple actions depicted in the diagram.
• B. 1: There are more than one valid action shown.
• C. 2: While there are actions before the fork, there's also a valid action ("End") after the join.
• E. 4: Counting the join element as an action results in an overcount. Joins represent control flow elements to synchronize multiple paths, not actions themselves.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Actions https://www.omg.org/spec/UML/2.5.1/

Abstractions in a model are helpful because they can express or suppress detail as needed. This capability is essential in managing complexity in a model by focusing on the high-level, essential aspects of the system while omitting or simplifying the less critical details. This selective detail management aids in understanding and analyzing the system’s core functionality without getting overwhelmed by its intricacies. Abstractions facilitate clearer communication, more focused analysis, and more efficient system design by highlighting the most relevant aspects of the system in various contexts.

In UML, an initial node is the starting point of an activity thread and represents the start of the flow in an activity diagram. According to the UML 2.5.1 specification, an initial node has no incoming edges and precisely one outgoing edge1. This means that onlyone activity can feed an initial node at the beginning of an activity thread, which aligns with option C.

The initial node is depicted as a filled circle and is used to show where the control starts within the activity. When the activity is invoked, control tokens are placed on the initial node and can then traverse the outgoing edge to the first action or activity node. The specification clearly states that there should be only one outgoing edge, ensuring that the flow of control is unambiguous at the start of the activity.

For further details and verification, you can refer to the UML 2.5.1 specification, particularly Chapter 15.7, which covers the Activity, ActivityFinalNode, InitialNode, and other related elements2. Additionally, the Object Management Group (OMG) provides resources and guidelines for the UML exams, including the types of questions that may appear and the knowledge areas covered3.

It’s important to note that while multiple initial nodes can exist within a single activity diagram, each initial node can only be the source of one outgoing edge, and thus, only one activity can feed each initial node.

The abstract syntax of UML is specified using the Meta-Object Facility (MOF) metamodel. MOF is a modeling language that provides a meta-meta-model at the top layer of the four-layer metadata architecture, which is used to define the metamodels, like the UML. The MOF specification defines the structure and semantics for constructing metamodels, including the UML. By using MOF, UML ensures that its structure is well-defined and can be processed by tools that understand MOF-based metamodels. The use of MOF to specify UML abstract syntax ensures a clear, structured, and standardized method of describing the semantics of UML components, enabling consistent interpretation and implementation across different modeling tools and environments.
