A UML profile can define several different elements to extend the UML for a specific domain, platform, or purpose. Besides stereotypes, a profile can define DataTypes and Enumerations, which can be used within Stereotypes to type the tagged values. A profile can also define Classes, which can be used as base classes for stereotypes. However, a profile does not typically define instances of elements, such as Objects, nor does it define composite structures, such as Components. The intent of a profile is to adapt existing metamodel elements through the use of stereotypes, tag definitions, and constraints rather than to create instances or define system architectures. This definition and use of a profile are aligned with the guidelines in the UML 2.x Superstructure Specification, which outlines what elements a profile can define within the UML framework.

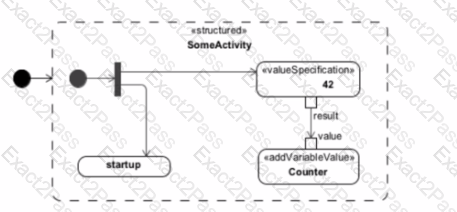

Before the SomeActivity action is executed, the value of "Counter" is not specified in the given diagram fragment; therefore, we cannot assume that it has a value. This leads to the answer C, "It is empty." In UML, unless an initial value is explicitly specified for a variable, it cannot be assumed to have a default value.

References:

• UML 2.5 Specification: The UML specification's section on variables and actions would explain that unless initialized, variables do not have a default value.

The concept of Extent in MOF serves the purpose of defining a set of Tags that can be associated with any number of model elements. These tags provide additional information or metadata about the elements. Extent allows you to annotate model elements with relevant information beyond their intrinsic properties. It provides a context for identifying and managing these annotations independently from the element’s actual values.

For asynchronous invocations in UML, when an exception is thrown and there is no matching exception handler within the activity, the exception is effectively lost because there is no direct mechanism to propagate it back to the caller. This reflects the nature of asynchronous communication where the calling process does not wait for the completion of the called process and, thus, may not be designed to handle exceptions that occur during the called process.

References:

• UML 2.5 Specification: The UML specification describes the behavior of actions within activities and how exceptions are handled, or not handled, in the case of asynchronous calls. It specifically states that for asynchronous calls, the exception is not propagated back to the caller as there is no return flow defined for such invocations.

The difference between ValueSpecificationAction and CreateObjectAction in UML is fundamental to the kinds of results they produce:

• A.Incorrect, as there is a fundamental difference between the outputs of these two actions.
• B.Correct. A ValueSpecificationAction evaluates to a value but does not produce instances of Classifiers, whereas a CreateObjectAction is specifically designed to instantiate classifiers.
• C.Incorrect, because it reverses the capabilities of the two actions.
• D.Also incorrect, because it provides the wrong association of features with actions.

References:

• UML Specification: Action section, where both ValueSpecificationAction and CreateObjectAction are defined.
• Further clarifications on these actions are provided in the UML 2.5 Documentation, especially in parts discussing Actions and Activities.

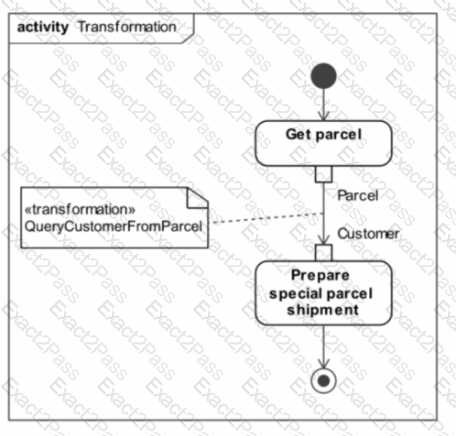

"QueryCustomerFromParcel" is annotated with the «transformation» stereotype, which indicates that it is a behavior element that specifies how to convert input objects into output objects. Therefore, the answer is D, a Behavior element, for example, an Activity, State Machine, or OpaqueBehavior. In UML, the «transformation» stereotype is applied to specify that an action or activity is responsible for transforming an input (in this case, "Parcel") into an output ("Customer"), typically by employing a specific behavior element.

References:

• UML 2.5 Specification: Section on Object Flows describes how transformations can be used within activity diagrams to turn inputs into outputs using behavior elements.

In UML, the keyword «isSubstitutable» is used to indicate that instances of one classifier may be used in place of instances of another classifier. This concept is commonly applied in the context of generalization, where a subclass can be substituted for its superclass. The substitutability is a fundamental principle of object-oriented design, particularly in the Liskov Substitution Principle, which states that objects of a superclass should be replaceable with objects of a subclass without affecting the correctness of the program. This principle is reflected in UML's support for polymorphism, which is implicit in the generalization relationships between classifiers.

In UML, the multiplicity of an association end specifies how many instances of the class at that end can participate in a single association. A lower multiplicity of one (1) at one end of an n-ary (where n > 2) association implies that there must be at least one link that combines the values of the other ends, but it doesn't require that a link exists for every possible combination. Therefore, it's possible for some combinations to exist as links, while others do not, which is indicated by the option that links combining the values of the other ends may exist or may not exist. This interpretation is consistent with the definition of multiplicity in associations as outlined in the UML 2.x Superstructure Specification.

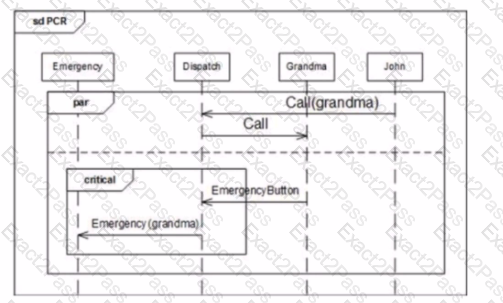

In UML 2, a “critical” section in a sequence diagram, like the one depicted, refers to a period where certain interactions are protected so that they can be executed without interruption or interference from other interactions (events). This is akin to a critical section in multi-threading where certain threads have exclusive access to resources or operations for a period of time. The correct answer is option C because it aligns with this definition: during the “critical” section on the sequence diagram, no other events may interfere between its events.

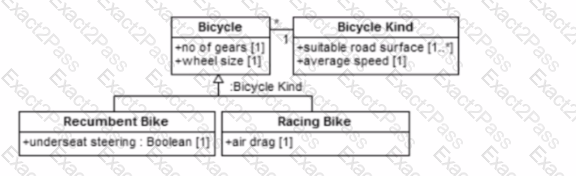

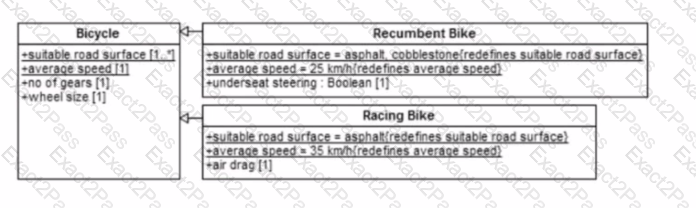

In Option C, the propertiessuitable road surfaceandaverage speedhave been redefined in the subclassesRecumbent BikeandRacing Bike. The use of the{redefines}keyword in UML signifies that the subclass will provide its own specific values for these properties, overriding the general ones provided by the superclassBicycle. This is the correct way to enforce that each specialization ofBicyclehas a unique set of values for these attributes, as redefinition allows for the customization of inherited properties on a per-subclass basis. The use of{redefines}is specified in the UML 2.x Superstructure Specification, which describes how properties inherited from a superclass can be customized by subclasses.

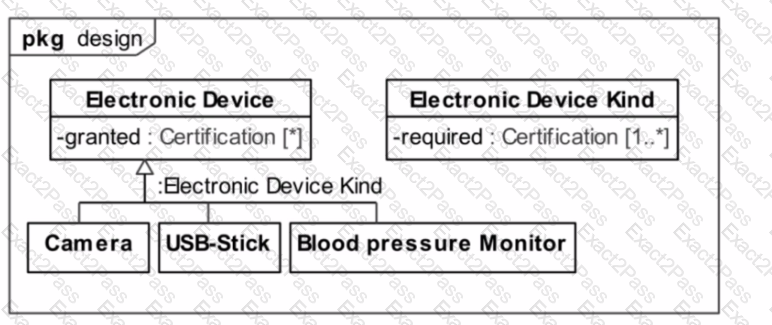

The diagram depictsElectronic Device Kindas a class that requires a set of Certifications (required : Certification[1..*]). This implies that any subclass ofElectronic Device Kindmust provide a set of required Certifications because the multiplicity[1..*]indicates that at least one Certification is mandatory for each instance ofElectronic Device Kindor its subclasses. Therefore, when a subclass is created, it inherits the requirement to specify what Certifications are needed. This is a standard UML generalization, where the subclass inherits the attributes and constraints of its superclass. This interpretation is consistent with the rules defined in the UML 2.x Superstructure Specification, which includes the semantics of class generalization and attribute inheritance.

In UML, class templates are the concept used to create classes that can be parameterized with different data types. This feature satisfies the first condition, allowing collections to support any data type. Class templates can be specialized, fulfilling the second condition, where some collections can inherit from others, thus enabling the reuse of functionality. Additionally, UML allows for operations to be defined in such a way that they cannot be overridden, by specifying them as non-virtual or final, which meets the third condition. Therefore, the use of class templates would be the most suitable approach for the design criteria specified by the programming language designers. This approach is consistent with the capabilities of class templates as described in the UML 2.x Superstructure Specification.

In UML, theisSubstitutableproperty of a generalization relationship indicates whether instances of the child classifier can be used wherever instances of the parent classifier are expected, that is, whether the subclass is substitutable for the superclass. When this property is set to false, it means that the child classifier cannot be substituted for the parent classifier. This property is part of the UML metamodel for generalization and affects how inheritance is interpreted in terms of substitutability, as described in the UML 2.x Superstructure Specification.

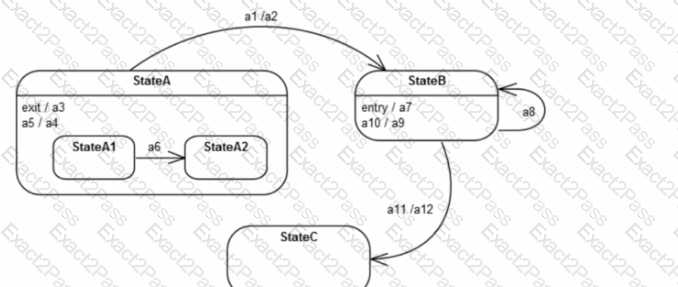

Given that the system is inStateA1, the sequence of triggers that will move the system toStateCmust take into account the transitions and their associated triggers as defined in the UML state diagram. Starting fromStateA1, the triggera5will cause a transition withinStateA, followed bya6, which moves toStateA2. The triggera5is not relevant as it is an internal transition inStateA1. Then,a3(the exit action forStateA) anda2would be followed to leaveStateAaltogether. Once out ofStateA,a1is used to transition toStateB, wherea10is an entry action, not a trigger. Finally, to get fromStateBtoStateC, the triggersa11followed bya12are needed. This sequence of triggers reflects the correct usage of exit, entry, and transition triggers as defined by UML state machine semantics.

In fUML (Foundational UML), an execution model must be modeled as an Activity. fUML is a subset of UML that includes the ability to model behavior using UML activities, which are composed of a rich set of primitive actions1. Activities in fUML represent the executable aspects of a model and define the flow of control and data2. They are the primary means for specifying the detailed procedural logic of the behavior of a system within fUML.

In UML, combined fragments are used to model complex sequence flows by grouping a set of interactions together. Each type of combined fragment has a different semantic use.

The 'assert' combined fragment specifies that the sequence of events inside the fragment must occur exactly as shown, with no deviations or alternatives. This implies that all possible valid traces in the sequence are exactly those specified within the 'assert' fragment; there are no optional or alternative flows.

References include:

• UML 2.5 Specification (formal/2017-12-05), specifically the section on Combined Fragments and their semantics.
• UML Sequence Diagrams: Overview of Graphical Notation, which discusses the purpose of different combined fragments.

The answer is B, "The transmitted object may be copied and the object identity may be changed." When an object is sent from one action to another, it is not always guaranteed that the identity of the object will be preserved. It depends on the semantics of the transmission, which may allow for object copying, and hence the object identity may change during the process.

References:

• UML 2.5 Specification: The section on send actions within activity diagrams describes the behavior of object flows, including transmission semantics regarding object identity and copying.

A stereotype in UML is a powerful extension mechanism that allows developers to tailor UML models for particular domains or platforms. Stereotypes can adapt UML model elements by adding constraints, changing notation, and adding attributes and operations. However, they cannot remove existing constraints from a model element12.

• Notation Change (A): Stereotypes can indeed change the notation of a model element to make it more expressive or domain-specific. For example, a stereotype could be used to visually distinguish between different kinds of classes in a class diagram1.
• Adding Constraints (B): Stereotypes can add new constraints to a model element to specify additional rules or requirements that are not defined by the standard UML1.
• Removing Constraints ©: This is not a capability of stereotypes. Constraints define rules that must be followed, and once they are part of a model element, they cannot be removed by a stereotype. Instead, they are an intrinsic part of the model’s definition1.
• Adding Attributes and Operations (D): Stereotypes can be used to add attributes and operations to a model element, which allows for the specification of additional properties or behaviors that are not part of the standard UML metamodel1.

In summary, while stereotypes are versatile and can extend the capabilities of UML model elements in various ways, they do not have the ability to remove constraints that are already applied to those elements. This is because constraints are consideredfundamental rules that govern the integrity of the model, and removing them would potentially violate the model’s correctness or completeness1.

fUML (Foundational UML) is a subset of the standard Unified Modeling Language (UML) that includes standard, precise execution semantics. This subset encompasses typical structural modeling constructs of UML such as classes, associations, data types, and enumerations, as well as the ability to model behavior using UML activities composed from a set of primitive actions. Therefore, a model constructed in fUML is executable in the same sense as a program in a traditional programming language, but with the level of abstraction and richness of expression of a modeling language2.

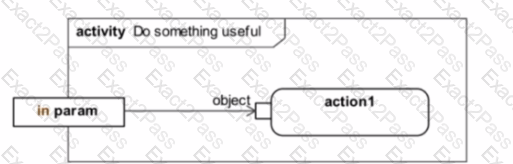

In the given UML activity diagram, "action 1" is an action that executes the classifier behavior (intrinsic behavior) of an instance. The correct UML action that represents this behavior is:

• A. CallBehaviorActionis used to call a behavior directly, but not necessarily the classifier behavior of the input object.
• B. CallOperationActionis used to call an operation, which is not the intrinsic behavior of an instance.
• C. StartObjectBehaviorActionis the correct answer. This action starts the execution of the classifier behavior of an object.
• D. CallClassifierBehaviorActionis not a standard UML action.

References:

• UML Specification: Actions section, which explains the various types of actions including the StartObjectBehaviorAction.
• Further details about actions that initiate behaviors of objects can be found in the UML 2.5 Documentation, specifically in the chapters discussing Actions in Activity diagrams.

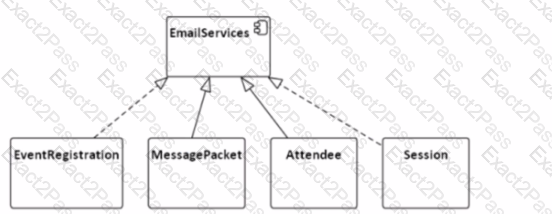

The provided diagram fragment shows what appears to be Components or Classes with dashed arrows pointing towards them. Typically in UML, a dashed arrow with an unfilled arrowhead represents a Realization relationship, which is used to show that an element (such as an interface) is realized by another element (such as a class or component). However, when we are talking about Classes like "EventRegistration," "MessagePacket," "Attendee," and "Session" which seem to share a common nature or purpose with "EmailServices," these relationships are more appropriately modeled as Generalizations, indicating that they inherit from a common superclass or implement a common interface. Realizations are typically not used in this context.Hence, the dashed arrows in the diagram should be solid lines representing Generalization, not Realization. This answer aligns with the UML 2.x Superstructure Specification, which provides guidance on the usage of Realization and Generalization relationships in class diagrams.

A FunctionBehavior in UML is a specialized form of behavior that specifies a function that, when executed, yields results influenced only by its input arguments and its internal attributes, without any side effects (e.g., altering global variables or I/O operations). This makes it stateless. Among the options provided:

• Ainvolves I/O operations which are not covered under FunctionBehavior as it implies side effects.
• Bdeals with environmental inputs and actuator control, not just function computation.
• Ccould be considered but implies a state change which again might involve side effects, depending on the implementation.
• Dpurely involves calculation based on input parameters, which fits the definition of FunctionBehavior perfectly, as it is a stateless computation.
• Eis incorrect because UML indeed includes the concept of FunctionBehavior.

References:

• UML Specification, Section on Behaviors
• Further details on FunctionBehaviors can be found in the UML 2.5 Documentation under the Classification and Behaviors sections.

The UML sequence diagrams provided do not offer enough information to definitively determine the order of event occurrences. Sequence diagrams are used to show how objects interact in a given scenario, particularly the order of messages exchanged between objects. However, without a clear indication of the sequence or additional context, it’s impossible to ascertain which event occurs last.

In UML 2.x, sequence diagrams can be interconnected, but the execution order across separate diagrams is not inherently defined unless explicitly specified. Therefore, based on the information given, the answer is D, as we cannot uniquely determine the last event occurrence without additional details.

References:

• OMG Unified Modeling Language (OMG UML), Infrastructure Version 2.5
• UML 2.x specifications and sequence diagram notations

In UML Sequence Diagrams, a "neg" (negative) combined fragment is used to specify invalid or forbidden interactions. Therefore:

• A.Incorrect, because a "neg" fragment defines an invalid interaction, so following it by normal positive constructs does not affect its interpretation of invalidity.
• B.Incorrect, as nesting a "neg" fragment within another "neg" fragment does not inherently result in valid traces.
• C.Correct. Normal positive constructs followed by a "neg" fragment define some sequences of interactions as invalid, which is the intended use of the "neg" fragment.
• D.Incorrect, because an "assert" fragment is used to specify required interactions, and containing a "neg" fragment within it does not make the invalid traces valid.

References:

• UML Specification: Interactions section, particularly the explanation of combined fragments and their meanings.
• The negative combined fragment and its semantics are discussed in the UML 2.5 Documentation, under the Sequence Diagrams and Combined Fragments sections.
