Fortinet’s official documentation, including the FortiOS Handbook and NSE 7 training materials, provides detailed guidance on troubleshooting RADIUS authentication issues. The three tools listed below are explicitly supported for diagnosing RADIUS-related problems in FortiOS:

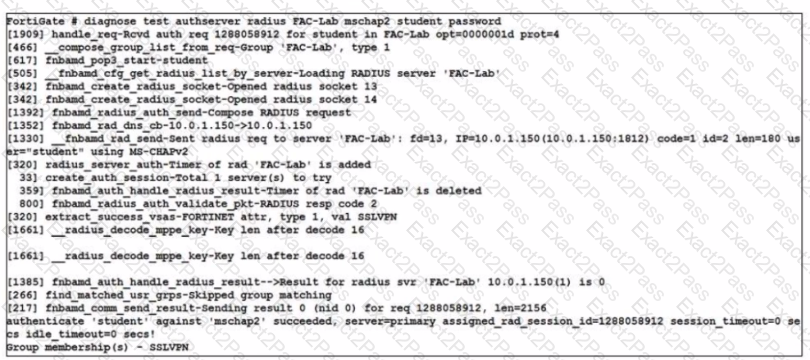

B. You can use the diagnose test authserver radius command to verify RADIUS server configuration, user credentials, and user group membership.This command is a well-documented troubleshooting tool in the FortiOS CLI Reference and Technical Documentation. It allows administrators to manually test RADIUS authentication by specifying the RADIUS server, username, and password. The output provides details on whether the authentication succeeds or fails, along with information about group membership and server reachability. For example:

bash

CollapseWrapCopy

diagnose test authserver radius

This is a critical tool for verifying the RADIUS server's configuration and user authentication flow.

D. You can enable debug for the fnbamd process to view RADIUS authentication details.The fnbamd process (FortiNet Authentication Daemon) handles non-local authentication protocols like RADIUS and LDAP in FortiOS. Enabling debug for this process provides real-time logs of the authentication exchange between the FortiGate and the RADIUS server. This is officially recommended in Fortinet’s troubleshooting guides for advanced diagnostics. The command sequence is:

bash

CollapseWrapCopy

diagnose debug application fnbamd -1

diagnose debug enable

After testing, you can disable debugging with diagnose debug disable. This tool is invaluable for identifying issues such as misconfigured shared secrets, timeouts, or attribute mismatches.

E. You can use the diagnose test application radiusd command to verify the RADIUS server configuration, user credentials, and user group membership.The radiusd process relates to the RADIUS daemon on the FortiGate, and this diagnostic command tests the RADIUS server’s operational status and authentication functionality. While less commonly highlighted than diagnose test authserver radius, it is referenced in Fortinet’s CLI documentation for deeper troubleshooting of the RADIUS service itself. It provides detailed output about the server’s response and can help isolate issues specific to the RADIUS protocol implementation.

Why not A and C?

A. You can enable debug for the fssod process to view RADIUS authentication details.The fssod process relates to FortiSSO (Single Sign-On) and is primarily used for FSSO-based authentication, not direct RADIUS troubleshooting. While it may log some authentication-related events in specific SSO scenarios, it is not a standard tool for RADIUS diagnostics according to Fortinet’s official documentation. Thus, it is not a correct choice here.

C. You can check the Firewall Users widget to view the list of active RADIUS users.While the Firewall Users widget (available in the FortiOS GUI underUser & Authentication > Firewall Users) shows a list of authenticated users, it is a monitoring tool, not a troubleshooting tool. It does not provide diagnostic details about RADIUS authentication failures or server issues, making it insufficient for this purpose per Fortinet’s troubleshooting methodology.

Source Verification

The answers are derived from official Fortinet resources, including:

FortiOS 7.0 CLI Reference(diagnose commands section)

FortiOS Handbook: Authentication(RADIUS troubleshooting section)

NSE 7 - LAN Edge 7.0 training materials (authentication diagnostics module)

These tools (B, D, E) align with Fortinet’s recommended practices for diagnosing RADIUS authentication issues effectively.

According to the FortiGate Administration Guide, “To enable automated wireless client quarantine using IOC, you must configure the following settings: Configure your wireless network to be in tunnel mode. This allows FortiGate to inspect all wireless traffic and apply security policies. Configure your FortiGate device in the Security Fabric with a FortiAnalyzer device. This allows FortiAnalyzer to detect indicators of compromise (IOC) from wireless traffic and send quarantine commands to FortiGate.” Therefore, options A and B are true because they describe the configurations that must be put in place for a wireless client to be quarantined successfully using IOC. Option C is false because configuring a firewall policy to allow communication is not required, as the default firewall policy for tunnel mode wireless networks is to allow all traffic. Option D is false because configuring the wireless network to be in bridge mode is not supported, as FortiGate cannot inspect or quarantine wireless traffic in bridge mode.

According to the FortiManager Administration Guide1, “FortiManager obtains the FortiSwitch status information by querying the FortiGate REST API every three minutes.” Therefore, option B is true because it describes how FortiManager gets the information about the managed switches. According to the same guide2, “If you make any changes in this module, you must install them on your managed device so that they are applied on your managed switches.” Therefore, option C is true because it describes what the administrator must do after making any changes on FortiSwitch manager. Option A is false because central management is the default management mode on FortiManager, not per-device management. Option D is false because any switch discovered or authorized on FortiGate will be automatically added on FortiSwitch manager, not manually.

1: https://docs.fortinet.com/document/fortimanager/7.0.0/administration-guide/734537/fortiswitch-manager  2: https://docs.fortinet.com/document/fortimanager/7.0.0/administration-guide/734537/fortiswitch-manager#fortiswitch-manager

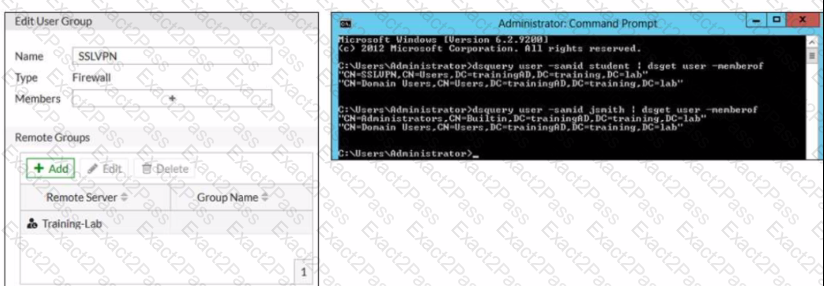

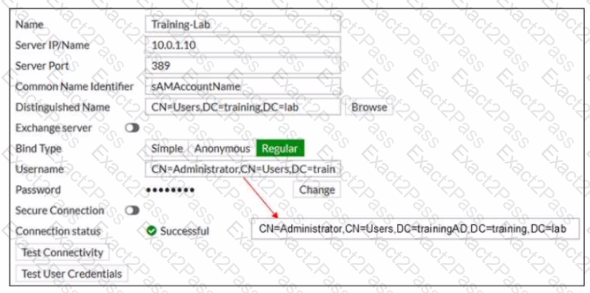

According to the FortiGate Administration Guide, “The Group Name is the name of the LDAP group that you want to use for authentication. The name must match exactly the name of the LDAP group on the LDAP server.” Therefore, option A is true because it will set the Group Name to match the LDAP group that contains only the student user. Option B is false because changing the Name will not affect the authentication process, as it is only a local identifier for the user group on FortiGate. Option C is false because setting the Group Name to Domain Users will include all users in the domain, not just the student user. Option D is false because changing the Type to FSSO will require a different configuration method and will not solve the problem.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-enable-and-disable-broadcast-of-SSID/ta-p/191840

According to the exhibit, the DHCP server scope for the FortiLink interface has a vci-string setting with the value “Cisco AP c2700”. This setting is used to match the vendor class identifier (VCI) of the DHCP clients that request an IP address from the DHCP server. The VCI is a text string that uniquely identifies a type of vendor device. Therefore, option C is true because the vci-string setting restricts the IP address assignment to FortiSwitch and FortiExtender devices, which use the VCI “Cisco AP c2700”. Option A is false because the vci-string setting does not ignore DHCP requests coming from FortiSwitch and FortiExtender devices, but rather accepts them. Option B is false because the vci-string setting does not reserve IP addresses for FortiSwitch and FortiExtender devices, but rather assigns them dynamically. Option D is false because the vci-string setting does not restrict the IP address assignment to devices that have FortiSwitch or FortiExtender as their hostname, but rather to devices that have “Cisco AP c2700” as their VCI.

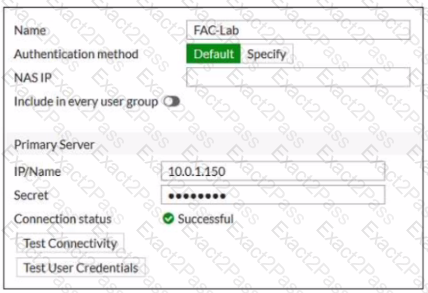

According to the exhibit, the RADIUS server configuration on FortiGate points to FortiAuthenticator, which is acting as an authentication proxy and is configured to relay all authentication requests to a remote Windows AD server using LDAP. However, LDAP does not support MSCHAP2 authentication, which is required for RADIUS. Therefore, option A is true because on FortiAuthenticator, enabling Windows Active Directory Domain Authentication will add FortiAuthenticator to the Windows domain and allow it to use MSCHAP2 authentication with the AD server. Option C is also true because on FortiAuthenticator, changing the back-end authentication server from LDAP to RADIUS will allow it to use MSCHAP2 authentication with the AD server. Option B is false because on FortiGate, configuring the NAS IP setting on the RADIUS server will not affect the MSCHAP2 authentication, but rather the source IP address of the RADIUS packets. Option D is false because on FortiGate, updating the Secret setting on theRADIUS server will not affect the MSCHAP2 authentication, but rather the shared secret between FortiGate and FortiAuthenticator.
