Explanation

Correct approach is to use Mixed configuration of asynchronous or synchronous loggers shoud be used to log exceptions via synchronous way Asynchronous logging poses a performance-reliability trade-off. You may lose some messages if Mule crashes before the logging buffers flush to the disk. In this case, consider that you can have a mixed configuration of asynchronous or synchronous loggers in your app. Best practice is to use asynchronous logging over synchronous with a minimum logging level of WARN for a production application. In some cases, enable INFO logging level when you need to confirm events such as successful policy installation or to perform troubleshooting. Configure your logging strategy by editing your application’s src/main/resources/log4j2.xml file

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs. * Below two are technical implementations and not the part of design: - Snapshots of the Mule application’s flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system * List of consumers is not relevant to the design

Explanation

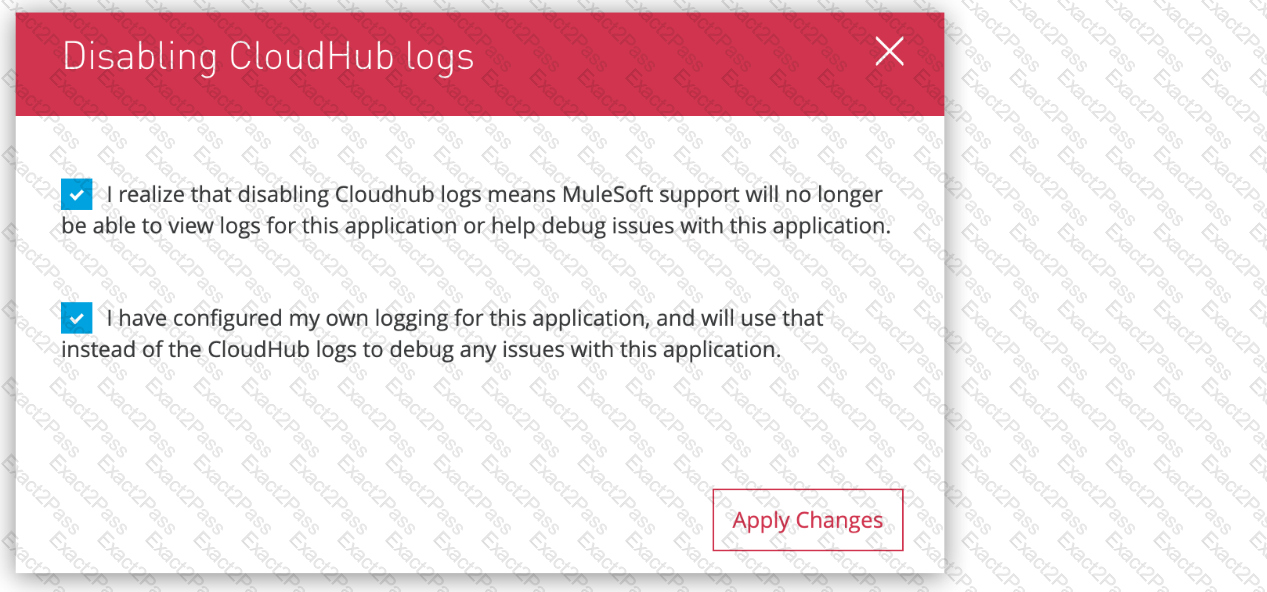

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

A MuleSoft developer can use Anypoint Studio to implement an API as a Mule application, run the application locally, and execute unit tests against the running application. Anypoint Studio is an integrated development environment (IDE) for designing, building, testing, and deploying Mule applications. It provides tools for local development and testing, including MUnit for creating and running unit tests, making it a comprehensive solution for developing MuleSoft applications.

References:

• Anypoint Studio Overview
• Using MUnit for Unit Testing

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

• MuleSoft Documentation on Audit Logging
• Anypoint Platform User Management

• Requirement Analysis: Jenkins files and folders used for CI/CD configurations are not part of the actual Mule package and should be excluded from the deployed archive.
• Solution: MuleSoft provides the .muleignore file to specify files and directories that should be excluded from the packaged application.
• Implementation Steps:

# .muleignore example /path/to/jenkins/file1 /path/to/jenkins/folder/*

• uk.co.certification.simulator.questionpool.PList@18be4c30
• Advantages:

References

• MuleSoft Documentation on .muleignore

Explanation

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc : https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy

According to MuleSoft, a significant business benefit associated with an API-led connectivity approach using Anypoint Platform is increased developer productivity through self-service of API assets. API-led connectivity promotes the creation of reusable APIs that can be easily discovered and consumed by developers across the organization. This self-service model reduces dependencies, accelerates development, and fosters innovation by enabling teams to quickly build and integrate applications using existing APIs without waiting for central IT to provide access.

References:

• API-led Connectivity: The Key to Unlocking IT Agility
• Benefits of API-led Connectivity

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

References:

• API Design Best Practices
• Design-First API Development

A Center for Enablement (C4E) provides significant benefits to an enterprise and its lines of business by accelerating self-service capabilities. A C4E is a cross-functional team that promotes the use of best practices, reusable assets, and consistent methodologies across the organization. By enabling lines of business to access and use shared resources, tools, and knowledge independently, a C4E empowers these units to deliver projects faster and more efficiently. This self-service model reduces reliance on central IT for every initiative, fosters innovation, and enhances the overall agility of the organization.

References

• MuleSoft Center for Enablement (C4E) Overview
• Best Practices for Implementing a C4E on Anypoint Platform

A Center for Enablement (C4E) provides significant benefits by accelerating self-service capabilities for lines of business. Here’s how:

• Self-Service Enablement: C4E empowers lines of business to access, use, and create integrations and APIs independently, without relying heavily on central IT teams.
• Guidelines and Standards: The C4E establishes best practices, standards, and reusable frameworks, ensuring that lines of business can develop solutions efficiently and consistently.
• Faster Time-to-Market: By enabling self-service, lines of business can rapidly develop and deploy solutions to meet their specific needs, resulting in faster time-to-market for new initiatives.
• Reduced Bottlenecks: Self-service reduces dependency on central IT, alleviating potential bottlenecks and allowing IT to focus on governance, security, and strategic projects.

The C4E model thus accelerates innovation and responsiveness within the enterprise.

References:

• Center for Enablement (C4E)
• Benefits of a C4E

A major distinguishing characteristic of an application network, according to MuleSoft, is that it is built for change and self-service. An application network connects applications, data, and devices with APIs, enabling self-service access and reuse of assets. This architecture allows organizations to rapidly adapt to changing business needs, fosters innovation, and reduces time to market by empowering different teams to access and integrate systems independently without waiting for centralized IT.

References:

• Application Networks: The Future of Integration
• MuleSoft's Approach to Building Application Networks

• Requirement Analysis: The organization needs to send email alerts to the internal operations team whenever a policy applied to an API instance is deleted in the CloudHub runtime plane.
• Solution: The most effective approach is to implement a new Mule application that uses the Audit Log REST API to detect when a policy is deleted and then sends an email using the SMTP connector.
• Implementation Steps:

GET /accounts/api/v2/organizations/{orgId}/audit-logs

• uk.co.certification.simulator.questionpool.PList@18be5070

Policy deletion detected: #[payload]

• uk.co.certification.simulator.questionpool.PList@189cae60
• Advantages:

References

• MuleSoft Documentation on Audit Log REST API
• MuleSoft Documentation on SMTP Connector
• MuleSoft Documentation on MuleSoft Scheduler Component

When a batch job instance running on a runtime fabric environment with two cluster replicas encounters an unexpected failure, the following sequence of events occurs:

• Failure Detection: The runtime fabric environment detects the failure of the replica running the batch job.
• Replica Replacement: A new replica is provisioned to replace the failed one.
• Batch Job State Recovery: MuleSoft’s batch processing mechanism ensures that the state of the batch job is periodically saved (checkpointing). This allows the new replica to resume processing from the last saved state.
• Resumption of Processing: The new replica takes over the batch job, continuing from where the previous one left off, thus processing the remaining 99,000 records without starting from scratch or causing duplicate processing.

References:

• MuleSoft Documentation on Batch Processing
• Runtime Fabric Guide

=======================

• Requirement Analysis: The security team requires any external API call to be restricted by an IP include list. This ensures that only specified IP addresses can access the third-party API.
• Design Plan: To fulfill this requirement, implementing a proxy for the third-party API is the best approach. This proxy can enforce the IP include list policy.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on API Proxies
• MuleSoft Documentation on IP Whitelist Policy

Explanation

* "The existence of a public Anypoint Exchange portal to which the asset has been published" - question does not mention anything about the public portal. Beside the public portal is open to the internet, to anyone. * If you cannot find an asset in the current business group scopes, search in other scopes. In the left navigation bar click All assets (assets provided by MuleSoft and your own master organization), Provided by MuleSoft, or a business group scope. User belonging to one Business Group can see assets related to his group only Reference: https://docs.mulesoft.com/exchange/to-find-info https://docs.mulesoft.com/exchange/asset-details Correct answer is The business groups to which the user belongs

Explanation

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP • For zero downtime deployment, each worker in CloudHub needs additional IP addresses • A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) • The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 • The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

To achieve efficient caching and reduce redundant database transactions, the following strategy can be implemented:

• On Table Row Listener: Implement an "On Table Row" trigger on the employees' table. This trigger will monitor changes (inserts, updates, deletes) in the employee records.
• Invalidate Cache: Upon detecting changes in the employees' table, the trigger will call a flow to invalidate the current cache.
• Object Store for Caching: Utilize MuleSoft's object store to cache the employee data. This store can hold the data for quick retrieval.
• Set Expiration Interval: Configure the expiration interval for the cached data to ensure it is cleared when necessary. For this scenario, since we are invalidating cache on actual data changes, setting the expiration interval to empty can be suitable.
• Return Cached Data: If there are no updates, the cached response is returned, reducing database load.

References:

• MuleSoft Documentation on Object Store
• Caching Strategies

For handling large datasets in a Mule application, streaming is an effective strategy. Streaming allows the application to process large amounts of data in chunks, reducing memory usage and improving performance. Using a file storage repeatable strategy for reading records from the database ensures that the data is read in manageable chunks and stored temporarily in files, which can be re-read if necessary, enhancing reliability.

The batch aggregator with streaming to write to an FTPS server ensures that data is written in chunks, aligning with the processing capabilities of the application running in CloudHub with 0.2 vCore and 8 GB storage. This configuration optimizes performance by balancing the load and managing the dataset size effectively, ensuring that the high rate of records can be processed and written to the FTPS server without overwhelming the system.

References:

• MuleSoft Documentation on Streaming
• MuleSoft Documentation on Batch Processing

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

References:

• MuleSoft Documentation on Object Store v2

Explanation

* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.

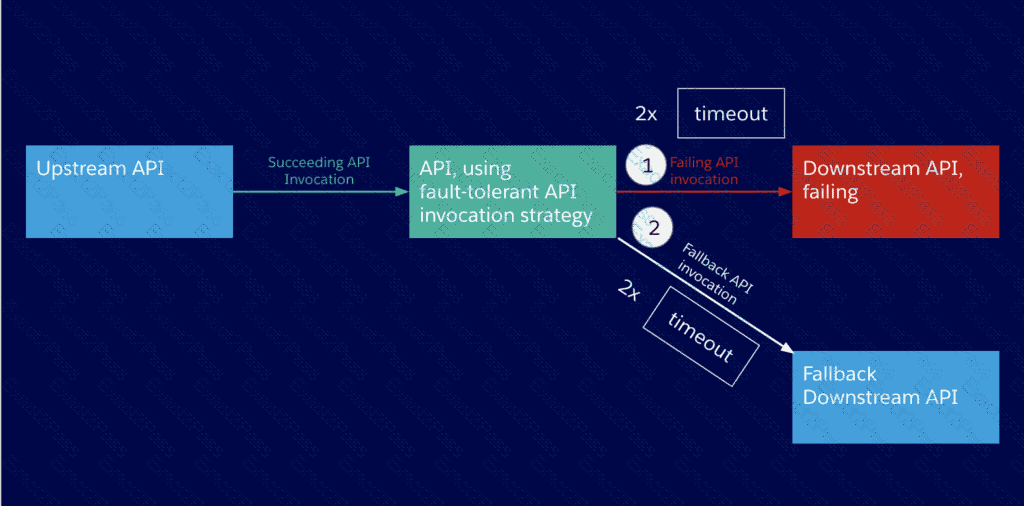

* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.

* Here are some examples for fallback APIs:

- An old, deprecated version of the same API.

- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).

- An API doing more than required, and therefore not as performant as the primary API.

- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.

* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.

* All HTTP response status codes within the 3xx category are considered redirection messages. These codes indicate to the user agent (i.e. your web browser) that an additional action is required in order to complete the request and access the desired resource

Diagram Description automatically generated

Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status code to the fallback API whenever the Order API is unavailable

Explanation

* Organization can continue using existing load balancer even if backend application changes are there. So option A is ruled out.

* As Mule runtime is within their datacenter, this model is RTF and not PCE. So option C is ruled out.

Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications -- This mean PCE or Hybird not RTF - Also mentioned in Question is that - Mule runtime is hosting several Mule Application, so that also rules out RTF and as for hosting multiple Application it will have Domain project which need redesign to make it microservice architecture

---------------------------------------------------------------------------------------------------------------

Correct Answer: Required redesign of Mule applications to follow microservice architecture principles

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

The Kubernetes controller is implementing horizontal scalability by adding another pod replica in response to increased application load. Horizontal scaling involves adding more instances of a service or application to handle the increased load, as opposed to vertical scaling, which would involve adding more resources (CPU, RAM) to a single instance. Horizontal scaling is a key feature of cloud-native applications and is supported by Kubernetes to ensure high availability and performance.

References:

• Kubernetes Horizontal Pod Autoscaling
• Understanding Horizontal vs. Vertical Scaling

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

• Parallel Execution:
• Transaction Management:
• Error Handling and Rollback:

References:

• MuleSoft Documentation on Scatter-Gather
• Transaction management in MuleSoft

=========================

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

References:

• Anypoint API Designer
• API Design Best Practices

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

Explanation

Correct answer is "Compile, package, unit test, validate unit test coverage, deploy" Explanation : Anypoint Platform supports continuous integration and continuous delivery using industry standard tools Mule Maven Plugin The Mule Maven plugin can automate building, packaging and deployment of Mule applications from source projects Using the Mule Maven plugin, you can automate your Mule application deployment to CloudHub, to Anypoint Runtime Fabric, or on-premises, using any of the following deployment strategies • CloudHub deployment • Runtime Fabric deployment • Runtime Manager REST API deployment • Runtime Manager agent deployment MUnit Maven Plugin The MUnit Maven plugin can automate test execution, and ties in with the Mule Maven plugin. It provides a full suite of integration and unit test capabilities, and is fully integrated with Maven and Surefire for integration with your continuous deployment environment. Since MUnit 2.x, the coverage report goal is integrated with the maven reporting section. Coverage Reports are generated during Maven’s site lifecycle, during the coverage-report goal. One of the features of MUnit Coverage is to fail the build if a certain coverage level is not reached. MUnit is not used for integration testing Also publishing to Anypoint Exchange or to create associated API instances in API Manager is not a part of CICD pipeline which can ne achieved using mulesoft provided maven plugin

Explanation

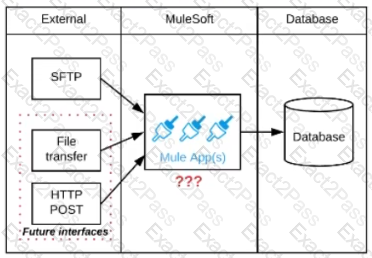

Architecture mentioned in the question can be diagrammatically put as below. Persistent Object Store is the correct answer .

* Mule Object Stores: An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime. So we cant use in memory store in our scenario as we want to share watermark within all cloudhub workers

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent. Hence this watermark will be available even any of the worker goes down

Diagram Description automatically generated

Explanation

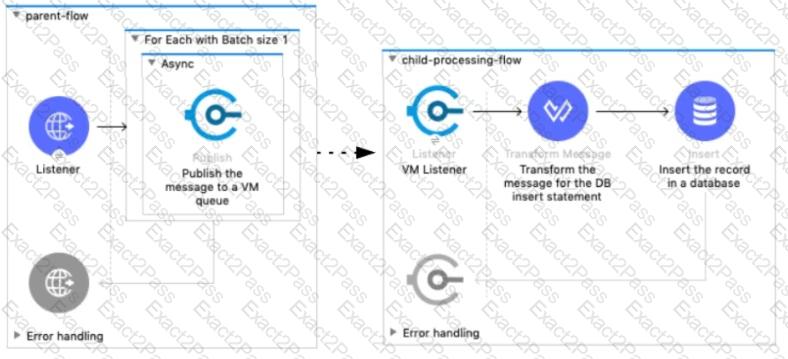

Correct answer is For Each scope in the parent flow On Error Continue error handler in the child flow. You can extract below set of requirements from the question a) Records should be sent to downstream system in the same order that it was received in the array b) Any validation or communication failures should not prevent further processing of the remaining records First requirement can be met using For Each scope in the parent flow and second requirement can be met using On Error Continue scope in child flow so that error will be suppressed.

Explanation

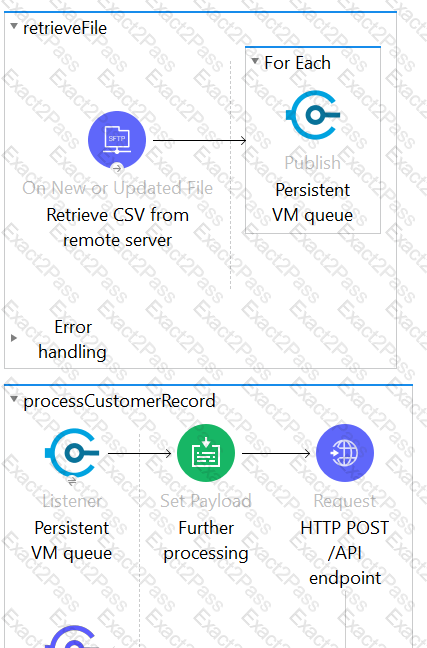

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

Anypoint Runtime Fabric is the appropriate choice for deploying Mule applications in an isolated Mule runtime within Docker containers on an Azure Kubernetes Service (AKS) infrastructure. This solution provides a containerized and orchestrated environment managed from the MuleSoft-hosted control plane. It enhances the availability, scalability, and robustness of Mule applications by allowing fine-grained control over deployments and providing built-in support for high availability and fault tolerance.

References:

• Anypoint Runtime Fabric Overview
• Deploying Mule Applications to Kubernetes

MuleSoft's IT delivery and operating model suggests adopting an approach that decouples core IT projects from the innovation within each line of business. This approach, often referred to as API-led connectivity, allows different lines of business to innovate and deliver projects independently by using reusable APIs that provide access to core systems and data. This decoupling enhances agility, speeds up delivery, and ensures that core IT maintains control over critical systems and data while enabling rapid innovation.

References:

• API-led Connectivity: Build Your Digital Platform for Change
• MuleSoft's API-led Connectivity Approach

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

When an API client makes an HTTP request to an API gateway with an Accept header containing the value "application/json", the valid HTTP response payload should be in JSON format. The correct JSON format for indicating a healthy status is {"status": "healthy"}. This format uses a JSON object with a key-value pair where the key is "status" and the value is "healthy".

Other options provided are not valid JSON responses:

• healthy is XML format.
• status('healthy') and status: healthy are not valid JSON syntax.

References

• HTTP Content Negotiation and Accept Headers
• JSON Formatting and Syntax Rules

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

Explanation

CloudHub object store should be in same region where the Mule application is deployed. This will give optimal performance.

Before learning about Cache scope and object store in Mule 4 we understand what is in general Caching is and other related things.

WHAT DOES “CACHING” MEAN?

Caching is the process of storing frequently used data in memory, file system or database which saves processing time and load if it would have to be accessed from original source location every time.

In computing, a cache is a high-speed data storage layer which stores a subset of data, so that future requests for that data are served up faster than is possible by accessing the data’s primary storage location. Caching allows you to efficiently reuse previously retrieved or computed data.

How does Caching work?

The data in a cache is generally stored in fast access hardware such as RAM (Random-access memory) and may also be used in correlation with a software component. A cache’s primary purpose is to increase data retrieval performance by reducing the need to access the underlying slower storage layer.

Caching in MULE 4

In Mule 4 caching can be achieved in mule using cache scope and/or object-store. Cache scope internally uses Object Store to store the data.

What is Object Store

Object Store lets applications store data and states across batch processes, Mule components, and applications, from within an application. If used on cloud hub, the object store is shared between applications deployed on Cluster.

Cache Scope is used in below-mentioned cases:

● Need to store the whole response from the outbound processor

● Data returned from the outbound processor does not change very frequently

● As Cache scope internally handle the cache hit and cache miss scenarios it is more readable

Object Store is used in below-mentioned cases:

● Need to store custom/intermediary data

● To store watermarks

● Sharing the data/stage across applications, schedulers, batch.

If CloudHub object store is in same region where the Mule application is deployed it will aid in fast access of data and give optimal performance.

• To design an integration Mule application that processes orders and ensures reliability even with an unreliable back-end system, the following components and ActiveMQ queues should be used:

• Until Successful Scope: This scope ensures that the Mule application will continue trying to submit the order to the back-end system until it succeeds or reaches a specified retry limit. This helps in handling transient network issues or minor outages of the back-end system.
• ActiveMQ Long-Retry Queues: By placing the orders in long-retry queues, the application can manage retries over an extended period. This is particularly useful when the back-end system experiences longer outages. The ActiveMQ broker, located within the organization’s firewall, can reliably handle these queues.
• ActiveMQ Dead-Letter Queues: Orders that cannot be successfully submitted after all retry attempts should be moved to dead-letter queues. This allows for manual processing of these orders. The dead-letter queue ensures that no orders are lost and provides a clear mechanism for handling failed submissions.

Implementation Steps:

• HTTP Listener: Set up an HTTP listener to receive incoming orders.
• Immediate Acknowledgment: Immediately acknowledge the receipt of the order to the client.
• Until Successful Scope: Use the Until Successful scope to attempt submitting the order to the back-end system. Configure retry intervals and limits.
• Long-Retry Queues: Configure ActiveMQ long-retry queues to manage retries.
• Dead-Letter Queues: Set up ActiveMQ dead-letter queues for orders that fail after maximum retry attempts, allowing for manual intervention.

This approach ensures that the system can handle temporary and prolonged back-end outages while minimizing manual processing.

References:

• MuleSoft Documentation on Until Successful Scope: https://docs.mulesoft.com/mule-runtime/4.3/until-successful-scope
• ActiveMQ Documentation: https://activemq.apache.org/

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

When leveraging Anypoint MQ Audit Logs, it's important to note that they include logs for operations such as creating, deleting, modifying, and purging queues. These logs are crucial for auditing and monitoring the state and changes made to the message queues within Anypoint MQ. However, they do not include logs for individual message actions like sending, receiving, or browsing messages.

References

• MuleSoft Documentation on Anypoint MQ Audit Logs
• Anypoint Platform Audit Logging Overview

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

• AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.
• Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.
• Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

References:

• Anypoint CLI Documentation
• Mule Maven Plugin Documentation

Explanation

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects

Explanation

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

A screenshot of a computer Description automatically generated with low confidence

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Diagram Description automatically generated

Explanation

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

Explanation

Correct answer is using below set of activities Until Successful component ActiveMQ long retry Queue ActiveMQ Dead Letter Queue for manual processing We will see why this is correct answer but before that lets understand few of the concepts which we need to know. Until Successful Scope The Until Successful scope processes messages through its processors until the entire operation succeeds. Until Successful repeatedly retries to process a message that is attempting to complete an activity such as: - Dispatching to outbound endpoints, for example, when calling a remote web service that may have availability issues. - Executing a component method, for example, when executing on a Spring bean that may depend on unreliable resources. - A sub-flow execution, to keep re-executing several actions until they all succeed, - Any other message processor execution, to allow more complex scenarios. How this will help requirement : Using Until Successful Scope we can retry sending the order to backend systems in case of error to avoid manual processing later. Retry values can be configured in Until Successful Scope Apache ActiveMQ It is an open source message broker written in Java together with a full Java Message Service client ActiveMQ has the ability to deliver messages with delays thanks to its scheduler. This functionality is the base for the broker redelivery plug-in. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Rather than being delivered to a DLQ, a failing message is scheduled to go to the tail of the original queue and redelivered to a message consumer. How this will help requirement : If backend application is down for a longer duration where Until Successful Scope wont work, then we can make use of ActiveMQ long retry Queue. The redelivery plug-in can intercept dead letter processing and reschedule the failing messages for redelivery. Mule Reference: https://docs.mulesoft.com/mule-runtime/4.3/migration-core-until-successful

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

Explanation

Object Store Connector is a Mule component that allows for simple key-value storage. Although it can serve a wide variety of use cases, it is mainly design for: - Storing synchronization information, such as watermarks. - Storing temporal information such as access tokens. - Storing user information. Additionally, Mule Runtime uses Object Stores to support some of its own components, for example: - The Cache module uses an Object Store to maintain all of the cached data. - The OAuth module (and every OAuth enabled connector) uses Object Stores to store the access and refresh tokens. Object Store data is in the same region as the worker where the app is initially deployed. For example, if you deploy to the Singapore region, the object store persists in the Singapore region. MuleSoft Reference : https://docs.mulesoft.com/object-store-connector/1.1/ Data can be shared between different instances of the Mule application. This is not recommended for Inter Mule app communication. Coming to the question, object store cannot be used to share cached data if it is deployed as separate Mule applications or deployed under separate Business Groups. Hence correct answer is When there is one CloudHub deployment of the API implementation to three workers that must share the cache state.

Explanation

* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.

* Option C isn't valid as Business can't stop for consumers acknowledgment.

* Option D again needs Client to accommodate changes and isn't viable option.

* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.

In the context of Mule applications running on Runtime Fabric for Self-Managed Kubernetes (RTF-BYOKS) in a multi-cloud environment, understanding the thread pools used for communication between Agents and Runtime Manager is crucial:

• Shared NIO Selector Pool: This pool is responsible for handling non-blocking IO operations, such as network communication. It ensures efficient handling of IO operations by using a small number of threads to manage multiple IO tasks simultaneously.
• CPU_LITE: This thread pool is used for lightweight CPU operations. It is designed to handle tasks that do not require significant computational resources, ensuring that lightweight operations are processed efficiently without overwhelming the system.

The combination of the Shared NIO Selector Pool and CPU_LITE thread pool ensures efficient and reliable communication between Agents and Runtime Manager in the RTF environment.

References:

• MuleSoft Threading and Thread Pools
• Runtime Fabric Architecture

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

• Timeout Attribute:
• Transaction Management:
• Implications of Timeout:

References:

• MuleSoft Documentation on JMS Connector
• Understanding XA Transactions

• Requirement Analysis: The organization wants to standardize dependencies across all new and ongoing MuleSoft projects to minimize the impact of frequent plugin version upgrades and external plugin project dependencies.
• Solution: Creating a parent POM (Project Object Model) file with all required dependencies and referencing it in each application's POM.xml file is the best practice.
• Implementation Steps:

pom 1.0.0 pom org.mule.runtime mule-core-extensions-maven-plugin 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be4ec0

4.0.0 com.example parent-pom 1.0.0 child-application 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be4f40
• Advantages:

References

• MuleSoft Documentation on Managing dependencies with Maven
• Apache Maven Documentation on POM Reference

In this business scenario, the supplier needs to deliver two fundamental integration use cases to provide an end-to-end solution:

A. Synchronized data transfer: This involves ensuring that the customer’s purchase orders (sent using ANSI X12 EDI standard) are accurately and timely transferred and reflected in the supplier’s ERP system. This synchronization ensures data consistency between the EDI transactions and the ERP system.

B. Sharing data with external partners: This involves providing the customer with a RESTful API to access current product inventory levels from the supplier’s ERP system. Sharing data through a RESTful API allows the customer to retrieve up-to-date inventory information as needed.

References:

• EDI Integration with APIs
• Integrating with External Partners Using APIs

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

References:

• MuleSoft REST API Design Best Practices
• HTTP Methods in RESTful Services

To monitor Mule applications deployed to different customer-hosted Mule runtimes using Anypoint Monitoring, follow these steps:

• Install Anypoint Monitoring Agent: Install an Anypoint Monitoring agent on each Mule runtime. This agent is responsible for collecting monitoring data from the Mule applications running on that runtime.
• Data Transmission: Each Anypoint Monitoring agent sends the collected monitoring data directly to Anypoint Monitoring. This ensures that performance metrics, logs, and other relevant data are available for analysis and monitoring within the Anypoint Platform.

By using the Anypoint Monitoring agent, organizations can effectively monitor their Mule applications across various environments, ensuring visibility and operational efficiency.

References

• MuleSoft Documentation on Anypoint Monitoring
• Installing and Configuring Anypoint Monitoring Agent

To track the entire lifecycle of each request across different microservices, the DevOps team should consider adopting tracing. Distributed tracing allows teams to follow a request as it travels through the various microservices, providing visibility into how long each part of the request lifecycle takes and where any bottlenecks or failures occur. Tools like Zipkin, Jaeger, and AWS X-Ray are commonly used for this purpose. Tracing complements metrics and logging by providing detailed insights into the interactions and dependencies between services.

References:

• Distributed Tracing in Microservices
• What is Distributed Tracing?

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

• When using MUnit's test recorder in Anypoint Studio to create unit tests, consider the following points:

A. Tests for flows cannot be created with Mule errors raised inside the flow or already existing in the incoming event:

• Explanation: The test recorder cannot record flows if Mule errors are raised during the flow execution or if the incoming event already contains errors. This limitation requires users to handle or clear errors before recording the flow to ensure accurate test creation.

D. A recorded flow execution ends successfully but the result does not reach its destination because the application is killed:

• Explanation: If the application is killed before the recorded flow execution completes, the recorder captures the flow up to the point of termination. However, the final result may not be reached or recorded. This scenario should be avoided to ensure complete and reliable test recordings.

These considerations help ensure the accuracy and reliability of tests created using the test recorder.

References:

• MUnit Documentation: https://docs.mulesoft.com/munit/2.2/
• MUnit Test Recorder: https://blogs.mulesoft.com/dev/mule-dev/using-the-munit-test-recorder/

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Explanation

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that "processing of other rows must not be affected" so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Diagram Description automatically generated

Explanation

V2 Rest API is recommended for on premise applications to access Object Store. It also comes with overhead of encryption and security of using rest api. With Object Store v2, the API call is localized to the same data center as the Runtime Manager app.

But in this case requirement is to access the OS of other mule application and not the same mule application.

You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

However, Object Store v2 is not designed for app-to-app communication.

Explanation

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

* The question says “each API is deployed to multiple redundant Mule runtimes”, that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

* Hence correct way is to enable communication from each API’s Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same deployment strategy using CI/CD, follow these steps:

• POM.xml Modification: Update the POM.xml file of each Mule application to include runtimeFabric deployment configurations. This ensures that the applications are packaged and prepared correctly for deployment to RTF.
• CI/CD Script Adjustments: Modify the existing CI/CD scripts to accommodate RTF-specific deployment commands and configurations. This includes updating the deployment targets and parameters to match the RTF environment.
• Deployment Strategy: Ensure that the CI/CD pipeline remains consistent with the organization’s existing strategy, but with the necessary changes to support RTF. This might involve using Anypoint CLI or API to interact with RTF.

By updating the POM.xml and CI/CD scripts, you can ensure a smooth transition from CloudHub to RTF while retaining the automated deployment process.

References:

• MuleSoft Runtime Fabric
• Mule Maven Plugin

• Understanding the Operations:
• Parallel For-Each Scope:
• Async Scope:
• Performance Optimization:

References:

• MuleSoft Documentation on Scopes: Mule Scopes
• MuleSoft Best Practices for Performance: Performance Best Practices

When configuring secure communication with an FTPS server and handling signed files, the necessary components include:

• FTPS Server Login Credentials: The username and password used to authenticate with the company's FTPS server.
• TLS Context Trust Store: This should contain the public certificate for the FTPS server (ftps.partner.com) to establish a secure SSL/TLS connection.
• Partner's PGP Public Key: This is used to verify the signature of the files received from the partner, ensuring data integrity and authenticity.

These components collectively ensure secure communication and data validation.

References

• MuleSoft Documentation on FTPS and PGP Encryption
• Best Practices for Secure File Transfer and Encryption
