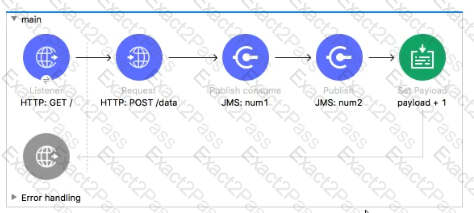

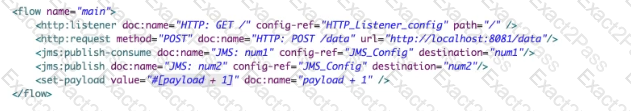

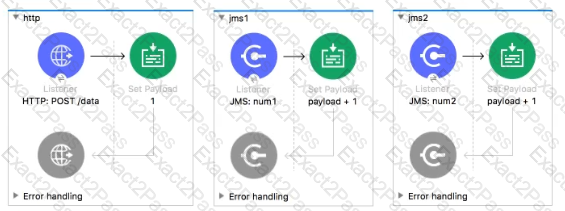

The flow can be described as below. 1) First HTTP POST requets is made in which paylaod is set to 1 and it gets returned to our mail flow. 2) Second call is initiated for JMS Publish Consume JMS: num1 which add 1 to the payload which makes it as 2. Note that pubih consume is a synchronous operation. Hence paylaod is returned to main flow. 3) Third call is initiated for JMS Publish JMS: num2 which add 1 to the payload . Note that pubih is asynchronous operation. Hence paylaod is never returned to main flow. So payload in main flow is still 2. 4) Finally Set Payload increments payload by 1 making payload as 3 which is returned by the flow. Hence option 3 is the correct answer.

Returns an array that is the result of applying a transformation function (lambda) to each of the elements.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.3/dataweave-cookbook-map

The map operator is a function in Dataweave which iterates over the items in an array and outputs them into a new array. It basically accepts input as a list of items in an array and manipulates the items in the array in order to form a new array as an output.

I have created below chart for your easier understanding:

Table Description automatically generated

Correct answer is an operation. For each method of the RAML specification , REST connect module provide an operation.

Please refer to the below screenshot.

Correct answer is Merges elements of two lists (arrays) into a single list

MuleSoft Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/dw-core-functions-zip

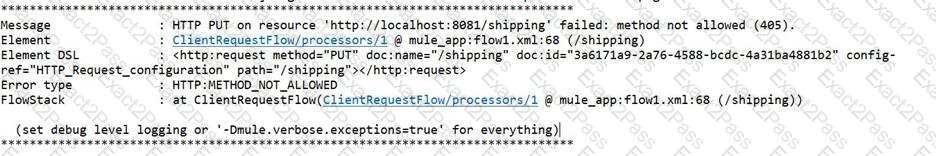

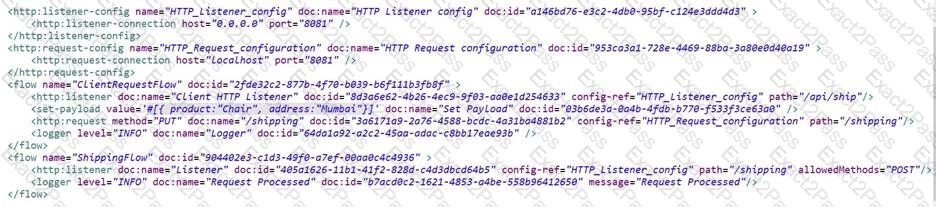

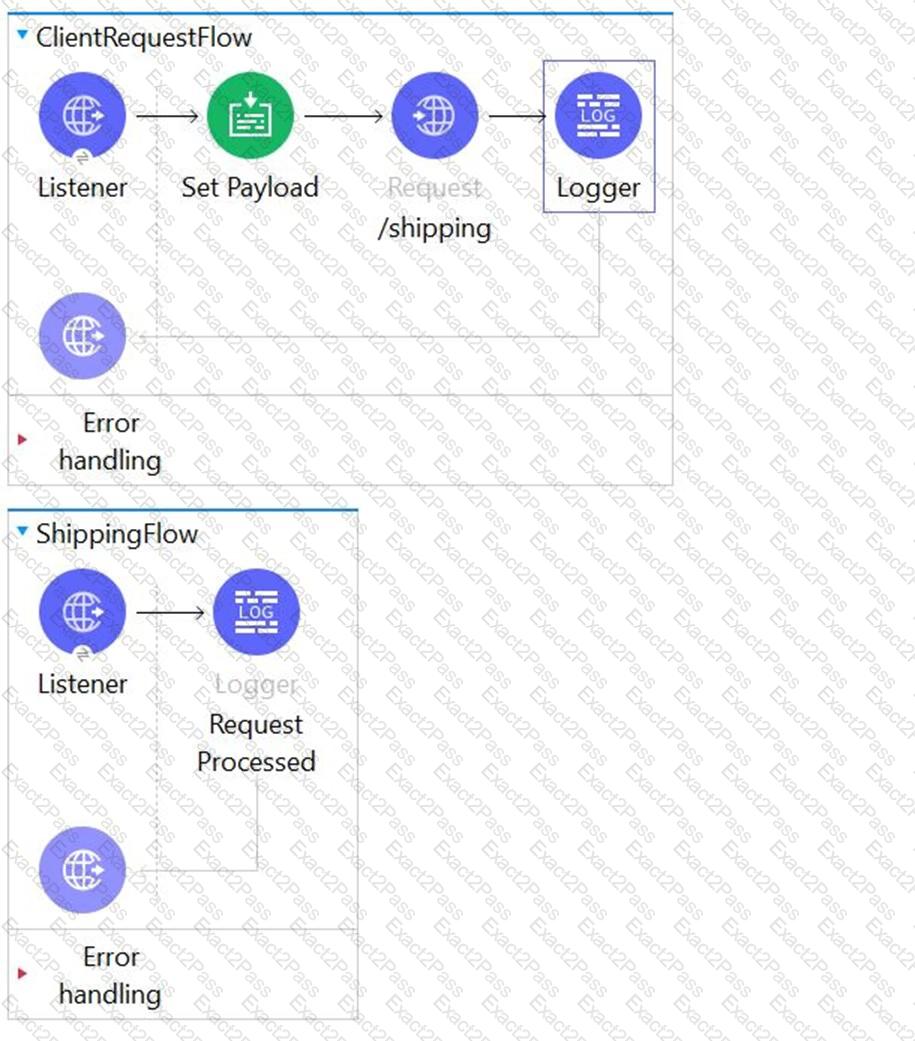

Correct answer is Change the method attributes value to "POST".

It can be fixed in either of the two ways as below.

1) Changing method attribute to POST in ClientRequestFlow

2) Setting allowedMethods as PUT in ShippingFlow (but doesn't fit as question mentions about changing ClientRequestFlow)

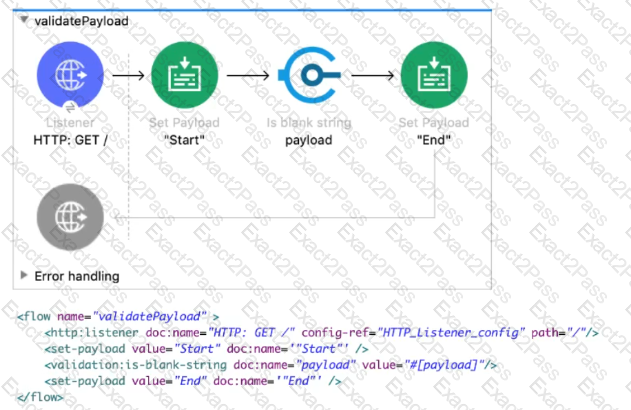

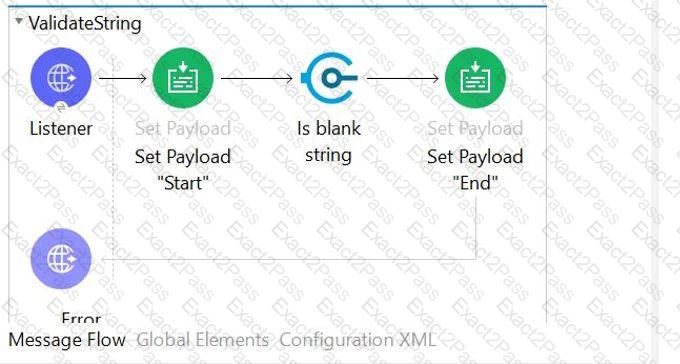

1. Set Payload “Start”

2. 'Is Balnk String' Creates an Error object with #[error.description] =“String is not blank”

3. Default Error Handler catches and Propagates error

4. 'On Error Propogate' is 'RED IN RED OUT'. It Returns Status Code : 500 & #[error.description]

--------------------------------------------------------------------------------------------------------------------------

Correct answer is String is not blank. Because validation component will throw an error as payload is not blank.

A picture containing timeline Description automatically generated

Bottom of Form

Top of Form

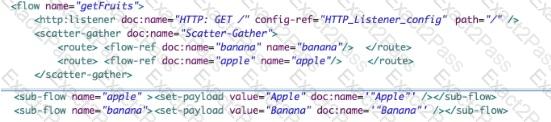

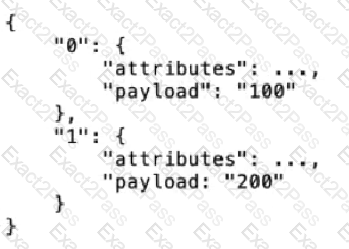

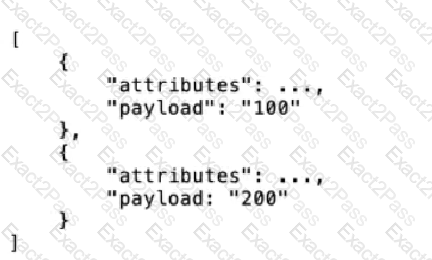

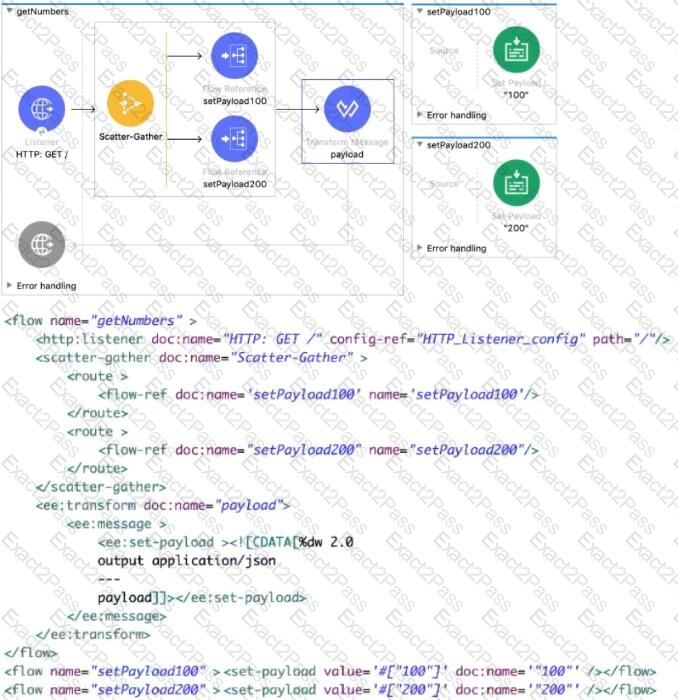

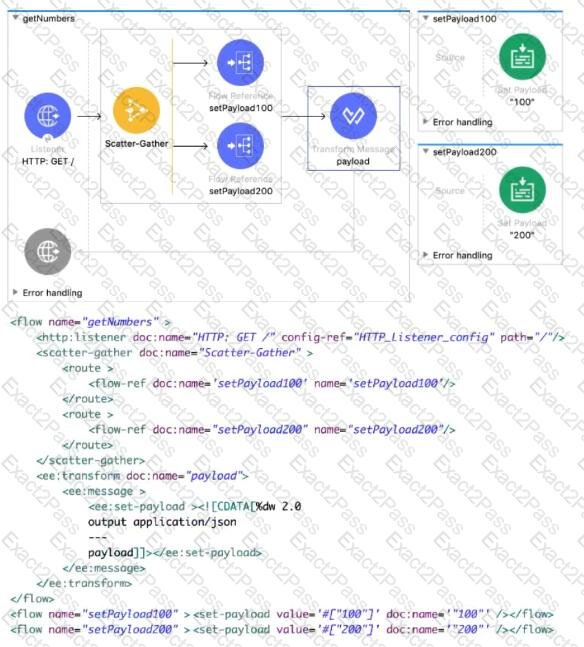

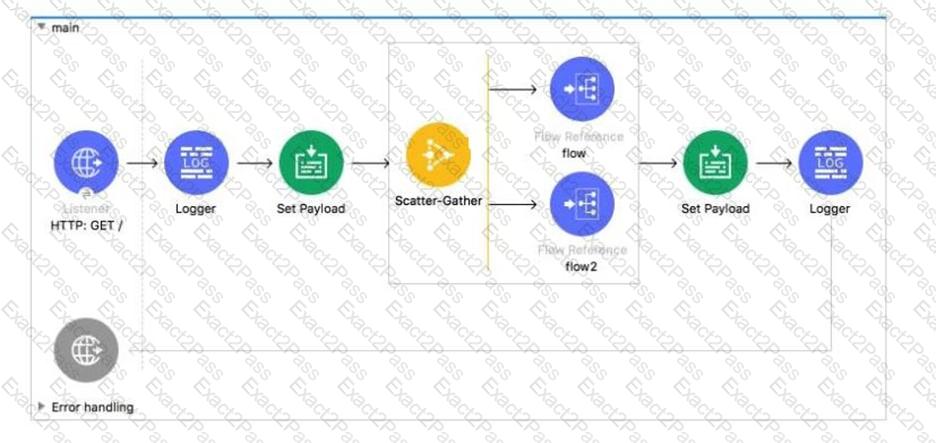

Correct answer is as below.After all processing routes have finished execution, the Scatter-Gather component creates a new Mule event that combines all resulting Mule events from each route, and then passes the new Mule event to the next component in the flow.

{

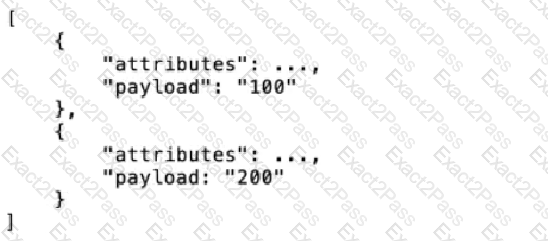

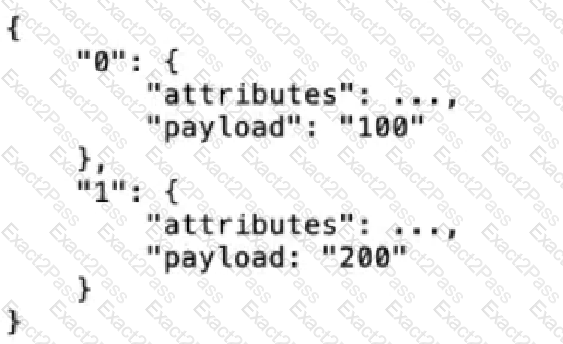

"0": {

"attributes": ...,

"payload": "100"

},

"1": {

"attributes": ...,

"payload": "200"

}

}

Bottom of Form

Correct answer is Specify throttling , security and other policies

MuleSoft Doc Ref : https://docs.mulesoft.com/api-manager/2.x/api-gateway-capabilities-mule4

API Gateway is responsible for below functions.

1) Determine which traffic is authorized

2) Meter the traffic

3) Logs transaction

4) Apply throttling and other policies (Not specifying. These are specified in API Manager)

Graphical user interface, text, application Description automatically generated

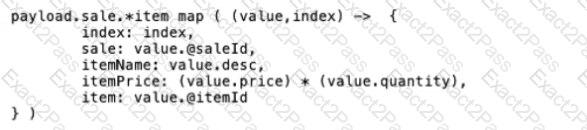

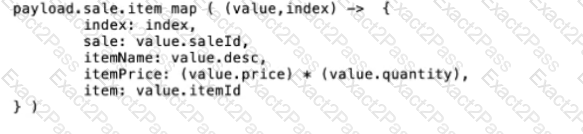

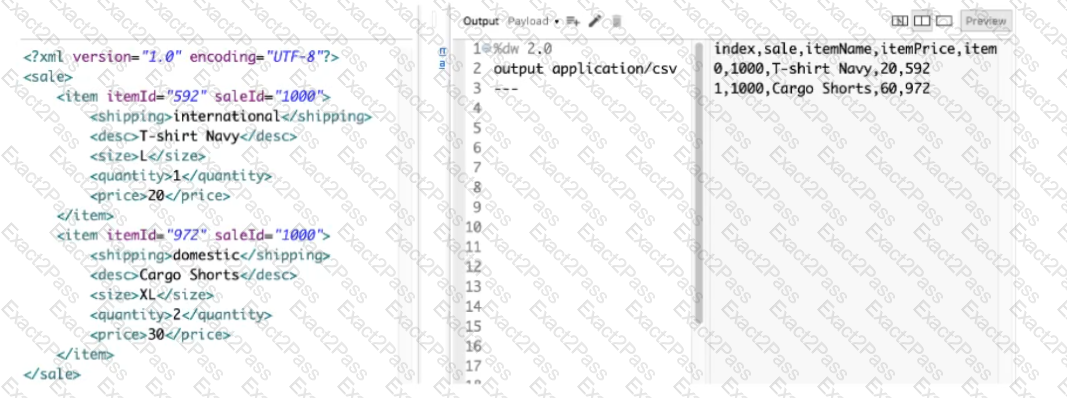

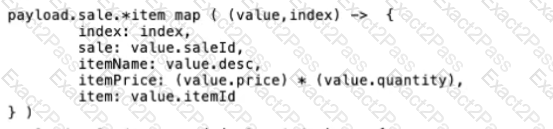

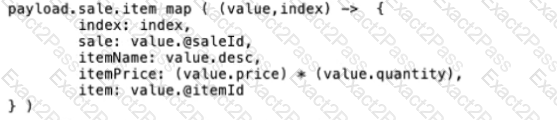

Correct answer is as below. Attributes in the incoming xml payload are always accessed using @.Similarly *item is required as we have multiple items in the request

%dw 2.0

output application/csv

---

payload.sale.*item map ((value, index) -> {

index: index,

sale: value.@saleId,

itemName: value.desc,

itemPrice: (value.quantity) * (value.price),

item: value.@itemId

} )

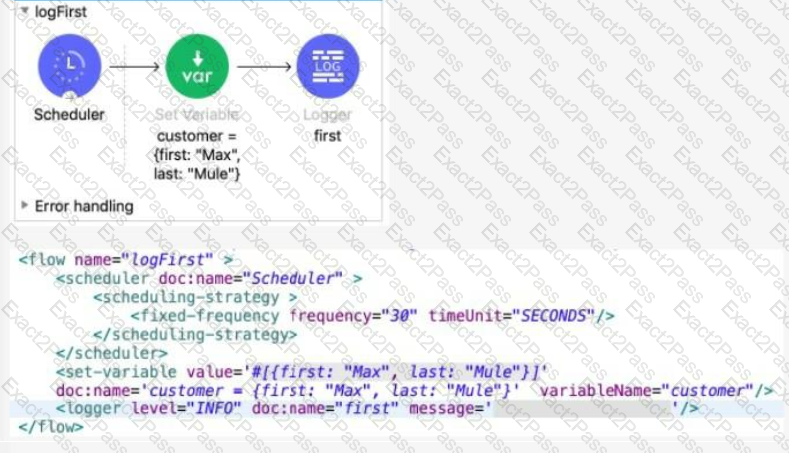

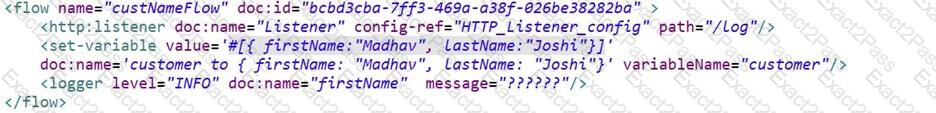

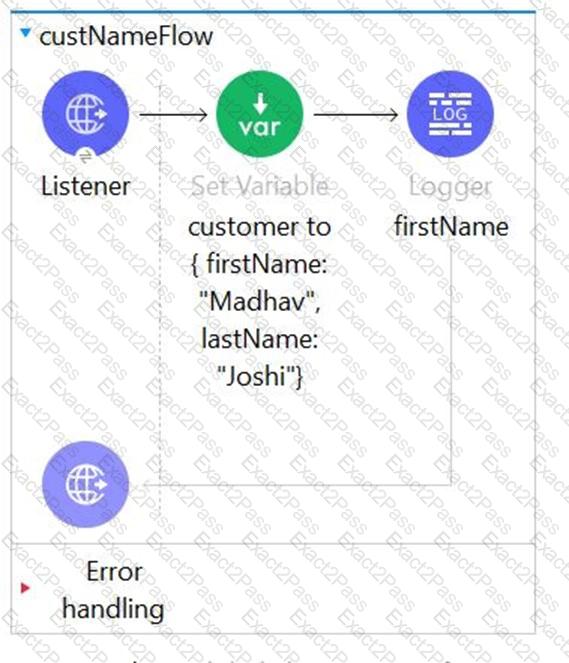

Correct answer is vars."customer"."firstName"

Please note that you can also access firstName using this syntax vars.customer.firstName.

Mule Ref Doc : Variables in Mule Apps | MuleSoft Documentation

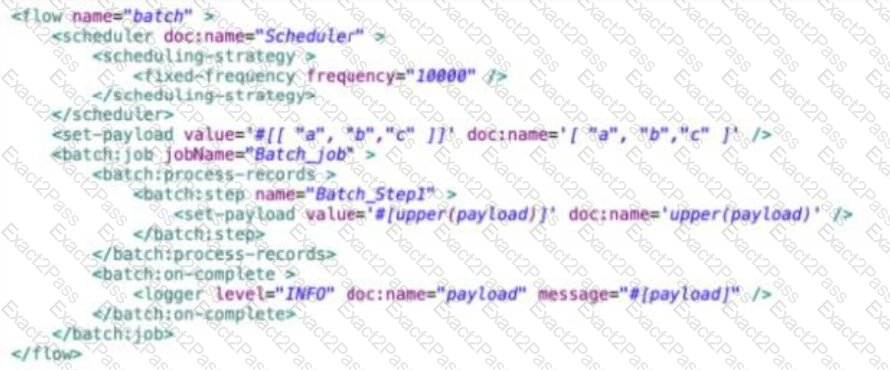

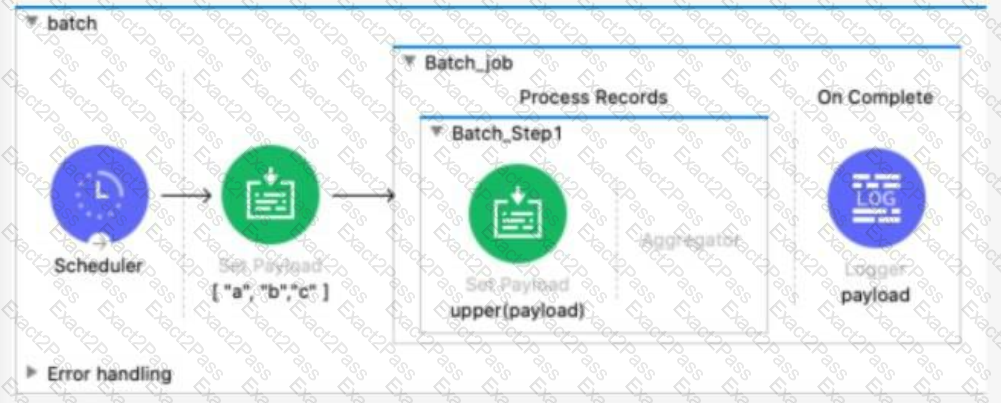

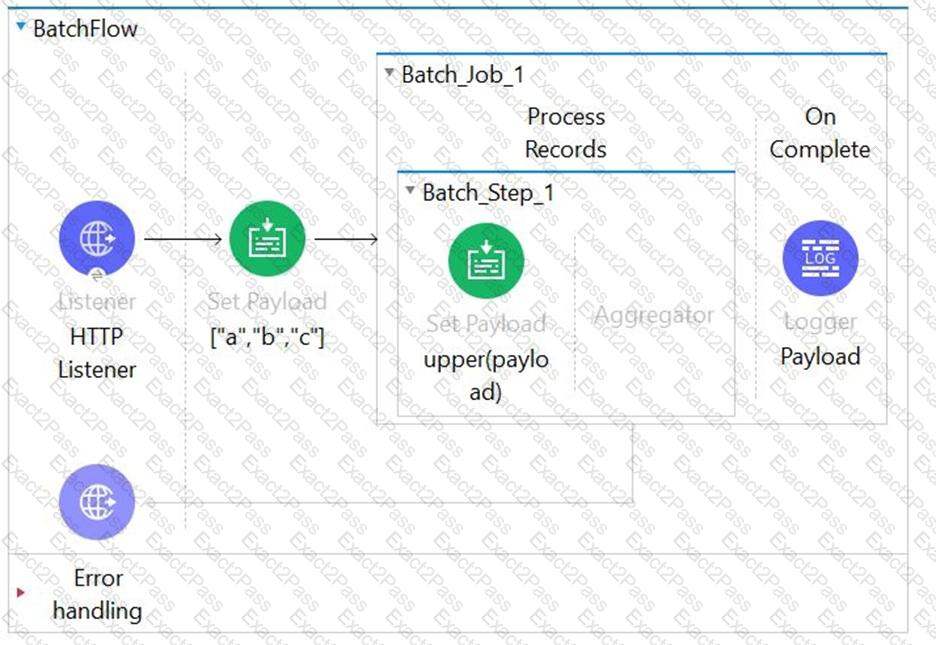

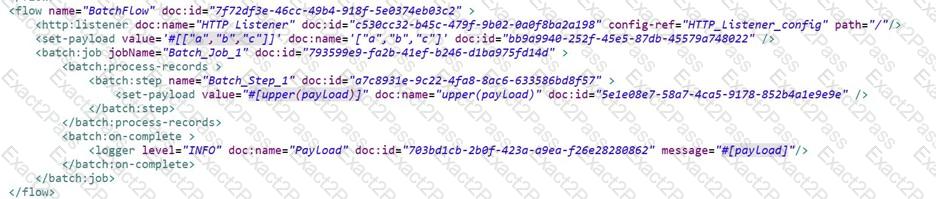

Correct answer is as below. On complete phase only has access to batch job result statistics and payload is not available.

• Total Records Processed: 3
• Successful Records: 3
• Failed Records: 0

On Complete

During this phase, you can optionally configure the runtime to create a report or summary of the records it processed for the particular batch job instance. This phase exists to give system administrators and developers some insight into which records failed to address any issues that might exist with the input data.

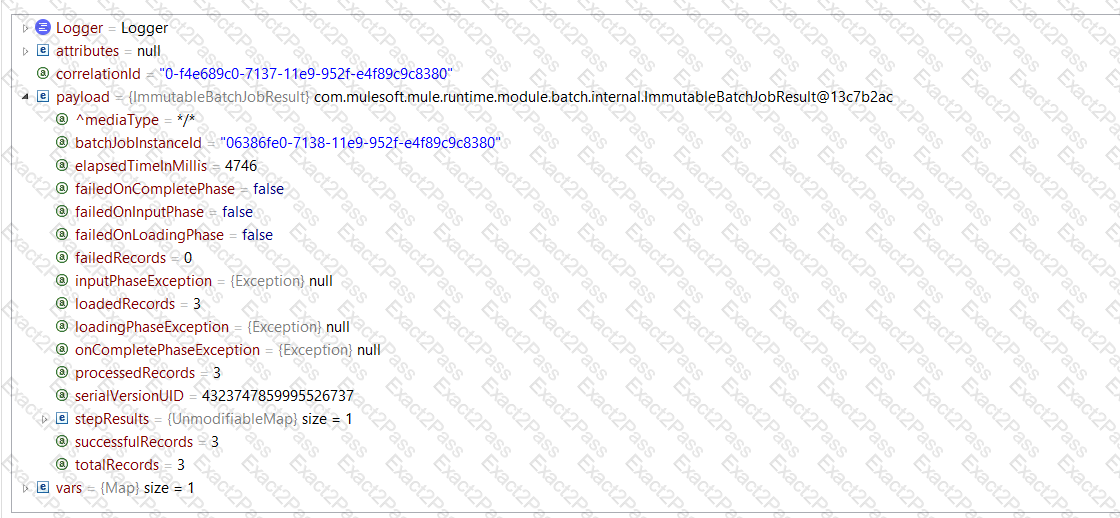

Sample output is as below

Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/batch-processing-concept#on-complete

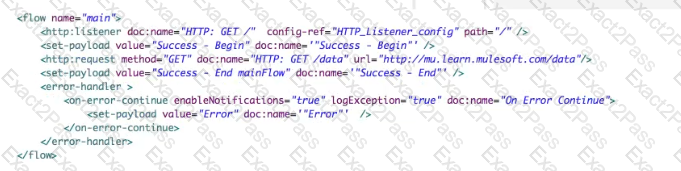

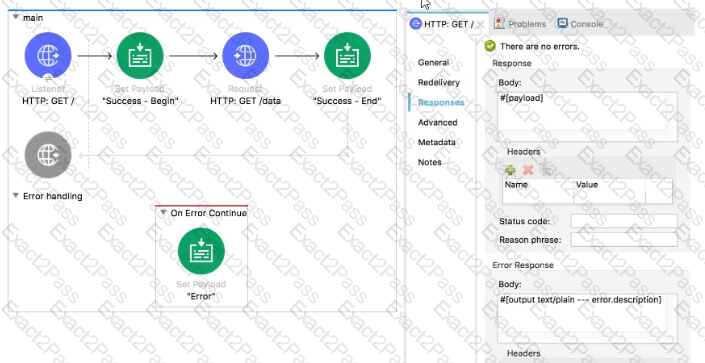

Correct Answer: Response body: "Error" Default response status code: 200.

-------------------------------------------------------------------------------------------------------------------------------------------------

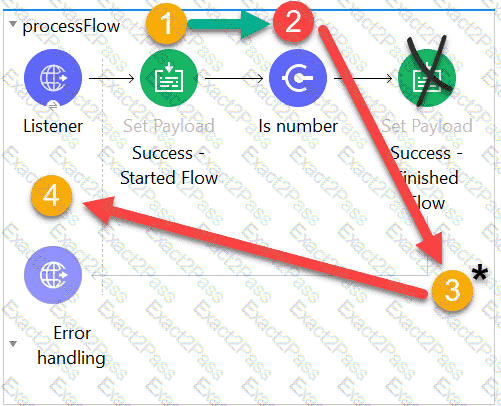

1) Payload is successfully set to “Success – Started Flow”

2) When HTTP Request throws an error, execution halts

#[error.description] = “ABC"

#[error.errorType] = "XYZ"

3) The On Error Continue scope handles the error. When On Error Continue scope is invoked, all the processors in error block are executed and success response is sent back to the client with payload which is set in error flow. In this case payload is set to "Error" value in error block.

4) “Error” is returned to the requestor in the body of the HTTP request with HTTP Status Code: 200 as On error continue always sends success error code.

Reference Diagram:

Timeline Description automatically generated with medium confidence

Core (dw::Core) This module contains core DataWeave functions for data transformations. It is automatically imported into any DataWeave script.

* When a client application is registered in Anypoint Platform, a pair of credentials consisting of a client ID and client secret is generated.

* When the client application requests access to an API, a contract is created between the application and that API.

* An API that is protected with a Client ID Enforcement policy is accessible only to applications that have an approved contract.

---------------------------------------------------------------------------------------------------------------------------------------------

Correct Answer: In the organization's public API portal in Anypoint Exchange, from an approved client application for the API proxy

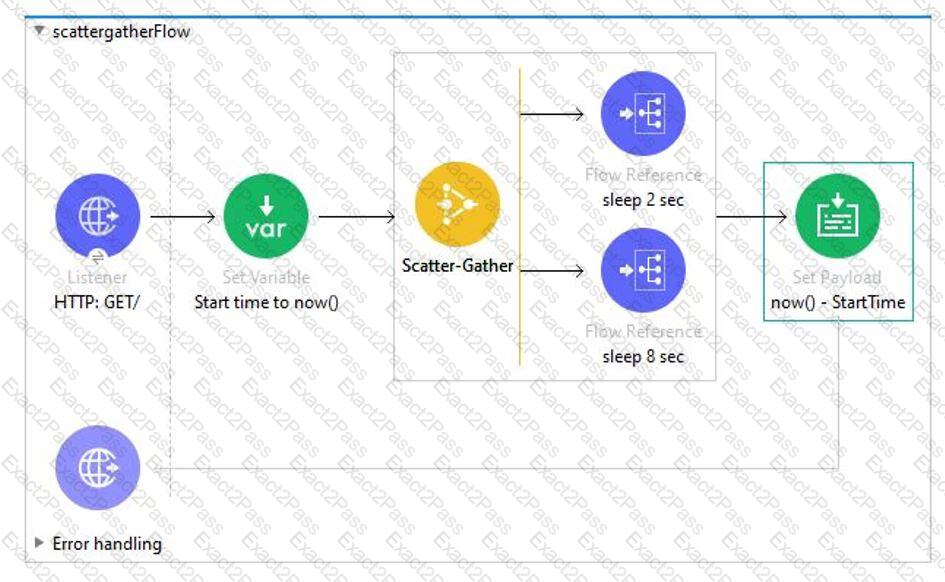

Scatter-Gather sends the event to each routes concurrently. Hence both route in this example will start in parallel. So total time to complete processing is 40 seconds

The Scatter-Gather component is a routing event processor that processes a Mule event through different parallel processing routes that contain different event processors. Each route receives a reference to the Mule event and executes a sequence of one or more event processors. Each of these routes uses a separate thread to execute the event processors, and the resulting Mule event can be either the same Mule event without modifications or a new Mule event with its own payload, attributes, and variables. The Scatter-Gather component then combines the Mule events returned by each processing route into a new Mule event that is passed to the next event processor only after every route completes successfully.

The Scatter-Gather component executes each route in parallel, not sequentially. Parallel execution of routes can greatly increase the efficiency of your Mule application and may provide more information than sequential processing.

Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept

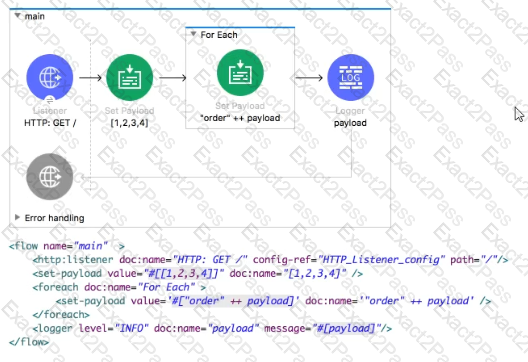

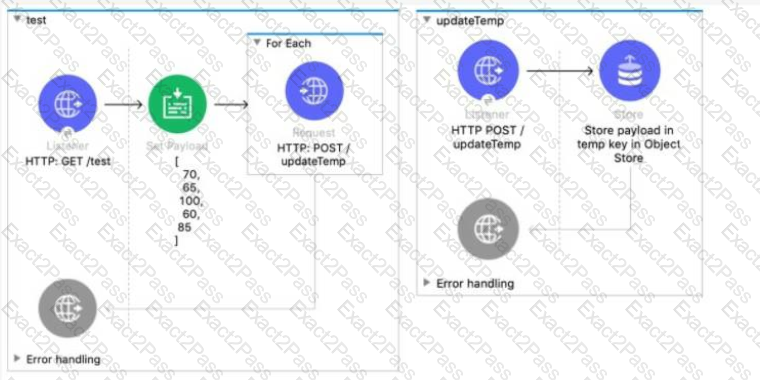

For Each Scope

The For Each scope splits a payload into elements and processes them one by one through the components that you place in the scope. It is similar to a for-each/for loop code block in most programming languages and can process any collection, including lists and arrays. The collection can be any supported content type, such as application/json, application/java, or application/xml.

General considerations about the For Each scope:

By default, For Each tries to split the payload. If the payload is a simple Java collection, the For Each scope can split it without any configuration. The payload inside the For Each scope is each of the split elements. Attributes within the original message are ignored because they are related to the entire message.

For Each does not modify the current payload. The output payload is the same as the input.

Mule Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/for-each-scope-concept

Correct answer is Not needed as dw::core module is included by default. We don't need to include it explicitly

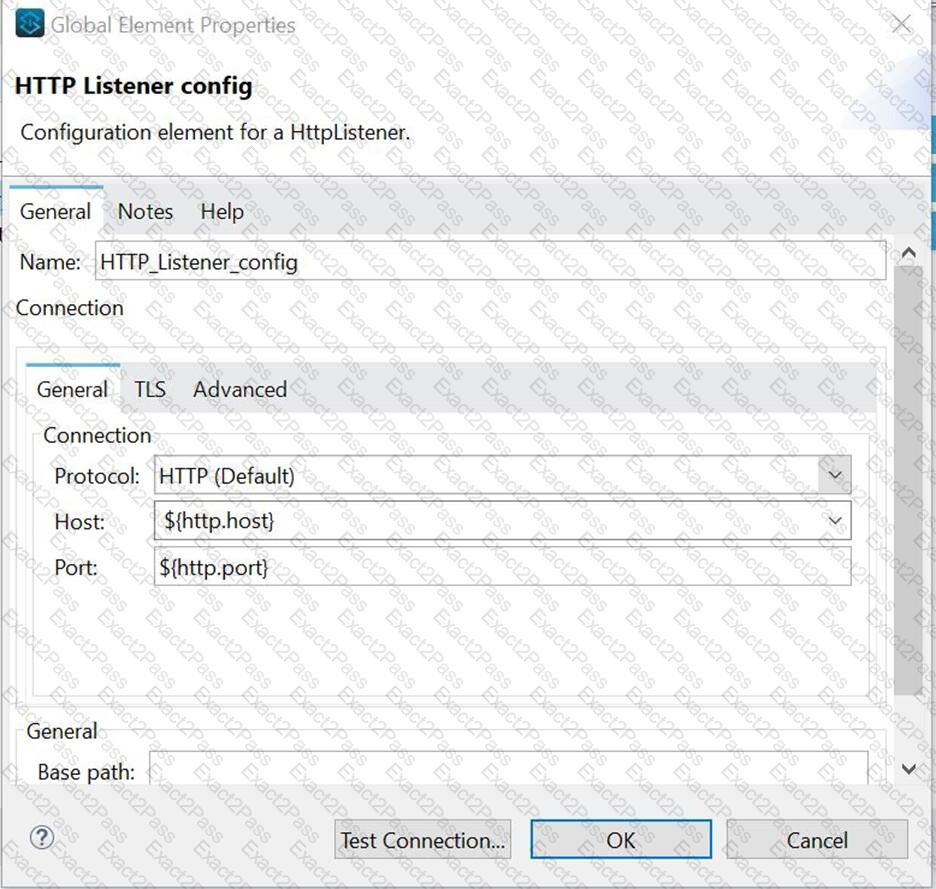

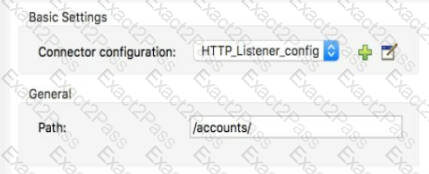

Option1 is correct syntax to configure HTTP Listener endpoint

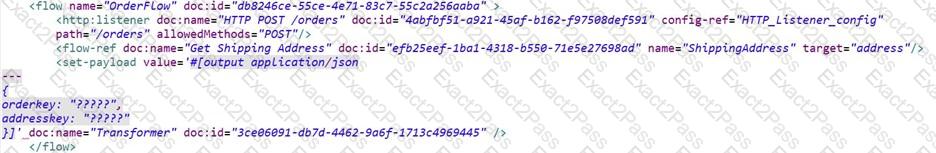

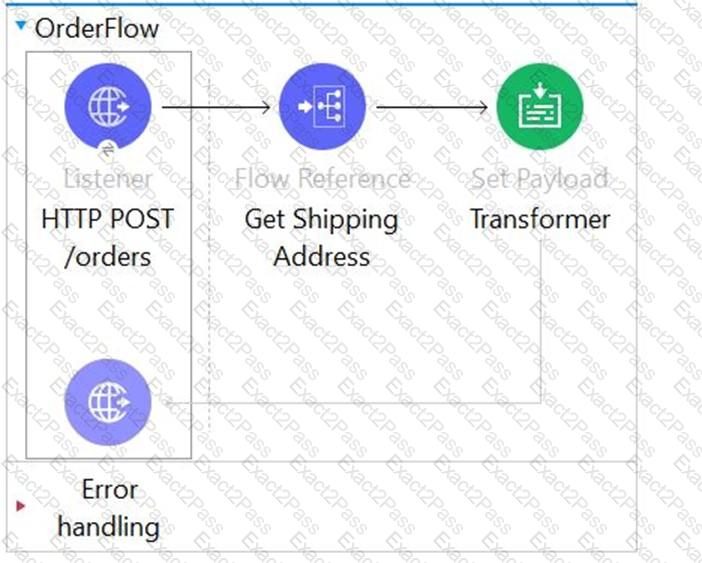

Correct answer is as below. In this case address will be stored in a variable. Hence payload will not be overwritten and will contain order details

{

orderkey: "payload.order",

addresskey: "vars.address"

}

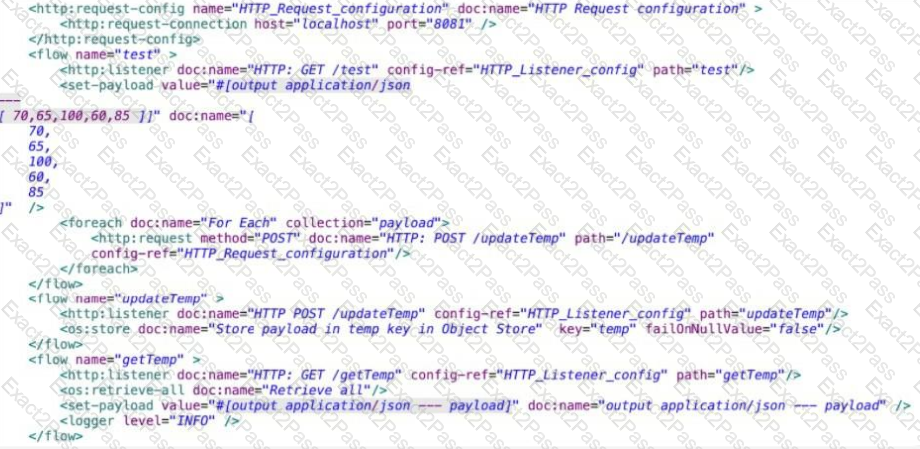

An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. Internally, Mule uses object stores in various filters, routers, and other message processors that need to store states between messages.

Object stores are available in all deployment targets. If you deploy your application to CloudHub, you can also use Object Store V2.

Correct answer is Key/value pair in Object store

MuleSoft Documentation reference : https://docs.mulesoft.com/mule-runtime/4.3/mule-object-stores#use-cases

Option 1 is the correct syntax

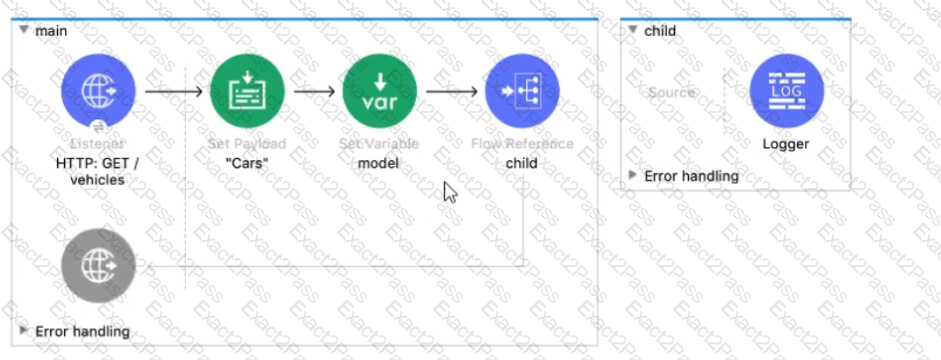

Flow Reference Component

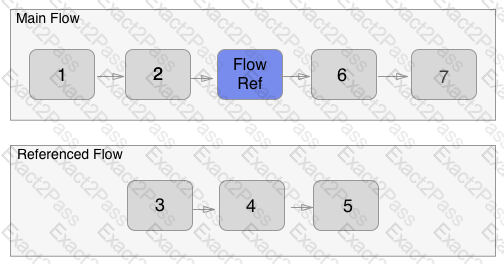

Flow Reference routes the Mule event to another flow or subflow, executes all processors in the referenced flow, and then routes the event back within the same Mule application. The following diagram shows the order of processing when one flow references another:

When the main flow is triggered, the Mule event travels through and executes the flow until the event reaches the Flow Reference. The event then travels through and executes the referenced flow from beginning to end, and then returns to the main flow.

This process enables you to treat the entire referenced flow like a single component in your current flow.

Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/flowref-about

Correct answer is

• payload
• quantity var
• color query param

In case of an error , batch job completes in flight steps and stops further processing.

MuleSoft Doc Ref : Handling Errors During Batch Job | MuleSoft Documentation

The default is all processing will stop but we can change it by Max Failed Record field.

General -> Max Failed Records: Mule has three options for handling a record-level error: Finish processing, Continue processing and Continue processing until the batch job accumulates a maximum number of failed records. This behavior can be controlled by Max Failed Records.

The default value is Zero which corresponds to Finish processing.

The value -1, corresponds to Continue processing.

The value +ve integer, corresponds to Continue processing until the batch job accumulates a maximum number of failed records

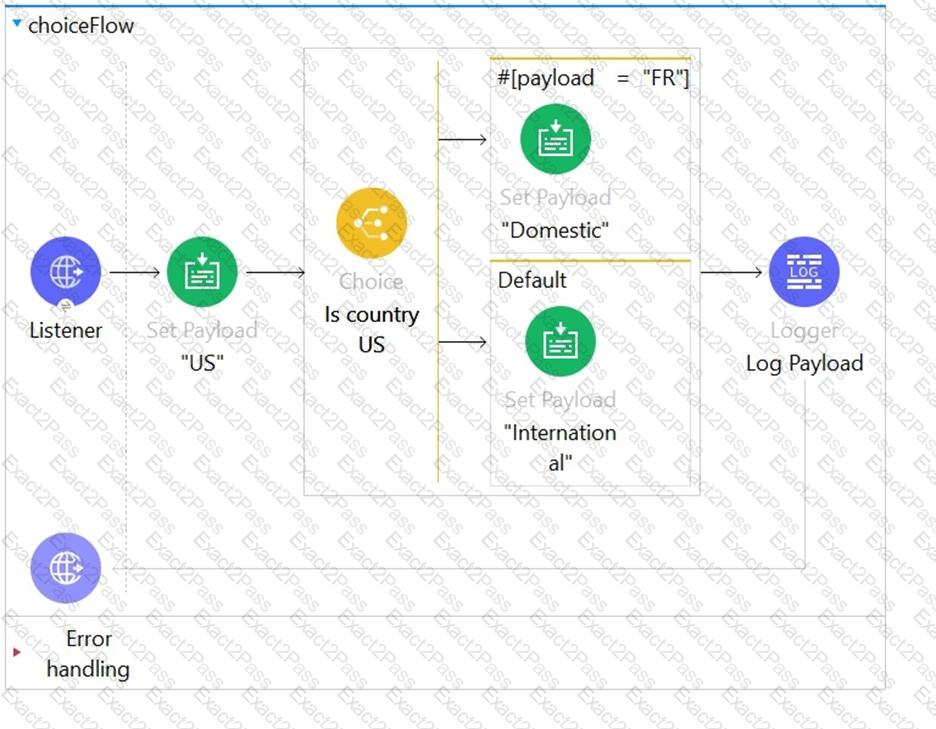

To compare, DataWeave syntax is #[payload == "FR"].

In this case only one = is used so it will give syntax error.

Hence the correct answer is A dataweave syntax error
