Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Secure Wire:

Secure Wire Feature:

Connects two interfaces directly without any Layer 2 or Layer 3 processing.

No routing or switching lookup occurs.

Use Case:

Ideal for scenarios where traffic needs to pass through the SRX device transparently.

Option B: Secure wire

Explanation:

Secure wire creates a bidirectional link between two interfaces.

Traffic flows between the interfaces as if they are connected by a physical wire.

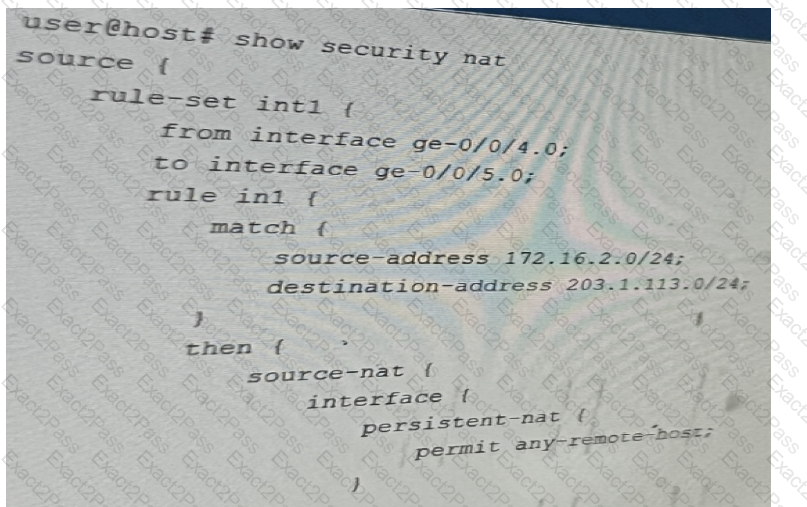

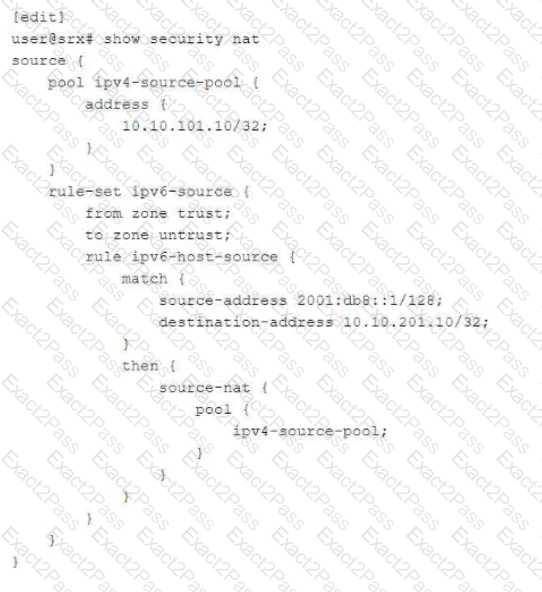

Persistent NAT with target host allows external hosts to establish connections only when the internal device initiates a session first, ideal for specific interactive applications. Refer to Juniper Persistent NAT Documentation.

The scenario requires that external hosts be able to initiate a connection only if the internal device has already initiated a connection. The correct solution is Persistent NAT with target host, which ensures that a specific external host can initiate new connections back to the internal device, but only after the internal device has established a session first.

Persistent NAT with Target Host (Answer C): This allows the internal device to initiate a connection, and once established, the specified external host can also initiate new connections to the internal device on the same NAT mapping.

Example Configuration:

bash

set security nat source persistent-nat permit target-host-port

This solution is appropriate when controlled bidirectional communication is required based on an internal-initiated connection.

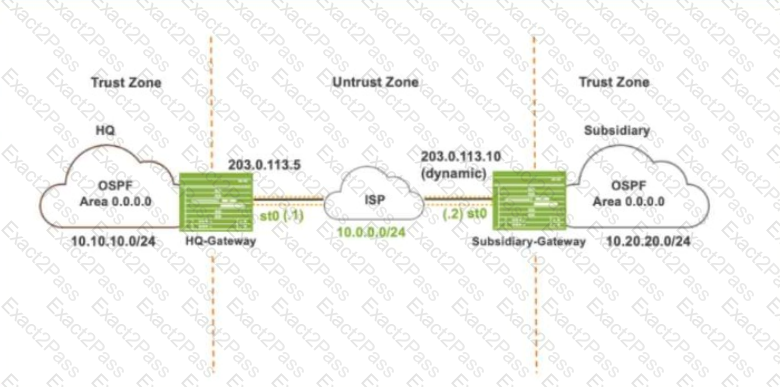

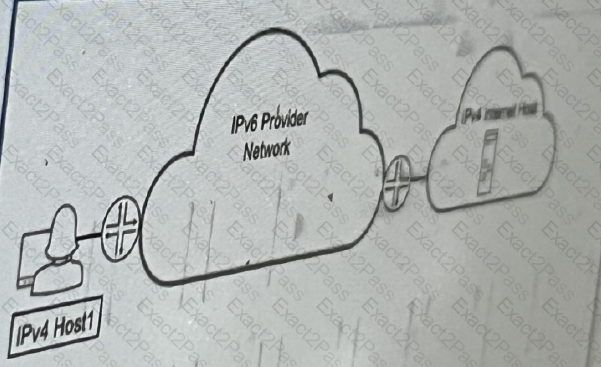

For ADVPN with OSPF, using a point-to-multipoint (p2mp) interface type and enabling dynamic-neighbors are crucial. This configuration allows dynamic discovery of neighbors and the establishment of tunnels. For more information, refer to Juniper ADVPN Configuration Guide.

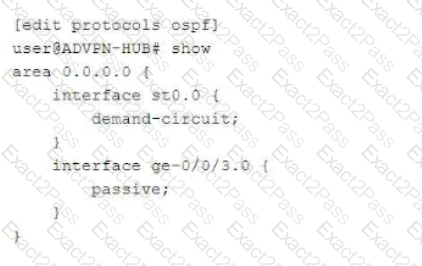

In the ADVPN configuration, OSPF isn't functioning as expected due to the interface configuration on st0.0. Here are the adjustments needed:

Interface Type p2mp (Answer A): OSPF requires that the tunnel interface be set to p2mp (point-to-multipoint) to allow OSPF to communicate with multiple dynamic neighbors over the ADVPN tunnels.

Command Example:

bash

set interfaces st0.0 family inet ospf interface-type p2mp

Dynamic Neighbors (Answer B): The dynamic neighbors statement allows OSPF to discover and communicate with dynamically established spokes in an ADVPN environment. This is essential for ADVPN to function properly since the tunnel endpoints are not static.

Command Example:

bash

set protocols ospf area 0.0.0.0 interface st0.0 dynamic-neighbors

These settings ensure OSPF properly functions over dynamically created ADVPN tunnels.

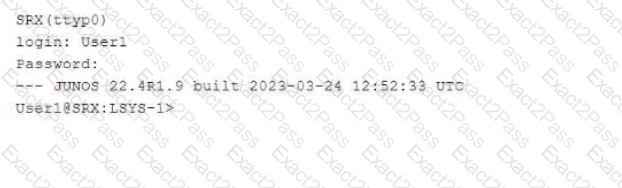

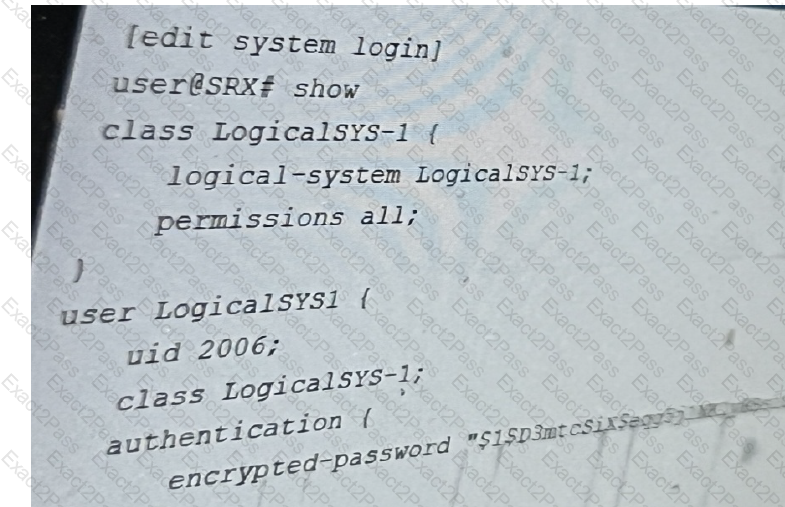

In this configuration, User1 is logged into logical system LSYS-1, which restricts access and visibility to that particular system. This ensures isolation between logical systems on the same physical device. Only a system administrator can assign additional permissions. For more details, see Juniper Logical Systems Guide.

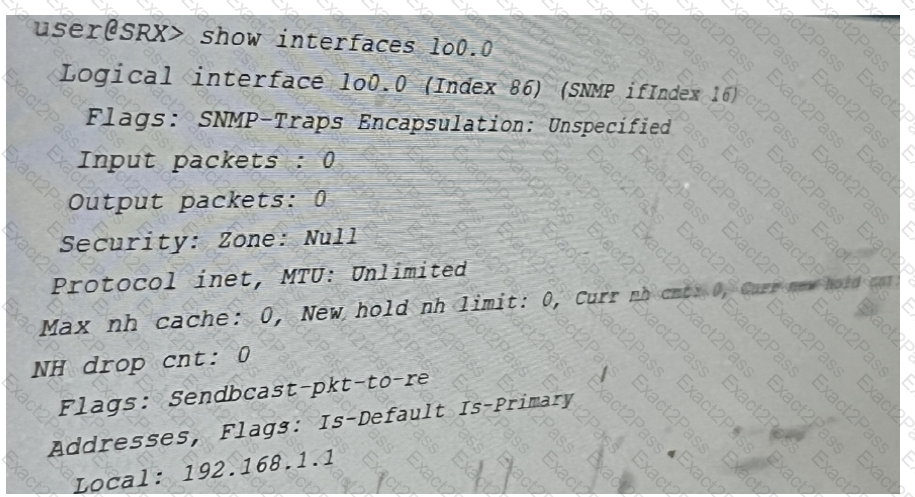

From the exhibit, we see that User1 is logged into logical system LSYS-1:

Access to Assigned Logical System (Answer A): User1, being logged into the logical system LSYS-1, only has access to the configuration and interfaces within that logical system. This is a key feature of logical systems in Junos, ensuring users are restricted to their respective environments.

Logged into LSYS-1 (Answer B): The prompt shows that User1 is currently operating in LSYS-1, as indicated by the User1@SRX:LSYS-1> command line.

==========

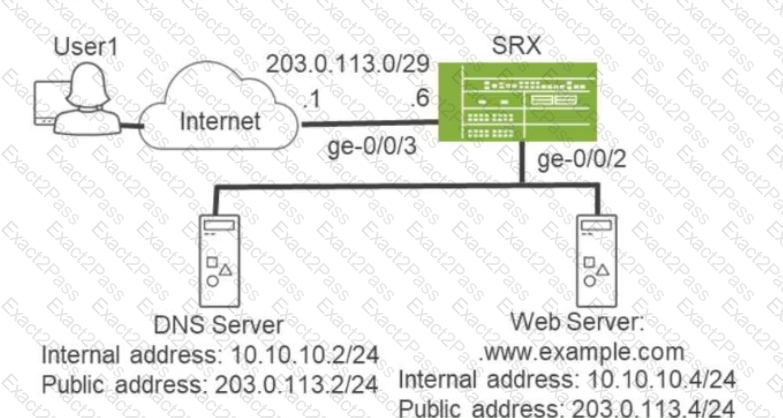

In the scenario where internal users are trying to access the company's web server via its FQDN but the DNS server resolves to a private IP, two key actions are needed:

Static NAT (Answer B): Since the internal DNS server resolves the web server to its private IP address (10.10.10.4/24), you need to configure static NAT for both the DNS server and the webserver. This will ensure that requests coming from the internet will be translated to the web server's public IP (203.0.113.4) and the DNS server’s public IP (203.0.113.2).

Example Command:

bash

set security nat static rule-set public-to-private from zone untrust

set security nat static rule-set public-to-private rule dns-server match destination-address 203.0.113.2/32

set security nat static rule-set public-to-private rule dns-server then static-nat-prefix 10.10.10.2/32

set security nat static rule-set public-to-private rule web-server match destination-address 203.0.113.4/32

set security nat static rule-set public-to-private rule web-server then static-nat-prefix 10.10.10.4/32

Proxy ARP (Answer D): The SRX needs to respond to ARP requests for the public IP addresses of both the DNS and webserver on the interface facing the internet (ge-0/0/3). This allows the SRX to handle requests directed at the public IPs.

Example Command:

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.2/32

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.4/32

These two configurations allow external users to access the internal web server via its public IP, as resolved by the DNS server.

==========

==========

==========

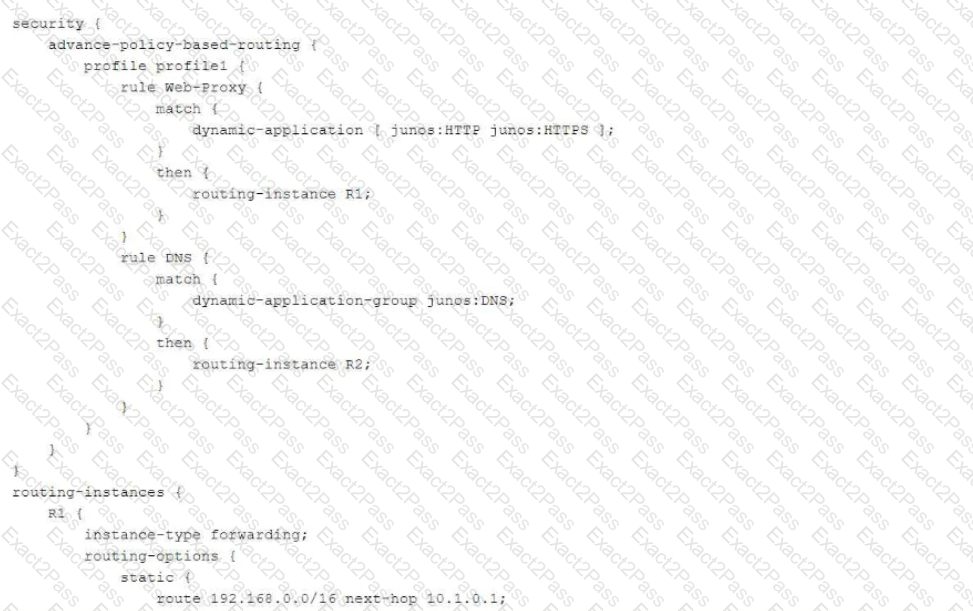

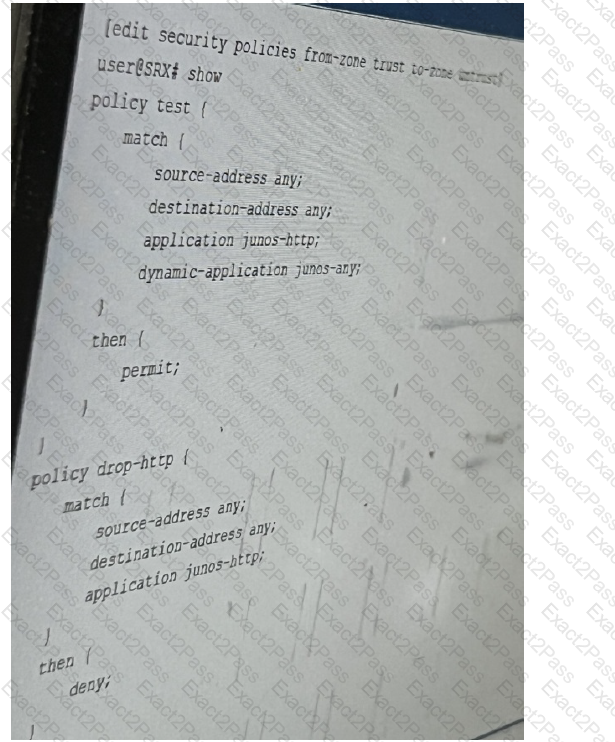

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security Reference:

Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

==========

For threat remediation in a third-party network, the RADIUS protocol is necessary to communicate with the RADIUS server for details about infected hosts. CoA enables security measures to be enforced based on endpoint information provided by the RADIUS server. Details on this setup can be found in Juniper RADIUS and AAA Documentation.

When deploying threat remediation to endpoints connected through third-party devices, such as switches, the following conditions must be met for proper integration and functioning:

Explanation of Answer A (Support for AAA/RADIUS and Dynamic Authorization Extensions):

Third-party switches must support AAA (Authentication, Authorization, and Accounting) and RADIUS with Dynamic Authorization Extensions. These extensions allow dynamic updates to be made to a session's authorization parameters, which are essential for enforcing access control based on threat detection.

Explanation of Answer B (Connector Gathers MAC Information via API):

The connector uses an API to gather MAC address information from the RADIUS server. This MAC address data is necessary to identify and take action on infected hosts or endpoints.

Explanation of Answer D (Connector Initiates CoA):

The connector queries the RADIUS server for infected host details and triggers a Change of Authorization (CoA) for the infected host. The CoA allows the connector to dynamically alter the host's access permissions or isolate the infected host based on its threat status.

Juniper Security Reference:

Threat Remediation via RADIUS: Dynamic remediation actions, such as CoA, can be taken based on information received from the RADIUS server regarding infected hosts. Reference: Juniper RADIUS and CoA Documentation.

==========

Each tenant system maintains its own configuration database, isolating configurations from others, enhancing security and operational efficiency. Junos OS supports multiple concurrent commit operations across tenant systems. Further details are covered in the Juniper Tenant System Guide.

When configuring tenant systems on an SRX device, the following principles apply:

Tenant Systems Have Their Own Configuration Database (Answer C): Each tenant system has its own isolated configuration database, ensuring that changes made in one tenant system do not affect others. This allows for multi-tenant environments where different tenants can have independent configurations.

Commit Multiple Tenant Systems Simultaneously (Answer D): The system allows for multiple tenant systems to be committed at the same time, simplifying management when working with multiple tenants. This is particularly useful in large environments where multiple logical systems or tenants need updates simultaneously.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

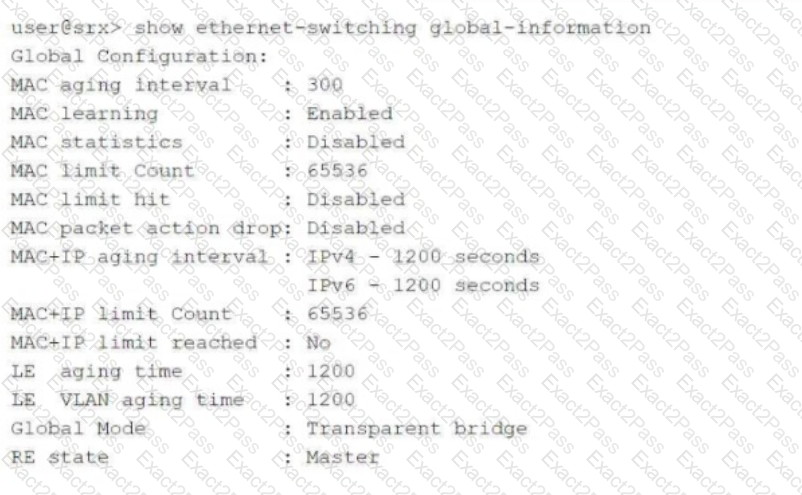

Understanding the Exhibit:

The SRX device is operating in Transparent Mode, as indicated by:

Global Mode : Transparent bridge

Transparent Mode on SRX Devices:

Transparent Mode (Layer 2 Mode):

The SRX device acts as a Layer 2 switch.

Does not perform routing functions.

Security policies can be applied to inter-VLAN (Layer 2) traffic but not intra-VLAN traffic.

Cannot handle Layer 3 traffic simultaneously.

Option A: You cannot secure intra-VLAN traffic with a security policy on this device.

True.

In Transparent Mode, intra-VLAN traffic is switched within the VLAN and does not pass through the SRX firewall processing engine.

Therefore, security policies cannot be applied to intra-VLAN traffic.

Option B: You can secure inter-VLAN traffic with a security policy on this device.

False.

In Transparent Mode, all interfaces are in the same VLAN (unless VLAN tagging is configured).

Inter-VLAN routing is not possible as the device does not perform Layer 3 functions.

Option C: The device can pass Layer 2 and Layer 3 traffic at the same time.

False.

In Transparent Mode, the SRX device operates exclusively at Layer 2.

It cannot process Layer 3 traffic simultaneously.

Option D: The device cannot pass Layer 2 and Layer 3 traffic at the same time.

True.

The SRX device in Transparent Mode cannot handle both Layer 2 and Layer 3 traffic concurrently.

Key Points:

Intra-VLAN Traffic:

Traffic within the same VLAN.

In Transparent Mode, this traffic is switched and does not go through the firewall's security policies.

Inter-VLAN Traffic:

Traffic between different VLANs.

Requires routing capabilities (Layer 3).

In Transparent Mode, the SRX cannot perform routing functions.

Juniper Security References:

Juniper Networks Documentation:

"In transparent mode, the SRX Series device acts like a Layer 2 switch or bridge. Security policies cannot control intra-VLAN traffic because such traffic does not pass through the firewall."

Source: Understanding Transparent Mode

"The device cannot perform both Layer 2 switching and Layer 3 routing simultaneously in transparent mode."

Source: Transparent Mode Limitations

Conclusion:

Option A is correct because intra-VLAN traffic cannot be secured with security policies in Transparent Mode.

Option D is correct because the device cannot pass both Layer 2 and Layer 3 traffic at the same time when operating in Transparent Mode.

Logical systems on SRX Series devices allow the creation of separate virtual routers, each with its unique RPD process. This segmentation ensures that routing and security policies are isolated across different logical systems, effectively acting like independent routers within a single SRX device. For further information, see Juniper Logical Systems Documentation.

To create multiple virtual routers on a single SRX Series device, each with its own unique copy of the routing protocol daemon (RPD) process, you need to use logical systems. Logical systems allow for the segmentation of an SRX device into multiple virtual routers, each with independent configurations, including routing instances, policies, and protocol daemons.

Explanation of Answer D (Logical System):

A logical system on an SRX device enables you to create multiple virtual instances of the SRX, each operating independently with its own control plane and routing processes. Each logical system gets a separate copy of the RPD process, ensuring complete isolation between virtual routers.

This is the correct solution when you need separate routing instances with their own RPD processes on the same physical device.

Configuration Example:

bash

set logical-systems interfaces ge-0/0/0 unit 0

set logical-systems routing-options static route 0.0.0.0/0 next-hop 192.168.1.1

Juniper Security Reference:

Logical Systems Overview: Logical systems allow for the creation of multiple virtual instances within a single SRX device, each with its own configuration and control plane. Reference: Juniper Logical Systems Documentation.

==========

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Problem:

A CoS-based VPN has been configured but is not functioning correctly.

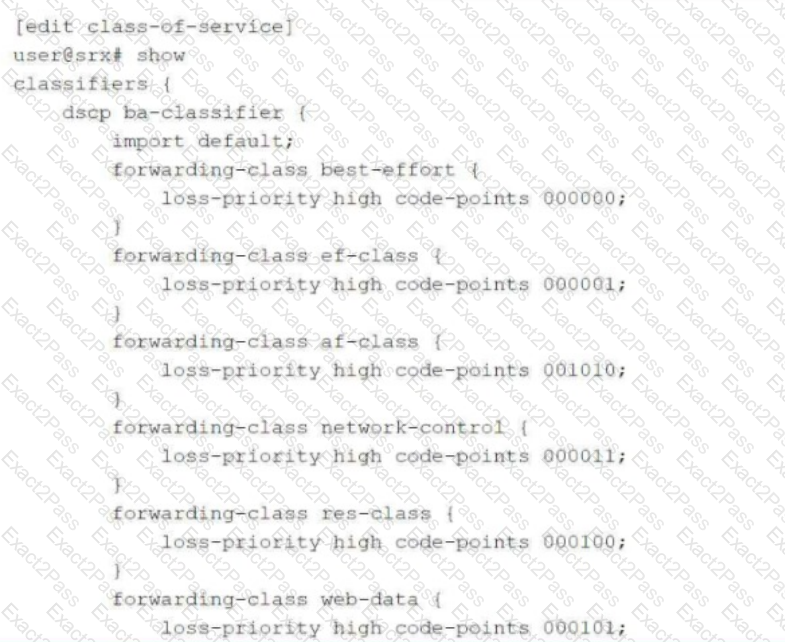

The exhibit shows that under the class-of-service configuration, six forwarding classes are defined.

Forwarding Classes in the Exhibit:

best-effort

ef-class

af-class

network-control

res-class

web-data

Juniper CoS-Based VPN Limitations:

Maximum Number of Forwarding Classes: In CoS-based VPNs (Layer 3 VPNs), there is a limitation on the number of forwarding classes that can be used.

Supported Forwarding Classes: Only up to four forwarding classes are supported in an L3VPN for CoS purposes.

The command show security nat source persistent-nat-table all provides a comprehensive view of all entries in the persistent NAT table, enabling administrators to monitor and manage resource exhaustion. Refer to Juniper NAT Monitoring Guide for more.

In Junos OS, when persistent NAT is configured, a binding table is created to keep track of NAT sessions and ensure that specific hosts are allowed to initiate sessions back to internal hosts. To check if the persistent NAT binding table is full or exhausted, the correct command must display the entire table.

Correct Command (D):

The command show security nat source persistent-nat-table all will display the entire persistent NAT binding table. This allows you to check whether the table is exhausted or if there is space available for new persistent NAT sessions.

Incorrect Options:

Option A: The command show security nat source persistent-nat-table summary provides a summary view but does not give detailed insights into whether the table is exhausted.

Option B and Option C: These commands deal with general NAT source summaries or pools, which are not related specifically to persistent NAT bindings.

Juniper References:

Juniper Persistent NAT Documentation: Describes the persistent NAT binding table and the commands used to monitor its status.

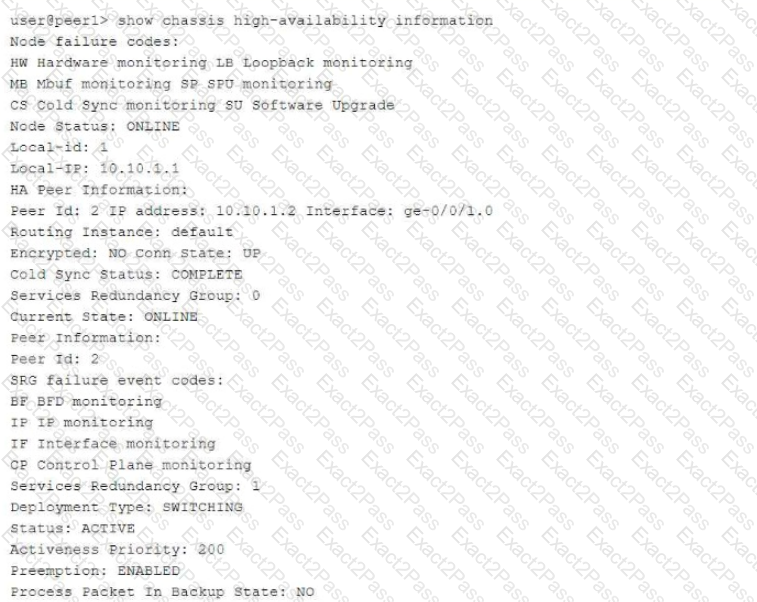

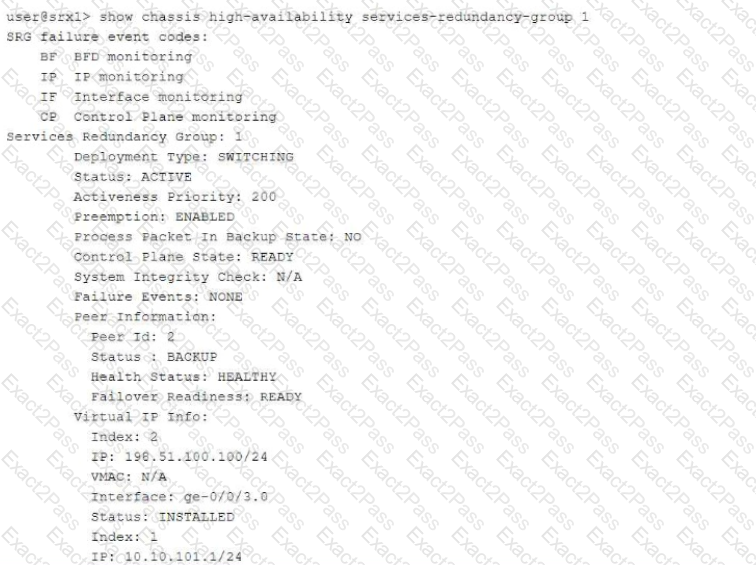

The exhibit describes a Chassis Cluster configuration with high availability (HA) settings. The key information is related to Service Redundancy Group 1 (SRG1) and its failover behavior between the two peers.

Explanation of Answer D (Packet Forwarding after Failover):

In a typical SRX HA setup with active/backup configuration, if the SRG1 group moves to peer 2 (the backup), peer 1 (previously the active node) will forward packets to peer 2 instead of dropping them. This ensures smooth failover and seamless continuation of services without packet loss.

This behavior is part of the active/backup failover process in SRX chassis clusters, where the standby peer takes over traffic processing without disruption.

Juniper Security Reference:

Chassis Cluster Failover Behavior: When a service redundancy group fails over to the backup peer, the previously active peer forwards traffic to the new active node. Reference: Juniper Chassis Cluster Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Multinode HA:

Chassis Cluster in Active/Passive Mode:

One node is active, and the other is standby.

Dynamic Routing Protocols:

Run on the active node only.

Option A: Dynamic routing is active on one device at a time.

Explanation:

In active/passive HA, dynamic routing protocols run only on the primary (active) node.

The interfaces are active and respond to ARP for virtual IP as long as the node is the primary or active node in the SRG group. This ensures high availability and proper traffic forwarding. For information, refer to Juniper SRX HA Documentation.

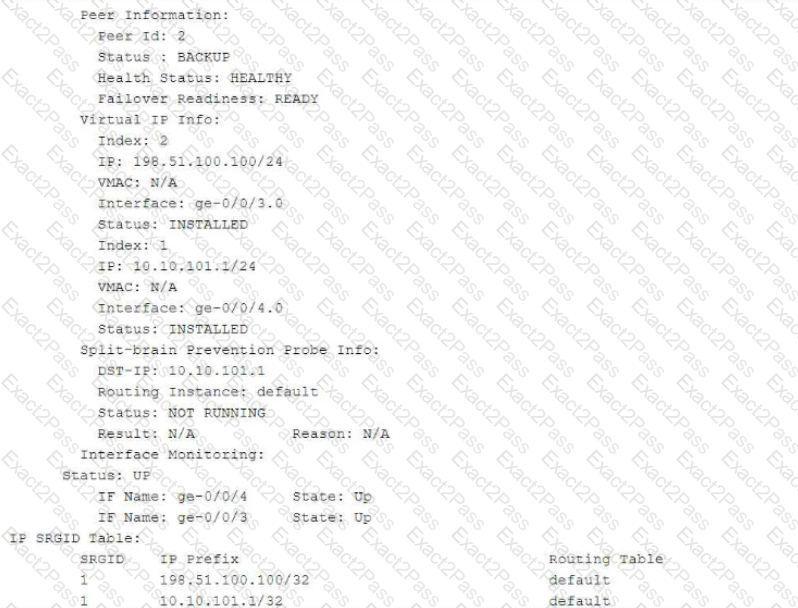

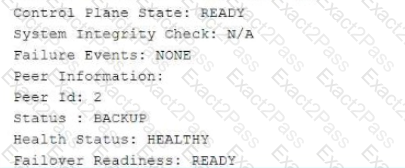

The exhibit shows information about a chassis cluster and its services redundancy group (SRG1). Let's analyze the relevant details:

Explanation of Answer B (Backup Node for SRG1):

The exhibit indicates that this SRX device is in the backup role for SRG1. The status: BACKUP field confirms that this device is currently in a standby role and is not the active node for the services redundancy group.

Explanation of Answer A (Interfaces Not Active):

Since the device is in the backup role, the interfaces ge-0/0/3.0 and ge-0/0/4.0 will not respond to ARP requests for the virtual IP's MAC address. Only the active node's interfaces respond to ARP requests in a chassis cluster configuration.

Juniper Security Reference:

Chassis Cluster Redundancy Overview: In a chassis cluster, the backup node does not respond to ARP requests for the virtual IP. Only the active node handles such requests to ensure seamless traffic forwarding. Reference: Juniper Chassis Cluster Documentation.

==========
