• When enrolling your devices, you only need to enroll one node: The Juniper ATP Cloud automatically recognizes the HA configuration and applies the same license and configuration to both nodes of the cluster.
• You must use the same license key on both cluster nodes: The HA cluster needs to share the same license key in order to be recognized as a single device by the Juniper ATP Cloud.

You must set up your HA cluster before enrolling your devices with Juniper ATP Cloud. And it is not necessary to use different license keys on both cluster nodes because the HA cluster shares the same license key.

The two statements that are correct in this scenario are:

• When enrolling your devices, you only need to enroll one node. This is because the Juniper ATP Cloud service supports chassis cluster mode for SRX Series devices. When you enroll a chassis cluster, you only need to enroll the primary node of the cluster. The secondary node will be automatically enrolled and synchronized with the primary node. You do not need to enroll the secondary node separately or perform any additional configuration on it.
• You must use the same license key on both cluster nodes. This is because the Juniper ATP Cloud service requires a license key to activate the service on the SRX Series devices. The license key is tied to the serial number of the device. When you enroll a chassis cluster, you must use the same license key on both nodes of the cluster. The license key must match the serial number of the primary node of the cluster. You cannot use different license keys on the cluster nodes.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/security-atp-cloud-enrolling-srx-series.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-atp-cloud-licensing-overview.html

According to the output shown in the exhibit, which is a security flow session on an SRX Series device, the correct statement is that the local gateway address for the IPsec tunnel is 10.20.20.2. This is indicated by the line In: 10.20.20.2/2060 -> 10.20.20.1/3382, which shows that the source IP address of the incoming packet is 10.20.20.2, which is the local gateway address of the IPsec tunnel. The destination IP address of the incoming packet is 10.20.20.1, which is the remote gateway address of the IPsec tunnel.

The following statements are incorrect or not supported by the output:

• The remote gateway address for the IPsec tunnel is 10.20.20.2. This is false, as explained above. The remote gateway address for the IPsec tunnel is 10.20.20.1, not 10.20.20.2.
• The session information indicates that the IPsec tunnel has not been established. This is false, as the output shows that there are two active sessions with the communication tag IPSec VPN: vpn1, which indicates that the IPsec tunnel has been established and is named vpn11.
• NAT is being used to change the source address of outgoing packets. This is not supported by the output, as there is no indication of NAT being applied to the outgoing packets. The source IP address of the outgoing packet is 192.168.1.1, which is the same as the source IP address of the original packet. If NAT was being used, the source IP address of the outgoing packet would be different from the source IP address of the original packet.

References: 1: show security flow session - Technical Documentation - Support - Juniper Networks

The two valid modes for the Juniper ATP Appliance are all-in-one and core. The all-in-one mode is a single appliance that performs both the collector and the core functions. The collector function collects traffic from the network and sends it to the core function for analysis and detection. The core function performs the threat detection, mitigation, and analytics. The all-in-one mode is suitable for small to medium-sized networks that do not require high scalability or performance. The core mode is a dedicated appliance that performs only the core function. The core mode is used in conjunction with one or more collector appliances that collect traffic from the network and send it to the core appliance for analysis and detection. The core mode is suitable for large-scale networks that require high scalability and performance. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/concept/security-atp-appliance-overview.html

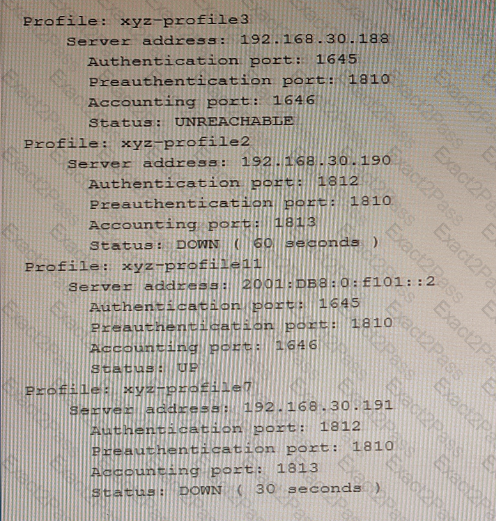

The SRX Series device will continue to send requests to authentication servers 192.168.30.190 and 192.168.30.191. This is because the exhibit shows the output of the show network-access aaa radius-servers command. This command displays the status of the RADIUS servers configured on the device. In the output, we can see that there are three RADIUS servers configured - 192.168.30.190, 192.168.30.191, and 2001:DB8:0:f101::2. However, the status of the third server is shown as “DOWN”. This means that the device is not able to communicate with this server. Therefore, the device will continue to send requests to the other two servers - 192.168.30.190 and 192.168.30.191. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-network-access-aaa-radius-servers.html

To enforce IDP policies on HTTP traffic on an SRX Series device, the following actions must be performed:

• Choose an attacks type in the predefined-attacks-group HTTP-All: This allows the SRX Series device to match on specific types of attacks that can occur within HTTP traffic. For example, it can match on SQL injection or cross-site scripting (XSS) attacks.
• Match on application junos-http: This allows the SRX Series device to match on HTTP traffic specifically, as opposed to other types of traffic. It is necessary to properly identify the traffic that needs to be protected.

Disabling screen options on the Untrust zone and specifying an action of None are not necessary to enforce IDP policies on HTTP traffic. The first one is a feature used to prevent certain types of attacks, the second one is used to take no action in case of a match.

To share threat intelligence from your environment with third party tools, you need to enable Juniper ATP Cloud to share threat intelligence and configure application tokens in the Juniper ATP Cloud to limit who has access. The other options are incorrect because:

• A. Configuring application tokens in the SRX Series firewalls is not necessary or sufficient to share threat intelligence with third party tools. Application tokens are used to authenticate and authorize requests to the Juniper ATP Cloud API, which can be used to perform various operations such as submitting files, querying C&C feeds, and managing allowlists and blocklists1. However, to share threat intelligence with third party tools, you need to enable the TAXII service in the Juniper ATP Cloud, which is a different protocol for exchanging threat information2.
• D. Enabling SRX Series firewalls to share threat intelligence with third party tools is not possible or supported. SRX Series firewalls can send potentially malicious objects and files to the Juniper ATP Cloud for analysis and receive threat intelligence from the Juniper ATP Cloud to block malicious traffic3. However, SRX Series firewalls cannot directly share threat intelligence with third party tools. You need to use the Juniper ATP Cloud as the intermediary for threat intelligence sharing.

Therefore, the correct answer is B and C. You need to enable Juniper ATP Cloud to share threat intelligence and configure application tokens in the Juniper ATP Cloud to limit who has access. To do so, you need to perform the following steps:

• Enable and configure the TAXII service in the Juniper ATP Cloud. TAXII (Trusted Automated eXchange of Indicator Information) is a protocol for communication over HTTPS of threat information between parties. STIX (Structured Threat Information eXpression) is a language used for reporting and sharing threat information using TAXII. Juniper ATP Cloud can contribute to STIX reports by sharing the threat intelligence it gathers from file scanning. Juniper ATP Cloud also uses threat information from STIX reports as well as other sources for threat prevention2. To enable and configure the TAXII service, you need to select Configure > Threat Intelligence Sharing in the Juniper ATP Cloud WebUI, move the knob to the right to Enable TAXII, and move the slidebar to designate a file sharing threshold2.
• Configure application tokens in the Juniper ATP Cloud. Application tokens are used to authenticate and authorize requests to the Juniper ATP Cloud API and the TAXII service. You can create and manage application tokens in the Juniper ATP Cloud WebUI by selecting Configure > Application Tokens. You can specify the name, description, expiration date, and permissions of each token. You can also revoke or delete tokens as needed. You can use the application tokens to limit who has access to your shared threat intelligence by granting or denying permissions to the TAXII service1.

References:

• Threat Intelligence Open API Setup Guide
• Configure Threat Intelligence Sharing
• About Juniper Advanced Threat Prevention Cloud

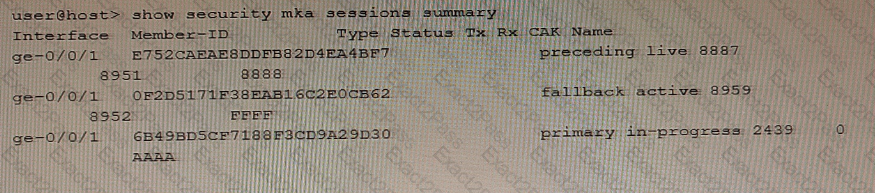

The exhibit shows the output of the show security mka sessions summary command on an SRX Series device. This command displays the status of the MACsec Key Agreement (MKA) sessions on the device. In the output, we can see that there are two CAKs configured for the interface ge-0/0/1 - FFFF and EEEE. The CAK named FFFF has the type preceding and the status live. The CAK named EEEE has the type fallback and the status active.

The two statements that are true about the CAK status for the CAK named FFFF are:

• CAK is not used for encryption and decryption of the MACsec session. This is because the CAK is only used for authentication and key exchange between the MACsec peers. The CAK is not used for encrypting or decrypting the MACsec traffic. The encryption and decryption of the MACsec session is done by the Secure Association Key (SAK), which is derived from the CAK using the MKA protocol.
• SAK is not generated using this key. This is because the CAK named FFFF has the type preceding, which means that it is a legacy key that is used for backward compatibility with older MACsec devices. The preceding key is not used for generating the SAK, but only for authenticating the MACsec peers. The SAK is generated using the active key, which is the CAK named EEEE in this case.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-security-mka-sessions-summary.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-macsec-overview.html

In IPsec CoS-based VPNs, the number of IPsec Security Associations (SAs) associated with a peer is based on the number of forwarding classes configured for the VPN. The forwarding classes are used to classify and prioritize different types of traffic, such as voice and data traffic. Each forwarding class requires a separate IPsec SA to be established between the peers, in order to provide the appropriate level of security and quality of service for each type of traffic.

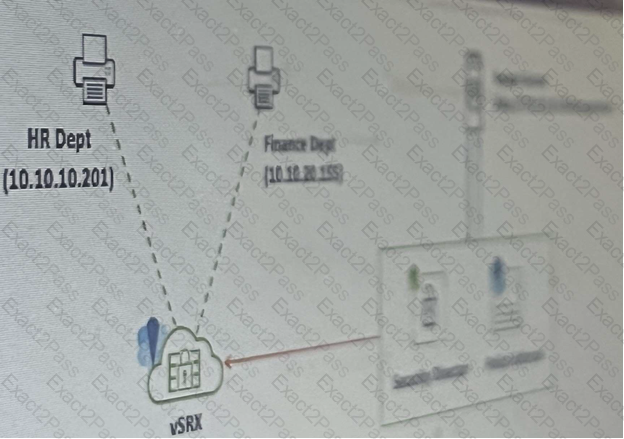

To control access to network resources based on the identity of an authenticated device on the SRX Series firewalls, you need to perform the following steps:

• A. Configure an end-user-profile that characterizes a device or set of devices. An end-user-profile is a device identity profile that contains a collection of attributes that are characteristics of a specific group of devices, or of a specific device, depending on the attributes configured in the profile. The end-user-profile must contain a domain name and at least one value in each attribute. The attributes include device-identity, device-category, device-vendor, device-type, device-os, and device-os-version1. You can configure an end-user-profile by using the Junos Space Security Director or the CLI2.
• C. Reference the end-user-profile in the security policy. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You can reference the end-user-profile in the source-end-user-profile field of the security policy to identify the traffic source based on the device from which the traffic issued. The SRX Series device matches the IP address of the device to the end-user-profile and applies the security policy accordingly3. You can reference the end-user-profile in the security policy by using the Junos Space Security Director or the CLI4.
• E. Configure the authentication source to be used to authenticate the device. An authentication source is a system that provides the device identity information to the SRX Series device. The authentication source can be Microsoft Windows Active Directory or a third-party network access control (NAC) system. You need to configure the authentication source to be used to authenticate the device and to send the device identity information to the SRX Series device. The SRX Series device stores the device identity information in the device identity authentication table5. You can configure the authentication source by using the Junos Space Security Director or the CLI6.

The other options are incorrect because:

• B. Referencing the end-user-profile in the security zone is not a valid step to control access to network resources based on the identity of an authenticated device. A security zone is a logical grouping of interfaces that have similar security requirements. You can reference the user role in the security zone to identify the user who is accessing the network resources, but not the end-user-profile7.
• D. Applying the end-user-profile at the interface connecting the devices is also not a valid step to control access to network resources based on the identity of an authenticated device. You cannot apply the end-user-profile at the interface level, but only at the security policy level. The end-user-profile is not a firewall filter or a security policy, but a device identity profile that is referenced in the security policy1.

References:

• End User Profile Overview
• Creating an End User Profile
• source-end-user-profile
• Creating Firewall Policy Rules
• Understanding the Device Identity Authentication Table and Its Entries
• Configuring the Authentication Source for Device Identity
• user-role

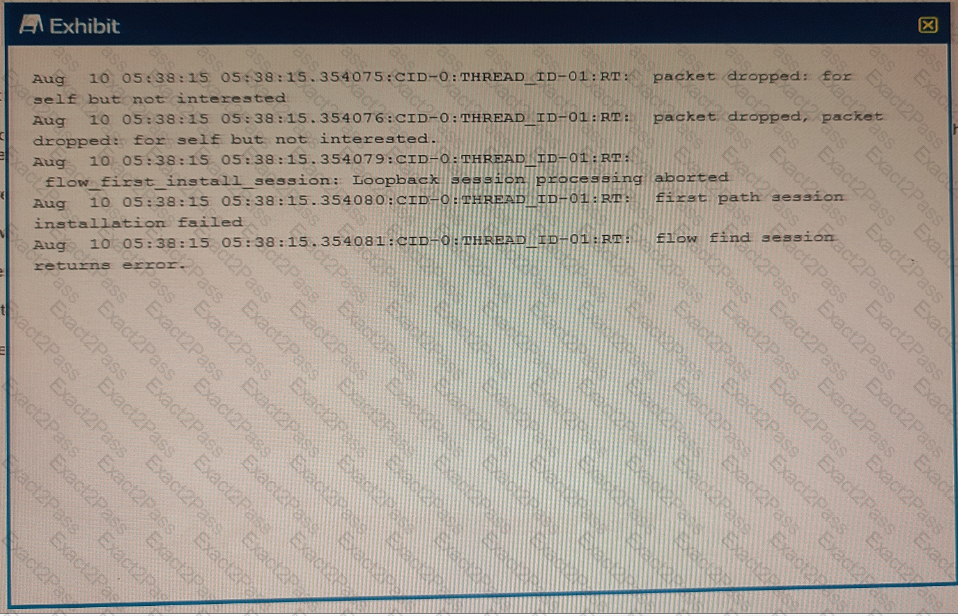

According to the security flow trace in the exhibit, the packets are dropped for self but not interested. This means that the SRX device is receiving packets destined to itself, but it does not have the corresponding service configured in the host-inbound-traffic stanza for the interface1. In this case, the service is BGP, which uses TCP port 179. Therefore, the correct action to solve the problem on the SRX device is to add BGP to the allowed host-inbound-traffic for the interface. This can be done by using the following command:

set security zones security-zone interfaces host-inbound-traffic system-services bgp

This command will allow the SRX device to accept BGP packets on the specified interface and zone. Alternatively, the command can be applied to all interfaces in a zone by using the all-interfaces option2.

References: 1: SRX Getting Started - Troubleshoot Security Policy 2: Configuring System Services Allowed for Host Inbound Traffic

DNS doctoring is a feature that allows the SRX Series firewall to modify the IP address in a DNS response based on a static NAT rule. This can be useful when the DNS server returns an IP address that is not reachable by the client, such as a private IP address or an IP address from a different network. To use DNS doctoring, the following requirements must be met:

• The DNS ALG must be enabled. The DNS ALG is responsible for parsing the DNS messages and performing the IP address translation. The DNS ALG can be enabled globally or per security policy. To enable the DNS ALG globally, use the command set security alg dns enable. To enable the DNS ALG per security policy, use the command set security policies from-zone zone1 to-zone zone2 policy policy1 then permit application-services application-firewall rule-set rule-set-name application junos-dns.
• Static NAT must be configured for the IP address that needs to be translated. Static NAT is a type of NAT that maps a fixed IP address to another fixed IP address. Static NAT can be configured using the command set security nat static rule-set rule-set-name rule rule-name match destination-address address and set security nat static rule-set rule-set-name rule rule-name then static-nat prefix prefix. References:
• DNS ALG and Doctoring Support
• Understanding DNS ALG and NAT Doctoring
• Disabling DNS ALG and NAT Doctoring
• SRX Getting Started - Configure DNS

https://forums.juniper.net/t5/Ethernet-Switching/monitor-traffic- interface/td-p/462528

To provide single sign-on (SSO) to Juniper ATP Cloud, you need to configure the following:

• Microsoft Azure as the identity provider (IdP): This allows users to authenticate to Juniper ATP Cloud using their Azure credentials.
• Juniper ATP Cloud as the service provider (SP): This allows Juniper ATP Cloud to accept the authentication from Microsoft Azure and provide SSO access to the users.

Configuring Microsoft Azure as the service provider (SP) and Juniper ATP Cloud as the identity provider (IdP) are not the correct steps to provide SSO, as the roles are reversed.

To answer this question, you need to know what transparent mode is and what types of traffic it permits. Transparent mode is a mode of operation for SRX Series devices that provides Layer 2 bridging capabilities with full security services. In transparent mode, the SRX Series device acts as a bridge between two network segments and inspects the packets without modifying the source or destination information in the IP packet header. The SRX Series device does not have an IP address in transparent mode, except for the management interface1. Therefore, the types of traffic that will be permitted in transparent mode are:

• A. ARP (Address Resolution Protocol) traffic. ARP is a protocol that maps IP addresses to MAC addresses. ARP traffic is a type of Layer 2 traffic that does not require an IP address on the SRX Series device. ARP traffic is permitted in transparent mode to allow the SRX Series device to learn the MAC addresses of the hosts on the bridged network segments2.
• B. Layer 2 non-IP multicast traffic. Layer 2 non-IP multicast traffic is a type of traffic that uses MAC addresses to send data to multiple destinations. Layer 2 non-IP multicast traffic does not require an IP address on the SRX Series device. Layer 2 non-IP multicast traffic is permitted in transparent mode to allow the SRX Series device to forward data to the appropriate destinations on the bridged network segments3.

The other options are incorrect because:

• C. BGP (Border Gateway Protocol) traffic. BGP is a protocol that exchanges routing information between autonomous systems. BGP traffic is a type of Layer 3 traffic that requires an IP address on the SRX Series device. BGP traffic is not permitted in transparent mode, because the SRX Series device does not have an IP address in transparent mode, except for the management interface1.
• D. IPsec (Internet Protocol Security) traffic. IPsec is a protocol that provides security and encryption for IP packets. IPsec traffic is a type of Layer 3 traffic that requires an IP address on the SRX Series device. IPsec traffic is not permitted in transparent mode, because the SRX Series device does not have an IP address in transparent mode, except for the management interface1.

References:

• Transparent Mode Overview
• ARP Support in Transparent Mode
• Layer 2 Non-IP Multicast Traffic Support in Transparent Mode

https://kb.juniper.net/InfoCenter/index?page=content &id=KB30443&cat=SRX_SERIES&actp=LIST

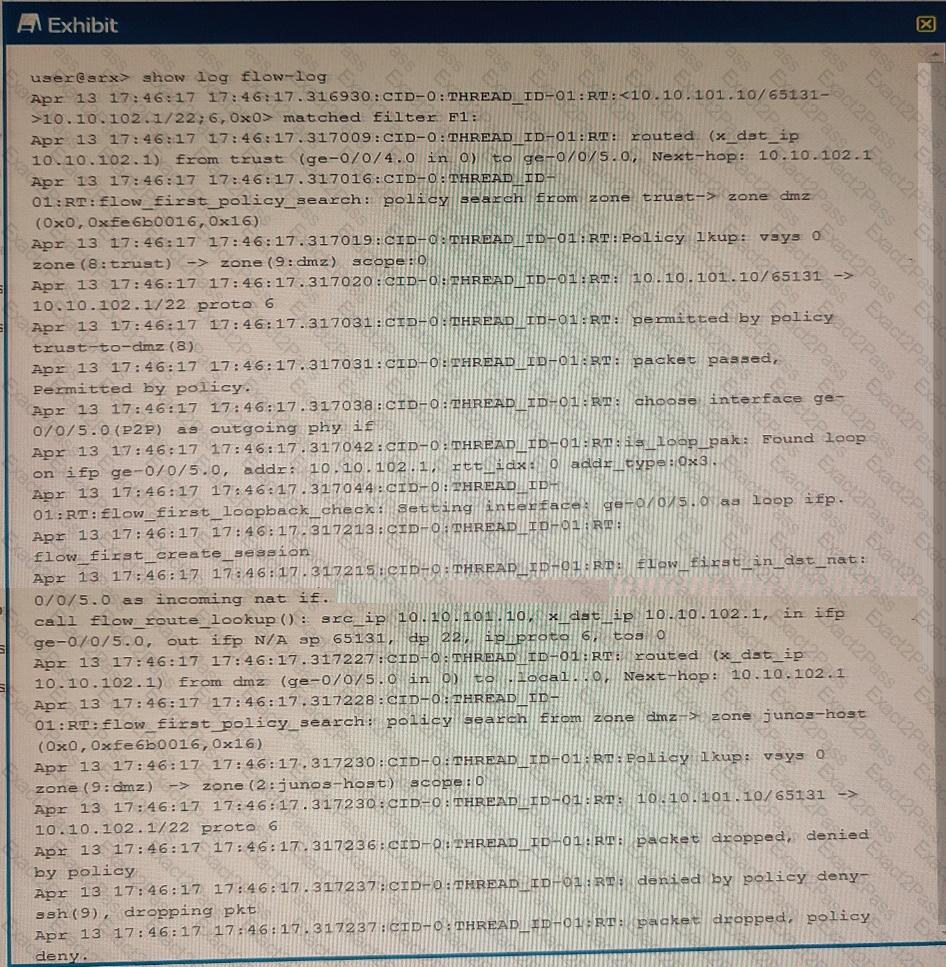

According to the exhibit, which is a security flow trace on an SRX Series device, the following statements are true:

• The packet’s destination is to an interface on the SRX Series device. This is indicated by the line packet dropped for self but not interested, which means that the packet is destined to the SRX device itself, but the device does not have the corresponding service configured in the host-inbound-traffic stanza for the interface1.
• The packet originated within the Trust zone. This is indicated by the line zone name: Trust, which shows that the packet belongs to the Trust zone. The Trust zone is typically the zone where the internal network is connected to the SRX device2.
• The packet is dropped before making an SSH connection. This is indicated by the line flow_first_inline_processing: pak(0x4a9c0d0), which shows that the packet is the first packet in the session and is processed by the firewall. The packet is dropped because it does not match any security policy or host-inbound-traffic rule1. The packet is trying to make an SSH connection, which uses TCP port 22, as shown by the line source port: 22.

The following statements are false:

• The packet’s destination is to a server in the DMZ zone. There is no indication of the DMZ zone in the trace output. The DMZ zone is typically the zone where the external servers are connected to the SRX device2.
• The packet is allowed to make an SSH connection. The packet is not allowed to make an SSH connection, as explained above.

References: 1: SRX Getting Started - Troubleshoot Security Policy 2: SRX Getting Started - Configure Security Zones

In Juniper ATP Cloud, a threat prevention policy allows you to define how the system should handle an infected host. Two of the available actions are:

• Close the connection: This action will close the connection between the infected host and the destination to which it is trying to connect. This will prevent the host from communicating with the destination and will stop any malicious activity.
• Quarantine the host: This action will isolate the infected host from the network by placing it in a quarantine VLAN. This will prevent the host from communicating with other devices on the network, which will prevent it from spreading malware or exfiltrating data.

Sending a custom message is used to notify the user and administrator of the action taken. Drop the connection silently is not an action available in Juniper ATP Cloud.

According to the Juniper documentation, the threat prevention policy in Juniper ATP Cloud is a configuration that defines the actions and notifications for different threat levels of the traffic. The threat levels are based on the verdicts returned by Juniper ATP Cloud after analyzing the files, URLs, and domains. The threat levels range from 1 to 10, where 1 is the lowest and 10 is the highest1.

The threat prevention policy allows the user to specify different actions for different threat levels. The actions can be applied to the traffic or to the infected host. The actions available for the traffic are:

• Permit: Allows the traffic to pass through the SRX Series device without any interruption.
• Block: Blocks the traffic and sends a reset packet to the client and the server.
• Drop: Drops the traffic silently without sending any reset packet.
• Redirect: Redirects the traffic to a specified URL, such as a warning page or a sinkhole server.

The actions available for the infected host are:

• None: Does not take any action on the infected host.
• Quarantine: Quarantines the infected host by applying a firewall filter that blocks all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the specified redirect URL.
• Custom: Executes a custom script on the SRX Series device to perform a user-defined action on the infected host, such as sending an email notification or triggering an external system.

Therefore, the two different actions available in a threat prevention policy to deal with an infected host are:

• Block: This action will block the traffic from or to the infected host and send a reset packet to the client and the server. This will prevent the infected host from communicating with the malicious server or spreading the malware to other hosts.
• Quarantine: This action will quarantine the infected host by blocking all outbound traffic from the host, except for the traffic to Juniper ATP Cloud or the redirect URL. This will isolate the infected host from the network and allow the user to remediate the infection.

The following actions are not available or incorrect:

• Send a custom message: This is not an action available in the threat prevention policy. However, the user can use the custom action to execute a script that can send a custom message to the infected host or the administrator.
• Drop the connection silently: This is an action available for the traffic, not for the infected host. It will drop the traffic without sending any reset packet, which may not be effective in stopping the infection or notifying the user.

References: 1: Configuring Threat Prevention Policies

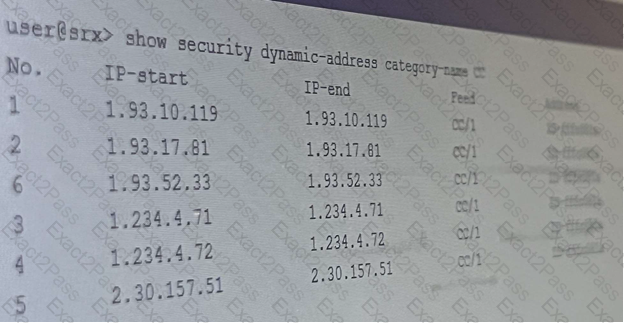

The two security intelligence feed types that are supported are:

• A. Infected host feed. An infected host feed is a security intelligence feed that contains the IP addresses of hosts that are infected by malware or compromised by attackers. The SRX Series device can download the infected host feed from the Juniper ATP Cloud or generate its own infected host feed based on the detection events from IDP. The SRX Series device can use the infected host feed to block or quarantine the traffic to or from the infected hosts based on the security policies1.
• B. Command and Control feed. A command and control feed is a security intelligence feed that contains the IP addresses of servers that are used by malware or attackers to communicate with infected hosts. The SRX Series device can download the command and control feed from the Juniper ATP Cloud or generate its own command and control feed based on the detection events from IDP. The SRX Series device can use the command and control feed to block or log the traffic to or from the command and control servers based on the security policies2.

The other options are incorrect because:

• C. Custom feeds. Custom feeds are not a security intelligence feed type, but a feature that allows you to create your own security intelligence feeds based on your own criteria and sources. You can configure custom feeds by using the Junos Space Security Director or the CLI. Custom feeds are not supported by the Juniper ATP Cloud or the IDP3.
• D. Malicious URL feed. Malicious URL feed is not a security intelligence feed type, but a feature that allows you to block or log the traffic to or from malicious URLs based on the security policies. The SRX Series device can download the malicious URL feed from the Juniper ATP Cloud or the Juniper Threat Labs. Malicious URL feed is not supported by the IDP4.

References:

• Infected Host Feed Overview
• Command and Control Feed Overview
• Custom Feed Overview
• Malicious URL Feed Overview

This is the port used for encrypted communication between the SRX series device and the Juniper ATP Appliance

In order to enroll an SRX Series device with Juniper ATP Appliance, the firewall device must have port 443 open. Port 443 is the default port used for HTTPS traffic, the communication between the SRX Series device and the ATP Appliance needs to be encrypted, that's why this port should be opened.

A logical system is a virtualization feature in SRX Series devices that allows you to create multiple, isolated virtual routers within a single physical device. Each logical system has its own routing table, firewall policies, and interfaces, and it can be managed and configured independently of the other logical systems. Logical systems are an effective way to isolate different administrative domains and to support a large number of virtualized instances.

According to the Juniper documentation, the solution that would best meet the requirements of deploying a virtualization solution with the security devices in the network is logical systems. Logical systems are a feature that allows the SRX Series device to be partitioned into multiple logical devices, each with its own discrete administrative domain, routing table, firewall policies, VPNs, and interfaces1. Each logical system can support up to 100 virtualized instances, depending on the SRX Series model and the available resources2.

The following solutions are not suitable or incorrect for this scenario:

• VRF instances: VRF instances are a type of routing instance that allows the SRX Series device to maintain multiple routing tables for different VPNs or customers. However, VRF instances do not provide separate administrative domains, firewall policies, or interfaces for each instance3.
• Virtual router instances: Virtual router instances are a type of routing instance that allows the SRX Series device to create multiple logical routers, each with its own routing table and interfaces. However, virtual router instances do not provide separate administrative domains or firewall policies for each instance.
• Tenant systems: Tenant systems are a feature that allows the SRX Series device to create multiple logical devices, each with its own discrete administrative domain, routing table, firewall policies, VPNs, and interfaces. However, tenant systems are only supported on the SRX1500, SRX4100, and SRX4200 devices, and each tenant system can only support up to 10 virtualized instances.

References: 1: Understanding Logical Systems 2: SRX Series Logical Systems Feature Guide 3: vrf (Routing Instances) : [virtual-router (Routing Instances)] : [Understanding Tenant Systems]

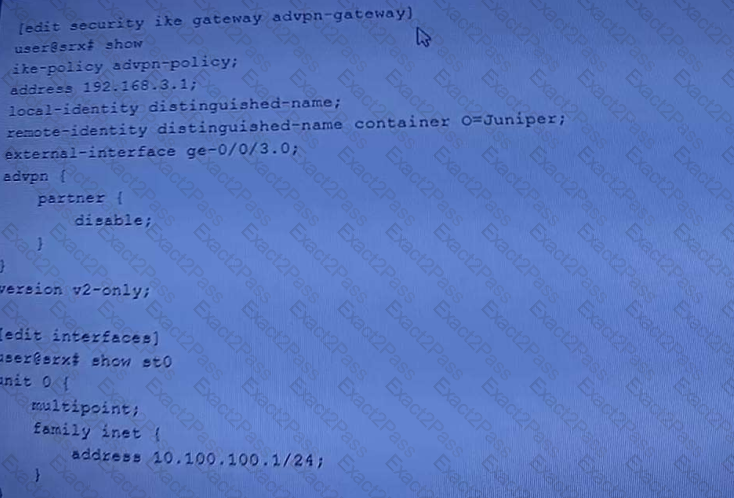

https://www.juniper.net/documentation/en_US/junos/topics/topic-map/security-auto-discovery-vpns.html

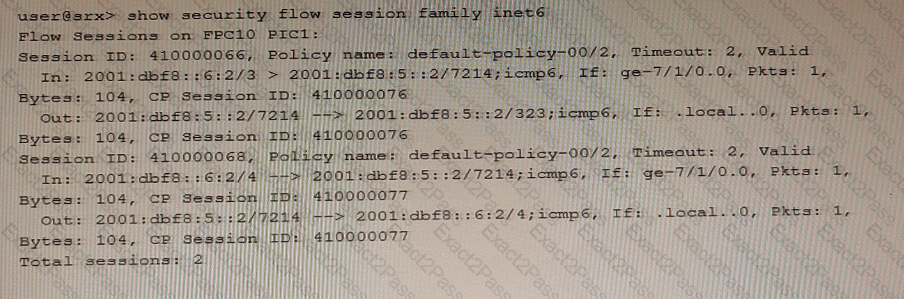

The output shown in the exhibit is from the command “show security flow session family inet6”. This command displays the IPv6 flow sessions on the SRX Series device. The output shows that there are two total sessions, both of which are valid. This means that the SRX Series device is configured with flow-based IPv6 forwarding options. Flow-based IPv6 forwarding options enable the device to process IPv6 packets using the security policies, NAT, and other security features. To configure flow-based IPv6 forwarding options, use the command set security forwarding-options family inet6 mode flow-based and reboot the device. References:

• show security flow session family inet6
• Configuring Flow-Based IPv6 Forwarding Options
• SRX Getting Started - Configure IPv6

To troubleshoot the traffic problem using the match criteria, you need to use the show security match-policies CLI command. The other options are incorrect because:

• A. The show security policy-report CLI command displays the policy report, which is a summary of the policy usage statistics, such as the number of sessions, bytes, and packets that match each policy. It does not show the match criteria or the reason why the traffic is not hitting the policy1.
• B. The show security application-tracking counters CLI command displays the application tracking counters, which are the statistics of the application usage, such as the number of sessions, bytes, and packets that match each application. It does not show the match criteria or the reason why the traffic is not hitting the policy2.
• D. The request security policies check CLI command checks the validity and consistency of the security policies, such as the syntax, the references, and the conflicts. It does not show the match criteria or the reason why the traffic is not hitting the policy3.

Therefore, the correct answer is C. You need to use the show security match-policies CLI command to troubleshoot the traffic problem using the match criteria. The show security match-policies CLI command displays the policies that match the specified criteria, such as the source and destination addresses, the zones, the protocols, and the ports. It also shows the action and the hit count of each matching policy. You can use this command to verify if the traffic is matching the expected policy or not, and if not, what policy is blocking or rejecting the traffic4

The two statements about the configuration shown in the exhibit are correct are:

• A. The remote IKE gateway IP address is 203.0.113.100. The exhibit shows that the address option under the gateway statement is set to 203.0.113.100, which specifies the IP address of the primary IKE gateway. The address option is used to configure the IP address or the hostname of the remote peer that has a static IP address1.
• D. The remote peer is assigned a dynamic IP address. The exhibit shows that the dynamic option under the gateway statement is configured with various attributes, such as general-ikeid, ike-user-type, and user-at-hostname. The dynamic option is used to configure the identifier for the remote gateway with a dynamic IP address. The dynamic option also enables the SRX Series device to accept multiple connections from remote peers that have the same identifier2.

The other statements are incorrect because:

• B. The local peer is not assigned a dynamic IP address, but a static IP address. The exhibit shows that the local-address option under the gateway statement is set to 192.0.2.100, which specifies the IP address of the local IKE gateway. The local-address option is used to configure the IP address of the local peer that has a static IP address1.
• C. The local IKE gateway IP address is not 203.0.113.100, but 192.0.2.100, as explained above.

References:

• gateway (Security IKE)
• dynamic (Security IKE)

 You are connecting two remote sites to your corporate headquarters site. You must ensure that traffic passes through the corporate headquarters. In this scenario, the VPN that should be used is:

• D. Hub-and-spoke IPsec VPN with the corporate firewall acting as the hub device. A hub-and-spoke IPsec VPN is a type of VPN that connects multiple remote sites to a central site, or hub, over a public network. The hub site acts as a gateway for the remote sites and provides security and routing services. The remote sites, or spokes, communicate with each other through the hub site. The hub site and the spoke sites use IPsec tunnels to encrypt and authenticate the traffic between them. A hub-and-spoke IPsec VPN is suitable for connecting two remote sites to your corporate headquarters site, because it allows you to control the traffic flow and enforce security policies at the hub site. The corporate firewall can act as the hub device and provide IPsec VPN services to the remote sites1.

The other options are incorrect because:

• A. Full mesh IPsec VPNs with tunnels between all sites. A full mesh IPsec VPN is a type of VPN that connects every site to every other site over a public network. Each site has an IPsec tunnel with every other site, forming a mesh topology. A full mesh IPsec VPN provides direct and secure communication between any pair of sites, but it also requires a large number of IPsec tunnels and complex configuration. A full mesh IPsec VPN is not suitable for connecting two remote sites to your corporate headquarters site, because it does not ensure that traffic passes through the corporate headquarters site, and it may introduce unnecessary overhead and complexity2.
• B. A full mesh Layer 3 VPN with the BGP route reflector behind the corporate firewall device. A full mesh Layer 3 VPN is a type of VPN that uses MPLS and BGP to provide Layer 3 connectivity and routing between multiple sites over a service provider’s network. Each site has a BGP session with every other site, forming a full mesh topology. A BGP route reflector is a device that reduces the number of BGP sessions required in a full mesh topology by reflecting routes between its clients. A full mesh Layer 3 VPN with the BGP route reflector behind the corporate firewall device is not suitable for connecting two remote sites to your corporate headquarters site, because it does not ensure that traffic passes through the corporate firewall device, and it may require additional configuration and coordination with the service provider3.
• C. A Layer 3 VPN with the corporate firewall acting as the hub device. A Layer 3 VPN is a type of VPN that uses MPLS and BGP to provide Layer 3 connectivity and routing between multiple sites over a service provider’s network. A Layer 3 VPN can have different topologies, such as full mesh, hub-and-spoke, or partial mesh. A Layer 3 VPN with the corporate firewall acting as the hub device is not suitable for connecting two remote sites to your corporate headquarters site, because the corporate firewall may not support MPLS and BGP, and it may require additional configuration and coordination with the service provider3.

References:

• Hub-and-Spoke VPNs Overview
• Full Mesh VPNs Overview
• Layer 3 VPNs Overview

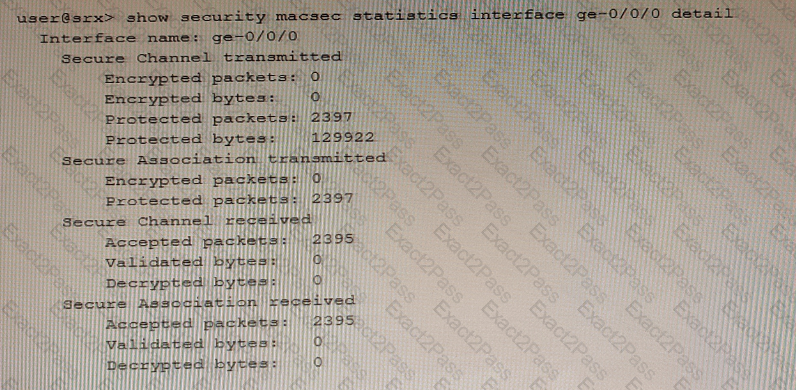

The exhibit shows the output of the show security macsec statistics interface ge-0/0/70 detail command on an SRX Series device. This command displays the statistics for the Media Access Control Security (MACsec) feature on the ge-0/0/70 interface. MACsec is a feature that provides point-to-point security on Ethernet links by using encryption and data integrity checks. MACsec uses two types of keys to secure the traffic: the Connectivity Association Key (CAK) and the Secure Association Key (SAK). The CAK is used for authentication and key exchange between the MACsec peers. The SAK is used for encryption and decryption of the MACsec traffic.

The two statements that are true based on the exhibit are:

• The data that traverses the ge-0/0/70 interface is secured by a secure association key. This is because the exhibit shows that the interface has a Secure Channel (SC) and a Secure Association (SA) established. The SC is a logical connection between the MACsec peers that carries the encrypted traffic. The SA is a subset of the SC that contains the SAK and other parameters for encrypting and decrypting the traffic. The exhibit shows that the interface has encrypted and protected packets, which means that the traffic is secured by the SAK.
• The data that traverses the ge-0/0/70 interface cannot be intercepted and read by anyone. This is because the exhibit shows that the interface has encryption enabled. The encryption option indicates whether the MACsec traffic is encrypted or not. If encryption is enabled, the traffic is encrypted by the SAK and cannot be viewed by anyone monitoring the link. If encryption is disabled, the traffic is only protected by the SAK and can be viewed by anyone monitoring the link.

References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-security-macsec-statistics-interface-detail.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-macsec-overview.html

In transparent mode, all interfaces involved are configured with the bridge protocol family. This allows the SRX device to act as a bridge between the interfaces and forward traffic transparently without any modification. The bridge interfaces can be configured to forward traffic based on layer 2 headers, such as MAC addresses, without the need for routing or IP addressing.

https://www.juniper.net/documentation/en_US/release-independent/jatp/topics/topic-map/jatp-custom-log-ingestion.html

To solve the problem of the operator user being unable to save configuration files to a USB stick that is plugged into SRX, you need to add the system-control permission flag to the operations class. The other options are incorrect because:

• A. Adding the floppy permission flag to the operations class is not sufficient or necessary to save configuration files to a USB stick. The floppy permission flag allows the user to access the floppy drive, but not the USB drive. The USB drive is accessed by the system permission flag, which is already included in the operations class1.
• C. Adding the interface-control permission flag to the operations class is also not sufficient or necessary to save configuration files to a USB stick. The interface-control permission flag allows the user to configure and monitor interfaces, but not to save configuration files. The configuration permission flag, which is also already included in the operations class, allows the user to save configuration files1.
• D. Adding the system permission flag to the operations class is redundant and ineffective to save configuration files to a USB stick. The system permission flag allows the user to access the system directory, which includes the USB drive. However, the operations class already has the system permission flag by default1. The problem is not the lack of system permission, but the lack of system-control permission.

Therefore, the correct answer is B. You need to add the system-control permission flag to the operations class to solve the problem. The system-control permission flag allows the user to perform system-level operations, such as rebooting, halting, or snapshotting the device1. These operations are required to mount, unmount, and copy files to and from the USB drive2. To add the system-control permission flag to the operations class, you need to perform the following steps:

• Enter the configuration mode: user@host> configure
• Navigate to the system login class hierarchy: user@host# edit system login class operations
• Add the system-control permission flag: user@host# set permissions system-control
• Commit the changes: user@host# commit

References:

• login (System)
• How to mount a USB drive on EX/SRX/MX/QFX Series platforms to import/export files
