AnIRB (Integrated Routing and Bridging)interface provides routing functionality between VLANs at Layer 3, allowing devices in different VLANs to communicate with each other.

Step-by-Step Breakdown:

IRB Functionality:

The IRB interface enables routing between different VLANs by acting as a Layer 3 gateway. Traffic within the same VLAN is handled by Layer 2 switching, while traffic between VLANs is routed through the IRB interface.

Layer 3 Routing Between VLANs:

Each VLAN can be assigned an IP address on the IRB interface, which allows traffic to flow between VLANs based on Layer 3 IP routing.

Juniper Reference:

IRB Interface Configuration: Juniper supports IRB for inter-VLAN routing on devices like the EX and QFX series switches, facilitating Layer 3 communication in data centers.

Filter-Based Forwarding (FBF) in Junos OS allows traffic to be routed based on specific criteria such as source address, rather than just the destination address. This is useful in scenarios like policy routing or providing multiple paths for different types of traffic.

Step-by-Step Breakdown:

Instance-Type Forwarding:You must create aninstance-type forwardingrouting instance. This routing instance allows for different routing tables based on the incoming packet filter.

Command:

set routing-instances FBF-instance instance-type forwarding

Match Filter:You need to create afilterto match the traffic that will be forwarded according to your custom routing policy. This filter is applied to an interface to determine which traffic will use the custom forwarding instance.

Command Example:

set firewall family inet filter FBF-filter term 1 from source-address

When aMAC limiting violationoccurs on a Juniper switch, the switch will perform the following actions by default:

Step-by-Step Breakdown:

Port Disabled:When the number of MAC addresses on an interface exceeds the configured limit, the port isautomatically disabledto prevent further violations. This is a protective mechanism to prevent MAC address flooding.

Packet Dropped:Additionally, packets from the violating MAC address aredroppedto prevent any further communication from that address. This ensures that only valid MAC addresses are allowed to communicate through the interface.

Example Configuration:

set ethernet-switching-options secure-access-port interface mac-limit 5

If more than five MAC addresses are learned, the port is disabled, and excess packets are dropped.

Juniper Reference:

MAC Limiting: When the switch detects a MAC limiting violation, it disables the port and drops further packets from the violating MAC addresses to maintain network security.

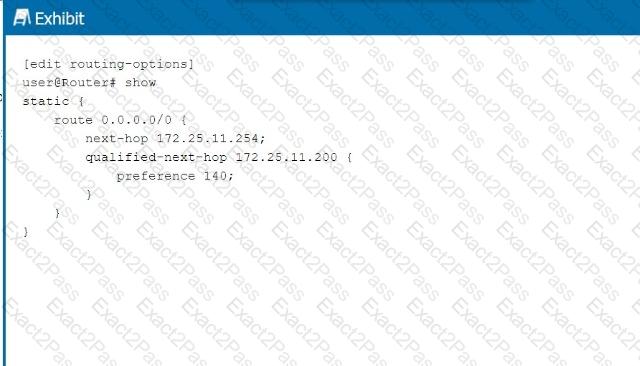

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is172.25.11.254, with no specified preference.

The second next hop is172.25.11.200, with a specified preference of140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to5for static routes.

Determining Preference:In this case, the next hop172.25.11.254does not have an explicit preference defined, so it will use the default value of5. The second next hop has a preference of140, which is higher,meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is5, and this value is applied unless overridden by the preference parameter.

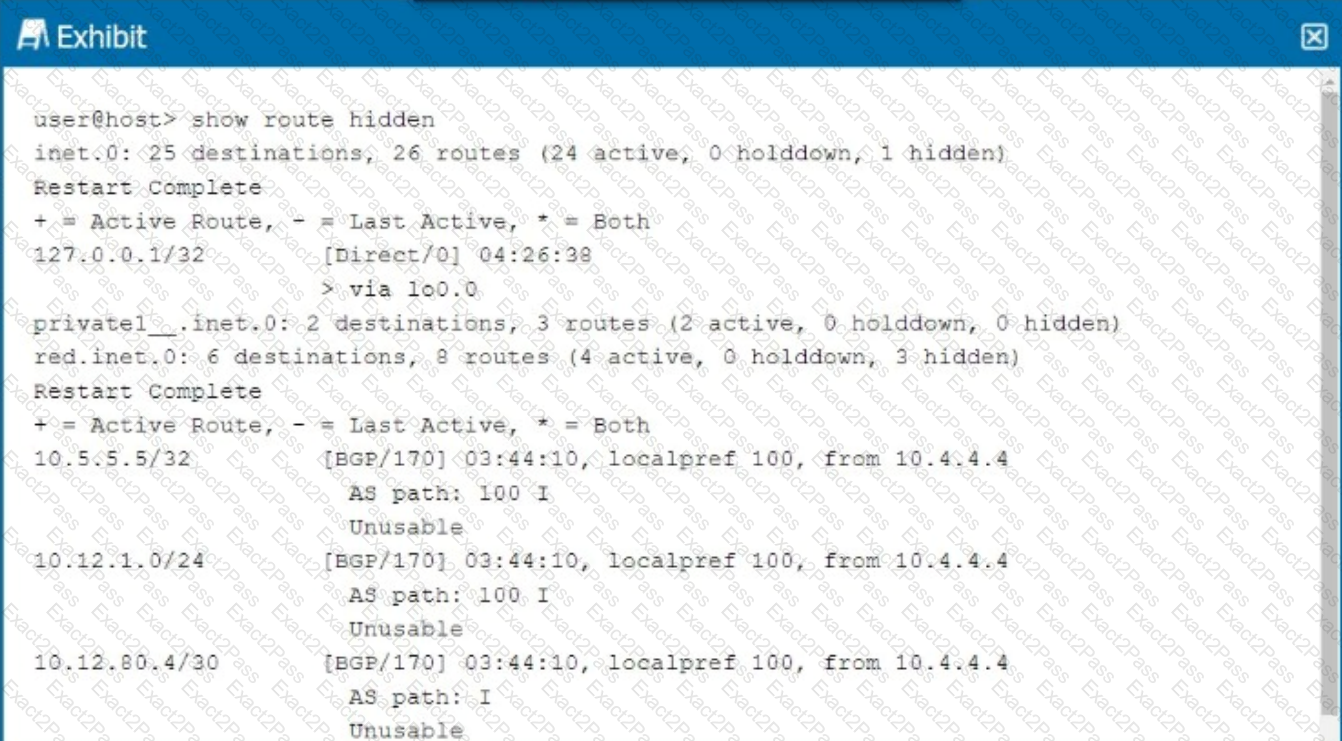

EBGP (External BGP)andIBGP (Internal BGP)operate with different rules due to the nature of their relationships.

Step-by-Step Breakdown:

TTL Differences:

EBGP: By default, EBGP peers have a TTL of 1, meaning they must be directly connected, or the TTL needs to be manually increased for multihop EBGP.

IBGP: IBGP peers within the same AS have a TTL of 255, as they are expected to communicate over multiple hops within the AS.

Preference for EBGP Routes:

Routes learned viaEBGPare typically preferred over IBGP routes. This is because EBGP routes are considered more reliable since they originate outside the AS, while IBGP routes are internal.

Juniper Reference:

BGP Configuration: The different handling of TTL and route preferences between EBGP and IBGP ensures proper route selection and security within Junos-based networks.

AnIP fabricis a network architecture commonly used in data centers to provide scalable, high-throughput connectivity using aspine-leaf topology.

Step-by-Step Breakdown:

Layer 3 Routing Protocol:An IP fabric relies on aLayer 3 routing protocol, typically BGP or OSPF, to provide routing between the leaf and spine switches. This ensures efficient traffic forwarding across the network.

Single Connection Between Spine and Leaf:In an IP fabric, each leaf switch connects toevery spine switchwith a single connection. This ensures that traffic between any two leaf switches can travel through the spine layer in just two hops.

Juniper Reference:

Spine-Leaf Design: Juniper’s IP fabric implementations are designed for scalability and low-latency routing, often using protocols like BGP for Layer 3 control.

In Junos, thedefault export policyforOSPFis toreject all routesfrom being exported.

Step-by-Step Breakdown:

Default Export Policy:By default,OSPFin Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a customexport policythat explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

EVPN-VXLANis an overlay technology used in data center networks to extend Layer 2 services over a Layer 3 network.

Step-by-Step Breakdown:

BGP Control Plane:BGP (Border Gateway Protocol)is used as the control plane for EVPN-VXLAN. BGP advertises MAC addresses and IP address reachability information across the VXLAN network, enabling efficient multi-tenant Layer 2 connectivity over a Layer 3 infrastructure.

Encapsulation:VXLAN (Virtual Extensible LAN)encapsulates Layer 2 frames into Layer 3 packets. This encapsulation allows Layer 2 traffic to be transported across a Layer 3 network, effectively creating a tunnel for Ethernet frames.

Juniper Reference:

EVPN-VXLAN Configuration: Juniper supports EVPN-VXLAN with BGP as the control plane, allowing scalable Layer 2 connectivity over a routed infrastructure in modern data centers.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

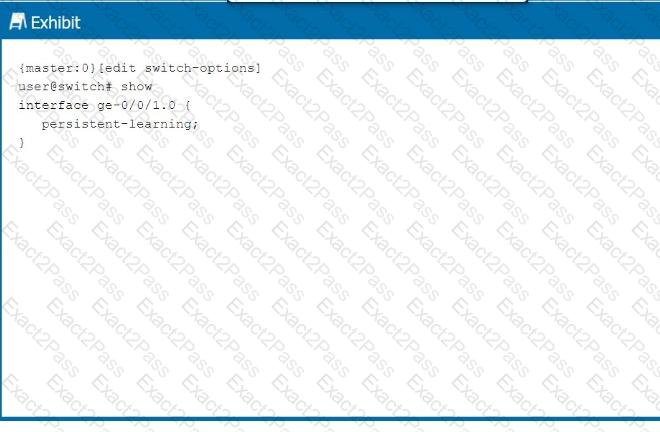

The configuration in the exhibit shows thepersistent-learningfeature enabled on interfacege-0/0/1.0.

Step-by-Step Breakdown:

Persistent Learning:

Persistent-learningensures that the MAC addresses learned on the interface are retained in theEthernet-switching table, even after a device reboot. This prevents the need to re-learn MAC addresses after the device restarts, improving stability and reducing downtime.

Use Case:

This feature is particularly useful in environments where the re-learning of MAC addresses could cause temporary disruptions or delays in communication, such as in critical Layer 2 network segments.

Command Example:

set switch-options interface ge-0/0/1.0 persistent-learning

Juniper Reference:

Persistent MAC Learning: In Junos, enablingpersistent-learningensures that learned MAC addresses are not lost during reboots, contributing to smoother network operations in environments where stability is crucial.

When advertisingOSPF routesintoBGP, the appropriaterouting policyshould be applied as anexport policyin BGP.

Step-by-Step Breakdown:

OSPF to BGP Route Advertisement:Routes learned via OSPF (a dynamic IGP) need to be exported into BGP to be advertised to external BGP peers. In Junos OS, this is done usingexport policies.

Export Policies in BGP:An export policy controls which routes are advertised out of a BGP session. In this scenario, the routing policy must be applied toBGP as an export policyto export the OSPF-learned routes to external BGP peers.

Policy Configuration:Example configuration:

set policy-options policy-statement EXPORT_OSPF term 1 from protocol ospf

set policy-options policy-statement EXPORT_OSPF term 1 then accept

set protocols bgp group export EXPORT_OSPF

This policy ensures that only OSPF routes are exported into BGP.

Juniper Reference:

Routing Policy: Export policies are used in BGP to control route advertisements to peers, including those learned via OSPF.

Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

OSPF (Open Shortest Path First)calculates the best path based on thecostof the route, which is derived from the bandwidth of the interfaces along the path.

Step-by-Step Breakdown:

OSPF Path Selection:

OSPF assigns a cost to each link, typically based on the link's bandwidth (higher bandwidth equals lower cost).

The OSPF algorithm computes the shortest path to a destination by adding the costs of all links in the path. The path with thenumerically lowest total costis chosen as the best path.

Cost Calculation:The OSPF cost can be manually adjusted or automatically calculated using the default formula:

Cost=Reference BandwidthLink Bandwidth\text{Cost} = \frac{\text{Reference Bandwidth}}{\text{Link Bandwidth}}Cost=Link BandwidthReference Bandwidth​

Juniper Reference:

OSPF Best Path Selection: OSPF selects the path with the lowest cumulative cost, ensuring efficient use of higher-bandwidth links in Junos networks.

Agenerated routein Junos OS is configured under the[edit routing-options]hierarchy.

Step-by-Step Breakdown:

Generated Routes:A generated route is created based on the presence of more specific routes in the routing table. It acts as a summary route and is generated when any of its contributing routes are active. This is commonly used to create aggregate routes in OSPF, BGP, or other protocols.

Configuration Hierarchy:The configuration for generated routes is placed under[edit routing-options], where other static and routing policies are also defined.

Command Example:

set routing-options generate route 10.10.0.0/16

Juniper Reference:

Routing Options: Juniper routers use the routing-options hierarchy to configure generated routes and other static routing behaviors.

To configureaggregated Ethernet (AE) interfaceson a Junos device, the configuration is done under the[edit chassis]hierarchy.

Step-by-Step Breakdown:

Chassis Configuration:Thechassisconfiguration is responsible for enabling the hardware to supportLink Aggregation Groups (LAGs), allowing multiple physical interfaces to be bundled into a single logical interface for load balancing and redundancy.

Command Example:

set chassis aggregated-devices ethernet device-count

This command enables a specific number of aggregated Ethernet interfaces on the device.

Juniper Reference:

LAG Configuration in Junos: Thechassishierarchy is used to allocate and manage hardware resources for aggregated Ethernet interfaces in Juniper devices.

In OSPF, routers exchange link-state information in different stages to establish full adjacency. TheMTU sizeis checked during theExchangestate.

Step-by-Step Breakdown:

OSPF Adjacency Process:

OSPF routers go through multiple stages when forming an adjacency:Down,Init,2-Way,ExStart,Exchange,Loading, andFull.

Exchange State:

During theExchangestate, OSPF routers exchangeDatabase Description (DBD)packets to describe their link-state databases. TheMTU sizeis checked at this stage to ensure both routers can successfully exchange these packets without fragmentation.

If there is anMTU mismatch, the routers may fail to proceed past the Exchange state.

Juniper Reference:

MTU Checking in OSPF: Junos uses the Exchange state to check for MTU mismatches, ensuring that routers can properly exchange database information without packet fragmentation issues.
