In HPE Aruba Networking ClearPass Device Insight (CPDI), a device with a Risk Score of 90 indicates that the posture is unhealthy, and CPDI has detected at least one vulnerability on the device. The risk score is a reflection of the device's security posture and detected vulnerabilities. A high risk score, such as 90, typically signifies significant security concerns, including the presence of vulnerabilities that could be exploited, thereby categorizing the device as a high-risk asset within the network.

To simplify the setup of 802.1X authentication with HPE Aruba Networking ClearPass Policy Manager (CPPM) and ensure clients are steered to the correct VLANs for local forwarding, you should assign consistent names to VLANs of the same type across the AOS-CX switches and have user-roles reference these names. This approach allows for a more straightforward configuration and management process, as the user roles can apply consistent policies based on VLAN names rather than specific IDs. It also helps in maintaining clarity and reducing errors in VLAN assignments across different switches.

Comprehensive Detailed Explanation

The configuration includes the command aaa authentication allow-fail-through, which specifies that if the TACACS+ server fails to respond (e.g., times out), the switch will proceed to the next authentication method in the sequence, which is local. In this scenario:

The switch first attempts to authenticate the user against the TACACS+ server.

When the TACACS+ server fails to respond, the switch falls back to local authentication.

The user netadmin is a local account configured on the switch and belongs to the operators group.

As a result, the user is successfully authenticated locally and is granted operator level access.

References

Aruba AOS-CX User Guide: Authentication fallback mechanisms.

TACACS+ fallback behavior for HPE Aruba switches.

Contextual Exchange for Better Decisions:

HPE Aruba ClearPass can integrate with third-party solutions like MDM and firewalls to exchange contextual information about endpoints (e.g., device type, posture, location).

This integration allows ClearPass and the third-party solutions to make better access control and security decisions.

For example:

An MDM can inform CPPM about device compliance, and CPPM can adjust enforcement policies dynamically.

Firewalls can receive updated context about users and devices to enforce policies more effectively.

Option Analysis:

Option A: Correct. Exchanging contextual information improves access control decisions.

Option B: Incorrect. CPPM does not provide signature-based threat detection.

Option C: Incorrect. CPPM does not offload policy decisions; it integrates for collaboration.

Option D: Incorrect. CPPM does not replace third-party traffic filtering capabilities.

Centralized Role Configuration on CPPM:

CPPM can assign roles to clients dynamically during authentication.

However, the actual ACL policies (e.g., firewall policies) must already exist and be referenced locally on the switch.

CPPM cannot directly configure ACL details on AOS-CX switches.

Option Analysis:

Option A: Correct. The role is defined on CPPM, but it references a policy pre-configured on the switch.

Option B: Incorrect. This does not align with Aruba's centralized role-based access control design.

Option C: Incorrect. CPPM cannot configure the ACL policies and classes directly; they must exist locally.

Option D: Incorrect. Policies can be referenced centrally but not fully configured on CPPM.

To capture traffic from a particular wireless client for a 15-minute period and then send the traffic in a PCAP file, you should go to the client's AP in HPE Aruba Networking Central and use the "Security" page to run a packet capture. This method allows you to directly capture the client's traffic from the AP managing the wireless connection, ensuring that you gather the relevant traffic data for analysis.

1.Centralized Management: HPE Aruba Networking Central provides a centralized interface for managing and monitoring APs, making it easy to initiate packet captures.

2.Security Page: The "Security" page in Aruba Central includes tools for running packet captures, allowing you to specify the duration and other parameters.

3.Ease of Use: This approach simplifies the process by using the built-in features of Aruba Central, avoiding the need for complex CLI commands or additional hardware.

To capture only the traffic sent in the mirroring session between an AOS-CX switch and a management station running Wireshark, you should apply a capture filter that isolates the specific traffic of interest. In this case, using the filter udp port 5555 will capture the traffic associated with the mirroring session. This is because AOS-CX switches typically use UDP port 5555 for mirrored traffic, ensuring that only the relevant mirrored packets are captured and excluding other traffic generated by the management station.

RADIUS Change of Authorization (CoA):

CoA is triggered when ClearPass determines that a client’s posture status has changed (e.g., Healthy, Quarantine).

The RADIUS enforcement policy is where you configure actions and enforcement profiles that respond to these posture changes.

Option Analysis:

Option A: Correct. RADIUS enforcement policies are used to configure actions, including triggering CoA.

Option B: Incorrect. OnGuard settings configure posture agent behavior, not enforcement rules.

Option C: Incorrect. The posture policy evaluates compliance but does not trigger CoA.

Option D: Incorrect. WEBAUTH enforcement policies are for web-based authentication, not posture-related CoA.

Subnet Scan Requirements for Profiling:

For ClearPass to scan and profile devices in a subnet, the Data Port must be enabled on the ClearPass server and connected to the network.

This ensures that ClearPass can send and receive the required packets for device discovery and profiling.

Option Analysis:

Option A: Incorrect. SSH accounts are not required for subnet scanning.

Option B: Incorrect. WMI probing is for Windows systems, not Linux devices.

Option C: Correct. The Data Port is essential for subnet scans and must be properly configured and connected.

Option D: Incorrect. SNMP is used for network device monitoring, not Linux device profiling.

When using "Tips

" conditions within an 802.1X service's enforcement policy, you should enable caching roles and posture attributes from previous sessions in the service's enforcement settings. This ensures that ClearPass retains posture information from previous authentications, which is necessary for making decisions based on the current posture state of an endpoint. By caching these attributes, ClearPass can apply appropriate enforcement actions based on the device's posture status.

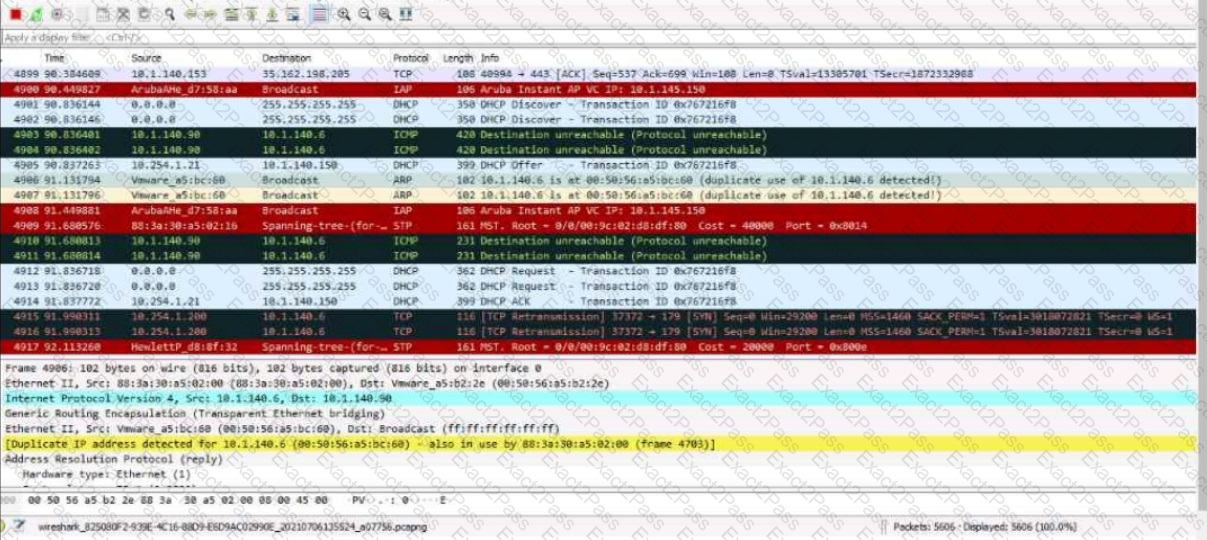

The exhibit reveals duplicate IP addresses detected for 10.1.140.6, associated with two different MAC addresses:

88:56:56:ab:c6:89

88:13:30:a3:02:00

Key observations:

Duplicate IP Address Detection:

The message "Duplicate IP address detected for 10.1.140.6" clearly indicates two devices claiming the same IP address.

This typically occurs when one device spoofs the MAC address of another device to intercept or disrupt traffic.

MAC Spoofing Context:

MAC spoofing is a tactic used to impersonate another device's hardware address to gain unauthorized access to a network.

By spoofing a legitimate IP-MAC pairing, an attacker can bypass security mechanisms or cause denial-of-service conditions.

Why the Other Options are Incorrect:

Option B (Mirroring Misconfigured): While mirroring misconfiguration can duplicate traffic, it does not lead to a "duplicate IP detected" alert.

Option C (Misconfigured DHCP): Misconfigurations usually result in DHCP conflicts, but they do not typically involve two different MAC addresses for the same IP.

Option D (ARP Poisoning/MITM): ARP poisoning involves falsified ARP tables, but it does not directly trigger duplicate IP address detection. Instead, ARP packets flood the network.

Conclusion:

The evidence strongly suggests MAC spoofing, as two different MAC addresses are claiming the same IP address (10.1.140.6). This behavior is typical of attempts to gain unauthorized access or disrupt network operations.

MAC Spoofing Detection with Endpoint Conflict:

When two devices attempt to use the same MAC address, ClearPass identifies a Conflict state in the Endpoints Repository.

This condition can be used to detect and quarantine clients that spoof legitimate devices.

Option D: Correct. The Conflict EQUALS true condition identifies devices with duplicate MAC addresses.

Option A: Incorrect. Endpoint compliance checks posture, not MAC spoofing.

Option B: Incorrect. Device Insight Tags are used for profiling but do not identify conflicts.

Option C: Incorrect. Compromised devices relate to security incidents, not MAC address conflicts.

HPE Aruba Central Live Monitoring:

Aruba Central provides real-time Live Monitoring of network devices, including:

Application usage statistics.

Trends and changes over time for specific devices.

This information is presented in a clear and easy-to-read format, making it ideal for examining changes in application usage over different time ranges.

Option Analysis:

Option A: Incorrect. ClearPass OnGuard monitors endpoint compliance (e.g., antivirus, OS version) but does not analyze application usage.

Option B: Correct. Aruba Central's Live Monitoring page is specifically designed for this type of analysis.

Option C: Incorrect. ClearPass Insight generates endpoint security reports but does not track application usage.

Option D: Incorrect. ClearPass Device Insight (CPDI) focuses on device profiling and identification, not continuous application monitoring.

Comprehensive Detailed Explanation

Virtual Network Based Tunneling (VNBT) is the appropriate technology for this use case because:

Traffic Steering: VNBT enables traffic from specific clients or devices to be tunneled through a predefined network path. This allows traffic to pass through intermediate devices such as third-party security appliances.

Policy Enforcement: VNBT can be configured to route traffic based on roles, VLANs, or other policy definitions, ensuring that only specified traffic flows are redirected to the security appliance.

Scalability: This approach simplifies the redirection of traffic without requiring complex physical rewiring or changes to the underlying network topology.

Other Options:

MC-LAG: Primarily used for high-availability and redundancy in multi-chassis link aggregation scenarios, not for traffic redirection through appliances.

Network Analytics Engine (NAE): Used for monitoring and analytics, not traffic steering or forwarding.

Device Profiles: Helps automate switch port configurations for specific device types but does not handle traffic redirection.

References

AOS-CX Virtual Network Based Tunneling (VNBT) documentation.

Aruba Switch Architecture and Traffic Flow Control Best Practices Guide.

When using OpenSSL to obtain a certificate signed by a Certification Authority (CA), you should submit the Certificate Signing Request (CSR) file, which is file1.pem, to the CA. The CSR contains the information about the entity requesting the certificate and the public key, but not the private key, which is in file2.pem. The CA uses the information in the CSR to create and sign the certificate.

1.CSR Submission: The CSR (file1.pem) includes the public key and the entity information required by the CA to issue a certificate.

2.Private Key Security: The private key (file2.pem) should never be sent to the CA or shared; it remains securely stored on the requestor’s server.

3.Certificate Issuance: After the CA signs the CSR, the resulting certificate can be used with the private key to establish secure communications.

Running periodic subnet scans on devices from HPE Aruba Networking ClearPass Policy Manager (CPPM) can be used to gather DHCP fingerprints, which help determine a client's device category and operating system. DHCP fingerprints are unique patterns in DHCP request packets that provide valuable information about the device type and OS, assisting in device profiling and policy enforcement.

1.DHCP Fingerprinting: This technique captures specific details from DHCP packets to identify the type and operating system of a device.

2.Device Profiling: By running subnet scans, CPPM can continuously update its device database with accurate profiles, ensuring that policies are applied correctly based on the device type.

3.Network Visibility: Regular scanning helps maintain up-to-date visibility of all devices on the network, improving security and management.

Why MD5 Authentication on Lag 1 is Preferred:

Lag 1 is the primary link between Switch-2 and Switch-1, both of which are Layer 3 switches running OSPF.

By enabling MD5 authentication, OSPF routers exchange authenticated packets, preventing unauthorized or rogue OSPF routers from forming adjacencies or injecting routes.

MD5 is a secure authentication method and ensures the integrity and authenticity of OSPF communications.

Other Options Analysis:

A. Configure OSPF authentication on VLANs 10-19 in password mode: While configuring authentication on VLAN interfaces could secure VLAN-specific OSPF traffic, it is less effective because the main threat of rogue OSPF comes from unauthorized L3 devices connected via the backbone (Lag 1).

C. Disable OSPF entirely on VLANs 10-19: Disabling OSPF on these VLANs is not a preferred solution because OSPF is needed to route traffic in this design.

D. Configure passive-interface as the OSPF default and disable OSPF passive on Lag 1: While passive interfaces prevent OSPF from forming adjacencies, it does not directly prevent rogue routers. Passive mode only limits OSPF advertisements on specific interfaces.

Traffic Forwarding for APs:

In AOS-10, AP traffic forwarding can happen locally (bridged) or through tunnels to a gateway.

The VLAN settings on the "APs" role depend on whether the APs bridge the SSID traffic locally or forward it through a tunnel.

Option B: Correct. You need to know whether the traffic is bridged or tunneled to determine the VLAN assignments.

Option A: Incorrect. LURs/DURs affect role assignment but not VLAN settings for traffic forwarding.

Option C: Incorrect. Establishing tunnels with gateways is relevant to centralized traffic forwarding, not VLANs for bridged traffic.

Option D: Incorrect. AP IP addressing (static or DHCP) does not impact the VLAN for forwarded SSID traffic.

OCSP (Online Certificate Status Protocol):

OCSP allows a device to check the revocation status of a specific certificate in real-time by querying the Certificate Authority (CA).

This is more efficient than downloading an entire Certificate Revocation List (CRL), as it only checks the status of one certificate.

Option Analysis:

Option A: Incorrect. Root certificates are still required to validate the CA issuing the certificate.

Option B: Correct. OCSP checks the status of a single certificate for revocation.

Option C: Incorrect. Downloading all serial numbers is a function of a CRL, not OCSP.

Option D: Incorrect. OCSP does not handle certificate renewal; it only checks for revocation.

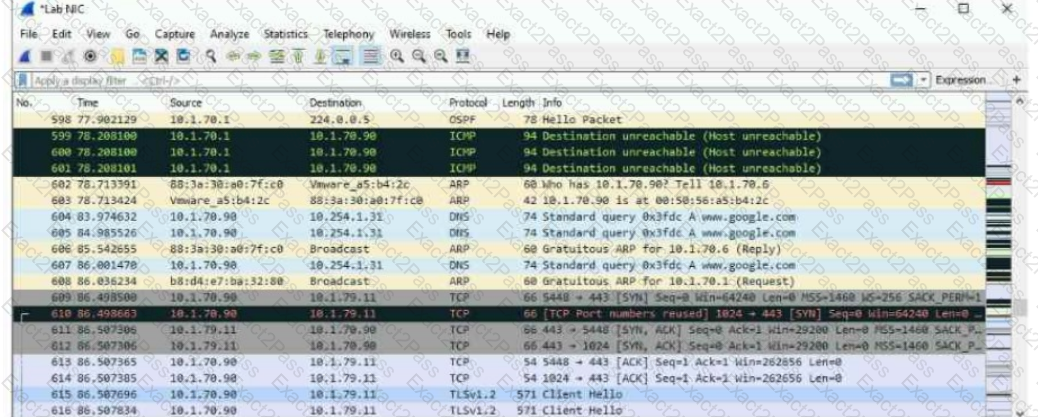

Wireshark: Follow TCP Stream:

Wireshark provides an intuitive feature to filter and display a complete TCP conversation.

By right-clicking any packet within the conversation and selecting "Follow → TCP Stream", Wireshark isolates and displays the entire conversation.

This feature allows you to view the communication in a simplified, sequential manner, including requests and responses.

Option Analysis:

Option A: Incorrect. Capture filters only apply during packet capturing, not for analyzing already saved packet captures.

Option B: Incorrect. Sorting packets helps with organizing data but does not isolate a complete conversation.

Option C: Incorrect. A capture filter for TCP port 5448 would have to be applied before capturing; it does not work for saved data.

Option D: Correct. Right-clicking a packet and choosing "Follow TCP Stream" is the simplest way to display the full conversation between 10.1.70.90 and 10.1.79.11 on port 5448.

Steps in Wireshark to Follow a TCP Stream:

Locate any packet within the desired conversation (e.g., between 10.1.70.90 and 10.1.79.11 on TCP port 5448).

Right-click on the packet.

Choose "Follow" → "TCP Stream".

Wireshark will display the entire TCP conversation, including both directions of communication.

This feature is especially useful when troubleshooting or analyzing detailed interactions between hosts.

In a client-to-site VPN based on tunnel-mode IPsec, the remote clients and a gateway at the main site are responsible for the IPsec encapsulation. The remote clients initiate the VPN connection and encapsulate their traffic in IPsec, which is then decapsulated by the gateway at the main site.

1.IPsec Encapsulation: The remote clients encapsulate their traffic using IPsec protocols before sending it over the internet to the main site.

2.Gateway Role: The gateway at the main site receives the encapsulated traffic, decapsulates it, and forwards it to the internal network. Similarly, traffic from the main site to the remote clients is encapsulated by the gateway and decapsulated by the clients.

3.Security: This setup ensures that data is securely transmitted between the remote clients and the main site, protecting it from eavesdropping and tampering.

To better interpret the packets shown in the Wireshark capture, you should choose to decode UDP port 5555 packets as ARUBA_ERM and set the Aruba ERM Type to 0. This configuration will allow Wireshark to properly decode and display the Aruba-specific encapsulated remote mirroring (ERM) packets, providing a clearer understanding of the traffic.

1.Decoding Protocols: Selecting the correct protocol decoding in Wireshark ensures that the captured packets are interpreted correctly, displaying the relevant information.

2.Aruba ERM: The packets in the capture are likely encapsulated remote mirroring (ERM) packets specific to Aruba, which require proper decoding settings in Wireshark.

3.Clear Interpretation: By setting the Aruba ERM Type to 0 and decoding the packets as ARUBA_ERM, you can view the encapsulated data accurately.

Tagging Applications: In HPE Aruba Networking SSE (Secure Service Edge), tagging is an efficient way to group multiple applications together for simplified management and rule creation.

Tags can be applied to applications, and a single policy rule can be configured to use the tag as the destination.

This eliminates the need to create multiple rules for each individual application, streamlining policy configuration.

Option B: Correct. Applying the same tag to multiple applications allows you to select the tag as the destination in a single policy rule, meeting the requirement efficiently.

Option A: Incorrect. Associating applications with the IdP and selecting "any" for the destination lacks granularity and security.

Option C: Incorrect. Using connector zones is more appropriate for network-level segmentation rather than grouping application policies.

Option D: Incorrect. Web profiles are generally used for web-based traffic policies, not for grouping applications in general.

When integrating ClearPass Policy Manager (CPPM) with ClearPass Device Insight (CPDI), it is important to understand how device profiling and classification work between the two solutions:

1. CPPM and CPDI Integration Overview

CPPM is primarily used for access control and policy enforcement, while CPDI specializes in device profiling and classification through advanced analytics and machine learning.

Integration allows CPPM to leverage CPDI's enhanced profiling capabilities for more accurate device identification and policy enforcement.

2. Detailed Analysis of Each Option

A. CPPM no longer supports any Device Profiler features and relies on CPDI for this profile information:

Incorrect: CPPM still supports its own basic device profiling features and can operate independently. However, when integrated with CPDI, CPPM can use CPDI’s advanced profiling capabilities as a supplement.

B. CPDI must be configured as an audit server on CPPM for the integration to be successful:

Incorrect: CPDI is not configured as an audit server on CPPM. Integration is achieved via API integration and communication between the two solutions, not through audit server settings.

C. CPDI must have security analysis disabled on it for the integration to be successful:

Incorrect: Security analysis does not need to be disabled for integration. In fact, CPDI’s security analysis enhances the classification process by identifying anomalous behaviors.

D. CPPM can submit profile information to CPDI, but if CPDI derives a different classification, CPDI takes precedence:

Correct:

CPPM and CPDI exchange profile data, but CPDI has more advanced device classification capabilities due to its machine learning-based engine.

When CPDI derives a different classification than CPPM, CPDI's classification is considered more accurate and takes precedence.

This ensures that policies are based on the most reliable device classification.

References

Aruba ClearPass Policy Manager and Device Insight Integration Guide.

ClearPass Device Profiling and Classification Documentation.

Best Practices for CPPM and CPDI Integration in Network Security.

To enable the detection of rogue APs with HPE Aruba Networking Wireless IDS/IPS (WIDS/WIPS) on AOS-10 APs managed in HPE Aruba Networking Central, each AP must have a Foundation with Security license. This license enables advanced security features, including rogue AP detection, which is crucial for maintaining a secure wireless environment and protecting against unauthorized access points.

When deploying a virtual Data Collector for HPE Aruba Networking ClearPass Device Insight (CPDI), it is essential to ensure that the correct virtual port is connected to the designated VLAN. In this case, VLAN 101 is used to receive the IP address and connect to Aruba Central. The best practice is to use the virtual port with the lowest port ID. This is typically the primary port used for management and network connectivity in virtual environments, ensuring proper network integration and communication.

The benefit of the Online Certificate Status Protocol (OCSP) is that it allows a device to query whether a single certificate is revoked or not. OCSP provides a real-time mechanism for checking the revocation status of an individual certificate, enabling devices to verify the validity of certificates quickly and efficiently.

1.Certificate Status Query: OCSP enables devices to send a query to an OCSP responder to check the revocation status of a specific certificate.

2.Real-Time Verification: This protocol offers real-time responses, ensuring that the most up-to-date status of the certificate is obtained.

3.Efficiency: OCSP is more efficient than downloading an entire Certificate Revocation List (CRL), as it only queries the status of one certificate at a time.

To set up HPE Aruba Networking ClearPass Policy Manager (CPPM) for certificate-based authentication of 802.1X supplicants, you need to upload the root CA certificate as a Trusted CA with the EAP usage. This configuration allows the ClearPass server to validate the certificates presented by the supplicants during the 802.1X authentication process. By marking the certificate for EAP usage, ClearPass can properly authenticate the supplicant devices using the trusted certificate authority (CA) that issued their certificates.

Comprehensive Detailed Explanation

The requirement is to permit HTTPS traffic from clients to the 10.2.12.0/24 subnet.

ZoneC is configured to drop all HTTPS traffic to the 10.2.0.0/16 subnet. Therefore, the first match in the zoneC class (priority 10) will drop the desired traffic.

To override this behavior, you must add a higher-priority rule (lower rule number) to zoneC that explicitly matches 10.2.12.0/24 and permits the traffic.

Thus, adding the rule 5 match any 10.2.12.0/24 eq https to zoneC ensures the desired traffic is permitted while maintaining the drop behavior for the rest of 10.2.0.0/16.

References

AOS-CX Role-Based Access Control documentation.

Understanding class priority and policy rule ordering in AOS-CX.

Comprehensive Detailed Explanation

To prohibit users from uploading and downloading files from Dropbox using HPE Aruba Networking SSE (Secure Service Edge), you need to configure web access policies. This typically involves:

Adding a web category to the SSE configuration that includes Dropbox.

The SSE solution uses category-based filtering to block access to specific applications or services, such as Dropbox, based on their classification.

Other Options:

B. Installing the SSE root certificate is required for enabling SSL inspection, but this does not directly control access to Dropbox.

C and D. Deploying a connector is not necessary for this purpose as the enforcement is done via SSE policies, not by directly interfacing with Dropbox or remote users.

References

Aruba Networking SSE documentation on web filtering policies.

HPE Aruba SSE Application Control Best Practices Guide.

When creating a rule in an HPE Aruba Networking ClearPass Policy Manager (CPPM) role mapping policy that references a ClearPass Device Insight Tag, you should specify the "Endpoint" Type (namespace) for the rule. This ensures that the policy can properly reference and utilize the tags assigned to endpoints by ClearPass Device Insight for making role mapping decisions.

1.Endpoint Tags: ClearPass Device Insight assigns tags to endpoints based on their characteristics and behaviors. These tags are stored in the "Endpoint" namespace.

2.Role Mapping: By referencing the "Endpoint" type, the rule can accurately match endpoints with the specified tags and apply the appropriate role mappings based on the device's profile.

3.Policy Consistency: Ensuring that the correct namespace is used maintains consistency and accuracy in role assignment policies.

To apply Virtual Network based Tunneling (VNBT) to a particular group of users and assign them to an overlay network with VNI 3000, you should configure the users' AOS-CX role to set the Access VLAN to the VLAN mapped to VNI 3000. This ensures that when users connect, their traffic is tunneled through the specified VNI, integrating seamlessly with the EVPN VXLAN solution.

1.Access VLAN Configuration: Setting the Access VLAN to the VLAN mapped to VNI 3000 ensures that users' traffic is directed to the correct virtual network.

2.EVPN VXLAN Integration: This setup allows the AOS-CX switch to participate in the EVPN VXLAN solution, ensuring that user traffic is properly encapsulated and tunneled.

3.Role-Based Assignment: Configuring the role with the correct VLAN mapping ensures that users are dynamically assigned to the appropriate virtual network based on their role.

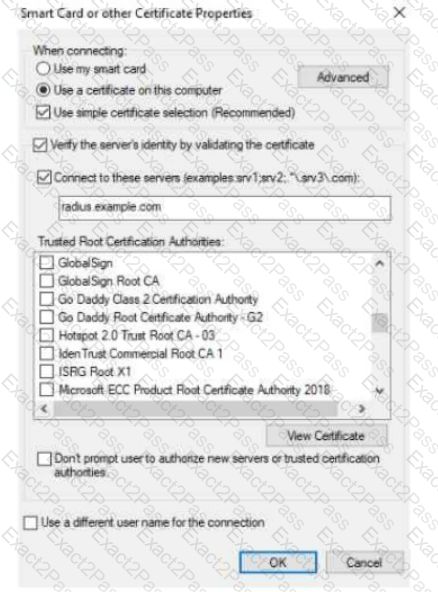

To follow best security practices for 802.1X authentication settings in Windows domain clients:

Specify at least two server names under "Connect to these servers":

Admins should explicitly list trusted RADIUS server names (e.g., radius.example.com) to prevent the client from connecting to unauthorized or rogue servers.

This mitigates man-in-the-middle (MITM) attacks where an attacker attempts to present their own RADIUS server.

Select the desired Trusted Root Certificate Authority and "Don't prompt users":

Select the Trusted Root CA that issued the RADIUS server's certificate. This ensures clients validate the correct server certificate during the EAP-TLS/PEAP authentication process.

Enabling "Don't prompt users" ensures end users are not confused or tricked into accepting certificates from untrusted servers.

Why the other options are incorrect:

Option C: Incorrect. Wildcards in server names (e.g., *.example.com) weaken security and allow broader matching, increasing the risk of rogue servers.

Option D: Incorrect. Clearing "Use simple certificate selection" requires users to select certificates manually, which can lead to errors and usability issues. Simple certificate selection is recommended when properly configured.

Recommended Settings for Best Security Practices:

Server Validation: Specify the exact RADIUS server names in the "Connect to these servers" field.

Root CA Validation: Ensure only the correct Trusted Root Certificate Authority is selected.

User Prompts: Enable "Don't prompt users" to enforce automatic and secure authentication without user intervention.

A typical use case for using HPE Aruba Networking ClearPass Onboard is to provision unmanaged devices to succeed at certificate-based 802.1X authentication. ClearPass Onboard allows users to securely configure their personal devices with the necessary certificates and network settings to authenticate on the network using 802.1X, which enhances security and simplifies the onboarding process for unmanaged devices.

1.Certificate-Based Authentication: ClearPass Onboard simplifies the process of issuing and installing certificates on unmanaged devices, ensuring they can authenticate securely using 802.1X.

2.User-Friendly Onboarding: The Onboard process is user-friendly, guiding users through the steps needed to configure their devices for network access.

3.Enhanced Security: By using certificates for authentication, the solution provides a higher level of security compared to traditional username/password methods.

To show the security team information about MAC spoofing attempts detected by HPE Aruba Networking ClearPass Policy Manager (CPPM), you should use ClearPass Insight to run an Active Endpoint Security report. ClearPass Insight provides comprehensive reporting capabilities that include detailed information on security incidents, such as MAC spoofing attempts. By generating this report, you can provide the security team with a clear overview of the detected spoofing activities, including the endpoints involved and the context of the events.

User-Based Tunneling (UBT) with VRRP:

UBT allows traffic from authenticated users to be tunneled to an HPE Aruba Networking gateway.

In the case of VRRP, where two gateways are configured for redundancy, the AOS-CX switch will always send the traffic to the primary gateway defined in the UBT zone configuration.

The VRRP state (master/backup) does not impact the UBT decision; the UBT primary configuration takes precedence.

Option Analysis:

Option A: Incorrect. UBT does not strictly follow the VRRP master; it adheres to the UBT primary gateway configuration.

Option B: Correct. The switch tunnels all traffic to the primary gateway configured in the UBT zone.

Option C: Incorrect. UBT does not load-share traffic between gateways.

Option D: Incorrect. UBT uses the primary gateway configured in the UBT zone, not dynamically determined active devices.
