To configure Quality of Service (QoS) on HPE Synergy frames equipped with HPE Virtual Connect SE 700Gb F32 Modules, you use the Logical Interconnect Group in HPE OneView. The Logical Interconnect Group (LIG) serves as a template that defines the networking configurations for interconnect modules, including QoS settings, network uplinks, and stacking.

Option B (Correct): QoS settings are defined within the Logical Interconnect Group, ensuring consistent network configurations across multiple enclosures.

Option A: Fabric Manager is not an HPE OneView object used for this purpose.

Option C: Logical Enclosure represents a collection of enclosures but does not define QoS settings.

Option D: Enclosure Group defines the physical configuration but not the network-specific QoS settings.

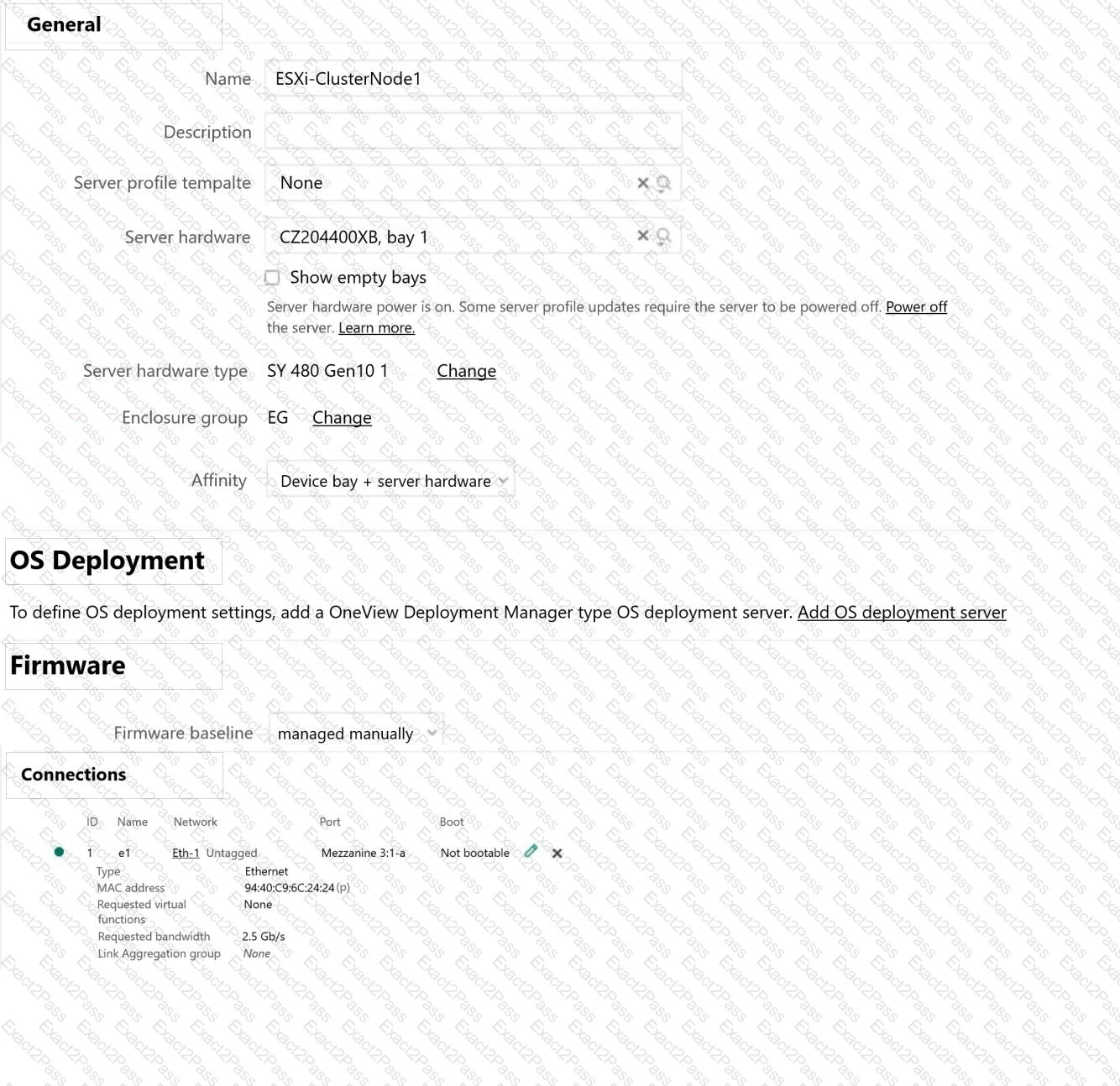

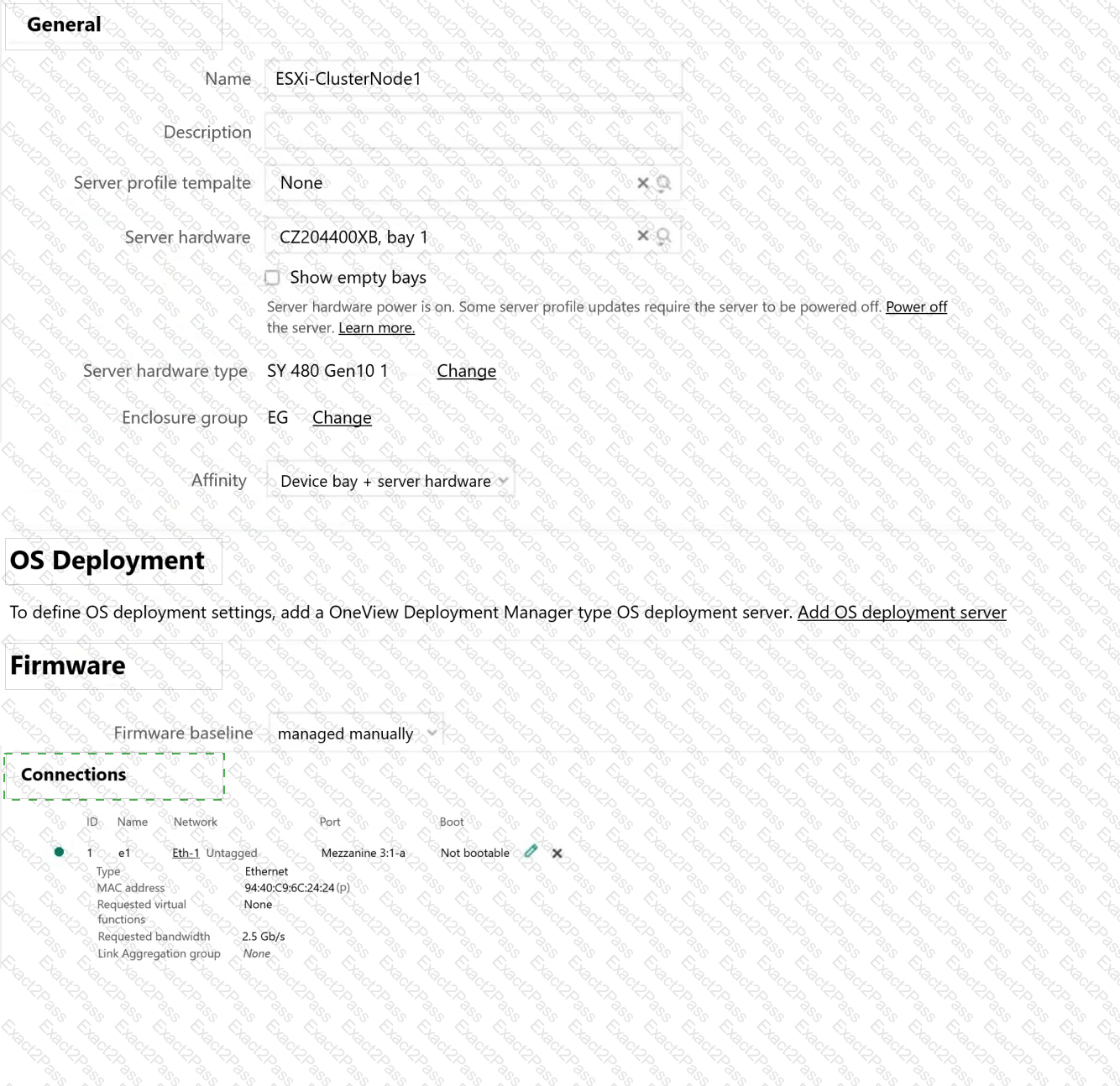

Before moving a server profile to another server in HPE OneView, the target system must be powered off. This is required to ensure that the profile settings, including firmware, BIOS settings, and connectivity configurations, are applied correctly without any conflicts. Powering off the target server prevents any operational disruptions and ensures a smooth transition of the server profile.

During the HPE Synergy hardware discovery process in HPE OneView, the trap destination to HPE OneView is configured on the iLO management processor. This setting ensures that the iLO sends SNMP traps and alerts directly to HPE OneView, enabling centralized monitoring and alerting.

Option D (Correct): The iLO is configured to send traps to HPE OneView during discovery.

Option A: HPE Remote Support is not configured automatically during hardware discovery.

Option B: Active Directory integration is set up separately and is not part of the discovery process.

Option C: Security modes are not configured during the initial discovery.

To visualize the rack system and the Aruba top-of-rack switches in HPE OneView, the customer should define the switches as unmanaged devices manually. By adding the Aruba switches as unmanaged devices, they become part of the rack layout within HPE OneView, allowing for a comprehensive visual representation of the physical infrastructure.

Option A (Correct): Manually adding switches as unmanaged devices includes them in rack visualizations.

Option B: HPE OneView does not automatically discover and add third-party switches via hardware discovery.

Option C: Unless specifically supported, Aruba switches cannot be added as managed devices.

Option D: Monitored devices require SNMP support and integration, which may not be available for these switches.

Your customer can obtain the PowerShell Library for HPE OneView by downloading it from the Microsoft PowerShell Gallery. The library is publicly available and can be installed using standard PowerShell commands. This allows users to automate and script HPE OneView operations, enhancing efficiency and integration with existing workflows.

Installation Command:

Install-Module -Name HPOneView.XXX

(Replace 'XXX' with the specific version number)

When creating a remote scheduled backup in HPE OneView, the supported location type that can be selected is SFTP (Secure File Transfer Protocol). SFTP ensures secure transfer of backup files to a remote system by encrypting both commands and data, providing a secure method for backing up sensitive configuration information.

An iLO in an HPE ProLiant server can obtain an IP address from the subnet and address range defined in the HPE OneView settings. HPE OneView allows administrators to define IP address pools for various components, including iLO management addresses. When a server is added to HPE OneView, it can automatically assign an IP address to the iLO from the predefined range.

Option A: Storage arrays typically have their IP configurations managed separately.

Option B: Rack Management Controllers may not be configured using IP pools in HPE OneView.

Option C: HPE Synergy compute nodes use a different method (the Frame Link Module) for management network configuration.

The HPE Storage Integration Pack for VMware vCenter is deployed as a virtual appliance to the supported hypervisor. This means it is delivered as a pre-configured virtual machine image that you import into your VMware environment. Deploying it as a virtual appliance simplifies installation and integration, allowing for seamless management of HPE storage resources directly within VMware vCenter.

In the context of RESTful APIs, the POST method is used to create a new resource on the server. When interacting with the HPE OneView REST API, you use the POST method to create new resources such as server profiles, networks, or volumes. This method sends data to the server to create a new subordinate of the resource identified by the URI.

GET is used to retrieve information about resources.

PUT is typically used to update or replace an existing resource.

DELETE is used to remove a resource.

In a server profile for HPE Superdome Flex, you can define the nPartition configuration. HPE OneView allows administrators to manage nPartitions (nPars), which are hardware-based partitions providing electrical isolation between different partitions of the Superdome Flex server. This includes defining partition boundaries, assigning resources like CPUs and memory, and configuring boot options.

Option B: While BMC settings are important, nPartition configurations are more specific to Superdome Flex profiles.

Option C: Firmware baselines can be applied but are not unique to Superdome Flex server profiles.

Option D: Ethernet connections are typically defined for standard servers, but nPartitioning is a key feature for Superdome Flex.

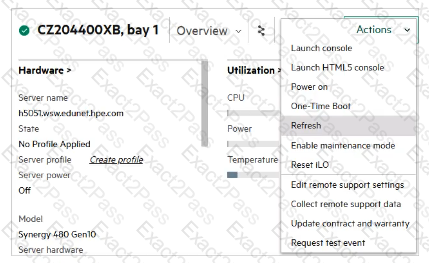

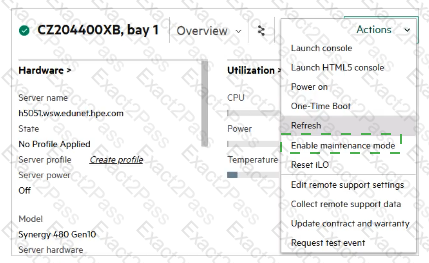

When a server is placed in maintenance mode using HPE OneView, it will suppress unwanted emails and activity alerts for routine server maintenance. This mode is designed to prevent alert storms and unnecessary notifications during planned maintenance activities.

Option A (Correct): Maintenance mode suppresses alerts and notifications for the specified server.

Option B: Server profiles remain assigned; they are not removed during maintenance mode.

Option C: Network and storage connections are not disabled; the server's connectivity remains unchanged unless manually adjusted.

Option D: The server is not repositioned into an isolated network automatically.

A key characteristic of the RoCE (RDMA over Converged Ethernet) network type is that it must be a tagged network. RoCE requires VLAN tagging to segregate traffic and ensure proper delivery of RDMA services over Ethernet networks. Tagging facilitates the identification and handling of RoCE traffic by the network infrastructure.

Option C (Correct): RoCE networks require VLAN tagging to function correctly.

Option A: Quality of Service (QoS) is important for performance but is not enabled by default.

Option B: RoCE networks are not inherently private; they can be configured according to requirements.

Option D: Smart Link is not necessarily enabled for RoCE networks by default.

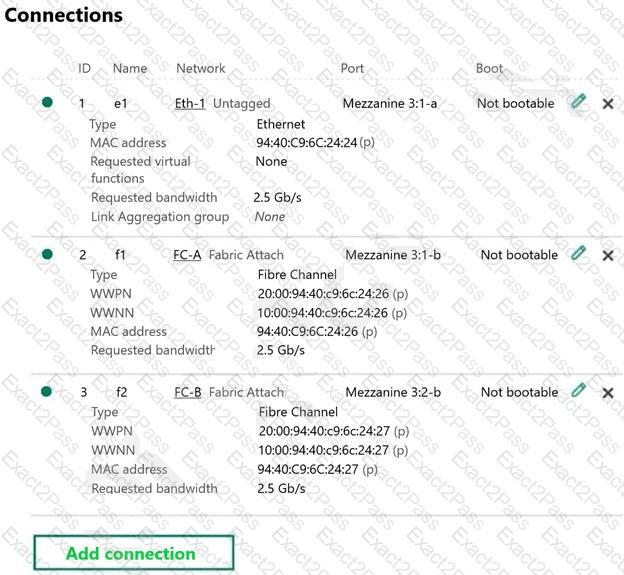

Connections

The network is unavailable for selection because the customer defined more than 1,024 VLANs, and some of them are unavailable. HPE OneView has a limit of 1,024 networks (VLANs) that can be managed within a single instance. If this limit is exceeded, additional networks become unavailable for use in server profiles or network sets.

Option B: Networks that are part of a network set can still be used by compute nodes.

Option C: If a network is not defined in an uplink set within a Logical Interconnect Group, it wouldn't be available at all, not just unavailable for selection.

Option D: Physical connectivity issues would not make the network unavailable for selection within HPE OneView.

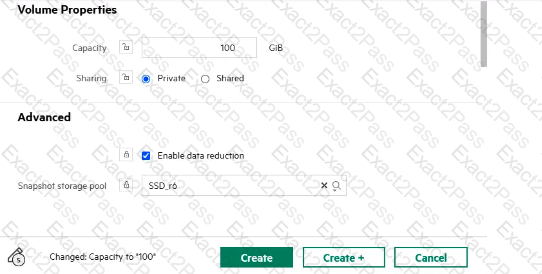

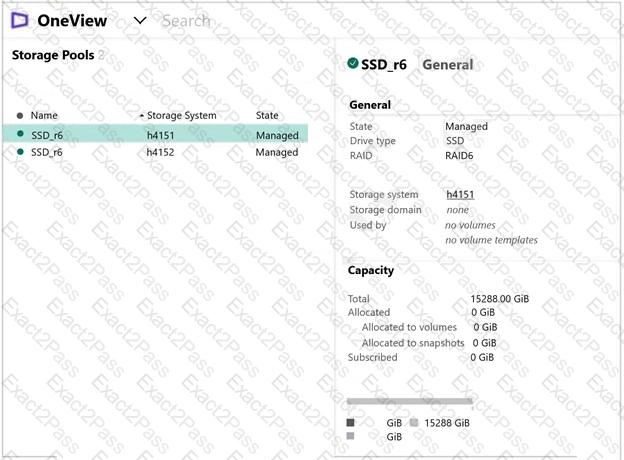

If the desired CPG (Common Provisioning Group) is not available when creating a volume in HPE OneView, you should verify that the CPG was imported as a managed storage pool. In HPE OneView:

Managed Storage Pools: Only storage pools (CPGs) that have been imported and are managed by HPE OneView will be available for provisioning volumes.

Importing Storage Pools: You need to manually import the specific CPG as a managed storage pool within HPE OneView to make it selectable during volume creation.

Steps to Resolve:

Navigate to Storage Systems in HPE OneView.

Select the HPE Primera array in question.

Go to Storage Pools and verify if the CPG is listed.

If not, use the Add Storage Pool option to import the CPG as a managed pool.
