IGMP Version Mismatch

If the IGMP snooping version on the device is earlier than the IGMP version on user hosts, the device may fail to parse IGMP Report messages correctly. As a result, the device forwards these messages only to router ports without generating group member ports or forwarding entries.

Consequently, users cannot receive multicast data.

HCIP-Datacom-Core Reference

Multicast and IGMP snooping behaviors under mismatched conditions are described in the multicast configuration chapters​​.

An IP prefix filter is designed to match both the IP address and its prefix length, making it suitable for filtering routing information rather than data packets. Options A and D are incorrect because IP prefix filters do not work directly on data packets, and they can match both prefix numbers and lengths ​.

According to BGP route selection rules, a higher Local_Pref value indicates a more preferred route. This rule is used to influence traffic flow within an autonomous system (AS), giving preference to routes with a higher Local_Pref for outgoing traffic ​.

Understanding DIS Election in IS-IS:

On an IS-IS broadcast network, a Designated Intermediate System (DIS) is elected to create and update pseudonodes for efficient communication.

The election is based on the following criteria:

DIS Priority: The router with the highest priority is elected as the DIS.

Router ID (tie-breaker): If priorities are equal, the router with the highest Router ID is elected.

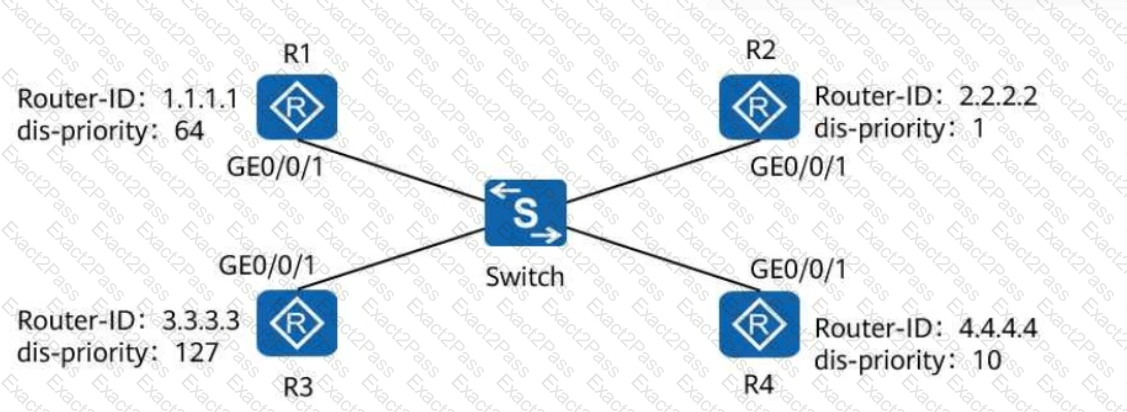

Analyzing the DIS Priorities and Router IDs:

R1: Priority = 64, Router ID = 1.1.1.1

R2: Priority = 1, Router ID = 2.2.2.2

R3: Priority = 127, Router ID = 3.3.3.3

R4: Priority = 10, Router ID = 4.4.4.4

Among the routers, R3 has the highest DIS priority (127), making it the DIS.

Correct Option:

Option B (R3): Correct, as R3 has the highest priority.

Option A (R1): Incorrect, as its priority is lower (64).

Option C (R4): Incorrect, as its priority is lower (10).

Option D (R2): Incorrect, as its priority is the lowest (1).

References:

HCIA-Datacom Study Guide, Chapter: IS-IS DIS Election

Huawei IS-IS Configuration and DIS Role Details

Comprehensive and Detailed in-depth Step-by-Step Explanation:BGP (Border Gateway Protocol) uses specific message types to establish and maintain peer relationships between routers. The primary BGP messages involved during the establishment and maintenance of peer relationships are:

Open (D):

The Open message is the first message sent after a TCP connection is established between BGP peers.

It is used to exchange parameters such as the AS number, BGP version, hold time, and BGP identifier.

Keepalive (A):

After the Open message exchange, Keepalive messages are sent periodically to maintain the BGP session.

These messages confirm that the connection is still alive.

Update (C):

Update messages are used to exchange routing information after the peer relationship is established.

They contain information about network prefixes and their associated path attributes.

Hello (B):

Hello messages are not used in BGP. They are typically used in protocols like OSPF or IS-IS to establish and maintain neighbor relationships.

Thus, the correct answers are A (Keepalive), C (Update), and D (Open).

References:

Huawei HCIA-Datacom Study Guide, Chapter on "BGP Message Types".

RFC 4271 – Border Gateway Protocol 4 (BGP-4).

Comprehensive and Detailed Step-by-Step Explanation:

WAN Definition:

A WAN is a large-scale network spanning a wide geographical area, connecting smaller networks such as LANs and MANs.

Use Cases:

WANs are commonly used for interconnecting campus networks, branch offices, and data centers over long distances.

Correct Statement:

The statement accurately describes the purpose and scope of WANs.

References:

HCIA-Datacom Study Guide, Chapter: WAN Fundamentals

Huawei Networking Basics

 ACL Matching in Huawei Routers:

Access Control Lists (ACLs) are used to filter packets based on specific criteria, such as source/destination IP, ports, or protocols.

When a packet arrives, the Huawei router processes it against the configured ACL rules to decide whether to permit or deny the packet.

Comprehensive and Detailed Step-by-Step Explanation:

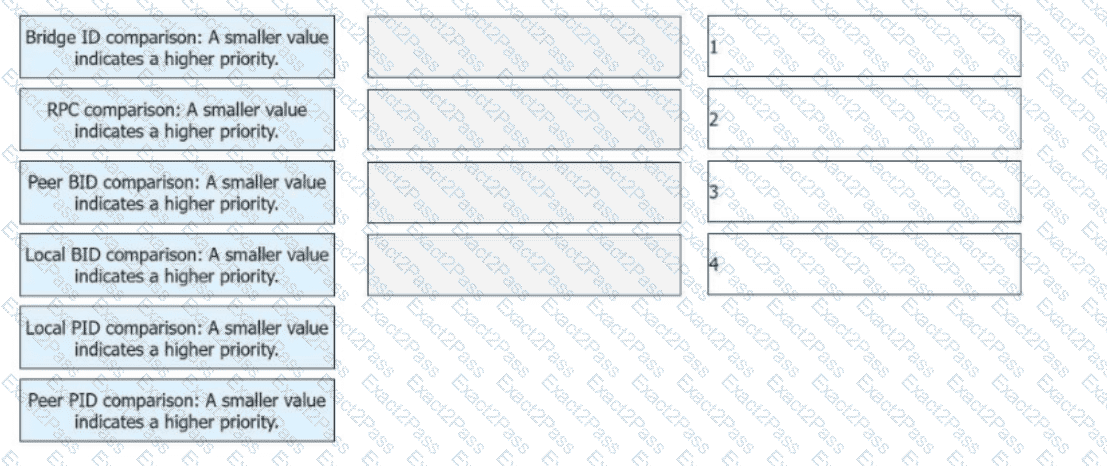

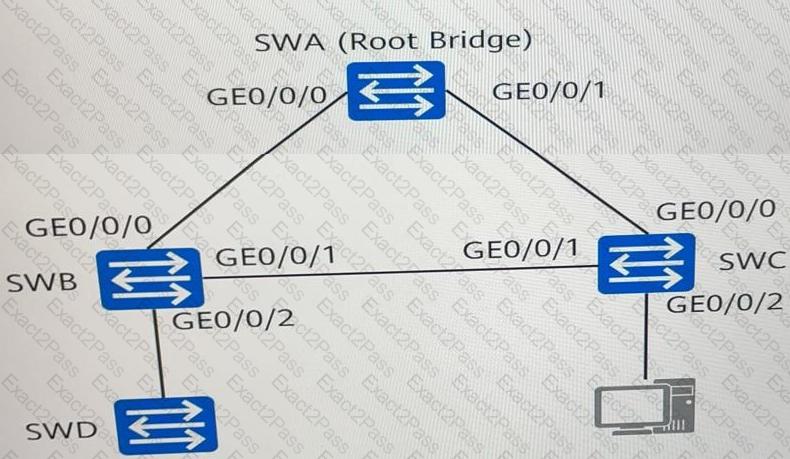

STP and RSTP Behavior:

STP: Only the designated port processes inferior BPDUs. Inferior BPDUs are received from downstream switches and typically indicate topology changes.

RSTP: All ports, regardless of role (root, designated, or alternate), process inferior BPDUs to ensure faster convergence.

Behavior Difference:

RSTP improves convergence by allowing any port to process inferior BPDUs, unlike STP, which restricts this function to designated ports.

References:

HCIA-Datacom Study Guide, Chapter: STP vs RSTP

Huawei STP and RSTP Configuration Comparison

In OSPF, DR and BDR listen on the multicast address 224.0.0.6, while all OSPF routers (including DR others) listen on 224.0.0.5. DR others establish neighbor relationships with DR and BDR, but they do not listen on 224.0.0.6. This makes Option D incorrect, as only DR and BDR use 224.0.0.6 ​.

An OSPF AS-external LSA is used to describe routes to networks that are external to the OSPF Autonomous System (AS). This external route information is typically imported into OSPF by an Autonomous System Boundary Router (ASBR).

If the Forwarding Address field in the AS-external LSA is set to 0.0.0.0, this indicates that traffic destined for the external network should be forwarded directly to the ASBR that advertised the external route.

The specific context mentioned here relates to the Not-So-Stubby Area (NSSA), a type of OSPF area designed to handle AS-external routes in a more controlled way. In NSSAs:

Type 7 LSAs are used to describe AS-external routes.

The ASBR within the NSSA converts the Type 7 LSA to a Type 5 LSA before advertising it to the backbone area.

Hence, the correct acronym for the described functionality is NSSA.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "OSPF Area Types".

RFC 3101 – OSPF Not-So-Stubby Area (NSSA) Option.

Comprehensive and Detailed in-depth Step-by-Step Explanation:In an Intermediate System to Intermediate System (IS-IS) network, a Designated Intermediate System (DIS) is elected on broadcast networks to perform the following functions:

Represent the broadcast network as a pseudonode.

Generate and update the Link State Protocol Data Units (LSPs) for the pseudonode.

The DIS is elected based on the DIS priority value, which is configured on IS-IS interfaces. If two routers have the same priority, the router with the higher MAC address becomes the DIS.

The default DIS priority for IS-IS interfaces is 64, which can be modified depending on the network requirements.

Option A (200): Incorrect. This is not the default value.

Option B (64): Correct. This is the default DIS priority value.

Option C (1): Incorrect. This is not the default value.

Option D (100): Incorrect. This is not the default value.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "IS-IS Basics".

RFC 1195 – Use of OSI IS-IS for Routing in TCP/IP and Dual Environments.

Comprehensive and Detailed Step-by-Step Explanation:

IPv4 Address Classes:

Class D: Reserved for multicast and defined by the first four bits as 1110.

Address range: 224.0.0.0 to 239.255.255.255.

Structure:

Class D does not include a network/host division, as it is designed for group communication rather than device identification.

References:

HCIA-Datacom Study Guide, Chapter: IPv4 Address Classes

Huawei Multicast Configuration Guidelines

Let me continue with the next set of questions!

Comprehensive and Detailed Step-by-Step Explanation:

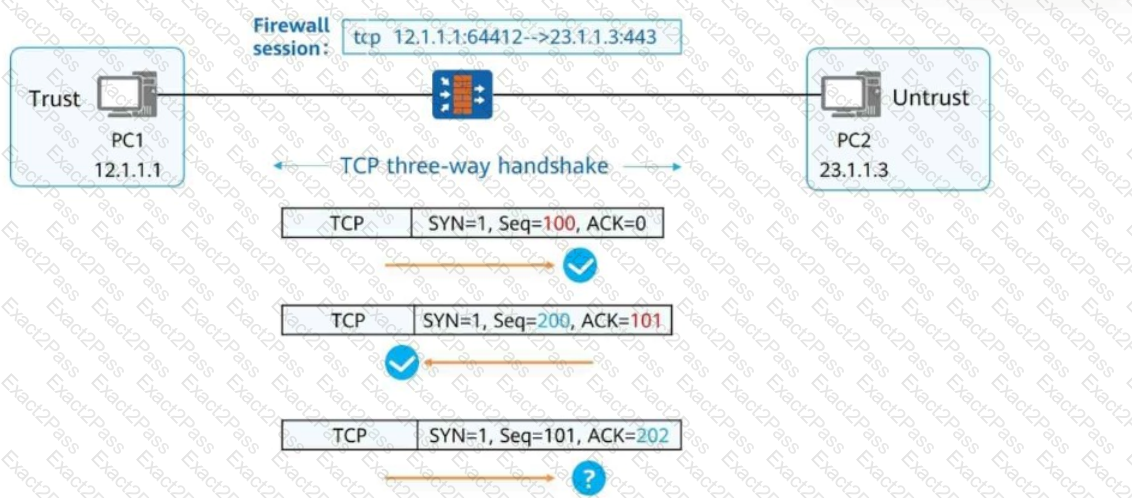

Firewall Session Table:

A session table is used to track active sessions. If a session remains idle for longer than the configured aging time, it is removed to free resources and enhance security.

TCP Session Timeout:

If the interval between two packets exceeds the session timeout, the firewall deletes the session information, requiring the session to be re-established.

References:

HCIA-Datacom Study Guide, Chapter: Firewall Session Management

Huawei Firewall TCP Session Timeout Configuration

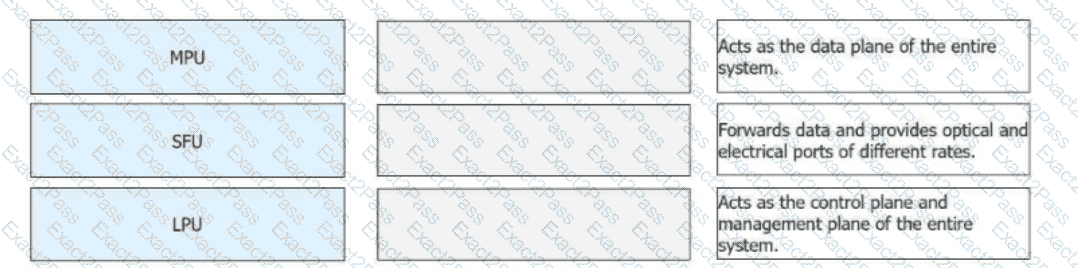

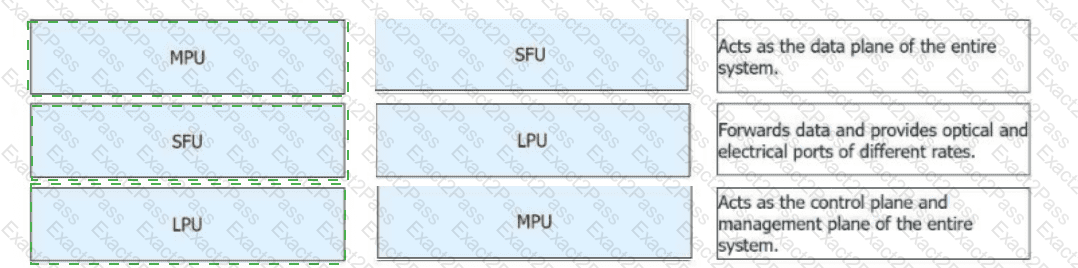

Comprehensive and Detailed in-depth Step-by-Step Explanation:To understand this question, let's first review the functional planes in network devices, particularly Huawei switches:

Control Plane:

The control plane is responsible for generating and maintaining routing tables and forwarding entries.

It uses protocols like OSPF, BGP, and RIP to exchange routing information with other network devices. Once the routing information is processed, it installs forwarding entries into the forwarding plane for actual packet forwarding.

On Huawei switches, the control plane is mandatory for building and updating the forwarding table. Without it, the data plane cannot forward traffic correctly.

Forwarding Plane (or Data Plane):

This plane handles the actual forwarding of packets based on the forwarding table created by the control plane.

The forwarding plane operates at high speed to ensure that traffic flows efficiently.

Monitoring Plane:

This plane is responsible for network management and monitoring. It gathers statistics and provides tools for troubleshooting and visibility.

In this case, the control plane provides the routing information and forwarding entries required for the data plane to perform packet forwarding. Therefore, the correct answer is B. Control plane.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "Switch Architecture and Planes".

Huawei Official Documentation on Switching and Routing Basics.

In an OSPF broadcast or NBMA network with at least two routers, one router must act as the DR (Designated Router), and another as the BDR (Backup Designated Router) to ensure efficient communication and reduce the number of adjacencies. This is a requirement for OSPF operation in such network types ​.

Multi-channel protocols such as H.323 and FTP use separate control and data channels. H.323 uses different channels for call signaling and media streaming, while FTP uses a control channel for commands and a data channel for file transfers. Telnet and SMTP are single-channel protocols ​.

When routes are imported into BGP using the import-route command, the origin attribute is set to incomplete by default. This indicates that the route's origin is not known or is from an external source, as opposed to being explicitly learned through an IGP (IGP) or EGP (EGP) protocol ​.

 OSPF LSA Flooding Mechanism

If a router receives an LSA identical to one already in its LSDB, it does not flood the LSA again unless the LSA has changed (i.e., the sequence number or content has been updated).

OSPF ensures efficient use of bandwidth by avoiding redundant flooding of unchanged LSAs.

 HCIP-Datacom-Core Reference

The OSPF LSDB synchronization process explains that unchanged LSAs are not reflooded, ensuring stability and resource optimization​​.

 LSP Generation in IS-ISIS-IS routers generate new Link State Packets (LSPs) under the following conditions:

Interface Status Changes: When IS-IS interfaces go up or down, the link state changes, triggering LSP updates.

Periodic Updates: IS-IS periodically regenerates LSPs to ensure link-state information remains synchronized across the network.

Interface Metric Changes: Any modification to interface costs results in a new LSP to reflect the updated cost in the network.

 Incorrect Option

C. Inter-area IP routes change is incorrect because IS-IS does not inherently differentiate between areas for LSP generation.

 HCIP-Datacom-Core Reference

IS-IS LSP generation rules are detailed in the IS-IS configuration and implementation chapters​​.

 Transitive vs. Non-Transitive Attributes

The Community attribute is a transitive optional attribute, meaning that if a router receives a route with this attribute and does not understand its purpose, the router retains and propagates it to other peers.

Other options, such as AS_Path and MED, are well-defined mandatory or optional attributes with specific purposes.

 HCIP-Datacom-Core Reference

The behavior of optional transitive attributes is detailed in the BGP protocol and attribute chapters​​.

The summary automatic command in BGP is used to enable automatic summarization of routes, particularly for classful networks. However, manual summarization takes precedence over automatic summarization when both are configured. This makes the statement claiming automatic summarization takes precedence false ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is GRE (Generic Routing Encapsulation)?

GRE is a tunneling protocol that allows the encapsulation of various types of packets (e.g., IPv4, IPv6, multicast, etc.) to be transmitted over another protocol (e.g., IP).

GRE is used to create point-to-point connections over heterogeneous networks.

2. Analysis of Each Option:

Option A: GRE is a Layer 2 VPN encapsulation technology.

Incorrect.

GRE operates at Layer 3 (Network Layer) and encapsulates Layer 3 packets. It is not a Layer 2 VPN encapsulation technology like MPLS or Ethernet-over-IP.

Option B: GRE enables encapsulated data packets to be transmitted over another network layer protocol, but cannot encapsulate multicast data.

Incorrect.

GRE supports the encapsulation and transmission of multicast data packets. This is one of its key features, making it suitable for protocols like OSPF and multicast applications.

Option C: GRE tunnels can work with IPsec to ensure the security of multicast services such as voice and video.

Correct.

GRE by itself does not provide encryption or security. However, GRE can work with IPsec to secure the encapsulated traffic, including multicast data, for services like voice and video.

Option D: GRE tunnels can extend the working range of network protocols with hop limits.

Correct.

GRE encapsulates packets, effectively resetting their hop limits and allowing protocols with limited hop counts (e.g., RIP) to work over larger networks.

3. Summary:

The correct options are C and D.

Comprehensive and Detailed Step-by-Step Explanation:

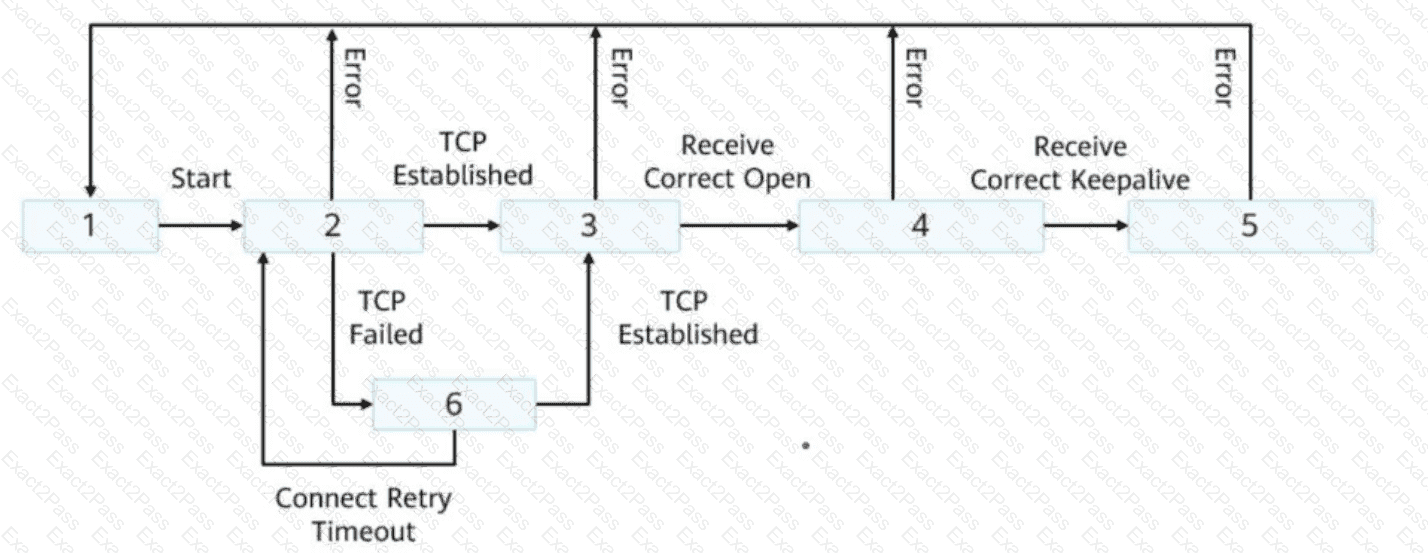

BGP ConnectRetry Timer:

The ConnectRetry timer is used when establishing a TCP connection between BGP peers.

If the connection is successful, the timer is disabled.

If the connection fails, the timer restarts, and the router attempts to reconnect after the timer expires.

Behavior:

This timer prevents excessive connection attempts and ensures efficient resource utilization.

References:

HCIA-Datacom Study Guide, Chapter: BGP Session Establishment

Huawei BGP Timers and Session Management

The MED (Multi-Exit Discriminator) is an optional, non-transitive attribute used to influence the exit path. MED is considered after attributes such as Local-Preference, AS-Path, and Origin during route selection. By default, if a MED value is missing, it is treated as 0 unless the bestroute med-none-as-maximum command is configured to treat it as 4294967295 ​.

Comprehensive and Detailed Step-by-Step Explanation:

DHCP Configuration Issues:

Option C: The DHCP function is disabled by default on Huawei devices. If the administrator forgets to enable it, clients cannot receive IP addresses.

Option D: DHCP uses broadcast messages, which do not traverse routers. If the clients and DHCP server are on different subnets, a DHCP relay agent must be configured.

Other Options:

Option A: Multiple DHCP servers can coexist as long as their IP address pools do not overlap. This is unlikely to cause the problem.

Option B: STP does not affect DHCP operations unless it delays port activation, which is uncommon in this scenario.

References:

HCIA-Datacom Study Guide, Chapter: DHCP Configuration and Troubleshooting

Huawei DHCP Relay Agent Configuration

Comprehensive and Detailed Step-by-Step Explanation:

1. IPv6 and Neighbor Discovery Protocol (NDP):

In IPv4, a host uses ARP (Address Resolution Protocol) to map an IP address to a MAC address for communication.

In IPv6, ARP is not used. Instead, IPv6 uses the Neighbor Discovery Protocol (NDP) for address resolution.

2. Why the Statement is FALSE:

IPv6 does not use ARP for resolving link-layer addresses.

IPv6 uses NDP, which operates through ICMPv6 messages to perform the equivalent function.

3. Summary:

The statement is FALSE because IPv6 uses NDP, not ARP, to obtain the link-layer address of the destination host.

BGP routes have a variety of path attributes that describe their characteristics and influence route selection. These attributes include well-known mandatory attributes like AS-PATH and NEXT-HOP, as well as optional attributes like MED and LOCAL_PREF.

In Huawei devices, there is a Huawei-specific attribute called "preference", which is a local parameter used to influence BGP route selection on the device.

Key Characteristics of "preference":

It is valid only locally on the router.

It is not shared with BGP peers.

It helps the router determine the best route when multiple routes exist for the same prefix.

It appears in the BGP routing table output in lowercase as preference.

Thus, the correct answer is preference (entered in lowercase as required).

References:

Huawei HCIA-Datacom Study Guide, Chapter on "BGP Attributes".

Comprehensive and Detailed in-depth Step-by-Step Explanation:The Network Entity Title (NET) is a unique identifier assigned to an IS-IS router. It is derived from the Network Service Access Point (NSAP) address and consists of the following components:

Area Address:

Identifies the area in which the router resides.

Multiple routers in the same IS-IS area must have the same area address.

System ID:

Uniquely identifies the router within the IS-IS area.

The System ID is typically derived from the router's loopback IP address or another unique value.

SEL (Selector Field):

The SEL field is always set to 00 for IS-IS NETs.

The NET is used by IS-IS for route calculation and to identify the router within the IS-IS domain. Therefore, the statement is TRUE.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "IS-IS Addressing".

RFC 1195 – Use of OSI IS-IS for Routing in TCP/IP and Dual Environments.

 ACL in Routing Policies

ACLs are frequently used in routing policies to match specific routes based on criteria such as source IP, destination IP, and more. This allows ACLs to influence route redistribution, filtering, and forwarding decisions.

 HCIP-Datacom-Core Reference

ACL applications in routing policies are discussed in the routing policy chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

Definition of Link Aggregation:

Link aggregation combines multiple physical links into a single logical link to improve bandwidth and reliability.

Advantages of Link Aggregation:

Load Balancing (A): Traffic is distributed across all aggregated links to improve performance.

Improved Reliability (B): If one link fails, traffic is rerouted through other links.

Increased Link Bandwidth (C): Bandwidth is effectively the sum of all aggregated links.

Incorrect Option:

Route Backup (D): Route backup is a feature of routing protocols, not link aggregation.

References:

HCIA-Datacom Study Guide, Chapter: Link Aggregation Fundamentals

Huawei Link Aggregation Configuration

In asynchronous mode, two devices exchange BFD Control packets to monitor connectivity. However, this mode does support the echo function, which tests bidirectional paths by sending packets that loop back to the origin. This statement is incorrect. Demand mode, on the other hand, minimizes the control packet exchange, relying on periodic echo packets if configured. Huawei's BFD configuration guides emphasize these distinctions ​.

GRE (Generic Routing Encapsulation) is not a Layer 2 VPN technology. Instead, it is a Layer 3 tunneling protocol used to encapsulate a wide variety of network layer protocols inside point-to-point connections. GRE is commonly used for creating VPN tunnels across IP networks, allowing for the transport of various types of payloads. This misunderstanding about GRE being a Layer 2 technology contradicts its definition and typical application ​.

The information provided indicates that the configured query interval is 60 seconds, which applies to general queries. Group-specific queries are sent at a shorter interval, usually derived from the maximum response time. Therefore, the statement about a 60-second interval for group-specific queries is false. Other statements regarding maximum response time (10s), IP address, and IGMP version (V2) are correct ​.

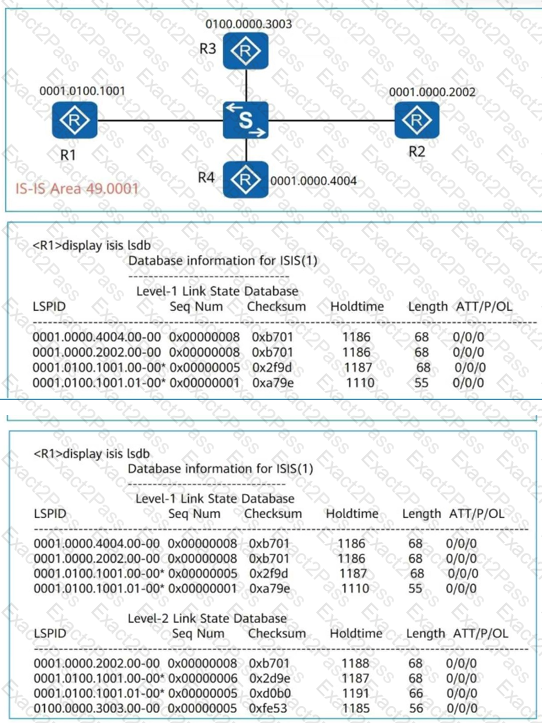

Understanding the LSDB and Level-2 DIS Election in IS-IS:

In IS-IS, the Designated Intermediate System (DIS) is elected for both Level-1 and Level-2 on broadcast networks to manage the link-state database (LSDB) and reduce the number of LSAs exchanged.

The election of the DIS is based on the highest priority. If the priority is the same, the router with the highest System ID becomes the DIS.

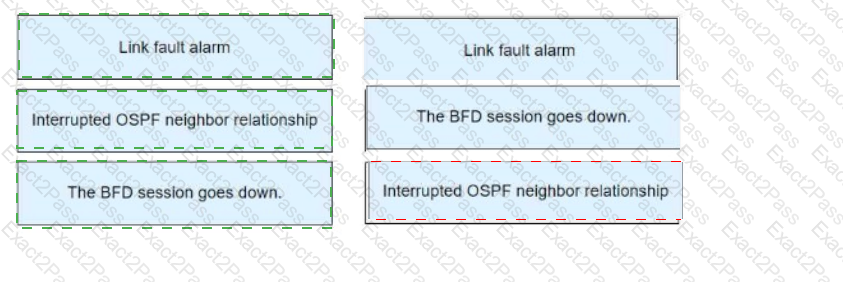

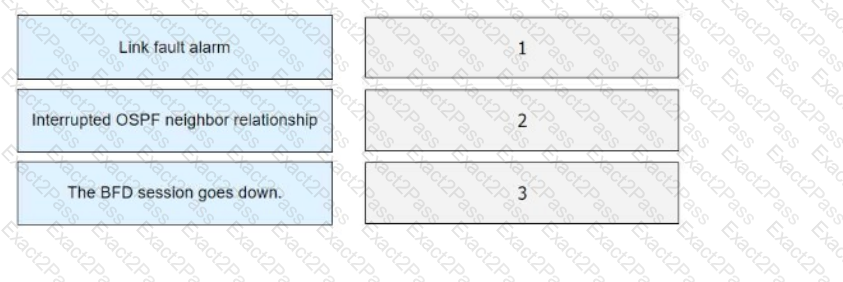

 Link fault alarm

 The BFD session goes down.

 Interrupted OSPF neighbor relationship

Understanding DHCPv6:

DHCPv6 (Dynamic Host Configuration Protocol for IPv6) is used to assign configuration parameters to IPv6 clients.

It supports both stateful and stateless modes:

Stateful: Assigns IPv6 addresses and other configuration parameters.

Stateless: Assigns only configuration parameters (e.g., DNS server) without providing IPv6 addresses.

Comprehensive and Detailed in-depth Step-by-Step Explanation:In IS-IS, the interface cost is a metric used to determine the best path to a destination. Lower-cost paths are preferred over higher-cost paths. By default, IS-IS interface costs can range from 1 to 63.

Default Cost Range:

IS-IS allows the configuration of interface costs within the range of 1–63 by default. This range is sufficient for most networks.

Maximum Configurable Cost:

The maximum value that can be configured by default is 63. If there is a requirement for a higher cost range, the metric-style can be changed to wide, which allows the cost range to extend beyond 63.

Option A (67): Incorrect. 67 is not the maximum default value.

Option B (63): Correct. This is the maximum default cost value.

Option C (64): Incorrect. This is beyond the default range.

Option D (68): Incorrect. This is beyond the default range.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "IS-IS Cost and Route Selection".

RFC 5308 – Routing IPv6 with IS-IS.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding IGMP Version Compatibility:

IGMP (Internet Group Management Protocol) supports multiple versions, such as IGMPv1, IGMPv2, and IGMPv3.

A device running a later version of IGMP is backward-compatible and can identify Report messages from earlier versions.

However, a device running an earlier version of IGMP cannot recognize the newer features or formats of later IGMP versions.

2. Best Practice:

To avoid compatibility issues, the IGMP version configured on the switch should be the same as or later than the version used by the member hosts in the network.

3. Why the Statement is TRUE:

The statement is correct because it describes the compatibility behavior of IGMP versions and advises setting the switch IGMP version appropriately.

Comprehensive and Detailed Step-by-Step Explanation:

Default OSPF Hello Timer:

The OSPF Hello timer is used to send periodic Hello packets and maintain neighbor relationships.

Default Hello timers:

Broadcast and P2P: 10 seconds

NBMA and P2MP: 30 seconds

Network Types Using 30s Hello Time:

P2MP (C): OSPF sends Hello packets every 30 seconds by default.

NBMA (D): OSPF also uses 30 seconds for NBMA networks.

References:

HCIA-Datacom Study Guide, Chapter: OSPF Network Types

Huawei OSPF Timer Configuration

BFD control packets are encapsulated in UDP packets, and the destination port number for multi-hop BFD control packets is 4784. This is a standardized port for multi-hop BFD operation ​.

Comprehensive and Detailed Step-by-Step Explanation:

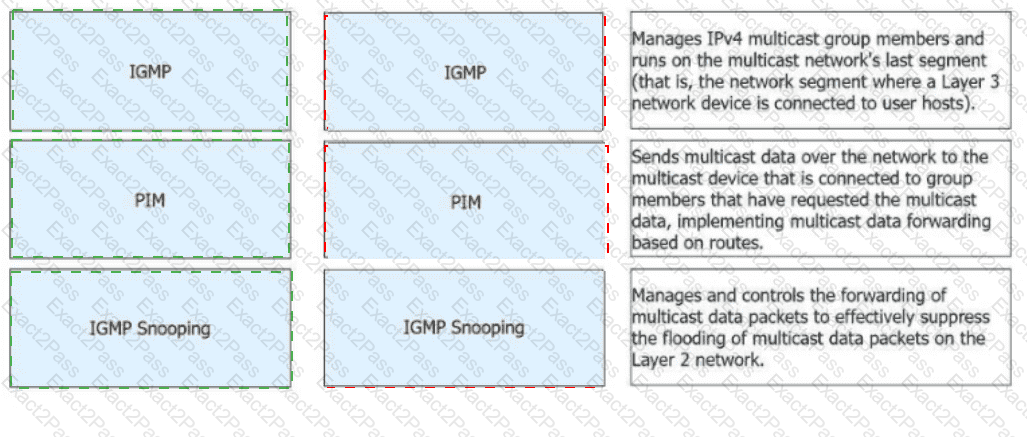

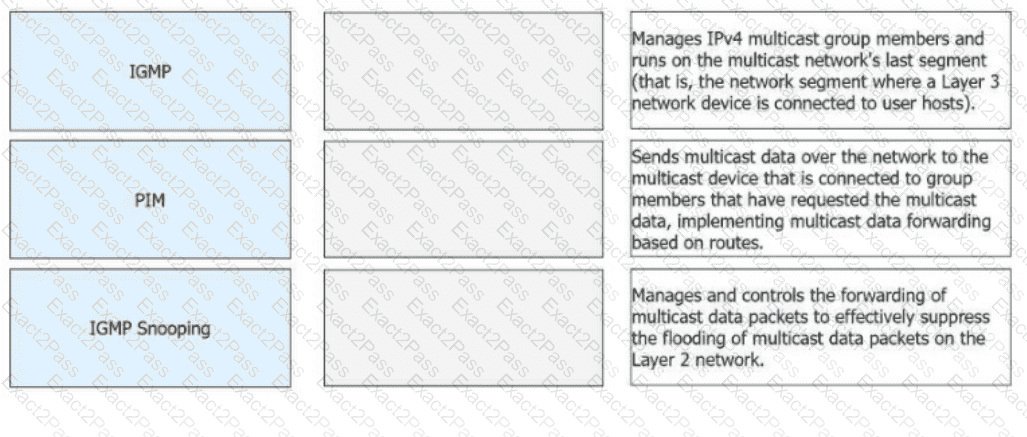

1. Understanding IGMP (Internet Group Management Protocol):

IGMP is used in multicast networking to manage membership of devices in multicast groups.

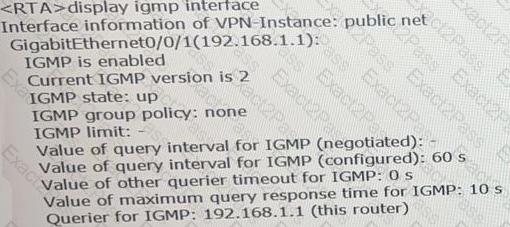

Key parameters in the configuration provided:

Interface IP Address: 192.168.1.1

IGMP Version: 2

Query Interval (Configured): 60 seconds

Maximum Query Response Time: 10 seconds

Querier Address: 192.168.1.1

2. Analysis of Each Statement:

Option A: The IP address of the interface is 192.168.1.1.

Correct (True Statement).

The configuration clearly shows that the IP address of the interface is 192.168.1.1.

Option B: The maximum response time to Query messages is 10s.

Correct (True Statement).

The configuration explicitly mentions: Value of maximum query response time for IGMP: 10 s.

Option C: The interval for sending Group-Specific Query messages is 60s.

Incorrect (False Statement).

The 60-second value refers to the query interval, which is the time interval between general queries sent by the querier.

The interval for group-specific queries is not specified in this configuration. It is determined dynamically based on the multicast environment and is usually shorter than the general query interval.

Option D: The IGMP version is IGMPv2.

Correct (True Statement).

The configuration specifies: Current IGMP version is 2.

3. Why Option C is False:

The 60-second value is for general query interval, not group-specific query interval.

The statement misinterprets the configuration, making it false.

4. Summary:

Correct Answer: C (The interval for sending Group-Specific Query messages is 60s).

 Understanding BGP Route Summarization:

In Border Gateway Protocol (BGP), route summarization is a technique used to aggregate multiple specific prefixes into a broader summary prefix. This reduces the size of routing tables and improves routing efficiency.

Summarization helps to hide unnecessary details from other parts of the network while still maintaining connectivity.

1. Understanding Prefix List Configuration:

The command ip ip-prefix huawei index 10 permit 10.1.1.0 24 greater-equal 26 defines a prefix filter:

The base prefix is 10.1.1.0/24.

The greater-equal 26 condition specifies that the mask length of matching prefixes must be at least 26 bits.

If the less-equal parameter is not explicitly defined, the default value is 32, meaning the longest possible mask length for IPv4.

2. Explanation of Values:

greater-equal-value: Specifies the minimum mask length. In this case, the value is 26.

less-equal-value: Specifies the maximum mask length. Since it is not explicitly configured, the default value is 32.

3. Summary:

greater-equal-value = 26

less-equal-value = 32

In the IS-IS protocol, TLV 129 (IPv4 interface address) is used to describe the IP address of an interface. Each TLV type carries specific information, and TLV 129 specifically relates to interface IP addresses ​.

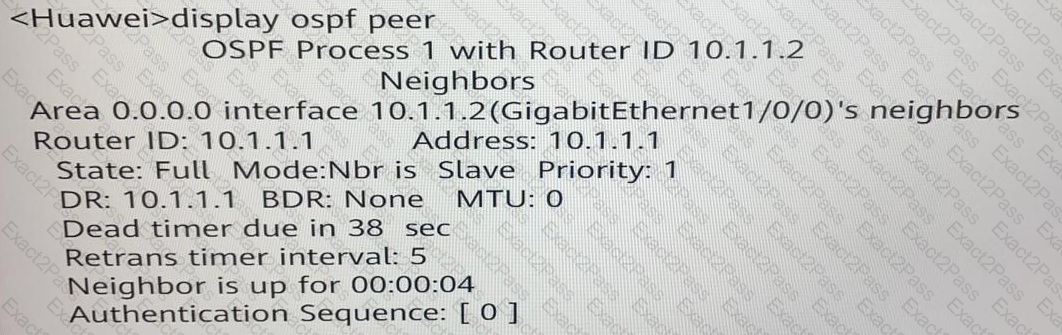

The command output indicates that the OSPF neighbor state is Full and that the neighbor relationship has been established. The statement confirms that the negotiation process during the exchange of DD (Database Description) packets has determined the role of the router, with the local device becoming the slave in the Master-Slave relationship, which is critical for LSA synchronization. The other options do not align with the output or OSPF principles ​

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of the OSPF Neighbor State:

Router ID 10.0.5.5:

On interface 10.0.235.2 (GigabitEthernet0/0/1), the neighbor state is Full, indicating that adjacency is established.

The Designated Router (DR) is 10.0.235.5, which is the same as the neighbor's address.

Router ID 10.0.4.4:

On interface 10.0.24.2 (Serial1/0/1), the neighbor state is also Full, meaning adjacency is established.

The DR/BDR election status shows None, indicating that the interface is on a point-to-point link where DR/BDR election does not apply.

Validation of Each Option:

Option A: Correct. The DR IP address is explicitly shown as 10.0.235.5.

Option B: Correct. The neighbor state for both 10.0.5.5 and 10.0.4.4 is Full, confirming adjacency is established.

Option C: Incorrect. DR/BDR elections are irrelevant on point-to-point links like Serial1/0/1.

Option D: Correct. The Router IDs of R2's neighbors are explicitly listed as 10.0.5.5 and 10.0.4.4.

References:

HCIA-Datacom Study Guide, Chapter: OSPF Neighbor Relationships

Huawei OSPF Neighbor and Adjacency Details

Routing policies are used to control how routes are imported, advertised, or received. Policy-Based Routing (PBR) is used to forward packets based on policies, bypassing the routing table. Routing policies are not used for packet forwarding ​.

Inter-area route calculation in OSPF involves Summary LSAs (Type 3) for summarizing routes across areas and ASBR Summary LSAs (Type 4) for locating ASBRs. While Router LSAs and Network LSAs describe the internal structure of an area, they do not directly participate in inter-area route calculation. Thus, the statement that only Router, Network, and Summary LSAs are involved is false ​.

 MQC and PBR

MQC (Modular QoS Command-Line Interface): Applied to interfaces for classifying and controlling traffic.

PBR (Policy-Based Routing): Used to influence packet forwarding based on policies rather than traditional routing tables.

Both MQC and PBR can be configured on device interfaces to filter incoming/outgoing packets or control their forwarding paths.

 HCIP-Datacom-Core Reference

The use of MQC and PBR on device interfaces is elaborated in the QoS and routing control chapters​​.

 GRE Characteristics

GRE does not inherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B. Supports multicast transmission.

C. Acts as a Layer 3 VPN encapsulation technology.

D. Can work with VPN protocols like IPsec for better security.

 HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters​​.

Router LSAs (Type 1) and Network LSAs (Type 2) are advertised only within a single OSPF area, as they describe the topology within the area. In contrast, Summary LSAs (Type 3) and AS External LSAs (Type 5) are used for inter-area and external routing, respectively ​.

IGMPv1 supports general queries but does not define a Leave message. IGMPv2 introduces the Leave message type, which allows hosts to notify routers when they wish to leave a multicast group, improving efficiency. These distinctions align with the functionality of IGMP versions ​.

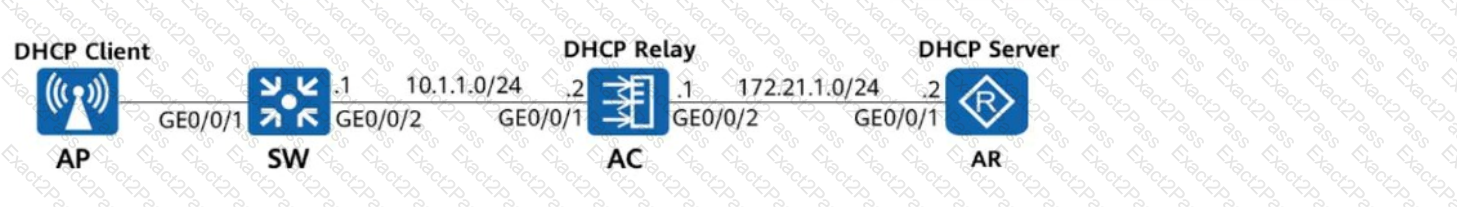

Option A correctly configures the DHCP relay agent (AC) to forward requests to the DHCP server using VLAN 10.Option B correctly configures the DHCP server (AR) with the correct IP pool (10.1.1.0/24), gateway, and excluded IP addresses. The static route to 10.1.1.0 through 172.21.1.1 ensures proper routing ​.

=========

 IS-IS Interface Types

IS-IS interfaces are categorized based on physical link characteristics:

Point-to-Point (P2P): Direct connections between two routers.

Broadcast: Shared medium networks where multiple routers communicate.

 Incorrect Options

C. P2MP and D. NBMA are not standard interface classifications in IS-IS.

 HCIP-Datacom-Core Reference

IS-IS physical link classifications are elaborated in IS-IS link configuration sections​​.

Secure access channels include protocols that encrypt the transmitted data to protect against interception or unauthorized access. HTTPS (HyperText Transfer Protocol Secure) ensures data encryption over web communications, while SFTP (Secure File Transfer Protocol) provides secure file transfer by utilizing SSH for data encryption. Telnet and SNMPv2, on the other hand, lack robust encryption and are considered insecure. Huawei security standards highlight the importance of encrypted communication to prevent data leaks ​.

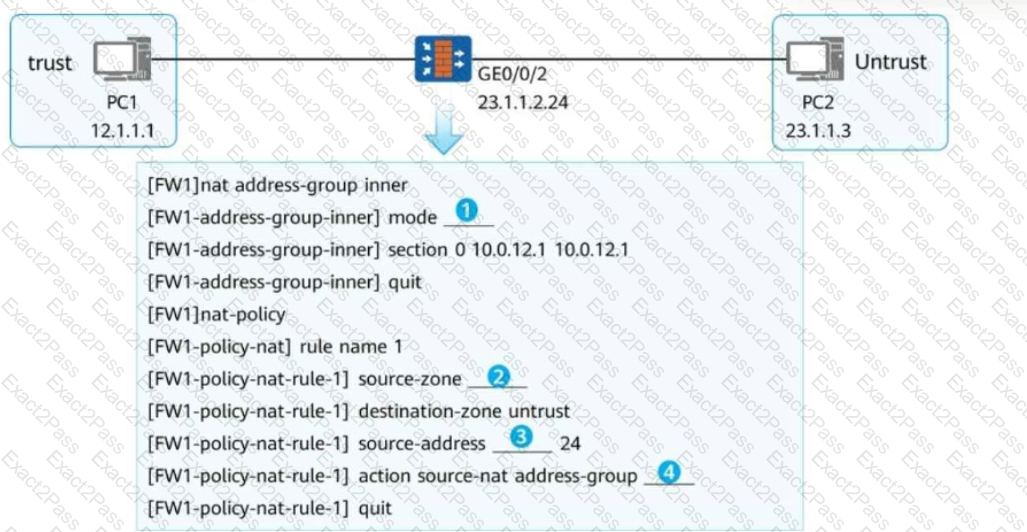

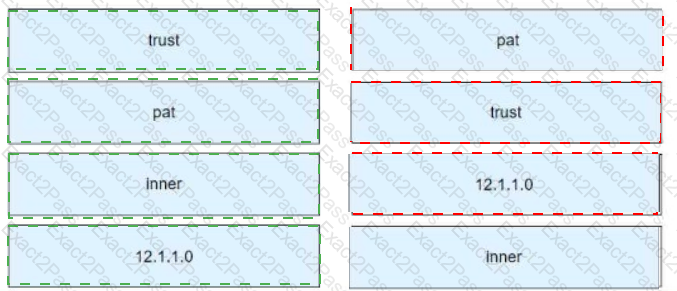

 pat

 trust

 12.1.1.0

 inner

Comprehensive and Detailed Step-by-Step Explanation:

Multi-Channel Protocols:

Multi-channel protocols use separate channels for control and data communication, requiring application-specific packet filtering (ASPF) to track sessions.

Examples:

FTP (A): Uses separate control and data channels.

SIP (B): Uses multiple ports for signaling and media.

H.323 (D): A VoIP protocol using multiple channels.

Single-Channel Protocol:

SMTP (C): A single-channel protocol for email communication, which does not require ASPF.

References:

HCIA-Datacom Study Guide, Chapter: Firewall ASPF Configuration

Huawei Multi-Channel Protocol Handling

The LS age field in OSPF LSAs (Link State Advertisements) is measured in seconds and increments over time in the Link State Database (LSDB). If the LS age reaches the LSRefreshTime (30 minutes), the router that originated the LSA must regenerate it to keep the LSA valid in the network. Options C and B are incorrect since LS age does not decrease, and only the originator regenerates LSAs ​.

 Understanding Router ID and Its Role in OSPF:In OSPF, the Router ID uniquely identifies a router within the OSPF domain. If two routers are configured with the same Router ID, it can lead to issues such as LSA conflicts and flapping. This is because the Router ID is used as a key in OSPF operations, including LSA generation and database synchronization.

One multicast MAC address maps to 32 multicast IP addresses due to the limited number of bits used in the mapping process. Specifically, the lower 23 bits of the MAC address map to the lower 23 bits of the multicast IP address, while the high 24 bits of the MAC address are fixed as 0x01005E. Thus, Option B is false ​.

 Export Routing Policy Changes

When an export routing policy is modified, BGP does not automatically resend affected routes. Manual intervention, such as a clear ip bgp command, is required to resend Update messages reflecting the new policy.

 Incorrect Options

B. IGP routes can also be advertised into BGP using redistribution, not just the network command.

C. A router can be configured with multiple BGP processes using different AS numbers (multi-instance BGP).

D. Open messages carry additional parameters such as AS number, Hold Time, and Router ID, not just the header.

 HCIP-Datacom-Core Reference

BGP policy and update behavior are detailed in the route control and redistribution chapters​​.

In the PIM protocol, Register Stop and Graft messages are sent with unicast destination addresses, typically to specific neighbors or RP (Rendezvous Point) routers. Other messages like Bootstrap and Assert use multicast addresses for broader dissemination across the network ​.

 Neighbor Discovery Protocol (NDP):

NDP is a key protocol in the IPv6 protocol suite, replacing ARP (Address Resolution Protocol) in IPv4.

It operates using ICMPv6 (Internet Control Message Protocol for IPv6) and is critical for managing interactions between IPv6 nodes on the same link.

The asbr-summary command is executed in the global OSPF view to summarize external routes. The abr-summary command is executed in the OSPF area view to summarize routes between areas. By default, the advertise parameter is enabled unless explicitly overridden by the not-advertise option ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the Prefix List Configuration:

The command ip ip-prefix test index 10 permit 10.0.0.0 8 less-equal 32 defines the following:

The prefix base is 10.0.0.0 with a mask length of 8 bits.

The less-equal 32 condition allows routes with mask lengths ranging from 8 to 32 bits to match.

2. Analysis of Each Route:

Option A: 10.1.1.1/32

Correct.

The prefix 10.1.1.1/32 falls within the 10.0.0.0/8 network range and has a mask length of 32 bits, which satisfies the less-equal 32 condition.

Option B: 10.1.1.0/6

Incorrect.

The prefix 10.1.1.0/6 has a mask length of 6 bits, which is shorter than the base prefix length of 8. It does not satisfy the condition.

Option C: 10.1.1.0/24

Correct.

The prefix 10.1.1.0/24 falls within the 10.0.0.0/8 network range and has a mask length of 24 bits, which satisfies the less-equal 32 condition.

Option D: 10.0.0.0/16

Correct.

The prefix 10.0.0.0/16 falls within the 10.0.0.0/8 network range and has a mask length of 16 bits, which satisfies the less-equal 32 condition.

3. Summary:

The prefixes that match the configuration are 10.1.1.1/32, 10.1.1.0/24, and 10.0.0.0/16.

Application Specific Packet Filtering (ASPF) is a feature that allows the firewall to understand and handle multi-channel protocols such as FTP, H.323, and SIP. ASPF inspects the control channel to dynamically create temporary rules for the data channels, enabling the firewall to secure and manage complex application protocols. This feature ensures that appropriate security policies are applied to these multi-channel applications ​.

OSPF routers refresh and flood LSAs in the Link-State Database (LSDB) every 30 minutes by default to maintain topology consistency. OSPF does not rely on TCP; it uses its own acknowledgment mechanism. It also uses the Dijkstra algorithm, not Bellman-Ford. The flooding interval for LSU packets is shorter, typically 5 seconds ​.

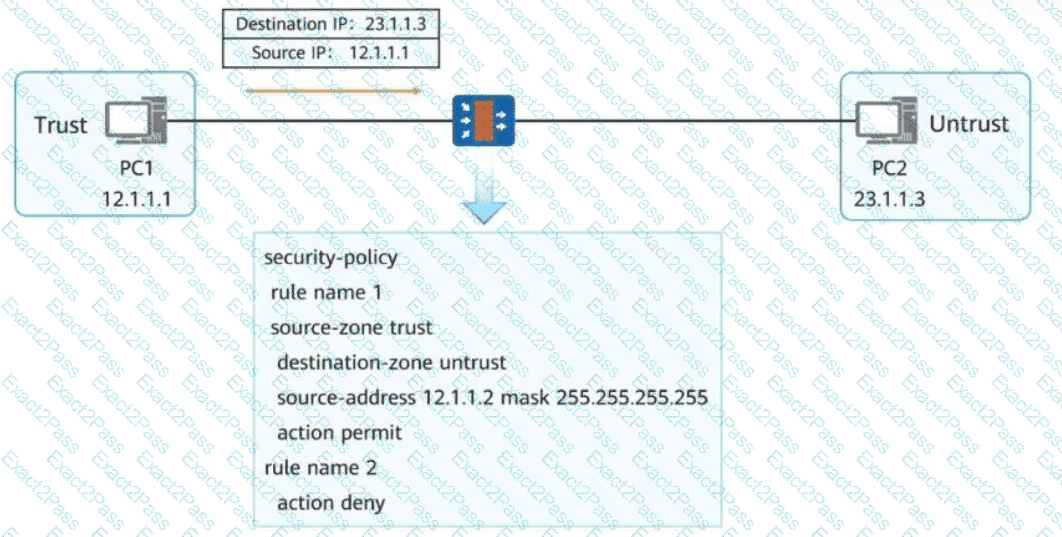

A stateful inspection firewall tracks the state of active connections. If a packet matches an existing session in the firewall's state table, it is allowed to pass. The diagram indicates that the TCP packet matches the session state, so the firewall forwards it ​.

The scenario describes a mismatch in OSPF network types between two connected routers: one set to Point-to-Point (P2P) and the other set to Point-to-Multipoint (P2MP). While aligning Hello intervals may seem sufficient for establishing an OSPF neighbor relationship, the fundamental mismatch in network types introduces issues.

OSPF Network Types

P2P: Assumes a direct connection with a single neighbor, uses faster convergence and simpler LSDB synchronization.

P2MP: Supports multiple neighbors on a single interface, requiring different handling for DR/BDR roles and LSDB updates.

Impact of Network Type Mismatch

If Hello intervals are aligned, adjacency establishment might occur. However, mismatched network types affect neighbor role assignment and LSDB synchronization.

P2P expects a direct link and would handle updates differently than P2MP, which assumes multiple neighbors. This leads to inconsistencies in route calculation and forwarding.

HCIP-Datacom-Core Reference

OSPF Basics and Configuration​clearly outlines the criticality of consistent network type configuration for stable OSPF operation.

Lab examples in the HCIP Datacom Lab Guide​further demonstrate the consequences of such mismatches, including unstable neighbor states and incomplete LSDB synchronization.

Hence, the statement that neighbor relationships and LSDB synchronization remain unaffected is incorrect. Proper OSPF operation requires matching network types in addition to aligned Hello intervals.

Policy-Based Routing (PBR) on interfaces is used to forward traffic based on specific policies rather than the routing table. However, PBR is not suitable for modifying the next-hop of locally originated traffic. Other scenarios listed are typical use cases for interface PBR ​.
