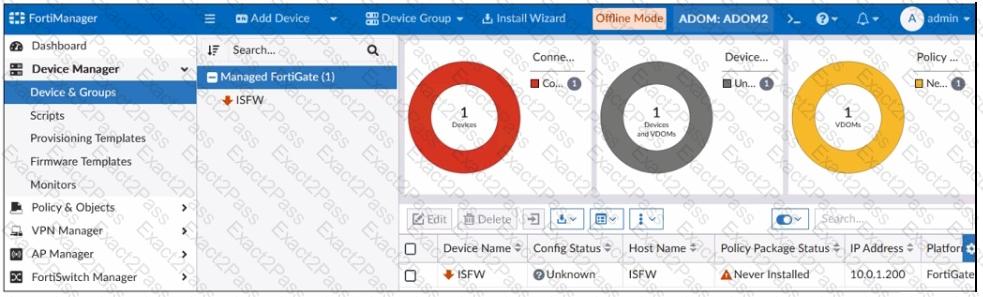

To create and install a policy on a FortiGate device in an ADOM (Administrative Domain) that is in backup mode, the administrator must use a FortiManager script. This is because backup mode restricts direct configuration changes, and scripts can be used to push specific configuration changes without altering the ADOM mode.

Options A, C, and D are incorrect because:

A requires the ADOM to be in normal or advanced mode to create policies directly in the Policy & Objects section.

C suggests disabling offline mode, which is irrelevant to the backup mode configuration.

D implies changing the ADOM mode, which is unnecessary if using a script to perform the task.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Working with ADOMs and Using Scripts for managing policies in backup mode.

The objects highlighted in the image (DMZ_SUBNET, ISP1_SUBNET, LAN_SUBNET) aremetadata variables.

C.They can be used as variables in scripts.

These metadata variables are placeholders that can be used in FortiManager scripts to dynamically insert specific values, enabling script flexibility and scalability across multiple devices or ADOMs.

Options A, B, and D are incorrect because:

Asuggests optional or required settings, which do not apply to metadata variables.

Bimplies they are available across all ADOMs by default, which is not always the case.

Dstates they cannot be created in the global database ADOM, but metadata variables are typically managed within ADOMs and can be utilized globally based on specific configurations.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Using Metadata Variables and Script Management.

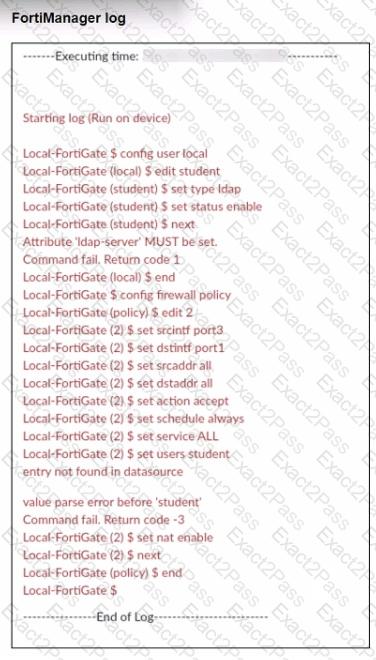

From the log provided in the exhibit, several conclusions can be drawn regarding the installation of Policy ID 2:

The installation process fails when attempting to set theLDAP user "student". The log shows:

"Attribute 'ldap-server' MUST be set.": This error indicates that when setting up the LDAP user configuration, a mandatory field (ldap-server) is missing. As a result, the configuration could not be completed for the user.

"entry not found in datasource"and"value parse error before 'student'": These errors confirm that the user "student" could not be properly added due to a configuration issue (such as the missing LDAP server).

Because of these errors, while other configuration elements (such as source and destination interfaces, actions, and services) are properly set, the user configuration for"student"isnot applied.

Evaluation of the answer options:

A. Policy ID 2 is installed in the disabled state.

This isfalse. There is no indication in the log that Policy ID 2 is disabled.

B. Policy ID 2 is installed without the remote user student.

This istrue. Due to the failure in setting the"student"user (as indicated by the errors), the policy will be installedwithoutthat user being properly configured.

C. Policy ID 2 will not be installed.

This isfalse. The policy is installed, but the user configuration failed. The rest of the policy configuration appears to have proceeded without critical errors that would prevent the installation.

D. Policy ID 2 is installed without a source address.

This isfalse. The log shows that the source address is properly set to "all" (set srcaddr all), so this is not the cause of the issue.

From the log exhibit, we see errors related to the "ldap-server" attribute not being set and an error with the entry "student" not being found in the datasource. This indicates that Policy ID 2 will not be installed due to missing or incorrect data required for successful installation. The "Command fail. Return code -3" confirms the installation failure, so the correct answer is C.

Options A, B, and D are incorrect because:

A suggests the policy is installed in a disabled state, which isn't supported by the log.

B and D suggest partial installation, but the error messages indicate a complete failure to install Policy ID 2.

FortiManager References:

Refer to FortiManager 7.4 Troubleshooting Guide: Common Errors and Log Interpretation.

In the context of the FortiManager JSON API, thesetmethod is used tocreate new objectsoroverwrite existing ones. The API allows administrators to manage FortiManager and its associated devices by automating tasks like configuration changes, policy updates, and object creation.

Explanation of Options:

A. Set:

This istrue. Thesetmethod is used to create a new object if it does not exist or overwrite an existing object if it already exists. This method is frequently used in API requests to configure settings and apply changes on FortiManager.

B. Add:

This isfalse. Theaddmethod is used to add new objects without overwriting any existing ones. It is used when you want to create a new entry and ensure it doesn't conflict with or replace an existing object.

C. Exec:

This isfalse. Theexecmethod is used to execute specific actions or commands, rather than creating or modifying objects. This is typically used for actions like running scripts or executing operational commands on FortiManager or FortiGate.

D. Update:

This isfalse. While "update" might seem relevant, FortiManager's API does not specifically use an "update" method for modifying or creating objects. Thesetmethod serves that function by both creating new objects and overwriting existing ones.

Option A: Policy ID 1 is configured from the interface any to port6. FortiManager rejects the request to import this policy because the any interface does not exist on FortiManager.This is the correct answer. FortiManager fails to import firewall policy ID 1 because it cannot map the "any" interface to a valid interface in its ADOM database. The error indicates that there is a binding failure due to an interface mismatch.

Explanation of Incorrect Options:

Option B: Policy ID 1 for this managed FortiGate already exists on FortiManager in the policy package named Remote-FortiGateis incorrect because the error is related to interface mapping, not a duplicate policy ID.

Option C: Policy ID 1 has an address object that already exists in the ADOM database with any as the interface association and conflicts with the address object interface association locally on FortiGateis incorrect because the error specifies an interface issue, not an address object conflict.

Option D: Policy ID 1 does not have the ADOM Interface mapping configured on FortiManageris incorrect because the error directly mentions a binding failure due to the "any" interface.

FortiManager References:

For more information, refer to the "Device Manager" section and "Configuration Import and Mapping" in the FortiManager Administration Guide.

The characteristic of the FortiManager high availability (HA) feature is that the primary unit synchronizes all configuration revisions with the secondary units. This ensures that all devices in the HA cluster are up-to-date with the same configurations, providing redundancy and failover capabilities.

Options A, C, and D are incorrect because:

Arefers to a specific port number (5199), but FortiManager does not specifically use TCP port 5199 to update managed devices when a secondary unit is removed.

Cis incorrect as secondary units do not necessarily have to be in the same network as the primary unit; they just need to be able to communicate with each other.

Dis incorrect because HA upgrades can be automated and do not require manual upgrading, starting with the primary unit.

FortiManager References:

Refer to FortiManager 7.4 High Availability (HA) Guide: HA Synchronization and Configuration.

When a FortiGate device, like the ISFW (Internal Segmentation Firewall), is moved from one ADOM to another in FortiManager, the status of the device in the new ADOM will temporarily show some level of inconsistency or unknown state until the ADOM fully syncs and integrates the device.

In the provided options, we are analyzing the FortiManager diagnose dvm device list output for the ISFW device.

Explanation of the Outputs:

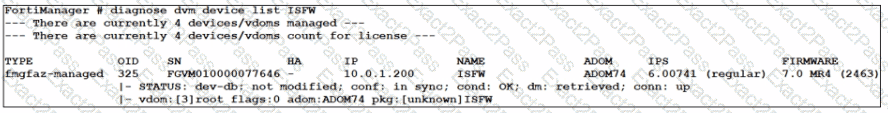

Option A:

The output shows that the device has the following status:

dev-db: not modified

conf: in sync

cond: OK

dm: retrieved

The key part here is the pkg: [unknown]. This suggests that the configuration package for the ADOM in the new environment is still in anunknown state, which happens right after moving the device to a new ADOM. FortiManager needs time to process the device's configuration before syncing it properly.

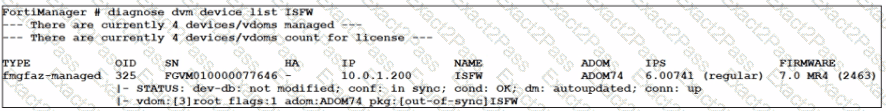

Option B:

This output shows thepkg: [out-of-sync]. This occursaftersome configuration mismatch is identified, but it is not the immediate output after moving a device to a new ADOM.

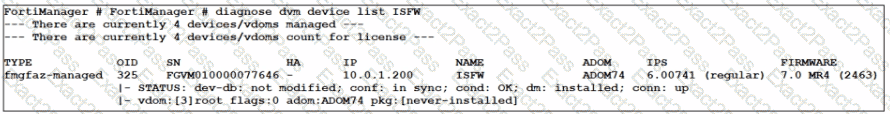

Option C:

This output showspkg: [never-installed], which indicates that no package was ever installed on the device. This status typically appears when a device is newly added to FortiManager but not immediately after moving it between ADOMs.

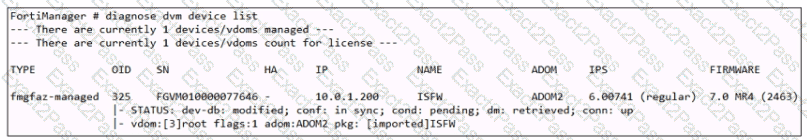

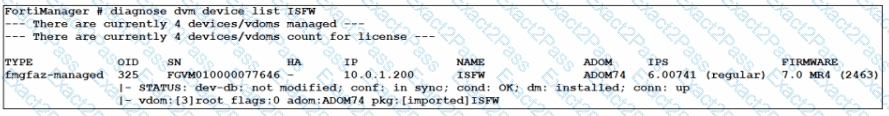

Option D:

This output showspkg: [imported], which indicates that the device configuration has been successfully imported into the new ADOM. This would occur after the device is fully synced, but not immediately after moving the device to a new ADOM.

Conclusion:

The output that is displayedimmediately after movingthe ISFW device from one ADOM to another isOption A, where the package status is still unknown (pkg: [unknown]) because FortiManager has not yet fully synchronized the device's configuration in the new ADOM.
