The XtremApp software must be copied into the /xtremapp directory on the XtremIO Management Server (XMS).This directory is specifically designated for the XtremApp software, ensuring that it is stored in the correct location for installation and execution1.

The process for copying the software typically involves:

Accessing the XMS via a secure shell (SSH) connection.

Navigating to the root directory.

Locating or creating the /xtremapp directory.

Using the appropriate command to copy the XtremApp software from its source location to the /xtremapp directory on the XMS.

It is important to follow the Official Dell XtremIO Maintenance Achievement document for the correct procedures and to ensure that the software is placed in the proper directory for successful installation and operation1.

=========================

The XtremIO Storage Array Site Preparation Guide is the document that provides detailed information about the environmental requirements, including temperature and humidity, for XtremIO storage systems.This guide is essential for ensuring that the site where the XtremIO system will be installed meets the necessary conditions for optimal operation and longevity of the equipment1.

The guide typically includes:

The acceptable temperature range for both operating and non-operating conditions.

The recommended humidity levels to prevent condensation and other moisture-related issues.

Guidelines for airflow and cooling to maintain the specified temperature and humidity levels.

It is important to adhere to these requirements to ensure the reliable performance of the XtremIO storage array and to avoid any potential environmental-related issues1.

=========================

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool isWinSCP.WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

The SAS (Serial Attached SCSI) connection speed for an XtremIO X1 is 6 Gb/s, while for an XtremIO X2, it is 12 Gb/s. The increased speed in the X2 model enhances data transfer rates and overall performance, reflecting advancements in the hardware capabilities of the newer generation.

The XtremIO X2 WebUI is based on HTML5 technology. HTML5 is the latest version of the Hypertext Markup Language, the code that describes web pages.It’s actually three kinds of code: HTML, which provides the structure; Cascading Style Sheets (CSS), which take care of presentation; and JavaScript, which makes things happen1.

HTML5 is designed to deliver almost everything you’d want to do online without requiring additional software such as browser plugins. It does everything from animation to apps, music to movies, and can also be used to build complicated applications that run in your browser.

XtremIO X2’s use of HTML5 allows for a more interactive and responsive WebUI that is compatible with a wide range of devices, including tablets and smartphones, providing a better user experience and easier management of the storage array1.

=========================

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs.When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

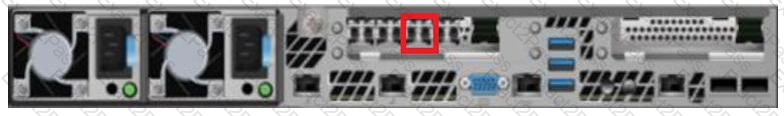

The highlighted port in the exhibit is a Fibre Channel (FC) port. This port type is used for high-speed data transfer between the storage controller and connected devices or networks. Fibre Channel is a technology known for its reliability and speed, making it suitable for storage area networks (SANs).The identification of the FC port is based on recognizing the physical characteristics of FC ports, such as their shape and typical placement on storage devices, as well as knowledge about Dell’s XtremIO systems’ configuration options1.

=========================

In a multi X-Brick XtremIO X1 cluster, the failure of more than half of the COM (communication) cables forces the cluster into a degraded mode. This degraded mode is a protective measure to ensure that the cluster can continue operating with reduced performance and redundancy until the issues with the COM cables are resolved.

The virtual XtremIO Management Server (XMS) OVA file can be found in theTools & Utilitiesdownload section on support.emc.com.This is confirmed by the information provided in the Dell XtremIO Maintenance Achievement document, which details the resources and procedures for maintaining XtremIO products, including the deployment of the XMS1.

In an XtremIO X1 cluster, it is required that all SSDs (Solid State Drives) be configured with identical drive sizes. This uniformity ensures optimal performance and balanced wear leveling across the drives, which is crucial for maintaining the efficiency and reliability of the storage system.

ESRS (EMC Secure Remote Services) configuration verification is typically done using commands that check for system notifications and configurations.

The show-syslog-notifier command is used to verify the settings and configuration of syslog notifications, which is part of the ESRS setup.

This command helps in ensuring that the notifications are correctly configured and functioning as intended, allowing for remote monitoring and management.

When connected to the Tech port on a Dell XtremIO Storage Controller, the login name "xinstall" should be used to test the Storage Controller cabling. This special login is designated for installation and configuration tasks, including testing and verifying cabling connections to ensure proper setup and functionality of the storage system.

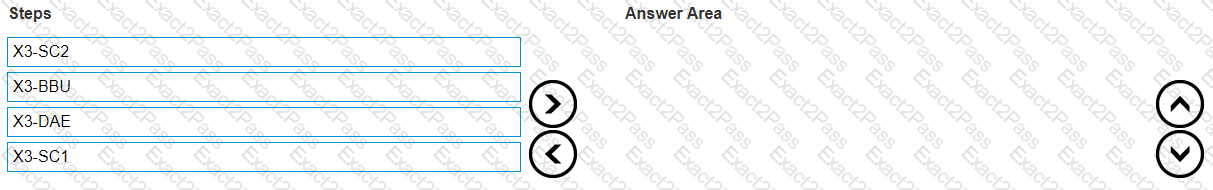

The correct racking order from bottom to top to expand an XtremIO X1 configuration from a dual X-Brick to a quad X-Brick is as follows:

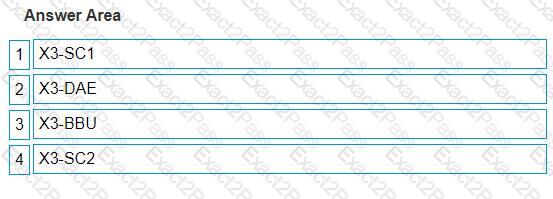

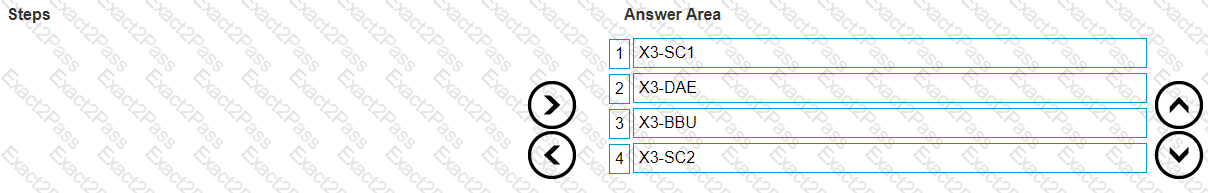

X3-SC1

X3-DAE

X3-BBU

X3-SC2

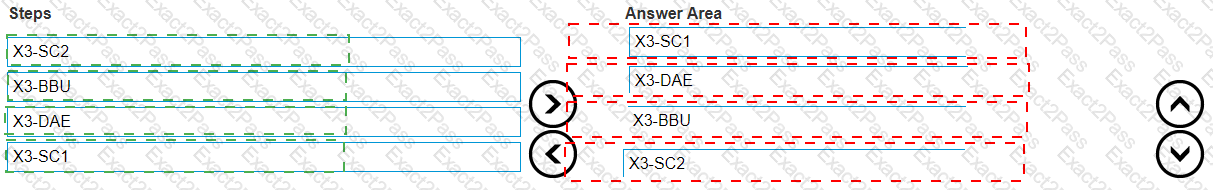

As per the image provided, which appears to be a list or part of a document detailing the steps for racking components, the order listed for expanding an XtremIO X1 configuration is:

Begin with the bottom component, which is ‘X3-SC1’ (Storage Controller 1).

Above ‘X3-SC1’, install ‘X3-DAE’ (Disk Array Enclosure).

Next, install ‘X3-BBU’ (Battery Backup Unit) above ‘X3-DAE’.

Finally, at the top, place ‘X3-SC2’ (Storage Controller 2).

This order ensures that the heavier components are at the bottom for stability and likely follows Dell’s official guidelines for proper airflow and cable management within the rack1.

=========================
