The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.

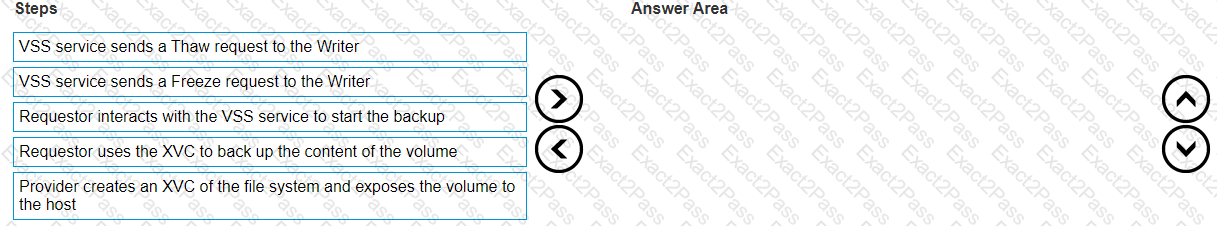

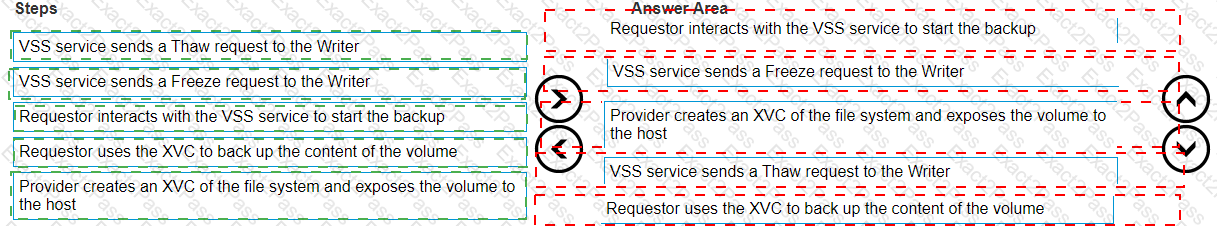

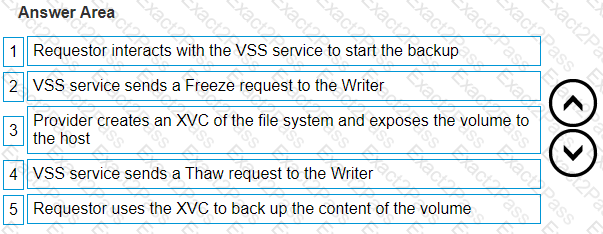

Backup Policy and XtremIO Virtual Copy: The system administrator needs to ensure that the backup policy using XtremIO Virtual Copy (XVC) can store the required read-only copies without exceeding the storage limits.

Calculating Days of Storage:

500 production volumes are backed up 4 times a day.

Total copies created per day: 500 volumes * 4 backups/day = 2000 copies/day.

Assuming the array can store a specific number of copies before older ones are deleted, let's determine the duration:

Duration Calculation:

If the array can store copies for 5 days, it can handle: 2000 copies/day * 5 days = 10,000 copies.

Thus, the array can store the backup copies for 5 days before the original backups are deleted to make space for new ones.

References:

Dell XtremIO 6.x User Guide

XtremIO Virtual Copy and Protection Copies Features

Dell XtremIO Deployment Services

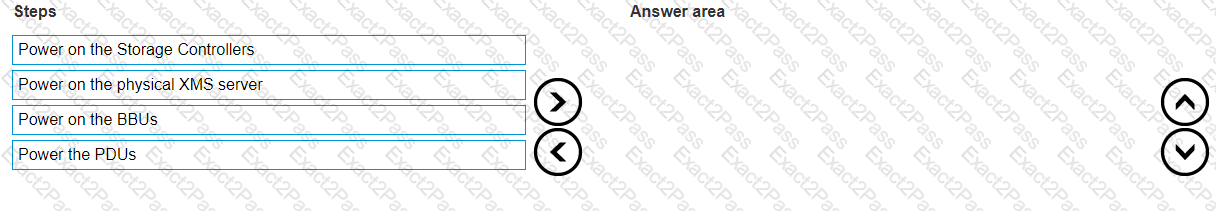

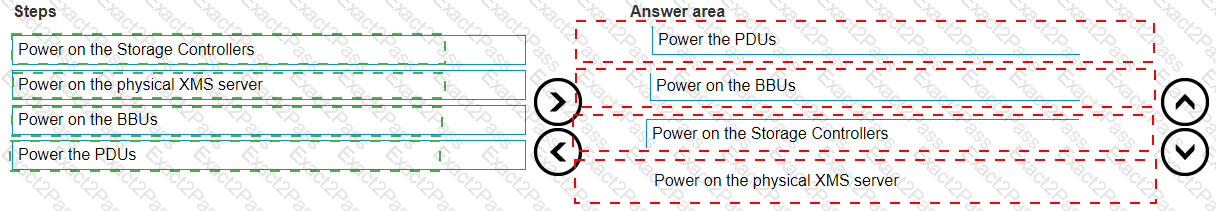

 Power the PDUs

 Power on the BBUs

 Power on the Storage Controllers

 Power on the physical XMS Server

Power the PDUs: The Power Distribution Units (PDUs) need to be powered first as they supply power to all the other components.

Power on the BBUs: The Battery Backup Units (BBUs) are powered on next to ensure that the system has emergency power in case of a power failure.

Power on the Storage Controllers: The storage controllers are responsible for managing the storage array, so they need to be powered on before the server.

Power on the physical XMS Server: Finally, the XMS server, which provides management and monitoring capabilities, is powered on.

References:

Dell XtremIO Deployment Services

Dell XtremIO Deployment Guide and official documentation for detailed step-by-step procedures.

The XMCLI command show-ssds is used to display information about the SSDs in the XtremIO system. This command includes details about the encryption capabilities of the DAE (Disk Array Enclosure) drives, allowing administrators to verify if the drives are capable of encryption and ensuring that the data is secure.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO X2 Command Line Interface Guide

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

When adding a user account in the XtremIO X2 XMS, the required information includes a unique user name, account type, and e-mail notification settings. Here’s a detailed explanation:

Unique User Name: A unique identifier for the user account. This is essential to distinguish between different users and manage permissions accordingly.

Account Type: Specifies the level of access or role assigned to the user account, such as administrator, viewer, or custom roles with specific privileges.

E-mail Notification: Configuration settings for sending alerts and notifications to the user’s e-mail address. This is important for monitoring and managing the system effectively.

The XtremIO X2 WebUI provides various cluster security settings configurations. These include LDAP (Lightweight Directory Access Protocol) for authentication, Login Banner for security notices, and Inactivity Timeout to log out idle sessions automatically, ensuring the security of the management interface. References := Dell Deployment Services

Understanding X-Bricks: X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration:

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks:

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References:

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

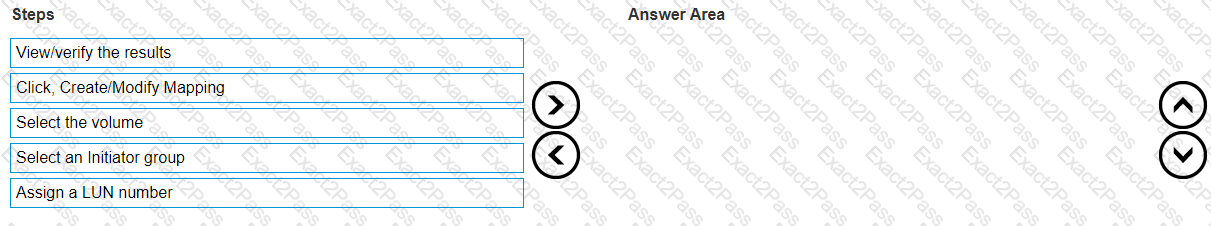

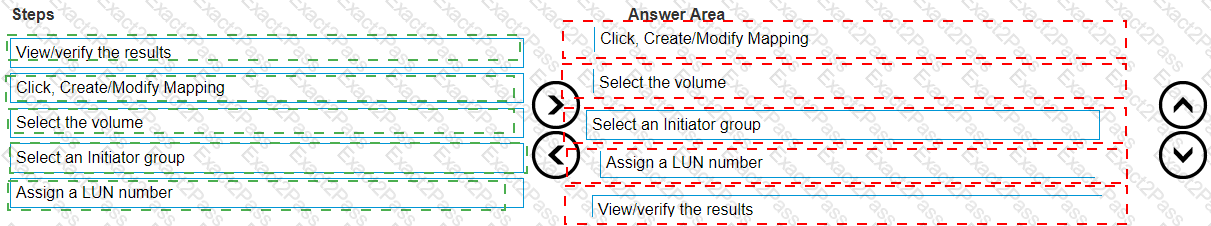

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping: Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume: Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group: Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number: Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results: Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References:

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

show-clusters-info Command: This command is used to display the status and information of an XtremIO cluster.

Healthy State: For a healthy XtremIO cluster, the state displayed is "Active and enabled".

Verification: This state indicates that the cluster is operational and all services are functioning as expected.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

2.

Understanding Execution Throttle: The Execution Throttle setting controls the maximum number of concurrent I/O operations that can be sent from a host to a storage array. This setting is crucial for optimizing performance and preventing overloading of the storage array.

QLogic Fibre Channel HBAs: QLogic Host Bus Adapters (HBAs) are used for connecting servers to Fibre Channel storage networks. The recommended settings for these HBAs can significantly impact the performance and reliability of the storage network.

Best Practices for XtremIO and VMware:

According to best practices for connecting VMware clusters to XtremIO arrays, especially when using QLogic Fibre Channel HBAs, the Execution Throttle value is set to optimize performance.

The recommended value for the Execution Throttle setting for QLogic HBAs in a VMware environment connected to an XtremIO array is 65535. This value helps ensure that the host can handle a high number of I/O operations efficiently without overwhelming the storage array.

References:

Dell XtremIO Best Practices Guide for VMware

QLogic HBA Configuration and Performance Tuning Guides

Dell XtremIO Deployment Services

VMware and XtremIO Integration Documentation.

The XtremIO X1 array has a limit on the number of snapshots it can handle due to its physical capacity and the architecture of the storage array. Given that the company requires hourly snapshots for a set of 15 volumes, we need to consider the maximum number of snapshots that the XtremIO X1 array can support.

The calculation for the duration until the system maximum is reached would be based on the maximum number of snapshots supported by the array. Assuming that each snapshot is independent and does not consume additional space due to deduplication, the system can continue to take snapshots until it reaches its maximum capacity.

Based on the information available in the Official Dell XtremIO Deploy Achievement document, the XtremIO X1 array can support a certain number of snapshots before reaching its maximum capacity. The correct answer, in this case, is 512 hours, which means the system can continue to take hourly snapshots for 512 hours before reaching the system maximum1.

For the most accurate and up-to-date information, please refer to the latest Official Dell XtremIO Deploy Achievement documents or consult with Dell support.

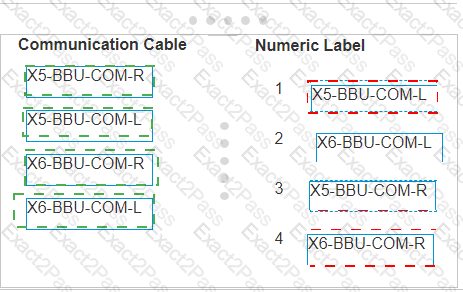

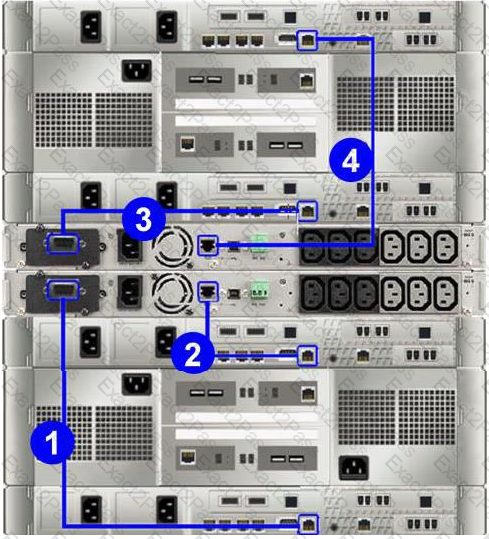

The image provided shows the back of an XtremIO X1 storage system with numeric labels next to the communication cable ports. To ensure the correct communication cables are connected:

Locate the ports on the back of the X-Bricks corresponding to the numeric labels.

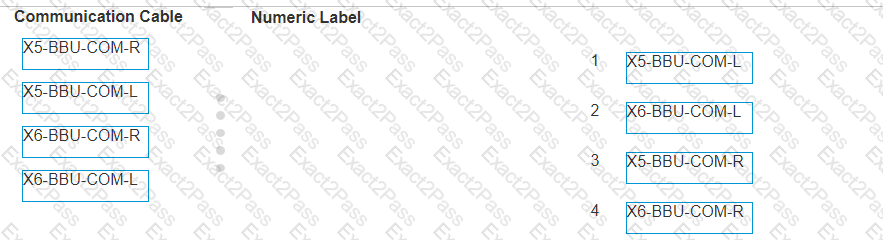

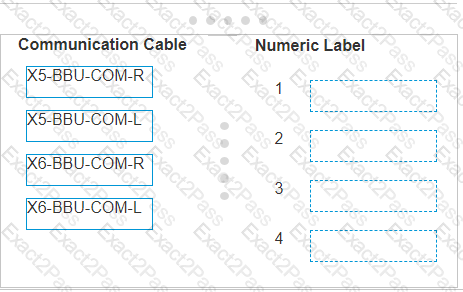

Match each communication cable to its respective port based on the numeric label:

The right-side Battery Backup Unit (BBU) communication cable for X-Brick 5 (X5-BBU-COM-R) connects to port labeled 3.

The left-side BBU communication cable for X-Brick 5 (X5-BBU-COM-L) connects to port labeled 1.

The right-side BBU communication cable for X-Brick 6 (X6-BBU-COM-R) connects to port labeled 4.

The left-side BBU communication cable for X-Brick 6 (X6-BBU-COM-L) connects to port labeled 2.

After connecting the cables as per the matching, verify the connections according to the Official Dell XtremIO Deploy Achievement document to ensure they are correct and secure1.

For the most accurate and up-to-date information, please refer to the latest Official Dell XtremIO Deploy Achievement documents or consult with Dell support.

Power Requirements for XtremIO X1 Cluster: Each X-Brick in an XtremIO X1 cluster has its own power distribution units (PDUs) to ensure redundancy and reliability.

Calculation for Four X-Brick Cluster:

Each X-Brick has 2 storage controllers, each with its own PDU.

Therefore, 1 X-Brick requires 2 PDUs.

For a four X-Brick configuration: 4 X-Bricks * 2 PDUs per X-Brick = 8 PDUs.

Ensuring Adequate Power Supply: Connecting 8 PDUs to an electrical source ensures that all storage controllers in the cluster are powered reliably.

References:

Dell XtremIO X1 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

For an XtremIO X2 two X-Brick system installation, only two IP addresses are required because the entire system is managed through the first X-Brick. This is in line with the design of the XtremIO X2 architecture, which allows for a single management point for multiple X-Bricks. The XMS (XtremIO Management Server) manages multiple XtremIO arrays and requires an IP address for each X-Brick in the cluster1. In a two X-Brick system, the first X-Brick acts as the primary management point, and the second X-Brick is managed through it, thus only necessitating two IP addresses for management purposes2.
