Distributed virtual volumes are a key component of Dell VPLEX that enable active-active data center configurations. Here’s how they contribute to this capability:

Active-Active Data Centers: In an active-active data center setup, both data centers are actively running workloads and can take over for each other in case of a failure.This configuration requires a storage solution that can provide simultaneous access to the same data from multiple locations1.

Distributed Virtual Volumes: VPLEX creates distributed virtual volumes that span across two geographically separated clusters.These volumes can be accessed and written to simultaneously from both locations, which is essential for maintaining operations in an active-active environment1.

Cache Coherence: VPLEX uses a cache coherence algorithm to ensure that write operations are synchronized across both sites.This means that when data is written to a distributed virtual volume, it is updated in both locations at the same time, ensuring consistency1.

Application Support: Distributed virtual volumes support mission-critical applications that require high availability and continuous operations, such as Oracle RAC, by allowing them to operate in an active-active manner across data centers1.

VPLEX Metro: The VPLEX Metro product supports active-active data centers by allowing applications to simultaneously read and write on both sites, which increases resource utilization and provides infrastructure that is actively used rather than remaining idle2.

By leveraging distributed virtual volumes, VPLEX enables organizations to create highly available, geographically distributed virtual data centers that support continuous data access and mobility.

A supported geometry for a VPLEX device is RAID-C, which stands for RAID Concatenation. RAID-C is a VPLEX-specific RAID configuration that concatenates multiple extents or devices to create a larger virtual volume.

RAID Concatenation (RAID-C): RAID-C is a VPLEX geometry that allows for the concatenation of multiple storage extents or devices.This configuration is used to create larger virtual volumes by combining smaller ones1.

Use of RAID-C: RAID-C is typically used when there is a need to expand storage capacity without the requirement for additional redundancy.It is a simple way to increase the size of a virtual volume by adding more storage to it1.

Advantages: The advantage of using RAID-C is that it allows for flexibility in storage provisioning and can be easily expanded as storage needs grow.It also enables the use of storage from different arrays1.

VPLEX Device Configuration: In the context of VPLEX, a device refers to a logical unit that can be presented to hosts.By using RAID-C geometry, VPLEX can present larger logical units that span across multiple physical storage arrays1.

Supported Geometries: VPLEX supports various RAID geometries, including RAID-0, RAID-1, and RAID-C, each serving different purposes and providing different levels of performance and protection1.

By utilizing RAID-C geometry, VPLEX administrators can manage storage more effectively, ensuring that they can meet the capacity requirements of their applications and services.

In a VPLEX Metro cluster without a VPLEX Witness and with a static rule set to “cluster-2 detaches”, the result of a WAN COM failure would be as follows:

Delay Timer: Initially, VPLEX starts a delay timer upon detecting the WAN COM failure.This timer allows for a temporary network issue to be resolved without immediate impact on I/O operations1.

Suspension of I/O: While the delay timer is active, VPLEX suspends I/O to all distributed devices on both clusters to prevent data corruption and ensure data integrity1.

Resumption of I/O: If the WAN COM connectivity is not restored within the expiration period of the delay timer, VPLEX will resume I/O operations on Cluster-2, as per the static rule set.I/O will remain suspended on Cluster-1 to maintain a consistent data state and prevent a split-brain scenario1.

This process ensures that data remains consistent and available on at least one cluster in the event of a WAN COM failure, aligning with the predefined static rule set and maintaining the integrity of the VPLEX Metro cluster operations.

Before a host can detect the virtual volumes presented by VPLEX, it is necessary for the host to initiate a bus-scan of the Host Bus Adapters (HBAs). This process allows the host to recognize new storage devices that have been presented to it, such as the virtual volumes from VPLEX.

Here’s a detailed explanation:

Host Bus Adapters (HBAs): HBAs are the hardware interfaces that connect a host system to a network or storage device. In the context of VPLEX, they connect the host to the VPLEX storage system.

Bus-Scan: A bus-scan is a command that can be issued from the host to scan the storage network for any changes, such as newly added storage volumes. This is typically done using operating system-specific commands or utilities.

Virtual Volumes Detection: Once the bus-scan is complete, the host’s operating system can detect the virtual volumes presented by VPLEX and make them available for use by applications and services running on the host.

No RAID Requirement: The detection of virtual volumes does not require RAID configuration to be enabled for the volumes themselves, as this is managed within the VPLEX system.

No Reboot Necessary: It is not necessary to reboot the host to detect virtual volumes. A bus-scan can be performed while the system is running without requiring a restart.

No Wizard Required: The EZ Provisioning wizard is a tool used within the VPLEX system for provisioning storage, but it is not required to be run on the host for virtual volume detection.

By initiating a bus-scan of the HBAs, the host can detect and utilize the virtual volumes presented by VPLEX, allowing for flexible and dynamic storage management.

When a director fails and is removed from a VPLEX cluster, the global cache size decreases. This is because each director contributes to the total global cache available in the VPLEX cluster. Here’s the explanation:

Global Cache: The global cache in a VPLEX system is a shared resource that is used by all directors in the cluster to cache data for improved performance1.

Director Contribution: Each director within the VPLEX cluster has its own local cache, which collectively forms the global cache.When a director is operational, its cache is part of the global cache pool1.

Director Failure: If a director fails, its cache is no longer available to the cluster.As a result, the total size of the global cache is reduced by the amount that was contributed by the failed director1.

Removal from Cluster: When the failed director is physically removed from the cluster, its cache is permanently removed from the global cache pool, resulting in a decrease in the total global cache size1.

Impact on Performance: The reduction in global cache size may impact the performance of the VPLEX system, as there is less cache available for data storage and retrieval operations1.

System Architecture: VPLEX architecture allows for multiple director failures without loss of access to data down to a single director, but the global cache size will decrease with each director failure1.

By understanding the role of each director’s cache in contributing to the global cache, administrators can anticipate the effects of director failures on the overall performance of the VPLEX system.

To add a RecoverPoint cluster to VPLEX, the RecoverPoint cluster Management IP address is required. This IP address is used to establish communication between the VPLEX system and the RecoverPoint cluster for management and replication purposes.

RecoverPoint Cluster Management IP Address: The management IP address is a unique identifier that allows the VPLEX system to connect to the RecoverPoint cluster.It is used for configuration, management, and monitoring of the RecoverPoint system from VPLEX1.

Adding a RecoverPoint Cluster: To add a RecoverPoint cluster to VPLEX, the administrator must use the VPLEX CLI and provide the management IP address of the RecoverPoint cluster.This is done using the rp rpa-cluster add command followed by the -o option to specify the IP address1.

Authentication: After providing the IP address, the administrator will be prompted to enter the administrative password for the RecoverPoint cluster to authenticate the connection1.

Verification: Once the RecoverPoint cluster is added, the administrator can verify the addition by using the ls recoverpoint/rpa-clusters/ command to list the RecoverPoint clusters connected to VPLEX1.

Management and Replication: With the RecoverPoint cluster added to VPLEX, the system can manage replication tasks and ensure data protection across the connected storage systems1.

By providing the RecoverPoint cluster Management IP address, administrators can integrate RecoverPoint with VPLEX, enhancing the system’s capabilities for data replication and disaster recovery.

The SNMP management station connects to the VPLEX Management Server to gather statistics. The Management Server acts as the central point for managing and monitoring the VPLEX environment, including the collection of SNMP statistics.

Management Server Role: The VPLEX Management Server provides a centralized interface for system administration and monitoring.It is responsible for managing the VPLEX clusters and all associated components1.

SNMP Statistics Collection: SNMP (Simple Network Management Protocol) is used for collecting performance and health data from networked devices.The VPLEX Management Server supports SNMP and can be configured to send SNMP traps to a management station1.

Configuration: To enable SNMP monitoring, the VPLEX administrator must configure the Management Server with the appropriate SNMP settings, including the community string and the remote host (management station) details1.

Monitoring with SNMP: Once configured, the SNMP management station can connect to the VPLEX Management Server to collect statistics, which can include a wide range of metrics such as CPU utilization, memory usage, and I/O rates1.

Troubleshooting: If there are issues with SNMP data collection, such as the inability to ping the remote host from the VPLEX Management Server, the administrator may need to check network configurations, such as firewall settings, to ensure proper connectivity1.

By connecting to the VPLEX Management Server, the SNMP management station can effectively gather statistics for monitoring the health and performance of the VPLEX system.

Expanding a virtual volume using the Storage Volume expansion method is a valid option when the virtual volume is mapped 1:1 to the underlying storage volume. This method is suitable when each virtual volume corresponds directly to a single storage volume on the backend array, and there is a need to expand the volume’s capacity.

1:1 Mapping: A 1:1 mapping means that there is a direct relationship between a virtual volume in VPLEX and a single storage volume on the backend storage array.This allows for a straightforward expansion process as any increase in the size of the backend volume can be reflected in the virtual volume1.

Storage Volume Expansion: The Storage Volume expansion method involves increasing the size of the backend storage volume first.This is typically done through the storage array’s management interface1.

VPLEX Recognition: Once the backend storage volume is expanded, VPLEX must recognize the new size.This may require rescanning the storage volumes within VPLEX to detect the changes1.

Virtual Volume Expansion: After VPLEX recognizes the increased size of the storage volume, the corresponding virtual volume can be expanded to utilize the additional capacity.This is done within the VPLEX management interface1.

Exclusion of Other Options: The other options listed, such as a virtual volume having minor problems, being a metadata volume, or previously expanded by adding extents or devices, are not typically associated with the Storage Volume expansion methD.These scenarios may require different approaches or may not be suitable for expansion using this method1.

By ensuring that the virtual volume is mapped 1:1 to the underlying storage volume, administrators can effectively utilize the Storage Volume expansion method to increase the capacity of virtual volumes in a VPLEX environment.

The command that collects the most recent performance statistics from all VPLEX directors is SNMPGETBULK. This command is part of the SNMP (Simple Network Management Protocol) suite, which is used for collecting information and managing network devices.

SNMPGETBULK Command: The SNMPGETBULK command retrieves bulk data from SNMP-enabled devices.It is designed to efficiently collect multiple pieces of information in a single request, making it suitable for gathering performance statistics from multiple directors1.

Usage in VPLEX: In the context of Dell VPLEX, the SNMPGETBULK command can be used to query the directors for their most recent performance data. This data can include metrics such as I/O rates, latency, cache usage, and other vital statistics.

Performance Monitoring: Collecting performance statistics is crucial for monitoring the health and efficiency of the VPLEX system. It helps administrators identify potential issues and optimize the system’s performance.

SNMP Configuration: To use the SNMPGETBULK command, SNMP must be configured on the VPLEX system, and the appropriate community strings and access permissions must be set up.

Other Commands: While the monitor stat-list command lists available statistics and the monitor collect command collects performance data for a specific monitor, the SNMPGETBULK command is specifically used for bulk data retrieval across all directors.

By utilizing the SNMPGETBULK command, administrators can effectively gather comprehensive performance data from all VPLEX directors, aiding in the management and optimization of the storage environment.

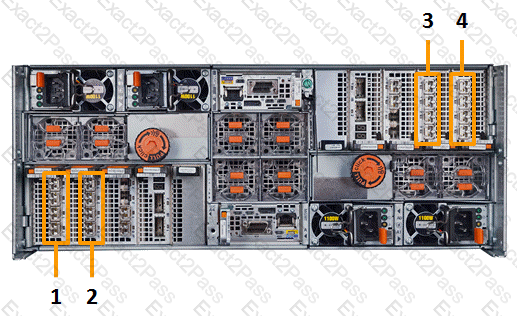

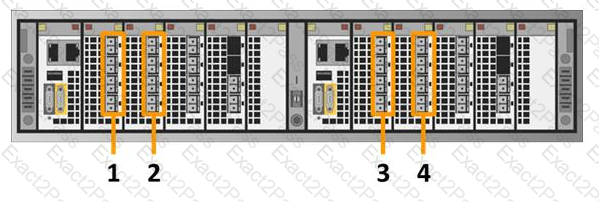

In the exhibit provided, the number that highlights the Director-B front-end ports is 4. Here’s the explanation:

Director-B Identification: In a VPLEX system, each director is a separate hardware component that manages data flow. Director-B is one of these components.

Front-End Ports: The front-end (FE) ports on a director are the interfaces through which the director communicates with hosts or other external devices.

Number 4 in the Exhibit: The exhibit shows a hardware component with various sections labeled with numbers. Number 4 is located at the upper right quadrant, which is typically where front-end ports are found on a director module.

VPLEX Documentation: The Dell EMC VPLEX documentation would provide diagrams and detailed descriptions of the hardware components, including the location of the Director-B front-end ports.

By understanding the layout of VPLEX hardware and referencing the official documentation, one can identify the correct number associated with the Director-B front-end ports in the exhibit.

When preparing a host to access its storage from VPLEX, the best practice for zoning is to ensure that each host has at least one path to an A director and at least one path to a B director on each fabric. This setup provides redundancy and ensures continuous availability of data even if one path or director fails.

Redundant Paths: By having at least one path to an A director and one path to a B director, the host can maintain access to its storage even if one of the directors or paths becomes unavailable1.

Fabric Configuration: The use of dual fabrics provides an additional layer of redundancy.Each fabric acts as an independent network, and having paths on both fabrics ensures that the host can still access storage if one fabric experiences issues1.

Logical Paths: The total of four logical paths (two paths per fabric) allows for load balancing and failover capabilities.This configuration is crucial for environments that require high availability and resilience1.

Zoning Best Practices: Proper zoning practices are essential for maintaining a secure and efficient storage network.The recommended zoning configuration helps to isolate traffic and prevent disruptions1.

VPLEX Configuration: In a VPLEX environment, it is important to follow the recommended zoning practices to take full advantage of the system’s capabilities for data mobility and continuous availability1.

By following this zoning best practice, administrators can ensure that the host has reliable and resilient access to its storage volumes through the VPLEX system.

When setting up a VPLEX system that uses ESRS (EMC Secure Remote Services), it is essential to ensure that the correct ports are open to allow for various types of communication, including access to the VPLEX GUI. The port that needs to be opened on the firewall to allow access to the VPLEX GUI is port 443.

Port 443: This port is commonly used for HTTPS traffic, which is the protocol used for secure web communications.The VPLEX GUI is accessed over a web browser using HTTPS, hence the need for port 443 to be open1.

Firewall Configuration: The firewall administrator must configure the firewall to allow inbound and outbound traffic on port 443 to the VPLEX system’s IP address.This ensures that the technical support engineer and other users can access the VPLEX GUI through a secure connection1.

Troubleshooting Access Issues: If the technical support engineer cannot access the VPLEX GUI, one of the first steps in troubleshooting is to check the firewall settings to confirm that the necessary ports, including port 443, are open1.

ESRS Communication: While ports 25, 9010, and 5901 are important for ESRS communication and other services, they do not facilitate access to the VPLEX GUI.Port 25 is typically used for SMTP email services, port 9010 may be used for internal services, and port 5901 could be used for VNC or other remote access protocols1.

Secure Access: Opening port 443 not only allows access to the VPLEX GUI but also ensures that the communication is encrypted and secure, protecting sensitive data and system configurations1.

By opening port 443 on the firewall, the company ensures secure and reliable access to the VPLEX GUI for administration, monitoring, and troubleshooting purposes.

The report create-monitors command in Dell VPLEX is used to create custom monitors that can track a variety of performance metrics for different components of the VPLEX cluster. The command allows administrators to set up monitors for disks, ports, and volumes, which are essential elements of the VPLEX storage architecture.

Here’s a detailed explanation:

Disks:Monitors for disks can track performance metrics such as I/O rates, latency, and throughput, which are critical for assessing the health and efficiency of the physical storage.

Ports:Monitoring ports is crucial for understanding the performance of data transfer interfaces, including Fibre Channel and Ethernet ports, which facilitate communication and data movement within the VPLEX cluster and to external networks.

Volumes:Volumes, particularly virtual volumes, are logical storage units that administrators often need to monitor closely for performance metrics like read/write operations and response times to ensure optimal data access and processing.

Custom Monitor Creation:To create a custom monitor, an administrator would access the management server, use the VPLEX CLI, and implement commands to specify the name, period, statistics, and targets for the monitor1.

Monitor Management:After creating a monitor, administrators can add a file sink to direct the output to a CSV file for analysis.This file contains the collected data and is stored on the management server under the /var/log/VPlex/cli folder1.

Documentation Reference:For more detailed instructions and information on creating and managing monitors, administrators are encouraged to consult the VPLEX CLI and Admin Guides, which provide comprehensive guidance on these processes1.

By setting up these monitors, a storage administrator can gain valuable insights into the performance of their VPLEX cluster and make informed decisions to maintain or improve its efficiency and reliability.

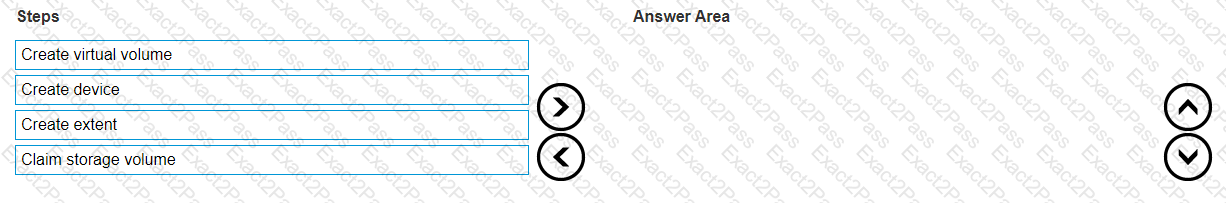

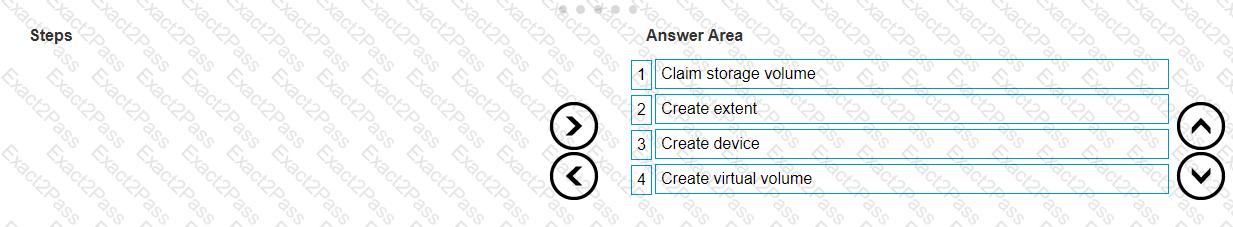

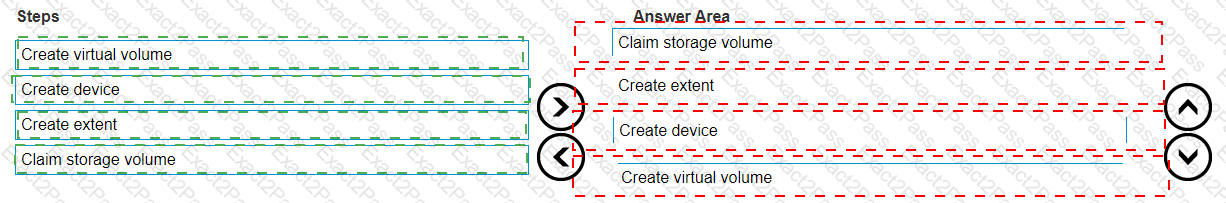

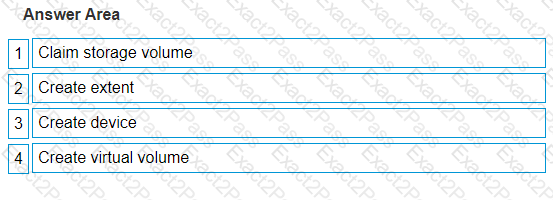

In VPLEX, a storage volume is a logical representation of physical storage, and it can be divided into multiple extents.An extent is a contiguous range of block addresses within a storage volume that VPLEX manages as a single unit1.

Storage Volume: This is the physical storage presented to VPLEX from the backend storage arrays.It represents the total capacity available for use in VPLEX1.

Extent: An extent is a subset of a storage volume.It is a logical division within a storage volume that VPLEX uses to create virtual volumes1.

Division into Extents: A storage volume can be split into multiple extents, allowing for more granular management of storage resources.This is useful for creating multiple virtual volumes from a single storage volume1.

Virtual Volume Creation: Extents are used by VPLEX to create virtual volumes.By splitting a storage volume into extents, VPLEX can combine extents from different storage volumes to create a virtual volume1.

Management Flexibility: The ability to split a storage volume into multiple extents provides flexibility in storage management, enabling VPLEX to optimize storage utilization and performance1.

By splitting a storage volume into multiple extents, VPLEX can efficiently manage and allocate storage resources, creating virtual volumes that meet the specific needs of applications and workloads.
