Upgrading a VPLEX from VS2 to VS6 hardware involves several critical requirements to ensure a successful and non-disruptive process:

GeoSynchrony Version: The system must be running at least GeoSynchrony 6.0. This is the software that orchestrates operations across the VPLEX infrastructure and ensures compatibility between different hardware generations1.

Code Level Consistency: Both the VS2 and VS6 platforms must be operating at the same software code level. This uniformity is crucial to prevent any incompatibility issues during the upgrade process1.

Engine Count: The number of engines in the existing VS2 setup must match the number of engines in the VS6 configuration. This alignment is necessary to maintain performance and capacity expectations post-upgrade1.

WWN Zoning: Proper WWN (World Wide Name) zoning must be in place. WWN zoning is a method of isolating network traffic to ensure that devices within a Fibre Channel network can only communicate with each other if they are in the same zone1.

Upgrade Process: The upgrade process typically involves replacing the VS2 hardware with VS6 components. This hardware swap should be done in a manner that does not disrupt the ongoing operations and services1.

Post-Upgrade Verification: After the hardware upgrade, it’s essential to verify that all systems are functioning correctly. This includes checking the status of the front-end and back-end ports, as well as the health of the virtual volumes1.

Documentation and Support: Detailed procedures for the upgrade process can be found in the SolVe Desktop Procedure Generator, which provides step-by-step instructions for upgrading cluster hardware from VS2 to VS61.

In summary, the requirements for upgrading a VPLEX from VS2 to VS6 include running GeoSynchrony 6.0 or higher, ensuring both platforms are at the same code level, matching the number of engines, and having proper WWN zoning in place.

During a VPLEX installation, the front-end ports are enabled after the metadata volumes and backup have been created. This sequence ensures that the system’s metadata, which is crucial for the operation of VPLEX, is secured before the storage is exposed to the hosts.

Metadata Volumes Creation: The first step in the VPLEX installation process involves creating metadata volumes. These volumes store configuration and operational data necessary for VPLEX to manage the virtualized storage environment1.

Metadata Backup: After the metadata volumes are created, it is essential to back up this data. The backup serves as a safeguard against data loss and is a critical step before enabling the front-end ports1.

Enabling Front-End Ports: Once the metadata is secured, the front-end ports can be enabled. These ports are used for host connectivity, allowing hosts to access the virtual volumes presented by VPLEX1.

Exposing Storage to Hosts: With the front-end ports enabled, the storage can then be exposed to the hosts. This step involves presenting the virtual volumes to the hosts through the front-end ports1.

Final Configuration: The final configuration steps may include zoning, LUN masking, and setting up host access to the VPLEX virtual volumes. These steps are completed after the front-end ports are enabled and the storage is exposed1.

In summary, the front-end ports are enabled during a VPLEX installation after the metadata volumes and backup have been created, which is reflected in option D. This ensures that the system metadata is protected and available before the storage is made accessible to the hosts.

In the event of an unplanned site outage and subsequent recovery, if a storage administrator is unable to access the management server, they can connect to a specific port on the back of the management server with a hardcoded IP address to regain access to the VPLEX cluster and begin troubleshooting.

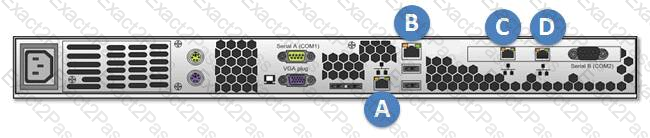

Identify the Management Port: The management server typically has a dedicated port that can be used for direct access in case of network issues. This port is designed to accept a hardcoded IP address for such scenarios1.

Connect to the Management Port: The administrator should use an Ethernet cable to connect a laptop or a computer directly to the management port, which is usually labeled and can be identified based on the server’s hardware manual or documentation1.

Configure the Hardcoded IP Address: On the connected device, the administrator needs to configure a static IP address that is in the same subnet as the management server’s default IP range1.

Access the VPLEX CLI: Once the connection is established, the administrator can use SSH or a similar protocol to access the VPLEX Command Line Interface (CLI) through the hardcoded IP address1.

Troubleshoot the Issue: With access to the VPLEX CLI, the administrator can now run diagnostic commands, check the system status, and troubleshoot the connectivity issue1.

In this scenario, the correct port to connect to is labeled ‘A’ on the back of the management server. This port is reserved for such direct access and allows the administrator to bypass the network to troubleshoot and resolve the issue.

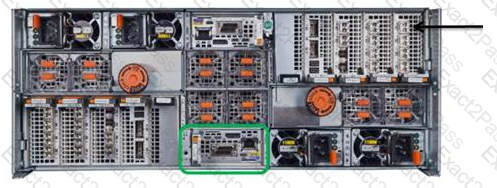

To identify the port indicated by the black arrow, we can refer to the standard VPLEX director port WWN breakdown provided by Dell:

Director Identification: Determine whether the director is A or B. Director B’s WWN is always +1 of Director A’s number1.

Port Numbering: VPLEX director port WWNs are broken down as follows: 0x5001442 [num][seed][IOmodule][port number], where the [port number] is one of {0,1,2,3}1.

Front-End Ports: For VS2 hardware, the front-end ports are typically numbered 0, and the back-end ports are numbered 11.

Exhibit Analysis: If the exhibit shows the standard layout of a VPLEX system and the black arrow points to the first port on Director B, it would be the front-end port 01.

Verification: To confirm the identification, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port1.

In summary, based on the standard VPLEX port numbering and layout, the port indicated by the black arrow in the exhibit is likely Director B - front-end port 0, assuming that the exhibit follows the standard orientation and labeling conventions.

The VPLEX VS6 improves internal cluster I/O over the VS2 by utilizing 40 Gbps InfiniBand Local COM connections. This enhancement significantly increases the internal bandwidth available for communication between directors within a VPLEX cluster.

InfiniBand Technology: InfiniBand is a high-speed networking technology that provides substantial bandwidth and low latency. By using 40 Gbps InfiniBand connections, the VS6 directors can communicate more data at faster rates compared to the older VS2 hardware1.

Increased I/O Performance: The increased bandwidth from the 40 Gbps InfiniBand connections allows for higher I/O performance, which is particularly beneficial for workloads that require fast data transfer rates and low response times1.

Scalability: The VS6’s improved internal cluster I/O capabilities also contribute to its scalability, supporting larger configurations and more volumes, which is essential for growing enterprise environments1.

Optimized for All-Flash Storage: The VS6 is optimized for all-flash storage, providing 2X IOPS at one-third the latency compared to the VS2, which is a direct result of the improved internal cluster I/O capabilities1.

Future-Ready Infrastructure: The adoption of 40 Gbps InfiniBand Local COM connections positions the VS6 as a future-ready infrastructure that can handle the increasing demands of modern data centers1.

In summary, the VPLEX VS6’s use of 40 Gbps InfiniBand Local COM connections is a key factor in its improved internal cluster I/O performance over the VS2, offering higher bandwidth and lower latency for demanding enterprise applications.

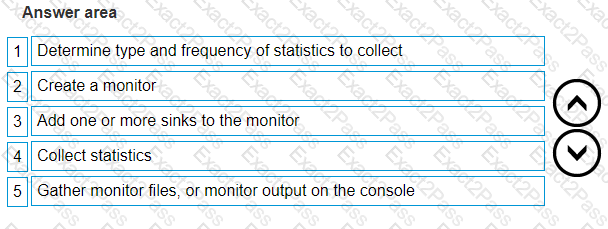

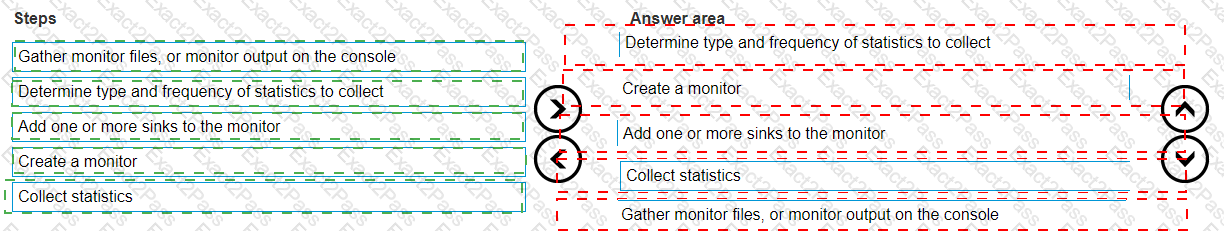

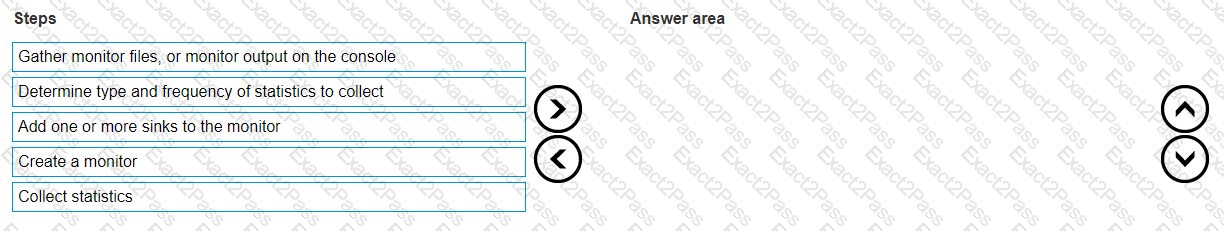

The correct order of steps to create and operate a custom monitor is:

Determine the type and frequency of statistics to collect.

Create a monitor.

Add one or more sinks to the monitor.

Collect statistics.

Gather monitoring files, or monitor output from the console.

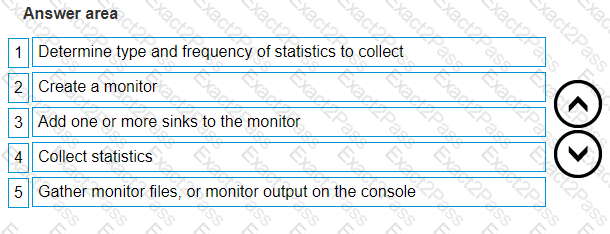

To create and operate a custom monitor within the Dell VPLEX environment, follow these steps:

Determine the Type and Frequency of Statistics to Collect: Identify what statistics are relevant for your monitoring purposes and how frequently they should be collected. This will depend on the specific needs of your environment and the performance metrics you wish to track.

Create a Monitor: Using the VPLEX CLI or Unisphere for VPLEX, create a new monitor instance. Configure the monitor with the types of statistics you determined in the previous step.

Add One or More Sinks to the Monitor: Sinks are the destinations where the collected statistics will be sent. These could be files, databases, or external systems. Set up one or more sinks in the monitor configuration to ensure that the data is stored or transmitted as needed.

Collect Statistics: Start the monitor to begin collecting statistics. The monitor will gather data from the VPLEX system according to the type and frequency settings you have specified.

Gather Monitoring Files, or Monitor Output from the Console: After the statistics have been collected, retrieve the monitoring files from the specified sinks, or view the output directly from the console if real-time monitoring is configured.

These steps are based on the standard procedures for setting up and managing custom monitors in a Dell VPLEX environment, as detailed in the Dell EMC VPLEX documentation. By following these steps, you can effectively monitor the performance and health of your VPLEX system.

"The MetroPoint topology can maintain up to five copies of data, including one remote copy and one local copy at each VPLEX site. It provides protection for each of the VPLEX Metro sites with continuous local replication via RecoverPoint"..

After a WAN outage, to verify management connectivity between MMCS-A on Cluster-1 and MMCS-A on Cluster-2, the storage administrator should use the vpn status command. This command checks the status of the VPN tunnels that facilitate secure communication between the management servers and the Cluster Witness Server.

Command Execution: The administrator should execute the vpn status command in the VPLEX CLI. This command will provide information about the state of the VPN tunnels1.

Interpreting Results: The output from the vpn status command will indicate whether the IPsec VPN tunnels are up and if the remote management servers are reachable. It will show the status of connectivity with both the management servers and the Cluster Witness Server1.

VPN Tunnel Status: The command will show the status of the VPN tunnel between the management servers, which is crucial for the clusters to communicate and operate as a metro system1.

Cluster Witness Server Connectivity: Additionally, the command will verify the VPN status between the management server and the Cluster Witness Server, ensuring that the witness can monitor the health and status of the clusters1.

Troubleshooting: If the vpn status command indicates that the remote management IP is not reachable, further troubleshooting will be required to establish connectivity. This may involve checking network configurations, firewall settings, and ensuring that the VPN services are running properly1.

In summary, the vpn status command is used to determine if the remote management IP is reachable, providing a quick and effective way to verify management connectivity between VPLEX clusters after a WAN outage.

When troubleshooting performance issues on a Microsoft SQL Server application hosted on a VPLEX virtual volume, adjusting the data mobility job transfer rate can have a significant impact on the application’s performance. A higher transfer rate can help improve performance by allowing data to be moved more quickly, reducing the impact on the application’s I/O operations.

Assessing Current Performance: The current transfer rate of 32 MB may be insufficient for the workload of the SQL Server application, leading to performance issues1.

Recommended Transfer Rate: Increasing the transfer rate to 120 MB can help alleviate these performance issues by accelerating the data mobility process, thus minimizing the time during which the SQL Server application’s performance is impacted1.

Implementing the Change: To change the transfer rate, the administrator would use the VPLEX CLI to adjust the settings for the data mobility jB. This involves modifying the transfer rate parameter to the new value of 120 MB1.

Monitoring the Impact: After making the change, it’s important to monitor the SQL Server application’s performance to ensure that the new transfer rate is having the desired effect and not causing any additional issues1.

Best Practices: It is recommended to follow best practices for data mobility and performance tuning as outlined in the Dell VPLEX documentation, which includes considering the impact of data mobility jobs on application performance1.

In summary, changing the data mobility job transfer rate to 120 MB is recommended to help improve the performance of the Microsoft SQL Server application hosted on a VPLEX virtual volume.

=========================

To increase data protection by converting a local RAID-0 virtual volume to a distributed virtual volume, the recommended method is to create a corresponding device on the remote cluster and then attach it as a mirror to the existing local device. This process effectively creates a distributed virtual volume that spans across both clusters.

Create a Device on the Remote Cluster: Start by creating a new device on the remote VPLEX cluster. This device should be of the same size as the local RAID-0 virtual volume and should not have a virtual volume associated with it1.

Attach as a Mirror: Once the remote device is created, attach it as a mirror to the local RAID-0 virtual volume. This operation is performed using the VPLEX CLI and will begin the process of mirroring the data from the local device to the remote device1.

Synchronization: After attaching the remote device as a mirror, the VPLEX system will synchronize the data between the local and remote devices. This ensures that both devices have identical data and are in a consistent state1.

Distributed Virtual Volume: Once the synchronization is complete, the local and remote devices together form a distributed virtual volume. This volume now has increased data protection because it is distributed across two different clusters1.

Verification: Verify that the distributed virtual volume is functioning correctly by checking its status and ensuring that it is accessible from both clusters1.

Best Practices: It is important to follow the best practices for creating and managing distributed virtual volumes as outlined in the Dell VPLEX Deploy Achievement documents. This includes proper planning, execution, and verification of the mirroring process1.

In summary, the recommended method to change a local RAID-0 virtual volume to a distributed virtual volume is to create a corresponding device on the remote cluster and attach it as a mirror, thereby forming a distributed virtual volume with increased data protection.

In the context of performance monitoring, particularly for systems like Dell VPLEX, histograms are used to track latencies and display minimums, maximums, and other statistical data. The term “buckets” is often used to describe the segments within a histogram that categorize the latency data into ranges. Each bucket represents a range of latencies, and the number of events (or I/O operations) that fall into each latency range is counted and displayed1.

Histograms in Monitoring: Histograms provide a visual representation of how data is distributed across different ranges of values, which is particularly useful for understanding the performance characteristics of a system like VPLEX1.

Buckets Explained: Buckets within a histogram divide the entire range of collected data into discrete intervals. For latency tracking, these buckets might represent latency ranges such as 0-1 ms, 1-2 ms, etc1.

Latency Tracking: By collecting latency data in buckets, administrators can quickly identify the distribution of latencies over time, pinpointing whether most I/O operations are fast, slow, or somewhere in between1.

Minimums and Maximums: Histograms make it easy to see the minimum and maximum latencies experienced by the system, as well as the frequency of latencies within each bucket range1.

Performance Analysis: This method of collecting and analyzing performance statistics is crucial for performance tuning and capacity planning, as it helps administrators understand the behavior of their storage systems under different workloads1.

In summary, “buckets” are the correct answer when referring to the segments within a histogram that are used to collect and categorize latency data for performance monitoring purposes in systems like Dell VPLEX.

The batch-migrate check-plan command in Dell VPLEX is used to verify that the target devices specified in a migration plan have no virtual volumes configured. This is a crucial step before initiating a batch migration to ensure that the target devices are ready to receive data from the source devices.

Pre-Migration Verification: Before starting a batch migration, it is important to ensure that the target devices are properly prepared. This includes verifying that they are not already in use by another virtual volume1.

Ensuring Data Integrity: By checking that no virtual volumes are configured on the target devices, the command helps prevent data corruption or overwriting of existing data1.

Migration Plan: The migration plan contains details about the source and target devices for the migration. The check-plan command reviews this plan to confirm that the target devices meet the necessary criteria for migration1.

Command Execution: The command is executed in the VPLEX CLI, and the output will indicate whether the target devices are ready for migration or if there are any issues that need to be resolved1.

Post-Verification Actions: If the command finds that virtual volumes are configured on the target devices, the administrator must take appropriate actions to remove these configurations before proceeding with the migration1.

In summary, the purpose of issuing the batch-migrate check-plan command is to verify that the target devices specified in a migration plan have no virtual volumes configured, ensuring that they are ready for the data migration process.

When using the Virtual Integrated Aggregate Storage (VIAS) method of storage provisioning in Dell VPLEX, the set of arrays available for provisioning storage is determined by the Array Management Provider (AMP) registered for each cluster. The AMP is responsible for managing the communication between the VPLEX and the back-end storage arrays.

Array Management Provider (AMP): The AMP is a software component that interfaces with the storage arrays to facilitate storage provisioning, monitoring, and management. It must be registered with each VPLEX cluster to manage the arrays1.

VIAS Provisioning: VIAS is a feature in VPLEX that simplifies the provisioning process by integrating with the AMP to provide a single interface for storage provisioning across multiple heterogeneous arrays1.

Cluster Selection: After selecting a cluster in the VIAS interface, the AMP registered for that particular cluster determines which arrays are available for provisioning. This ensures that storage is provisioned from arrays that are managed by the cluster’s AMP1.

Provisioning Process: The administrator can then select the appropriate array from the list provided by the AMP and proceed with the storage provisioning process using the VIAS interface1.

Best Practices: It is recommended to follow Dell EMC’s best practices for registering and configuring the AMP with VPLEX to ensure seamless storage provisioning and management1.

In summary, when using the VIAS method of storage provisioning in Dell VPLEX, the set of arrays available from which to provision storage is determined by the Array Management Provider registered for each cluster only.

In a VPLEX system, each director module has front-end (FE) and back-end (BE) ports for connectivity. The FE ports are used to connect to hosts or out-of-fabric services such as management networks. Based on standard configurations and assuming that Director-A and Director-B are mirrored in layout, the number that highlights the Director-B front-end ports is typically 21.

Director Modules: VPLEX systems consist of director modules, each containing ports designated for specific functions. Director-B is one of these modules1.

Front-End Ports: The front-end ports on Director-B are used for host connectivity and are essential for the operation of the VPLEX system1.

Port Identification: During the installation and setup of a VPLEX system, correctly identifying and utilizing the FE ports is crucial. This includes connecting the VPLEX to the host environment and ensuring proper communication between the storage system and the hosts1.

Documentation Reference: For precise identification and configuration of the FE ports on Director-B, the Dell VPLEX Deploy Achievement documents provide detailed instructions and diagrams1.

Best Practices: It is recommended to follow the guidelines provided in the Dell VPLEX documentation for port identification and installation utilities to ensure correct setup and configuration of the VPLEX system1.

In summary, the number 2 in the exhibit corresponds to the Director-B front-end ports in a Dell VPLEX system, which are critical for host connectivity and system operation.
