Step by Step Comprehensive Detailed Explanation:

The symsan command in Solutions Enabler is used for various SAN (Storage Area Network) management tasks. One of its functions is to scan the SAN environment to discover and verify the configuration of devices and paths.

When used in the context of an Open Replicator Migrator for Dell EMC (O-MDM) session, the symsan command specifically:

Verifies SAN Configuration:It checks the connectivity and configuration of the SAN fabric to ensure that the source and target devices are accessible and properly configured for the migration.

Non-Disruptive:It performs this verification without disrupting any applications or host I/O operations on the remote host. This is crucial for maintaining business continuity during the migration planning phase.

Why other options are incorrect:

A. Temporarily stops the remote application to verify the SAN configuration:symsan does not stop applications; it performs a non-disruptive scan.

B. Verifies the SAN configuration and creates an ORS session on the remote host:symsan only verifies the SAN; it doesn't create ORS (Open Replicator Solutions) sessions.

D. Temporarily stops the remote application and creates an ORS session:Again, symsan doesn't stop applications or create ORS sessions.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symsan command and its various options, including its use for SAN discovery and verification. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SAN management and migration tools, providing context for understanding the role of the symsan command.

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click onHosts>Hosts. This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views:These define the LUNs that a host can access.

Storage Groups:These contain the volumes presented to the host.

Port Groups:These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate toHosts>Masking Views.

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host:There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes:Save the changes to the masking view.

Repeatfor all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate toStorage>Storage Groups.

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1:You can delete the entire storage group. Select the storage group and click theDeletebutton (or a similar option).

If the storage group is shared with other hosts:You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back toHosts>Hosts.

Select web_host_1.

Click theDeletebutton (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check theStorage GroupsandMasking Viewssections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click onTimeFinder SnapVXorTimeFinder Clone(the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name:The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode:Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture"(in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation:You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

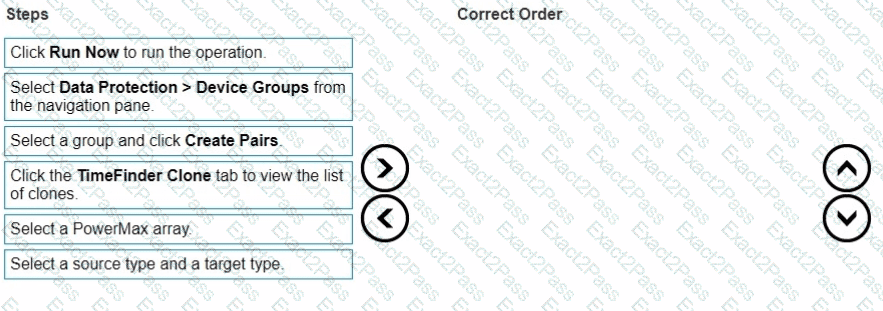

Here's the correct sequence of steps along with explanations:

Correct Order:

Select Data Protection > Device Groups from the navigation pane.

Why:This is the starting point within Unisphere for PowerMax. You need to navigate to the section where device groups are managed and where TimeFinder operations are initiated.

Select a PowerMax array.

Why:In an environment with multiple PowerMax arrays, you must specify the array on which you want to create the clone copy sessions.

Select a group and click Create Pairs.

Why:You are selecting the specific device group that will be the source for the clone operation and choosing the "Create Pairs" action to initiate the clone session creation process. This implies you are creating a clone from an existing group of devices.

Select a source type and a target type.

Why:This step defines the characteristics of the source and target devices for the clone session. This could involve selecting from different storage groups, specifying thin or thick provisioning, or other relevant settings. Note that in a clone context, the "target type" often refers to how the clone will be linked to the source (e.g., a full copy or a linked target).

Click Run Now to run the operation.

Why:After configuring all the settings for the clone session, this action triggers the actual creation of the clone pairs based on the selected source and target types and other parameters.

Click the TimeFinder Clone tab to view the list of clones.

Why:Once the operation has been initiated, this is how you would verify that the clone sessions were created successfully and monitor their status.

Select Data Protection > Device Groups from the navigation pane.

Select a PowerMax array.

Select a group and click Create Pairs.

Select a source type and a target type.

Click Run Now to run the operation.

Click the TimeFinder Clone tab to view the list of clones.

Step by Step Comprehensive Detailed Explanation:

Before performing an SRDF/S (synchronous) Restore operation, it is crucial tostop all host I/O activityto both the R1 (source) and R2 (target) devices. This ensures data consistency and prevents potential data loss or corruption during the restore process.

Here's why:

Data Integrity:An SRDF/S Restore operation involves copying data from the R1 device to the R2 device, overwriting any existing data on R2. If hosts are actively accessing and modifying data on either device during this process, it can lead to inconsistencies and data integrity issues.

Synchronization:SRDF/S maintains real-time synchronization between the R1 and R2 devices.1Performing a Restore operation while hosts are writing data can disrupt this synchronization and lead to unpredictable results.

Why other options are incorrect:

A. Continue accessing the R1 devices. Stop accessing the R2 devices:This would leave R1 vulnerable to data inconsistencies.

B. Stop accessing the R1 devices. Continue accessing the R2 devices:This would make R2 susceptible to data loss or corruption.

D. Continue accessing the R1 and R2 devices:This is the most dangerous option, as it would likely lead to data integrity issues.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF operations, including Restore. It emphasizes the importance of halting host I/O before performing such operations to ensure data consistency. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SRDF management and best practices, which would include recommendations for performing operations like Restore safely.

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

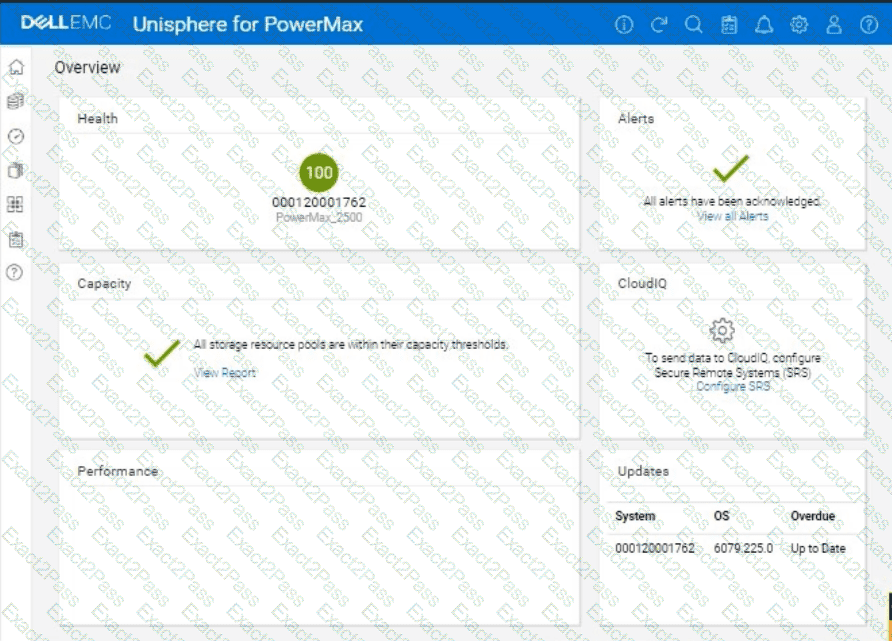

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

Step by Step Comprehensive Detailed Explanation:

In an SRDF (Symmetrix Remote Data Facility) disaster recovery scenario where production has been switched to the R2 devices at the target site, theResumeoperation allows the primary hosts to regain access to the R1 devices without waiting for a full data transfer from the R2 devices.

Here's how it works:

R1 Access:The Resume operation makes the R1 devices (at the primary site) accessible to the primary hosts.

Background Synchronization:While the hosts access and modify data on the R1 devices, SRDF continues to synchronize the changes from the R2 devices (at the target site) in the background. This ensures that the R1 devices are gradually updated with any changes that occurred on the R2 devices during the failover.

This approach minimizes downtime and allows for a quicker return to the primary site without waiting for a lengthy synchronization process to complete before granting host access.

Why other options are incorrect:

A. Update:This operation copies changes from R2 to R1, but it doesn't necessarily grant immediate host access to R1.

B. Fallback:This is a more comprehensive process that involves reversing replication direction and fully restoring the primary site as the production environment.

C. Failover:This operation switches production to the R2 devices, not the R1 devices.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf resume command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Resume" operation.

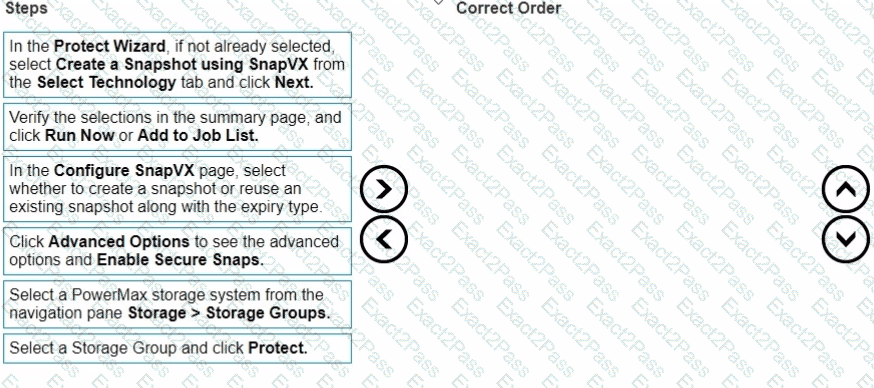

Okay, I'm ready to arrange those steps for creating a snapshot in Unisphere for PowerMax in the correct order, based on the image provided.

Here is the correct sequence, along with explanations:

Correct Order:

Select a PowerMax storage system from the navigation pane Storage > Storage Groups.

Why:This is the starting point in Unisphere. You need to navigate to the "Storage Groups" section within the specific PowerMax array where you intend to create the snapshot.

Select a Storage Group and click Protect.

Why:You're choosing the storage group that contains the data you want to snapshot. Clicking "Protect" initiates the process of creating a data protection operation (in this case, a snapshot).

In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.

Why:This specifies that you want to use the SnapVX technology to create a snapshot. SnapVX is the snapshot feature in PowerMax arrays.

In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.

Why:Here, you define the core parameters of the snapshot:

Create a new snapshot:This is what you'd typically do for a new point-in-time copy.

Reuse an existing snapshot:In some cases, you might want to update an existing snapshot.

Expiry type:This determines how long the snapshot will be retained (e.g., a specific duration or until manually deleted).

Click Advanced Options to see the advanced options and Enable Secure Snaps.

Why:This allows you to configure more granular settings for the snapshot, including:

Secure Snaps:Enabling this option prevents the snapshot from being deleted before its expiry time, adding an extra layer of protection.

Verify the selections in the summary page, and click Run Now or Add to Job List.

Why:This is the final step before creating the snapshot:

Summary page:Review all the settings you've configured.

Run Now:Immediately creates the snapshot.

Add to Job List:Schedules the snapshot creation for later.

Select a PowerMax storage system from the navigation pane Storage > Storage Groups.

Select a Storage Group and click Protect.

In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.

In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.

Click Advanced Options to see the advanced options and Enable Secure Snaps.

Verify the selections in the summary page, and click Run Now or Add to Job List.

Step by Step Comprehensive Detailed Explanation:

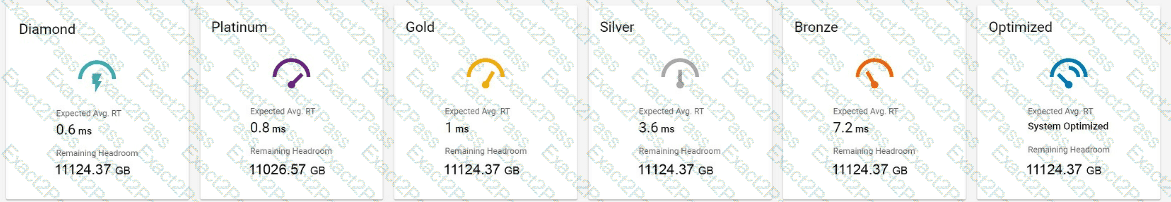

The Workload Planner in Unisphere for PowerMax helps you analyze and predict the performance impact of adding new workloads to your storage array. It uses sophisticated algorithms to calculate howthe addition of a new workload will affect the existing workloads and whether it will violate any service level objectives (SLOs).

To determine if a Storage Group workload is stable, the Planner considers two key calculated values:

Read Response Time:The predicted read response time of the Storage Group after the new workload is added.

Write Response Time:The predicted write response time of the Storage Group after the new workload is added.

The Planner compares these calculated values against the service level (SL) defined for the Storage Group. Ifboththe calculated read and write response times fall within the defined SL response time, the Planner considers the workload to be stable. This means that the new workload can be added without negatively impacting the performance of the existing workloads or violating the SLOs.

Why other options are incorrect:

A. One of the calculated values is within 10-20% of the SL-defined response time:Both read and write response times must be within the defined SL, not just one.

B. Both calculated values are within a 10-15% threshold of the SL-defined response time:The threshold is not fixed at 10-15%. The calculated values must be within the actual SL-defined response time.

C. One of the calculated values remains within the SL-defined response time:Again, both read and write response times need to be within the defined SL.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the Workload Planner feature, including how it calculates and analyzes workload stability. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about performance management and workload planning in PowerMax, providing context for understanding the Workload Planner's functionality.

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), a "Restore" operation is used to resynchronize the source (R1) and target (R2) devices after a situation where the target device might have been modified independently. This typically occurs after a failover scenario where the target device becomes the primary and undergoes changes.

During an SRDF Restore operation:

R2 Changes Discarded:Any changes made to the target (R2) device since the last synchronization are discarded.

R1 Changes Propagated:The current data on the source (R1) device is copied over to the target (R2), overwriting any existing data on the target.

This effectively restores the target device to a state consistent with the source device, ensuring data integrity and consistency.

Why other options are incorrect:

B. Resumes normal SRDF mirroring and host access:While a Restore operation can be part of the failback process, it's not the only step involved. Failback might involve additional actions like reversing replication direction and restoring host access.

C. Changes made to the R2 are propagated to the R1. Changes made to the R1 are discarded:This describes an "Update" operation, not a "Restore."

D. Enables access to both the R1 and R2 devices for their hosts:This describes a "Split" operation, where both devices are made accessible independently.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf restore command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Restore" operation.

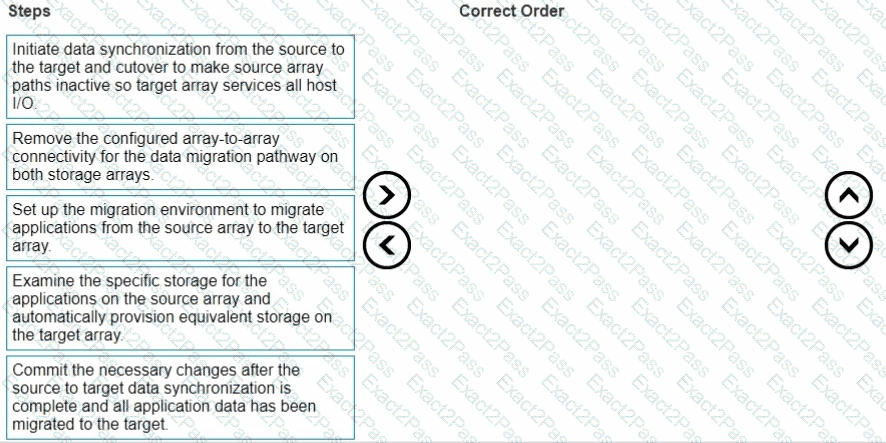

Set up the migration environment to migrate applications from the source array to the target array.

Examine the specific storage for the applications on the source array and automatically provision equivalent storage on the target array.

Initiate data synchronization from the source to the target and cutover to make source array paths inactive so target array services all host I/O.

Commit the necessary changes after the source to target data synchronization is complete and all application data has been migrated to the target.

Remove the configured array-to-array connectivity for the data migration pathway on both storage arrays.

Correct Order:

Set up the migration environment to migrate applications from the source array to the target array.

Why:This is the initial setup phase, where you configure the necessary settings on both the source and target arrays to enable the migration. This involves actions like:

Verifying compatibility between the source and target arrays.

Ensuring that the required licenses are in place (e.g., NDM license).

Configuring network connectivity (FC or iSCSI) for data transfer between the arrays.

Examine the specific storage for the applications on the source array and automatically provision equivalent storage on the target array.

Why:Before migrating data, you need to ensure that the target array has the appropriate storage capacity and configuration to host the applications.

How:NDM can often automatically provision equivalent storage on the target based on the source configuration. This includes creating storage groups, volumes, and masking views that mirror the source.

Initiate data synchronization from the source to the target and cutover to make source array paths inactive so target array services all host I/O.

Why:This is the core of the migration process. Data is copied from the source to the target while the application continues to run. Cutover is the final step where I/O is redirected to the target array.

How:

Synchronization:Data is copied in the background.

Cutover:Once synchronization is complete, a brief cutover is performed. In a well-planned NDM, this cutover is designed to be within the I/O timeout limits of most applications.

Commit the necessary changes after the source to target data synchronization is complete and all application data has been migrated to the target.

Why:This step finalizes the migration and makes it permanent.

What it involves:The migration session is acknowledged and the configuration is finalized on the target array.

Remove the configured array-to-array connectivity for the data migration pathway on both storage arrays.

Why:After the migration is complete, the temporary connections used for data transfer between the arrays should be removed to free up resources and maintain a clean configuration.

What it involves:This typically means removing the FC zones or iSCSI settings that were configured specifically for the NDM process.

https://visiondatacenter.com/products/DELLEMC_VMAX450F/vmax-software-datasheet.pdf

Step by Step Comprehensive Detailed Explanation:

SnapVX Clones:SnapVX clones are full, writable copies of a source volume created using the SnapVX snapshot technology. They are independent volumes that can be used for various purposes, such as testing, development, or data analysis.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." When a clone is derived from a secure snapshot, it inherits the same protection, making it immutable and preventing any modifications or deletion. This ensures data integrity and protection against accidental or malicious changes.

Crash Consistent:SnapVX clones can be made crash consistent. This means that the clone captures a point-in-time copy of the source volume that is consistent with a database or application crash. This is important for ensuring data integrity and recoverability in situations where the source volume experiences an unexpected outage.

Why other options are incorrect:

A. Maximum 1024 snaps per volume:This limit applies to the source volume, not the clones themselves. Each clone is an independent volume.

C. Restores directly to the source volume:Clones are independent copies and do not directly restore to the source volume. Data can be copied or moved from the clone to the source if needed.

D. Is Read-only:SnapVX clones are fully writable copies, not read-only.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create and manage clones. It confirms the ability to create secure clones and the option to make them crash consistent.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX clones for various use cases.

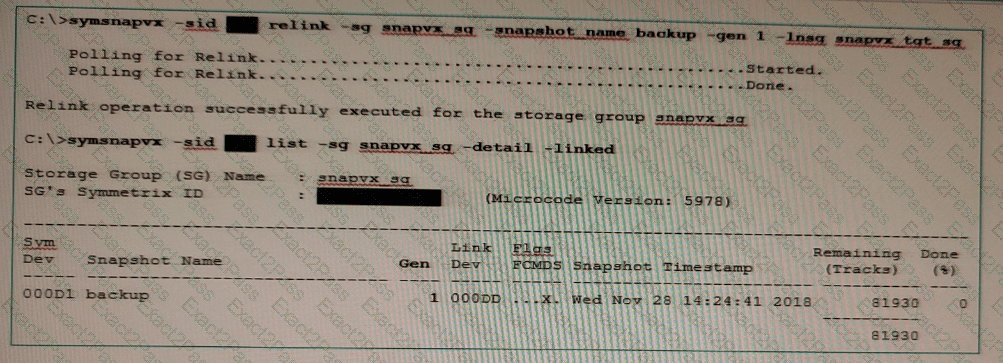

Step by Step Comprehensive Detailed Explanation:

SnapVX Linked Targets:SnapVX is a snapshot technology used in Dell PowerMax storage arrays. A linked target is a volume that provides read/write access to a specific point-in-time copy (snapshot) of a source volume.

Read/Write Access:Unlike traditional snapshots, which are typically read-only, SnapVX linked targets allow modifications. This makes them suitable for use cases like testing, development, and data analysis where changes need to be made to a copy of the data without affecting the original source.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." These snapshots are write-protected and prevent any modifications or deletion, ensuring data integrity and protection against accidental or malicious changes.

Why other options are incorrect:

B. They support a maximum of 1024 snaps per volume:This is partially correct. While a source volume can have up to 1024 snapshots, this limit includes all types of snapshots (manual, automated, and legacy), not just linked targets.

B. They cannot send data to SRDF:This is incorrect. SnapVX linked targets can participate in SRDF (Symmetrix Remote Data Facility) replication, allowing for disaster recovery and data mobility.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create, link, and manage snapshots. It confirms the read/write capability of linked targets and the ability to create secure snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX linked targets for various use cases. You can find this document on the Dell Support website by searching for "PowerMax Family Essentials and Best Practices Guide."

Step by Step Comprehensive Detailed Explanation:

When you install Unisphere for PowerMax on a Microsoft Windows host, it installs several services necessary for its operation. The two primary services that are active after installation are:

SMAS (Storage Management Agent Service):This service is responsible for communication between the Unisphere server and the PowerMax storage array. It handles tasks like collecting data, sending commands, and receiving alerts from the array.

smasdb:This service manages the local database used by Unisphere for storing configuration information, performance data, and other relevant information.

Why other options are incorrect:

A. SYMAPI and symrdfg:SYMAPI is a command-line interface tool, not a service. symrdfg is a service related to SRDF (Symmetrix Remote Data Facility) replication, which may not be active if SRDF is not configured.

B. SMASandGNS:GNS is not a standard service associated with Unisphere for PowerMax.

C. SMASandSTP:STP is not a standard service associated with Unisphere for PowerMax.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Installation Guide:This guide provides detailed instructions for installing Unisphere for PowerMax on different operating systems, including Windows. It also lists the services that are installed and their functions. You can find this document on the Dell Support website by searching for "Unisphere for PowerMax Installation Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help documentation for Unisphere may also provide information about the services it uses and their roles.

Step by Step Comprehensive Detailed Explanation:

In PowerMaxOS 5978, the largest TDEV (Thin Device) that can be created is64 TB. This represents the maximum size for a single, thinly provisioned storage volume on a PowerMax array running that version of the operating system.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of PowerMax features and capabilities, including information about storage device sizes and limits.

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide might contain details about the maximum size of TDEVs that can be created using SYMCLI commands.

Step by Step Comprehensive Detailed Explanation:

Unisphere for PowerMax provides a "System > Hardware" view that offers insights into the physical components of your PowerMax storage array. On newly installed 2000 and 8000 series arrays, this view would typically show information about:

Front-end directors:These directors handle host connectivity and data transfer to and from the array. The view would likely display details about the number of front-end directors, their types, and their status.

Back-end directors:These directors manage the connection to the physical disks (storage media) within the array. The view may show the number of back-end directors, their types, and their status.

RDF (Remote Data Facility):If the array is configured for SRDF replication, the hardware view might display information about the RDF directors or components responsible for managing remote replication.

Why other options are incorrect:

A. Capacity, performance, and protection:While these are important aspects of a PowerMax system, they are typically found in other sections of Unisphere, such as the "Dashboard" or "Storage" views.

B. Provision, protect and set host I/O limits:These are management functions accessible through Unisphere, but not typically displayed directly under the "System > Hardware" view.

D. I/O Profile, performance thresholds, and anomaly detection:These are related to performance monitoring and analysis, which are usually found in the "Performance" section of Unisphere.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the different views and functionalities available within the tool. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of PowerMax systems and their management using Unisphere. It may provide context for understanding the information displayed in the "System > Hardware" view.

We need to create a secure snapshot named "Stor1" from the storage group "StorGroup1" in the Unisphere for PowerMax simulator, and the snapshot should be protected from deletion for two days.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the Storage Groups Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected).

In the left-hand navigation pane, click onStorageand then selectStorage Groups.

2. Locate and Select "StorGroup1"

In the Storage Groups view, you'll see a list of all storage groups on the array.

Find the storage group named "StorGroup1".

Click on the name "StorGroup1" to open its details view.

3. Initiate the Snapshot Creation Process

Within the "StorGroup1" details view, look for an option related to creating snapshots or protecting the storage group. This might be a button labeled:

"Protect"

"Create Snapshot"

"SnapVX"

Or an icon representing snapshot creation.

Click the appropriate button or icon to start the snapshot creation process.

4. Configure Snapshot Settings

A new window or panel will appear, allowing you to configure the snapshot settings.

Snapshot Name:Enter Stor1 as the snapshot name.

Snapshot Technology:SelectSnapVX(or a similar option) as the snapshot technology.

Secure Snapshot:This is crucial. Look for an option labeled "Secure Snapshot," "Enable Secure Snap," "Secure Snap," or something similar.Check this option.

Retention/Expiration:You need to set the retention period for the secure snapshot. This will define how long the snapshot cannot be deleted. There are usually a few ways to configure this:

Expiration Time:Set an explicit expiration date and time that is two days from now.

Retention Period:Specify a retention period of 2 days.

No Expiry:This option is not what we want here. We want the snap to be secure for 2 days.

Choose the appropriate option to make the snapshot undeletable for two days.

Other Settings:Review any other available settings. You might be able to choose between creating a new snapshot or linking to an existing one. Select the option to create anew snapshot.

5. Create the Snapshot

After configuring all the snapshot settings, review them carefully to ensure they are correct.

Click the button to create the snapshot. This button might be labeled:

"Run Now"

"OK"

"Create"

"Finish"

6. Verify Snapshot Creation (Optional)

After the snapshot creation operation completes, you can verify that the snapshot was created successfully:

Go back to the "StorGroup1" details view.

Look for a tab or section related to snapshots (e.g., "Snapshots," "TimeFinder," "Local Replication").

You should see the "Stor1" snapshot listed there, and its status should indicate that it's a secure snapshot with the correct retention period (2 days).

Step by Step Comprehensive Detailed Explanation:

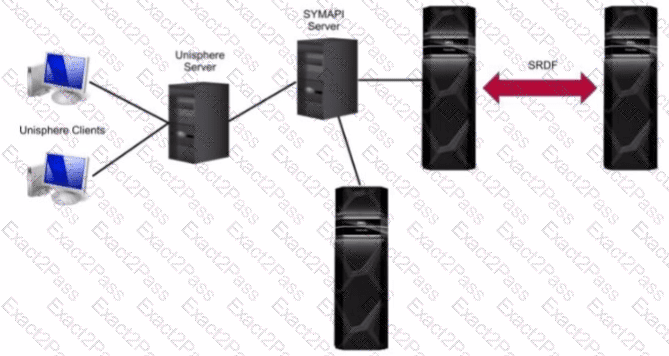

Unisphere for PowerMax offers different deployment options to manage PowerMax storage arrays. Based on the exhibit, we can identify the following:

Separate SYMAPI Server:The diagram shows a dedicated SYMAPI server. SYMAPI (Symmetrix Application Programming Interface) is a command-line interface used to manage PowerMax and VMAX storage arrays. This indicates that the Unisphere server is not directly connected to the storage arrays.

Unisphere Server Connected to SYMAPI Server:The Unisphere server is shown to be connected to the SYMAPI server. This means that the Unisphere server relies on the SYMAPI server to communicate with the PowerMax arrays.

No Direct Connection to Arrays:The Unisphere server does not have a direct connection to the PowerMax arrays.

Considering these points, the deployment option depicted in the exhibit is aremote deployment. In a remote deployment, the Unisphere server is installed on a separate host and communicates with the PowerMax arrays through a SYMAPI server. This allows for centralized management of multiple arrays from a single Unisphere instance.

Why other options are incorrect:

A. Embedded:In an embedded deployment, the Unisphere software runs directly on the PowerMax array itself. This eliminates the need for a separate Unisphere server.

B. Either remote or local:While the diagram could technically represent a local deployment with a dedicated SYMAPI server, the presence of the separate SYMAPI server and the lack of direct connection to the arrays strongly suggest a remote deployment.

D. Local:In a local deployment, the Unisphere server is typically installed on the same host as Solutions Enabler, which has direct connectivity to the storage arrays.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Installation Guide:This guide provides detailed information about the different Unisphere deployment options, including local, remote, and embedded. It also includes diagrams and explanations of each deployment scenario. You can find this document on the Dell Support website by searching for "Unisphere for PowerMax Installation Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of PowerMax systems and their management using Unisphere. It may provide context for understanding the different deployment options.

Step by Step Comprehensive Detailed Explanation:

In TimeFinder SnapVX, snapshots of a source volume are assigned generation numbers. These numbers indicate the order in which the snapshots were created. The first snapshot taken has a generation number of 0, the second has 1, and so on.

In this case, four snapshots were created at different times:

8:00 AM (Generation 0)

10:00 AM (Generation 1)

12:00 PM (Generation 2)

2:00 PM (Generation 3)

Therefore, the snapshot created at 2:00 PM has a generation number of3.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and functionalities, including how generation numbers are assigned to snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."
