The base enclosure is a component that is typically only replaceable by qualified personnel. This is because the base enclosure of a Dell PowerStore system contains critical components and connections that require specialized knowledge and tools to handle properly. Replacing a base enclosure involves understanding the system’s architecture, safely disconnecting and reconnecting various components, and ensuring that the system is not compromised during the process.

The memory module, embedded I/O module, and power supply are designed to be more accessible for replacement and may fall under the category of customer-replaceable units (CRUs) or field-replaceable units (FRUs), depending on the specific model and configuration of the PowerStore system1.

For detailed procedures on replacing the base enclosure or any other components, it is recommended to refer to the official Dell PowerStore Installation and Service Guide.This guide provides step-by-step instructions and safety precautions for qualified personnel to follow when performing hardware replacements1. It is crucial to adhere to these guidelines to maintain system integrity and ensure that the storage system continues to operate effectively after the replacement.

The illuminated amber LED on an expansion enclosure typically indicates a fault. In the context of Dell PowerStore expansion enclosures, an amber light can signify various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

When troubleshooting, the following steps are generally taken:

Identify the specific LED that is illuminated amber using the hardware documentation.

Consult the Dell PowerStore Hardware Guide to determine the exact nature of the fault indicated by the amber LED.

Follow the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If the issue persists, contact Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

When the error “-bash: pstcli: command not found” appears after running a PSTCLI command on a Linux host, it typically means that the shell cannot locate the pstcli executable in the directories listed in the PATH environment variable. To resolve this issue, the installation directory of pstcli needs to be added to the PATH variable. This can be done by editing the shell initialization file (such as .bashrc or .bash_profile for Bash shell) and appending the installation directory to the PATH variable.

Here are the steps to resolve the problem:

Locate the installation directory of PSTCLI. If you followed the default installation, it should be in /opt/dellemc/pstcli-version/bin/.

Open the shell initialization file in a text editor. For example, if using Bash, you might edit ~/.bashrc or ~/.bash_profile.

Add the following line to the file: export PATH=$PATH:/opt/dellemc/pstcli-version/bin/. Replace /opt/dellemc/pstcli-version/bin/ with the actual installation directory if it is different.

Save the file and reload the shell configuration by running source ~/.bashrc or source ~/.bash_profile, or simply close and reopen the terminal.

Verify that pstcli can be found by running echo $PATH and ensuring the directory is listed.

Try running the pstcli command again to confirm that the issue is resolved.

By adding the PSTCLI installation directory to the PATH variable, the shell will be able to locate the pstcli executable when the command is run1. It is important to ensure that the PATH variable is correctly set to include all necessary directories for command-line tools to function properly.If the issue persists, it may be necessary to check the installation of PSTCLI or consult the Dell EMC PowerStore documentation for further troubleshooting steps1.

Heat dissipation in Dell EMC PowerStore systems is typically related to the power and cooling requirements of the system, which are influenced by the system’s configuration and components.Generally, lower model numbered systems, which have less processing power and storage capacity, will have lower heat dissipation specifications compared to higher model numbered systems that are more powerful and have greater storage capacity1.

The heat dissipation specification is an important factor in data center planning as it affects the environmental control requirements such as cooling and airflow. When planning for the installation of PowerStore systems, it is crucial to consider the heat output of the systems to ensure that the data center environment can maintain the optimal temperature for reliable operation.

For detailed specifications on heat dissipation for specific PowerStore models, one should refer to the official Dell EMC PowerStore Spec Sheets, which provide comprehensive information on the electrical and thermal characteristics of each model1. These documents are essential for understanding the power consumption and cooling requirements of PowerStore systems. Following the guidelines provided in these documents helps ensure that the systems are deployed in an environment that can support their thermal management needs.

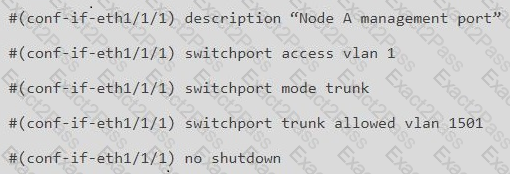

The network configuration shown for a Dell EMC PowerStore T node A management port indicates that VLAN 1 is set as the access VLAN, which means it will pass untagged traffic. The port is also configured as a trunk port, which allows it to pass traffic from multiple VLANs, but only VLAN 1501 is specified in the allowed list, meaning it will pass as tagged traffic. This configuration is typical for network interfaces on storage systems where management traffic is separated from other types of traffic for security and performance reasons.

In detail, the configuration commands are:

switchport access vlan 1: Sets VLAN 1 as the access VLAN, which passes untagged traffic.

switchport mode trunk: Enables trunking on the port, allowing it to pass traffic from multiple VLANs.

switchport trunk allowed vlan 1501: Specifies that only VLAN 1501 traffic is allowed on the trunk and will be tagged.

This setup ensures that management traffic is kept separate from other network traffic and can be managed accordingly.For more information on network configuration for Dell EMC PowerStore systems, you can refer to the PowerStore Networking Guide1. It is important to follow the official documentation to ensure proper configuration and maintenance of the network settings on your storage system.

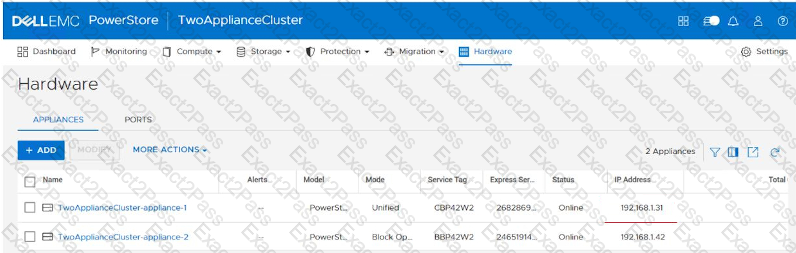

In the Dell EMC PowerStore system, the primary appliance is typically indicated by the ‘Mode’ column within the system’s user interface. The ‘Mode’ column shows the operational mode of the appliance, which can include states such as ‘Primary’, ‘Secondary’, or ‘Standby’.The primary appliance is the one that is actively servicing workloads and managing operations within the PowerStore cluster1.

The ‘Service Tag’ column represents the unique identifier for each physical appliance, the ‘Model’ column indicates the specific model of the appliance, and the ‘IP Address’ column shows the network address assigned to the appliance. While these columns provide important information, they do not indicate the role of the appliance within the cluster.

For more detailed information on identifying the primary appliance and understanding the role of each appliance in a PowerStore cluster, users can refer to the Dell PowerStore Clustering and High Availability documentation1. This documentation provides insights into the clustering architecture of PowerStore and how the primary appliance is determined during the initial configuration process.

The protocol used for the storage network in Dell PowerStore systems is Fibre Channel (FC). FC is a high-speed network technology primarily used for storage networking.Dell PowerStore utilizes FC as part of its all-NVMe design, which also includes NVMe-over-fabric networking to deliver low latency performance for storage workloads1.

Fibre Channel provides several benefits for storage networks, including:

High throughput and low latency for storage operations.

Support for long-distance networking, which is beneficial for disaster recovery and remote backups.

A mature and widely supported ecosystem with a variety of hardware and software options.

For detailed information on configuring and using FC with Dell PowerStore, administrators should refer to the Dell PowerStore Networking Guide for Storage Services and the Dell PowerStore Best Practices Guide.These documents provide comprehensive instructions on network configurations, including best practices for setting up and managing FC networks within Dell PowerStore environments23. Following these guidelines ensures optimal performance and reliability of the storage network.

The configuration details can be exported during theCluster Configurationstep of the Initial Configuration Wizard (ICW) for Dell PowerStore. This step allows the user to review the chosen configuration information, validate the configuration, and initiate the cluster creation.It is at this point that the option to export the configuration details is provided1.

For a detailed guide on how to navigate the ICW and export configuration details, users should refer to the official Dell PowerStore Manager Overview documentation or the PowerStore Info Hub, which includes product documentation and videos that assist with PowerStore deployment and maintenance12. It is important to follow the official documentation to ensure that the process is carried out correctly and to maintain system integrity and compliance with warranty and support agreements.

A Dell EMC PowerStore node can tolerate one fan module failure.The system is designed with redundancy to ensure that if a single fan module fails, the remaining fan modules can compensate for the loss and maintain proper cooling to prevent overheating1. The system will increase the speed of the remaining fans to ensure continued cooling.

When a fan module failure occurs, the system will generate an alert to notify the administrator of the fault. The administrator should then take the following steps:

Acknowledge the alert in the PowerStore Manager.

Plan for the replacement of the faulted fan module as soon as possible to restore full redundancy.

Follow the replacement procedures as outlined in the Dell PowerStore Installation and Service Guide1.

It is important to address fan module failures promptly to ensure the long-term health and performance of the PowerStore system. The increased fan speed is a temporary measure to maintain operations until the faulted fan module can be replaced.

To connect a service laptop to the Service LAN port of a Dell EMC PowerStore node, the laptop’s Ethernet interface should be configured with a static IP address and netmask. The correct configuration is:

IP:128.221.1.249

Netmask:255.255.255.0

Gateway: None1

This configuration allows the service laptop to communicate with the PowerStore nodes for SSH and PowerStore Manager (UI) access. It’s important to note that the laptop can be physically connected to one of the PowerStore nodes at a time, or to both nodes’ Service LAN ports using a small switch or hub.However, multiple appliances should never be connected to the same hub or switch as the nodes use the same internal IPs1.

Once the IP is configured as shown above and the physical connection is established, you can ping the relevant IPs:

Node A: 128.221.1.250

Node B: 128.221.1.251

You should only be able to ping the IPs where you are physically connected to. If you can ping, you can proceed to use SSH to connect to the IPs over port 22 using your preferred SSH client.For file transfers, SCP protocol must be used1.

For more detailed instructions on how to connect to the system over the Service LAN Ports for SSH and PowerStore Manager access, refer to the Dell Support Knowledge Base Article1.

For a Dell EMC PowerStore X implementation, a minimum of six IP addresses are required for the storage network. This is to accommodate the various components that need network connectivity within the PowerStore infrastructure1.

The allocation of these IP addresses typically includes:

•Two IP addresses for the storage processors or nodes within the PowerStore appliance.

•Two IP addresses for the management interfaces.

•Two additional IP addresses for redundancy or other network services.

It’s important to plan the network configuration carefully to ensure that there are enough IP addresses available for all required services and for future expansion. For optimization and best practices in IP address allocation, administrators should refer to the Dell EMC PowerStore Networking Guide for Storage Services2. This guide provides detailed information on network requirements, including IP address allocation and network design considerations for PowerStore systems.

A Field Replaceable Unit (FRU) is a component that can be replaced by the user or technician without having to send the entire product or system to a repair facility.Dell’s Customer Replaceable Unit (CRU) program allows customers to replace designated hardware components, which are typically considered as FRUs1.

In the context of Dell PowerStore Maintenance, the Battery Backup Unit (BBU) is considered an FRU because it is designed to be easily replaced in the field. The BBU is critical for maintaining power to the system in the event of a power failure, ensuring that data is not lost and the system can be shut down gracefully.

The other components listed, such as DIMMs, Embedded IO Modules, and Nodes, may not be as easily replaceable by the customer or may require more technical expertise or special tools. Therefore, they are not typically classified as FRUs within the Dell PowerStore ecosystem.

For detailed procedures on replacing the BBU or any other FRU components, it is recommended to refer to the official Dell PowerStore Maintenance documents and follow the guidelines provided for safe and effective replacement. This ensures that the system integrity is maintained and any warranty or support agreements remain valid.

The output of the command “svc_diag list – basic” on a Dell PowerStore system typically showsservice taginformation.

The “svc_diag” command is part of the service scripts provided by Dell for diagnostic purposes on PowerStore systems.

The “list” option with the “–basic” flag is used to display a list of basic system information, which usually includes the service tag, among other details.

The service tag is a unique identifier for Dell products that is used for various purposes, including support and maintenance.

While the exact output of the command can vary based on the software version and specific system configuration, the service tag is a common piece of information displayed by such diagnostic commands1.

For the most accurate and up-to-date information about the “svc_diag list – basic” command and its output, it is recommended to consult the Dell PowerStore Service Scripts Guide or contact Dell Support directly.

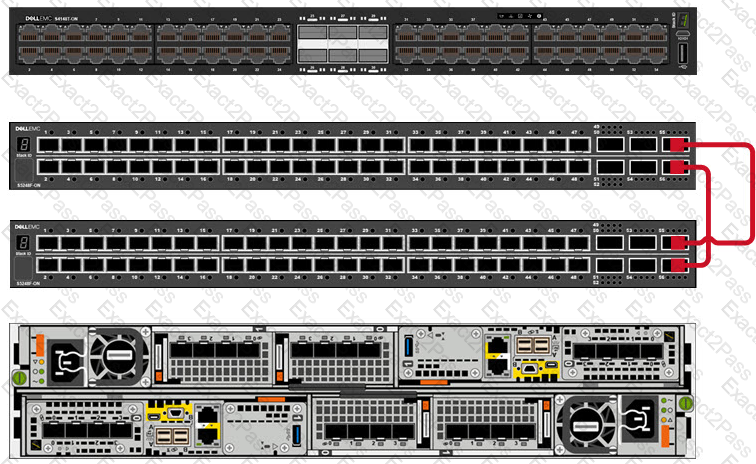

In a Dell EMC PowerStore T environment, the recommended number of network switches is two1. This recommendation is based on best practices for general network performance andhigh availability. Using two switches allows for redundancy and ensures that if one switch fails, the other can continue to handle the network traffic without interruption1.

The use of multiple switches connected with technologies like Virtual Link Trunking (VLT) and Link Aggregation Control Protocol (LACP) or their equivalents is advised. Each PowerStore node should have connectivity to all linked switches to maintain high availability and optimal network performance1.

For detailed network design and switch configuration recommendations, administrators should refer to the Dell PowerStore Networking Guide for PowerStore T Models and other official Dell documentation2. These resources provide comprehensive guidelines on setting up the network infrastructure to support PowerStore T systems effectively.
