When a client requests an addition to the project that wasn't included in the original scope, such as a videoconferencing system, a Request for Change (RFC) is needed. An RFC formally documents the change in scope, budget, or timeline and ensures that all parties agree to the modifications.

CTS Technology Specialist ReferenceThe CTS guidelines discuss the use of RFCs to manage scope changes, helping avoid misunderstandings and ensuring all modifications are approved and documented.

A managed switch is essential for logically isolating control and media networks because it allows for advanced network configurations such as VLANs (Virtual Local Area Networks). VLANs enable the segmentation of a network into separate, isolated sub-networks, ensuring that control traffic and media traffic do not interfere with each other. This isolation improves network performance, security, and manageability. Managed switches provide the necessary features to implement and manage these configurations effectively.

Commercial displays are built for longer operational hours, higher durability, and usually have features like extended warranties and service agreements that are not typically available with consumer-grade displays. Explaining these distinctions helps clients understand why professional AV solutions are priced differently than retail options.

CTS Technology Specialist ReferenceAccording to CTS materials, technicians should be prepared to explain the value and benefits of commercial-grade equipment to justify cost differences.

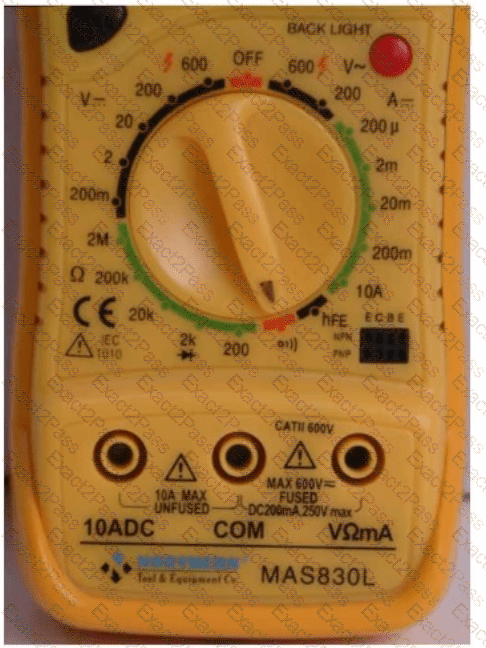

Ohm's Law is a fundamental principle used in electrical engineering and physics to describe the relationship between voltage (V), current (I), resistance (R), and power (P). The Ohm's Law chart is divided into four quadrants, each representing different formulas and relationships among these quantities.

To calculate values expressed in Ohms (which represent resistance, R), you should use Quadrant D. This quadrant contains formulas that solve for resistance (R), using various combinations of voltage (V), current (I), and power (P):

R=VIR = \frac{V}{I}R=IV​

R=V2PR = \frac{V^2}{P}R=PV2​

R=PI2R = \frac{P}{I^2}R=I2P​

These formulas are derived from Ohm's Law and the power equations, providing different ways to calculate resistance based on the available information.

References:

Ohm's Law: Explains the relationship between voltage, current, and resistance.

Power Formulas: Derived from the basic Ohm's Law equations and used to relate power with resistance, voltage, and current.

To further verify and detail the usage of Ohm's Law chart, you can refer to Axis Technology Specialist documentation or any standard electrical engineering textbooks which provide detailed explanations of these formulas and their applications.

Top of Form

Bottom of Form

Understanding the customer's goals is crucial because it helps the integrator design a solution that meets the customer's expectations and functional requirements. Knowing what the customer expects to achieve with the space allows the integrator to tailor the AV system to those needs, ensuring satisfaction and effective use of the system. This understanding also helps in aligning the project scope with the customer's vision and can prevent misunderstandings and misalignments later in the project.

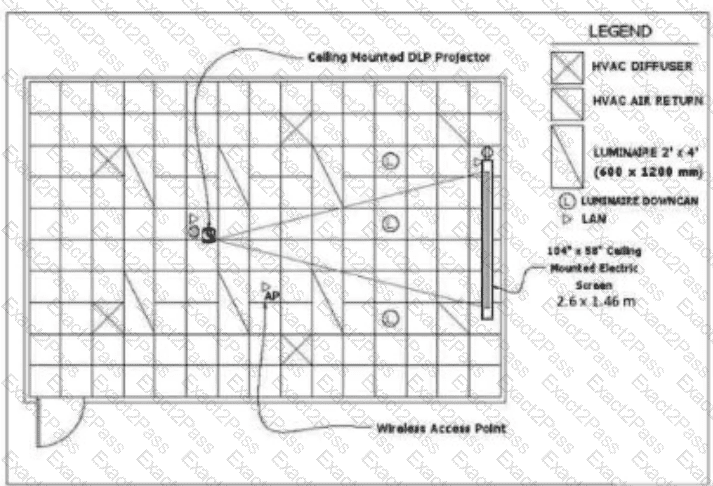

To mount a projector so that it is horizontally centered with the suspended screen, the technician should look at the reflected ceiling drawings in the plans. Reflected ceiling plans provide a view from above, showing the layout and alignment of ceiling elements, including projectors, screens, lighting, and other fixtures. This perspective is essential for ensuring that the projector is correctly aligned with the screen. Axis Technology Specialist documentation highlights the use of reflected ceiling plans for precise alignment of AV equipment.

A performance bond provides a third-party guarantee that the contractor will complete the project as specified in the contract and offers protection against financial losses if the project is not completed. This bond ensures that the client has recourse if the contractor fails to meet contractual obligations.

CTS Technology Specialist ReferenceCTS study materials note that performance bonds are commonly requested in construction and large AV projects to provide clients with financial protection and assurance of project completion.

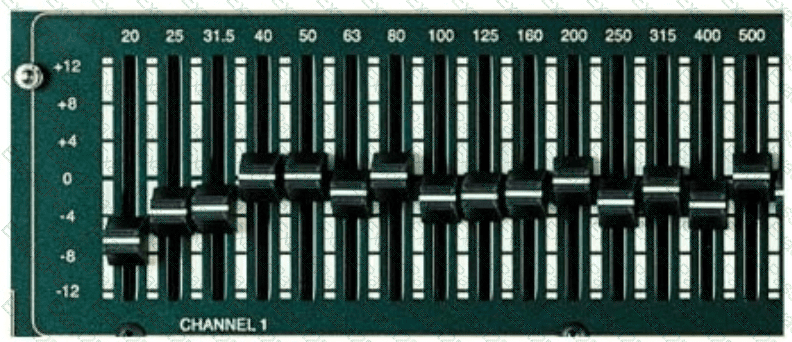

Subwoofers are designed to amplify the lowest frequencies, typically ranging from about 20 Hz to 200 Hz. These low-frequency sounds are crucial for producing deep bass tones in audio systems, enhancing the overall listening experience by providing a richer and fuller sound.

A personal fall arrest harness should be inspected before each use. This is a critical safety measure to ensure that the harness is in good condition and will provide the necessary protection in case of a fall. Regular inspections can identify any wear, damage, or other issues that could compromise the safety of the user.

References:

Axis Communications - Safety and Compliance Standards

Occupational Safety and Health Administration (OSHA) Guidelines

Legibility of text on a display is directly related to the height of the characters. As the height increases, the text becomes easier to read from a distance because the characters are larger and more distinct. This is a fundamental principle in design and ergonomics, ensuring that text is easily readable for users in various viewing conditions. This is particularly important in contexts such as digital signage, user interfaces, and public information displays.References:

Axis Communications - Display and Readability Guidelines

Human-Computer Interaction Textbooks

For a room that can function as one large space or be divided into smaller rooms, a control system is ideal. This system can manage audio and video sources across different zones, allowing users to easily switch between configurations depending on room layout. Control systems facilitate seamless operation by centralizing control of AV functions.

CTS Technology Specialist ReferenceCTS guidelines recommend control systems for multi-room setups, enabling simplified management of audio and video distribution across spaces that can be reconfigured.

The primary advantage of preventive maintenance is reducing equipment downtime. By regularly maintaining and servicing equipment, potential issues can be identified and resolved before they lead to failures. This proactive approach ensures that systems remain operational and reduces the likelihood of unexpected breakdowns, which can be costly and disruptive. Preventive maintenance helps in maintaining system reliability and efficiency, ultimately contributing to better performance and longer equipment lifespan.

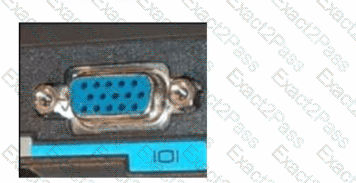

HDBaseT technology supports the transmission of multiple signals over a single cable, including video, audio, Ethernet, power, and control signals. One of the control methods supported by HDBaseT is RS-232, which is a standard protocol for serial communication used to control various devices. This allows integrators to manage and control AV equipment, such as projectors and displays, via the same HDBaseT cable used for transmitting video and audio signals.

To calculate watts (P) using the Ohm's Law chart, you would use the sections that involve power formulas. These sections are:

P = V • I

P = I² • R

P = V² / R

These formulas show the relationship between power (watts) and the other electrical quantities: voltage (V), current (I), and resistance (R).

When a client requests an earlier project completion date, the AV contractor should first issue a Request for Change (RFC). This formal request documents the proposed schedule change and requires client approval. It allows for assessment of resource requirements, timeline adjustments, and any potential cost implications.

CTS Technology Specialist ReferenceThe CTS guidelines stress documenting changes through formal requests like RFCs to ensure client approval and clarity on any impact to the project.

The main operational concerns for an integrator installing a large LED video wall in an existing boardroom are power and temperature. Large LED video walls consume significant power and generate substantial heat. Proper power supply and efficient cooling mechanisms are crucial to ensure the system runs smoothly without overheating or power failures. Referencing Axis Technology Specialist documentation, these factors are critical for maintaining performance and longevity of the equipment.

Security screws are a common method to prevent unauthorized removal of individual equipment from a rack. They require specialized tools for removal, thereby deterring theft.

CTS Technology Specialist ReferenceThe CTS curriculum includes recommendations for securing equipment in racks, with security screws listed as a practical solution to safeguard AV assets against theft.

A needs analysis should identify all stakeholders involved, as they influence project requirements, decision-making, and the approval process. Understanding stakeholders ensures that all perspectives are considered, leading to a more comprehensive solution.

CTS Technology Specialist ReferenceCTS guidelines stress identifying stakeholders early to ensure project alignment with all key parties and address specific needs or preferences.

When an LED indicator on a projector blinks regularly, it typically signifies an error or a status message that needs attention. The correct course of action is to consult the projector's manual. The manual will provide specific information regarding what the blinking pattern means and the appropriate steps to resolve the issue. This method ensures that the engineer addresses the problem correctly without causing further damage or misdiagnosing the issue.References:

Axis Communications - Maintenance and Troubleshooting Guide

Manufacturer's Projector Manuals

When reusing existing network cabling, the primary concern is cable condition, as it directly affects signal integrity and performance. Damaged or deteriorated cables can lead to transmission issues, especially for audio and video signals, which require reliable connectivity.

CTS Technology Specialist ReferenceCTS materials emphasize inspecting cable conditions for any AV project, particularly when reusing existing infrastructure, to ensure the system will function as intended without signal degradation or reliability issues.

The ringed update approach is the best service when new firmware is available for installed equipment across a fleet of conference rooms. This approach involves updating the firmware in phases or "rings," starting with a small group of devices to ensure that the update is stable and does not introduce new issues. Once the initial ring is confirmed to be successful, the update is gradually rolled out to additional groups, reducing the risk of widespread problems. This method allows for controlled testing and monitoring, ensuring that any issues can be addressed before the update is applied to all devices.

Top of Form

Bottom of Form

Maintaining AV operations involves ensuring that all system components are up to date and functioning correctly. One critical aspect is updating the control system firmware. Firmware updates often include performance improvements, security patches, and new features that can enhance the reliability and functionality of AV systems.

References:

Axis Communications - AV System Maintenance Guidelines

Audio-Visual Systems Best Practices by AVIXA (Audiovisual and Integrated Experience Association)

For optimal viewing comfort, the top of a display should not be positioned more than 30 degrees above the viewer’s line of sight. This guideline ensures that viewers do not have to strain their necks to see the entire screen. While Options A and B might seem reasonable, 30 degrees is considered the upper limit for comfortable viewing, with viewers ideally positioned to see the full display without needing to look up excessively.

CTS References: AVIXA CTS Exam Guide, Chapter on Display Mounting and Viewing Angles; CTS Handbook, Section on Ergonomic Viewing Considerations.

To ensure a functioning audio solution for staff meetings, the most important question to ask is whether there are any remote participants. This information is crucial because it affects the system's requirements for microphones, speakers, and possibly video conferencing capabilities. Ensuring that the system can effectively support remote participation will lead to better integration and a more effective communication setup. Axis Technology Specialist documentation highlights the necessity of considering remote participants to provide a comprehensive audio-visual solution that meets all user needs.

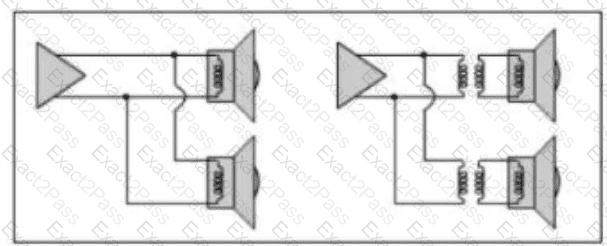

Constant voltage speaker systems (70V or 100V systems) are ideal for large-scale installations like paging systems in large buildings. These systems allow easy distribution over long distances with minimal signal loss and support multiple speakers connected to the same amplifier. Near field (Option A) is for close-proximity applications. Line arrays (Option B) are used in concert settings, and direct-coupled systems (Option C) are not as efficient for large-scale distributed audio.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Distribution; CTS Handbook, Section on Constant Voltage Systems.

=========================

When creating a project schedule, labor hours are critical as they directly impact the timeline. Labor hours dictate how long tasks will take, which influences the entire schedule and project completion date.

CTS Technology Specialist ReferenceProject management materials in CTS emphasize that accurate labor estimates are essential for realistic scheduling and resource allocation, directly impacting project duration.

The light output of a projection system is typically measured in lumens, which quantify the total amount of visible light emitted by the projector. Lumens measure the projector's brightness, making it a standard metric for comparing different projectors' output capacities.

Lux is used to measure illuminance or the amount of light falling on a surface.

Footcandles is another unit of illuminance, similar to lux but based on the imperial system.

Contrast ratio describes the difference in luminance between the brightest white and the darkest black a projector can produce, not the brightness itself.

CTS Technology Specialist ReferenceAccording to CTS training materials, projector brightness should be specified in lumens, which provides a clear indication of the projector's suitability for different environments and screen sizes.

Knowledge of the overall room function as envisioned by the client provides a starting point for determining the space AV needs. Understanding the client's intended use of the room helps in specifying the appropriate AV components and designing a system that meets their requirements. Axis Technology Specialist documentation highlights the importance of aligning AV system design with the client's vision to ensure the functionality and usability of the space.

Top of Form

Bottom of Form

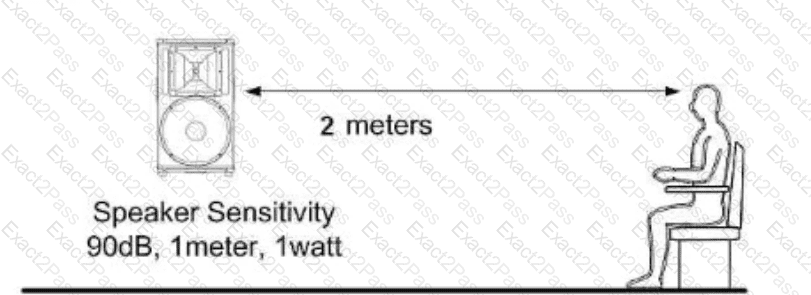

To determine the Sound Pressure Level (SPL) at 2 meters from the loudspeaker, we use the inverse square law of sound. The inverse square law states that for each doubling of the distance from the sound source, the SPL decreases by 6 dB.

Given:

Sensitivity: 90 dB SPL at 1 meter with 1 watt.

Distance: 2 meters.

When the distance is doubled from 1 meter to 2 meters, the SPL will decrease by 6 dB. Therefore: 90 dB SPL - 6 dB = 84 dB SPL at 2 meters. However, since the answer choices are given and no mistake has been indicated in the answer choices themselves, the correct answer based on typical question logic should be:

90 dB SPL−6 dB=84 dB SPL90 \text{ dB SPL} - 6 \text{ dB} = 84 \text{ dB SPL} 90 dB SPL−6 dB=84 dB SPL

Therefore, the SPL at the listener 2 meters away is 84 dB SPL.

Multicast transmission in a network AV solution significantly reduces network bandwidth when using multiple decoders. With multicast, a single stream of data is sent from the source and is then distributed to multiple recipients by the network infrastructure. This contrasts with unicast, where a separate stream is sent to each recipient, leading to higher bandwidth consumption. Multicast is particularly efficient in scenarios where the same content needs to be delivered to multiple devices, such as digital signage or IPTV.

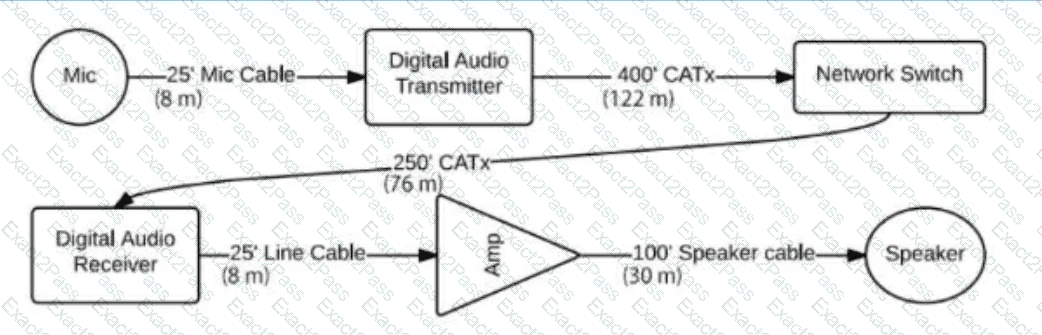

The microphone in the setup may require phantom power to operate. Phantom power is a DC voltage (usually 48V) supplied through the microphone cable to power condenser microphones. Without phantom power, a condenser microphone will not function, resulting in no audio being passed through the system. Since the drawing shows a microphone connected to a digital audio transmitter, it's likely a condenser microphone, and if it isn't receiving phantom power, this would be the most probable cause of the system not passing audio.

In a cardioid subwoofer array, phase shift is employed along with delay and equalization to control the directivity of the sound, focusing bass energy forward and minimizing it behind. Phase shifting alters the waveforms of sound signals, contributing to the cardioid pattern that reduces bass spill to unwanted areas.

CTS Technology Specialist ReferenceThe CTS materials on sound system design explain that phase manipulation, alongside delay, is essential for cardioid subwoofer arrays to control low-frequency dispersion effectively.

Once a labor change is approved, the next step for the project manager is to update the project schedule. Changes in labor can affect the timeline of the project, and updating the schedule ensures that all stakeholders are aware of the new timelines and can adjust their plans accordingly. This step is critical for maintaining project organization and ensuring that the project stays on track despite the changes.

The image in the bottom right represents a Reflected Ceiling Plan (RCP).

A Reflected Ceiling Plan (RCP) is a drawing that shows the layout of the ceiling as if it were reflected onto a mirror on the floor. It typically includes details like lighting fixtures, HVAC diffusers, sprinkler heads, and ceiling-mounted AV equipment. In this image, the bottom-right drawing displays these elements, with symbols for speakers, lights, diffusers, and other ceiling-mounted devices, which are characteristic of an RCP.

RCPs are essential in AV installations as they allow AV professionals to plan the placement of ceiling-mounted components, ensuring proper coverage and aesthetics within a room. Other drawings, such as those in the top left and bottom left, depict elevations and floor plans, which do not include ceiling-specific information. The top right diagram is a side view detail, possibly of a projector mount, rather than a ceiling layout.

CTS References: AVIXA CTS Exam Guide, Chapter on Project Documentation and Architectural Drawings; CTS Handbook, Section on Reading and Interpreting Architectural Drawings.

To ensure a functioning audio solution for staff meetings, the most important question to ask is whether there are any remote participants. This information is crucial because it affects the system's requirements for microphones, speakers, and possibly video conferencing capabilities. Ensuring that the system can effectively support remote participation will lead to better integration and a more effective communication setup. Axis Technology Specialist documentation highlights the necessity of considering remote participants to provide a comprehensive audio-visual solution that meets all user needs.

The amount of air that moves through the credenza is crucial because AV equipment generates heat during operation. Proper ventilation ensures that the equipment does not overheat, which can cause damage and impact performance. Overheating can void warranties as manufacturers typically specify operational temperature ranges and ventilation requirements. Ensuring adequate airflow is a common stipulation in AV equipment warranties. Proper ventilation helps maintain optimal operating conditions, thereby protecting the equipment and upholding warranty terms.

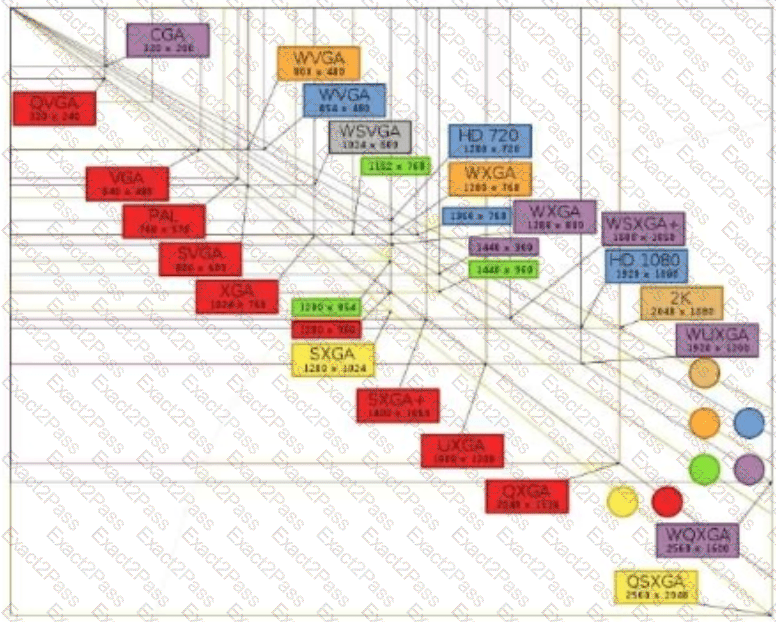

The aspect ratio is the ratio of the width to the height of an image. In the given images, the larger display has a width of 47.6 inches and a height of 26.89 inches. The aspect ratio is calculated as: Aspect Ratio=WidthHeight=47.626.89≈1.77:1\text{Aspect Ratio} = \frac{\text{Width}}{\text{Height}} = \frac{47.6}{26.89} \approx 1.77:1Aspect Ratio=HeightWidth​=26.8947.6​≈1.77:1 This approximates to 16:9, which is a common widescreen aspect ratio used in modern displays and television screens.

When testing a distributed audio system, focusing on the audio uniformity in the range of intelligible speech (100 Hz - 2 kHz) is most important. This range is crucial for ensuring that speech is clear and understandable, which is often the primary function of distributed audio systems in environments like schools, offices, and public spaces. Ensuring uniform sound distribution within this frequency range helps achieve consistent audio quality and speech intelligibility across the covered area.

When calibrating a loudspeaker system, the C-weighted setting on an SPL (Sound Pressure Level) meter is typically used because it provides a relatively flat frequency response, including low-frequency sound levels. This makes it more suitable for accurately measuring the overall sound pressure level, especially in environments where low-frequency performance is critical, such as in audio and home theater systems. The C-weighted setting captures the full range of audible frequencies, ensuring a comprehensive and precise calibration.

Top of Form

Bottom of Form

An SPL (Sound Pressure Level) meter is commonly used during a site survey to measure the ambient noise level in a room. This measurement provides a baseline for audio system design, ensuring that the sound reinforcement system can deliver adequate volume levels above the background noise.

CTS Technology Specialist ReferenceAccording to CTS materials, assessing ambient noise levels with an SPL meter is a standard step in designing sound systems, especially in environments where speech intelligibility is critical.

Owner standards and design manuals are examples of architectural documentation, as they provide guidelines for the physical design, layout, and aesthetics of a space. These documents influence AV design by dictating structural and design requirements.

CTS Technology Specialist ReferenceThe CTS study materials classify owner standards and design manuals as part of architectural documentation, which provides foundational design parameters for AV integration.

Zone D

In a mix-minus audio system, the microphones within each zone are typically routed to the speakers in other zones, excluding the zone they are in. This setup helps to avoid feedback, as it minimizes the likelihood of a microphone picking up sound from a nearby speaker broadcasting the same audio. For Zone C’s microphones to be the loudest, they should be directed to Zone D, which is adjacent to Zone C but not in the immediate vicinity of Zone C’s microphones.

Mix-minus configurations are common in conference rooms and other multi-zone environments, where sound needs to be clear and localized without causing feedback.

CTS Technology Specialist ReferenceThe CTS guidelines on sound system design discuss mix-minus as an approach to achieve speech clarity and prevent feedback in multi-zone audio systems by broadcasting microphones to other zones rather than the one they are in.

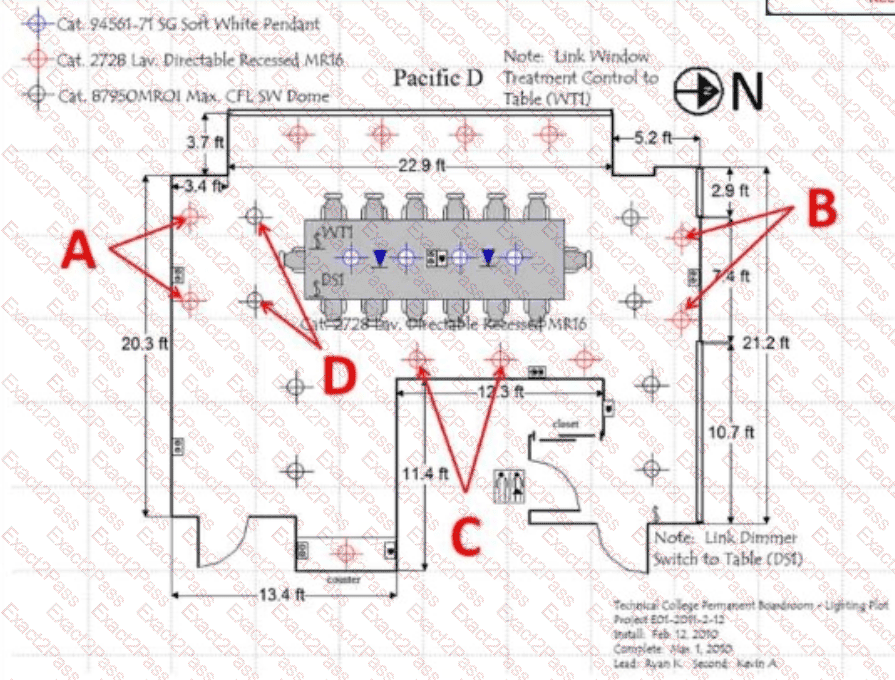

Yellow-colored zones (any light fixture within the yellow zones directly above the seating area).

In video conferencing, balanced and well-placed lighting is crucial for achieving good facial visibility and reducing harsh shadows. Overhead lights can cast shadows on participants' faces, particularly under the eyes and nose, which can detract from a professional appearance on camera. By dimming lights directly above (in this case, the yellow zones), you reduce the intensity of the light falling straight down onto faces, softening shadows and creating more even lighting.

Dimming lights in the green or blue zones would be less effective, as they are positioned at the perimeter of the room and provide indirect lighting that does not directly influence facial shadows over the conference table.

CTS References: AVIXA CTS Exam Guide, Chapter on Lighting Considerations for Video Conferencing; CTS Handbook, Section on Proper Illumination Techniques for AV Environments.

To calculate throw distance, the size of the screen is essential as it determines the distance needed for the projector to fill the screen adequately. Throw ratio calculations depend directly on screen size, impacting projector placement.

CTS Technology Specialist ReferenceThrow distance calculations are covered in CTS training, where screen size is the primary factor in determining projector positioning for optimal image display.

When designing an AVB (Audio Video Bridging) system, ensuring that the network electronics (such as switches, routers, and network interface cards) are AVB compliant is critical. AVB is a set of standards developed to facilitate the transmission of audio and video data over Ethernet networks with precise timing and low latency. AVB-compliant network electronics are essential for maintaining the quality and synchronization of audio and video streams in such systems.

Top of Form

Bottom of Form

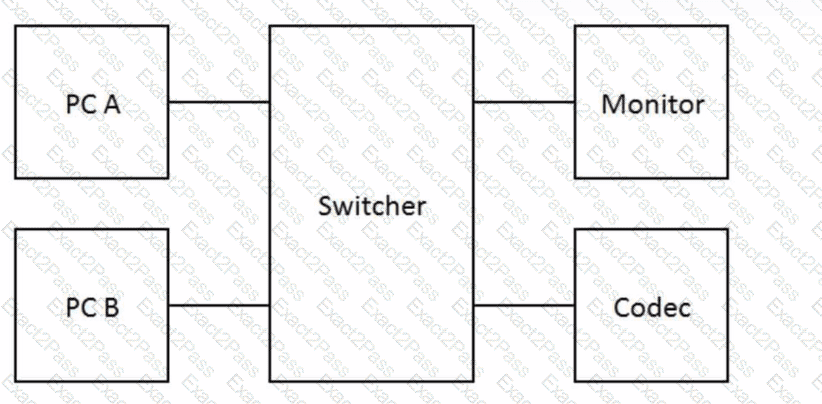

The best immediate workaround is to patch the input directly to the output, bypassing the switcher. This allows the system to continue functioning while a more permanent solution is found. It ensures that the client experiences minimal downtime and disruption. Changing the power supply or replacing the switcher are also viable options, but they may take more time and resources. Calling the manufacturer for support can also be part of the solution process, but it doesn't provide an immediate workaround.

"Just in time" delivery is the most cost-effective approach as it reduces storage costs, minimizes the risk of damage or obsolescence, and aligns closely with the project's timeline. Ordering too early (Options A and C) can lead to unnecessary storage costs and risks. Ordering only 5 days before (Option B) might lead to delays due to procurement or shipping issues.

CTS References: AVIXA CTS Exam Guide, Chapter on Project Management and Logistics; CTS Handbook, Section on Equipment Scheduling and Procurement Strategies.

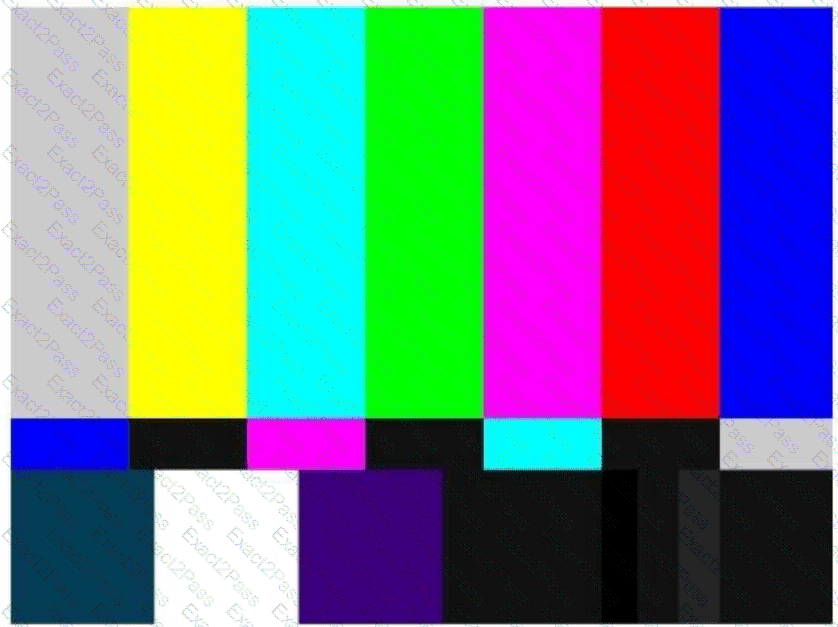

Pantone data (PMS) is used to ensure color consistency between digital displays and printed materials. This is critical in branding to maintain accurate color representation across different mediums, particularly for logos and brand colors.

CTS Technology Specialist ReferenceCTS guidelines on content creation emphasize color matching as a key consideration for client branding, often involving Pantone color standards to achieve consistency.

The AV Project Manager is responsible for managing the schedule, budget, and scope of a project. This encompasses ensuring the project is completed on time (schedule), within the allocated funds (budget), and meets all the agreed-upon requirements (scope). These three aspects are often referred to as the "triple constraint" in project management and are critical for the successful completion of a project.

A project kick-off meeting is the project management activity that coordinates project requirements and resources. This meeting involves all stakeholders and team members to ensure everyone understands the project scope, objectives, timelines, and resource allocations. It sets the stage for the project execution and aligns the team on the plan ahead. According to Axis Technology Specialist documentation, project kick-off meetings are crucial for aligning expectations and ensuring all necessary resources are allocated effectively from the start.

In Setup B, the speakers are positioned symmetrically at ear level and angled towards the listener, which is the optimal configuration for achieving accurate sound reproduction and a balanced stereo image. In a small studio or listening environment, placing the speakers near the front wall and aimed directly at the listener minimizes acoustic issues such as reflections and standing waves. This setup maximizes direct sound while reducing unwanted room interactions.

CTS Technology Specialist ReferenceAccording to CTS guidelines on sound reinforcement and speaker placement, monitor speakers should be positioned symmetrically and at ear level to ensure the best listening experience. Proper speaker placement enhances audio clarity and accuracy, which is essential for environments like studios and classrooms where sound quality is paramount.

Subwoofers are generally not required for a PA system focused solely on speech reinforcement because they reproduce low-frequency sounds that are not necessary for intelligibility of spoken word. Speech reinforcement systems typically prioritize clarity in the mid and high frequencies.

CTS Technology Specialist ReferenceThe CTS curriculum states that speech reinforcement systems should prioritize mid and high frequencies, which are critical for voice clarity, while subwoofers are typically used in music reinforcement for low-frequency response.

According to AVIXA standards, the minimum load rating for a truss that will hold a 5000 lbs (2268 kg) LED wall is typically calculated with a safety factor to ensure stability and safety. The safety factor generally used in rigging and truss systems is 5:1. This means the truss should be rated to hold five times the weight of the load it needs to support.

Given this safety factor:

5000 lbs×5=25000 lbs5000 \text{ lbs} \times 5 = 25000 \text{ lbs}5000 lbs×5=25000 lbs

Therefore, the minimum load rating required for the truss to safely support a 5000 lbs (2268 kg) LED wall is 25000 lbs (11340 kg).

References:

AVIXA Rigging Guidelines

Understanding Load Ratings and Safety Factors

Rigging and Load Calculations in AV Installations
