The answer is A. SR is instantiated and automatically connected with DR.

SR stands for Service Router and DR stands for Distributed Router. They are components of the NSX Edge node that provide different functions1

The SR is responsible for providing stateful services such as NAT, firewall, load balancing, VPN, and DHCP. The DR is responsible for providing distributed routing and switching between logical segments and the physical network1

When a stateful service is enabled for the first time on a Tier-0 Gateway, the NSX Edge node automatically creates an SR instance and connects it with the existing DR instance. This allows the stateful service to be applied to the traffic that passes through the SR before reaching the DR2

According to the VMware NSX 4.x Professional Exam Guide, understanding the SR and DR components and their functions is one of the exam objectives3

To learn more about the SR and DR components and how they work on the NSX Edge node, you can refer to the following resources:

• VMware NSX Documentation: NSX Edge Components 1
• VMware NSX 4.x Professional: NSX Edge Architecture
• VMware NSX 4.x Professional: NSX Edge Routing

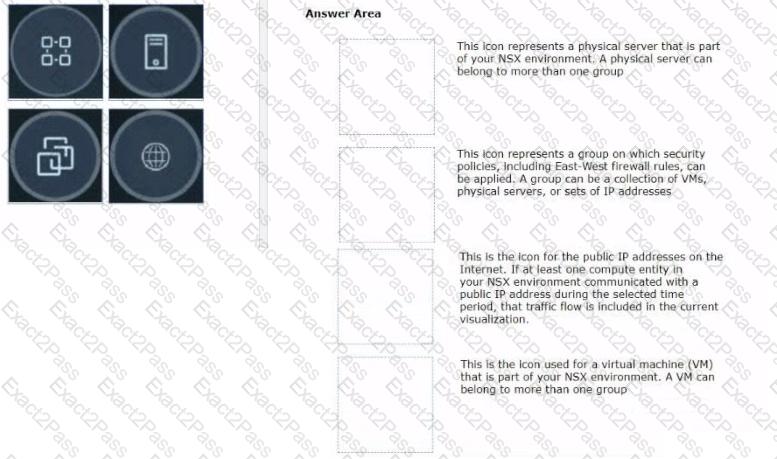

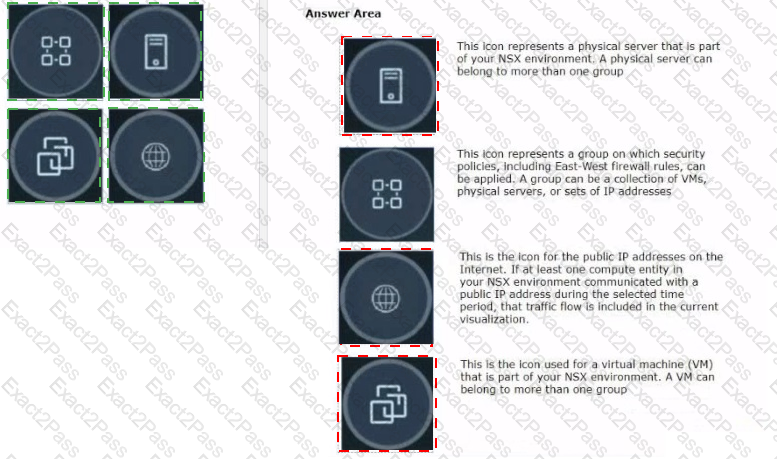

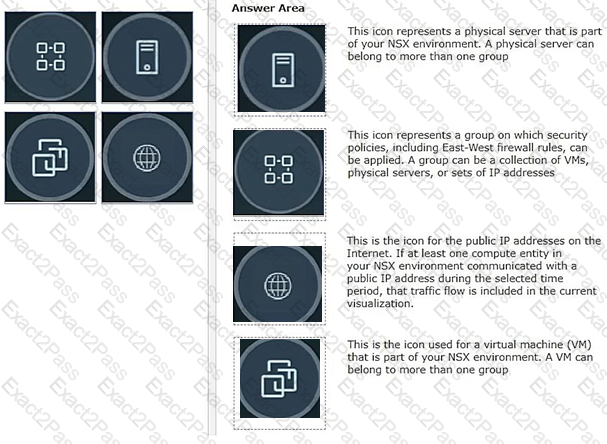

A group is a logical construct that represents a collection of objects in NSX, such as segments, segment ports, virtual machines, IP addresses, MAC addresses, tags, or security policies. A group can be used to define dynamic membership criteria based on various attributes or filters. A group can also be used as the scope of a distributed firewall rule, which means that the rule will apply to all the traffic that matches the group membership criteria32

The minimum MTU size for the UPLINK profile is 1700 bytes. This is because the UPLINK profile is used to configure the physical NICs that connect to the NSX-T overlay network. The overlay network uses geneve encapsulation, which adds an overhead of 54 bytes to the original packet. Therefore, to support a standard MTU of 1500 bytes for the inner packet, the outer packet must have an MTU of at least 1554 bytes. However, VMware recommends adding an extra buffer of 146 bytes to account for possible additional headers or VLAN tags. Therefore, the minimum MTU size for the UPLINK profile is 1700 bytes (1554 + 146). References: : VMware NSX-T Data Center Installation Guide, page 23. : VMware NSX-T Data Center Administration Guide, page 102. : VMware NSX-T Data Center Installation Guide, page 24.

https://nsx.techzone.vmware.com/resource/nsx-reference-design-guide#a-31-the-nsx-virtual-switch

 According to the VMware NSX Documentation1, core files and audit logs can contain sensitive information and should be excluded from the support bundle unless requested by VMware technical support. Controller files and management files are not mentioned as containing sensitive information.

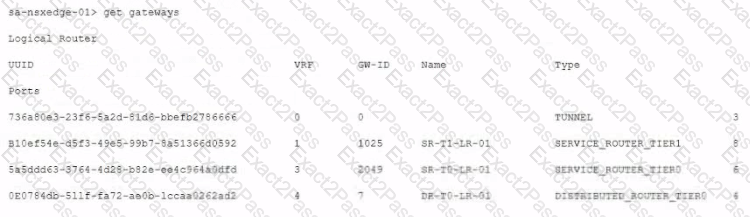

BGP will be configured on the T0 SR. Connect to the VRF for the T0 SR and run get bgp neighbor once connected to it. https://docs.vmware.com/en/VMware-Validated-Design/5.1/sddc-deployment-of-vmware-nsx-t-workload-domains-with-multiple-availability-zones/GUID-8BD4228A-75C6-4C60-80B4-538D4297E11A.html

For the BGP configuration on NSX-T, the Tier-0 Service Router (SR) is typically where BGP is configured. To check the BGP neighbor status:

Connect to the VRF for the T0 SR, which is VRF 3 based on the provided output.

Run the command to get BGP neighbor status once connected to it.

According to the web search results, error code 1001 is related to a time synchronization issue between the ESXi host and the NSX Manager. This can cause problems when configuring a time-based firewall rule, which requires the ESXi host and the NSX Manager to have the same time zone and NTP server settings . To resolve this error, you need to restart the NTP service on the ESXi host to synchronize the time with the NSX Manager. You can use the following command to restart the NTP service on the ESXi host:

/etc/init.d/ntpd restart

The other options are not valid solutions for this error. Reinstalling the NSX VIBs on the ESXi host will not fix the time synchronization issue. Changing the time zone on the ESXi host may cause more discrepancies with the NSX Manager. Reconfiguring the ESXi host with a local NTP server may not be compatible with the NSX Manager’s NTP server.

The log for a firewall rule on an ESXi transport node is stored in the /var/log/dfwpktlogs.log file. This file contains information about the packets that match or do not match the firewall rules, such as the source and destination IP addresses, ports, protocols, actions, and rule IDs. The log file can be viewed using the esxcli network firewall get command or the vSphere Client.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-D57429A1-A0A9-42BE-A299-0C3C3546ABF3.html

A. Can be used as an Exterior Gateway Protocol. This is correct. BGP is a protocol that can be used to exchange routing information between different autonomous systems (AS). An AS is a network or a group of networks under a single administrative control. BGP can be used as an Exterior Gateway Protocol (EGP) to connect an AS to other ASes on the internet or other external networks1

B. It supports a 4-byte autonomous system number. This is correct. BGP supports both 2-byte and 4-byte AS numbers. A 2-byte AS number can range from 1 to 65535, while a 4-byte AS number can range from 65536 to 4294967295. NSX supports both 2-byte and 4-byte AS numbers for BGP configuration on a Tier-0 Gateway2

C. The network is divided into areas that are logical groups. This is incorrect. This statement describes OSPF, not BGP. OSPF is another routing protocol that operates within a single AS and divides the network into areas to reduce routing overhead and improve scalability. BGP does not use the concept of areas, but rather uses attributes, policies, and filters to control the routing decisions and traffic flow3

D. FIGRP Is disabled by default. This is correct. FIGRP stands for Fast Interior Gateway Routing Protocol, which is an enhanced version of IGRP, an obsolete routing protocol developed by Cisco. FIGRP is not supported by NSX and is disabled by default on a Tier-0 Gateway.

E. BGP is enabled by default. This is incorrect. BGP is not enabled by default on a Tier-0 Gateway. To enable BGP, you need to configure the local AS number and the BGP neighbors on the Tier-0 Gateway using the NSX Manager UI or API.

To learn more about BGP configuration on a Tier-0 Gateway in NSX, you can refer to the following resources:

• VMware NSX Documentation: Configure BGP 1
• VMware NSX 4.x Professional: BGP Configuration
• VMware NSX 4.x Professional: BGP Troubleshooting

According to the VMware NSX Documentation, this VPN type must be configured before enabling a L2VPN. L2VPN stands for Layer 2 VPN and is a feature that allows you to extend your layer 2 network across different sites using an IPSec tunnel. Route-based IPSec VPN is a VPN type that uses logical router ports to establish IPSec tunnels between sites.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-86C8D6BB-F185-46DC-828C-1E1876B854E8.html

The answer is C. Group all by means of tags membership.

Tags are metadata that can be applied to physical servers, virtual machines, logical ports, and logical segments in NSX. Tags can be used for dynamic security group membership, which allows for granular and flexible enforcement of security policies based on various criteria1

In the scenario, the company is deploying NSX micro-segmentation to secure a simple application composed of web, app, and database tiers. The naming convention will be:

• WKS-WEB-SRV-XXX
• WKY-APP-SRR-XXX
• WKI-DB-SRR-XXX

The optimal way to group them to enforce security policies from NSX is to use tags membership. For example, the company can create three tags: Web, App, and DB, and assign them to the corresponding VMs based on their names. Then, the company can create three security groups: Web-SG, App-SG, and DB-SG, and use the tags as the membership criteria. Finally, the company can create and apply security policies to the security groups based on the desired rules and actions2

Using tags membership has several advantages over the other options:

• It is more scalable and dynamic than using Edge as a firewall between tiers. Edge firewall is a centralized solution that can create bottlenecks and performance issues when handling large amounts of traffic3
• It is more simple and efficient than doing a service insertion to accomplish the task. Service insertion is a feature that allows for integrating third-party services with NSX, such as antivirus or intrusion prevention systems. Service insertion is not necessary for basic micro-segmentation and can introduce additional complexity and overhead.
• It is more flexible and granular than creating an Ethernet based security policy. Ethernet based security policy is a type of policy that uses MAC addresses as the source or destination criteria. Ethernet based security policy is limited by the scope of layer 2 domains and does not support logical constructs such as segments or groups.

To learn more about tags membership and how to use it for micro-segmentation in NSX, you can refer to the following resources:

• VMware NSX Documentation: Security Tag 1
• VMware NSX Micro-segmentation Day 1: Chapter 4 - Security Policy Design 2
• VMware NSX 4.x Professional: Security Groups
• VMware NSX 4.x Professional: Security Policies

The correct answers are A. Files and anti-malware (file) events from the NSX Edge nodes and the Security Analyzer, D. IDS/IPS events from the ESXi hosts and NSX Edge nodes, and E. Suspicious Traffic Detection events from NSX Intelligence. According to the VMware NSX Documentation3, these are the three data collection sources that are used by NSX Network Detection and Response to create correlations/intrusion campaigns.

The other options are incorrect or not supported by NSX Network Detection and Response. East-West anti-malware events from the ESXi hosts are not collected by NSX Network Detection and Response3. Distributed Firewall flow data from the ESXi hosts are not used for correlation/intrusion campaigns by NSX Network Detection and Response3.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-14BBE50D-9931-4719-8FA7-884539C0D277.html

To activate Malware Prevention on the NSX Application Platform, the steps are:

• In the NSX Manager UI, select System and in the Configuration section, select NSX Application Platform.
• Navigate to the Features section, locate the NSX Malware Prevention feature card, and click Activate or anywhere in the card.
• In the NSX Malware Prevention activation window, select one of the available cloud regions from which you can access the NSX Advanced Threat Prevention cloud service.
• Click Run Prechecks. This precheck process can take some time as the system validates that the minimum license requirement is met and that it is eligible for use with the NSX Advanced Threat Prevention cloud service. The system also validates that the selected cloud region is reachable.
• Click Activate. This step can take some time1. Therefore, the correct answer is D. The other options are incorrect because they involve activating or deploying NSX Network Detection and Response, which is a different feature from Malware Prevention. References: Activate NSX Malware Prevention

• Route Aggregation and and D) BGP neighbours are available when configuring BGP in a VRF. "Route distribution" does not exist, what you can do is a "Route Re-Distribution" via BGP. https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-4CB5796A-1CED-4F0E-ADE0-72BF7B3F762C.html

Distributed Firewall on VDS is a feature of NSX-T Data Center that allows users to install Distributed Security for vSphere Distributed Switch (VDS) without the need to deploy an NSX Virtual Distributed Switch (N-VDS). This feature provides NSX security capabilities such as Distributed Firewall (DFW), Distributed IDS/IPS, Identity Firewall, L7 App ID, FQDN Filtering, NSX Intelligence, and NSX Malware Prevention. To enable this feature, the following requirements must be met in the environment:

• The NSX version must be 3.2 and later1. This is the minimum version that supports Distributed Security for VDS.
• The VDS version must be 6.6.0 and later1. This is the minimum version that supports the NSX host preparation operation that activates the DFW with the default rule set to allow.

References:

• Overview of NSX IDS/IPS and NSX Malware Prevention

VMware NSX is a portfolio of networking and security solutions that enables consistent policy, operations, and automation across multiple cloud environments1

The VMware NSX portfolio includes the following solutions:

• VMware NSX Data Center: A platform for data center network virtualization and security that delivers a complete L2-L7 networking stack and overlay services for any workload1
• VMware NSX Cloud: A service that extends consistent networking and security to public clouds such as AWS and Azure1
• VMware NSX Advanced Load Balancer: A solution that provides load balancing, web application firewall, analytics, and monitoring for applications across any cloud12
• VMware NSX Distributed IDS/IPS: A feature that provides distributed intrusion detection and prevention for workloads across any cloud12
• VMware NSX Intelligence: A service that provides planning, observability, and intelligence for network and micro-segmentation1
• VMware NSX Federation: A capability that enables multi-site networking and security management with consistent policy and operational state synchronization1
• VMware NSX Service Mesh: A service that connects, secures, and monitors microservices across multiple clusters and clouds1
• VMware NSX for Horizon: A solution that delivers secure desktops and applications across any device, location, or network1
• VMware NSX for vSphere: A solution that provides network agility and security for vSphere environments with a built-in console in vCenter1
• VMware NSX-T Data Center: A platform for cloud-native applications that supports containers, Kubernetes, bare metal hosts, and multi-hypervisor environments1

VMware Tanzu Kubernetes Grid and VMware Tanzu Kubernetes Cluster are not part of the VMware NSX portfolio. They are solutions for running Kubernetes clusters on any cloud3

VMware Aria Automation is not a real product name. It is a fictional name that does not exist in the VMware portfolio.

https://blogs.vmware.com/networkvirtualization/2020/01/nsx-hero.html/

According to the Network Bachelor article1, an IDS signature contains data used to identify an attacker’s attempt to exploit a known vulnerability in both the operating system and applications. This implies that statement B is true. According to the VMware NSX Documentation2, IDS/IPS Profiles are used to group signatures, which can then be applied to select applications and traffic. This implies that statement E is true. Statement A is false because users cannot upload their own IDS signature definitions, they have to use the ones provided by VMware or Trustwave3. Statement C is false because an IDS signature does not contain data used to identify the creator of known exploits and vulnerabilities, only the exploits and vulnerabilities themselves. Statement D is false because IDS signatures are classified into one of the following severity categories: Critical, High, Medium, Low, or Informational1.

According to the VMware Knowledge Base, this CLI command is used for packet capture on the ESXi node. pktcap-uw stands for Packet Capture User World and is a tool that allows you to capture packets from various points in the network stack of an ESXi host. You can use this tool to troubleshoot network issues or analyze traffic flows.

The other options are either incorrect or not available for this task. tcpdump is not a valid CLI command for packet capture on the ESXi node, as it is a tool that runs on Linux systems, not on ESXi hosts. debug is not a valid CLI command for packet capture on the ESXi node, as it is a generic term that describes the process of finding and fixing errors, not a specific tool or command. set capture is not a valid CLI command for packet capture on the ESXi node, as it does not exist in the ESXi CLI.

https://kb.vmware.com/s/article/2051814

To configure a firewall rule based on the domain name of a specific application, the administrator needs to use the Profile field in a distributed firewall rule. The Profile field allows the administrator to select a context profile that contains one or more attributes for filtering traffic. One of the attributes that can be used is Domain (FQDN) Name, which specifies the fully qualified domain name of the application. For example, if the administrator wants to filter traffic to *.office365.com, they can create a context profile with the Domain (FQDN) Name attribute set to *.office365.com and use it in the Profile field of the firewall rule.

References:

• Filtering Specific Domains (FQDN/URLs)
• FQDN Filtering

According to the VMware NSX Documentation, TEP stands for Tunnel End Point and is a logical interface that must be configured on transport nodes for encapsulation and decapsulation of Geneve protocol. Geneve is a tunneling protocol that encapsulates the original packet with an outer header that contains metadata such as the virtual network identifier (VNI) and the transport node IP address. TEPs are responsible for adding and removing the Geneve header as the packet traverses the overlay network.

The CLI command on NSX Manager and NSX Edge that is used to change NTP settings is set ntp-server. This command allows the user to configure one or more NTP servers for time synchronization12. The other options are incorrect because they are not valid CLI commands for changing NTP settings. The get timezone and set timezone commands are used to display and configure the timezone of the system1. The get time-server command is used to display the current time server configuration1. There are no CLI commands for using RADIUS or BootP for NTP settings. References: NSX-T Command-Line Interface Reference, vSphere ESXi 7.0 U3 and later versions NTP configuration steps

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-EAAD1FBE-F750-4A5A-A3BF-92B1E7D016FE.html

The RouterLink port is automatically created when a Tier-1 Gateway is connected with a Tier-0 Gateway from the NSX UI1. The RouterLink port is a logical interface that is assigned an IP address and is associated with a physical or virtual interface. The RouterLink port acts as an end point of the IPSec tunnel and routes traffic between the Tier-1 Gateway and the Tier-0 Gateway2. The other options are incorrect because they involve manual creation of logical switches or segments, which are not required for RouterLink port creation. References: Configure NSX for Virtual Networking from vSphere Client, Virtual Private Network (VPN)

https://docs.vmware.com/jp/VMware-NSX/4.0/administration/GUID-3F163DEE-1EE6-4D80-BEBF-8D109FDB577C.html

https://docs.vmware.com/en/VMware-Validated-Design/5.0.1/com.vmware.vvd.sddc-nsxt-design.doc/GUID-74141ABD-C9AF-4A92-8338-092CD67EB56E.html

https://www.hydra1303.com/nsx-t-routing-part-i#:~:text=Logical%20routing%20in%20NSX%2DT,using%20static%20routes%20or%20BGP

https://www.delltechnologies.com/asset/en-us/products/converged-infrastructure/technical-support/docu96042.pdf

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-53D6C480-7AD3-4B23-922D-430C89992B57.html

In VMware NSX 4.x, the Tier-0 gateway serves as a critical component for North-South traffic management, which refers to the traffic entering and exiting the data center. It essentially acts as a bridge between the external networks and the internal NSX-T Data Center environment.

The Tier-0 gateway is designed to handle various functionalities including routing, NAT, and firewalling, making it an effective point for network introspection. Network introspection at the Tier-0 gateway allows administrators to monitor, manage, and secure the traffic as it flows between different networks, including the traffic headed to and from the internet or other external networks.

Here's why other options are less appropriate:

• A. Guest VM vNIC: This refers to the virtual network interface cards attached to virtual machines. While they handle East-West traffic (traffic within the data center), they are not typically used for North-South traffic introspection.
• B. Partner SVM: Service Virtual Machines (SVMs) provided by third-party vendors can integrate with NSX for various services like security, but they are not the direct insertion points for North-South traffic introspection.
• D. Host Physical NIC: These are the network interface cards on the physical hosts. Although they are involved in the underlying transport of North-South traffic, they do not serve as insertion points for introspection in the context of NSX.

By utilizing the Tier-0 gateway for North-South introspection, organizations can achieve a centralized and efficient approach to traffic management and security at the entry/exit points of the network.

References:

• VMware NSX-T Data Center documentation provides detailed explanations of gateway functionalities and their roles in network introspection.
• VMware NSX-T Architecture and Component guides detail the use of Tier-0 and Tier-1 gateways in traffic management and security implementations.

An alarm can be suppressed for a specific duration in hours.

According to the VMware NSX documentation, an alarm can be in one of the following states: Open, Acknowledged, Suppressed, or Resolved12

An alarm in a Suppressed state means that the status reporting for this alarm has been disabled by the user for a user-specified duration12

When a user moves an alarm into a Suppressed state, they are prompted to specify the duration in hours. After the specified duration passes, the alarm state reverts to Open. However, if the system determines the condition has been corrected, the alarm state changes to Resolved13

To learn more about how to manage alarm states in NSX, you can refer to the following resources:

• VMware NSX Documentation: Managing Alarm States 1
• VMware NSX Documentation: View Alarm Information 2
• VMware NSX Intelligence Documentation: Manage NSX Intelligence Alarm States 3

https://docs.vmware.com/en/VMware-NSX-Intelligence/1.2/user-guide/GUID-EBD3C5A8-F9AB-4A22-BA40-92D61850C1E6.html

https://docs.vmware.com/en/VMware-NSX-Intelligence/4.0/user-guide/GUID-DC78552B-2CC4-410D-A6C9-3FE0DCEE545B.html

According to the VMware NSX Documentation, these are two of the ways that you can use to configure Distributed Firewall on VDS:

• NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to send API requests to the NSX Manager node.
• NSX UI: This is a graphical user interface that allows you to configure and manage Distributed Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-9175-5514750E901B.html

The sequence of commands that could be used to check the BGP connection status between the Tier-O Gateway and the upstream physical router on NSX Edge node is get gateways, vrf , get bgp neighbor. These commands can be executed on the NSX Edge node CLI after logging in as admin6. The first command, get gateways, displays the list of logical routers (gateways) configured on the Edge node, along with their IDs and VRF numbers7. The second command, vrf , switches to the VRF context of the desired Tier-O Gateway, where is the VRF number obtained from the previous command7. The third command, get bgp neighbor, displays the BGP neighbor summary for the selected VRF, including the neighbor IP address, AS number, state, uptime, and prefixes received8. The other options are incorrect because they either use invalid or incomplete commands or do not switch to the correct VRF context. References: NSX-T Command-Line Interface Reference, NSX Edge Node CLI Commands, Troubleshooting BGP on NSX-T Edge Nodes
