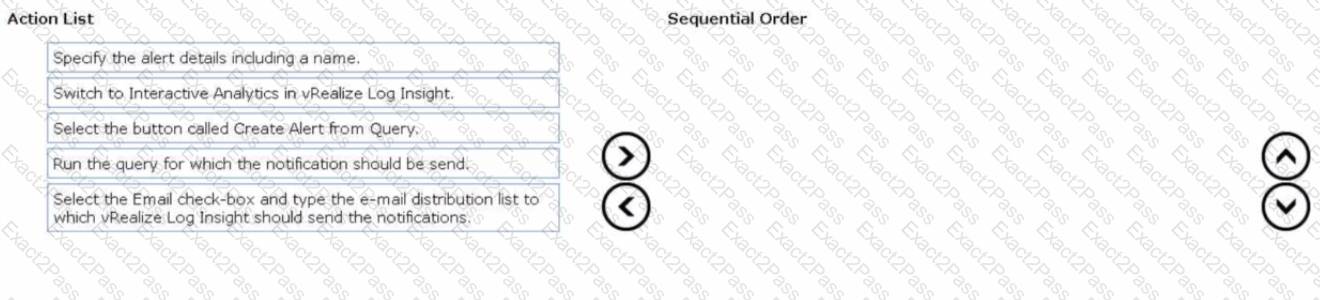

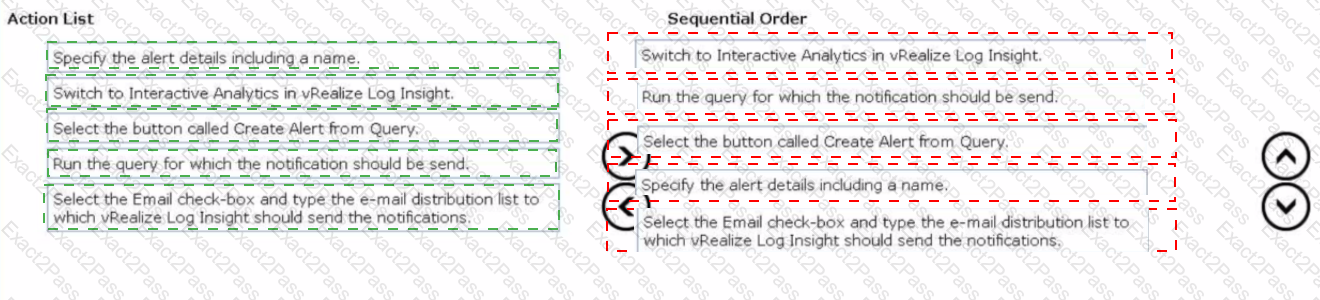

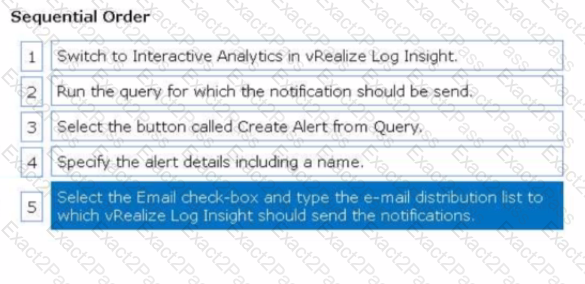

 Switch to Interactive Analytics in vRealize Log Insight:

Start in the Interactive Analytics tab, where you can create queries to analyze log data.

 Run the query for which the notification should be sent:

Input the desired query to filter the log data that will trigger the alert.

 Select the button called Create Alert from Query:

Once the query produces the desired results, click the Create Alert from Query button to begin configuring the alert.

 Specify the alert details including a name:

Provide a meaningful name and details for the alert to identify its purpose.

 Select the Email check-box and type the e-mail distribution list to which vRealize Log Insight should send the notifications:

Enable email notifications, and enter the email addresses or distribution list where the alerts will be sent.

To add a new FQDN of vRealize Suite Lifecycle Manager in the VMware Identity Manager catalog, the administrator needs to sync the FQDN and re-register with VMware Identity Manager . This involves updating the FQDN in vRealize Suite Lifecycle Manager and then initiating a synchronization process with VMware Identity Manager to reflect the changes in the catalog.

To ensure vRealize Suite Lifecycle Manager (vRSLCM) is upgraded to the correct version for a phased upgrade of the vRealize Suite, follow these steps:

C. Use the Online repository for the source of the upgrade files : Utilize the online repository within vRSLCM to access the available upgrade files. This ensures you have the latest versions and necessary components for the upgrade.

D. Download the vRealize Suite Lifecycle Manager Upgrade ISO : Download the specific vRSLCM Upgrade ISO that corresponds to the desired target version. This ISO contains the necessary files for the upgrade process.

F. Update to the latest Product Support Pack in vRSLCM : Before upgrading to a new version, ensure vRSLCM is updated to the latest Product Support Pack. This ensures compatibility and addresses any known issues.

The following options are not necessary or recommended:

A. Connect the ISO to the vRSLCM Appliance as a Virtual CD-ROM: While this was a common method in older versions, it's not the preferred approach for upgrading vRSLCM.

B. Use the CD-ROM repository for the source of the upgrade files: Using a CD-ROM repository is not as efficient or convenient as using the online repository.

E. Download the vRealize Suite Lifecycle Manager Easy installer ISO: The Easy Installer ISO is used for initial installation, not for upgrading vRSLCM.

To replace the SSL certificate for a vRealize Log Insight (vRLI) deployment using vRealize Suite Lifecycle Manager (vRSLCM), the administrator must have the appropriate roles assigned within vRSLCM. The two roles that enable certificate management tasks are:

LCM Cloud Admin:

Description: This role grants administrative privileges within vRSLCM, including the ability to manage and replace SSL certificates for integrated products like vRLI.

Responsibilities:

Overseeing lifecycle operations for cloud management products.

Managing configurations and performing administrative tasks within vRSLCM.

Certificate Administrator:

Description: This role specifically focuses on certificate management within vRSLCM, allowing the user to import, export, and replace SSL certificates for managed products.

Responsibilities:

Handling certificate-related operations, including replacements and renewals.

Ensuring that all managed products have up-to-date and valid SSL certificates.

Without these roles, the administrator may lack the necessary permissions to access the certificate management features in vRSLCM, thereby hindering the SSL certificate replacement process for vRLI.

References:

For detailed information on role assignments and permissions in vRSLCM, refer to VMware's official documentation:

Change Certificate for vRealize Suite Lifecycle Manager

When tasked with analyzing the impact of deploying a new application in an environment utilizing an external storage array, the appropriate What-If Analysis in VMware vRealize Operations is Workload Planning: Traditional. This analysis allows administrators to model the addition of new workloads to traditional (non-hyperconverged) infrastructures, providing insights into resource utilization and capacity planning.

To perform this analysis:

Navigate to the What-If Analysis Section:

In the vRealize Operations interface, go to Plan > Capacity.

Click on the What-If Analysis tile.

Select Workload Planning: Traditional:

Click the ADD button.

Choose Add VMs under the Workload Planning: Traditional tile.

Configure the New Workload:

Specify the data center or custom data center where the new application will be deployed.

Define the workload profile by either:

Manually entering the number of vCPUs, memory, storage, and expected usage percentage.

Importing attributes from existing VMs to use as templates.

Set the Time Frame:

Enter the start and end dates for the period during which the workload will be active. The system can project scenarios up to one year from the current date.

Run the Analysis:

After configuring the workload, run the scenario to receive vRealize Operations' assessment.

The system will indicate whether the proposed workload fits within the targeted infrastructure and provide projections on resource utilization over time.

This process enables administrators to forecast the impact of new applications on existing resources, ensuring informed decisions regarding capacity and performance.

To securely forward vRealize Operations logs to a centralized syslog server while preserving their original format, you should configure the log forwarding settings to use the syslog protocol over port 6514 with SSL enabled.

Configuration Steps:

Access Log Forwarding Settings:

In the vRealize Operations Manager UI, navigate to Administration > Management > Log Forwarding.

Configure Log Forwarding:

Set the Host to the IP address or hostname of your centralized syslog server.

Set the Protocol to syslog.

Set the Port to 6514.

Enable Use SSL to ensure secure transmission.

Specify the Path to Certificate Authority File if required by your environment.

Select Logs to Forward:

Choose the log types you wish to forward under Forwarded Logs.

Save Configuration:

Click Save to apply the settings.

This configuration ensures that logs are securely transmitted in their original format to the syslog server. The use of port 6514 is standard for syslog over TLS/SSL, providing encrypted log forwarding.

When planning a vRealize Log Insight (vRLI) deployment, it's crucial to consider factors that influence the system's performance and scalability. The three primary factors that determine the size of a vRLI deployment are:

Number of Endpoints (B):

Explanation: This refers to the total number of devices, servers, or applications sending logs to vRLI. A higher number of endpoints increases the volume of log data ingested, impacting the required resources for processing and storage.

Events Per Second (C):

Explanation: This metric measures the rate at which log events are received by vRLI. A higher events per second (EPS) rate demands more processing power and can influence the sizing of the deployment to ensure efficient data ingestion and analysis.

Log Ingestion Per Day (E):

Explanation: This represents the total volume of log data ingested daily. Larger daily log volumes require increased storage capacity and can affect the overall sizing considerations for the vRLI deployment.

Additional Considerations:

Syslog Connections (A): While the number of syslog connections contributes to the overall log ingestion, it's the cumulative effect on EPS and daily log volume that directly impacts sizing.

Type of vRLI Agents (D): Different agents may have varying efficiencies, but they don't significantly influence the core sizing factors compared to EPS and log volume.

Log Message Format (F): The format can affect processing complexity but doesn't directly determine deployment size.

References:

For detailed sizing guidelines, refer to VMware's official documentation: Sizing the vRealize Log Insight Virtual Appliance

Utilize the vRealize Log Insight Sizing Calculator to estimate the appropriate deployment size based on your environment's specifics.

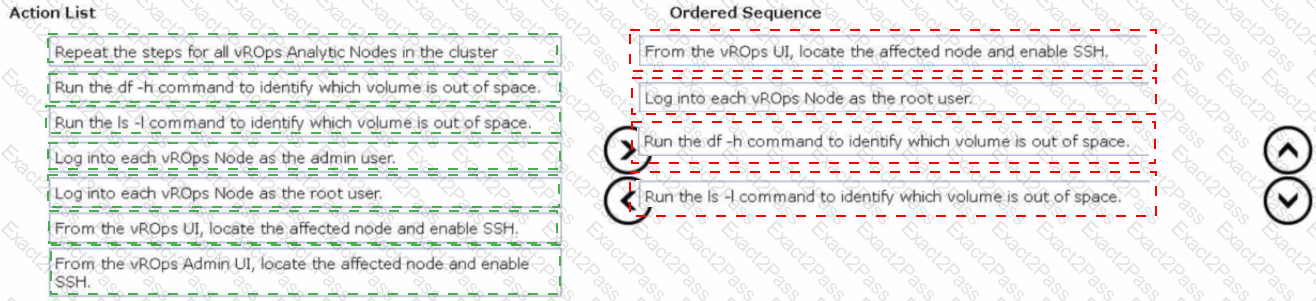

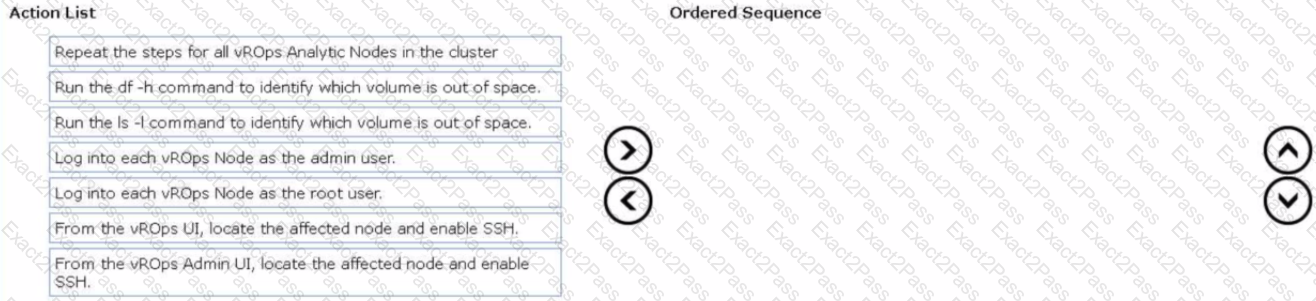

To troubleshoot the "Cluster shut down because one or more nodes were out of disk space" error in vRealize Operations (vROps), the correct sequence of actions is:

From the vROps Admin UI, locate the affected node and enable SSH

Log into each vROps Node as the root user

Run the df -h command to identify which volume is out of space

Run the ls -l command to identify which volume is out of space

 From the vROps Admin UI, locate the affected node and enable SSH:

Since SSH is typically disabled on hardened nodes, you must first enable SSH access via the vROps Admin UI.

 Log into each vROps Node as the root user:

Access each vROps node directly using SSH with the root user to troubleshoot disk space issues.

 Run the df -h command to identify which volume is out of space:

The df -h command displays the disk usage of all volumes on the node. It helps identify which filesystem is running out of space.

 Run the ls -l command to identify which volume is out of space:

Use the ls -l command to investigate large files or directories that may be consuming disk space on the identified volume.

In vRealize Operations (vROps), certain node types support the use of Dynamic Host Configuration Protocol (DHCP) for IP address assignment, while others require static IP addresses.

Node Types Supporting DHCP:

Remote Collector (D):

Explanation: Remote collector nodes gather data from monitored environments and forward it to the analytics cluster. They can be configured to use DHCP for IP address assignment.

Data Node (C):

Explanation: Data nodes are part of the analytics cluster, handling data processing and storage. They can also be configured to use DHCP for IP address assignment.

Node Types Requiring Static IP Addresses:

Primary Node (E): The primary node manages the cluster and requires a static IP address to ensure consistent communication and management.

Replica Node (B): If configured for high availability, the replica node mirrors the primary node and also requires a static IP address.

References:

For detailed networking requirements and node configurations, consult VMware's official documentation: vRealize Operations Cluster Node Networking Requirements

When setting up vRealize Log Insight integration within vRealize Operations, administrators configure the vRealize Log Insight management pack . This management pack enables vRealize Operations to collect and analyze log data from vRealize Log Insight, providing deeper insights into the environment and facilitating troubleshooting.

The other options are not relevant to the vRealize Log Insight integration:

The vRealize Log Insight content pack: Content packs in vRealize Log Insight provide predefined dashboards and alerts for specific applications or services, but they are not directly involved in the integration with vRealize Operations.

The vRealize Log Insight troubleshooting dashboard: This refers to dashboards within vRealize Log Insight itself, not a configuration element within vRealize Operations.

The vRealize Log Insight collector group instance: Collector groups in vRealize Log Insight are used to define groups of log sources, but they are not directly configured within vRealize Operations for integration purposes.

VMware vRealize Log Insight is the product that fulfills the requirements of enhanced visibility and faster analytical queries . It excels at collecting, searching, and displaying log data for infrastructure, providing comprehensive insights into your environment. Additionally, vRealize Log Insight is designed for high-performance log analysis, enabling faster analytical queries and aggregation for efficient troubleshooting and root cause analysis.

Here's why the other options are not the best fit:

vRealize AI Cloud: This product focuses on AI-driven optimization and automation, not primarily on log management and analysis.

vRealize Network Insight: This product specializes in network visibility and security, with a focus on network traffic analysis rather than log management.

vRealize Operations Manager: While vRealize Operations Manager provides performance monitoring and capacity planning, its log analysis capabilities are not as comprehensive as those of vRealize Log Insight.

= vRealize Operations can help optimize capacity and performance in a virtual infrastructure by determining recommendations for oversized and undersized virtual machines . It analyzes resource usage patterns and provides recommendations for right-sizing VMs, ensuring that they have the appropriate resources to meet their performance requirements without wasting resources.

To meet the specified requirements, combining vRealize Operations with the vRealize True Visibility Suite offers a comprehensive solution.

vRealize Operations provides robust monitoring, predictive analytics, and performance management across VMware environments. When integrated with the True Visibility Suite, it extends these capabilities to a wide range of third-party infrastructure and applications, including databases, networking solutions, and enterprise applications.

Key Features:

Unified Monitoring: Consolidates performance data from various enterprise applications and infrastructure components into a single portal, enhancing operational visibility.

VMware

Predictive Analytics: Utilizes advanced analytics to anticipate potential issues, enabling proactive management across diverse environments.

Broad Integration: Supports a wide array of management packs for different technologies, ensuring comprehensive coverage of enterprise systems.

VMware Blogs

VMware Tanzu Application Service Monitoring: Provides insights into VMware Tanzu environments, facilitating effective management of modern applications.

Vendor Support: As VMware products, both vRealize Operations and the True Visibility Suite come with official vendor support, ensuring reliability and assistance when needed.

By deploying vRealize Operations in conjunction with the True Visibility Suite, administrators can achieve a holistic view of their IT infrastructure, encompassing both VMware and third-party solutions, all within a single, integrated platform.

The administrator should deploy the vRealize Operations analytics cluster using vRealize Suite Lifecycle Manager (vRSLCM) . vRSLCM simplifies the deployment and management of vRealize Suite products, including vRealize Operations. It allows the administrator to deploy a 3-node High Availability cluster with custom CA-signed certificates in a streamlined manner.

Here's why the other options are not suitable:

A. Deploy 3 nodes independently, replace certificates and then form the 3-node cluster: This approach is more complex and prone to errors. It involves manual configuration and certificate replacement on each node.

B. Deploy a single node cluster at the beginning to further expand it to 3 nodes in the next step: While possible, this method is not as efficient as deploying a 3-node cluster directly using vRSLCM.

C. Deploy vRealize Operations analytics cluster using Command Line Interface: Deploying using the CLI requires more expertise and manual intervention compared to using vRSLCM.

vRSLCM provides a centralized platform for managing the entire lifecycle of vRealize Suite products, including deployment, configuration, and upgrades. It simplifies the process of deploying a 3-node High Availability cluster of vRealize Operations with custom CA-signed certificates, ensuring a secure and efficient deployment.

The OS and Application Monitoring management pack in vRealize Operations collects the following guest information properties for all created objects:

OS Build Number: This identifies the specific build of the operating system running on the guest VM.

OS Version: This indicates the version of the operating system, such as Windows Server 2019 or Red Hat Enterprise Linux 8.

Hostname: This provides the hostname assigned to the guest VM, allowing for easy identification and management.
