Primary Array:

Drag and drop two 120 GB SSD hard drives to the primary array bay.

Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.

Confirm the configuration and close the primary array.

Secondary Array:

Drag and drop two 300 GB SSD hard drives to the secondary array bay.

Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.

Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

The default gateway is the IP address of the router or device that connects a network to another network or the internet. In the output below, the default gateway is 172.25.1.252, as shown in the line “Default Gateway . . . . . . . . . : 172.25.1.252”. The other IP addresses are not default gateways, but either local IP addresses (172.25.1.39 and 172.25.1.4) or subnet masks (255.255.255.0).

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

A video production workstation that will consist of two high-end GPUs will require a lot of power and a modular power supply. A modular power supply allows the technician to connect only the cables that are needed for the components, which reduces clutter and improves airflow. A 1,200W power supply should be enough to power the two GPUs and other components, but the exact wattage depends on the specifications of the GPUs and other components. A 400W external power supply is not enough to power the workstation and may not be compatible with the ATX case. Two 600W redundant power supplies are unnecessary and may not fit in the ATX case. A 1,500W uninterruptible power supply (UPS) is a device that provides backup power in case of a power outage, but it is not a replacement for a power supply unit (PSU). References: https://www.comptia.org/blog/what-is-a-power-supply-unit

Checking if the password and SSID are correct is the best step that the technician should take to resolve the issue of a user being unable to access the SOHO wireless network after replacing the gateway. The new gateway may have a different password and SSID than the old one, which would prevent the user from connecting to the wireless network. The technician should verify that the user has entered the correct password and SSID for the new gateway. Assessing the network cables for damage, disabling Bluetooth connections, or updating the firmware are not likely to solve the issue, as they are not related to the wireless network authentication

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

The MX record is housed in the DNS (Domain Name System) which is responsible for translating domain names into IP addresses and vice versa. The MX record specifies the mail server responsible for accepting email messages on behalf of a domain name and is a resource record in the DNS123.

The shared-tenant model for a cloud deployment, also known as a multi-tenant model, allows multiple customers to use the same resources and infrastructure of the cloud service provider, with each customer's data and applications isolated from one another. This model is often chosen for cost savings, as resources are shared and users only pay for what they use. Therefore, the MOST likely reason that an administrator chose this model is A. Cost savings.

RAID 0 is a disk array configuration that splits data across two or more disks without parity or mirroring. RAID 0 provides the best I/O performance because it allows parallel read and write operations on multiple disks. RAID 0 also provides the most storage capacity possible because it does not use any disk space for redundancy. However, RAID 0 does not provide any fault tolerance and increases the risk of data loss if any disk fails.

References: The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook, page 252

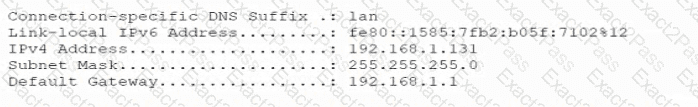

The technician is unable to access the company portal website, but other websites work fine. This suggests an issue with resolving the specific URL of the company portal, which is a function of DNS.

Here's why other options are not the most likely cause:

DHCP reservations: This is not relevant as the issue persists even when the technician tries a different workstation, indicating a problem beyond individual device configuration.

Static IP addresses: Similar to DHCP reservations, static IPs are not likely the cause as both affected workstations are experiencing the issue.

Default gateway: While the default gateway is necessary for internet access, other websites are working, making it less likely to be the root cause.

References:

CompTIA A+ Certification Core 1 220-1101 Study Guide, Chapter 4: Networking, Section 4.2 Addressing and Naming

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

The correct answer is D. Raise the filament flow amount.

Filament flow amount, also known as extrusion multiplier or flow rate, is the setting that controls how much filament is extruded by the nozzle during 3D printing. It is usually expressed as a percentage of the default value, which is 100%. Increasing the filament flow amount means extruding more filament than usual, while decreasing it means extruding less1.

The filament flow amount can affect the quality and adhesion of the first layer, which is crucial for a successful 3D print. If the filament flow amount is too low, the nozzle may not extrude enough filament to fill the gaps between the lines and create a smooth and solid first layer. This can result in poor adhesion, curling, warping, or detachment of the print from the bed12.

To improve adherence on the first layer, the user should raise the filament flow amount slightly, such as 105% or 110%, to ensure that enough filament is extruded to create a strong bond with the bed. The user should also make sure that the nozzle height, bed leveling, and bed temperature are properly calibrated for optimal first layer adhesion12.

The other options are less likely to improve adherence on the first layer, because:

•Lowering the print bed temperature may reduce the adhesion of the TPU filament to the bed, as TPU usually requires a bed temperature between 20-60°C for the best results3. Lowering the bed temperature may also increase the risk of warping or curling of the print4.

•Adjusting the RPM of the cooling fan may not have a significant effect on the first layer adhesion, as cooling fans are not required with TPU3. In fact, using a cooling fan with TPU may cause cracking or delamination of the print, as TPU needs to cool down slowly and evenly4.

•Increasing the print speed may worsen the first layer adhesion, as TPU is a flexible and elastic filament that needs to be printed slowly and consistently. A recommended print speed for TPU is 15-30mm/s3. Increasing the print speed may cause clogging, stringing, blobs, or under-extrusion of the filament4.

For more information and tips on how to 3D print TPU filament like a pro, you can visit these links:

•How to 3D Print TPU Filament Like a Pro – Ultimate Guide & FAQ

•The Complete TPU Filament 3D Printing Guide - 3DSourced

•TPU Filament 3D Printing Material – The Complete Guide

•TPU filament - learn everything about the TPU material for 3D printing

The digitizer is the component that converts the touch input into electrical signals that are processed by the tablet. If the digitizer is damaged or malfunctioning, it may not register the touch input correctly or at all. The technician can test the digitizer using a diagnostic tool or by replacing it with a known good one. Updating the device drivers, replacing the damaged screen protector, or performing a factory reset are unlikely to fix the issue, as they do not address the hardware problem.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

he main difference between T568A and T568B cabling standards is that the green and orange cables are interchanged12. T568A is designed for backward compatibility with older telephone wires, while T568B is designed for better signal isolation and noise protection for newer networking systems and products3. T568A is used in blue cables, and T568B is used in green cables1. The standards use the same cable connectors3.

The correct answer is A. Access point.

An access point is a device that extends the wireless coverage of a network by creating a hotspot that allows wireless devices to connect to the network1. An access point can be connected to a router or a switch via an Ethernet cable or a wireless bridge1. By deploying one or more access points throughout a SOHO location, the technician can provide better wireless connectivity and eliminate dead zones or weak signals2.

A managed switch is a device that allows multiple devices to communicate on a network by forwarding data packets based on their destination addresses3. A managed switch can also provide advanced features such as VLANs, QoS, security, and remote management3. However, a managed switch does not improve wireless connectivity, as it only works with wired devices.

A POE hub is a device that provides power and data over a single Ethernet cable to devices that support Power over Ethernet (PoE) technology, such as IP cameras, VoIP phones, and wireless access points4. A POE hub can simplify the installation and placement of these devices by eliminating the need for separate power adapters or outlets4. However, a POE hub does not improve wireless connectivity by itself, as it still requires an access point or a router to create a wireless network.

A Wi-Fi router is a device that combines the functions of a router and an access point, providing both wired and wireless connectivity to a network and the internet. A Wi-Fi router can be used to create a SOHO network, but it may not be sufficient to cover the entire location with a strong and reliable wireless signal. To improve wireless connectivity, the technician may need to add additional access points or use a mesh Wi-Fi system that consists of multiple routers that work together to create a seamless wireless network.

Therefore, an access point is the best option among the choices to improve wireless connectivity throughout a SOHO location.

USB-C is the best connection method to use to connect the dock to the laptop because it supports multiple display outputs, data transfer, audio, and power delivery with a single cable. USB-C can also be compatible with Thunderbolt 3 or DisplayPort over USB-C docking stations, which offer even higher performance and versatility. USB-C is also a reversible connector, which makes it easy and convenient to use.

References:

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101), Chapter 2: Configure and Support PC Components, Section 2.5: Compare and contrast various connection interfaces and explain their purpose, Page 941

How to Connect and Set Up a Docking Station With a Dell Laptop2

How to Dock a Laptop (with Pictures) - wikiHow3

How To Connect Two Laptops To One Docking Station4

The most likely reason for the issue is that the webcam is not on a level surface, which causes the camera angle to be distorted. The user should adjust the position of the webcam so that it is aligned with the laptop screen and captures the user’s face fully. The other options are not relevant to this issue, as they would not affect the camera angle or visibility of the user’s face. Verified References: How to Position Your Webcam Correctly.

GPS (Global Positioning System) is a feature that allows a phone to determine its location by receiving signals from satellites. A maps application relies on GPS to provide accurate directions and navigation. If GPS is turned off or not working properly, the maps application may not function as expected.

The other options are not relevant to the issue. Airplane mode is a setting that disables all wireless communication on a phone, including cellular, Wi-Fi, Bluetooth, and GPS. However, since the representative runs a speed test and gets ~10Mbps in both directions, it means that airplane mode is not enabled. PRL (Preferred Roaming List) is a database that contains information about the cellular towers and networks that a phone can connect to. Updating the PRL can improve the phone’s signal strength and coverage, but it does not affect the maps application. LTE (Long Term Evolution) is a standard for high-speed wireless communication on mobile devices. It is related to the cellular data speed and quality, but not to the maps application.

To troubleshoot the issue, the technician should check the GPS settings on the phone and make sure that it is turned on and has a clear view of the sky. The technician should also verify that the maps application has permission to access the GPS location. If the problem persists, the technician may suggest resetting the network settings, updating the phone’s software, or contacting the maps application’s support team.

References:

CompTIA A+ Certification Exam Core 1 Objectives1

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook2

How to Fix Google Maps When It’s Not Working on Android - MUO3

Apple Maps Not Working? 5 Fixes to Get You Back on the Road (2023)4

The output from the cable tester indicates that there is an open fault in the cable, which means that one or more of the wires in the cable are not connected properly or are broken. The open fault affects the wires 3, 4, and 6, which are used for transmitting and receiving data in Ethernet networks. The open fault can cause network connectivity issues, such as no link, slow speed, or packet loss12.

To resolve this issue, the technician should use a crimper and a punchdown tool, which are tools that are used to attach connectors to cables or wires to patch panels. A crimper is a tool that squeezes or crimps a connector, such as an RJ-45, to the end of a cable, ensuring that the wires are securely inserted into the pins of the connector. A punchdown tool is a tool that pushes or punches a wire into a slot on a patch panel, creating a connection between the wire and the panel. Both tools can be used to fix or replace the faulty wires or connectors that cause the open fault12.

The other options are not as effective or relevant as a crimper and a punchdown tool. A loopback plug is a tool that is used to test the functionality of a network port or device, by sending and receiving signals from the same port or device. A loopback plug can help diagnose network problems, such as faulty ports or devices, but it cannot fix the open fault in the cable12. A network tap is a tool that is used to monitor or capture network traffic, by creating a copy of the data that passes through a network link. A network tap can help analyze network performance, security, or troubleshooting, but it cannot fix the open fault in the cable12. A toner probe is a tool that is used to trace or identify a cable or wire, by sending and detecting an audible tone along the cable or wire. A toner probe can help locate or label network cables or wires, but it cannot fix the open fault in the cable12. A Wi-Fi analyzer is a tool that is used to scan or measure wireless networks, by displaying information such as signal strength, channel, encryption, etc. A Wi-Fi analyzer can help optimize or troubleshoot wireless networks, but it cannot fix the open fault in the cable12.

References:

Network Tools – CompTIA A+ 220-1101 - Professor Messer IT …

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 5: Networking, Section 5.5: Network Tools, Page 249

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 5: Networking, Section 5.5: Network Tools, Page 213

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Pearson uCertify Course and Labs and Textbook Bundle, Chapter 5: Networking, Section 5.5: Network Tools, Page 250

The first step in troubleshooting any network connectivity issue is to identify the scope and source of the problem. The technician should check if any infrastructure changes have been made during the user’s absence, such as updates, patches, configuration changes, or hardware replacements. These changes could affect the network settings, firewall rules, permissions, or compatibility of the user’s device or the server. The technician should also verify if other users or devices can access the server or if the problem is isolated to the user’s device. By determining if any infrastructure changes have been made, the technician can narrow down the possible causes and formulate a theory to test.

References

Chapter 5: Hardware and Network Troubleshooting

How to fix HTTP 500 internal server error?

Remote desktop connection: An internal error has occurred

A spam gateway is a software solution that filters email messages based on various criteria, such as sender, recipient, subject, content, attachments, and URLs. A spam gateway categorizes incoming network messages as spam or non-spam, and either blocks, quarantines, or delivers them accordingly. A spam gateway can help protect email servers and users from malicious or unwanted emails, such as phishing, malware, or advertising.

A. Serves as a repository for email routing logs. This is not the primary function of a spam gateway. Email routing logs are records of the path and status of email messages as they travel through the network. Email routing logs can help troubleshoot email delivery issues, but they do not filter or categorize email messages.

B. Blocks unrequested ICMP packets from external networks. This is not the primary function of a spam gateway. ICMP (Internet Control Message Protocol) packets are used to communicate network information, such as errors, requests, or replies. Blocking unrequested ICMP packets from external networks can help prevent network scanning or denial-of-service attacks, but it does not filter or categorize email messages.

D. Mitigates DDoS attacks. This is not the primary function of a spam gateway. DDoS (Distributed Denial-of-Service) attacks are attempts to overwhelm a network or server with a large amount of traffic from multiple sources. Mitigating DDoS attacks can help maintain network availability and performance, but it does not filter or categorize email messages.

The answer is D. Replace the toner cartridge.

Vertical lines on a laser printer output are usually caused by a faulty or empty toner cartridge, a dirty or damaged drum unit, or a clogged or obstructed laser glass. According to the web search results, some possible steps to troubleshoot and resolve this issue are:

Check the toner level and replace the toner cartridge if it is low or empty1.

Remove the toner cartridge and inspect the drum unit for any signs of damage, such as scratches, cracks, or toner buildup. Clean the drum unit with a soft cloth or replace it if it is damaged23.

Locate the laser glass, which is a narrow strip of glass under the scanner lid or inside the printer. Clean the laser glass with a lint-free cloth moistened with water and remove any dust, dirt, or debris that might block the laser beam24.

The correct answer is C. Cat 6.

An RJ45 connector is a standard type of physical connector for network cables. RJ45 connectors are used almost exclusively with Ethernet cables and networking1. Ethernet cables are twisted pair cables that carry data signals between devices on a network, such as computers, routers, switches, and servers2.

There are different categories of Ethernet cables, such as Cat 5, Cat 5e, Cat 6, and Cat 7, that have different specifications and performance levels. Cat 6 is one of the most common types of Ethernet cables, which supports data transfer speeds up to 10 Gbps and bandwidth up to 250 MHz3. Cat 6 cables have four pairs of copper wires, each with a plastic insulation and a foil or braided shield. The wires are twisted together to reduce crosstalk and interference4.

To terminate a Cat 6 cable, an administrator needs to use an RJ45 connector that matches the wiring scheme of the cable. There are two common wiring schemes for Ethernet cables: T568A and T568B. The administrator needs to strip the cable jacket, untwist the wires, arrange them in the correct order according to the chosen scheme, trim the excess wire, and insert them into the RJ45 connector. Then, the administrator needs to use a crimping tool to secure the wires and the connector4.

Optical cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit light signals, such as SC, ST, LC, or MTRJ connectors. Optical cables are used for fiber-optic networks that can carry data over long distances at high speeds.

Serial cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit serial data signals, such as DB9, DB25, or DE9 connectors. Serial cables are used for connecting devices that use serial communication protocols, such as modems, printers, scanners, or keyboards.

USB cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit universal serial bus data signals, such as USB-A, USB-B, USB-C, or Micro-USB connectors. USB cables are used for connecting devices that use USB communication protocols, such as flash drives, cameras, mice, or chargers.

If a user reports that a PC occasionally fails to boot and makes a strange, repetitive, ticking noise, it indicates that the hard drive is suffering from a mechanical failure, also known as the click of death. This means that the hard drive is likely to fail completely soon and lose all the data stored on it. Therefore, the technician should try to extract or backup the data as soon as possible before replacing the hard drive with a new one.

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References: https://www.comptia.org/blog/what-is-a-laptop-battery

The Unified Extensible Firmware Interface (UEFI) is the setting that should be checked when a computer is not booting from a flash drive containing an OS image. UEFI is a modern firmware that replaces the traditional BIOS and includes a "Secure Boot" feature that can prevent unauthorized operating systems from loading during the system's boot process. This security feature might be the reason the computer cannot access the flash drive before loading the OS. Disabling Secure Boot or adjusting the boot order within the UEFI settings can allow the system to boot from the flash drive. This is supported by the CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly in sections 1.4 "Given a scenario set up and configure accessories and ports of mobile devices" and 4.0 "Virtualization and Cloud Computing", emphasizing the importance of UEFI settings in boot processes and virtualization .

802.11 ax is a wireless networking protocol that supports both 2.4GHz and 5GHz devices, as well as backward compatibility with previous 802.11 standards. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 82)

A captive portal is a web page that requires users to agree to terms and conditions, enter credentials, or provide payment information before accessing a wireless network. Some devices, such as streaming media devices, may not have a web browser or a user interface to interact with the captive portal. One possible solution is to connect to the hotspot on the user’s device, such as a smartphone or a tablet, and use it as a bridge to access the internet through the wireless network. The user’s device can authenticate with the captive portal and share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 12)

The correct answer is C. Hybrid.

A hybrid cloud model is a combination of two or more different cloud models, such as public, private, community, or on-premises. A hybrid cloud model allows an organization to retain data on site as well as in the cloud, depending on the security and performance requirements of the data. A hybrid cloud model can also provide flexibility, scalability, and cost-efficiency for the organization12.

A public cloud model is a cloud service that is available to anyone over the internet. A public cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider. A public cloud model can offer lower costs, higher availability, and easier access, but it may have less security and control over the data12.

A community cloud model is a cloud service that is shared by a group of organizations that have similar needs or goals. A community cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider or one of the participating organizations. A community cloud model can offer higher security, privacy, and compliance, but it may have higher costs and lower availability than a public cloud model12.

A private cloud model is a cloud service that is exclusively used by a single organization. A private cloud model can allow an organization to retain data on site or in the cloud, depending on the configuration of the private cloud. A private cloud model can offer higher security, control, and customization, but it may have higher costs and lower scalability than a public cloud model12.

RAID 10 is a combination of RAID 1 and RAID 0, which provides both performance and redundancy. RAID 1 mirrors data across two or more disks, while RAID 0 stripes data across two or more disks. RAID 10 combines these two methods to create a mirrored stripe set, which can tolerate multiple disk failures as long as they are not in the same mirror. RAID 10 requires at least four disks and offers better performance than RAID 5, which uses parity to provide redundancy. References: https://www.comptia.org/blog/what-is-raid-0-1-5-6-10

To route traffic to the next network. An IPv4 gateway is a device that connects two or more networks and forwards packets based on their destination IP addresses. It acts as an intermediary between a host and the rest of the internet, allowing communication across different networks. A gateway does not distribute IP addresses, generate ARP traffic, or assign APIPA addresses, as these are functions of other network components.

The problem in this scenario is that the battery charger is not a USB device, but a device that plugs into a USB port to draw power. Therefore, it does not have a unique identifier that can be recognized by the peripheral security software, which is designed to prevent unauthorized USB devices from accessing the company’s network or data. The security software cannot add the battery charger to its whitelist, and may block its power supply or generate alerts.

The best solution for this problem is to provide a USB to AC adapter for the battery charger, which is a device that converts the USB power output to an AC power input that can be plugged into a wall outlet. This way, the battery charger does not need to connect to the docking station or the computer, and does not trigger the peripheral security software. The user can still charge the camera’s battery without compromising the company’s security policy.

The other options are not advisable because they either do not solve the problem or create new risks. Option B, adding a powered USB hub to the docking station, may not work if the security software also monitors the hub’s ports and detects the battery charger as an unknown device. Option C, disabling the peripheral security software for this user only, is a very bad idea because it exposes the user’s computer and the company’s network to potential attacks from malicious USB devices. Option D, replacing the battery charger with a USB device that has a unique identifier, is unnecessary and costly, and may not be compatible with the camera’s battery.

References:

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 9: Security, Section 9.3: Device Security, Page 419

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Pearson uCertify Course and Labs and Textbook Bundle, Chapter 9: Security, Section 9.3: Device Security, Page 420

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 9: Security, Section 9.3: Device Security, Page 402

A burning smell on a desktop computer is a serious issue that indicates a hardware malfunction or failure. It can be caused by overheating, a faulty power supply, a malfunctioning motherboard, or a short circuit12. If left unchecked, it can damage the components, cause a fire, or harm the user.

The first thing the technician should do when troubleshooting a burning smell on a desktop computer is to unplug the computer from the power source. This will stop the flow of electricity and prevent further damage or fire. The technician should also wear protective gloves and eye wear to avoid contact with any hot or hazardous parts.

The other options are less likely to be the first step in troubleshooting, because:

•Locating a fire extinguisher is a good precaution, but it should not be done before unplugging the computer. The fire extinguisher should only be used if there is visible smoke or flames coming from the computer, and only after unplugging it and ensuring that it is safe to do so.

•Calling the fire department is an extreme measure that should only be done if there is an actual fire that cannot be controlled by the fire extinguisher. It should not be done before unplugging the computer and trying to identify and fix the problem.

•Removing the desktop cover is a necessary step to inspect the internal components and find the source of the burning smell. However, it should not be done before unplugging the computer, as it can expose the technician to live wires and electric shocks.

For more information and tips on how to troubleshoot a burning smell on a desktop computer, you can visit these links:

•How to find the source of a burning smell in my computer?

•Burning Smell From PC? 10 Reasons Why It Could Happen

The next thing that the technician should investigate is D. Radio frequency.

Radio frequency is the range of electromagnetic waves that are used to transmit wireless signals. Different devices and networks use different radio frequencies, such as 2.4 GHz or 5 GHz, to communicate with each other. If there are multiple devices or networks using the same or overlapping radio frequencies, they can interfere with each other and cause Wi-Fi connection issues, such as intermittent disconnections, slow speeds, or poor quality .

To fix this issue, the technician can try changing the radio frequency or channel of the router or the laptop, to avoid interference from other sources. The technician can also use a tool such as Wi-Fi Analyzer to scan the nearby wireless networks and find the best frequency or channel to use. Alternatively, the technician can move the router or the laptop to a different location, away from potential sources of interference, such as cordless phones, microwaves, Bluetooth devices, or other routers .

The other options are less likely to be the reason for the issue. Firewall settings are software configurations that control the network traffic and security of a device. They may block some websites or applications from accessing the internet, but they should not affect the Wi-Fi connection itself. MAC address filter is a feature that allows the router to restrict access to specific devices based on their MAC addresses, which are unique identifiers for network interfaces. If the MAC address filter is enabled and the laptop’s MAC address is not on the allowed list, it will not be able to connect to the Wi-Fi network at all, not intermittently. Number of connected devices is the amount of devices that are using the same Wi-Fi network at the same time. This may affect the network performance or bandwidth, but it should not cause intermittent disconnections, unless the network is overloaded or unstable.

References:

How To Fix WiFi Connection Problems - Help Desk Geek

How to Fix Your WiFi Connection Problems - Lifewire

Wi-Fi Analyzer - Apps on Google Play

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

One of the benefits of virtualization is that it allows you to create and manage multiple virtual machines (VMs) on a single physical computer. This can be used to enhance security by centralizing all user desktops on a server, rather than storing them on individual user machines. This way, the user desktops can be isolated from each other and from the host machine, preventing malware infections, data breaches, and unauthorized access. Additionally, the user desktops can be easily backed up, restored, updated, and monitored by the administrator, reducing the risk of data loss and downtime.

This type of virtualization is called desktop virtualization, and it separates the desktop environment from the physical hardware the user interacts with1. The user can access their virtual desktop from any device, such as a laptop, tablet, or smartphone, using a remote display protocol. The user experience is similar to using a local desktop, but with improved security and manageability.

References:

•What Is Virtualization, and Why Should You Use it?, section “Desktop Virtualization”.

DHCP (Dynamic Host Configuration Protocol) is a protocol that allows a device to automatically obtain an IP address and other network settings from a DHCP server, such as a home router. This simplifies the network configuration and avoids IP address conflicts. DHCP is a common requirement for home networks that have multiple devices that need Internet access.

A gateway is a device that connects two different networks, such as a home network and the Internet. A gateway usually performs routing functions, which means it determines the best path for packets to reach their destination. A gateway also often performs NAT (Network Address Translation), which allows multiple devices on a home network to share a single public IP address. A gateway is a necessary requirement for home networks that need Internet access.

References

Understanding DHCP on Home Networks

Basic home gateway services: DHCP, DNS, NAT

IP Addresses on Home Networks – A Beginner’s Guide

A router is a device that connects multiple networks and forwards packets between them based on their destination IP addresses. A router can also perform DHCP (Dynamic Host Configuration Protocol) function, which means it can dynamically distribute IP addresses to devices on its network. A router can also provide other features, such as firewall, NAT (Network Address Translation), VPN (Virtual Private Network), and QoS (Quality of Service).

According to the CompTIA A+ Core 1 (220-1101) Certification Study Guide1, a network crimper and a cable stripper are the tools that a technician should use to resolve this issue. A network crimper is used to attach a new RJ-45 connector to the end of the cable, and a cable stripper is used to remove the outer insulation of the cable and expose the twisted pairs of wires. A toner probe, a punchdown tool, a multimeter, and a loopback plug are not needed for this task.

Here are some web resources that explain how to repair an Ethernet cable:

Ethernet Cable Repair - iFixit: This guide provides step-by-step instructions and pictures on how to fix a broken Ethernet cable.

How to Repair a Cut Cat5e Ethernet Cable - wikiHow: This article shows how to solder the wires of a cut Ethernet cable and use shrink tube to cover the joints.

Amazon.com: Ethernet Cable Repair Kit: This page lists some products that can be used to repair an Ethernet cable, such as crimping tools, connectors, testers, and strippers.

The most likely cause of the issue is a defective inverter. An inverter is a device that converts the direct current (DC) power from the laptop battery or adapter to the alternating current (AC) power that the LCD backlight bulb needs. The backlight bulb is a fluorescent lamp that illuminates the LCD screen and makes the image visible. If the inverter is defective, it may not provide enough power to the backlight bulb, or it may stop working intermittently. This can result in a dim, dark, or blank screen, even though the LCD panel is still functioning and displaying a faint image.

To troubleshoot a defective inverter, the technician can follow these steps:

Connect an external monitor to the laptop and check if the image is displayed normally. If the external monitor works fine, it means that the laptop video card and driver are not the cause of the issue.

Shine a flashlight into the LCD screen and look for a faint image. If the image is visible, it means that the LCD panel is not the cause of the issue.

Check the inverter cable and connector for any damage, loose connection, or corrosion. The inverter cable is a thin wire that runs from the laptop motherboard to the inverter board, which is usually located at the bottom of the LCD screen. The inverter connector is a small plug that connects the inverter cable to the inverter board. The technician can try to reseat the inverter cable and connector, or replace them if they are faulty.

Check the inverter board for any damage, burn marks, or blown fuses. The inverter board is a small circuit board that contains the inverter and other components. The technician can try to test the inverter board with a multimeter, or replace it if it is defective.

References:

How to fix laptop screen flickering problem - Windows 101

How to Fix a Laptop Screen That’s Flickering, Black, or Has Lines2

How to Fix a Dim Laptop Screen | Techwalla3

How to Test a Laptop Inverter | It Still Works4

How to Replace a Laptop Inverter Board | Chron.com5

The answer is A. High availability and B. Elasticity.

High availability is the ability of a system to remain operational and accessible with minimal or no downtime, even in the event of failures, disasters, or disruptions. High availability can be achieved by designing a system that has redundancy, fault tolerance, and disaster recovery capabilities. For example, a cloud engineer can design a system that replicates data and resources across multiple regions, zones, or availability domains, and uses load balancing and failover mechanisms to distribute the workload and handle failures gracefully12.

Elasticity is the ability of a system to scale up or down automatically in response to changes in demand or utilization. Elasticity can be achieved by designing a system that can dynamically allocate and deallocate resources based on predefined metrics, policies, or triggers. For example, a cloud engineer can design a system that uses auto-scaling groups, horizontal or vertical scaling strategies, and on-demand or spot instances to optimize the performance and cost of the system32.

By implementing high availability and elasticity, a cloud engineer can ensure that the solution is able to immediately fail over to another region in case of an outage and also scale up in the event of high utilization. These are two important aspects of building reliable and scalable cloud architectures. Therefore, options A and B are the correct answers.

The projector is overheating and needs to be cleaned. A common cause of projector shutdown is overheating, which can be triggered by dust accumulation, blocked vents, or faulty fans. The projector has a thermal protection circuit that turns it off when the temperature reaches a certain level, and it will not turn back on until it cools down. To prevent this issue, the projector needs to be cleaned regularly and placed in a well-ventilated area. The video cable, the bulb, and the outlet are not likely to cause the projector to turn off intermittently.

A paper path is the route that paper takes through a printer from the input tray to the output tray. A blocked sensor is a sensor that detects paper jams or other errors in the paper path but fails to clear after the problem is resolved. A blocked sensor can cause a printer to display an error message even after a paper jam is cleared. The technician should check the paper path for any debris or obstructions that may trigger the sensor.

A DHCP (Dynamic Host Configuration Protocol) server is a server type that can dynamically assign IP addresses and other network configuration parameters to clients, such as primary and secondary DNS (Domain Name System) servers. DNS servers are responsible for resolving hostnames to IP addresses and vice versa. A global catalog server, a web server, and a name server are not involved in DHCP operations.

Cable internet service is delivered through coaxial cables that are shared among multiple customers in a neighborhood. This means that the bandwidth may vary depending on the network congestion. Fiber, NIC, and DSL are not copper-based or shared mediums.

Metered utilization is a pricing model for cloud computing services, where the customer pays only for the amount of resources that are consumed, such as CPU time, memory, storage, bandwidth, etc. The customer is billed based on the actual usage of the resources, rather than a fixed or upfront fee. Metered utilization is also known as usage-based pricing or pay-per-use12.

Pay-as-you-go is an example of metered utilization, where the customer pays for the cloud resources on demand, without any long-term commitment or contract. The customer can scale up or down the resources as needed, and only pay for what is used. Pay-as-you-go is a flexible and cost-effective option for customers who have unpredictable or variable workloads, or who want to try out new services or features12.

The other options are not examples of metered utilization. Reserved instance is a pricing model where the customer pays a discounted rate for a fixed amount of cloud resources for a specified period of time, such as one or three years. The customer can reserve the resources in advance, and benefit from lower costs and guaranteed availability. Reserved instance is suitable for customers who have predictable or steady workloads, or who want to optimize their budget12.

Subscription-based is a pricing model where the customer pays a fixed fee for a set of cloud services or features for a certain period of time, such as monthly or annually. The customer can access the services or features as much as needed, without worrying about the usage or consumption of the resources. Subscription-based is suitable for customers who want to have a consistent and predictable cost, or who want to access premium or exclusive services or features12.

Multitenant is not a pricing model, but a cloud architecture where multiple customers share the same physical or virtual resources, such as servers, databases, applications, etc. The resources are isolated and secured for each customer, and the customers can benefit from lower costs, higher scalability, and faster updates. Multitenant is a common characteristic of public cloud services, where the cloud provider manages and maintains the resources for the customers12.

References:

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 4: Cloud Computing and Virtualization, Section 4.2: Cloud Computing Concepts, Page 261

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 6: Cloud Computing and Virtualization, Section 6.2: Cloud Computing Concepts, Page 241

DNS stands for Domain Name System, and it is a network service that translates human-readable names (such as www.google.com) into numerical IP addresses (such as 172.217.14.206) that identify the location of the web servers on the internet. DNS also allows reverse lookup, which means finding the domain name associated with a given IP address.  DNS servers are responsible for maintaining a database of domain names and their corresponding IP addresses, and responding to queries from clients who want to resolve a name to an address or vice versa12.

DHCP stands for Dynamic Host Configuration Protocol, and it is a network service that automatically assigns IP addresses and other network configuration parameters (such as subnet mask, default gateway, DNS server, etc.) to devices that join a network. DHCP servers are responsible for managing a pool of IP addresses and leasing them to clients for a specified duration. DHCP servers also renew or release the IP addresses when the lease expires or the client disconnects from the network34.

The difference between DNS and DHCP is that DNS is used for address translation, which means converting domain names to IP addresses and vice versa, while DHCP is used for IP address assignment, which means providing IP addresses and other network settings to devices that need to communicate on a network.

References:

DNS Configuration – CompTIA A+ 220-1101 – 2.6

DHCP Configuration - CompTIA A+ 220-1101 - 2.6 - Professor Messer IT Certification Training Courses

CompTIA A+ 220-1101 – 2.6 - Professor Messer IT Certification …

Courses for CompTIA A+: 220-1101: CompTIA A+ (Core 1) - Skillsoft

The most likely issue that the technician will encounter is A. Corrupt job in print spooler.

A corrupt job in the print spooler is a common problem that can cause a printer to stop printing or print slowly. The print spooler is a service that manages the print queue, which is a list of documents that are waiting to be printed. Sometimes, a document in the print queue can become corrupted or incompatible with the printer, and prevent other documents from being printed. This can happen due to various reasons, such as power outage, network interruption, driver mismatch, virus infection, etc12.

To troubleshoot and resolve this issue, the technician can use the diagnostic tool in the printer’s administrator menu, which is a feature that allows the technician to access and configure various settings and options of the printer. The diagnostic tool can help the technician identify and delete the corrupt job in the print spooler, and restart the print service. The technician can also use the diagnostic tool to check the printer’s status, error messages, firmware updates, network settings, and other information that can help with the troubleshooting process34.

The other options are less likely to be encountered by the technician, as they are not related to the printer’s heavy use or the diagnostic tool. Insufficient space in the printer is an issue that can occur when the printer’s memory or storage is full, and it can cause the printer to print slowly or incompletely. However, this issue can be easily resolved by clearing the printer’s memory or storage, or adding more memory or storage to the printer12. Network connectivity issues are problems that can affect the communication between the printer and the network, and they can cause the printer to be offline or unreachable. However, these issues can be resolved by checking and fixing the physical or wireless connection, the network configuration, the firewall settings, and the printer’s IP address12. Improperly installed drivers are issues that can affect the compatibility and functionality of the printer, and they can cause the printer to print incorrectly or not at all. However, these issues can be resolved by updating, reinstalling, or rolling back the printer’s drivers, or by using the correct drivers for the printer’s model and operating system12.

The answer is C. Clean the air filter.

A flashing LED code on a projector usually indicates a problem with the projector’s hardware, such as the lamp, the fan, the temperature sensor, or the air filter. According to the web search results, some possible causes and solutions for this problem are:

Projector is too hot: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. Make sure the environmental temperature is not too hot12.

Projector has overheated and turned off: Leave it turned off to cool down for five minutes. Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. If operating the projector at high altitude, turn on High Altitude Mode12.

Low air flow through the projector or air filter: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter12.

References:

Projector Light Status

Projector Light Status

Based on the requirements, the best option for the video-editing workstation is to use RAID 10 with four SATA SSDs of 1TB each. This configuration will meet the following requirements:

Be able to edit files at the fastest speed: RAID 10 combines the advantages of RAID 0 and RAID 1, which are striping and mirroring, respectively. Striping can increase the data transfer rate by using multiple disks in parallel, while mirroring can provide redundancy and reliability by duplicating the data on another set of disks. SATA SSDs are also faster than HDDs or SSHDs, as they use flash memory instead of spinning disks, and they can offer lower latency, higher IOPS, and less noise and heat.

Allow for disk failure without any downtime: RAID 10 can withstand up to two disk failures, as long as they are not in the same mirrored pair. If one disk fails, the data can be read from or written to the other disk in the same pair, without affecting the performance or availability of the array. The failed disk can be replaced and rebuilt without interrupting the operation of the workstation.

Have 2TB of usable space: RAID 10 uses half of the total disk capacity for mirroring, so the usable space is equal to the size of two disks. By using four SATA SSDs of 1TB each, the total disk capacity is 4TB, and the usable space is 2TB, which meets the requirement.

Ensure the most robust fault tolerance: RAID 10 offers the highest level of fault tolerance among the standard RAID levels, as it can survive multiple disk failures and provide fast recovery. RAID 10 also has a low overhead, as it does not use parity or checksums, which can slow down the write performance or increase the complexity of the array.

Therefore, the technician should select the following options from the drop-down menus:

RAID level: RAID 10

Drive type 1: SATA SSD

Drive size 1: 1TB

Drive type 2: SATA SSD

Drive size 2: 1TB

Drive type 3: SATA SSD

Drive size 3: 1TB

Drive type 4: SATA SSD

Drive size 4: 1TB

Drive type 5: SATA SSD

Drive size 5: 1TB

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

If users are only able to save a small number of pictures on the microSD cards before running out of space, it suggests a formatting issue. Improper or incomplete formatting can lead to the card not utilizing its full storage capacity, resulting in significantly less available space for storing pictures. Formatting the microSD cards correctly would ensure the file system on the cards is set up properly, allowing the devices to use the full capacity of the cards for storage. Compatibility, UHD storage capability, and camera storage settings are less likely to be the issue in this scenario.

References: The necessity of proper formatting for storage devices is a fundamental aspect of managing digital storage, as outlined in the basic principles of digital storage and file systems.

Secure Shell (SSH) is a protocol used to securely access and manage devices over a network. It provides a secure channel over an unsecured network in a client-server architecture, enabling technicians to perform troubleshooting and management tasks remotely with encryption to ensure the security of the data transmitted. FTP and TFTP are used for file transfers and do not inherently provide the same level of security or direct device management capabilities. RDP is used for remote desktop connections but is not as universally applicable for various devices as SSH.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.1: Compare and contrast Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) ports, protocols, and their purposes.

Printers that use PostScript drivers are designed to handle complex printing tasks, including detailed graphics and images in PDF files. However, if the printer's PostScript driver is outdated, incompatible, or improperly configured, it may struggle to process and print PDF files containing images. Updating or reinstalling the PostScript driver, or choosing a different driver compatible with the printer and document type, can resolve this issue.

VGA is a legacy 15-pin analog video cable commonly used with older monitors.

The ATX 3.0 16-pin connector provides power to high-end graphics cards, and a poor connection could lead to power issues and burning smells.

To connect printers without an RJ45 port to the network, the technician needs to enable wireless connectivity. By configuring the printers to connect to the network wirelessly, the company can achieve the desired consistency in printer configuration across the office. This approach allows printers without built-in wired network capabilities to be part of the network, facilitating shared access and remote printing functionalities.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 2.3 Networking, specifically the information on configuring and troubleshooting wireless connectivity for devices, which includes enabling and securing wireless connections on network printers.

General understanding of network printer configuration options, including the use of wireless connectivity to integrate printers into a network environment, particularly when wired connections are not feasible.

In DNS (Domain Name System), the AAAA record is used to map a domain or device to an IPv6 address. IPv6 addresses are 128-bit addresses, and the AAAA record is specifically designed for handling these larger addresses.

C. AAAA: This record is used to associate a hostname with an IPv6 address in DNS.

Why the other options are incorrect:

A. A: An A record maps a domain to an IPv4 address, not an IPv6 address.

B. CNAME: A CNAME (Canonical Name) record is used to alias one domain name to another but does not map to an IP address directly.

D. MX: An MX (Mail Exchange) record is used to direct email traffic to the correct email servers, not to map devices to IP addresses.

This falls under the Networking domain of the CompTIA A+ Core 1 exam​.

The correct answer is B. Serial.

A serial cable is a type of cable that can be used to connect devices that use serial communication, which is a method of sending data one bit at a time over a single wire. Serial cables are often used for console access to network devices, such as routers, switches, firewalls, or servers, when other methods of connection, such as SSH (Secure Shell), are not available or not working.

A DB9 connector is a type of connector that has nine pins and is commonly used for serial cables. DB stands for D-subminiature, which is a family of connectors that have a D-shaped metal shield and different numbers of pins. DB9 connectors are also known as DE-9 connectors, as they belong to the E size category of D-subminiature connectors. DB9 connectors can support various serial standards, such as RS-232, RS-422, or RS-485.

A parallel cable is a type of cable that can be used to connect devices that use parallel communication, which is a method of sending data multiple bits at a time over multiple wires. Parallel cables are often used for connecting printers or scanners to computers, but they are not commonly used for network devices or serial connections.

An optical cable is a type of cable that can be used to transmit data using light signals over fiber-optic strands. Optical cables can offer high-speed, high-bandwidth, and low-interference data transmission over long distances. Optical cables are often used for network communication, such as Ethernet, or audio/video transmission, such as HDMI or TOSLINK.

A USB cable is a type of cable that can be used to connect devices that use the Universal Serial Bus (USB) standard, which is a protocol that allows data and power transmission between devices. USB cables can support various types of devices, such as keyboards, mice, cameras, flash drives, or chargers. USB cables have different versions and connectors, such as USB-A, USB-B, USB-C, or Micro-USB.

Therefore, the only cable that uses a DB9 connector is a serial cable. For more information about cables and connectors, you can refer to the following web search results: [What Is a Serial Cable?], [What Is a Parallel Cable?], [What Is an Optical Cable?], [What Is a USB Cable?].

Since the on-premises email server has been decommissioned and users are experiencing issues with scan-to-email functionality, the best solution would be to configure an email relay. An email relay server can accept emails from devices like printers and forward them to the correct destination (such as a cloud-based email service). This avoids the need to bring back the old server or set up a new one.

A. Configure an email relay on an existing server: This allows the scanner to send emails through another server, ensuring the functionality is restored.

Why the other options are incorrect:

B. Configure a secure, cloud-based email relay: While a cloud-based solution could work, configuring an email relay on an existing server is a more immediate and likely solution.

C. Bring the old email server back into production: This is unnecessary and would defeat the purpose of decommissioning it.

D. Configure a new email server from scratch: Setting up a new email server would be time-consuming and not necessary in this situation.

This is part of the Networking and Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

IPv4 records are associated with "A" records in DNS servers.

Option Evaluation:

A. AAAA: Used for IPv6. Incorrect.

B. MX: Relates to email servers. Incorrect.

C. CNAME: Provides aliases, not IP mappings. Incorrect.

D. A: Maps hostnames to IPv4 addresses. Correct.

Given the network information for the server “InternalToolCentral” with an IP address of “192.130.230.5” and a subnet mask of “255.255.255.0”, the gateway address should be within the same network range. However, the gateway address is listed as “192.130.230.1”, which is correct and within the same subnet. Therefore, the issue is not with the gateway settings.

The DNS servers are listed as “8.8.8.8” and “4.2.2.1”, which are public DNS servers and should be able to resolve domain names correctly if they are reachable.

The open ports listed include 25 (SMTP), 80 (HTTP), 110 (POP3), 443 (HTTPS), and 3306 (MySQL), which are standard ports for their respective services.

Considering the provided options and the network settings, the most likely explanation for users being unable to access resources on the file server is: A. Applicable ports have been closed during routine hardening. This could prevent users from connecting to the necessary services on the file server.

References:

Networking best practices and troubleshooting steps as covered in the CompTIA A+ certification materials.

Understanding of network configurations and services related to file server accessibility.

When an external touch screen exhibits flickering without registering input on a presentation laptop, the first troubleshooting step should be to check the cables connecting the touch screen to the laptop. This includes ensuring that the cables are securely connected, undamaged, and are the correct type for transmitting both video and touch input data. Faulty, loose, or incorrect cabling can lead to issues like flickering and unregistered inputs.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with peripheral devices and troubleshooting connectivity and performance issues related to external devices like touch screens.

Basic troubleshooting principles for peripheral devices, emphasizing the importance of verifying physical connections and cable integrity when encountering issues with device functionality.

A syslog server collects and stores log data from various network devices and systems.

After setting up a RAID 5 array, the next step is to make the storage space usable by the operating system. This involves partitioning the array to define how the storage space is organized and then formatting it with a file system that the operating system can understand, thus making it possible to copy files to the array. Decreasing the number of drives, rebuilding the array, or checking the hot spare status would not address the issue of the array not being ready to store files.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

The IP address 192.168.1.56 is within the private IP address range (192.168.0.0 to 192.168.255.255) and is appropriate for use in an internal network utilizing NAT (Network Address Translation). The other IP addresses provided (172.15.65.10, 175.16.20.3, and 193.167.35.4) are either public IP addresses or not in the private IP range suitable for an internal network using NAT.

Turning off the laptop and disconnecting power immediately prevents further damage and potential safety hazards. Checking for foreign objects or damage is essential for identifying the root cause. Other options, such as contacting the vendor or using a different adapter, are not immediate troubleshooting steps for an active burning smell. CompTIA A+ Core 1 objectives emphasize safety and hardware troubleshooting.

An inverter failure commonly causes dim screens as it fails to power the backlight, which is crucial for visibility. The LCD glass, IPS panel, and digitizer relate to touch and image display, not brightness. According to CompTIA A+ Core 1 objectives, understanding mobile device display issues, including inverter-related problems, is essential for effective troubleshooting.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer Description automatically generated

A screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A maintenance kit includes components like rollers and other parts that tend to wear out over time, which are common causes of printer jamming. Replacing toner, ink cartridges, or ribbons would not directly address paper jams. This troubleshooting step aligns with the CompTIA A+ Core 1 objective regarding maintaining printers for optimal performance.

After replacing a hot-swappable hard drive in a RAID 5 array, the array must rebuild the data onto the new drive. This process involves reading data from the remaining drives and writing it to the new drive to restore full redundancy. The performance decrease is due to the intensive read and write operations necessary to rebuild the RAID array, which can take several hours depending on the size of the drives and the amount of data.

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

A punchdown tool is essential for connecting telephone wires to patch panels, keystone modules, and punchdown blocks, making it a critical tool for installing plain old telephone service (POTS) lines. A toner probe, on the other hand, is used for tracing and identifying specific wires within a bundle, facilitating the correct attachment of telephone lines to their respective terminals. These tools are fundamental for ensuring proper and efficient installation of POTS lines in a client's environment.

In the SaaS (Software as a Service) model, the service provider manages the infrastructure, platforms, and software applications, including maintenance tasks such as application patching. Users access the applications over the internet, and the provider is responsible for ensuring the software is up to date, secure, and performing optimally. This model contrasts with IaaS (Infrastructure as a Service) and PaaS (Platform as a Service), where the customer has more control and responsibility over the environment and may need to manage patching for applications they develop or install.

References: SaaS is designed to relieve users from the complexity of software maintenance, including patch management, as highlighted in cloud computing service model descriptions.

Using the duplex setting allows the printer to print on both sides of the paper, effectively reducing paper usage by half for multipage documents. This option is ideal for conserving resources in a high-volume environment. According to the CompTIA A+ Core 1 objectives, duplexing is a standard function in multifunction devices, helping reduce paper usage and optimize printing efficiency. This method not only lowers costs but is also environmentally beneficial. Other options like "Orientation" only affect page layout, "Tray settings" adjust paper source without conserving resources, and "Quality" affects print resolution but not resource consumption.

Intermittent paper feeding issues in a laser printer are commonly caused by dirty or worn-out pickup rollers. Cleaning the rollers can restore proper functionality. This aligns with the CompTIA A+ Core 1 objective related to troubleshooting and maintaining printers, specifically resolving paper feeding issues​.

A failing power supply can cause random system crashes and degraded performance as it struggles to maintain a consistent voltage, especially as the system demands increase over time. The CMOS battery only affects system time and settings, while the video card typically causes display issues rather than system-wide crashes. System memory issues often result in specific errors or performance issues rather than gradual slowdowns. CompTIA A+ Core 1 objectives highlight troubleshooting power supply issues as part of hardware and system maintenance.

VDI (Virtual Desktop Infrastructure) allows users to access a desktop environment that is running on a server in the data center rather than on the local machine. This is particularly useful for employees who need to work remotely on various devices (A), as it provides a consistent and secure environment regardless of the endpoint device. For a bank with security concerns regarding employee activity (D), VDI offers a centralized management of desktops, enhancing security by keeping sensitive data and applications within the data center and not on the local devices, thus reducing the risk of data breaches.

References:

CompTIA A+ Core 1 Exam Objectives Section 4.2: Summarize aspects of client-side virtualization.

By documenting the findings, action, and outcomes of issues, the technicians can create a knowledge base that can be used to resolve similar issues in the future more quickly and efficiently. The documentation can also help identify patterns or trends that can lead to preventive measures or root cause analysis. Documenting the issues can also improve communication and collaboration among technicians and users, as well as provide evidence of service quality and performance. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 4)

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.5: Given a scenario, install or replace the appropriate power supply.

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

If an application was previously running in a virtualized environment and is not launching after being installed directly on the base operating system, it's possible that the technician did not account for dependencies or configurations specific to the virtualized environment that are not present or are incompatible with the base operating system. This mismatch can prevent the application from launching properly.

References:

CompTIA A+ Core 1 Exam Objectives Section 4.0: Virtualization and Cloud Computing

CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting

A Storage Area Network (SAN) is a network specifically designed to pool storage resources and make them accessible to servers as if they were locally attached drives. SANs are used in data centers for high-performance storage and retrieval of large volumes of data. This setup allows multiple networked devices to access shared storage as if it were local, which matches the scenario described. PAN (Personal Area Network), WLAN (Wireless LAN), and MAN (Metropolitan Area Network) serve different purposes and do not primarily focus on shared storage access.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

In the case of a thermal receipt printer that will not print, the first step in troubleshooting should be to ensure that the thermal head is heating up. Thermal printers operate by applying heat to a special thermally sensitive paper, creating marks on the paper to form text and images. If the thermal head is not heating up, it cannot create these marks, leading to no print output. Verifying that the thermal head is operational can help isolate the issue, whether it's a hardware malfunction of the thermal head itself or another problem in the printer.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections dealing with printer technologies and troubleshooting methods, which would include understanding the operational basics of different types of printers, including thermal receipt printers.

Fundamental knowledge of how thermal printers function, emphasizing the critical role of the thermal head in the printing process and the need to ensure it's operational when troubleshooting printing issues.

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

The technician failed to properly diagnose the issue by not establishing a theory of probable cause. Instead of investigating why the network drives were accessible wirelessly but not when docked, the technician assumed a faulty network card and ordered a new laptop. Proper troubleshooting involves developing a theory of what might be causing the problem, based on the symptoms and available information, and then testing that theory. In this case, the issue could have been related to docking station settings, network configurations, or hardware issues specific to the docking connection.

References: This answer is grounded in standard troubleshooting methodologies, which emphasize the importance of logically deducing the most likely cause of a problem before proceeding with more drastic measures such as replacing hardware.

NVMe (Non-Volatile Memory Express) is an interface protocol built especially for Solid State Drives (SSDs) to utilize the high-speed PCIe bus in computers. M.2 is a form factor that is commonly used for NVMe SSDs due to its compact size and direct connection to the PCIe interface, which is ideal for laptops. The 2.5" and 3.5" form factors are more commonly associated with SATA drives, and SD is a form factor used for removable flash memory cards, not for internal storage solutions like NVMe SSDs.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

When upgrading a laptop's storage from an HDD to an SSD, especially in laptops with only a single bay for a hard drive, the most critical characteristic to consider is the form factor. The form factor must match the physical dimensions and interface of the original HDD to ensure that the SSD can fit into the bay and connect properly. Storage size (B) is important for capacity reasons, transfer speed (D) affects performance, and partition type (A) is a software configuration aspect, but the form factor (C) is crucial for the physical compatibility of the SSD with the laptop.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

VGA (Video Graphics Array) is a legacy 15-pin connector used for transmitting analog video signals. VGA was commonly used to connect monitors to computers, but it has been largely replaced by more modern digital interfaces like DVI and HDMI.

C. VGA: A legacy 15-pin connector used for analog video signals.

Why the other options are incorrect:

A. DisplayPort: DisplayPort is a newer digital interface and does not use a 15-pin connector.

B. DVI: DVI (Digital Visual Interface) is a digital connector used for video signals but does not have 15 pins.

D. HDMI: HDMI is also a digital interface for audio and video, but it uses a different connector with no 15 pins.

This topic relates to the Hardware domain in the CompTIA A+ Core 1 exam​.

If a user consistently receives an error requesting A4 paper for print jobs, and this issue is isolated to a single user, it's likely that the user's printer settings are configured incorrectly for A4 paper size instead of the standard letter size used in the office. Adjusting the printer defaults in the Control Panel on the user's computer to use letter-sized paper should resolve the issue without needing to reinstall drivers, switch printers, or require the user to check page size for every job.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

The ticking noise likely indicates a failing hard drive. The technician should attempt to extract data before the drive fails completely.

For setting up a private network, the IP address range should be one that is reserved for private use. The range 172.16.0.0 to 172.31.255.255 falls within the set of IP addresses designated for private networks according to RFC 1918. This range is not routable on the public internet, making it ideal for a private network setup on a retail router.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.5: Given a scenario, install and configure basic wired/wireless SOHO networks.

A loopback plug is a diagnostic tool used to test the functionality of network interfaces by creating a signal loop. In this case, since the user's device is hardwired to the network but cannot access the internet, using a loopback plug can help determine whether the issue is with the network interface card (NIC) or the Ethernet cable.

A. Loopback plug: This tool helps test whether the computer's network interface is functioning properly.

Why the other options are incorrect:

B. Network tap: A network tap is used to monitor network traffic, but it wouldn’t help diagnose the local connectivity issue here.

C. Wi-Fi analyzer: This tool is used to troubleshoot Wi-Fi networks, but since the issue is with a hardwired connection, it’s not applicable.

D. Punchdown tool: A punchdown tool is used to connect network cables to a patch panel or keystone jack. It is not used for diagnosing network issues.

This falls under the Hardware and Network Troubleshooting domain in the CompTIA A+ Core 1 exam​.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

When configuring a network device like a printer, assigning it a static IP address ensures that it always uses the same IP address. If a static IP cannot be set due to security restrictions, the next best solution is to configure a reservation in the DHCP (Dynamic Host Configuration Protocol) server. This reservation ensures that the device (in this case, the printer) always receives the same IP address based on its MAC address, even if the router restarts.

A. Reservation: A DHCP reservation ties a specific IP address to the MAC address of a device, ensuring it always receives the same IP address from the DHCP server.

Why the other options are incorrect:

B. Scope: A DHCP scope defines the range of IP addresses that can be assigned to devices. It doesn’t ensure that a specific device always gets the same IP.

C. Lease: A lease refers to the length of time a device is assigned an IP address from the DHCP server. It doesn’t guarantee that the same IP will be re-assigned after the lease expires.

D. Exclusion: An exclusion in DHCP configuration excludes specific IP addresses from being assigned dynamically. This is used to prevent certain addresses from being given out but doesn’t ensure a device will always get the same IP.

This topic is covered under the Networking domain of the CompTIA A+ Core 1 exam​.

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

References:

CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting.

The "Ease of Access" settings in Windows are designed to help make the computer more accessible to users with various needs. Among these settings, there are options to adjust mouse and cursor functionality, including the visibility and behavior of the cursor. Adjusting these settings can resolve issues related to cursor trails, making it a suitable first step in troubleshooting this specific problem.

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

If the printed text is not adhering properly to the paper on a laser printer that has had repairs previously for scanning issues, the fuser should be replaced to resolve this issue. The fuser is a component of the printer that uses heat and pressure to fuse the toner onto the paper. If the fuser is not functioning properly, the toner may not adhere properly to the paper.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users’ computers1.

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

The concept described in the question is related to virtualization and resource management in a virtual environment. The approach that allows all virtual machines (VMs) to have memory (RAM) allocated for use is known as resource pooling. Therefore, the correct answer is D: "Resource pooling." This approach allows resources to be allocated dynamically to VMs based on their current needs, and ensures that resources are used efficiently in the virtual environment.

Resource pooling is a technique used in virtualization to share resources among multiple virtual machines (VMs). With resource pooling, RAM can be allocated dynamically to VMs as needed, allowing all VMs in a virtual environment to have RAM allocated for use.

References: https://en.wikipedia.org/wiki/Resource_pooling

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

A loopback plug allows a technician to verify that the cable functions as expected by looping the signal back for testing. While a punchdown tool installs cables in a panel, it does not test functionality, and Wi-Fi analyzers and toner probes serve other network diagnostics. This is in line with CompTIA A+ Core 1 objectives for validating cable installation and connectivity.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

It is common for companies to place a data cap on the devices they provide to their employees, to control costs. If a user has exceeded the data cap, the phone may no longer allow internet browsing over a cellular connection. This is usually because the cellular data usage has exceeded the allotted amount for the particular plan the device is on, and the service provider has temporarily suspended the data connection.

It is unlikely that the child accidentally connected to a neighbor's WLAN because this would not affect the cellular data connection. Similarly, it is unlikely that the company's group policy has disabled the device, as this would likely affect all devices under the same policy. If the device's plan has been unpaid, the service provider would likely temporarily suspend all services, not just the cellular data connection.

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

If a user’s PC is very sluggish, the HDD light on the PC is constantly on without blinking, the PC itself is slow receiving input, and it takes a very long time to load the OS, the HDD has no free space is most likely the cause of these issues. When the hard disk drive (HDD) has no free space, the computer may become slow and unresponsive. The technician should check the amount of free space on the HDD and delete any unnecessary files to free up space.

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-a-fuser

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

A crimper is a tool that is used to crimp (attach) an RJ45 connector onto the end of a patch cable. The crimper applies pressure to the connector to make a permanent connection between the connector and the cable, ensuring that the connector will stay attached to the cable.

A cable tester is used to test the connectivity of a network cable. A punchdown tool is used to terminate network cables in a patch panel or keystone jack. A loopback plug is a diagnostic tool that is used to test network interfaces by simulating network traffic.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

Once the technician has determined that the power supply is likely to be defective, they should establish a plan of action to resolve the problem. This may include replacing the power supply or further testing to confirm that it is indeed defective. After establishing a plan of action, the technician should implement the solution and verify that it has resolved the issue.

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This is because the grounding strap prevents electrostatic discharge (ESD) when handling the RAM, which can cause damage to the RAM and the server. Therefore, it is important to always use a grounding strap when handling RAM or other sensitive components.

The company should buy Coaxial cables to be used with F-type connectors.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

https://spryzensecurity.medium.com/what-is-troubleshooting-methodology-40cec6b6494

The technician should ask the user additional clarifying questions regarding the issue. This will help to identify any other potential causes of the issue, such as software configuration or compatibility issues, before attempting any further troubleshooting steps.

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

An administrator would use Infrastructure as a Service (IaaS) to migrate virtual machines from on-premises to the cloud. IaaS is a cloud computing service that provides virtualized computing resources, such as servers, storage, and networking, that can be used to deploy and run applications in the cloud. By using IaaS, an administrator can create a virtual machine in the cloud and migrate the existing virtual machine from on-premises to the cloud. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

The technician should run diagnostics on the faulty hard drive using a boot disk first when a computer that contains critical data has not been backed up and will not boot past a S.M.A.R.T. error that indicates imminent hard disk failure. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 376

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

The most likely cause of the cursor issue is that the screen needs to be recalibrated. This can happen when the tablet is used for a long time or when the tablet is dropped or bumped. Recalibrating the screen will help the tablet recognize the touch input more accurately12.

The black smudges over the entire image on a printed receipt are most likely caused by a jammed ribbon that is rubbing on the paper. The solution is to clear the bad ribbon and feed it through the printer properly. Ribbon jams can be caused by various issues, such as incorrect installation or a damaged ribbon. References: CompTIA A+ Certification Exam Objectives - 220-1001: 4.5 Given a scenario, troubleshoot common printer problems.

ADF/flatbed scanner would most likely be used to obtain electronic images of a large number of printed documents. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 351

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

Switches only send data to the specific computer, while hubs send data to all computers inside the network. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 323

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

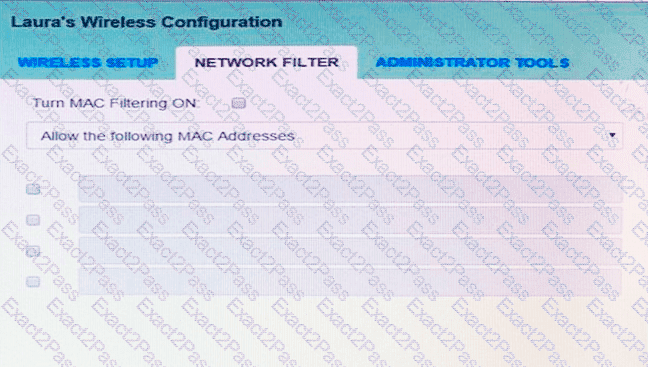

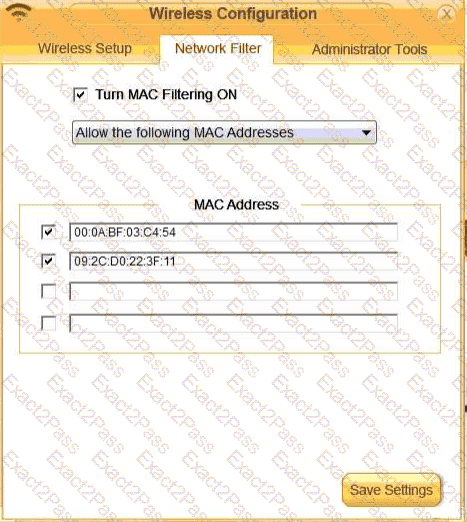

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

Based on the information recorded by the technician, the network connection appears to be functioning normally. The user's computer is properly configured with an IPv4 address, subnet mask, and default gateway, which should allow the user to access the internet and online videos. The high download and upload speeds and low ping time recorded from the test laptop also indicate that the network is working well. However, the user's inability to watch online videos suggests that there might be an issue with the network card (NIC) on the user's computer. The NIC might be faulty or malfunctioning, which is preventing the computer from receiving and processing the video data. The technician should try replacing the NIC to resolve the issue.

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

When a user connects a smartphone to a laptop, they create a Personal Area Network (PAN). A PAN is a type of network used for communication between devices in close proximity to each other, typically within a range of a few meters or less. This type of network is commonly used for wireless communication between personal devices, such as connecting a smartphone to a laptop for file sharing or internet access. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.1 Explain common connectors and their uses.

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

If a laptop has been returned for a screen repair and the owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop, the first step the repair technician should take is to ensure the backlight is functioning as expected. If the backlight is faulty, the screen may appear to be broken, but it may only be dim or too dark to be visible

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

According to Dell Community, the Wi-Fi antenna is located in the top of the LCD display housing. It consists of two elements, fed by two cables, a white main designated on the Wi-Fi card by a white triangle, and a black auxiliary designated on the Wi-Fi card by a black triangle1.

Metered utilization of cloud resources refers to payments made only for resources that are used. Cloud providers offer a pay-as-you-go model where customers are charged based on their usage of resources. Customers can easily scale up or down their usage of resources as per their needs and only pay for what they use. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 642)

A web server is a software application that serves HTTP (Hypertext Transfer Protocol) requests by delivering web pages and other files to users' web browsers. The main function of a web server is to host home pages and business portals, making them accessible to users via the internet. References: CompTIA A+ Certification Exam Objectives 220-1001 - Networking - 1.6

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

One possible solution to address the issue of a webcam not working with a videoconferencing program is to close other video software and retry (option A). It’s possible that another video software program is currently using the webcam and preventing the videoconferencing program from accessing it. By closing any other video software that may be running on the computer, the user can ensure that the webcam is available for use by the videoconferencing program.

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

A defective battery is the most likely cause of a mobile phone that gets really hot to the touch, does not retain a charge, and is slow while charging. A defective battery can cause the phone to overheat and may also cause performance issues. References: CompTIA A+ Certification Exam Objectives 1001, 2.14

Device interference is the most likely cause of the wireless connection dropping or becoming slow. Interference can come from other wireless devices, microwave ovens, or physical barriers like walls and metal objects. Hidden SSID, Ethernet port flapping, and high ISP latency are not likely to cause this issue.

Wireless interference from other devices can cause a drop in wireless connection speed and stability. In a small office environment, there may be several wireless devices competing for the same bandwidth, causing the issues described. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.7 Given a scenario, troubleshoot wired and wireless networks with appropriate tools

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

If a user is unable to log in using the fingerprint reader on a company laptop after the motherboard was replaced, it could be due to an issue with the fingerprint software. The first step to fix the issue would be for the technician to reinstall the fingerprint software.

This is because a docking station can connect multiple monitors to a laptop without using USB ports, which are disabled in this scenario. A splitter cable would only allow two monitors to be connected, not three. A discrete graphics card would require opening the laptop and installing hardware, which may not be feasible or allowed in a high-security environment. An HDMI switch would only allow one monitor to be active at a time, not all three simultaneously.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

Optical fiber is the type of cable that should be used to terminate ST connectors on each end. ST connectors are commonly used for fiber optic cables, which transmit data using light pulses. Coaxial, shielded twisted pair, and HDMI are not types of cables that use ST connectors, but different types of connectors and transmission methods.

Quad-channel memory architecture allows the CPU to access four memory modules simultaneously, increasing the memory bandwidth and performance. DDR4 RAM is a type of memory that has higher speed and lower power consumption than DDR3. SODIMM is a smaller form factor of memory that is typically used in laptops, not desktops. ECC RAM is a type of memory that can detect and correct errors, but it is more expensive and slower than non-ECC RAM. Triple-channel memory architecture is less common and less efficient than quad-channel. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-ddr4-ram https://www.comptia.org/blog/what-is-quad-channel-memory

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)

The Trusted Platform Module (TPM) is a hardware component that provides cryptographic functions and secure storage for encryption keys, passwords, and certificates. BitLocker requires a TPM to be enabled and activated in the BIOS or UEFI settings of the laptop in order to use SSD-level encryption. The technician should check that the TPM is enabled and activated before trying to turn on BitLocker. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 34)

SODIMM stands for Small Outline Dual In-line Memory Module and is a type of memory module that is compatible with laptops and other small devices. SODIMMs are smaller and thinner than DIMMs (Dual In-line Memory Modules), which are typically used for desktop PCs and servers. Upgrading or adding SODIMMs can increase the amount of RAM available for a laptop, which can improve its performance and speed when running process-intensive tasks. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-se ries-combined-content-guide (page 24)

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

Rapid elasticity is a cloud feature that allows cloud services to scale up or down automatically according to demand or load on the server, without requiring manual intervention or configuration changes by users or administrators.This enables cloud services to provide optimal performance and efficiency at all times, as well as reducing costs by only using resources when needed. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 98)

One of the possible causes of extreme slowness and application crashes on a phone is low or insufficient storage space. This can affect the performance and functionality of the phone, as well as prevent new applications from being installed or updated. The technician should check the storage space on the phone and see if there is enough free space available for the diagnostic application and other operations. The technician should also advise the customer to delete or move any unnecessary or unused files, apps, or data from the phone to free up some space. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 10)

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

Loading the hard disk drive (HDD) drivers using a flash drive is the most likely action that can fix the issue of a computer not being able to find the hard drive during an OS installation from Windows 7 to Windows 10. The HDD may have a different interface or controller than what Windows 10 supports by default, such as SATA or RAID, which would require loading additional drivers during the installation process. The technician can use a flash drive to load the drivers from another device or source. Changing the partition to MBR, upgrading the RAM modules, or replacing the hard drive are not likely to fix the issue, as they are not related to the HDD drivers

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

A non-volatile memory express (NVMe) solid state drive (SSD) is the best option for an end user who wants to upgrade the hard drive on a laptop and wants one that is fast and shock resistant.NVMe SSDs use flash memory and PCIe interface to achieve high performance and low latency.SSDs are also more shock resistant than hard disk drives (HDDs) because they have no moving parts.Hybrid HDD/SSD combines both technologies but does not offer the same speed or capacity as pure SSDs.A 5,400rpm HDD or a 7,200rpm HDD are slower and less shock resistant than SSDs

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

Telnet is an unsecure remote access protocol that allows a user to connect to a remote device and execute commands on it12. Telnet does not encrypt the data that is transmitted between the user and the device, which means that anyone who intercepts the network traffic can read the information, including usernames and passwords12. Telnet also does not authenticate the user or the device, which means that anyone can impersonate either party and gain unauthorized access1.

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.
