The architecture Layer is the following:

User: represent the endpoints

Access: represent the storefront and Citrix Gateway

Control: represent the delivery controller, database, studio, license, director

Resources: represent the VDAs

Host: represent the hardware, fiscal server, storage, network, etc.

Page 33, 34 and 35from the hand book: https://docs.citrix.com/en-us/xenapp-and-xendesktop/7-15-ltsr/downloads/handbook-715-ltsr.pdf

The ns_allow expression always evaluates to true, which means it allows all users access through the vServer. The ns_disallow and ns_false expressions always evaluate to false, which means they deny all users access. The ns_true expression is not a valid policy expression1

1: Citrix ADC 13.0 - Policy Expressions

The Cloud Connector requires outbound connectivity on port 443 for communication with the internet2

 MAC-based forwarding (MBF) can be used to avoid multiple route/ARP lookups and to avoid asymmetrical packet flows. MBF caches the MAC address of the upstream router that forwarded the client request to the appliance. When a reply is received, it is passed through to the same router that sent the client request without going through any route lookup

After configuring TLS certificates on Cloud Connectors and disabling HTTP connections, the administrator needs to change the transport type to HTTPS in the StoreFront store’s Delivery Controller list to allow resource enumeration between on-premises StoreFront and Citrix Cloud4.

https://docs.citrix.com/en-us/tech-zone/design/reference-architectures/image-management.html#:~:text=Differencing%20Disk%3A%20A%20unique%20Difference,the%20base%20VM%20as%20required .

 According to the Citrix documentation, automatic HA synchronization will fail if the primary and secondary Citrix ADCs have different build versions. The build versions must be the same for the configuration to be synchronized. A manual synchronization, a configuration change to the primary Citrix ADC, or a force failover will not affect the automatic HA synchronization1

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - High Availability

Citrix Director provides a feature under the Trends section where administrators can configure and review application faults. This allows them to monitor and analyze applications that have crashed, helping to identify patterns or recurring issues.

In Citrix Virtual Apps and Desktops, administrators can use tag restrictions to specify which machines within a Delivery Group are affected by certain power management actions. By applying tags to a subset of machines, the administrator can ensure that only those tagged machines are restarted daily during non-peak hours, while the rest follow the weekly restart schedule.

Citrix Studio is the management console that allows administrators to provide customized permissions, including adding applications to junior administrators1.

According to the Manage | Citrix Virtual Apps and Desktops 7 2308 document, the order of evaluation of rewrite policies is determined by the following factors:

The priority of the policy. A lower number indicates a higher priority.

The bind point of the policy. A global policy has a lower priority than a policy bound to a specific virtual server.

The type of the policy. A request policy has a higher priority than a response policy.

In this scenario, the policies are all bound to the same virtual server and have the same type (response). Therefore, the order of evaluation is based on the priority of the policy. The policy with the lowest priority number (POL_2) is evaluated first, followed by the policy with the next lowest priority number (POL_3), and so on. The policy with the highest priority number (POL_1) is evaluated last. Therefore, the correct answer is C.

Workspace Control allows users to reconnect to their disconnected sessions automatically when they roam between devices or reconnect after a network disruption. It is designed to provide a seamless user experience by maintaining the user’s session state, allowing them to pick up where they left off without starting a new session. This feature can be managed within the Citrix Virtual Apps and Desktops management consoles and is essential for scenarios where users need to maintain continuity in their work, such as in the given scenario where users leave work and expect to reconnect to their sessions later.

Citrix Cloud Connector requires the machine to be joined to a domain as part of its prerequisites for installation. If the machine is not domain-joined, it could prevent the Cloud Connector from installing properly. This is because Cloud Connector needs to communicate with Citrix Cloud services and typically relies on domain credentials for authentication and other functions within a domain environment.

According to Citrix documentation, to make a configuration change for a StoreFront server group, the change should be made on one StoreFront server in the group, and then the Propagate Changes feature should be used to synchronize the change across the group1

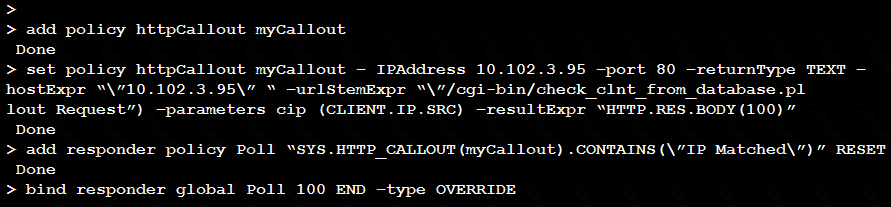

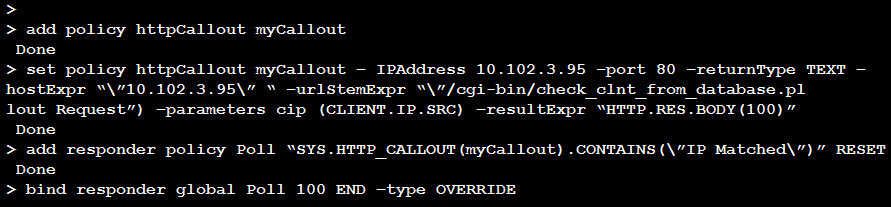

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, the callout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

https://docs.citrix.com/en-us/citrix-adc/13/appexpert/http-callout/http-callout-policy.html

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, the course covers how to deploy and manage machines running the VDA in both on-premises datacenters and public clouds, such as AWS1. The Citrix Virtual Apps and Desktops service also supports Azure and Google Cloud Platform as resource locations for VDAs3. Citrix Cloud is not a resource location, but a platform that hosts the Citrix Virtual Apps and Desktops service3. VMware Workspace One is not a supported resource location for VDAs, but a competing product from VMware.

Typically, Citrix Director is used for monitoring and managing user sessions, including machine sessions and application instances. The “Filters” option allows administrators to view and manage specific sessions, which aligns with the scenario described.

According to the Citrix documentation, “When you configure the Citrix ADC appliance for Active Directory authentication, you must configure DNS to assign fully qualified domain names (FQDNs) to the authentication and traffic management virtual servers. This is because the domain session cookie that is used during authentication is based on the FQDN of the virtual server.” 1

1: Configure DNS to Support Active Directory Authentication

According to the Citrix documentation1, when user subscriptions are disabled for a store (Mandatory Store), the following behaviors occur:

Users cannot subscribe to applications from the store. All the applications in the store are automatically subscribed to each user and appear in Citrix Workspace app.

Users cannot remove applications from Citrix Workspace app on the Favorites screen.

Users can organize their applications into folders using the Citrix Workspace app desktop.

Applications are placed in the Start menu or the Applications folder on the user’s device, depending on the Citrix Workspace app version and operating system.

Therefore, the correct answer is B and D.

1: Configure user access

According to the Citrix documentation1, the Citrix ADC SDX appliance allows administrators to upgrade the Citrix ADC instances on an individual basis, without affecting the other instances or the SDX appliance. This allows the instances to run different firmware versions and provides flexibility and convenience for the administrator.

 The minimum built-in delegated administration role required to create an Application Group is the Delivery Group Administrator. This role has the necessary permissions to manage application groups within a delivery group1.

Citrix Cloud is the hosting platform that minimizes management and maintenance for administrators while maintaining control of the VDA machines1.

According to the Citrix Printing Quick Start Guide1, Citrix recommends that you disable Direct connections to print servers if your Worker VMs and print servers are not in the same LAN. This is because in this situation the print job sent direct to the print server is not compressed. When the print job is routed via ICA it is compressed. This setting can be configured via Citrix policy under Printing > Client Printers > Direct connections to print servers2. Disabling this setting will allow users to print to both print servers via the ICA protocol. The other options are not relevant to the issue or the scenario.

 The New-BrokerRebootScheduleV2 cmdlet creates a new reboot schedule for a machine catalog or a delivery group. The -StartTime parameter specifies the start time of the reboot schedule in 24-hour format. The -RebootDuration parameter specifies the time interval in minutes between each machine reboot. The -Frequency parameter specifies how often the reboot schedule occurs. The -DesktopGroupName parameter specifies the name of the delivery group to apply the reboot schedule to. The -Enabled parameter specifies whether the reboot schedule is enabled or not12

 Process Explorer is a tool that can be used to get further details on orphaned processes in the session. According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Process Explorer can be used to “identify processes that are preventing a session from logging off” (Module 6: Troubleshooting User Connection Issues, Lesson: Troubleshooting Session Logon and Logoff Issues, Slide 8). Additionally, according to the Citrix Virtual Apps and Desktops 7 Administration Exam Guide, one of the objectives is to “use Process Explorer to identify orphaned processes” (Objective 6.3: Troubleshoot Session Logon and Logoff Issues). Therefore, Process Explorer is the correct answer.

 Application Prelaunch is a feature that can be enabled to reduce the perceived start time of applications. It prelaunches an application session when the user logs on, so the application is ready when the user needs it, thus reducing the wait time during the initial access

According to the Delivery Controllers document, Citrix recommends having at least two Controllers on different physical servers for redundancy and scalability in a production site. The document also states that “additional Controllers enable you to handle more users and more applications and desktop requests, and can improve overall responsiveness.” Therefore, the minimum number of Delivery Controllers required to deploy Citrix Virtual Apps and Desktops for 500 users is 2.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, one of the objectives is to “Configure Citrix ADC to monitor and report on the health of your environment”. The course also covers how to use Citrix Application Delivery Management to monitor and manage multiple Citrix ADC instances. According to the Citrix documentation3, Network Reporting on Citrix Application Delivery Management allows you to generate reports based on various metrics and events collected from the Citrix ADC instances. You can also configure thresholds and alerts for the reports, and specify the email addresses to receive the notifications. Therefore, the correct answer is D.

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

Machine Creation Services (MCS) is suitable for deploying a large number of virtual desktops with low impact on network infrastructure. MCS allows for user-installed applications and persistency by using differencing disks and personal vDisks.

 To ensure the line-of-business application is added to Favorites and users cannot remove it, the Citrix Administrator should add the phrase “KEYWORDS: Mandatory” to the application properties3.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the Citrix ADC can optimize the responses by using HTTP protocol for the services and SSL protocol for the virtual server. This configuration allows the Citrix ADC to terminate the SSL connection from the client and then communicate with the server using HTTP. This way, the data is encrypted between the client and the Citrix ADC, and the Citrix ADC can perform optimization tasks such as compression and caching1: Page 95, Module 5: Citrix Gateway and Citrix StoreFront Integration.

Option B is the correct answer because it uses the DROP action to block access to the URLs that match the BAD_URL pattern set. The other options use the RESET action, which only resets the connection but does not prevent access. Also, option C has a typo in the bind responder global command, which would cause an error. Option D has an invalid type argument for the bind responder global command, which should be DNS_REQ_OVERRIDE instead of DNS_REQ. For more information, see the following resources:

Manage | Citrix Virtual Apps and Desktops 7 2308

Applications | Citrix Virtual Apps and Desktops 7 2308

Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS …

CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and …

EDUCATION CWS-215: Citrix Virtual Apps and Desktops 7 Administration On …

A SSL profile is a collection of SSL settings that define the SSL behavior of a virtual server. A Citrix Administrator can use SSL profiles to apply the same SSL settings to multiple SSL virtual servers, which simplifies the configuration and management of SSL parameters1.

1: SSL Profiles

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

 Featured App Groups in Citrix Virtual Apps and Desktops can be created based on Application names, Keywords, and Application categories. This allows administrators to organize and highlight applications for users based on these criteria

Citrix Director is a web-based monitoring and troubleshooting console for Citrix Virtual Apps and Desktops that allows administrators to control and monitor virtual applications and desktops1. Director can access real-time data from the Broker Agent and historical data stored in the Monitor database to provide information on the state of the Citrix infrastructure1. Director can also display failures in real time, providing a better idea of what the end users are experiencing1. Therefore, Director is the best tool to review the state of the Citrix infrastructure from a single location.

1: Director - Citrix Product Documentation

 The Citrix Universal Print Server provides universal printing support for network printers. The Universal Print Server uses the Universal print driver, a single driver on the Multi-session OS machine that allows local or network printing from any device, including thin clients and tablets. This feature can help reduce the number of Windows drivers on the VDA machines by using a single driver for all network printers

Citrix Director can capture utilization statistics for CPU, IOPS, and memory for each machine in a selected delivery group1. The resource utilization tab in the trends page displays the historical data for these metrics, along with the peak concurrent sessions graph2. The machine statistics page also shows the CPU and memory usage of the selected machine over time, as well as the processes contributing to high resource consumption3. Citrix Director does not capture utilization statistics for disk space or network, but it does provide other information related to these components, such as disk latency4 and network analysis5.

1: Monitor historical trends across a site | Director 2: How to use Director to monitor storage performance - Citrix 3: Machine Statistics | Citrix Analytics for Performance 4: Citrix Director Provides Disk Usage Information 5: [Network analysis | Director]

This command enables the Delivery Controllers to trust requests sent to the XML service port. This is required for securing communication between StoreFront and the Delivery Controllers

According to the Citrix Cloud documentation1, a Citrix Administrator needs to supply the following information when creating a silent installation of the Cloud Connector:

The customer ID of the Citrix Cloud account for which the administrator is installing the Cloud Connector.

The client ID and secret of the secure API client the administrator wants to use to install the Cloud Connector.

The resource location ID for the resource location that the administrator wants to associate with the Cloud Connector. If the administrator does not supply this value, Citrix Cloud uses the ID of the default resource location.

Therefore, the correct answer is C, Resource Location ID.

1: Install Cloud Connectors from the command line | Citrix Cloud

Application Lingering allows applications to stay open for a configurable amount of time after a user closes them, which can reduce application launch times in subsequent sessions.

The Group Policy Object administrative template, which includes the ADMX and ADML files, is recommended for configuring Citrix Workspace app settings at the domain level. This allows the settings to be applied across various user devices within the enterprise

Citrix Virtual Apps and Desktops support several high availability solutions for on-premises deployments, including Always On Availability Groups, SQL Server database mirroring, and SQL clustering. These features ensure automatic failover and continuous operation1

The administrator needs to change the product edition in Citrix Studio to match the newly installed advanced licenses. This action ensures that the Citrix Virtual Desktops Site utilizes the correct licenses and resolves the issue with the evaluation license expiration error message.

 When creating a custom scope, the Full Administrator role is not available because custom scopes are designed to limit administrators’ permissions to specific objects or tasks within the Citrix environment.

 According to the IBM documentation1, the Corrupt qualifier is used to modify the HTTP header of an HTTP request. The Corrupt qualifier changes the current value to a different value for a request or response header. If a value exists for the header, then this value is changed equivalent to a regular expression search and replace.

The “Limit Visibility” option allows a Citrix Administrator to hide a published application on Citrix Workspace app for specified users or groups within a delivery group. This option can be configured in the application properties in Citrix Studio123 or using PowerShell commands4. This option does not affect the other choices.

The PowerShell command Get-Service -DisplayName *citrix* is used to display all the Citrix services installed on the Delivery Controller. This command filters services by their display name to only show those related to Citrix, which typically include various components of the Citrix Virtual Apps and Desktops 7 Deployment and Administration.

 According to the Plan your StoreFront deployment document, for single server deployments you can install StoreFront on a non-domain-joined server but certain functionality will be unavailable; otherwise, StoreFront servers must reside either within the Active Directory domain containing your users’ accounts or within a domain that has a trust relationship with the user accounts domain unless you enable delegation of authentication to the Citrix Virtual Apps and Desktops sites or farms. All the StoreFront servers in a group must reside within the same domain. Therefore, server groups are not supported for non-domain-joined StoreFront servers (option D). Also, according to the User authentication document, when you configure a store, you specify the type of authentication service to use. By default, users are authenticated on StoreFront. Alternatively, you can delegate authentication to Citrix ADC or to the Delivery Controllers (option E). Authentication does not occur at the Domain Controller (option A) or at the Citrix ADC (option C) by default. Two-factor authentication is supported for non-domain-joined StoreFront servers (option B) as long as the authentication is delegated to Citrix ADC or Delivery Controllers.
