For a product that has reached its capacity limits and requires testing to ensure it can handle projected growth, scalability testing is the most appropriate. Scalability testing evaluates a system's ability to manage an increasing workload without compromising performance or other operational capabilities. This type of testing will help confirm whether the system can handle the estimated increase in load, which is aligned with the strict performance efficiency and growth requirements for the next three years

Testing that focuses on confirming that data backup tapes can be retrieved and loaded within specified service levels is classified as Continuity Testing. This type of testing ensures that business processes can continue after a disruption, such as data loss or system failure.

• Explanation: Continuity testing specifically addresses scenarios where operational capacity must be restored and verified within business continuity planning frameworks, such as disaster recovery processes.

A service virtualization tool is used to simulate the behavior of specific components in heterogeneous component-based applications such as APIs, services, and third-party apps that are not readily accessible during development and testing stages. These tools help create stable, controllable, and predictable testing environments by mimicking the interactions with the missing components. This is particularly useful when dealing with server or network traffic log data to develop a shareable testing service that replicates the real systems' behavior without their actual implementations.

Preparing for a code review is essential for understanding how the specific item under review interacts with other system components. This preparation allows the reviewer to identify potential integration issues or dependencies that could affect system functionality or performance. Adequate preparation ensures that the review is thorough and considers the broader system context, which is critical for ensuring that the system operates cohesively and according to specifications​​.

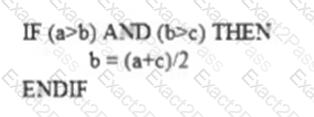

Modified condition/decision coverage (MC/DC) requires each condition in a decision to be shown to independently affect the decision's outcome. For the code fragment provided, we have three independent conditions that need to be evaluated both as true and false. The minimum number of test cases needed to satisfy MC/DC for three conditions is four, which would allow each condition to be shown to independently affect the outcome of the decision.

Tools that support component testing and the build process are designed to provide a controlled environment where individual units or components of the software can be tested in isolation. This is typically done using stubs, which simulate the behavior of missing components, and drivers, which simulate the behavior of a user or calling program. This isolated environment is essential for unit testing because it allows testers to find defects within the boundaries of a single component before integrating it into the larger system.

The comment frequency in a code fragment relates to the number of comments in relation to the code size. A good level of comment frequency can significantly contribute to the maintainability of the software. Maintainability is a non-functional quality characteristic that refers to the ease with which a software system can be modified to correct defects, update features, improve performance or other attributes, or adapt to a changed environment. Comments in the code help developers understand the logic, purpose, and functionality of the code, which is crucial when modifications are required. This does not directly contribute to portability, usability, or performance efficiency, which are concerned with different aspects of the software's operation and user interaction.

Maintainability refers to how easily software can be maintained over time to correct faults, improve performance, or adapt to a changed environment. This quality factor becomes increasingly important the longer the system remains in the production environment because as systems age, they often require updates and modifications to continue meeting user needs effectively. This factor is critical for ensuring the system can be efficiently updated without causing downtime or significant expense.

For a Medium risk mission- or safety-critical system, the best testing approach includes a combination of automated tests, exploratory tests, and manual black-box tests. Option B is the most comprehensive, advocating for automated tests to ensure reliability and repeatability, highly recommending exploratory tests to cover unforeseen scenarios, and recommending manual black-box tests to cover standard use cases. This multifaceted approach ensures thorough testing coverage essential for medium risk, safety-critical systems​​.

Model-based testing tools are specifically designed to simulate and verify various computational models, including finite state machines (FSM). FSMs are a core part of model-based testing, allowing the definition of system behavior under different inputs and states. Model-based testing tools use these machines to ensure that all states and transitions are covered during testing, providing a systematic approach to test automation and validation​​.

The pseudo-code provided for the "Win" program reads in variables A, B, C, and D. However, only variables A, B, and C are used in the conditional statements to determine if the output will be "Win" or "Loose". Variable 'D' is never used after it is read, which is a classic example of a 'defined but not used' data flow anomaly. This means that while there is an instruction to read a value into variable 'D', there is no subsequent use of this variable in the program's logic or output.

The pseudocode presented for review exhibits a likely issue with the control structure, particularly a missing else statement. This inference is drawn from the unbalanced opening and closing of conditional statements. The inner conditional structures suggest alternative outcomes based on several conditions, but the snippet likely misses an else statement associated with the condition lfb > 14, which could lead to ambiguous or unintended code behavior when lfb <= 14. Such issues can make the code difficult to maintain and could introduce bugs if not addressed. Ensuring each if has a corresponding else can prevent such potential errors in branching logic.

In Agile projects, test cases may need to be refactored to make them simpler and less costly to modify. This is crucial because Agile methodologies prioritize adaptability and frequent changes to the codebase and documentation. Refactoring test cases in this context ensures that they remain aligned with the continuously evolving project requirements, are easier for teams to manage, and can be quickly adjusted to accommodate new or changed functionality without significant rework costs .

In the context of consumer electronics, where there is rapid growth in embedded software and pressure to minimize code size due to cost constraints, dynamic analysis can be particularly useful for improving system performance. Dynamic analysis involves examining the system's behavior during execution, which can provide insights into the efficiency of the code at runtime, memory utilization, and processing speed. In a high-end TV project where the use of ROM and RAM is under severe restrictions, dynamic analysis would be most appropriately applied to improve system performance, ensuring that the software runs efficiently within the available hardware resources. This supports the project context by contributing to the optimization of the software to run within the constraints of the microcontroller used, thereby potentially reducing costs.

The epic described has broad and overarching objectives that span multiple user groups and stakeholders, making it inherently dependent on other functionalities within the same system. This fails the 'Independent' criterion of INVEST, which suggests features should be self-contained. Moreover, the epic's scope suggests it's quite large, likely requiring splitting into smaller, more manageable stories, thus not meeting the 'Small' criterion. INVEST aims for manageable, independent increments that can be developed and validated quickly .

The key context here is the challenge of managing limited resources, particularly ROM and RAM, due to severe restrictions on code size in consumer electronics. Lazy instantiation is a design pattern that defers the creation of an object until the first time it is needed. This approach can significantly reduce the application's memory footprint by avoiding unnecessary pre-allocation of memory, which is particularly valuable in systems where memory resources are constrained. In reviewing the architecture for such a system, it's crucial to ensure that objects are only created when necessary and that memory is optimally managed. Hence, the focus on lazy instantiation would be most important to ensure that the system uses resources efficiently and remains within the restricted code size.

Considering the high load expected on the busiest day, particularly with a promotional offer like “buy 3 get 2 more free” on a pizza, addressing transaction concurrency in the architectural specifications is crucial. This ensures the system can handle multiple and simultaneous user transactions efficiently without data loss or service degradation. Proper handling of transaction concurrency is essential to maintain system integrity and responsiveness during peak times, which is a critical requirement for the online pizza ordering system on such a high-traffic day.

The value of a test charter in exploratory testing is that it provides guidance for the tester at the beginning of a test session. This helps structure the exploratory testing process by defining objectives, scope, and potential test ideas, while still allowing the flexibility inherent in this testing approach .

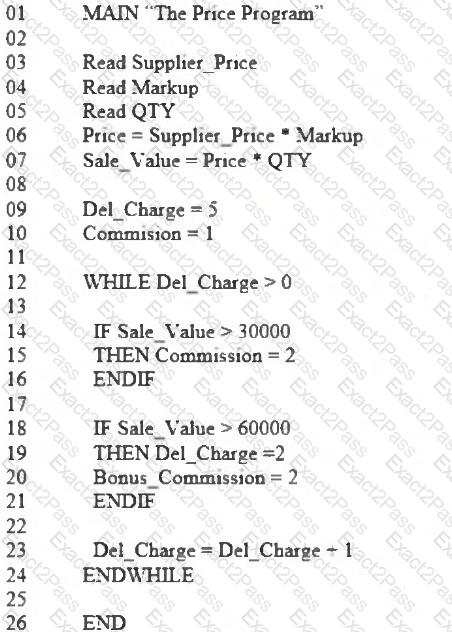

Cyclomatic complexity is a measure of the number of linearly-independent paths through a program's source code, which is often used as a measure of the complexity of a program. The control flow graph provided represents the logic of a software component and has more than 5 nodes with decision points, indicating that the complexity would exceed the maximum allowed value of 5. The calculation for cyclomatic complexity is V(G) = E - N + 2P, where E is the number of edges, N is the number of nodes, and P is the number of connected components. In this case, the calculated cyclomatic complexity exceeds the allowed threshold, thus a defect should be reported.

Service virtualization in the context of developing an e-shop application with an external payment gateway (still under development) offers significant benefits. It allows for realistic testing of the System Under Test (SUT) by simulating the behavior of the still-developing payment gateway, thus enabling testing to proceed without the actual service being available. Additionally, it simplifies the test environment by reducing the complexities associated with integrating and maintaining a live external service during development and testing phases .

The characteristics listed in the question point towards the need to manage synchronization between processes and make efficient use of limited hardware resources, such as microcontrollers and timeslots. Additionally, the complexity and concurrency of tasks highlight the importance of the software's performance over time. Time-behaviour testing is the most appropriate non-functional test type to perform in this scenario as it focuses on evaluating the timing aspects of the system, such as response times, processing times, and throughput rates. It ensures that the system meets its time-related requirements, which is critical for systems reliant on synchronization and limited by hardware performance constraints.

Increasing automated test coverage frees up valuable time for testers, allowing them to focus more on exploratory testing, particularly in high-risk areas. This approach leverages the efficiency of automation to handle routine, repeatable testing tasks, while human testers can focus their expertise on more complex, risk-prone areas that require creative and critical thinking .

In the context of software testing, different safety integrity levels (SIL) require different levels of rigor in testing. According to the IEC61508 standard, for software components rated at SIL 2, achieving 100% statement coverage and 100% decision coverage is recommended. Statement coverage ensures that every line of code is executed at least once during testing, while decision coverage ensures that every decision in the code (e.g., every branch of an IF statement) is executed on both the true and false sides. These coverage criteria ensure a thorough testing of the software components to validate that they behave correctly in all circumstances. Multiple condition coverage and MC/DC coverage (Options A and B) are more rigorous and typically required for higher SIL levels, such as SIL 4.

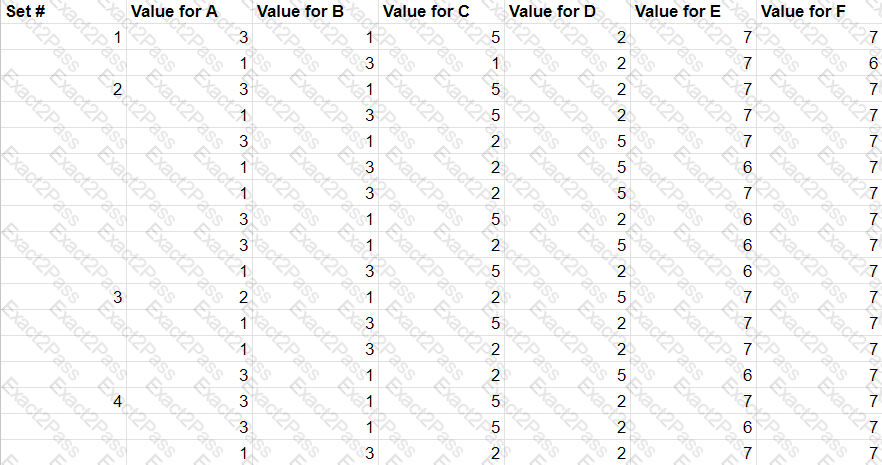

In software testing, especially within contexts like nuclear power plants, achieving a "highly recommended" level of coverage often requires strategic test case selection to verify all logical conditions are accurately assessed. For the condition "If ((A > B) or (C > D)) and (E = F) then print A", the critical tests involve evaluating the boolean logic.

• Test Case Analysis: Test Set 1 is selected because it should ideally include scenarios where:

Maintainability metrics typically used with static analysis include measures that reflect the complexity and understandability of the code, such as Number of Lines of Code (LOC), Number of Function Calls, and Comment Frequency. These metrics help in assessing how easily the software can be understood, modified, and maintained. Mean Time Between Failures (MTBF), on the other hand, is a reliability metric. It measures the time elapsed between inherent failures of a system during operation. MTBF is used to predict the system's reliability and is not directly related to the maintainability of the code. Reliability metrics like MTBF would be used in the testing phase to measure the operational reliability of the system rather than during static analysis for maintainability assessment.

Adopting an Acceptance Test-Driven Development (ATDD) approach can be particularly beneficial in scenarios where previous releases have suffered from misunderstandings among the development team and stakeholders regarding user story requirements. ATDD involves creating executable specifications before coding begins, which clarifies expectations and ensures alignment across the team. This method helps prevent issues seen in earlier stages by providing a clear, agreed-upon criteria for acceptance, thereby reducing the chances of future misunderstandings .

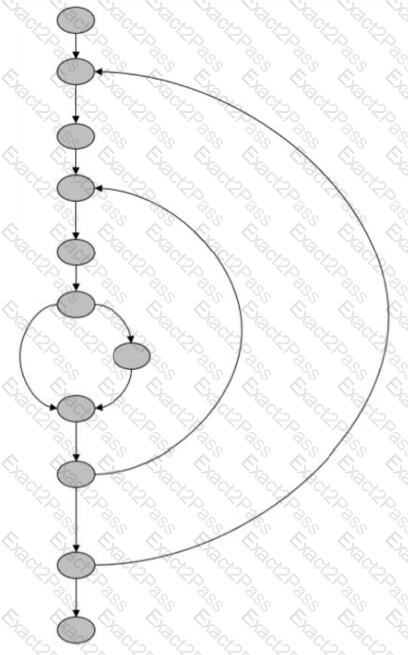

Upon analyzing the control flow diagram provided, there are four distinct paths through the program, considering the flow between decision points and actions. Each path represents a unique sequence of execution through the system logic, dictated by the decision outcomes at various points. This information is critical for ensuring comprehensive testing coverage, as each path may expose different behaviors or outcomes in the application​​.

In addressing the scenario described in the question, the primary considerations for choosing a test approach include the focus on overhauling the user interface, adding new features, and addressing customer complaints in a high-risk environment due to potential customer loss. A regression-averse strategy is also highlighted as critical due to significant changes in design and functionality.

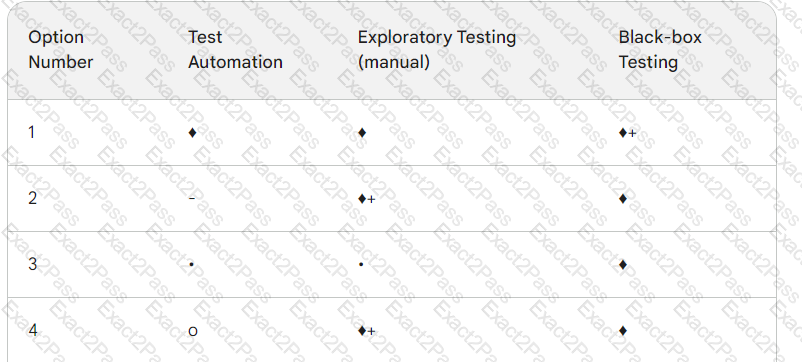

Option D (2) is marked with ♦+ for Exploratory Testing (manual) and ♦ for Black-box Testing, with Test Automation marked as not to be used (−). This selection aligns best with the project's needs for several reasons:

• Exploratory Testing (Highly Recommended): This type of testing is crucial in Agile projects, especially when dealing with UI changes and new functionalities. Exploratory testing allows testers to interact with the system in ways that typical scripted testing may not cover, making it ideal for catching unforeseen issues in new interfaces and features.
• Black-box Testing (Recommended): This testing focuses on the functionality of the application without needing to understand the internal workings. Given the UI overhaul and feature additions, ensuring that the system behaves as expected from an end-user's perspective is necessary.
• Avoidance of Test Automation (Not to be Used): While automation is valuable, focusing primarily on manual testing techniques like exploratory testing is suggested for this specific release due to the extensive UI changes and the need for creative and intuitive testing approaches that adapt quickly to newly developed features.

By using Option D, the test approach supports the dynamic and user-focused nature of the release, addressing both the technical aspects of functionality and the user experience enhancements that are central to this overhaul .

The scenario written in correct Gherkin format and appropriate for the User Story described is Option D:

• Given that three Purchase Orders with a total value of £21.75 have been placed so far this month,
• When the Purchasing Manager requests the list of Purchase Orders placed this month,
• Then the 3 orders and their total value of £21.75 are displayed.

This scenario correctly uses the Gherkin syntax with Given-When-Then structures that clearly specify the context, the action taken by the user, and the expected outcome, making it directly relevant to the user story’s intent .

In setting up a test automation project, the Technical Test Analyst performs activities such as defining interface requirements between tools and training the test analysts to use and supply the data. These activities are crucial for ensuring that the automation tools are effectively integrated and that the team is capable of utilizing these tools efficiently​​.

The statement about performance testing tools that is NOT correct is that they typically drive the application by simulating user interaction at the graphical user interface (GUI) level to more accurately measure response times. In practice, performance testing tools often simulate user interactions at a protocol or service level rather than the GUI level. This approach allows the tools to generate a high load by simulating many virtual users, which would be challenging to achieve with GUI-level interactions due to the higher resource consumption and slower execution speed associated with GUI automation.

Performance testing tools are designed to assess the performance of a system under a particular load and are not primarily focused on the user interface. They simulate multiple users accessing the system simultaneously, which helps in identifying bottlenecks, understanding the system's behavior under load, and determining how the system scales with increasing load. The tools typically simulate user requests to the server, bypassing the GUI to directly test the backend, APIs, or other service endpoints. This method allows for more efficient and scalable testing, enabling the simulation of thousands of users without the overhead of rendering the GUI.

Fault seeding is a method used to evaluate the effectiveness of a testing process. Tools designed for fault seeding intentionally insert known defects into the source code, which are then supposed to be discovered during testing. The main purpose is not to check the input checking capabilities, support specification-based test design techniques, or assess maintainability of the software, but rather to gauge how well the testing process can identify and capture defects. By comparing the number of seeded faults that are found against the total number of faults inserted, test teams can get an insight into the effectiveness of their testing strategies and coverage. This method helps in understanding the detection capabilities of testing efforts and in identifying potential areas for improvement in test processes.

In a continuous integration environment, it's true that automation tools are used to verify the results of the build. This practice ensures that as new code integrations occur, they do not disrupt existing functionality and that all tests pass successfully before further deployments.

• Explanation: Continuous integration environments typically involve automated builds and testing to quickly identify integration issues and ensure that software remains in a state where it can be reliably released at any time.

Only one of the checklist items has been fulfilled in the Java function provided. Option C is correct.

• Checklist Review:

Thus, only the requirement regarding the capitalization of the variable is met, indicating a partial adherence to the specified coding standards .

When purchasing a simulator for performance testing, considerations should include:

• Time to test the tool – How long it will take to validate the simulator itself.
• Cost of hiring specialists – The financial aspect of requiring specialized knowledge to operate or customize the simulator.
• Method and time to upgrade and retest the tool as the software changes – How the simulator can be kept up-to-date with the software it is meant to simulate and the effort involved in retesting it after updates.

These points focus on practical and economic aspects of using a simulator in testing environments.
